Gefen DVI-2-HDSDISSL User manual

DVI to HD-SDI
Single Link
Scaler
USER MANUAL
www.gefen.com

Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
[email protected]
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
The DVI to HD-SDI Single Link Scaler is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
© 2005 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE

TABLE OF CONTENTS
Introduction
Operation Notes
Panel Descriptions
Menu Functions
Supported Input/Output Resolutions
RMT-8HDS-IR Installation
Firmware Update Procedure
Specifications
Warranty
1
2
3
4
6
7
8
9
10

INTRODUCTION
Gefen's DVI to HD-SDI Single Link Scaler is the newest revision of our HD-SDI
conversion line incorporating full single link DVI-D conversion scaled up to SD/HD-SDI
single resolutions. Resolutions of up to 1080p are supported over the HDSDI link for
those that want true “High Definition”. Performance has been greatly enhanced due to
Gennum’s VXP Scaler onboard; allowing for new features such as: Color & Gamma
Correction, Noise Reduction, Detail Enhancement, Aspect Ratio Selection, Pattern
Generator Mode, & Multiple Language Menu Support. Bottom Line? -- More
performance, less cost.
DVI devices are connected to the DVI input and SDI devices are connected to the SDI
output. When the source, display and the Scaler are powered and connected, video
signals are converted to the proper format.
CONTENTS
The DVI to HD-SDI Scaler SL package consists of:
(1) DVI to HD-SDI SL Scaler
(1) 6 foot DVI Cable (M-M)
(1) RMT-8HDS-IR Remote Control
(1) 5V DC Power Supply
(1) User's Manual
1
HOW IT WORKS

OPERATION NOTES
2
On power up, the DVI to HD-SDI Scaler will automatically detect the input format of the
input. The unit is controlled using the included remote.
The following are the buttons for the RMT-8HDS-IR:
- UP (Navigates cursor up)
- LEFT (Navigates cursor left)
- Enter (Accept Operation / Return to Menu)
- RIGHT (Navigates cursor right)
- DOWN (Navigates cursor down)
- MENU (Show / Hide On-screen Display)
- OUTPUT (Change Output Format)
- SOURCE (Non operational)
To bring up the on-screen menu, press the MENU button. Navigation is done using But-
tons up, left, right, and down; Push the Enter button to accept the cursor focus.
Pressing the Output button cycles through the following output modes:
480i - 576i - 720p - 1080i
Other functions and output modes can be accessed through the on-screen menu.
To Restore I/O settings, simply recycle power on the Scaler
*Note: Both dip switches under the remote battery cover must initially be in the OFF
position to communicate with the Scaler.

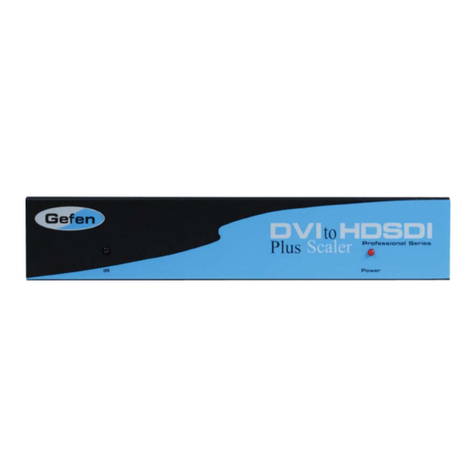

PANEL DESCRIPTIONS
3
DVI-D Input RS-232
Uplink Port HD-SDI
Output
5V Power
Connector
Infrared Eye Power Indicator
Light

MENU FUNCTIONS
Aspect:
-Full Screen: Stretches input to fill the Monitor.
-Letter / Pillar Box: Sets the aspect ratio to fit a letter or pillar box format.
Panoramic Zoom feature
-Extract: Feature to magnify the signal.
-Extract Size: Adjusts signal magnification.
-Horizontal / Vertical Position: Moves the magnified signal Horizontally
and Vertically
-Through: Feature to crop the signal.
-Horizontal / Vertical Size: Horizontally and Vertically contracts or
expands the cropping viewport.
-Horizontal / Vertical Position: Move the signal Horizontally or Vertically
inside the cropping viewport.
Layout: Feature to Re-size Image resolution.
-Size and Position:
-Horizontal / Vertical Size: Adjust Horizontal or Vertical resolution.
-Horizontal / Vertical Position: Move image Horizontally or Vertically.
Picture:
-Image Color:
-Contrast: Individually adjust the contrast for red, green and blue
-Brightness: Individually adjust the brightness for red, green and blue
-Black level: Adjust black levels between 0 (default) and 100
-Detail Enhancement:
-Detail Enhancement: Digitally enhance signal
-Noise Threshold:Adjusts noise allowed in detail enhancement
-Noise Reduction: Digitally reduce signal noise
-Motion Threshold
4

MENU FUNCTIONS (..CONT.)
Input:
-Input Video Format: Auto Detect by default. Signal can be forced to a specific
High-definition resolution. (Please see Supported Input/Output Resolutions for
more information).
-Input Graphic Format: Auto Detect by default. Signal can be forced to a
specific computer resolution. (Please see Supported Input/Output Resolutions
for more information).
-Clean Aperture:
-Horizontal and Vertical Size: Stretch image Horizontally or Vertically
-Horizontal and Vertical Position: Move image in view port Horizontally or
Vertically
-Remote Channel: Changes the IR code of the DVI to HD-SDI Scaler to one
of 4 different settings between 0 and 3. When the remote channel is changed,
dip switches in the remote must be changed to the corresponding code in
order to continue operating the DVI to HD-SDI Scaler.
(Please see RMT-8HDS-IR Installation page for more information.)
Output:
-Output Format: Select the desired output resolution. (Please see Supported
Input/Output Resolutions for more information).
-Genlock Reference: Locks input clock in sync with output clock. (Note: feature
only works if input and output frequencies are multiples of each other)
-Language: Set menu to display English or French text.
-Gamma Correction:
-Default: Set for Default Gamma settings.
-sRGB
-Custom: Enables Gamma Coefficient menu item as the current Gamma
coefficient.
-Gamma Coefficient: (0.3 - 3.0); Default set at 1.0.
Patterns:
-Color Bars: Display color bar video pattern.
-Cross Hatch: Display cross hatch video pattern.
5

SUPPORTED INPUT/OUTPUT RESOLUTIONS
6
Input Video Formats Supported:
480i 720p/50 1080p/23.98 2K-p/23.98
480p 720p/59.94 1080p/24 2K-p/24
576i 720p/60 1080p/25
576p 1035i/59.94 1080p/29.97
720p/23.98 1035i/60 1080p/30
720p/24 1080i/50 1080p/50
720p/25 1080i/50M 1080p/50M
720p/29.97 1080i/59.94 1080p/59.94
720p/30 1080i/60 1080p/60
Input Graphic Formats Supported:
640x350/85 1024x768/75 1280x1024/85 1080p/60
640x400/85 1024x768/85 1360x768/60 1920x1200/60
640x480/60 1280x854 1366x768/60 2048x1080
640x480/75 1152x864/75 1366x923/50
640x480/85 1280x768/60 1440x900/60
800x600/60 1280x960/60 1440x1080/60
800x600/75 1280x960/85 1600x1024
800x600/85 1280x1024/60 1600x1200/60
1024x768/60 1280x1024/75 1680x1050/60
Output video formats supported:
480i 720p/50 1080p/23.98 1080sf/30
480p/59.94 720p/59.94 1080p/24 2K-p/23.98
576i 720p/60 1080p/25 2K-p/24
576p/50 1035i/59.94 1080p/29.97 2K-sf/23.98
720p/23.98 1035i/60 1080p/30 2K-sf/24
720p/24 1080i/50 1080sf/23.98
720p/25 1080i/50M 1080sf/24
720p/29.97 1080i/59.94 1080sf/25
720p/30 1080i/60 1080sf/29.97

7
RMT-8HDS-IR INSTALLATION
1. Remove battery cover from the back of the RMT-8HDS-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up. The
side that is not marked must be facing down.
4. Test the RMT-8HDS-IR remote by pressing ONLY one button at a time. The indica-
tor light on the remote will flash once each time you press a button. WARNING: Do not
press multiple buttons simultaneously and do NOT press buttons rapidly. These actions
will cause the remote to reset and steps 1-4 will have to be repeated.
Note: The RMT-8HDS-IR ships with two batteries. One battery is required for operation,
the second battery is complimentary.
The following are the dip switch combinations that correspond to the Remote Code
menu option on the DVI to HD-SDI Scaler (Please see Menu Functions section for more
information):
12
Remote Channel 0:
12
Remote Channel 1:
12
Remote Channel 2:
12
Remote Channel 3:

Please check http://www.gefen.com/kvm/support/download.jsp for firmware updates and
procedures.
FIRMWARE UPDATE PROCEDURE
8

Input Video Bandwidth.......................................................................................1.65 Gbps
Output Video Bandwidth...................................................................................1.485 Gbps
Maximum Input Resolution...............................................................................2048x1080
Maximum Output Resolution.......................................................................2048x1080p24
DVI Connector.................................................................DVI-I 29 pin female (digital only)
SDI/HD-SDI Connector.....................................................................................BNC fe-
male
Data Port......................................................................................................Serial RS-232
Power Supply...........................................................................................................5V DC
Power Consumption...................................................................................20 watts (Max.)
Dimensions.......................................................................................6.5”W x 1”H x 6.75”H
Shipping Weight.........................................................................................................5 lbs.
SPECIFICATIONS
9
