EXT-UHD600A-12-DS
User Manual
Version A1
4K Ultra HD 600 MHz
1:2 Scaler
w/ EDID Detective and Audio De-Embedder
2
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install or place this product near any heat sources such as radiators, heat registers,
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your
-
ment of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch
this unit or power cord if your hands are wet or damp. Do not expose this
product to rain or moisture.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14.
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15. Batteries that may be included with this product and/or accessories should never be
according to the instructions.
3
Warranty Information
For the latest warranty coverage information, refer to the Warranty and Return Policy under
the Connect section of the Gefen Web site at http://www.gefen.com/connect/warranty-and-
return-policy
4
Contact Us
Technical Support
Email
support@gefen.com
Web
http://www.gefen.com
Mailing Address
Gefen
Core Brands, LLC
c/o Customer Service
1800 S McDowell Blvd
Petaluma, CA 94954 USA
5
Operating Notes
© 2017 Gefen, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying
documentation without prior written notice.
This product uses UL-Listed power supplies
Cable quality is critical when handling 600 MHz HDMI signals. We highly
recommend 10-foot or shorter Gefen Locking HDMI cables. They have been
designed and tested to work at 600 MHz and reliably transport the the full 18.2
Gbps throughput of HDMI 2.0.
The 1:2 Scaler ships with its EDID Selector set to “0”, which is 4K 600 MHz video with
2-Channel audio support. Please see the Manual before selecting other EDIDs via
this switch. Selecting the External/Custom EDID mode when the sink/display has
multichannel support may cause momentary noise in the analog L/R audio output.
To prevent this from happening, disable multichannel audio on the source or select
one of the built-in EDIDs that only supports 2 channels of audio.
In order for the Upscale function to work, the 1080p video input has to be 8-bit
color. 10 and 12-bit color will only pass through as long as the Up-scaler is disabled.
The information in this manual has been carefully checked and is believed to be
accurate. However, Gefen assumes no responsibility for any inaccuracies that may
be contained in this manual. In no event will Gefen be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission
in this manual, even if advised of the possibility of such damages.
The technical information contained herein regarding the features and
6
Features *
• Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock
• Splits a 4K 600 MHz source to two displays, 4K 600 MHz or 1080p
•
• HDMI Features Supported:
*
*
*
* HDCP 2.2 and 1.4
*
*
*
* 3DTV pass-through
*
* Lip Sync pass-through
•
•
interface
• Two independent scalers allow upscaling from 1080p to 4K on one of the outputs and
downscaling from 4K to 1080p on the other, maximizing compatibility in a mixed-
resolution display system
• Built-in Audio De-Embedder breaks out 2 channel analog, 2 channel PCM, and up to 5.1
channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent
•
• Locking power connector
• Surface-mountable
• Compact enclosure is easy to install and can be hidden away
trademarks are properties of their respective owners. Copyright© 2017 Core Brands, LLC.
Features & Packing List
7
Features & Packing List
Packing List
. If any of these
as soon as possible.
8
Table of Contents
Introduction.....................................................................................................................9
Installation .....................................................................................................................11
Connection Instructions.........................................................................................................11
Sample Wiring Diagram....................................................................................................... 12
LED Status.......................................................................................................................13
EDID Modes................................................................................................................... 14
Using Gefen Syner-G™....................................................................................................15
............................................................................................. 15
Control tab............................................................................................................................. 15
Manage EDID tab.................................................................................................................. 17
Update tab............................................................................................................................. 19
Specications ................................................................................................................ 21
9
5V DC
Power
Input
HDMI In EDIDSynerg-G™
1
2
3
4
5
6
7
0
EXT-UHD600A-12-DS
L/R Out Opt Out
DS US
HDMI Out 1 HDMI Out 2
1
5 6
2 3 4
7 8 9 10
Introduction
ID Name Description
1 L/R Out Connect a 3.5mm mini-stereo cable from the
2 Opt Out
3 HDMI Out 1 / DS Connect an HDMI cable from this port to a
UHD/HD display. This is output is used for
pass-thru or downscaling only.
4 HDMI Out 2 / US Connect an HDMI cable from this port to a
UHD/HD display. This is output is used for
pass-thru or upscaling only.
5 5V DC Connect the included 5V DC power supply to
this power receptacle.
10
Introduction
ID Name Description
6Power This LED indicator glows solid blue when the
unit is powered. See
for more information.
7 Input This LED indicator glows solid green when
a source is connected to the HDMI In port.
See for more
information.
8 HDMI In Connect the included HDMI cable from an
HDMI source to this port.
9
connect a PC’s USB port top this connector.
10 EDID Adjust this rotary pot to set the EDID mode.
See page 14 for more information.
11
Installation
Connection Instructions
►Video
1. Connect the included locking HDMI cable from an Ultra HD source to the HDMI In port
on the Splitter.
2.
two outputs of the 1:2 Scaler (HDMI Out 1 and HDMI Out 2
displays is 1080p Full HD, connect it to HDMI Out 1 and make sure that the downscaling
feature is active for this output.
►Audio (optional for audio de-embedding)
3. Digital audio:
Opt Out
not supported.
4. Analog audio:
Connect a 3.5mm mini-stereo cable from the L/R
only supports 2-channel audio.
►Power
5. Connect the included 5V power supply to the 5V DC power receptacle.
6. Connect the AC plug of the power supply to an available electrical outlet.
Note
Note that selecting the External/Custom EDID mode when the sink/display
has multichannel support may cause momentary noise in the analog L/R audio
output. To prevent this from happening, disable multichannel audio on the
source or select one of the built-in EDIDs that only supports 2 channels of audio.
12

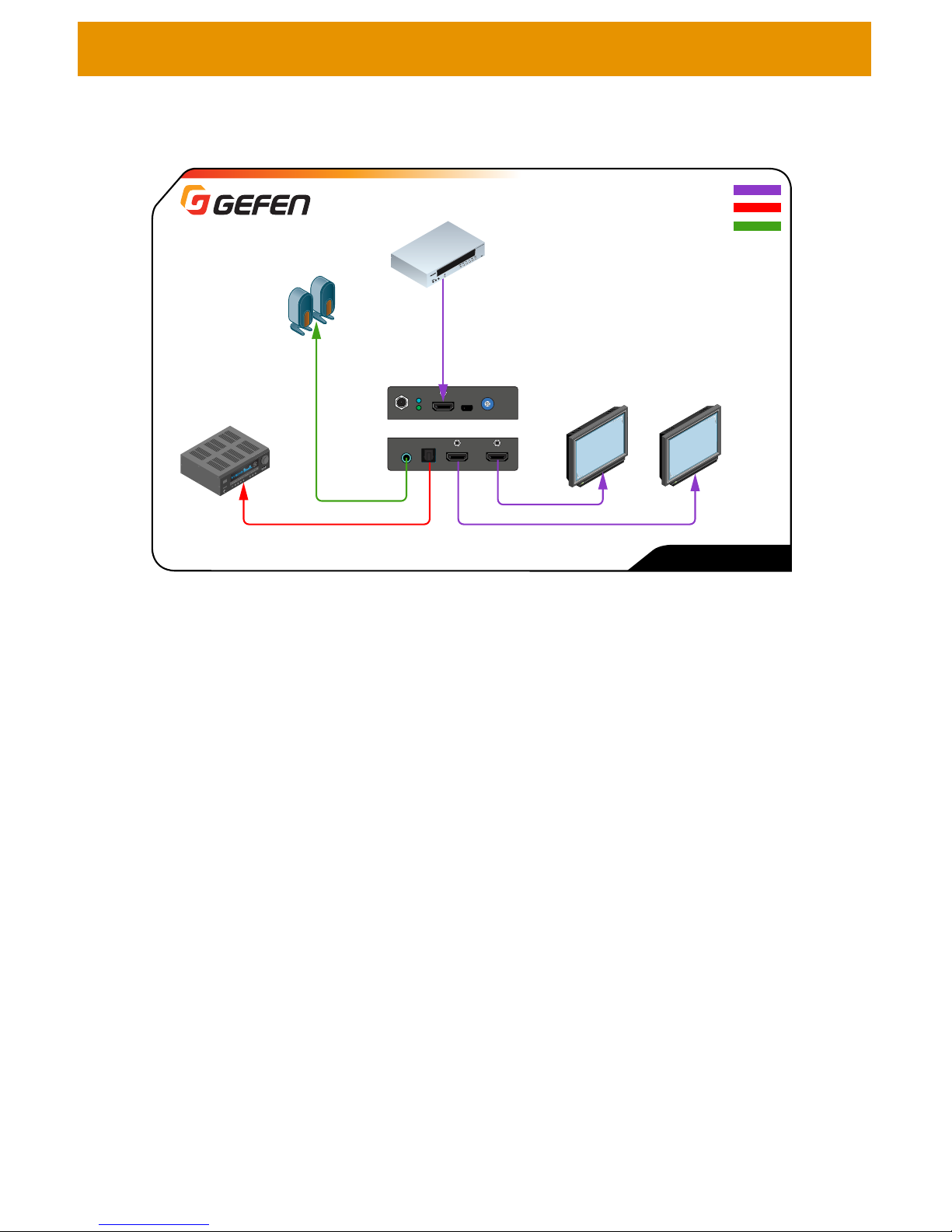

Sample Wiring Diagram
Installation
HDMI
DIGITAL AUDIO (TOSLINK)
ANALOG AUDIO (L/R)
EXT-UHD600A-12-DS
0
1
2
3
4
5
6
7
Power
Input HDMI In EDID
Syner-G
5V DC
TM
EXT-UHD600A-12-DS
HDMI Out 1
DS US
HDMI Out 2
L/R Out Opt Out
4K Ultra HD 600 MHz
Source
4K Ultra HD 600 MHz
Display
4K Ultra HD 600 MHz
Display
Audio Amplifier
w/ optical digital input
Powered Speakers
or Audio Amplifier
w/analog L/R input
EXT-UHD600A-12-DS
Back
Front
13
LED Status
The Power and Link
the current unit status.
Power Description
Solid blue • The unit is powered.
• No power; check the power supply is connected securely,and
that the electrical outlet is active.
Input Description
Solid green •
•
not connected properly.
14
EDID Modes
EDID switch,
either clockwise or counterclockwise, to select the desired EDID. The table below provides a
description of each EDID. The default position is 0.
4K upscaling will only work when 1080p signal is 8-bit color.
Downscaling is limited to 4K EDID modes only.
EDID mode Description
0
1
2
3
4
5 Copies the EDID from HDMI Out 1
6 Copies the EDID from HDMI Out 2
7 User-Defined
5V DC
Power
Input
HDMI In EDIDSynerg-G™
1
2
3
4
5
6
7
0
15
Using Gefen Syner-G™
Connecting to Gefen Syner-G™
following section provides information on the available features.
1. Click the Controls
1.
from the Gefen website at .
2.
Syner-G™
3.
4. Select EXT-UHD600A-12-DS from the Select Product drop-down list.
Control tab
16
HDCP (Input)
• Accept HDCP 1.4
Click this checkbox to accept HDCP 1.4 content. Uncheck this box to block HDCP 1.4
content.
• Accept HDCP 2.2
Click this checkbox to accept HDCP 2.2 content. Uncheck this box to block HDCP 2.2
content.
Both checkboxes can be either enabled or disabled at the same time:
If both Accept HDCP 1.4 and Accept 2.2 are checked, then both versions of HDCP are
accepted. If both are unchecked, then all HDCP content is blocked.
Resolution (Output 1)
• Bypass
Click this button to pass full bandwidth 4K60 4:4:4 with HDR. If this option is enabled,
then the button will be red.
• Down-scale to 1080P
Click this button to accept 4K resolutions and downscale to 1080p 4:4:4. If this option is
enabled, then the button will be red.
• Color Space
Clicking the Enable YUV 4:2:0Bypass
mode. It does not apply to downscaling. Unchecking the Enable YUV 4:2:0 box will
disable 4:2:0 on the output. This is the default setting. Color subsampling is passed
through.
Resolution (Output 2)
• Bypass
Click this button to pass full bandwidth 4K 60 4:4:4 with HDR. If this option is enabled,
then the button will be red.
• Up-scale to 4K2K
Click this button to accept 1080p resolution and upscale content to 4K 4:4:4. If this
option is enabled, then the button will be red.
• Color Space
Clicking the Enable YUV 4:2:0 checkbox will force 4:2:0 on either Bypass or Up-scale to
4K2K mode. Enabling this option is used when the source is 4K 60Hz 4:4:4 and the sink
is only 4K 60Hz 4:2:0 capable. Unchecking the Enable YUV 4:2:0 box will disable 4:2:0
on the output. This is the default setting. Color subsampling is passed through.
Using Gefen Syner-G™
17
External - Output 1
Reads the EDID of the device connected to HDMI Out 1.
External - Output 2
Reads the EDID of the device connected to HDMI Out 2.
Internal - User Dened
Save As
Using Gefen Syner-G™
Manage EDID tab
1. Click the Manage EDID
18
Using Gefen Syner-G™
View
Browse
Upload
Cick this button to upload the selected EDID. Before uploading the EDID, the EDID
rotary switch must be set to the “7” position.
19
1.
Syner-G™
2.
3. Select EXT-UHD600A-12-DS from the Select Product drop-down list.
4. Click the Update tab.
Using Gefen Syner-G™
Update tab
5. Scroll down toward the bottom of the screen.
6. Click the Start
20
7. Click the Install button to being the upgrade process. Note that the Install button will
8.
Save button.
If the unit is being updated manually, click the Browse button under the Install from File
section, then click the Install button to begin the update process.
Manual update only
Using Gefen Syner-G™
Table of contents
Other Gefen Media Converter manuals
Gefen
Gefen EXT-3GSDI-2-HDMI1.3S User manual
Gefen
Gefen GTB-HD-1080PSGTB-HD-1080PS-BLK User manual
Gefen
Gefen EXT-HD-3G-C User manual
Gefen
Gefen GTB-HD-1080PS-BLK User manual
Gefen
Gefen EXT-HDMI1.3-2-3GSDIS User manual
Gefen
Gefen RMT-8HDS-IR User manual
Gefen
Gefen EXT-GSCALER-PRON User manual
Gefen
Gefen DVI to VGA Conversion Box User manual
Gefen
Gefen DVI-2-HDSDIPRO User manual
Gefen
Gefen HDSDI-2-DVISP User manual
Gefen
Gefen EXT-UHD600-14 User manual
Gefen
Gefen HD Mate Scaler User manual
Gefen
Gefen DVI-2-HDSDISSL User manual
Gefen
Gefen HDSDI-2-DVIL User manual
Gefen
Gefen HDMI Super Booster Plus User manual
Gefen
Gefen EXT-HDVGA-3G-SC User manual
Gefen
Gefen HDSDI-2-DVI User manual
Gefen
Gefen EXT-UHD600-18 User manual
Gefen
Gefen Scaler Pro User manual
Gefen
Gefen EXT-HDMI1.3-2-3GSDI User manual
Popular Media Converter manuals by other brands
Black
Black BLK-IPE4101 user manual
National Semiconductor
National Semiconductor ADC0820 manual
AMX
AMX MAX-CSE installation guide
IMC Networks
IMC Networks MiniMc-Gigabit Operation manual
Hengstler
Hengstler AC 58 SUCOnet installation instructions
Aus Electronics Direct
Aus Electronics Direct AA6232 user manual
