Gemini GWAP23 User manual

1
MODEL NO.: GWAP23
WIFI SMART
HEPA FILTER
AIR PURIFIER
A GILMAN GROUP BRAND
WIFI無線網絡智能
HEPA高效濾網
空氣淨化機

2
Please read and retain for future reference.
• Ensure the appliance is in placed on a horizontal, even and stable surface.
• Verify that the mains voltage is the same as that indicated on the rating plate
on the appliance before use.
• Make sure that you always use a grounded wall socket to connect the
appliance.
• Always remove the plug from the wall socket when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Make sure that the appliance, the power cord and plug do not make contact
with water.
• Make sure that the appliance, the power cord and plug do not make contact
with hot surface, such as a hot hob or naked ame.
• Check the appliance’s power cord regularly to make sure it is not damaged.
• Do not use the appliance if the power cord is damaged. If the power cord is
damaged, it must be replaced by an electrical technician or a person with
similar qualication, in order to avoid any hazards.
SAFETY INSTRUCTION - GENERAL
SAFETY INSTRUCTION - ELECTRICITY AND HEAT
• Use this appliance solely in accordance with these instructions.
• This appliance is for household personal use only, not for commercial purpose.
• Remove all packaging material from the appliance before use.
• This appliance shall not be used by children of 0 to 8-year old.
• This appliance can be used by children older than 8-year old and persons
with reduced physical, sensory or mental capabilities or lack of experience
and knowledge, but only if they have been given supervision or instruction
concerning use of the appliance in safe way and understand the hazards
involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance must not be done by children.
• Have any repairs carried out solely by a qualied electrician. Never try to
repair the appliance yourself.
• Do not handle the plug or appliance with wet hands.
• Do not immerse the main body in water.
• Children shall not play with the appliance.
• Do not leave the appliance unattended when connected to the mains supply.
• Only use the attachments/accessories supplied with the product.

3
• Leave at least 30cm of space on the back and sides of the product, and at
least 50cm of space above the product when using.
• Please remove the packaging of the HEPA lter before using for the rst time.
• Do not pick up the appliance if falls into water. Remove the plug from the
socket immediately. Do not use the appliance again.
• Never immerse the appliance, the power cord or the plug in water or any
liquid.
• Do not use the liquids, such as water or ammable solvents to clean the product,
please use a soft cloth to clean when product not in running.
• Please keep air circulation and do not cover air inlet/outlet and detect air quality
sensor when the product is running.
• Do not use other type power adapters, keep use the original accessories
which accompany with the package.
• Please refer to “Cleaning and Storage” section to clean the appliance.
SAFETY INSTRUCTION - DURING OPERATION

1 2 3
4
5
6
7
4
Main Unit

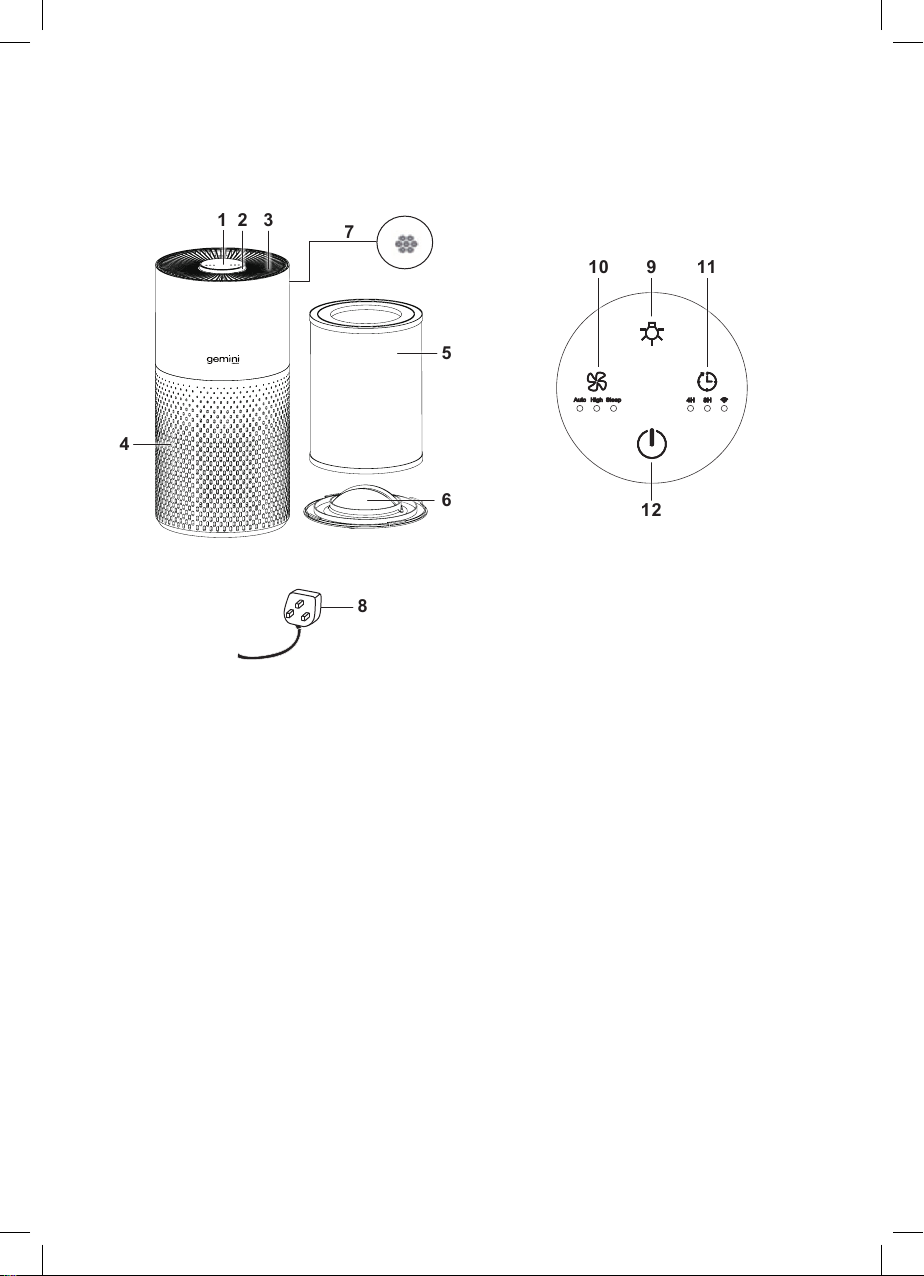

1. Control Panel
2. LED Light Ring
3. Air outlet
4. Air inlet
5. 3-IN-1 HEPA filter
6. Base Cover
7. Detect air quality sensor
8. Adaptor
Control panel
9. LED ring light touch button (Off/ Soft/Bright)
10. Wind speed touch button ( Auto/High/Sleep)
11. Timer Off/ WiFi setting touch button (4/8H/WiFi)
12. Power On/ Off touch button
PRODUCT OVERVIEW
Main unit Control panel
Back side
8
9
12
10 11
Off / Soft / Bright

5
INSTALLATION FILTER

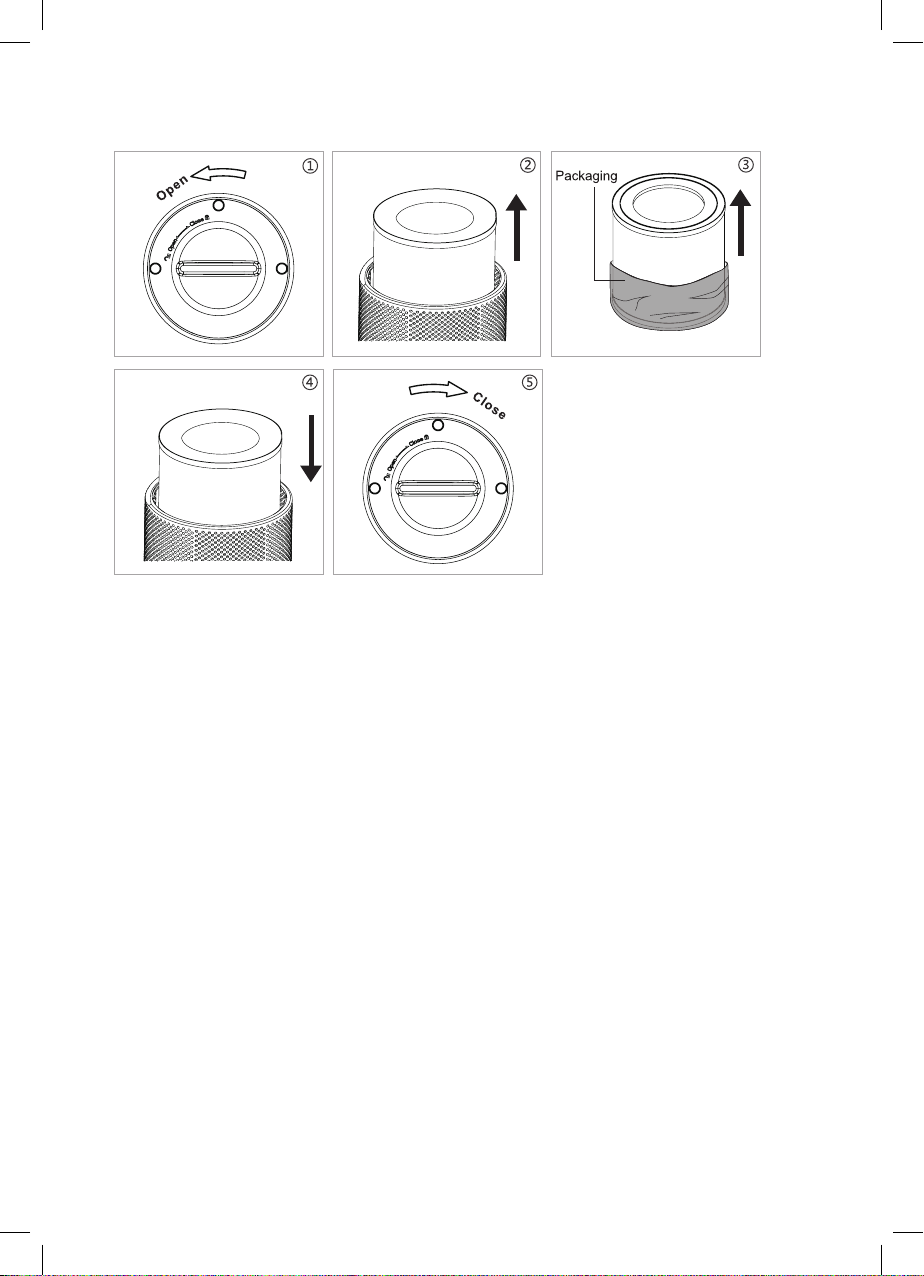

• Invert the appliance, and rotate the base cover along the direction marked
“OPEN”. (Pic 1)
• Take out the 3-IN-1 HEPA lter from the appliance. (Pic 2)
• Remove the packaging of the 3-IN-1 HEPA lter. (Pic 3)
• Install the 3-IN-1 HEPA lter into the appliance. (Pic 4)
• Then install the base cover, rotate and tighten the base cover along the
direction marked “CLOSE”. (Pic 5)
WARNING
• Please remove the polybag packaging of the 3-IN-1 HEPA lter before using
for the rst time.
• Ensure the appliance is unplugged before removing or installing the 3-IN-1
HEPA lter.
FILTER REPLACEMENT
• When the LED light ring keeps ashing in red as lter replacement warning
indicator, the lter should be replaced.
• When you replace a new 3-IN-1 HEPA lter, connect the power supply again,
press and hold the ON/OFF touch button for 5 seconds to disengage the red
warning indicator for replacing the lter
NOTE:
• User use the appliance at the rst time, after remove the polybag of the lter
and install it in place. No need to reset the lter.
• For best performance, suggest replacing a new 3-IN-1 lter around 3-6 months.

6
OPERATING INSTRUCTION
Power ON/ OFF Touch Button
• Touch the power ON/OFF touch button to turn on the appliance, hear a
“beep” sound. And the default setting is High wind mode, the corresponding
wind speed indicator lights on.
• Touch the button again to turn off the appliance, the “beep” sound rings for
once and the appliance will turn off with all lights turn off.
Wind Speed Touch Button
• During the working, you will hear a “Beep” sound when you touch the wind
speed touch button each time. Touch the wind speed touch button to set
among the wind speeds of Auto-High-Sleep, and the corresponding white
indicator lights on.
• Auto mode means the wind speed will automatically adjust according to air quality.
• Red LED light ring - Bad air quality (default High wind speed setting automatically)
• Yellow LED light ring - Normal air quality (default Mid wind speed setting
automatically)
• Blue LED light ring - Good air quality (default Low wind speed setting auto-
matically)
• High Wind Mode: connect the power supply, the light ring will turn among
b lue, cyan, green, yellow, red, purple. After around 30 seconds, the appliance
will detect automatically based on detect air quality to display the air quality
condition, the LED light ring (Blue/Yellow/Red), but the wind speed keeps at
high wind mode.
• Sleep Mode: runs at low wind speed, the LED light ring will at the purple
gradient for about 3 seconds, then the appliance will detect the air quality
automatically by the detect air quality sensor to display the LED light ring
(Blue/ Yellow/ Red), if no operation for about 5 seconds, all light ring will be
off. Press any button can wake up the light.
LED Light Touch Button
• During the working, touch the LED ring light touch button, hear a “Beep”
sound, and to set Soft light or Bright light mode of the LED light ring.Touch
the button again, hear a “Beep” sound, the LED light ring turn off completely.
NOTE: The LED light button can not operate in the status of shutdown.
Timer Off/ WiFi Setting Touch Button /
• During the working, touch the Timer off touch button to set among the circulation
of 4H and 8H timer off with a “Beep” sound, and the corresponding white
indicator lights on.
• Touch again, the timer indicator turns off and the appliance will work
continuously without timer setting.
• In the status of timing the appliance begins to count down. When time is up,
the fan will stop working and all lights and appliance will be off.

7
MOBILE APP USAGE
Scan the QR code, download and install the Tuya Smart App for
mobile APP function, please reference the mobile APP interface below.
WiFi setting
Long press around 5 seconds Timer off/ WiFi setting touch
button can switch to WiFi connection mode, when the WiFi
indicator ashes quickly ( 3 times per second), which means
WiFi works under in EZ mode (default mode) the WiFi
indicator continuous bright, it means the WiFi connection is
successful.
If EZ mode (default mode) connection is failed, long press Timer off/ WiFi
setting touch button again, the indicator ashes slowly (3 seconds once), which
means WiFi works under the AP mode; If the WiFi indicator is off during the
connection, it means the connection fails. You need to operate the previous step
to reconnect the WiFi.
• Long press around 5 seconds Timer off/ WiFi setting touch button can switch
to WiFi connection mode, when the WiFi indicator ashes quickly ( 3 times per
second), which means WiFi works under in EZ mode (default mode) the WiFi
indicator continuous bright, it means the WiFi connection is successful.
• If EZ mode (default mode) connection is failed, long press Timer off/ WiFi
setting touch button again, the indicator ashes slowly (3 seconds once),
which means WiFi works under the AP mode; If the WiFi indicator is off during
the connection, it means the connection fails. You need to operate the previous
step to reconnect the WiFi.

8

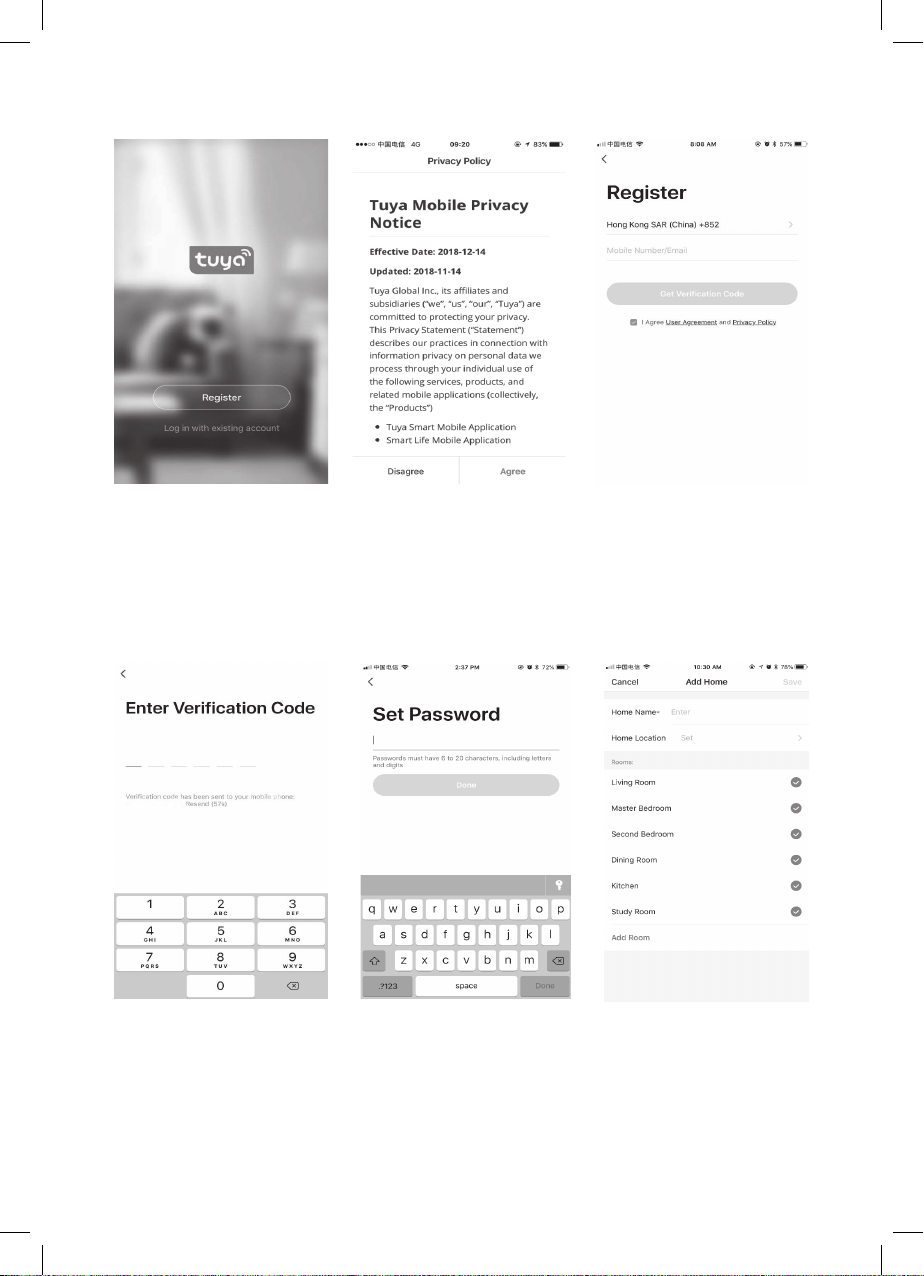

• Open Tuya Smart App and press to create New Account. (Picture 1)
• Enter the privacy policy interface and press Agree. (Picture 2)
• Input your phone number / email to get a verication code to register. (Picture 3)
Picture 1 Picture 2 Picture 3
• Enter the Verication code.(Picture 4)
• Set the password (1-20 characters, including alphabets and numbers) and
tap Done. (Picture 5)
• Fill in the Add home (Home name & Home location) page (Picture 6)
Picture 4 Picture 5 Picture 6

9

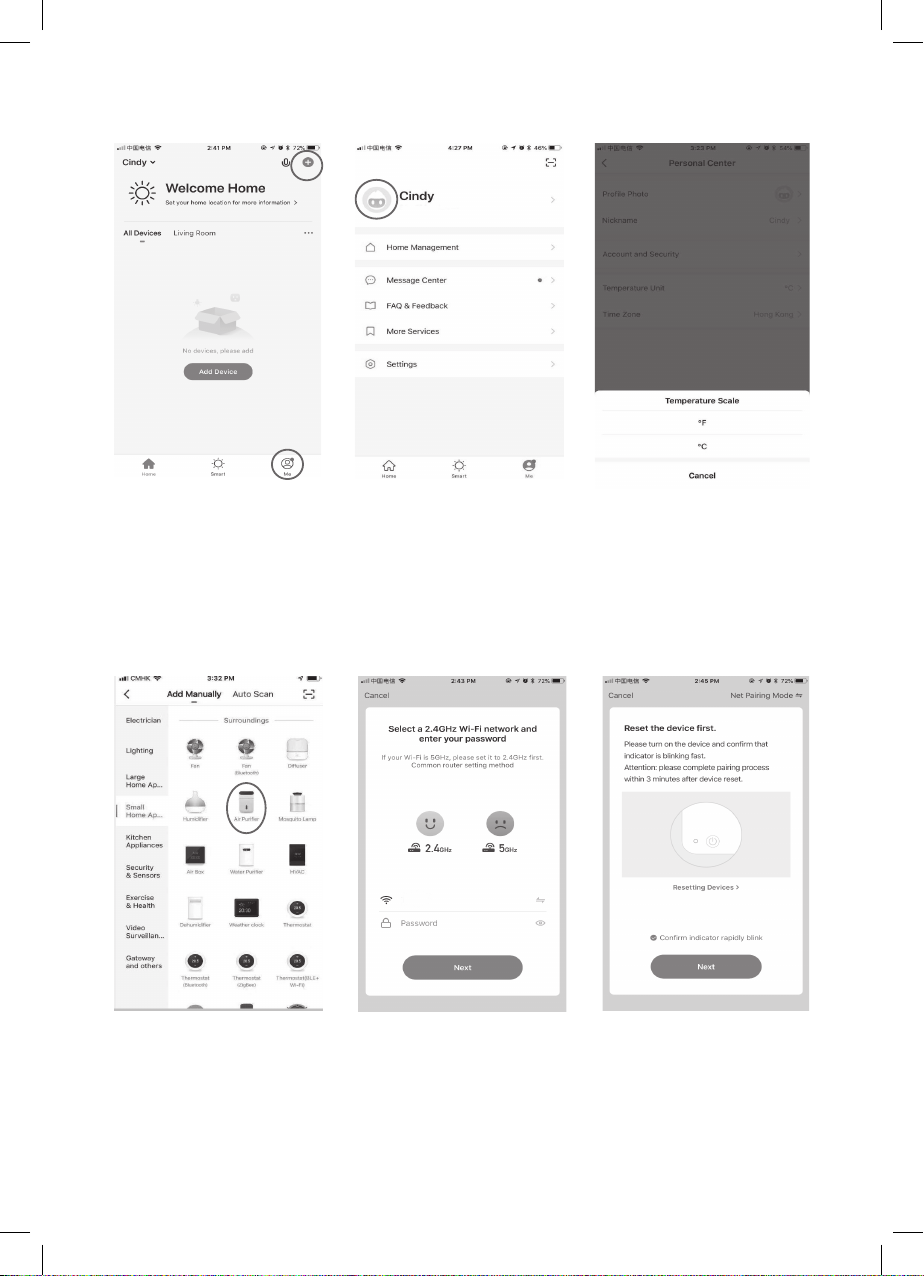

• Tap the “+ ” icon on the right corner of APP to enter into “Select Device Type”
(Picture 7) Or “Me” to select ˚F & ˚C in interface. (Picture 7)
• Choose your personal ID to select ˚F & ˚C in interface. (Picture 8 &9)
Picture 7 Picture 8 Picture 9
Picture 10 Picture 11 Picture 12
• Interface choose “Small Home Appliances”, select “ Air Purier” into “Add
device” interface. (Picture 10)
• Select a 2.4GHz Wi-Fi network and enter the password.(Picture 11)
• Conrm WiFi indicator rapidly blink and go next. If not, press the Timer off/WiFi
setting touch button of the appliance for 5 seconds to ensure the indicator rapidly
blink. (Picture 12)

10
22˚ Kowloon / Overcast
• If EZ mode (default mode) connect to WiFi is failed. Please try to select AP
mode. AP mode: Long press Timer off/ WiFi setting touch button, the indicator
ashes slowly (3 seconds once), please select AP mode in the interface.
(Picture 13)

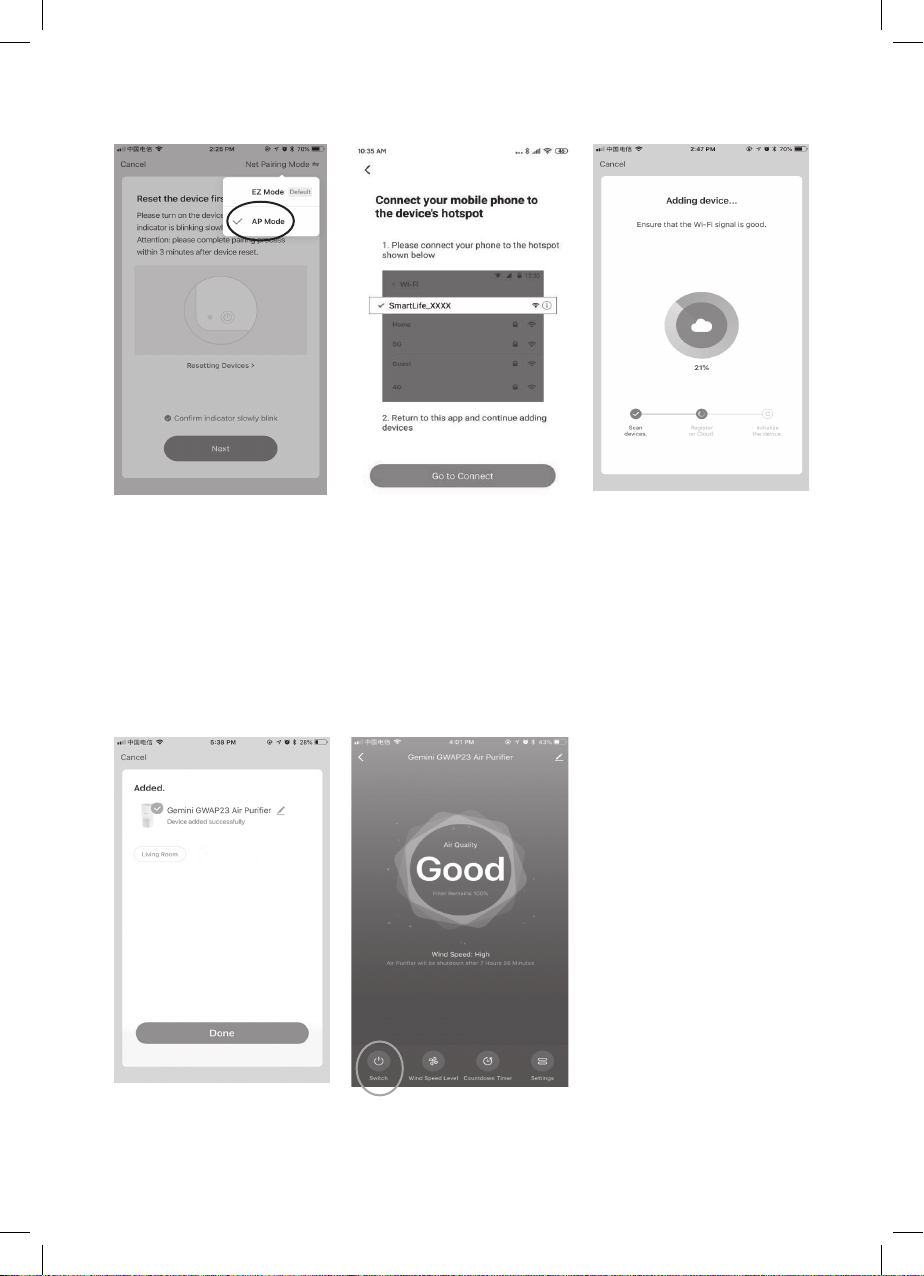

• Search your mobile with device’s hotspot smartlife_XXXX and choose “Go
to connect”. Connect hotspot smartlife_XXXX and tap back button in your
mobile phone. (Picture 14)
• Adding the device until 100% complete in interface. (Picture 15)
Picture 13 Picture 14 Picture 15
Picture 16 Picture 17
• Wait for the device added successfully, then tap “ Done”. (Picture 16)
• You can switch on/off the appliance on the mobile app control panel.
(Picture 17)

11
22˚ Kowloon / Overcast
22˚ Kowloon / Overcast
Picture 19Picture 18

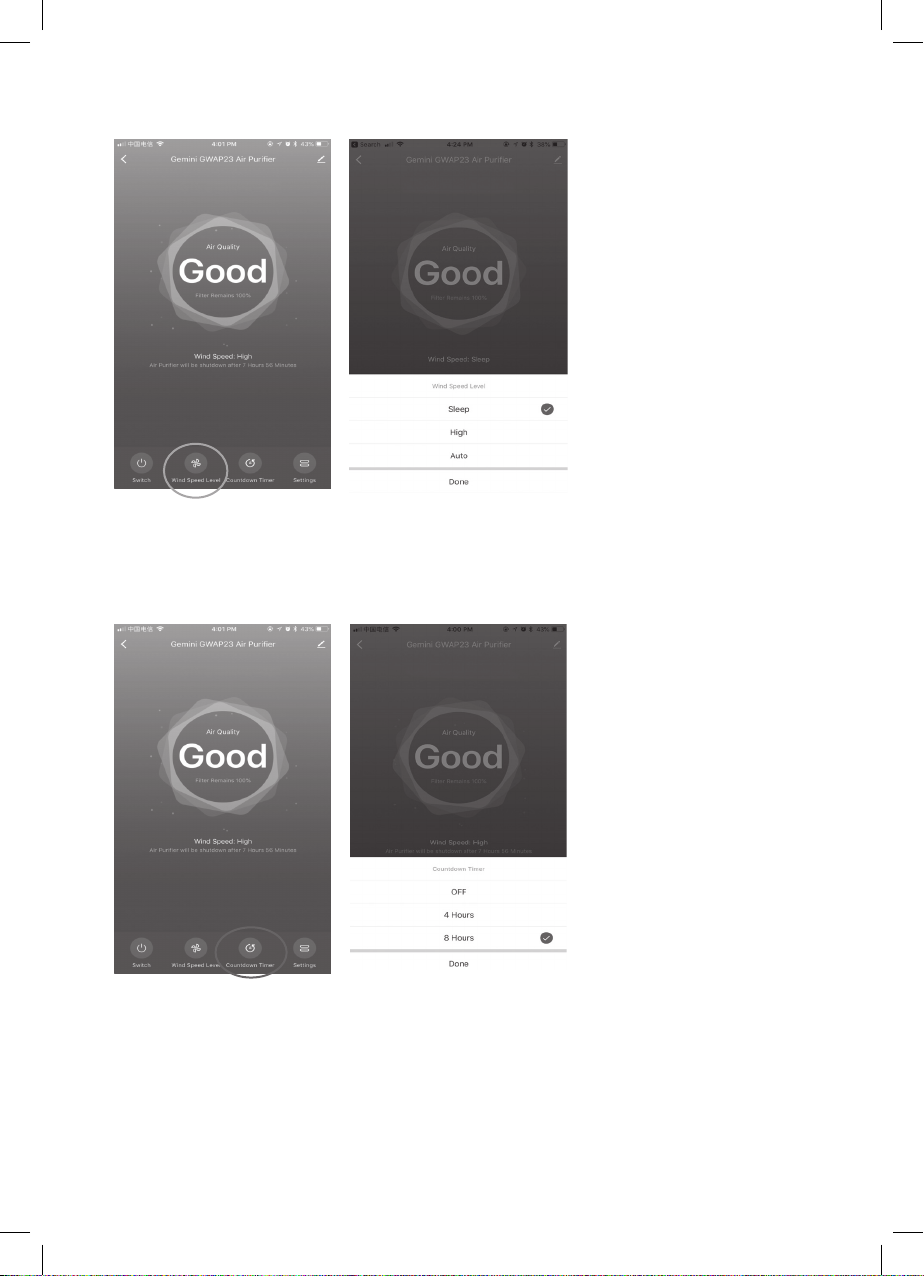

• Press wind speed icon to select the wind speed (Sleep/High/Auto).
(Picture 18&19)
• Press timer icon to select the timer off (4/8 hours) (Picture 20&21)
Picture 20 Picture 21
22˚ Kowloon / Overcast
22˚ Kowloon / Overcast

12
22˚ Kowloon / Overcast
• Press settings icon to adjust lter reset, the light mode (off/ Soft/ Bright) and
pre-set time On/Off setting. (Picture 22-24)
Picture 22 Picture 23 Picture 24
• Press pre-set timer of the settings interface to preset the appliance’s on/off
schedule time. (time: 1-24hours; date: Monday to Sunday). (Picture 25-27)
Picture 25 Picture 26 Picture 27
Note:
• The appliance must be connected with power supply and WiFi.
• Due to the continuous product improvement and updates on the Mobile
APP interface,the above mentioned data and user interfaces are only for
reference.The actual APP interface is subjected to the nal download
version and won’t notice to user in advance.

13
CLEANING AND STORAGE
• Ensure the appliance is power-off and unplugged before cleaning and storage.
• Use a soft cloth to clean away any dust or debris from the surface of the
appliance and air inlet/ outlet.
• Please use a dry cloth to wipe the dust on the 3-IN-1 HEPA the lter regularly,
DO NOT wash the 3-IN-1 HEPA lter.
• DO NOT use a vacuum cleaner to clean the 3-IN-1 HEPA lter
• After cleaning and make sure the appliance completely dry out, put on the
bag and place it in a cool and well-ventilated place.
• DO NOT use abrasive, corrosive or ammable cleanser (such as bleach or
alcohol) to clean any part of the appliance.
• Filter replacement alert: please refer to page 5 for details.
NOTE
• DO NOT drop or immense any water into the appliance when clean the air
outlet.

14
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Not working The power connection is
unreliable;
Make sure the adapter
connect with power
supply effectively
HEPA filter need to
replace
Replace new HEPA filter,
please refer to page
5- Installation Filter.
Poor performance Too much dust in the
surface of filter;
Clean the filter or replace
a new filter. Refer to page
5 Installation filter part
or page 13 Cleaning and
storage part.
Obstacle blocking the air
inlet/ outlet
Remove the obstacles.
Refer to page 13 Cleaning
and storage part.
Significant noise Stuck something on the
fan in the air outlet
Remove the obstacles.
Coming out nasty smell The HEPA filter is dusty; Clean the filter or replace
a new filter. Refer to page
5 Installation filter part
or page 13 Cleaning and
storage part.
Burning smell emits form
the appliance
Unplug the power socket
and contact our after-
sales customer service
centre for assistance.
The reminder of replac-
ing filter is still flashing
after user have replaced
a new one
Have not reset the
appliance
Press and hold the power
On/ Off touch button to
reset the appliance and
the life counter of the
filter will start. Refer to
page 5-Installation filter
Other abnormal situation Unknown reasons Restart the appliance.
If the above investigation fails to solve the problem, please contact our after-
sales service. Do not disassemble the machine by yourself.
* The nal product specication may be varied according to a different lot of
material and actual input voltage power of the usage area.
PRODUCT SPECIFICATIONS
Producrt model no.: GWAP23
Adaptor input: 100-240V AC 50Hz/ 60Hz
Adaptor output: 24V DC 1.2A
Main unit power: 23W
Product dimensions: 195(Diameter) x 388(H) mm

15
安全指引 - 一般安全
安全指引 - 電子和熱能產品
- 請按照這些說明事項，使用本產品。
- 本產品僅供家用，不作商業用途。
- 使用前，請將所有包裝材料拆除。
- 0至8歲的兒童不應使用本產品。
- 超過8歲的兒童可使用本產品，但請勿由肢體不健全、感覺或精神上有障礙或
缺乏相關經驗和知識的人使用，除非有負責他們安全的人對他們使用本產品進
行監督或指導。
- 請務必看顧好兒童，以確保他們不玩耍本產品。
- 兒童不應清潔或維修本產品。
- 當需進行任何維修，必須由專業維修人員進行維修。永遠不要嘗試自己修理本
產品。
- 手濕時不可以接觸電源插頭或本機。
- 主機不可以浸入水中。
- 兒童不可以把玩本機。
- 本機開著後不可以無人監管。
- 只使用隨機附送的配件。
- 請把本產品放置在平穩的表面上使用。
- 使用相符的電源和電壓，以防止觸電。
- 本產品只能使用帶接地線的電源插座。
- 當本產品不使用時，請從牆上的插座中拔掉插頭。
- 從牆上插座中拔掉插頭時，應拿著插頭而不是電源線。
- 確保本產品、電源線和插頭不與水接觸。
- 確保本產品、電源線和插頭不接觸發熱表面，如明火。
- 定期檢查本產品的電源線以確保其沒有損壞。如果電源線損壞，請勿使用其產
品，並須由專業維修人員來更換，以避免出現任何危險。
閱讀下列說明事項並請妥善保管，以供日後參考。

16
安全指引 - 操作期間
- 在使用產品時，產品背面及側面要保留至少30厘米的空間，產品頂部至少保留
50厘米空間。
- 新產品使用前, 請先將HEPA過濾網上的包裝材料拆除。
- 如果本產品落入水中，立即從牆身插槽中拔下插頭，並且不要再次使用本產品。
- 切勿將本產品、電源線或插頭浸入水中或其他液體中。
- 切勿用液體清洗或潑灑本產品，如水、清洗劑或易燃溶劑等，如需清潔，請將電
源斷開，使用柔軟抹布擦拭。
- 請保持本產品周圍空氣暢通無阻，切勿覆蓋本產品的進風口/出風口及檢測空氣
質量傳感器。
- 切勿使用不同規格的電源適配器，請使用本產品附帶的配件進行安裝。
- 清潔本產品 時請參閱“清潔和保養”部份。

17
部件示意圖
主機 輕觸式控制面版
主機
1. 控制面版
2. LED指示燈環
3. 出風口
4. 進風口
5. 3合1HEPA過濾網
6. 底座
7. 檢測空氣質量傳感
8. 火牛
輕觸式控制面版
9. LED指示燈環輕觸感應鍵
10. 風速輕觸感應鍵(自動/高檔/睡眠)
11. 關機時間／WiFi設定輕觸感應鍵(4小時/8小時/WiFi)
12. 開啟／關閉輕觸鍵安裝過濾網
1 2 3
4
5
8
6
7
背面 9
12
10 11
Off / Soft / Bright

18
安裝過濾網
- 輕輕倒轉本機，將底座朝上。握住其手柄推向“OPEN”方向旋轉底座並打開底
座 (圖1)
- 從本機中取出 3合1 HEPA過濾網。(圖2)
- 將 3合1 HEPA過濾網上的包裝材料拆除。(圖3)
- 將該 3合1 HEPA過濾網安裝本機內。(圖4)
- 將底座安到本機，握住其手柄推向“CLOSE”方向旋轉底座並擰緊底座。(圖5)
警告
- 在本產品使用先，請先將 3合1 HEPA過濾網的包裝材料拆除。
- 確保先從電源插座上拔下本機的插頭，然後再拆除/安裝 3合1 HEPA過濾網。
更換3合1過濾網
- 當指示燈環的LED紅燈直閃爍時，代表需要更換3合1過濾網。
- 若更換新的3合1HEPA過濾網，連接電源後，需長按開/關輕觸感應鍵 5秒，以解
除更換過濾網的LED紅色閃爍提示燈。
注意 :
- 當用戶首次使用本機時，安裝好新開的濾網，不需要進行更換濾網重設。
- 為了達到最佳效能，建議在3 - 6個月左右更換新的3合1過濾網。
開
關
包裝

19
使用說明
- 觸摸一次開啟/關閉輕觸感應鍵，聽到 “嗶”一聲，本機預設高檔模式運行，鍵
下的白色指示燈相應亮起。
- 再按一次，聽到“嗶”一聲，本機熄滅，全部指示燈熄滅並關機。
- 在開機狀態，每觸摸一次，會聽到“嗶”一聲，風速在Auto-High-Sleep
(自動/高檔/睡眠)之間循環，對應指示燈亮白燈。
- 自動模式時，風速會自動根據周圍空氣質素調節相關風速。
- 紅色LED燈環 :空氣質素差 (自動調節風速至內置的高檔設定)
- 黃色LED燈環 :空氣質素正常(自動調節風速至內置的中檔設定)
- 藍色LED燈環 :空氣質素良好 (自動調節風速至內置的低檔設定)
- 高風速模式：連接電源， LED環燈在藍色，青色，綠色，黃色，紅色，紫色之間
漸變，約30秒後，本機會探測室內空氣質量程度自動顯示空氣質素為LED燈環
（藍色/黃色/紅色），但風速保持在高風速模式。
- 睡眠模式在低風扇速度下運行，紫色漸變LED環燈約3秒，本機會探測室內空氣
質量程度自動顯示空氣質素為 LED燈環（藍色/黃色/紅色），如果不進行操作約5
秒，所有指示燈將熄滅。按下任何按鍵都可以喚醒LED環燈。
- 在工作期間，觸摸一次關機時間/WiFi設定輕觸感應鍵，聽到 “嗶”一聲，本機
在4H和8H(小時)之間循環，對應指示燈亮白燈。
- 再按一次，定時器指示燈熄滅，在沒有設定關機定時狀態下，本機將連續工作。
- 若開啟關機定時功能，本機開始倒計。達至設置關機時間時，風扇將停止工作，
所有指示燈將熄滅。
開啟/關閉輕觸感應鍵
風速輕觸感應鍵
關機時間/ WiFi設定輕觸感應鍵 /
- 在工作期間，觸摸一次LED燈輕觸感應鍵，聽到 “嗶”一聲，調整柔和或明亮
亮度的LED指示燈。
- 再按一次，聽到“嗶”一聲，LED環燈熄滅。
注意 : 在關機狀態下，不可調節 LED環燈輕觸感應鍵。
LED燈輕觸感應鍵

20
掃描圖QR，下載並安裝Tuya Smart App ，更多手機
APP功能，請參考手機APP介面提示。
長按關機時間/WiFi設定輕觸感應鍵約5秒，可以切換到WiFi工作模式，當WiFi指
示燈快速閃爍（每秒3次）時，這代表WiFi在快連(默認)模式下工作，當WiFi指示
燈長亮時, 則代表WiFi連接成功。
如果快連(默認)模式連接失敗，請再長按關機時間/WiFi設定輕觸感應鍵，指示燈
緩慢閃爍（3秒一次）這代表WiFi在兼容模式下工作;如果在連接過程中WiFi指示
燈熄滅，則說明連接失敗。您需要執行上一步才能重新連接WiFi。
手機APP下載及說明
主機WiFi設置
手機APP使用
- 長按關機時間/WiFi設定輕觸感應鍵約5秒，可以切換到WiFi工作模式，當WiFi指
示燈快速閃爍（每秒3次）時，這代表WiFi在快連(默認)模式下工作，當WiFi指
示燈長亮時, 則代表WiFi連接成功。
- 如果快連(默認)模式連接失敗，請再長按關機時間/WiFi設定輕觸感應鍵，指示燈
緩慢閃爍（3秒一次）這代表WiFi在兼容模式下工作;如果在連接過程中WiFi指示
燈熄滅，則說明連接失敗。您需要執行上一步才能重新連接WiFi。
