Genano Elixair E600 User manual

Elixair®E600
AIR DECONTAMINATION UNIT
Manual (English)

2
Contents
E600
Contents of delivery
Technical specifications
Precautions
Lifting and carrying
Installation
Operational use
Maintenance
Product storage
End of life Instructions for Disposal
3
4
4
5
5
6
7
8
9
10

3
Elixair®E600
Air Decontamination Device
Congratulations for purchasing a high-quality
product!
Elixair E600’s unique technology removes
even the smallest impurities from indoor air.
These impurities can consist of particles,
viruses, bacteria, mold spores as well as
pollution. The product outlet provides you
clean indoor air without particles or gaseous
contaminants. E600 is designed especially for
the air purification needs of various types of
healthcare spaces and laboratories.
If you start the product for the first time, it is
recommended to use the highest fan speed
for a short period, then lower the speed for
continuous use. Lower fan speed drops the
noise to comfortable level. The room indoor
air is kept clean by continuous circulation
through E600 product.
E600 requires maintenance and service for
removing the collected air contaminants
and replacing the air collector with a fresh
component. Suitable maintenance period is
twelve (12) months.
Genano Oy
Metsänneidonkuja 6
02130 ESPOO
Finland
See our website for contact information:
www.genano.com

4
Contents of delivery
1 E600 unit with power cable
Product package contains the E600 product with power cord
suitable for local AC grid supply socket, four legs and wall instal-
lation accessories.
Disposal of delivery package
Consumer package of this product is made of recyclable carton
and cellulose materials. Dismantle the package before disposal.
Follow the local advisory for recycling materials.
• Air flow adjustable 80…246 m3/h
• Mechanical dimensions (w x h x d): 34 cm x 93 cm x 38 cm
• Weight: 16,7 kg
• Class I electrical installation with Protective Earth (PE) in use
• Rated input voltage: 220-240 Vac ± 10 % fluctuations of mains voltage
• Protected against occasional low energy over voltage spikes in the mains
voltage
• Rated input voltage frequency: 50/60 Hz
• Power consumption: Max 71 W
• Operational temperature range: +5°C…+40°C
• Operational humidity 50 % RH up to +30°C, decreasing to 40 % RH at 40°C
• Max operational altitude 2000 m
• Operational environment pollution degree 2
• This appliance is designed to be used indoors and commercial areas
• Vertically standing assembly or wall installation
Technical specifications

5
! This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance.
! The product shall be used only in dry indoor environment.
!The product shall be used only with connections providing Protective Earth (PE).
!The product has serviceable parts inside. Only Service Personnel authorized by the manufac-
turer shall open the chassis mechanics for maintenance and service.
! The product has maintainable parts inside. For maintenance operations obey carefully the
maintenance instructions given in this user manual.
!For ensuring product’s performance and safety, use only original materials and components
validated and provided by the manufacturer, Genano Oy, Finland.
! The product shall be used only as the User Manual instructs. Improper use of the product may
impair the protection provided by the product design.
Precautions
Caution! Risk of electic shock!
Lifting and carrying
The product weights 16,7 kg. Handle for carrying the product is on the back co-
ver.

6
Installation
Free standing floor installation
Position the product vertically on an even base in close vicinity of the room fresh
air ventilation. Ensure that the air inlets in the bottom sides or the clean air outlet
on top of the product are not covered by other objects. Connect the power
supply cord to a wall socket with Protective Earth (PE) connection.
For safety of use ensure in all installations that the AC power cable can be
detached easily.
Do not install the product in wet locations, outdoors, or sheltered outdoor areas
without temperature control.
Wall Installation
Make sure the wall can handle the weight of the unit. Measure the distance
between hanging holes. Install wall anchors and screws accordingly and place the
unit on the screws. Also horizontal installation is possible.
! The product shall be used and stored indoors.
! Do not use the product in vicinity of concentrated flammable gases, liquids, or
large amounts of dust. The product’s internal operation may ignite the concen-
trated gases or dust.
! Do not use the product in rooms without fresh air ventilation.
!Connect the product with the AC power cord delivered with the product
package.
! Use only AC power cord rated 220-240 Vac and with ground (PE) connection.
Wire diameter >1.5 mm2.
! Do not position the product so that it is difficult to operate if disconnection is
necessary.
! The product shall not be used without legs when in free standing installation

7
Operational use
! This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety. Children should be super-
vised to ensure that they do not play with the appliance.
Picture 1. E600 knobs at the bottom: Supply power inlet, on/off switch and fan
speed control.
1. Turn on the product after connecting AC power cord, press the on/off switch
on bottom plate.
2. Adjust the air volume by turning the fan speed knob on the bottom plate. If
you start the product for the first time in a room, it is recommended to use
the highest fan speed for a short period, then lower the speed for continuous
use. Lower fan speed drops the noise to comfortable level. The room indoor
air is cleaned and kept clean by continuous circulation through E600 product.

8
Maintenance
Only Genano company authorized personnel may perform the maintenance ope-
rations. For maintenance contact the local Genano representative.
!The product has high voltage parts inside.
– Only Service Personnel authorized by the manufacturer may perform
tasks that require opening the product.
– Do not let liquids enter product chassis!
– Disconnect the power supply before any maintenance operation!
Cleaning
De-energize the product by disconnecting AC power cord from 220-240 Vac
50/60Hz. Wipe the product clean with slightly wet cloth. To avoid any damage on
surface do not use strong detergents.
Air collector replacement
Only Genano company authorized personnel may perform the maintenance ope-
rations. For maintenance contact the local Genano representative.
!In order to ensure continuous air cleaning process it is essential to perform
regular maintenance by replacing the collector package with a fresh one.
The air collector absorbs gaseous particles and Volatile Organic Compounds
(VOC). The air collector is in the upper chamber of the product. The air collector
typically wears out in one (1) year cycle and shall be replaced with a fresh one.
Caution! Risk of electic shock!

9
Caution! Risk of electic shock!
The product has high voltage parts inside.
– Only Service Personnel authorized by the manufacturer may perform
tasks instructed here
As a service operation the E600 air decontamination unit requires cleaning of the
collector tube at least once a year. For cleaning the collector tube the product
shall be dismantled for the cleaning. Only Genano company authorized person-
nel may perform the maintenance operations. For maintenance contact the local
Genano representative.
Product storage
If not used the product shall be stored indoors at dry environment. It is recom-
mended to cover the fresh air outlet on top side of the product. This prevents
cumulating of dust that would be spread around as the device is taken into use
and started.

10
End-of-Life instructions for disposal
E600 product shall be recycled by dismantling the product and sorting the com-
ponents into following categories:

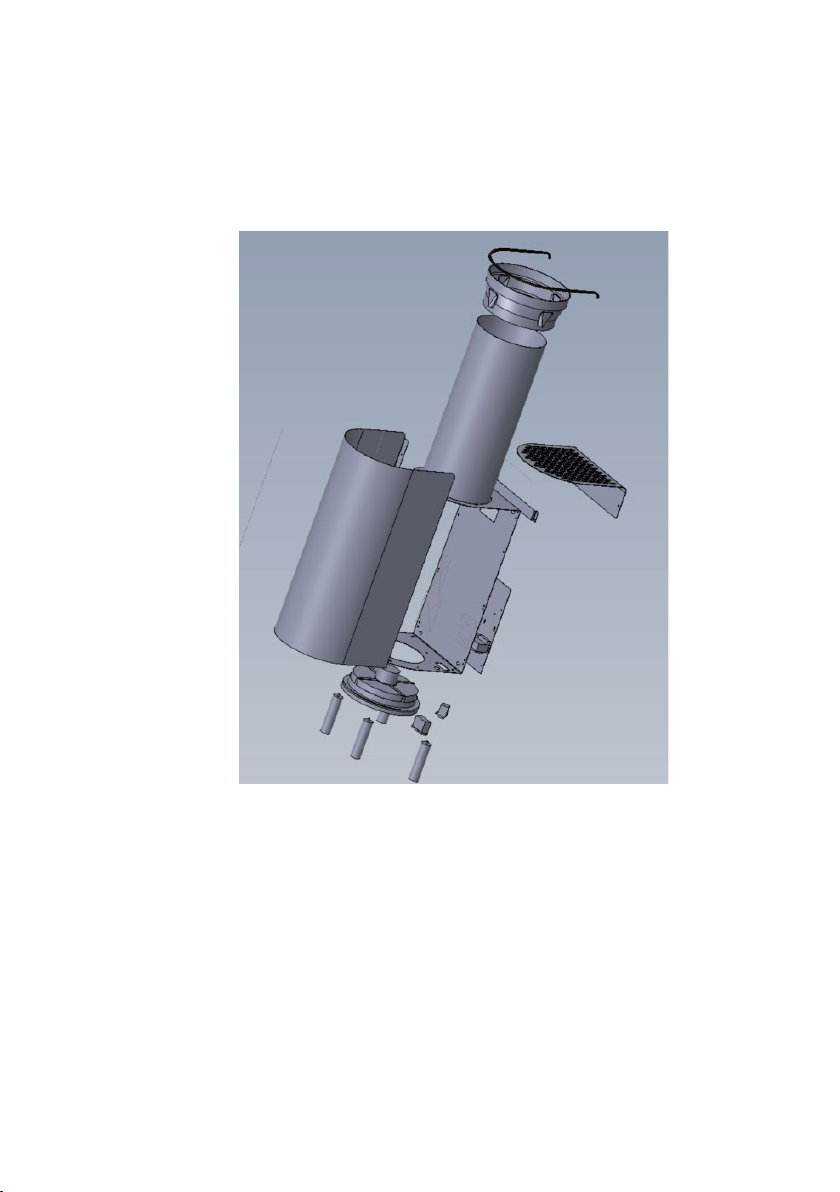

Picture 2: Main components of E600.
1) Product chassis and electronics base plate shall be recycled as aluminium (Al)
parts.
2) Collector tube shall be recycled as ferrous steel (Fe).
3) Electronic components and cables shall be recycled as electronic waste.
4) Active carbon support shall be recycled as plastic waste.
5) Product fan unit shall be recycled as electronic waste.
6) Product cover shall be recycled as aluminium waste.
7) Product’s feet shall be recycled as aluminium waste.

11

www.genano.com
E600-UserManual-EN-revA-ver1
