GENDRON 3648 Instructions for use

GENDRON
BARIATRIC HOMECARE BED
Model: 3648
Owner’s Operation Manual
Gendron, Inc.
520 W. Mulberry Street –Suite 100
Bryan, Ohio 43506
PHONE [phone]

HOMECARE BED
1
Table of Contents
Parts Locator.............................................................................................................2
Safety Notes ..............................................................................................................3
Intended Use & Product Description.......................................................................5
Function & Basic Operation.....................................................................................6
Assembly Instructions..............................................................................................7
Setup Instructions.....................................................................................................8
Operating the Bed...................................................................................................11
Steering the bed...................................................................................................11
Locking the Casters.............................................................................................11
Upright Back Position..........................................................................................12
Siderail Adjustment .............................................................................................12
Actuators, Control & Handset................................................................................13
Diagnostic & Repair................................................................................................14
Cleaning & Maintenance.........................................................................................15
Specifications..........................................................................................................16
Warranty ..................................................................................................................18

HOMECARE BED
2

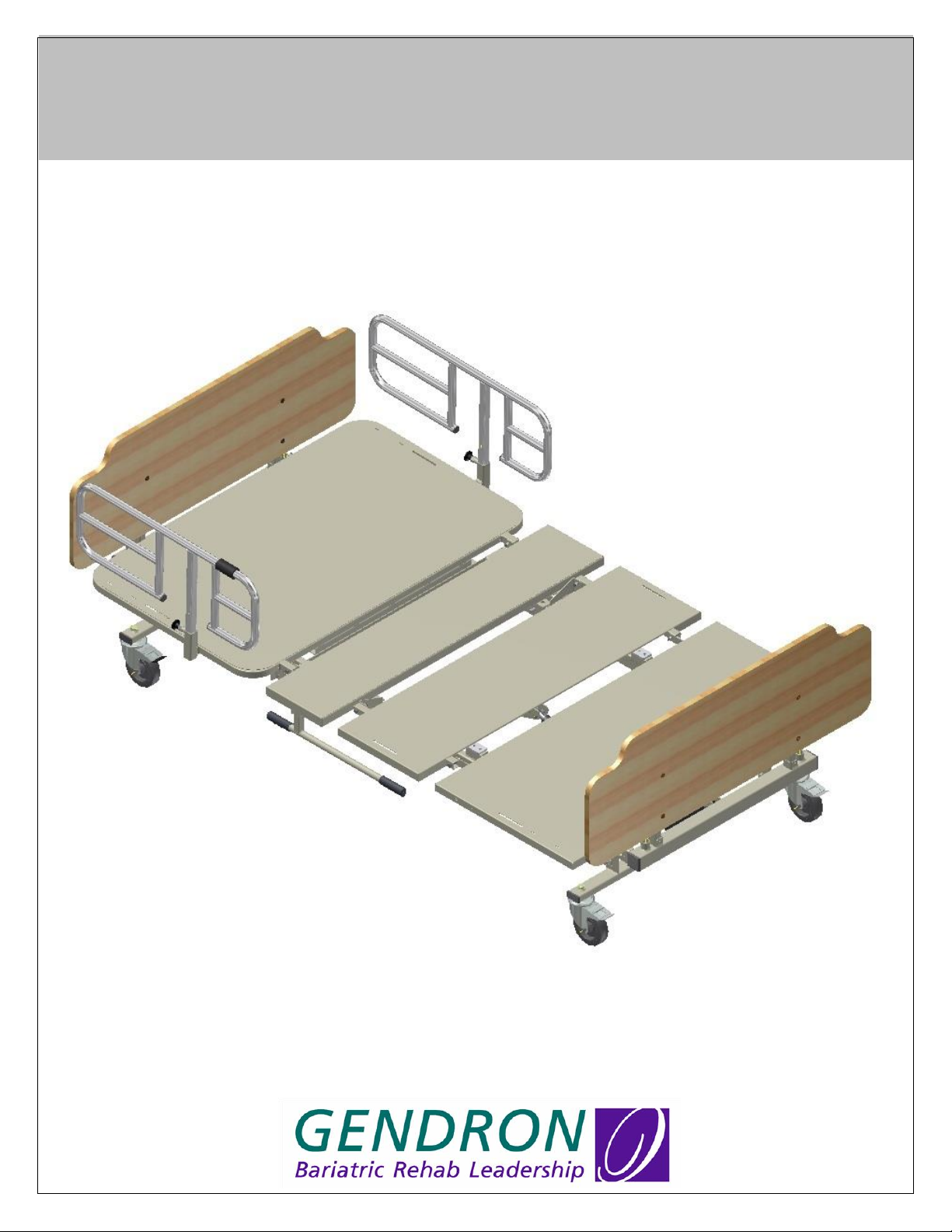

Parts Locator
Pinch points
Keep fingers, arms, legs, and objects clear of bed when any mechanism
is in motion. Make sure all persons and objects are clear of the bed
when raising or lowering.
Brake Caster
Head Board
Back Rest
Siderail
Foot Board
Steer Caster
Leg Lift
Siderail
Release Pin
I.V. Socket
Lift Handle

HOMECARE BED
3
Safety Notes




Always raise the siderails whenever the patient is lying on the bed in supine
position.
Always lock all casters and align parallel to the patient before use.
Take special care to lock the casters securely when articulating the bed or when
transferring the patient to or from the bed.
Do not confuse the head end and foot end of the bed when placing the patient in
the bed.
The mattress should be sufficiently wide enough to prevent any part of the
patient’s body from falling between the side rails and the mattress.
Make sure all persons and objects are clear of the bed when raising or
lowering the bed. Do not place arms or head into frame while
operating.
Moving parts. Watch for pinch points. Keep fingers, arms, legs, and
objects clear of bed when any mechanism is in motion.
Keep all objects out from under the bed. Certain parts under the bed raise and
lower when the bed is in motion. Make sure there is nothing under the bed to
interfere with proper bed operations.
Do not allow the patient to sit on the bed when it is in the highest position.
Lower the bed to the lowest position before allowing patient to sit on the bed.
Equipment not suitable for use in presence of flammable mixtures
Bed should be left in its lowest position when unattended in order to reduce the
risk of injury due to falls while getting into or out of the bed, or while lying on
the bed.
When a patient’s condition could lead to patient entrapment, the mattress
support platform should be left in the flat position while unattended.
Handset must not be accessible to the patient.
Bed does not provide Trendelenburg position.

HOMECARE BED
4
Safety Notes




Weight Limit: Never exceed the safe working load of 650 pounds. Exceeding
weight limit may cause bed to fail. The capacity label is on the Back Rest and on
the UDI number label. Safe working load includes the weight of the patient, the
mattress, and any accessories.
Power Requirements: Electrical hazard may occur if device is plugged into
inadequate power supply. A power source of 100-240 VAC, 50/60 Hertz with a
capacity of at least 3.9 Amperes must be available to operate the bed. A three
wire grounded receptacle must be supplied. A GFCI is recommended.
Do not service this device without first unplugging the power cord.
Make sure the control module and the handset cords are properly positioned
before operating the bed. Do not allow either of these cords to get caught in the
moving members of the bed.
Do not operate this device if the power cord or any of the cords between the
control module and the associated parts are cut, frayed or loosely connected.
Do not use a bed with any missing or damaged parts.
Never disassemble your Bariatric bed. If problems are found, contact Gendron customer
service at 1-800-537-2521 or your local authorized Gendron dealer.

HOMECARE BED
5
Intended Use & Product Description
3-Function Homecare Beds are designed for bariatric patients. The bed is ideal for
long term use in the home or nursing care centers. It is intended for all age groups with
varying medical and physical conditions. Total safe working load of the bed is 650 pounds.
THREE 3-FUNCTIONS
1) Raise and lower head 2) Lift and lower leg and foot section 3) Elevate bed height
Functions are powered by 24-volt DC electric actuators.
Electrical Power: 100-240 volt AC power control module converts system to 24-
volt DC. Electrical actuators, handset, and control module meet UL, CE, & CSA
listing.
Power plug: Three-prong hospital type plug, grounding meets NFPA standards.
Construction: Constructed entirely of welded steel frame, powder coat finish.
Side Rails: Three position, drop down style.
Casters: Heavy Duty 5 inch casters. Two individual total lock (head end) and two
individual steer type (foot end).
Accessory sockets: One IV socket on each corner of bed.
Delivery: Bed frame is disassembled into two sections for handling.

HOMECARE BED
6
Function & Basic Operation
The 3-Function Homecare Bed has electric drive actuators to operate the back rest,
the leg lift, and to raise and lower the bed. To control the positioning on these beds use
the 6-button, 3-function handset. These beds do not have the Trendelenburg or reverse
Trendelenburg feature.
HEAD UP and HEAD DOWN buttons
raise and lower backrest (head end)
The FOOT UP and FOOT DOWN 
buttons raise and lower knee and leg
sections
The BED UP and BED DOWN 
buttons raise and lower the bed

HOMECARE BED
7
Assembly Instructions
1. Install the headboard posts in the square sockets provided at the head end with the
board closest to the mattress as shown below.
2. Install the footboard posts in the square sockets provided at the foot end with the board
away from the mattress as shown below.
3. Install the siderails as shown below.
4. Install the lift handle with bolt and lock nut. Be sure that lift handle is in the correct
orientation (see picture below).

HOMECARE BED
8
Setup Instructions
To Assemble:
Step 1. Lock head & foot end casters parallel to
frame & oriented as shown.
Step 1
Step 2. Move bed into position as shown and hook
the foot end frame over the round bar on
the head end frame.
Step 2
Step 3. Swing lift handle out and slowly lower bed.
Keep both hands on handgrips until bed
has been completely lowered to reduce the
risk from pinch areas.
Step 4. Insert quick release pins on both sides of
frame.
Step 4
Step 5. Connect both actuator cables from foot
end of frame to head end of frame.
Step 5

HOMECARE BED
9
Setup Instructions
To Disassemble:
Step 1. Completely lower bed and all bed sections.
Step 1 & 2
Step 2. Lock head & foot end casters parallel to
frame & oriented as shown.
Step 3. Disconnect both actuator cables from foot
end of frame to head end of frame.
Step 3
Step 4. Remove quick release pins on both sides
of frame.
Step 4
Step 5. Swing lift handle out and slowly lift bed.
Keep both hands on handgrips until bed
has been completely lifted to reduce the
risk from pinch areas.
Step 5 & 6
Step 6. Lift foot end frame away from head end
frame.

HOMECARE BED
10
Setup Instructions
Perform the following checks before using the bed:
1. Do a careful walk around inspection of the bed. Look underneath the bed to make
sure there is nothing stored there. This area must be kept clear to avoid any
interference with bed parts, which move during operation.
2. When bed is in high position, bed should not be placed against a wall. Completely
raise and lower bed to verify that the bed frame will not contact a wall during use.
3. Lock the casters (two individual lock and two steering control type casters) rotate
steering casters until they lock in place.
4. Plug the power cord into a 100-240 volt AC grounded socket with a capacity of at least
3.9 amperes. Using the handset, cycle the bed through all of its operations. (see page
6) Make sure that everyone (including you) is clear of the bed during these operations.
See that:
a) All powered bed operations work smoothly and stop in the desired position.
b) Bed height, angle of the leg lift and backrest can be adjusted as desired.
5. Position the side rails. Be sure they slide up and down properly.
6. When you are satisfied that the bed is operating properly, instruct all personnel who
may be involved in the bed operation.
If problems are found, contact Gendron customer service at 800-537-2521 or your
authorized Gendron dealer

HOMECARE BED
11
Operating the Bed
Steering the bed
The Bed can be steered in two modes, with the steering locked or with all four casters
able to move independently. The two casters on the foot end are the “steer” control type
(page 2).
Foot end: Using the steering lock function
The steering lock function allows you to easily steer the
bed in a straight line.
At the foot end of the bed, step down on the front of
either caster pedal until it clicks, then move the bed in
a straight line about 3 feet backward or forward to lock.
This action will keep the caster from swiveling and allow
better forward and backward movement. The bed can
now be moved with greater stability. Push the bed from
the head end. Do not lock the other steering caster.
“Unlocked”
Using the 4-caster free function
To allow the bed to be rolled alongside a stretcher,
unlock all four casters.
To unlock, step down on the back of the control pedal
on each caster as shown in the illustration.
“Locked”
Locking the Casters
The locking function holds the bed motionless when the bed is parked. Lock all casters
when transferring the patient to and from a bed. Casters are the individually locking type.
For stability when parking the bed, the casters should be positioned in-line with bed frame.




Step here to lock
Step here to unlock

HOMECARE BED
12
Operating the Bed
Upright Back Position
The Backrest stops at any angle between 0 degrees (horizontal) position and an upright
position of about 50 degrees.

Before operating the backrest always ensure that casters are locked.
Otherwise an accident or injury may occur.
Siderail Adjustment
Side rails are located on each side of the bed. Side rails have a 3-position vertical
adjustment.
To raise or lower side rail, grab top section of rail with one hand while pulling the Release
Knob with the other hand. Pull side rail up or down as required. Allow the Release Knob
to spring back into locked position.



Release Knob

HOMECARE BED
13

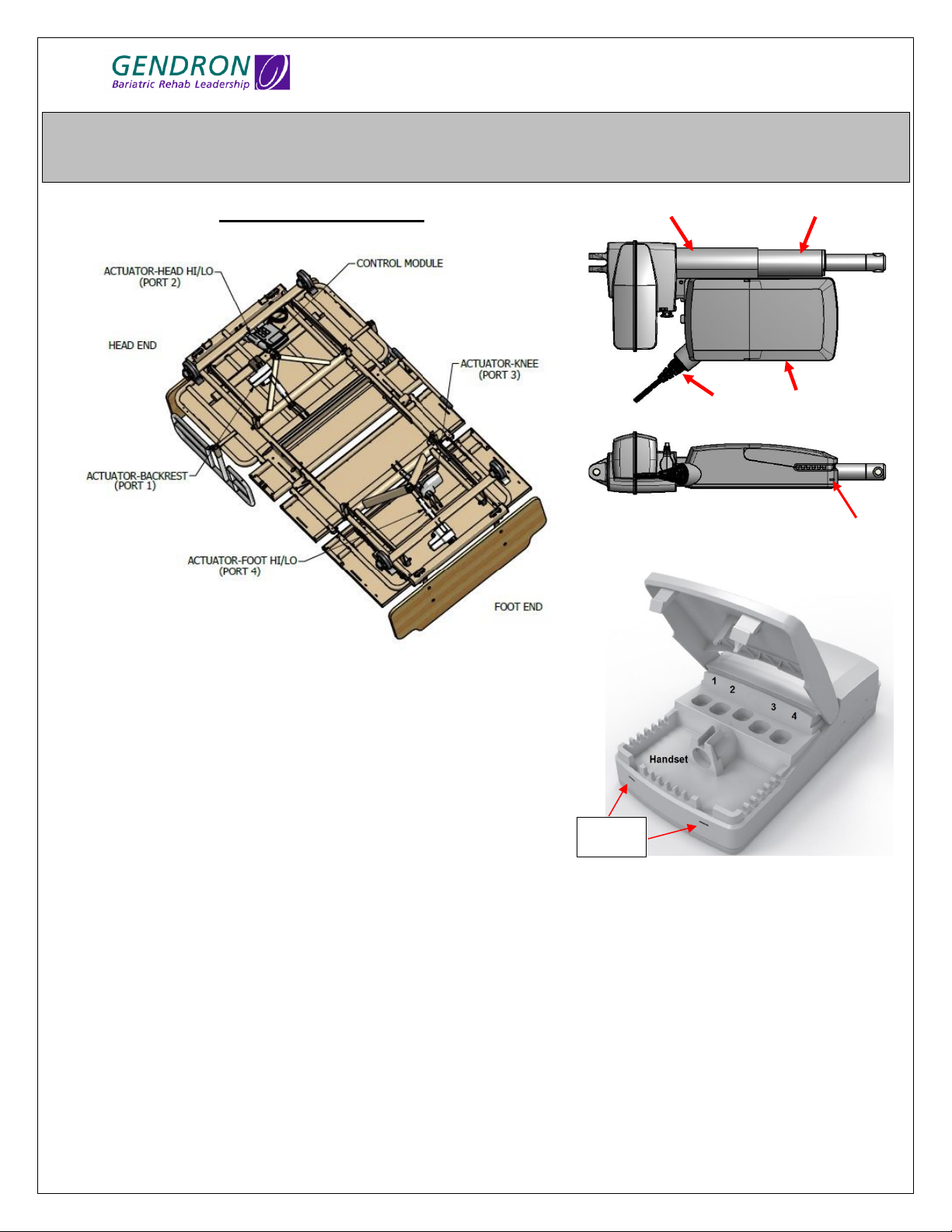

Actuators, Control & Handset
Bottom View of Bed
Mounting Bracket Actuator
Green Power-on Light
Glows when Power Cord
Is plugged into 120V outlet
LINEAR ACTUATORS
The bed is equipped with 24V DC Linear Actuators
designed with built in travel limit switches. Each actuator
is equipped with quick release pivot pins (3/8” x 2”) on both
ends. If disassembled retain pivot pins and hairpin clip.
CONTROL MODULE
The Control Module is designed to control all actuators in
the system. The Control Box mounts directly on one of the
actuators as shown.
HANDSET
The Handset is used to control all actuator functions. When
not in use, Handset hooks on the top of the siderail.
CONTROL MODULE
WIRING DIAGRAM
GROUND WIRE
Green wire from power cord connects
to bed frame. Secure with screw and
star washer.
NOTE:
Before removing connectors from control module for any
reason, disconnect the power cord. Assure that all
connectors are fully plugged in before closing cover on
control module when finished.
Control Module
Cover
Release
Power Cord w/
Green Ground Wire

HOMECARE BED
14
Diagnostic & Repair
Problem
What to look for
Solution
No Power
1. Is green light on control module on?
If yes go to Power but no function
section.
2. Is the mains cable damaged?
If yes, replace mains cable.
3. Is it plugged into the wall?
Plug mains cable into a functional wall
receptacle.
4. Is it plugged into control module?
Plug mains cable into the control
module.
5. Is there power to the wall receptacle?
If yes, replace control module.
Power but no function
1. Is green light on control module on?
2. Is there damage to the handset or cable?
If yes, replace handset.
3. Is the handset plugged in?
Plug in handset.
4. Are all of the motor cables plugged into the
actuators and control module?
Plug motor cables into actuators and
control module.
5. Are any of the actuator motor cables
damaged?
If yes, replace the damaged motor
cable.
6. Is the control module chirping?
If yes, call Gendron Customer Service.
Actuator not functioning
1. Is motor cable plugged into actuator and
control module?
Plug motor cable into actuator and
control module.
2. Is the motor cable damaged?
If yes, replace motor cable.
3. Is the actuator damaged?
If yes, replace actuator.
4. Does the actuator make any sounds when
function button is pushed?
If yes, check for any mechanical
binding on bed.
5a. Can you change ports on the control module
and get it to work? (Ports 1 &3 or 2 & 4)
If initial suspect actuator still does not
move but switched port actuator does,
then replace the motor cable and
suspect actuator. If suspect actuator
moves but switched port actuator
does not, then replace the control
module.
5b. Does other actuator that the port was
switched with not work now?

HOMECARE BED
15
Cleaning & Maintenance

Before cleaning any portion of bed, disconnect power cord from the wall outlet. Do not
use a power washer to clean bed.

Before using any cleaning product, test it on the underside of the bed. Never use any
volatile or flammable fluid (thinner, gasoline, etc.) that could cause discoloration or
deterioration. 
CLEANING
Use mild soap and water or a non-abrasive hospital-grade detergent disinfectant to clean
the bed. Wet a cloth with the cleaning product and wring dry. Then gently wipe off the
bed. Use caution when cleaning around the electrical connections to prevent shock to
the person or damage to the electrical components.
PERIODIC INSPECTION AND MAINTENANCE
INSPECTION ITEM
INTERVAL
EVERY 3
MONTHS
EVERY 6
MONTHS
EVERY 12
MONTHS
CHECK THAT ALL NUTS AND BOLTS ARE TIGHT
X
INSPECT BUSHINGS AND LUBRICATE ALL PIVOTS WITH FDA
APPROVED LUBRICANT
X
CHECK THAT RELEASE PINS SPRING BACK TO LOCKED
POSITION
X
CHECK THAT RETAINING PINS ARE PROPERLY INSTALLED IN
CLEVIS PINS
X
CHECK ALL ELECTRICAL WIRES FOR FRAYS, KINKS AND/OR
DETERIORATION
X
CHECK BRAKE AND STEER CASTERS FOR PROPER
OPERATION AND ORIENTATION
X
CHECK ALL ELECTRICAL CONNECTIONS FOR TIGHTNESS
X
CHECK ALL WELDS FOR CRACKS
X
ANY DISCREPANCIES NOTED DURING INSPECTION MUST BE
CORRECTED BEFORE USING THE BED.

HOMECARE BED
16
Specifications
Product name: Gendron Bariatric Homecare Bed
Model: 3648
650 LB. CAPACITY
Dimensions:
Maximum Overall Width
51”
Pan Width
48”
Overall Length
90” with headboard and footboard installed
Pan Length
84”
Mattress Pan Height
Above floor, adjusts from 15" to 32"
Weight
371 Pounds
Back angle
0 to 50 degrees
Knee gatch angle
0 to 25 degrees
Electrical Input
100-240 VAC, 50/60 Hz -15%/+10%, 3.9 A
Duty Cycle
Max. 10% or 2 min. continuous use followed by 18 min. not in use.
Wash Down Rating
IPX4
Electrical Approvals
UL, CE, & CSA
Note:
All Dimensions are approximate.

HOMECARE BED
17
Specifications
ENVIRONMENTAL CONDITIONS
Operating
Temperature
Relative humidity
Atmospheric pressure
5°C to 40°C (40°F to 105°F)
20% to 90% @ 30°C (85°F) –not condensing
700 to 1060 hPa (20.67 to 31.30 inHg)
Storage and Transport
Temperature
Relative humidity
Atmospheric pressure
-10°C to +50°C (15°F to 120°F)
20% to 90% @ 30°C (85°F) –not condensing
700 to 1060 hPa (20.67 to 31.30 inHg)
ELECTROMAGNETIC COMPATIBILITY
Medical electrical equipment needs special precautions regarding electromagnetic
compatibility (EMC) and needs to be installed and put into service according to the EMC
information provided.
a. Portable and mobile radio frequency (RF) communications equipment can affect
medical electrical equipment. This Product is intended for use in the
electromagnetic environments specified.
b. The end user of this product should assure it is used in such an environment.
i. Portable and mobile RF Communications equipment (cell phones) should
not be used at close distances
ii. Power frequency magnetic fields should be at levels characteristic of a
typical location in a typical commercial or hospital environment.

HOMECARE BED
18
Warranty
Defective parts will be repaired or replaced by the company or its appointed agent.
The warranty does not cover damage caused by misuse or negligence, nor does it
cover defects or damages by use of unauthorized parts or service by an
unauthorized person.
Gendron, Inc. warrants the bed frame to be free from defects in materials and workmanship for a
period of five (5) years from date of purchase. Wear items including, but not limited to: casters,
actuators, control module, handset, power cord, cables, bearings, pins, release knob, and mattress
are warranted to be free of defects in material and workmanship for a period of one (1) year. If
within such warranty period any such products shall be proven to be defective, such product shall be
repaired or replaced, at the company’s option. This warranty does not include any labor or shipping
charges incurred in replacement part installation or repair of any such product. The company’s sole
obligation and your exclusive remedy under this warranty shall be limited to such repair and/or
replacement.
This warranty gives you specific legal rights, and you may also have other rights that vary from state
to state.
For warranty service please contact Gendron, Inc. Return authorization is required. Do not return
products without our prior consent.
FREIGHT DAMAGE: All Gendron product ships FOB Factory, and risk of loss/title to the goods
passes to the buyer at our dock when the carrier signs the BOL. Buyers should carefully inspect all
packages upon receipt, and note any damages with the carrier prior to accepting shipment. Gendron
is not responsible for products damaged in transit.
Should a load arrive with packaging damaged in any way, specific damages should be noted on the
carrier’s Delivery Receipt. If the load has significant damage, it should be refused and returned to
Gendron “FREE ASTRAY,” and Gendron’s Customer Service team should be notified immediately.
In the case of freight damaged equipment returned to our plant, Gendron will assess the damages to
repair the item on a “billable repair” basis. At that point, the buyer has a repair invoice to support a
freight claim with the carrier. Buyers may make their own freight arrangements or use a carrier of
our choice, but all loads are shipped FOB Factory.
RETURN GOODS: Call customer service at [phone].
Do not return merchandise without prior authorization. All correspondence relating to this warranty
must indicate Model and Serial number and be addressed to:
Gendron Inc.
520 W Mulberry St. –Suite 100
Bryan, Ohio 43506
3648 BedOpMan P24753
Rev. F 07/2019
