GeneDireX uBLOOK BK003-000W User manual

LED Transilluminator
Portal to Life Discoveries!

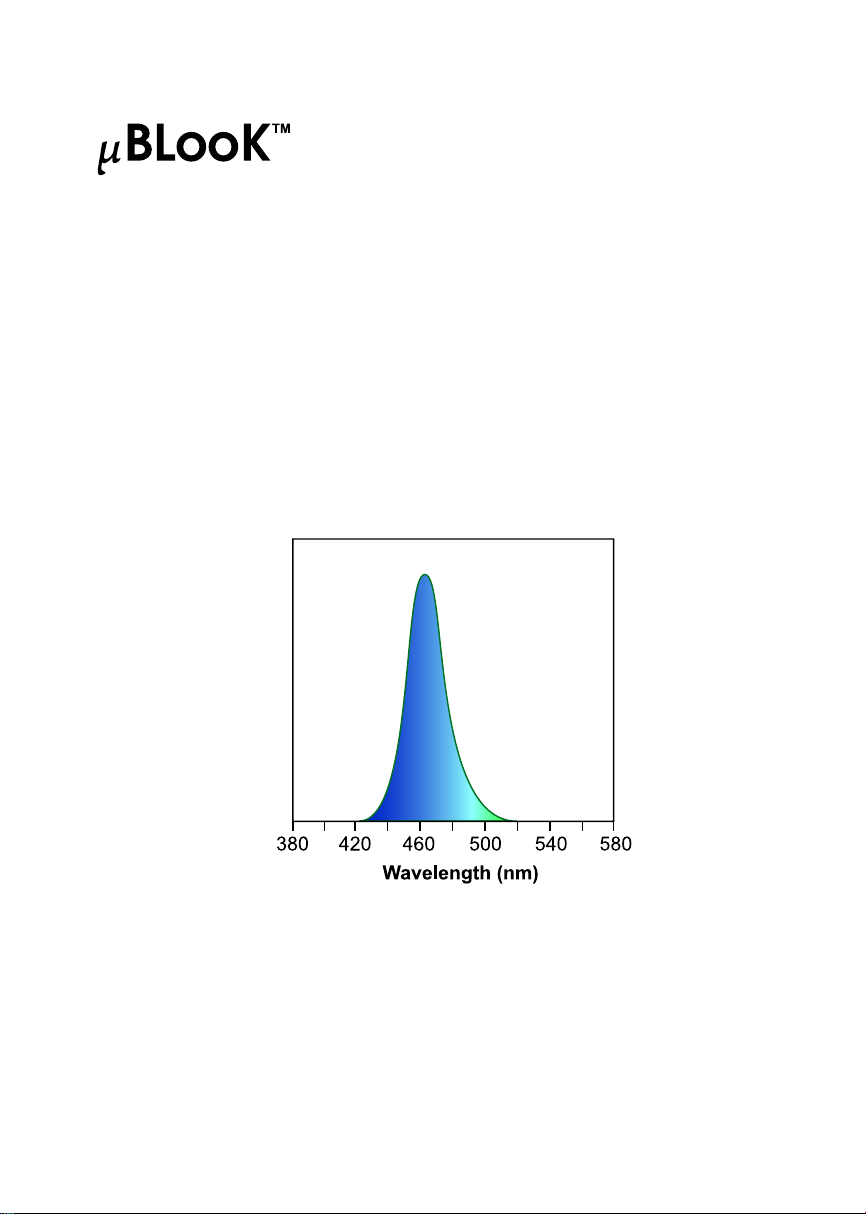

Fig.1. Emission spectrum for the μBLooKTM LED transilluminator
Catalog number: BK003-000W Color: White
Catalog number: BK003-000B Color: Black
Serial number:
Description
μBLooKTM is a remarkable blue light LED transilluminator for the detection of nucleic acids
or protein under non-UV excitation conditions. The wavelength of the special blue LED
lights is 470 nm (fig 1), hence no damage to your nucleic acids or protein. Also, since UV
is not used, there is no need for any special personal eye or skin protection. An amber filter,
on hinges, is lowered into position once your gel is mounted. The stained gel is now ready
for observation. μBLooKTM is designed to inspect the gel, stained with the Novel Juice,
Novel Green, Novel Green Plus after electrophoresis. Further, it is perfectly designed for
OnePCRTM, OnePCRTM HiFi, OnePCRTM HotStar, which contains the fluorescent stain
compatible with the blue light wavelength. However, μBLooKTM is not suitable for ethidium
bromide.
Features
 Optimize for use with the nucleic acid and protein fluorescent dyes.
 Blue light source is good for 30,000 hours.
 No risk of UV damage for high quality work experience.
 The rotating bracket is used for standing the instruments when switching down, easy
to view the gel from the amber filter.
P.01
LED transilluminator

A B C
P.02
Color
Unit dimensions (W × L × H)
Gel viewing dimensions (W × L × H)
Disk (W x L x H)
Weight (g)
Input voltage
Output voltage
LED source
LED life (hours)
Emission maxima (nm)
Store temperature
Operating temperature
Filter type :
White; black
193 mm x 196 mm x 33 mm
88 mm x 119 mm x 10 mm
86 mm x 114 mm x 10 mm
500 g
100-240 V, 50 / 60 Hz
12 V, 1.5 A (18 W)
Built-in blue light LED module
>30000 hours
470 nm
25°C
Ambient to 40°C
Amber filter (ideal for Novel Juice, Novel Green,
Novel Green Plus, OnePCRTM, OnePCRTM HiFi,
OnePCRTM Hotstar, OnePCRTM Plus, OneMark B,
OneMark 100
Specifications

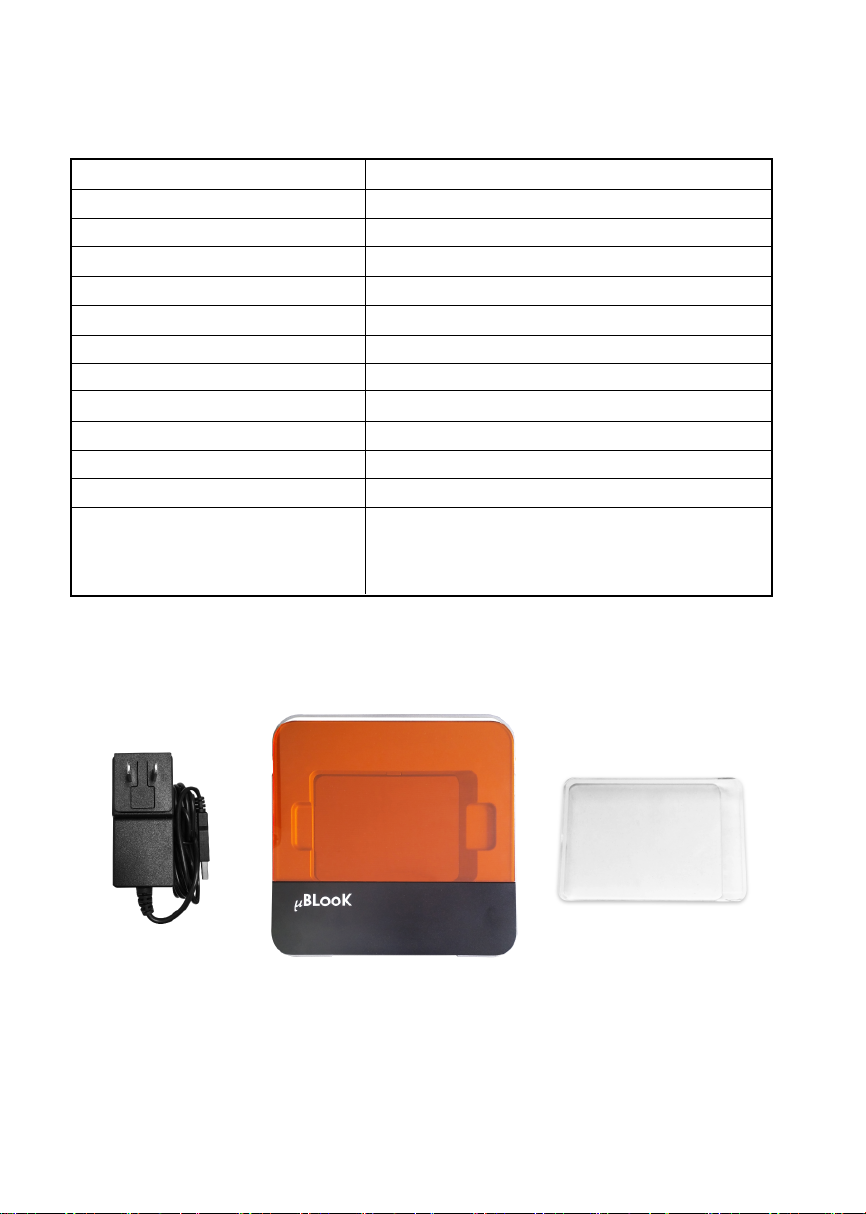

Contents:
(A) Power Cord: Used to connect the μBLookTM port with the power socket
(B) μBLooKTM LED transilluminator
(C) Tray

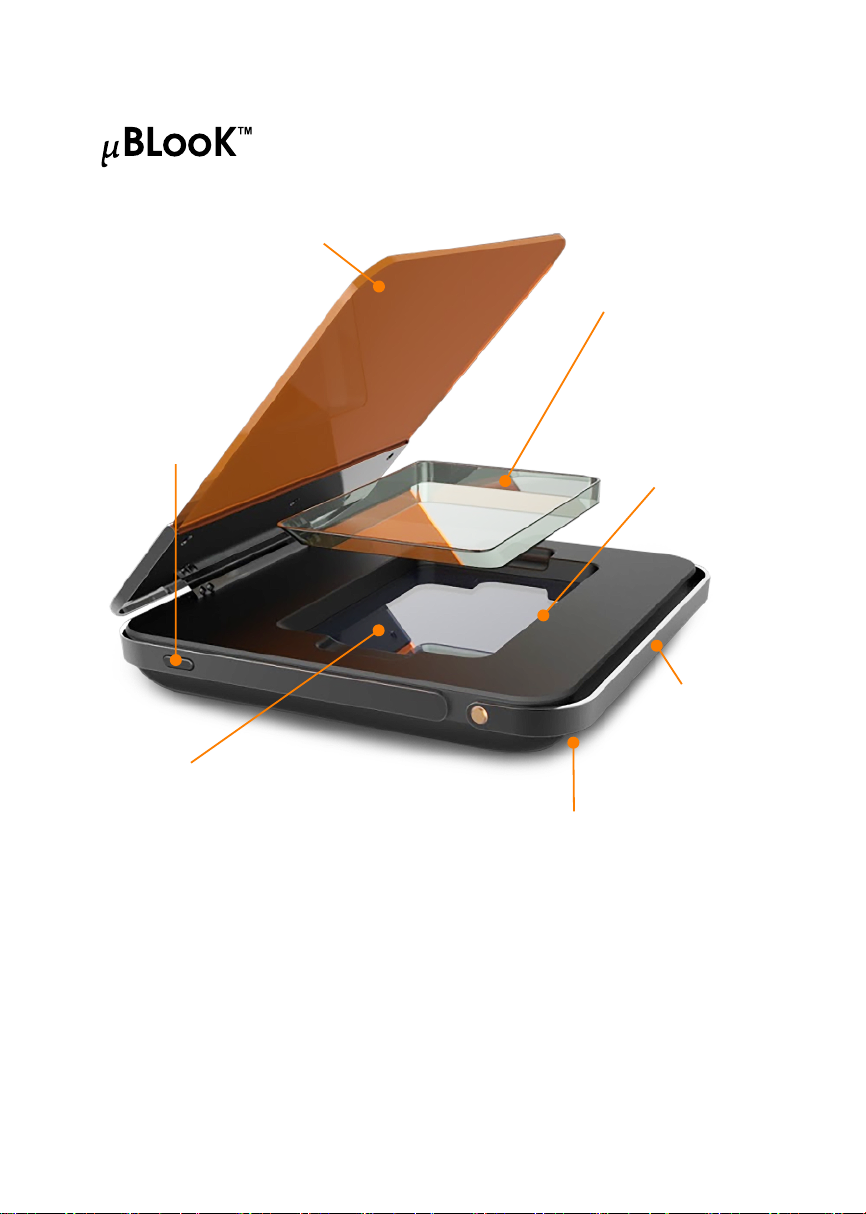

LED transilluminator
Amber filter
The upper panel is the amber filter used
to observe the gel upon being lowered
in position.
Rotating bracket
The rotating bracket is
used for standing the
instruments when
switching down
Tray
The tray is used to place
the stained gel.
Auto switch button
Auto switch button is
used for turn on/ off
when the tray is put
in or left the light
source window.
Power inlet
Power inlet is used for
connecting the power cord.
Light source
The light source is located below and projects
upward from the bottom. Please first lower the
amber filter in position when in use for preventing
the strong light from harming the eyes
Manual switch button
Manual switch button is
used for switching on
and off the power
when press
the button.
P.03
Operating
1. Place the μBLooKTM LED transilluminator on a level bench, with enough space
around the unit for allowing air circulation and preventing overheating.
2. Switch down the rotating bracket; connect the power cord and the socket.
3. Open the lid of the μBLooKTM LED transilluminator.
Note: The maximum expansion angle is 65 degrees, please be careful
4. Press the manual switch button to ON mode.
5. Place the gel on the tray and transfer to glass light source area.
Note: It is recommended that gloves be worn to prevent skin contact with gel and staining agents.
Note: The second model to switch on, when place the tray with the gel in the light source area, the auto
switch button will be turn on; after the observation, left the tray from the window, the light will be turn off.

P.04
6. Close the amber lid above the gel.
7. Now the fluorescent samples can be viewed or cut.
8. When finishing, turning the transilluminator off.
9. Clean the transilluminator filter and surface by wiping with a wet, not scratching cloth.
Troubleshooting
This table below lists the most common problems which you may encounter during using
the μBLooKTM LED transilluminator
Related Ordering Information
Note: Please, read the installation instruction carefully before installing the μBLooKTM LED transilluminator.
This instrument is intended for clinical and research laboratory use and it must be operated
only by specialized personnel aware of the potential risks associated with the chemical and
biological agents normally used with this unit. This instrument is meant for use only by
specialized personnel that know the health risks associated with blue light radiation and with
reagents that are normally used with this instrument. It is designed to shield only the person
working in front of the system and to observe the gel fluorescence emission clearly.
Maintenance and Repair
Cleaning and Maintenance
The transilluminator should be damply wiped off with a soft cotton cloth. The cloth should not
be too wet. Do not use aggressive cleaning detergents or solvents.
After use of the transilluminator, we recommend to wipe off the frame and the filter glass with
a damp cloth. Take care that the cloth is not soaked with scrubbing or corrosive detergents
as this could damage the filter glass. We suggest using alcohol, glass cleaners or similar
mild detergents.
Pay attention to wearing appropriate gloves when cleaning areas (as the filter plate of the
transilluminator, switches, protection shield) which may have been in contact with carcino-
genic or toxic reagents. The protection shield is made of tempered glass and must only be
cleaned with a damp cloth.
Problem
Low sensitivity
High background,
suboptimal, or no image
Cause
Wavelength may not
be right
Low sample
concentration
Solution
Check the excitation and
emission wavelengths of
the fluorescence dye
Check the concentration
of sample
Cat. No.
SL001-1000
SL002-0500
SM203-0100
SM205-0100
SM206-0100
SM207-0100
Description
Novel Juice
Novel Green
OnePCRTM
OnePCRTM HiFi
OnePCRTM HotStar
OnePCRTM Plus
Size
1 ml
500 μl
100 Reactions
100 Reactions
100 Reactions
100 Reactions

Replacement of Spare Parts
Only original spare parts are allowed.
Servicing
Please contact your local dealer.
The μBLooKTM LED transilluminator is warranted against defects in materials and workman-
ship for 1 year. If any defects occur in the instrument or accessories during this warrant
period, GeneDireX, Inc. will repair or replace the defective parts at its discretion without
charge. The following defects, however, are specifically excluded:
1. Defects caused by improper operation.
2. Repair or modification done by anyone other than GeneDireX, Inc. or an authorized agent.
3. Damage caused by substituting alternative parts.
4. Use of fittings or spare parts supplied by anyone other than GeneDireX, Inc.
5. Damage caused by accident or misuse.
6. Damage caused by disaster.
7. Corrosion caused by improper solvent or sample.
For any inquiry or request for repair service, contact your local GeneDireX, Inc. office.
Inform the model and serial number of your instrument.
REGULATORY NOTICE
IMPORTANT: This GeneDireX, Inc. instrument is designed and certified to meet safety
standards. Certified products are safe to use when operated in accordance with the instruc-
tion manual. This instrument should not be modified or altered in any way. Alteration of this
instrument will:
1. Void the manufacturer’s warranty
2. Void the safety and EMC certification
3. Create a potential safety hazard
GeneDireX, Inc. is not responsible for any injury or damage caused by the use of this
instrument for purposes other than those for which it is intended, or by modifications of the
instrument not performed by GeneDireX, Inc. or an authorized agent.
P.05
Appendix
Explanation of Symbols and Warnings
μBLooKTM LED transilluminator complies with the European
Community Safety requirements.
A CE Marking is a European marking of conformity that indicates a
product complies with the essential requirements of the applicable
European laws or directives with respect to safety, health, and
environment and consumer protection. Generally, this conformity to
the applicable directives is done through self-declaration. The CE
Marking is required on products in the countries of the European
Economic Area (EEA) to facilitate trade among the member
countries. The manufacturer or their authorized representative
established in the EEA is responsible for affixing the CE Marking to
their product. The CE Marking provides a means for a manufacturer
to demonstrate that a product complies with a common set of laws
required by all of the countries in the EEA to allow free movement of
trade within the EEA countries

P.06
Safety Information
The μBLooKTM LED transilluminator is an electrical device. Never touch the power cord
or outlet with wet hands. Do not use this device in damp areas or while standing on
damp floors. Do not attempt to open the μBLooKTM LED transilluminator.
The μBLooKTM LED transilluminator should be used with the supplied power cord only.
Ensuring the plug is put into a properly grounded electrical outlet always. Remove the
plug before cleaning the device.
An intense blue light of μBLooKTM LED transilluminator might cause a risk of macular
degeneration; to protect your eyes, please keep the amber filter cover while operation
and switch off the device after utilization.
Warranty
GeneDireX, Inc. warrants that μBLooKTM LED transilluminator will be free from defects
in material and workmanship for a period of one year from date of purchase. If a
defect is present, GeneDireX, Inc will, at its option, repair, replace, or refund the
purchase price of this product at no charge to you, provided it is returned during the
warranty period. This warranty does not apply if the product has been damaged by
accident, abuse, misuse or misapplication, or from ordinary wear and tear. This
warranty shall be limited to the replacement of defective products. It is expressly
agreed that this warranty will be in lieu of all warranties of fitness and in lieu of the
warranty of merchantability.
Made in TAIWAN
CHINA Patent: 2679040 TAIWAN Patent: M443186

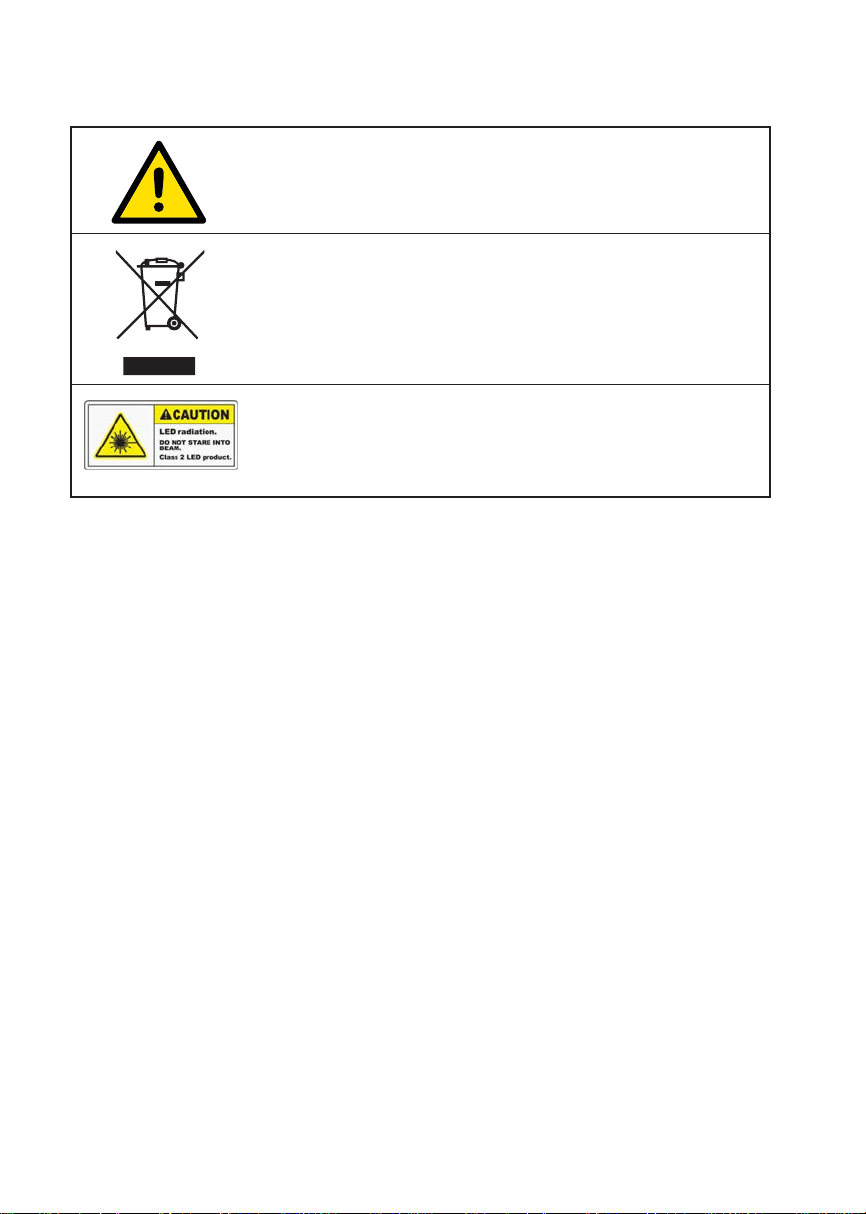

Caution
Caution risk of danger.
Consult the User Guide for further safety information.
Do not dispose of this product in unsorted municipal waste
Caution
To minimize negative environmental impact from disposal of
electronic waste, do not dispose of electronic waste in unsorted
municipal waste. Follow local municipal waste ordinances for proper
disposal provision and contact customer service for information
about responsible disposal options.
Caution
The μBLooKTM LED transilluminator is classified as a Class 2 LED
product, which is indicated by the symbol to the left, radiation
when open, do not stare into the beam
