The Long Lasting Experience
For 28 years Genelec, a Finnish active monitoring company, has been
developing high quality audio monitoring equipment. Based on customer
feedback and needs, Genelec’s R&D team’s technical ambition has led to several
key technologies over the years, refined to products that have set the benchmark
in active monitoring; from the largest main monitors to the smallest two-way
systems, as well as a complete range of subwoofers. Maintaining this wide
offering is a formidable task, which has given Genelec challenges and ultimately
a lot of experience. The benefit for every one of Genelec’s customers is precision
tools to rely on.
Our products are made for demanding professional use. They reveal the original
nuances of the sound, without leaving anything out from or adding anything to the
signal in any stage of the production. For many of our friends this continues to be
the main reason for trusting Genelec.
Genelec active speakers are made to last, with pride and care by our own
production staff in Finland. Many of the company’s first products continue to
deliver the experience, and we continue our commitment to provide service and
spare parts for all products for at least ten years after the discontinuation of
production.
In 2004 we renewed our three smallest two-ways by introducing the 8000 MDE™
Series with three totally new active monitoring loudspeakers. The series is
now complemented with an even smaller monitor, the 8020A, a fully-featured
true Genelec 8000 Series product. Since this time two of our LSE™ Series
subwoofers, the 7050B and 7060B have been upgraded, ready for full-bandwidth
multi-channel operations.
In 2006 Genelec is proud to introduce its first DSP/networked loudspeaker
systems in the 8200 two-ways and matching 7200 LSE™ subwoofers. These
new products incorporate new technologies of digital signal processing, Genelec
Loudspeaker Manager™ setup and installation software and AutoCal™
automated filter calibration algorithm. They exemplify Genelec’s continued
commitment to all customers who rely on purity of sound reproduction.
Years go by and technology evolves. What stays the same is the inspiration to
achieve something valuable and lasting. This is something unique and precious in
life. You will always remember what you did with your first pair of Genelecs, and
you will do a lot more.
Content list
8000 MDETM Series Two-Way Active Monitors 4
The 1032A Two-Way Active Monitor 7
The 8130A Digital Monitoring System 7
8200 DSP Monitoring Systems 10
7200 DSP Subwoofers 12

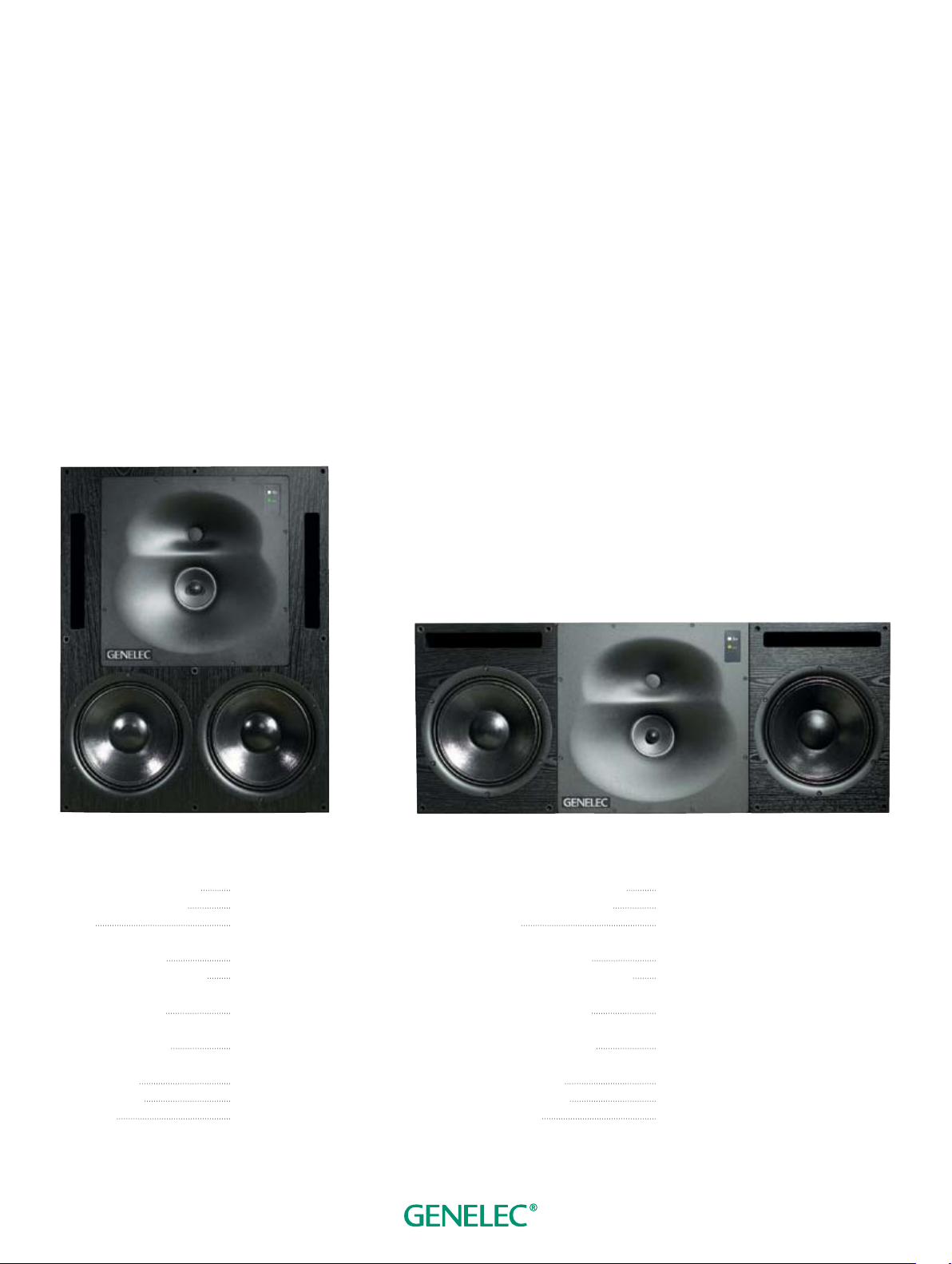

Three-Way Monitors 14
Main Monitors 17
Active Subwoofers 20
Accessories 24
Stereo and Surround Sound Environments 27

4www.genelec.com
www.genelec.com
Silver

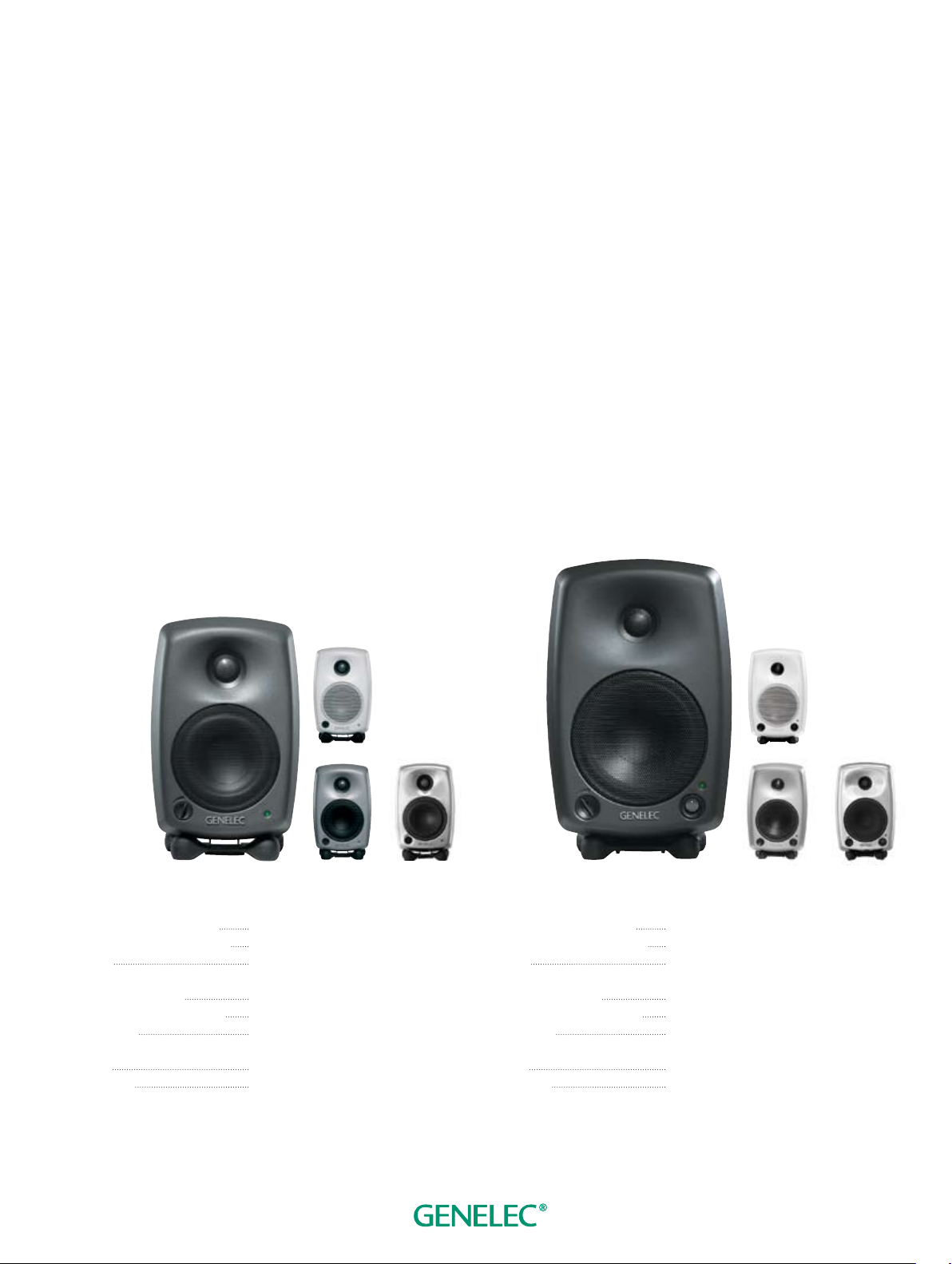

8020A 8030A
White
Silver
White
8000 MDETM Series Two-Way
Active Monitors
Typical applications of Genelec two-way active monitors include near-field monitoring
in recording studios, broadcast and surround installations, mastering suites, post-
production houses, mobile production vehicles, project/home studios, audio and
video workstations, installations and surround sound monitoring.
The 8000 MDETM Series introduced the Minimum Diffraction EnclosureTM with its
rounded edges that curve gently and seamlessly into the shape of the Advanced
DCWTM waveguide and the new rear-mounted reflex tube. Made of die-cast
aluminium, the 8000 Series enclosures offer excellent damping and sturdy structure,
yet with thin walls and maximised internal volume. The long, curved reflex tube is
flow optimised to increase the woofer’s low frequency extension and SPL capacity.
New technology drivers combined with carefully designed filters provide improved
resolution and minimum listening fatigue over the entire audio spectrum. Every
Genelec 8000 Series monitor comes with a rubber based Iso-PodTM (Isolation
Positioner/DecouplerTM) which prevents coloration caused by conduction of unwanted
vibration to the mounting surfaces. The Iso-PodTM also has adjustable speaker tilt for
precise aiming of the acoustical axis.
SPL short term RMS at 1 m 95 dB
Peak SPL per pair with music 105 dB @ 1 m
Drivers Bass 4” + Treble 3/4”
metal dome + DCWTM
Frequency response 66-20000 Hz ± 2.5 dB
Amplifier power per channel Bass 20 W + Treble 20 W
Dimensions H x W x D 242 x 151 x 142 mm,
(91/2x 6 x 55/8) with Iso-PodTM
Weight 3.7 kg (8.1 lb)
Order code 8020AP (black)
8020AS (silver)
8020AW (white)
8020AZ (polished aluminium)
SPL short term RMS at 1 m 100 dB
Peak SPL per pair with music 108 dB @ 1 m
Drivers Bass 5” + Treble 3/4”
metal dome + DCWTM
Frequency response 58-20000 Hz ± 2.0 dB
Amplifier power per channel Bass 40 W + Treble 40 W
Dimensions H x W x D 299 x 189 x 178 mm,
(1113/16 x 77/16 x 7”) with Iso-PodTM
Weight 5.6 kg (12.3 lb)
Order code 8030AP (black)
8030AS (silver)
8030AW (white)
8030AZ (polished aluminium)
Polished
aluminium
Polished
aluminium

www.genelec.com
5
www.genelec.com www.genelec.com

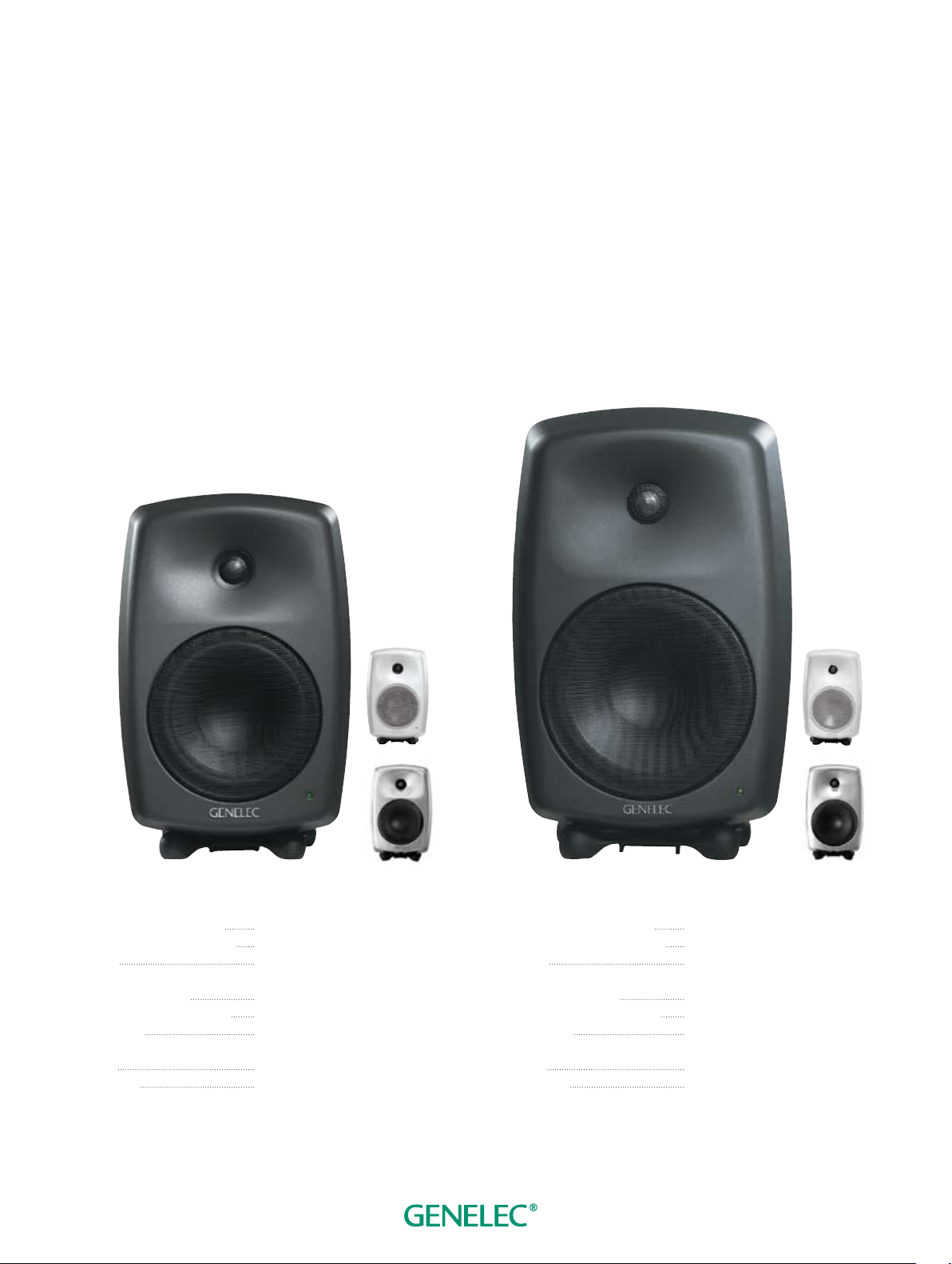

8040A 8050A
White White
SPL short term RMS at 1 m 105 dB
Peak SPL per pair with music 115 dB @ 1 m
Drivers Bass 61/2” + Treble 3/4”
metal dome + DCWTM
Frequency response 48-20000 Hz ± 2.0 dB
Amplifier power per channel Bass 90 W + Treble 90 W
Dimensions H x W x D 365 x 237 x 223 mm,
(143/8x 93/8x 813/16”) with Iso-PodTM
Weight 8.6 kg (18.9 lb)
Order code 8040AP (black)
8040AW (white)
8040AZ (polished aluminium)
SPL short term RMS at 1 m 110 dB
Peak SPL per pair with music 120 dB @ 1 m
Drivers Bass 8” + Treble 1”
metal dome + DCWTM
Frequency response 38-20000 Hz ± 2.0 dB
Amplifier power per channel Bass 150 W + Treble 120 W
Dimensions H x W x D 452 x 286 x 278 mm,
(1713/16 x 111/4x 1015/16") with Iso-PodTM
Weight 12.7 kg (28 lb)
Order code 8050AP (black)
8050AW (white)
8020AZ (polished aluminium)
Polished
aluminium
Polished
aluminium

6www.genelec.com
www.genelec.com

www.genelec.com
7
www.genelec.com www.genelec.com

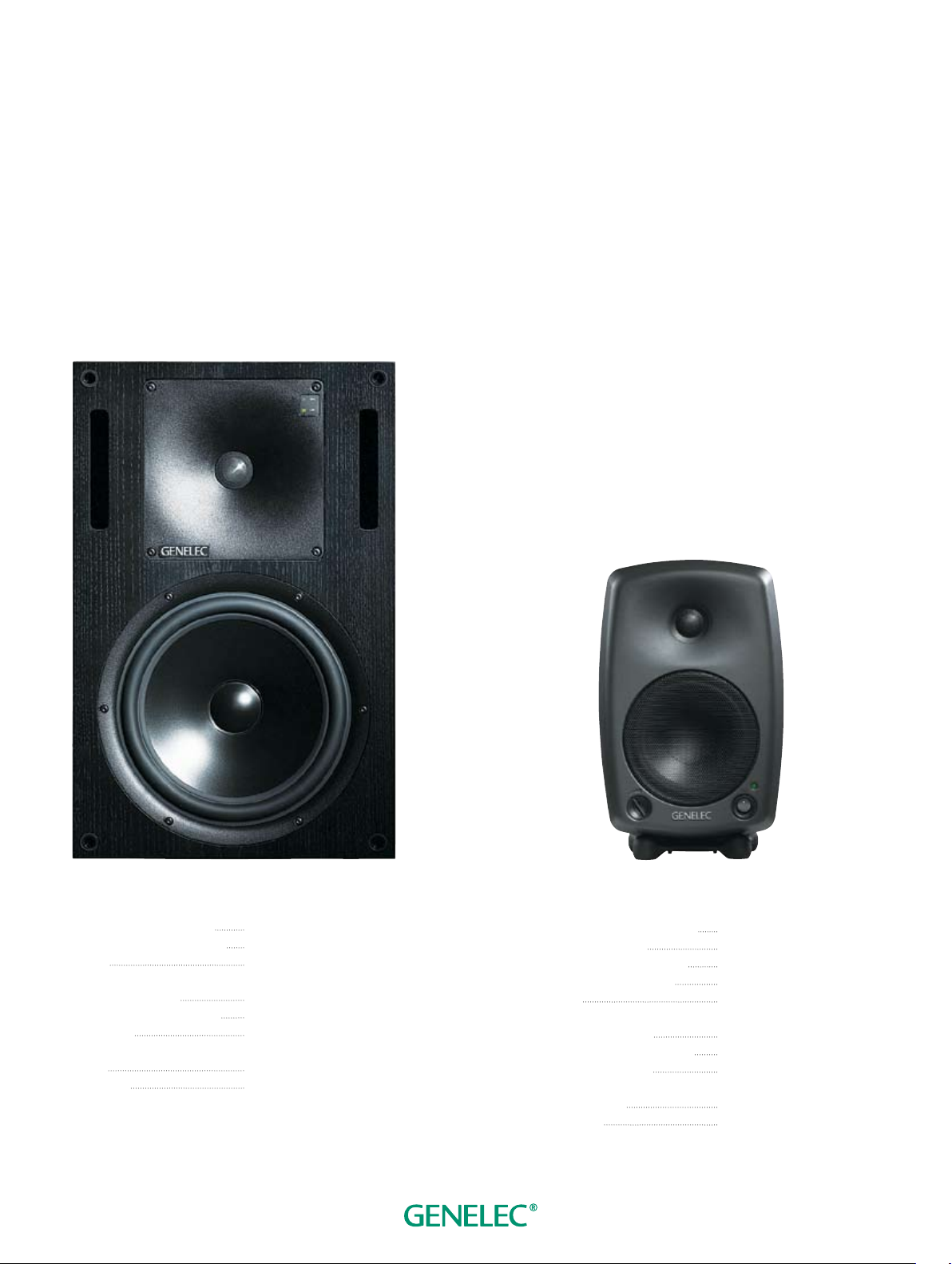

1032A
SPL short term RMS at 1 m 113 dB
Peak SPL per pair with music 124 dB @ 1 m
Drivers Bass 10” + Treble 1”
metal dome + DCWTM
Frequency response 42-21000 Hz ± 2.5 dB
Amplifier power per channel Bass 180 W + Treble 120 W
Dimensions H x W x D 495 x 320 x 290 mm,
(19½ x 125/8x 117/16”) with Iso-PodTM
Weight 21.7 kg (48 lb)
Order code 1032AP (durable black paint),
1032AE (black veneer)
The 1032A Two-Way Active Monitor
Originally designed as a near field monitor, the 1032A can also be
used for main monitoring in many situations due to its high output and
extended frequency response. It is magnetically shielded making it ideal
for recording studios, broadcast monitoring, TV control rooms, mobile
vans and CD/DVD mastering.
The 8130A Digital Monitoring System
The Genelec 8130A Digital Monitoring System has a 24
bit/96 kHz digital interface. With automated digital signal
detection it can both be fed with AES/EBU formatted digital
signal or analog line level audio signal. Due to its compact
size and integrated 8000 MDETM construction, the 8130A is
ideal for near-field monitoring where ever space is limited,
as well as for use with computer soundcards and multimedia
applications. The digital signal can be forwarded through to
other units.
8130A
Digital input and word length AES/EBU 16...24 bits
Input sampling rate 29-200 kHz
SPL short term RMS at 1 m 100 dB
Peak per pair with music 108 dB @ 1 m
Drivers Bass 5” + Treble 3/4”
metal dome + DCWTM
Frequency response 58-20000 Hz ± 2.0 dB
Amplifier power per channel Bass 40 W + Treble 40 W
Speaker dimensions H x W x D 299 x 189 x 178 mm
(1113/16 x 77/16 x 7”) with Iso-PodTM
Speaker weight 5.6 kg (12.3 lb)
Order code 8130AP

8www.genelec.com
www.genelec.com

www.genelec.com
9
www.genelec.com www.genelec.com

10 www.genelec.com
www.genelec.com
8200 DSP Monitoring Systems These new monitoring systems are designed for similar near-field monitoring
applications and acoustic spaces as described for our analog 8000 series products.
Genelec analog MDE™ bi-amp products offer a wide array of performance benefits
through unique technologies of their own, and are proven products in the real working
world of audio production.
The most critical listening conditions require the most advanced monitoring tools.
Many customers with digital audio production environments will be able to enjoy the
benefits of the new technologies in the 8200 series.
DSP/networked speaker systems are not a new concept. Such technology is in regular
use in commercial settings around the world, such as large sound reinforcement
venues. To bring this technology into a critical audio production environment requires
first and foremost a solid foundation to work from, and the 8000 series provides the
ideal platform.
The marriage of outstanding analog system performance with the newly developed
technologies of DSP, Genelec Loudspeaker Manager™ setup and installation
software and AutoCal™, automated filter calibration algorithm, allow those customers
who require further refinement in their sound reproduction to have the most advanced
tools at their disposal.
To bridge those customers still employing analog volume control, standard 7000 series
subwoofers may be used in conjunction with 8200 DSP bi-amp systems to provide the
highest level of performance available while transitioning to fully digital audio.
Operating system support Windows XP, Max OS X
Number of loudspeaker supported 30
Number of audio channels supported 24 (AES/EBU single-wire),
12 (analog, AES/EBU dual-wire)
System calibration AutoCal™, GLM™ manual
Major components included GLM™ Network interface device
8200A Calibration microphone and holder
USB cable
Measurement signal cable
Software CD
System Operating Manual
Order code 8200-401
GLMTM Multiroom Expansion
Major components included GLM™ Network interface device
GLM™ Control Network cable
USB cable
Order code 8200-402

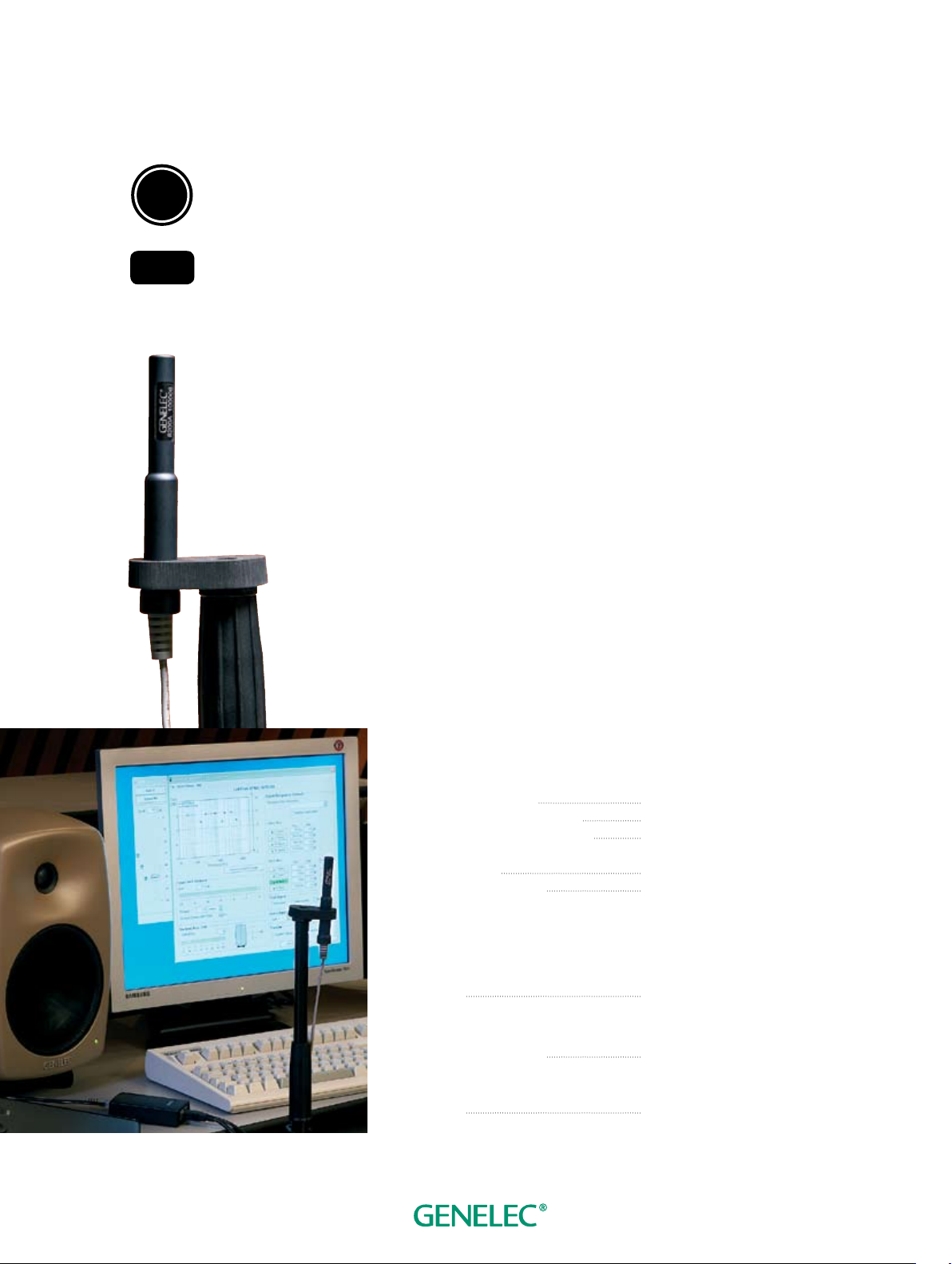

8200A
Calibration Microphone
GLMTM Genelec Loudspeaker Manager
Genelec Loudspeaker Manager™ software manages connectivity to all loudspeakers
on the network – up to 30 – from cabling and labeling to complete loudspeaker
definitions. Standard system configurations are provided as well as provision for
customized User Setups. All functions and settings are stored in these Setups or you
can store this data in each loudspeaker should you wish to disconnect the network
and operate without GLM™ to ensure security of your monitoring system.
GLM
dsp
AutoCalTM

www.genelec.com
11
www.genelec.com www.genelec.com
8240A 8250A
SPL short term RMS at 1 m 105 dB
Peak SPL per pair with music 115 dB @ 1 m
Drivers Bass 61/2” + Treble 3/4”
metal dome + DCWTM
Frequency response 48-20000 Hz ±1 dB
Amplifier power per channel Bass 90 W + Treble 90 W
Dimensions H x W x D 365 x 237 x 223 mm,
(143/8x 93/8x 813/16”) with Iso-PodTM
Weight 9.4 kg (20.8 lb)
Order code 8240AP
SPL short term RMS at 1 m 110 dB
Peak SPL per pair with music 120 dB @ 1 m
Drivers Bass 8” + Treble 1”
metal dome + DCWTM
Frequency response 38-20000 Hz ± 1 dB
Amplifier power per channel Bass 150 W + Treble 120 W
Dimensions H x W x D 452 x 286 x 278 mm,
(1713/16 x 111/4x 1015/16") with Iso-PodTM
Weight 14.6 kg (32 lb)
Order code 8250AP
Backpanel of the 8240A

12 www.genelec.com
www.genelec.com

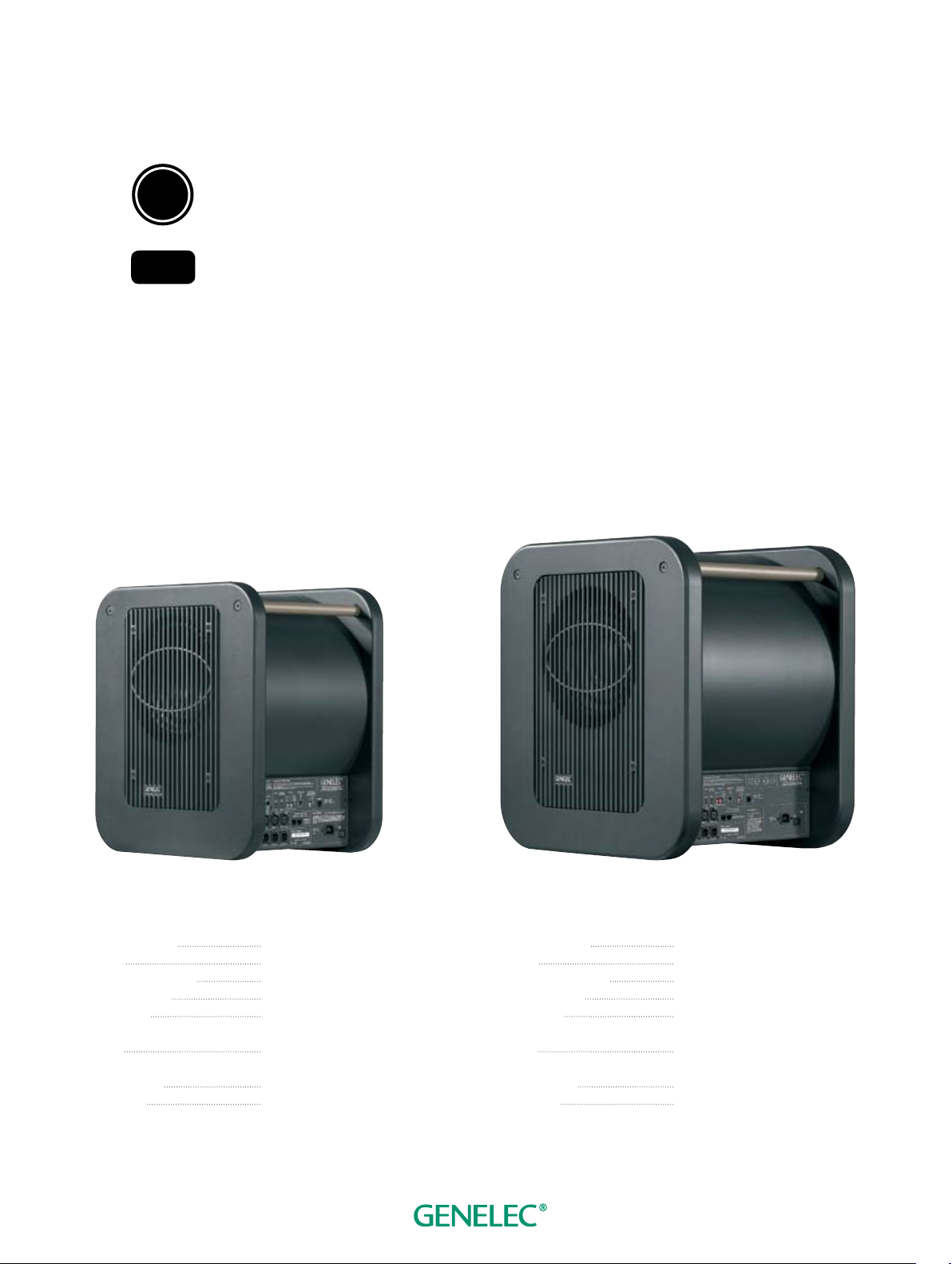

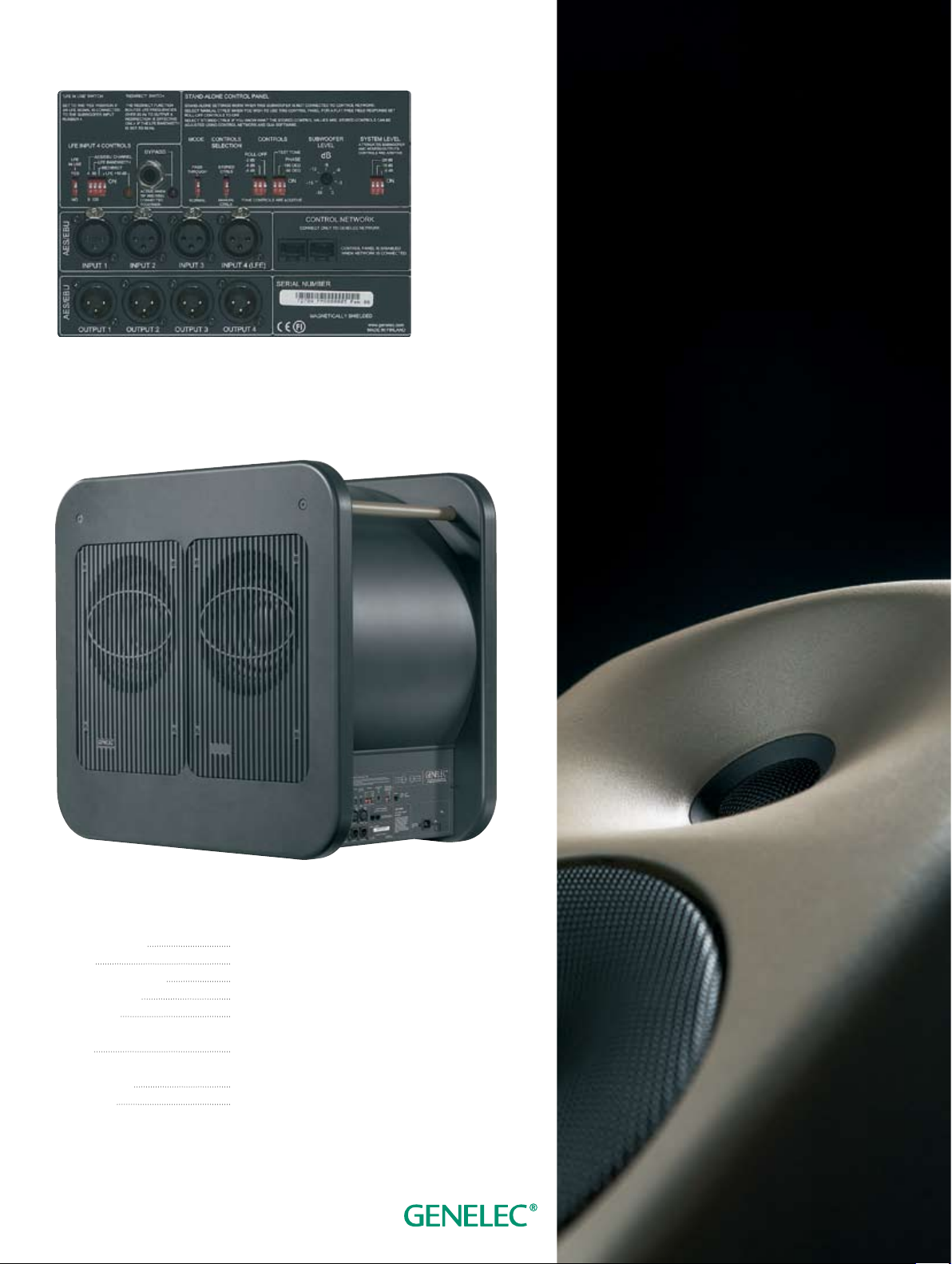

7200 DSP Subwoofers To complement the 8200 DSP bi-amp systems, Genelec has provided three robust
DSP subwoofers. Built upon the proven LSE™ (Laminar Spiral Enclosure™)
technology of our 7000 Series, the 7260A, 7270A and 7271A deliver the same
articulate and impressive acoustic performance.
The 7200 subwoofers provide the cornerstone for those control room environments
that are equipped with fully digital monitor/buss outputs, with connectivity via
its four AES/EBU digital inputs and outputs. All standard 7000 series functions
are available when used in Stand Alone mode, and if connected to the network
through GLM™ software, additional powerful resources become available. When
coupled with AutoCal™, Genelec’s automated self-calibration algorithm, enhanced
acoustic integration is provided for every loudspeaker in virtually any control room
environment.
These DSP systems are, by design, complex yet straightforward and easy to use,
versatile in configuration and adaptable acoustically to nearly any environment you
place them in, to provide outstanding clarity and definition with a naturalness that you
can immediately trust. And with respect to our customers most valuable asset – time,
these systems are up and running quickly and effectively.
7260A 7270A
SPL short term RMS
half space at 1 m 108 dB
Drivers 10”
Frequency response 19-100 Hz ± 3 dB
Amplifier power 120 W
Dimensions H x W x D 527 x 462 x 363 mm
(203/4 x 183/16 x 145/16”)
Weight 27 kg (59 lb)
Recommended use with
main monitors 8240A (stereo)
Order code 7260APM
SPL short term RMS
half space at 1 m 112 dB
Drivers 12”
Frequency response 19-100 Hz ± 3 dB
Amplifier power 250 W
Dimensions H x W x D 625 x 555 x 490 mm
(245/8 x 217/8x 195/16”)
Weight 51 kg (112 lb)
Recommended use with
main monitors 8250A (stereo) and 8240A (surround)
Order code 7270APM
GLM
dsp
AutoCalTM

www.genelec.com
13
www.genelec.com www.genelec.com
7271A
SPL short term RMS
half space at 1 m 118 dB
Drivers 2 x 12”
Frequency response 19-100 Hz ± 3 dB
Amplifier power 500 W
Dimensions H x W x D 755 x 803 x 490 mm
(293/4 x 315/8x 195/16”)
Weight 82 kg (180 lb)
Recommended use with
main monitors 8250A surround
Order code 7271APM
Connector panel of the 7270A

14 www.genelec.com
www.genelec.com
Three-Way Monitors
1037C 1038B
The 1037C and the 1038B are three-way monitoring systems for moderate
sized control rooms. Due to their broad bandwidth and high output, they
are ideal for music recording, surround sound monitoring, DVD mastering,
broadcasting studios, editing suites and drama studios. Although designed to
be used free standing, they perform even better when flush mounted.
The 1038BC is a magnetically shielded compact center channel version of
the 1038B monitor delivered with a separate rack-mounted amplifier unit as
standard. It is designed to be used with a pair of 1038B’s in three channel
(LCR) set-up and in surround systems where space near the video monitor or
screen is limited. The 1038BC can also be oriented vertically for installations
where horizontal space is limited.
SPL short term RMS at 1 m 116 dB
Peak per pair with music 124 dB @ 2 m
Drivers Bass 12” + Midrange 5” +
Treble 1” metal dome + DCWTM
Frequency response 37-21000 Hz ± 2.5 dB
Amplifier power per channel Bass 180 W + Midrange 120 W +
Treble 120 W
Speaker dimensions H x W x D 680 x 400 x 380 mm
(263/4x 153/4x 1415/16”)
Speaker weight 37 kg (82 lb)
Order code 1037CE, 1037CP
SPL short term RMS at 1 m 120 dB
Peak per pair with music 124 dB @ 2 m
Drivers Bass 15” + Midrange 5” +
Treble 1” metal dome + DCWTM
Frequency response 35-20000 Hz ± 2.5 dB
Amplifier power per channel Bass 400 W + Midrange 120 W +
Treble 120 W
Speaker dimensions H x W x D 810 x 480 x 420 mm
(317/8x 187/8x 169/16”)
Speaker weight 60 kg (130 lb)
Order code 1038BE, 1038BP

www.genelec.com
15
www.genelec.com www.genelec.com
1038BC
SPL short term RMS at 1 m 120 dB
Peak per pair with music 124 dB @ 2 m
Drivers Bass 2 x 10” + Midrange 5” +
Treble 1” metal dome + DCWTM
Frequency response 35-20000 Hz ± 2.5 dB
Amplifier power per channel Bass 2 x 200 W + Midrange 120 W +
Treble 120 W
Speaker dimensions H x W x D 350 x 950 x 453 mm
(133/4x 373/8x 177/8”)
Amplifier dimensions H x W x D 530 x 480 x 113 mm
(207/8x 187/8x 47/16”)
Speaker weight 60 kg (130 lb)
Amplifier weight 14 kg (31 lb)
Order code 1038BCE-VL, 1038BCE-VR
1038BCE-HU, 1038BCE-HD

16 www.genelec.com
www.genelec.com

www.genelec.com
17
www.genelec.com www.genelec.com
1034B 1034BC
Main Monitors The 1034B is the optimal main monitor for medium sized control rooms or
where there is little space available for flush mounting in the front wall. It is
also used in CD and DVD mastering, sound stages and LCR and surround
sound installations. The dedicated, magnetically shielded center channel
version 1034BC offers a slim solution, as space near the video monitor or
screen may be insufficient for a standard 1034B.
The flush mounted 1039A, the classic 1035B and the flagship 1036A are
optimal for large control rooms where wide bandwidth and high to extremely
high SPL are required with lowest possible distortion.
SPL short term RMS at 1 m 123 dB
Peak per pair with music 125 dB @ 2 m
Drivers Bass 2 x 12” + Midrange 5” +
Treble 1” metal dome + DCWTM
Frequency response 33-20000 Hz ± 2.5 dB
Amplifier power per channel Bass 2 x 400 W + Midrange 350 W +
Treble 120 W
Speaker dimensions H x W x D 489 x 1210 x 412 mm
(191/4x 475/8x 161/4”)
Amplifier dimensions H x W x D 310 x 483 x 250 mm
(123/16 x 19 x 913/16”)
Speaker weight 84 kg (185 lb)
Amplifier weight 30 kg (66 lb)
Order code 1034BCE-VL, 1034BCE-VR
1034BCE-HU, 1034BCE-HD
SPL short term RMS at 1 m 123 dB
Peak per pair with music 125 dB @ 2 m
Drivers Bass 2 x 12” + Midrange 5” +
Treble 1” metal dome + DCWTM
Frequency response 33-20000 Hz ± 2.5 dB
Amplifier power per channel Bass 2 x 400 W + Midrange 350 W +
Treble 120 W
Speaker dimensions H x W x D 700 x 890 x 383 mm
(279/16 x 35 x 151/16”)
Amplifier dimensions H x W x D 310 x 483 x 250 mm
(123/16 x 19 x 913/16”)
Speaker weight 73 kg (161 lb)
Amplifier weight 30 kg (66 lb)
Order code 1034BE-VU, 1034BE-VD
1034BE-HL, 1034BE-HR

18 www.genelec.com
www.genelec.com
1039A 1035B
SPL short term RMS at 1 m 126 dB
Peak per pair with music 126 dB @ 2 m
Drivers Bass 2 x 15” + Midrange 5” +
Treble 1” metal dome + DCWTM
Frequency response 31-20000 Hz ± 2.5 dB
Amplifier power per channel Bass 2 x 400 W + Midrange 350 W +
Treble 120 W
Speaker dimensions H x W x D 820 x 1050 x 550 mm
(325/16 x 415/16 x 215/8”)
Amplifier dimensions H x W x D 310 x 483 x 250 mm
(123/16 x 19 x 913/16”)
Speaker weight 115 kg (253 lb)
Amplifier weight 30 kg (66 lb)
Order code 1039AE-VU, 1039AE-VD
1039AE-HL, 1039AE-HR
SPL short term RMS at 1 m 131 dB
Peak per pair with music 136 dB @ 2 m
Drivers Bass 2 x 15” + Midrange 2 x 5” +
1” compression driver + DCWTM
Frequency response 30-20000 Hz ± 2.5 dB
Amplifier power per channel Bass 2 x 1100 W + Midrange 600 W +
Treble 300 W
Speaker dimensions H x W x D 820 x 1105 x 775 mm
(325/16 x 431/2x 301/2”)
Amplifier dimensions H x W x D 755 x 483 x 370 mm
(293/4 x 19 x 149/16”)
Speaker weight 142 kg (313 lb)
Amplifier weight 71 kg (156 lb)
Order code 1035BE-VU, 1035BE-VD
1035BE-HL, 1035BE-HR

www.genelec.com
19
www.genelec.com www.genelec.com
1036A
SPL short term RMS at 1 m 131 dB
Peak per pair with music 136 dB @ 2 m
Drivers Bass 2 x 18” + Midrange 2 x 5” +
1” compression driver + DCWTM
Frequency response 21-20000 Hz ± 2.5 dB
Amplifier power per channel Bass 2 x 1100 W + Midrange 600 W +
Treble 300 W
Speaker dimensions H x W x D 960 x 1180 x 650 mm
(373/4x 461/2x 255/8”)
Amplifier dimensions H x W x D 755 x 483 x 370 mm
(293/4 x 19 x 149/16”)
Speaker weight 182 kg (401 lb)
Amplifier weight 71 kg (156 lb)
Order code 1036AE-VU, 1036AE-VD
1036AE-HL, 1036AE-HR

20 www.genelec.com
www.genelec.com
Active Subwoofers With Genelec Active Subwoofers you can extend the low frequency response of your
main monitors in stereo and surround sound applications. The 7050B can handle 5.1
monitoring with the 8020A, and the larger subs have Genelec’s proprietary 6.1 bass
management system, which also allows linking several subwoofers together with a
summed output signal. The dedicated LFE input can be configured for different LFE
reproduction bandwidths in all models. The frequency response of the upgraded
7060B now reaches down to 19 Hz, making it a truly formidable companion for the
8030A or 8040A.
The 7050B, 7060B, 7070A and 7071A utilize Genelec’s patented LSETM (Laminar
Spiral EnclosureTM) technology. The spiral-shaped design yields an extremely rigid
enclosure while forming the subwoofer’s integral reflex port. The flow-optimized
design provides an extended LF capacity, low distortion and accurate bass
articulation. In the 7073A flagship subwoofer, the proprietary and innovative reflex
tube is housed in a rugged enclosure particularly suited for flush mounting.
7050B 7060B
SPL short term RMS
half space at 1 m 100 dB
Drivers 8”
Frequency response 25-85 Hz ± 3 dB
Amplifier power 70 W
Dimensions H x W x D 410 x 350 x 319 mm
(161/8x 133/4x 129/16”)
Weight 18 kg (39.6 lb)
Recommended use with
main monitors 8030A stereo and 8020A surround
Order code 7050BP
SPL short term RMS
half space at 1 m 108 dB
Drivers 10”
Frequency response 19-85 Hz ± 3 dB
Amplifier power 120 W
Dimensions H x W x D 527 x 462 x 363 mm
(203/4 x 183/16 x 145/16”)
Weight 28 kg (62 lb)
Recommended use with
main monitors 8040A stereo and 8030A surround
Order code 7060BP
