Speedrooter 91™
Operating Instructions
For 3" through 10" lines
(75mm – 250mm)
Your Speedrooter 91 is designed to give
you years of trouble-free, profitable
service. However, no machine is better
than its operator. We therefore suggest
you read these directions through
carefully before using your machine on a
job. This will enable you to operate the
Speedrooter 91 more efficiently and more
profitably. Failure to follow these
instructions may cause personal injury to
operator or damage to equipment.
SAVE THESE INSTRUCTIONS!

Speedrooter 91™
Safety Instructions
WARNING
Machine must be plugged
into properly grounded
outlet. Failure to follow
instructions may result in
serious injury or death.
Do not operate power tools
in explosive atmospheres,
such as in the presence of
flammable liquids, gases, or
dust.
Wear leather gloves provided
with the machine. Never
grasp a rotating cable with a
rag or cloth glove.
Use safety equipment.
Always wear safety glasses
and rubber soled, non-slip
shoes.
Never operate machine with
belt guard removed. Fingers
can get caught between belt
and pulley.
Do not overstress cables.
Overstressing cables may
cause twisting, kinking, or
breaking of the cable and
may result in serious injury.
READ AND UNDERSTAND
ALL INSTRUCTIONS!
Failure to follow all instructions listed below
may result in electric shock, fire and/or serious
personal injury.
Call General’s customer service department at
412-771-6300 if you have any questions.
SAVE THESE INSTRUCTIONS!
Work Area Safety
1. Keep your work area clean and well lit.
Cluttered benches and dark areas invite
accidents.
!
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power
tools create sparks which may ignite the dust or
fumes.
3. Keep bystanders, children, and visitors
away while operating a power tool.
Distractions can cause you to lose control.
Electrical Safety
1. Grounded tools must be plugged into an
outlet, properly installed and grounded in
accordance with all codes and ordinances.
Never remove the grounding prong or
modify the plug in any way. Do not use any
adapter plugs. Check with UL approved
tester or a qualified electrician if you are in
doubt as to whether the outlet is properly
grounded. If the tool should electrically
malfunction or break down, grounding provides
a low resistance path to carry electricity away
from the user.
2. Machine must have a properly functioning
ground fault circuit interrupter on the power
cord. Before using, test the Ground Fault
Circuit Interrupter (GFCI) provided with the
power cord to insure it is operating
correctly. GFCI reduces the risk of electric
shock.
3. Avoid body contact with grounded surfaces
such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
4. Don’t expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
5. Do not abuse the cord. Never use the cord
to carry the tools or pull the plug from an
outlet. Keep cord away from heat, oil, sharp
edges or moving parts. Replace damaged
cords immediately. Damaged cords increase
the risk of electric shock.
6. When operating a power tool outside, use
an outdoor extension cord marked “W-A” or
“W”. These cords are rated for outdoor use
and reduce the risk of electric shock.
2

Speedrooter 91™
7. Use only three-wire extension cords which
have three-prong grounding plugs and
three-pole receptacles which accept the
tool’s plug. Use of other extension cords will
not ground the tool and increase the risk of
electric shock.
8. Use proper extension cords. Insufficient
conductor size will cause excessive voltage
drop and loss of power.
9. Extension cords are not recommended
unless they are plugged into a Ground Fault
Circuit Interrupter (GFCI) found in circuit
boxes or outlet receptacles. The GFCI on the
machine power cord will not prevent electric
shock from the extension cords.
10. Keep all electric connections dry and off the
ground. Do not touch plugs or tools with
wet hands. Reduces the risk of electric shock.
Personal Safety
1. Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use tool while tired or under
the influence of drugs, alcohol, or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
2. Dress properly. Do not wear loose clothing
or jewelry. Contain long hair. Keep your
hair, clothing, and gloves away from moving
parts. Loose clothes, jewelry, or long hair can
be caught in moving parts.
3. Avoid accidental starting. Be sure switch is
off before plugging in. Plugging in tools that
have the switch on invites accidents.
4. Remove adjusting keys or switches before
turning the tool on. A wrench or key that is
left attached to a rotating part of the tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. Proper footing and
balance enables better control of the tool in
unexpected situations.
6. Use safety equipment. Always wear eye
protection. Dust mask, non-skid safety shoes,
hard hat, or hearing protection must be used for
appropriate conditions.
Tool Use and Care
1. Use clamp or other practical way to secure
and support the workpiece to a stable
platform. Holding the work by hand or against
your body is unstable and may lead to loss of
control.
2. Do not force tool. Use the correct tool for
your application. The correct tool will do the
job better and safer at the rate for which it is
designed.
3. Do not use tool if switch does not turn it on
or off. Any tool that cannot be controlled with
the switch is dangerous and must be repaired.
4. Disconnect the plug from the power source
before making any adjustments, changing
accessories, or storing the tool. Such
preventative safety measures reduce the risk of
starting the tool accidentally.
5. Store idle tools out of reach of children and
other untrained persons. Tools are
dangerous in the hands of untrained users.
6. Maintain tools with care. Keep cutting tools
sharp and clean. Properly maintained tools,
with sharp cutting edges are less likely to bind
and are easier to control.
7. Check for misalignment or binding of
moving parts, breakage of parts, and any
other condition that may affect the tool’s
operation. If damaged, have the tool
serviced before using. Many accidents are
caused by poorly maintained tools.
8. Use only accessories that are recommended
by the manufacturer for your model.
Accessories that may be suitable for one tool
may become hazardous when used on another
tool.
9. Keep handles dry and clean; free from oil
and grease. Allows for better control of the
tool.
Tool Service
1. Tool service must be performed only by
qualified repair personnel. Service or
maintenance performed by unqualified repair
personnel could result in injury.
2. When servicing a tool, use only identical
replacement parts. Follow instructions in
the Maintenance section of this manual.
Use of unauthorized parts or failure to follow
Maintenance Instructions may create a risk of
electric shock or injury.
3

Speedrooter 91™
Specific Safety Information
1. Wear leather gloves provided with the
machine. Never grasp a rotating cable with
a rag or cloth glove. Could become wrapped
around cable and cause serious injury.
2. Never operate machine with belt guard
removed. Fingers can get caught between belt
and pulley.
3. Do not overstress cables. Keep gloved
hand on the cable for control when machine
is running. Overstressing cables because of
an obstruction may cause twisting, kinking, or
breaking of the cable and may result in serious
injury.
4. Position machine within two feet of drain
opening. Greater distances can result in cable
twisting or kinking.
5. Machine is designed for one-person
operation. Operator must control foot switch
and cable.
6. Do not operate machine in reverse (REV).
Operating machine in reverse can result in
cable damage and is used only to back cutting
tool out of an obstruction.
7. Keep hands away from rotating drum and
distributor tube. Do not reach into drum
unless machine is unplugged. Hand may be
caught in the moving parts resulting in serious
injury.
8. Be careful when cleaning drains where
cleaning chemicals have been used. Avoid
direct contact with skin and eyes. Drain
cleaning chemicals can cause serious burns as
well as damage the cable.
9. Do not operate machine if operator or
machine is standing in water. Will increase
risk of electrical shock.
10. Wear safety glasses and rubber soled, non-
slip shoes. Use of this safety equipment may
prevent serious injury.
11. Before starting each job, check that the
cable in the drum is not broken or kinked, by
pulling the cable out and checking for wear
or breakage. Always replace worn out (kinked
or broken) cables with genuine GENERAL
replacement cables.
12. Only use this tool in the application for
which it was designed. Follow the
instructions on the proper use of the
machine. Other uses or modifying the drain
cleaner for other applications may increase risk
of injury.
Ground Fault Circuit Interrupter (GFCI)
Your machine is equipped with a ground fault circuit
interrupter, which protects you against shock if a
short circuit should occur. Check that receptacle is
properly grounded. Test the GFCI before each use.
1. Plug into 120-volt receptacle.
2. Push test button. Indicator light will go out and
power to machine should cut off.
3. If light does not go out when test button is
pushed, equipment should not be used until
proper repairs can be made.
4. To restore power after test, push reset button.
With the reset button depressed, if the machine
doesn't start, stops while running, or if the
operator experiences a mild shock, do not use
the machine! Take it to a motor repair center or
return it to the factory for repairs.
Note: The section of cord between
the wall plug and the GFCI is not in
the protected circuit.

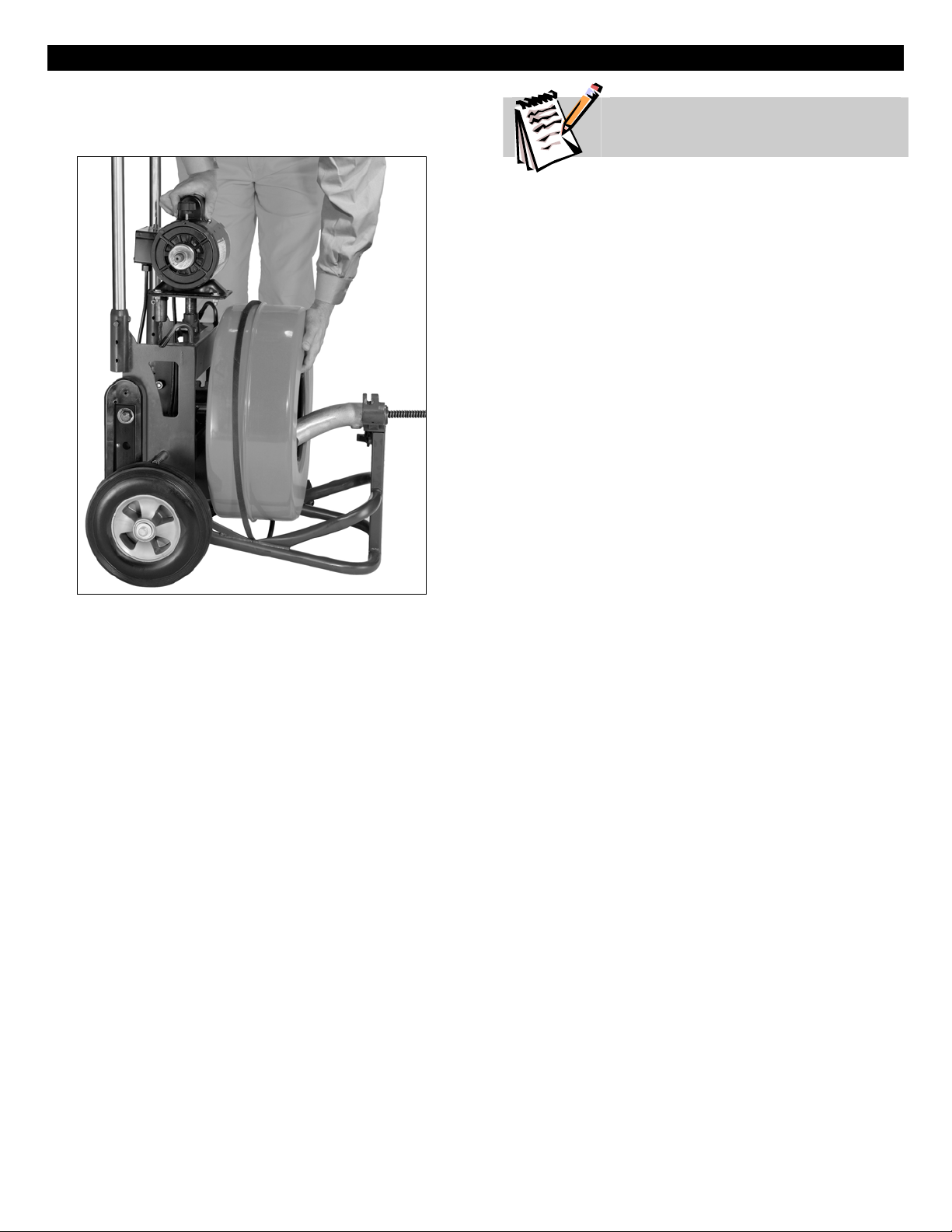

Truck Loading Wheel
One person can easily load the Speedrooter 91
onto a truck. The swept-back handle and loading
wheel give you the needed leverage.
4

Speedrooter 91™
Cable Applications (Table 1)
Cable Size Pipe Size Typical Applications
3/4"
(Large Drum)
4" to 10" Large Drains, Long
Runs, Roots
5/8"
(Large Drum)
3" to 6" Stacks, Floor Drains,
Roots
1/2"
(Small Drum)
2" to 4" Stacks & Small Drains
(No Roots)
Cutter Applications (Table 2)
Cutter Cat. # Typical Applications
Spear
Head
SHD Starting Drill – gets
water flowing.
2" U-Cutter 2UC For Cutting and
Scraping.
3" & 4"
Side Cutter
Blades
3SCB
&
4SCB
For Cutting –
Scrapes walls of
pipe.
3" Heavy
Duty Saw
Blade
3HDB For Cutting Roots.
4" Rotary
Saw Blade
4RSB For Cutting Roots.
Large
Retrieving
Tool
RTR-2 For removing loose
objects or broken
cables.
33" Flexible
Leader LE-2 Helps cable get through tight traps.
Additional cutters for use with 1/2" cable (included
in Combination Cutter Set sold with P-S91-A).
Cutter Cat. # Typical Applications
Arrow Head
AH Starting Drill – Gets
water flowing.
1-1/2”
U-Cutter
1-1/2UC For Cutting and
Scraping.
2” Side
Cutter Blade
2SCB For Cutting – Scrapes
walls of pipe.
Small
Retrieving
Tool
RTR-1 For removing loose
objects or broken
cables.
13" Flexible
Leader LE-1 Helps cable get through tight traps.
Note: There are no fixed rules for what cutter to use. If
one tool doesn't take care of a stoppage, simply try
another.
Operating Instructions
Set-up
1. Place machine within approximately two feet of
drain opening. Be sure the Speedrooter Guide
Tube (S91-GT) is in place. If you can't get the
machine this close to the drain opening, run the
cable through the optional Guide Tube
Extension (GTE) or a metal guide tube to
prevent cable whipping. On manual feed
machines, always keep a gloved hand on the
cable.
2. Position the air foot pedal for easy accessibility.
The machine is designed for one person
operation. Be sure you can quickly remove
your foot from the pedal in an emergency.
3. Lock the wheels by lifting the brake handle
located next to the left wheel and pressing it
into the clip.
4. Be sure the motor switch is in the off position.
5. Make sure the Power Cable Feed is set to
match the cable size you have selected. If
you’re using 3/4" or 5/8” cables, the feed should
be assembled with the raised side of the lower
two caps outward. If you are using 1/2" cables,
the feed should be assembled with the raised
side of the caps inward.
6. Select the proper cutting tool (See Cutter
Application Chart—Table 2). A good tool to
start with is the Spearhead or 2” U-Cutter. If
you are having difficulty getting around a P-
Trap or close bend, try the flexible leader. After
the line has been opened, follow with larger
blades, which scrape the inside edges of the
pipe, assuring a real cleaning job.
7. Insert the cutter into the female connector at the
end of the cable and tighten the connecting
screw and lock washer firmly in place.
Hint: Some users “mix” their cutters on certain jobs.
For instance, they use one 2” Side Cutter
Blade with one 4” Side Cutter Blade. This
combination is especially good when working
through 4” P-Traps.
5

Speedrooter 91™
Operation
1. Before stepping on foot pedal, pull cable from
the drum and slide it into the drain as far as it
will go.
2. Tighten the knob at top of the Power Cable
Feed so that the feed roller presses against the
cable. Be sure not to over tighten since this
could cause excess cable wear.
3. The feed lever controls the feeding rate and
direction of the cable. Move the lever down to
feed cable out of drum. The further the lever is
moved downward, the faster the cable will feed
out. Move lever up to retract cable into drum.
When the lever is in the middle (neutral)
position, cable will spin in place.
4. Move the motor switch to the forward position.
5. With a gloved hand on the Guide Tube or cable,
depress the air foot pedal to start machine.
Feed the cable into the line and against the
obstruction with a firm, even pressure. Adjust
the feeding rate to the resistance met. Do not
force the cable - let the cutter do the work. The
job won’t go any faster and you could damage
the cable.
DO NOT USE TOO MUCH FORCE –
LET THE CUTTER DO THE WORK.
6. Don't leave too much slack in the cable since
this will cause whipping. If the cable starts to
bend or build up too much twist, release
pressure on the foot pedal and rotate the drum
in the opposite direction to relieve the twist on
the cable. Push any excess cable back into the
drum and then continue.
7. If you're having trouble getting around tight
bends, try putting the machine in reverse while
applying steady pressure. Don't do this for
more than a few seconds at a time since this
could cause tangling in the drum or kinking.
8. If you still can't get around the bend, you're
probably using too large a cable. Switch to a
5/8" diameter cable, or even the small drum
with 1/2” cable if necessary. (See Cable
Application Chart—Table 1)
9. When cable reaches the stoppage, put feed into
neutral. Then allow the cable to progress
forward slowly, chewing into stoppage as it
goes. This slow forward movement will reduce
stress on the cable while doing a more
thorough cleaning job. A back and forth action
often works best.
Hint: It's often helpful to have a small stream of
water running in the line to wash the cuttings away
while the machine is in operation and after.
10. Be careful not to let the cutter get caught in the
stoppage as you work through it. This can
cause kinking and breaking of the cable. When
you feel the cable starting to twist in your
hands, stop the machine and pull back. This
will free the cutter from the obstruction. Then
allow the cable to move forward slowly into the
stoppage. Remember, no cutting takes place
when the blades stop turning.
11. After the line has been opened, return the cable
to the drum with the motor turning forward.
This is important to prevent tangling of the
cable in the drum or in the line.
!CAUTION
Do not use reverse to pull the cable out of the
drain. Always run the machine in forward, whether
you are feeding the cable into the line or pulling it
out. Use reverse only to release the cable if it
should become caught in the line.
!
12. When the cutting tool is near the drain opening,
take your foot off the pedal to stop drum
rotation. Never retract the cutting tool from
drain while cable is rotating. The cable could
whip and cause serious injury.
6

Speedrooter 91™

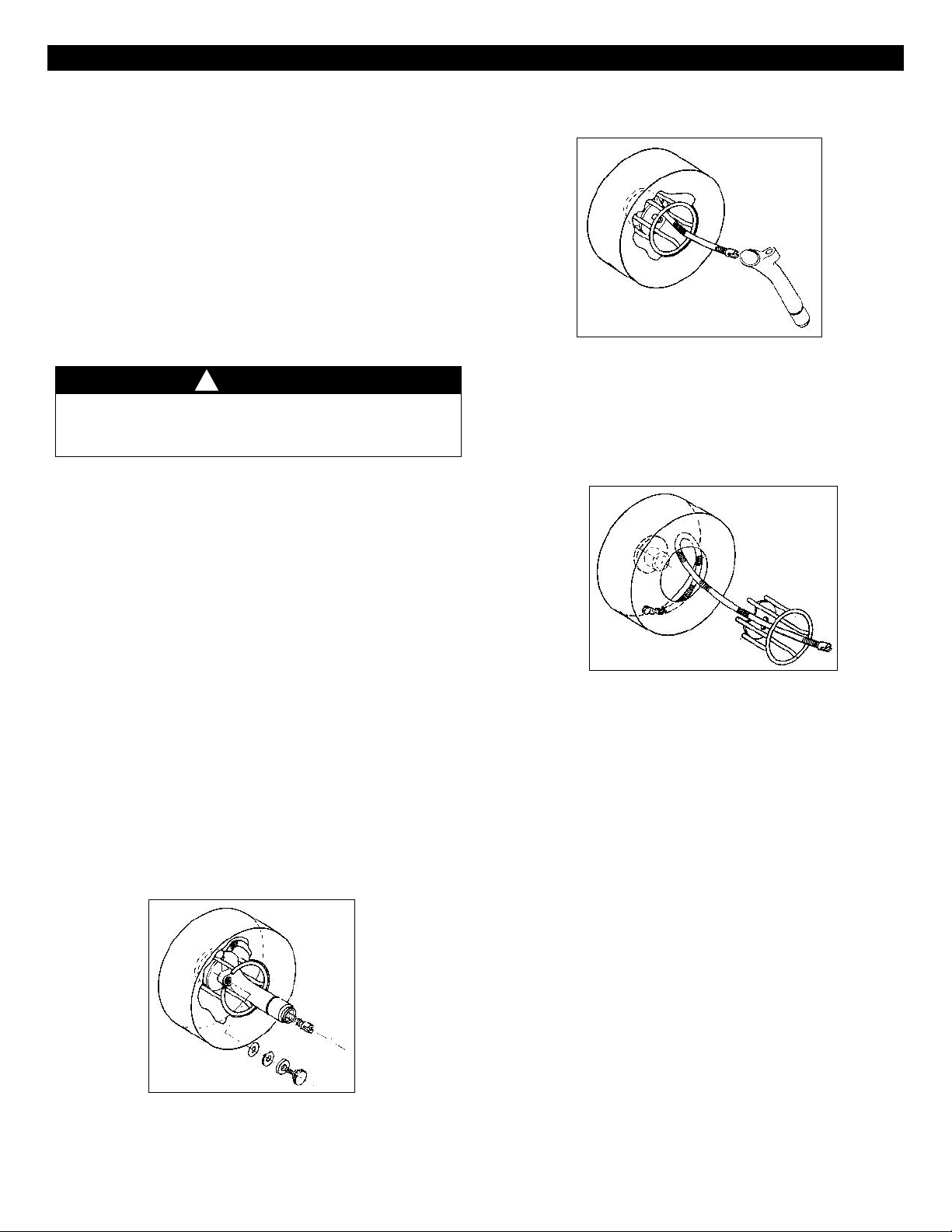

Special Operations
IF CABLE GETS CAUGHT IN LINE
The motor can be reversed to free the cable if it
gets caught in line. (Note: if using Power Cable
Feed, putting motor in reverse will cause the feed
control lever to operate opposite of normal.)
1. Move toggle switch on motor to reverse
position.
2. Depress the foot pedal while pulling on the
cable.
3. After cable is loose, move toggle switch back
into forward position.
!CAUTION
Running the machine in reverse for more than a
few seconds at a time can cause the cable to
tangle in the drum.
IF CABLE TANGLES IN DRUM
This is caused by using too much pressure when
feeding the cable or feeding the cable into the line
while running the machine in reverse. To untangle
the cable, rotate the drum in opposite direction.
This will usually get the cable to lie in the drum
properly.
If the cable has become badly tangled, which
shouldn’t occur if used properly, it can be
straightened out by removing the distributor tube
from the machine. To do this:
1. Remove drum from machine frame. (See TO
REMOVE DRUM below.)
2. Set drum down so that distributor tube is
pointing up. Unscrew plastic knob at the back
of distributor tube. (See Figure 1.) This
unlocks the distributor tube from the drum shaft.
Be careful not to lose the thrust bearing and
race attached to the knob.
3. Slide the distributor tube off the shaft and out of
the drum. (See Figure 2.)
Figure 2
The tension of the cable will force the tube to
the side of the drum as you pull it out; so keep
some pressure against the cable as you pull the
tube out. After tube is out, pull out the inner
drum cage. (See Figure 3.) Pull out enough
cable to eliminate the tangle.
!
Figure 3
4. After the cable is straightened out, slide the
inner drum cage back into place. (Figure 3.)
Then slide distributor tube back so that curved
section is adjacent to crescent-shaped notch in
inner drum cage and back of distributor tube fits
over shaft in center of drum. (Figure 2.) Keep
pressing down on distributor tube as you tighten
plastic knob with thrust bearing and races.
(Figure 1.) This holds tube into place. You can
now put the drum back on the machine.
TO REMOVE DRUM
1. Remove belt guard by loosening the knob
above the motor.
2. Press down on motor and slide V-Belt off of
drum. Then rotate motor to the side.
3. Remove the cutter and connecting screw from
the cable end.
4. Unscrew knob behind the front post and pull
Power Cable Feed off the machine.
Figure 1
5. Loosen the knob on front post cap (S91-120),
then open cap.
7

Speedrooter 91™
6. Loosen knob on rear drum shaft clamp (S91-
130), then open cap.
7. Lift drum clear of machine.
TO INSTALL DRUM
1. Hang V-Belt from motor pulley. (64” belt for
large drum, 57” for small.)
2. Place drum on the machine, positioning the
shaft into rear drum clamp first. Rotate the
drum until the hole in the shaft fits over the
guide pin in the clamp.
3. Then put the distributor tube into the front post
clamp.
4. Close front and rear clamps. Then tighten
knobs.
5. Slip V-Belt under drum. To make it easier to
put the V-Belt in place, press down on the
motor and slide a screwdriver or similar tool into
the hole at the base of the motor support. This
will keep the motor support spring depressed so
that it will be easy to slip the V-Belt around
drum. After the V-Belt is in place, depress the
motor enough to pull out screwdriver.
TO INSTALL CABLE IN DRUM
To install cable in the drum, simply connect the
male end of the cable to the drum connecting
cable, which is already attached to the drum. Then
remove the drum V-Belt and turn the drum
clockwise, while pushing cable into the drum.
Note: The cable should lay in the
drum in a clockwise direction.
Maintenance
To keep your machine operating smoothly, it is
essential that all bearings and distributor tube
bushings be lubricated. Oiling moving parts is
particularly important where machine comes in
contact with sand, grit and other abrasive material.
CABLE MAINTENENCE
To get maximum service from your cables, be sure
that they are clean and well oiled. This not only
provides running lubrication but greatly extends the
life of the cables as well. Some users periodically
pour oil directly into the drum. Then, as the drum
turns, the cables get complete lubrication. Our
SNAKE OIL is ideally suited for this purpose, since it
not only lubricates the cables, it disinfects and
deodorizes them as well.
FEED MAINTENANCE
Keep feed free of excessive soil and grit. It is
recommended that the feed be flushed with fresh
water followed by a light oiling of the moving parts.
No disassembly is normally required. Failure to feed
can usually be traced to the following possibilities:
DIRT ACCUMULATION: Over time, dirt can harden
enough to stop roller rotation. Flushing with water
followed by liberal oiling can usually restore
function. If disassembly is required, proceed as
follows:
1. Remove the feed tension knob, springs and
spring plunger. Note the positioning of these
parts to ease re-assembly. The top roller can
now be removed.
2. Remove the snap rings and thrust washers from
the bottom housing cylinders. The bottom rollers
can now be removed.
3. Re-assembly is done in reverse order.
DAMAGED ROLLER: Excessive use may wear a
roller to the point of failure. It is recommended that
all three rollers be replaced at the same time (Cat #
PO-MR-703).
TANGLED CABLE: If a cable loops over itself in the
drum, it will not feed properly. Remove and reload
the cable by hand to restore function. If the cable
kinks, it is evidence of abuse and results from the
use of too much pressure or use of the wrong size
cable for the line. Do not force the cable — Let the
cutter do the work.
8

Speedrooter 91™
TROUBLE SHOOTING GUIDE (Table 3)
Problem Probable Cause Solution
Operator forcing the cable. Do not force the cable. Let the cutter do the
work.
Too much slack between
machine and drain.
Allow no more than two feet between machine
and drain.
Cable used in wrong size
drain line.
A cable that is too large or too small in
diameter for a line is more likely to kink.
(Consult Table 1—Cable Applications.)
Cable kinks or
breaks
Cable exposed to acid Clean and oil cables regularly.
Operator forcing the cable. Do not force the cable. Let the cutter do the
work.
Machine running in reverse. Do not run the machine in reverse to retract
the cable from the drain.
Cable tangles in
drum
Distributor tube frozen. Lubricate distributor tube bushings.
Hole in pedal or hose. Replace as required.Drum stops while
foot pedal
depressed. Hole in diaphragm switch If no hole found in pedal or hose, replace
diaphragm switch.
Drum turns in one
direction but not
other.
Reverse switch failure. Replace reverse switch.
Damaged power cord or
extension cord.
Replace cords.
Short circuit in motor. Take motor to authorized repair center.
Ground fault circuit
interrupter trips and
will not reset.
Faulty ground fault circuit
interrupter
Replace ground fault circuit interrupter.
Cable tangled in drum. Do not run machine in reverse. Use proper
cable size. (Consult Cable Application
Chart—Table 1).
Feed misadjusted If feed tension knob is too loose the cable will
slip. If it is too tight the feed rollers will wear
prematurely.
Feed roller frozen. Clean and lubricate feed rollers regularly.
Replace worn rollers.
Failure to feed
Worn cable. When cable coils wear flat, cable should be
replaced.
9

Speedrooter 91™
Speedrooter 91 Parts List
CAT. NO. DESCRIPTION CAT. NO. DESCRIPTION
S91-100 Frame Complete S91-425 Distributor Tube Retaining Bolt
S91-101 Frame Only with Axle S91-430 Drum Shaft
S91-101-A Handle Support Knob (2) S91-440 Inner Drum Cage
S91-101-B Motor Support Bolt, Nut, & Washer S91-440-A Bushing
S91-101-C Cord Wrap Cap (2) S91-450 Large Drum Complete with Shaft
S91-103 Stair Climber with Belt (1) and Distributor Tube (18")
S91-103-A Nuts, Bolts, & Washers (2) S91-452 Drum Shell
S91-103-B Spacers (2) S91-454 Drum Hub Bearings (2)
S91-107 Plated Handle Assembly S91-455 Bearing Spring
S91-107-A Handle – Left S91-460 Drum Connecting Cable
S91-107-B Handle – Right (for 5/8" and 3/4" cables)
S91-107-C 6" Handle Wheel S91-460-A Nut, Bolt, & Washer
S91-107-D Axle for Handle Wheel S91-470 Drum Distributor Tube Assembly
S91-107-E Bushings (2) S91-471 Distributor Tube Only
S91-107-F Felt Washers (2) S91-472 Bushing
S91-107-G Bolts and Nuts (2) S91-473 Retaining Ring
S91-107-H Set Screws (2) S91-474 Thrust Bearing Race
S91-108 Brake Rod S91-475 Distributor Tube Retaining Knob
S91-108-A Roll Pin with Bearing Assembly
S91-109 Brake Rod Handle with Knob S91-475-A Bearing Assembly for Retaining Knob
S91-109-A Knob for Brake Rod S91-480 Drum Shaft
S91-109-B Roll Pin S91-481 Wear Washer
S91-109-C Brake Rod Latch with Screws S91-482 Spacer collar with Set Screw
S91-110 10" Wheel with Retaining Cap (1) S91-490 Inner Drum Cage
S91-111 Wheel Retaining Cap (2) S91-490-A Bushing
S91-112 Wheel Spacer Washers (2) S91-600 1/2 hp Motor Complete with Air Foot
S91-115 Axle Switch, Reverse Switch, & GFCI
S91-116 Motor Support Spring S91-600-3/4 3/4 hp Motor Complete with Air Foot
S91-118 Motor Support Platform Switch, Reverse Switch, & GFCI
S91-118-C Nuts, Bolts, & Washers (4) S91-601 V-Belt (64")
S91-120 Front Bearing Assembly S91-602 V-Belt Pulley
S91-120-A Front Bearing Knob S91-602-1 Slip Clutch (Optional)
S91-120-D Bolts, Nuts & Washers (2) S91-603 Knob for Mounting Stud
S91-130 Rear Drum Shaft Clamp S91-604 20 ft. Power Cord with GFCI
S91-130-A Drum Clamp Knob S91-605 Air Foot Switch & Rev. Switch Assem.
S91-130-D Mounting Bolts & Washers (2) S91-605-A Box Only with Cover & Screws

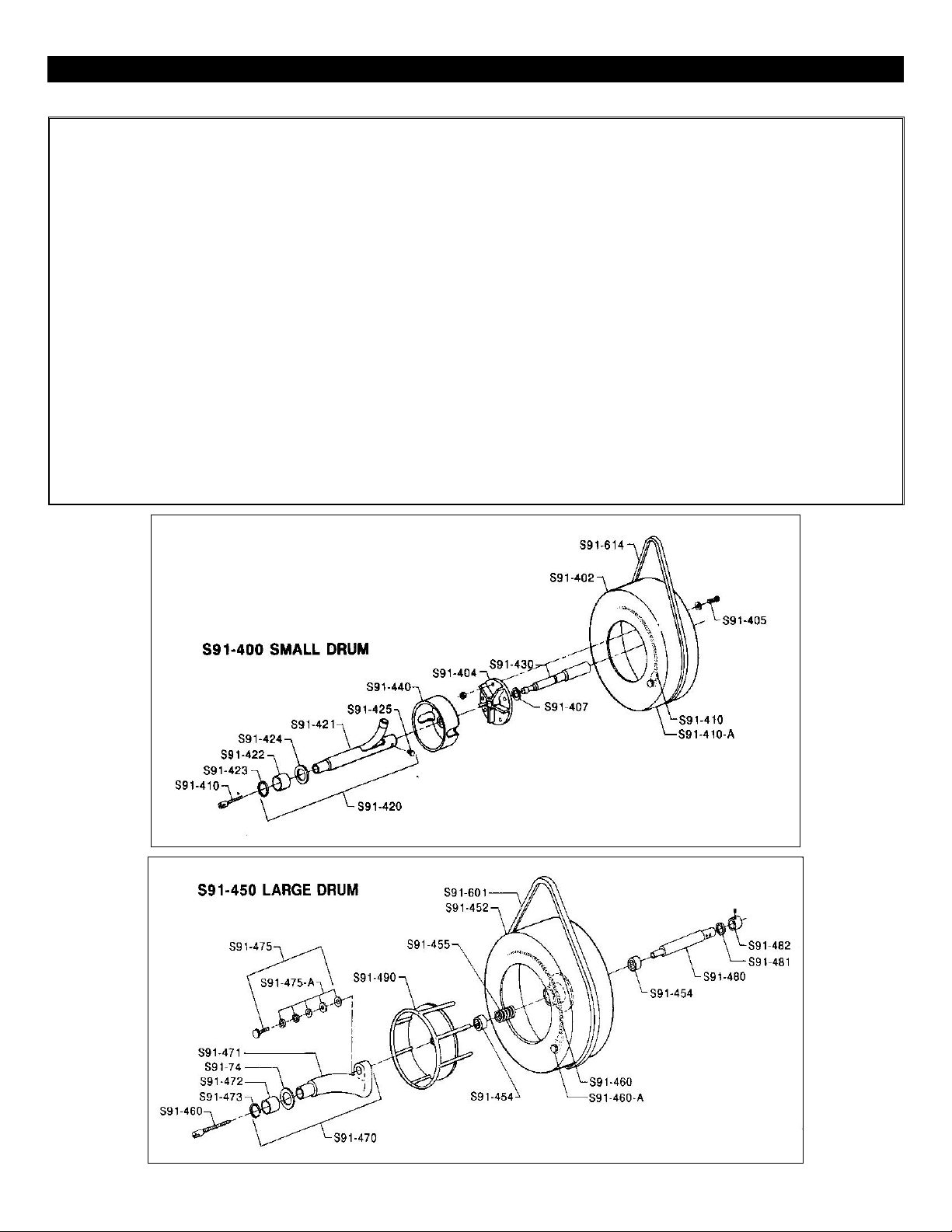

S91-400 Small Drum Complete with Shaft S91-605-B Foot Pedal and Hose
and Distributor Tube (15") S91-605-C Cable Tie
S91-402 Drum Shell S91-605-E Power Switch Diaphragm
S91-404 Drum Hub with Bearings S91-605-G Reverse Switch – 3-Way
S91-404-A Bushings (2) S91-605-H Rubber Boot (Rental)
S91-405 Nuts, Bolts, & Washers (5) S91-605-J Barbed Adapter
S91-407 Shaft Washer S91-605-N Strain Relief Nut
S91-410 Drum Connecting Cable (for 1/2" cables) S91-609-1/2 Belt Guard (1/2 hp) with Slot
S91-410-A Nut, Bolt, & Washer S91-609-3/4 Belt Guard (3/4 hp) with Slot
S91-420 Small Drum Distributor Tube Assem. S91-614 Small Drum V-Belt (57")
S91-421 Distributor Tube Only S91-TB Tool Box
S91-422 Bushing S91-GT Guide Tube for Speedrooter 91
S91-423 Retaining Ring GTE Guide Tube Extension
S91-424 Thrust Bearing Race S91-DECAL Set of Safety Decals
See back cover for Speedrooter 91 Schematic Diagram.
10

Speedrooter 91™
Speedrooter 91 Power Feed Parts List
S91-7000 Power Cable Feed Assembly S91-7341 Cover Screws and Washers (3)
S91-7101 Feed Body S91-7400 Bottom Roller Assembly
S91-7101-A Lifting Spring S91-7410 Bottom Carrier Only
S91-7101-B Guide Pins (2) S91-7420 Swing Pin
S91-7102 Mounting Stud S91-7425 Bottom Roller Shaft
S91-7103 Mounting Knob S91-7450 Bottom Roller with Bearing
S91-7104 Spout and Retaining Cover S91-7530 Thrust Bearing
S91-7105 Steel Washer S91-7540 Cable Adjustment Plate
S91-7200 Top Roller Assembly S91-7541 Plate Screws and Washers (3)
S91-7210 Top Carrier Only S91-7601 Feed Control Disc with Lever and Knob
S91-7220 Swing Pin S91-7601-A Lever and Knob
S91-7225 Feed Roller Shaft S91-7635 Wave Washer
S91-7250 Feed Roller with Bearing S91-7703 Set of Feed Rollers (3)
S91-7301 Feed Pressure Knob
S91-7301-A Limiting Nut S91-TB Tool Box
S91-7315 Pressure Spring S91-GT Guide Tube for Speedrooter 91
S91-7330 Ball Bearing GTE Guide Tube Extension
S91-7331 Ball Bearing Holder S91-DECAL Set of Safety Decals
S91-7340 Top Cover
11

Speedrooter 91™
IMPORTANT: When ordering, please give Serial Number of Machine.
General Wire Spring Co.
1101 Thompson Avenue
McKees Rocks, PA 15136
© General Wire Spring Co. 2003 C-S91-OI-11/03
