Genesis GV70 User manual

All information in this Owner’s Manual is current at the time
of publication. However, Genesis Branded Vehicle reserves
the right to make changes at any time so that our policy of
continual product improvement may be carried out.
This manual applies to all models of this vehicle and includes
descriptions and explanations of optional as well as standard
equipment.
As a result, you may find material in this manual that does not
apply to your specific vehicle.
Please note that some models are equipped with Right-Hand
Drive (RHD). The explanations and illustrations for some
operations in RHD models are opposite of those written in this
manual.
OWNER’S MANUAL
Operation
Maintenance
Specifications
Introduction
1

Introduction
F2
Your Genesis Branded Vehicle should not be modified in any way. Such
modifications may adversely affect the performance, safety or durability of your
Genesis Branded Vehicle and may, in addition, violate conditions of the limited
warranties covering the vehicle. Certain modifications may also be in violation
of regulations established by the Department of Transportation and other
government agencies in your country.
Your vehicle is equipped with electronic fuel injection and other electronic
components. It is possible for an improperly installed/adjusted two-way radio
or cellular telephone to adversely affect electronic systems. For this reason, we
recommend that you carefully follow the radio manufacturer’s instructions or
consult your authorized retailer of Genesis Branded products for precautionary
measures or special instructions if you choose to install one of these devices.
CAUTION: MODIFICATIONS TO YOUR
GENESIS BRANDED VEHICLE
TWO-WAY RADIO OR CELLULAR
TELEPHONE INSTALLATION
The vehicle is equipped with a device of the system Pan-european eCall
which calls emergency services.Any self-or unauthorized interference in the
system Pan-european eCall, in vehicle systems and its components, installing
of equipment which is not recommended by vehicle manufacturer and/
or in authorized retailer of Genesis Branded products can cause incorrect
operation (of the device of) the system Pan-european eCall, making erroneous
calls, causing failure of the device (in cars) in case of traffic accident or other
accidents, when you need emergency care.
This may be dangerous and threaten your life!
WARNING! (IF EQUIPPED)

F3
This manual includes information titled as DANGER, WARNING, CAUTION and
NOTICE.
These titles indicate the following:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result
in minor or moderate injury.
NOTICE
NOTICE indicates a situation which, if not avoided, could result in vehicle
damage.
SAFETY AND VEHICLE DAMAGE WARNING

1
2
3
4
5
6
7
9
I
8
Maintenance
Index
Emergency situations
Driver assistance system
Driving your vehicle
Convenience features
Instrument cluster
Safety system
Vehicle information
Foreword/Starting your electric vehicle
Table of contents

1
Electric vehicle...................................................................................................1-6
Electric vehicle ............................................................................................................. 1-6
Characteristics of electric vehicles ............................................................................. 1-6
Battery Information...................................................................................................... 1-6
Main components of electric vehicle ............................................................... 1-7
Main components of electric vehicle ..........................................................................1-7
High voltage battery(lithium-ion battery) ...................................................................1-7
High voltage battery warmer system.......................................................................... 1-8
EV mode .............................................................................................................1-9

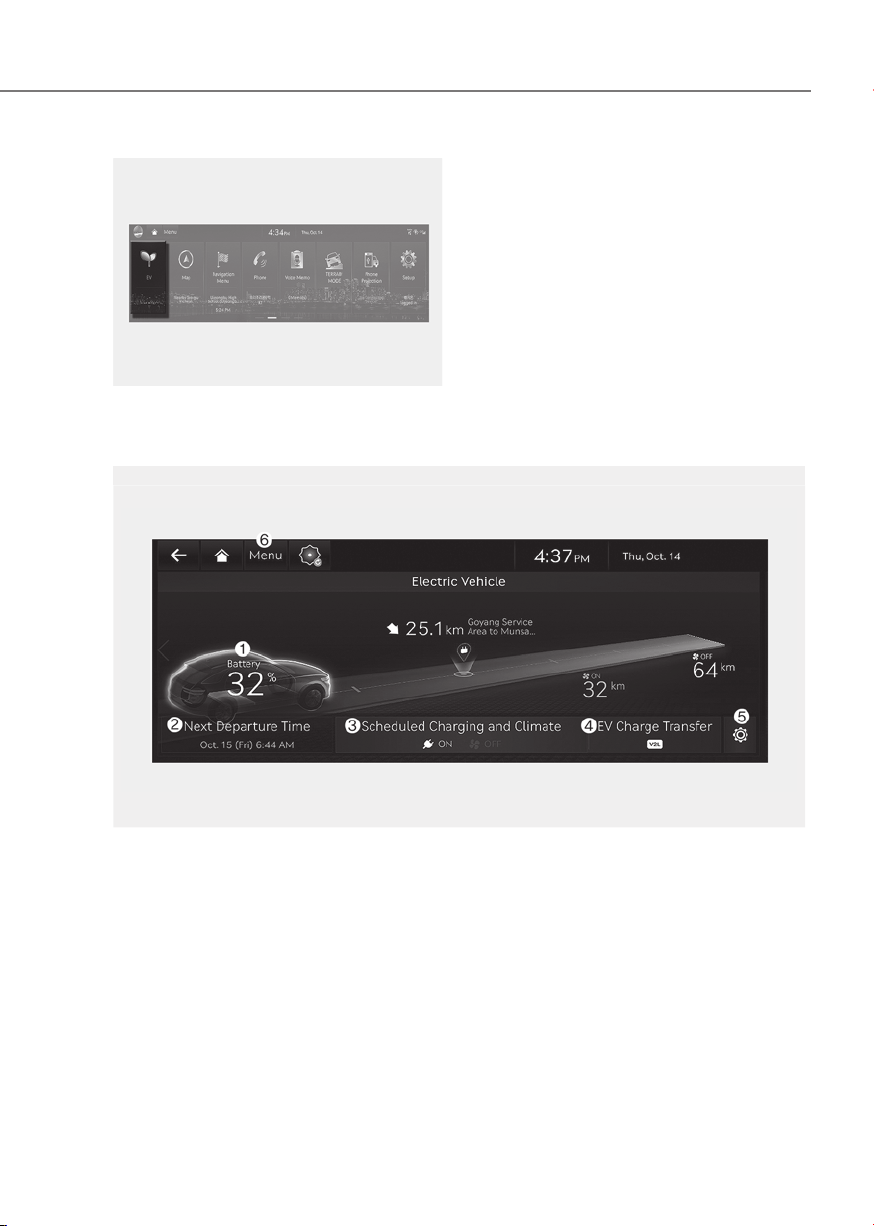

EV mode screen ........................................................................................................... 1-9
Energy information .....................................................................................................1-10
Next departure ............................................................................................................1-10
Charging and climate ..................................................................................................1-11
Vehicle to load (V2L) ................................................................................................... 1-13
Nearby charging stations............................................................................................ 1-19
EV settings ................................................................................................................... 1-19
Charge types for electric vehicle.................................................................... 1-22
Charging Information..................................................................................................1-22
Charging time information .........................................................................................1-22
Charging types ............................................................................................................1-23
Charge indicator lamp for electric vehicle..................................................... 1-25
Charging status ...........................................................................................................1-25
Locking charging cable.............................................................................................. 1-26
Scheduled charging......................................................................................... 1-27
Scheduled charging ....................................................................................................1-27
Charging precautions .................................................................................................1-27
How to check the symbol on the charging label (For Europe)................................ 1-29
Electric charging label ............................................................................................... 1-30
Electric charging label symbol table.......................................................................... 1-31
Disconnecting charging connector in emergency ...................................................1-32
AC charge ....................................................................................................................1-32
DC charge ................................................................................................................... 1-36
Portable charge .......................................................................................................... 1-39
Charging the electric vehicle (abrupt stop) ....................................................1-51
Action to be taken when charging stops abruptly.................................................... 1-51
1. Foreword/Starting your
electric vehicle
Foreword/Starting your electric vehicle

1
Driving electric vehicle.................................................................................... 1-52
How to start the vehicle............................................................................................. 1-52
How to shut off the vehicle ....................................................................................... 1-53
Virtual engine sound system ..................................................................................... 1-53
Distance to empty...................................................................................................... 1-54
Tips for improving distance to empty....................................................................... 1-55
Energy information .................................................................................................... 1-56
Power/Charge Gauge .................................................................................................1-57
State of charge (SOC) gauge for high voltage battery .............................................1-57
Warning and Indicator lights (related to electric vehicle) ....................................... 1-58
LCD display messages ...............................................................................................1-60
Aux. Battery Saver+.................................................................................................... 1-65
Safety precautions for electric vehicle...........................................................1-66
If an accident occurs.................................................................................................. 1-66
Other precautions for electric vehicle ...................................................................... 1-68
High voltage cut-off switch....................................................................................... 1-68

1-3
01
FOREWORD
Congratulations, and thank you for choosing Genesis Branded Vehicle. We are pleased
to welcome you to the growing number of discerning people who drive Genesis
Branded Vehicle. We are very proud of the advanced engineering and high-quality
construction of each Genesis Branded Vehicle we build.
Your Owner’s Manual will introduce you to the features and operation of your new
Genesis Branded Vehicle. To become familiar with your new Genesis Branded Vehicle,
so that you can fully enjoy it, read this Owner’s Manual carefully before driving your
new vehicle.
This manual contains important safety information and instructions intended to
familiarize you with your vehicle’s controls and safety features so you can safely
operate your vehicle.
This manual also contains information on maintenance designed to enhance safe
operation of the vehicle. It is recommended that all service and maintenance on your
car be performed by an authorized retailer of Genesis Branded products. An authorized
retailer of Genesis Branded products are prepared to provide high-quality service,
maintenance and any other assistance that may be required.
This Owner’s Manual should be considered a permanent part of your vehicle, and
should be kept in the vehicle so you can refer to it at any time. The manual should stay
with the vehicle if you sell it to provide the next owner with important operating, safety
and maintenance information.
GENESIS BRAND MOTOR COMPANY
CAUTION
Severe vehicle damage may result from the use of poor quality fuels and lubricants
that do not meet Genesis Branded Vehicle specifications. You must always use high
quality lubricants that meet the specifications listed on Page 2-14 in the Vehicle
Specifications section of the Owner’s Manual.
Copyright 2022 Genesis Brand Motor Company. All rights reserved. No part of this
publication may be reproduced, stored in any retrieval system or transmitted in any
form or by any means without the prior written permission of Genesis Brand Motor
Company.

1-4
Foreword/Starting your electric vehicle
We want to help you get the greatest possible driving pleasure from your vehicle. Your
Owner’s Manual can assist you in many ways. We strongly recommend that you read
the entire manual. In order to minimize the chance of death or injury, you must read
the WARNING and CAUTION sections in the manual.
Illustrations complement the words in this manual to best explain how to enjoy your
vehicle. By reading your manual, you will learn about features, important safety
information, and driving tips under various road conditions.
The general layout of the manual is provided in the Table of Contents. Use the
index when looking for a specific area or subject; it has an alphabetical listing of all
information in your manual.
Sections: This manual has nine chapters plus an index. Each section begins with a brief
list of contents so you can tell at a glance if that section has the information you want.
SAFETY MESSAGES
Your safety, and the safety of others, is very important. This Owner’s Manual provides
you with many safety precautions and operating procedures. This information alerts
you to potential hazards that may hurt you or others, as well as damage to your vehicle.
Safety messages found on vehicle labels and in this manual describe these hazards
and what to do to avoid or reduce the risks.
Warnings and instructions contained in this manual are for your safety. Failure to follow
safety warnings and instructions can lead to serious injury or death.
Throughout this manual DANGER, WARNING, CAUTION, NOTICE and the SAFETY
ALERT SYMBOL will be used.
This is the safety alert symbol. It is used to alert you to potential physical injury
hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death. The safety alert symbol precedes the signal words DANGER,
WARNING and CAUTION.
DANGER
DANGER indicates a hazardous
situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION
CAUTION indicates a hazardous
situation which, if not avoided, could
result in minor or moderate injury.
NOTICE
NOTICE indicates a situation which,
if not avoided, could result in vehicle
damage.
HOW TO USE THIS MANUAL

1-5
01
VEHICLE MODIFICATIONS
• This vehicle should not be modified. Modification of your vehicle could affect its
performance, safety or durability and may even violate governmental safety and
emissions regulations.
In addition, damage or performance problems resulting from any modification may
not be covered under warranty.
• If you use unauthorized electronic devices, it may cause the vehicle to operate
abnormally, wire damage, battery discharge and fire.
NOTICE
Some warning sounds (including welcome/good-bye sound, etc.) are generated
from the external amplifiers. If necessary, we recommend you to purchase Genesis/
Hyundai Part to replace an external amplifier. Any unauthorized product may cause
a malfunction of the external amplifiers.
RETURNING USED VEHICLES (FOR EUROPE)
Genesis Branded Vehicle promotes an environmentally sound treatment for end of life
vehicles and offers to take back your Genesis Branded Vehicle end of life vehicles in
accordance with the European Union (EU) End of Life Vehicles Directive.
You can get detailed information from your national Genesis Branded Vehicle
homepage.

1-6
Foreword/Starting your electric vehicle
Electric vehicle
An electric vehicle is driven using a
battery and an electric motor. While
general vehicles use an internal
combustion engine and gasoline as fuel,
electric vehicles use electrical energy
that is charged inside the high voltage
battery. As a result, electric vehicles are
eco-friendly in that they do not require
fuel and do not emit exhaust gases.
Characteristics of electric
vehicles
1. It is driven using the electrical energy
that is charged inside the high voltage
battery. This method prevents air
pollution since fuel, like gasoline, is
not required, negating the emission of
exhaust gases.
2. A high performance motor is used
in the vehicle as well. Compared to
standard, internal combustion engine
vehicles, engine noise and vibrations
are much more minimal when driving.
3. When decelerating or driving
downhill, regenerative braking is
utilized to charge the high voltage
battery. This minimizes energy loss
and increases the distance to empty.
4. When the battery charge is not
sufficient, AC charge, DC charge and
trickle charge are available. (Refer to
“Charge Types for Electric Vehicle” for
details.)
Information
What does regenerative braking do?
It uses an electric motor when decelerating
and braking and transforms kinetic
energy to electrical energy in order to
charge the high voltage battery. (Torque
is applied in the opposite direction when
decelerating to generate braking force and
electric energy.)
Battery Information
• The vehicle is composed of a high
voltage battery that drives the motor
and air-conditioner, and an auxiliary
battery (12 V) that drives the lamps,
wipers, and audio system.
• The auxiliary battery is automatically
charged when the vehicle is in the
ready ( ) mode or the high
voltage battery is being charged.
ELECTRIC VEHICLE

1-7
01
MAIN COMPONENTS OF ELECTRIC VEHICLE
Main components of electric
vehicle
• On-Board Charger (OBC): A device
that charges the high voltage battery
by converting AC power of the power
grid to DC power.
• Inverter: Transforms direct current
into alternate current to supply power
to the motor, and transforms alternate
current into direct current to charge
the high voltage battery.
• LDC: Transforms power from the high
voltage battery to low voltage (12 V) to
supply power to the vehicle (DC-DC).
• VCU: Control the various controls on
the vehicle.
• Motor: Uses electrical energy stored
inside the high voltage battery to drive
the vehicle (functions like an engine in
a standard vehicle).
• Reduction gear: Delivers rotational
force of the motor to the tires at
appropriate speeds and torque.
• High voltage battery (lithium-ion
battery): Stores and supplies power
necessary for the electric vehicle
to operate (12 V auxiliary battery
provides power to the vehicle features
such as lights and wipers).
ÃOBC: On-Board Charger
ÃLDC: Low Voltage DC-DC Converter
ÃVCU: Vehicle Control Unit
WARNING
• Do not intentionally remove
or disassemble high voltage
components and high voltage
battery connectors and wires. Also,
be careful not to damage high
voltage components and the high
voltage battery. It may cause serious
injury and significantly impact the
performance and durability of the
vehicle.
• When inspection and maintenance
is required for high voltage
components and the high voltage
battery, we recommend that you
contact an authorized retailer of
Genesis Branded products.
High voltage battery
(lithium-ion battery)
• The charge amount of the high
voltage battery may gradually
decrease when the vehicle is not
being driven.
• The battery capacity of the high
voltage battery may decrease when
the vehicle is stored in high/low
temperatures.
• Distance to empty may vary
depending on the driving conditions
(such as outside temperature), even
if the charge amount is the same.
The high voltage battery may expend
more energy when driving at high-
speed or uphill. These actions may
reduce the distance to empty.
• The high voltage battery is used when
using the air-conditioner / heater.
This may reduce the distance to
empty. Make sure to set moderate
temperatures when using the air-
conditioner/heater.

1-8
Foreword/Starting your electric vehicle
• Natural degradation may occur with
the high voltage battery depending
on the number of years the vehicle is
used. This may reduce the distance to
empty.
• When the charge capacity and
distance to empty keep falling,
we recommend that you contact
an authorized retailer of Genesis
Branded products for inspection and
maintenance.
• If the vehicle will not be in use for an
extended period of time, charge the
high voltage battery once every three
months to prevent it from discharging.
Also, if the charge amount is not
enough, immediately charge to full
and store the vehicle.
• AC charge is recommended to keep
the high voltage battery in optimal
condition.
If the high voltage battery charge
amount is below 20 %, you can keep
the high voltage battery performance
in optimal condition if you charge the
high voltage battery to 100 %. (Once a
month or more is recommended.)
The value of the high voltage battery
charge level may vary according to
the charging conditions (state of
charger, outside temperature, battery
temperature, etc.). In order to fully
charge the battery, the current of the
high voltage battery will be gradually
decreased, so that the longevity and
safety of the battery can be secured.
CAUTION
• If the vehicle is kept with insufficient
charge for a long period, it may
damage the high voltage battery and
the high voltage battery may have to
be replaced depending on the level
of degradation.
• If the vehicle is in a collision, we
recommend that you contact an
authorized retailer of Genesis
Branded products to inspect
whether the high voltage battery is
still connected.
• Using the V2L function may reduce
the mileage due to the use of high
voltage battery energy, and repeated
use of the V2L function may cause
a decrease in the life of the high
voltage battery.
• Using the V2L function may reduce
the driving distance due to the use
of high voltage battery energy, and
repeated use of the V2L function may
cause a decrease in the life of the
high voltage battery.
High voltage battery warmer
system
The high voltage battery warmer system
prevents reduction of battery output
when battery temperature is low. If the
charging connector is connected, the
warmer system automatically operates
according to the battery temperature.
Charging time may shorten compare to
vehicles without the high voltage battery
warmer system. But, electricity charge
may increase because of high voltage
battery warmer system operation.
CAUTION
The high voltage battery warmer
system operates when the charging
connector is connected to the vehicle.
However, the high voltage warmer
system may not operate when battery
temperature drops below -35°C (-31°F).

1-9
01
EV mode screen
OJKEVQ012008LOJKEVQ012008L
EV MODE
OJKEVQ012007LOJKEVQ012007L
If you select the ‘EV’ menu at the home
screen you can enter EV mode.
For detailed information, scan the QR
code in a separately supplied simple
manual.
(1) Energy Information
(2) Next Departure
(3) Charging and Climate
(4) Vehicle to Load (V2L)
(5) EV Settings
(6) Menu

1-10
Foreword/Starting your electric vehicle
Energy information
OJKEVQ012009LOJKEVQ012009L
Select ‘EV → Energy information’ on the
screen.
You can check battery information and
energy consumption.
Battery information
OJKEVQ012010LOJKEVQ012010L
You can check the reachable range, total
battery power remaining, and expected
charging time for each charge type.
• The distance to empty is calculated
based on the electric energy
efficiency while driving. The distance
may change if the driving pattern
changes.
• The distance to empty may vary
according to the change of the driving
pattern even if the same target battery
charge level is set.
Next departure
OJKEVQ012011LOJKEVQ012011L
Select ‘EV → Next departure time’ on the
screen. You can set the date and time
of when to charge the battery, climate
control temperature, and other various
functions.

1-11
01
Departure time
OJKEVQ012012LOJKEVQ012012L
OJKEVQ012013LOJKEVQ012013L
1. Set anticipated departure time for
scheduled charging and target
temperature.
2. Select the day of the week to activate
scheduled charging and target
temperature for departure time.
Charging and climate
OJKEVQ012014LOJKEVQ012014L
Select ‘EV → Scheduled charging and
climate’ on the screen.
Information
Vehicle must be connected with the
charging connector at the time pre-
scheduled time for the scheduled charging.
OJKEVQ012015LOJKEVQ012015L
You can set the date and time of when
to charge the battery and the climate
control temperature. Also, you may
select the time to start charging using
the off-peak time setting.

1-12
Foreword/Starting your electric vehicle
Off-peak time settings
OJKEVQ012016LOJKEVQ012016L
1. If selected, starts charging only on the
designated off-peak time.
2. Set the most inexpensive time to
complete charging.
3. You may select:
• Off-peak tariffs prioritised: If
selected, starts charging at off-peak
time (may keep on charging pass
off-peak time to charge 100 %).
• Off-peak tariffs only: If selected,
charges only within off-peak time
(may not charge 100 %).
Target temperature settings
OJKEVQ012017LOJKEVQ012017L
1. Set target temperature.
If the target temperature (1) is set
with the cable connected, the cabin
temperature will be adjusted to the
target temperature at departure
time (without loss of high voltage
battery charging level). The target
temperature control starts 30 minutes
before the departure time. In cold
weather, preschedule heating helps
enhance electric vehicle performance
by heating the vehicle in advance.

1-13
01
Vehicle to load (V2L)
V2L is the system provides AC power
using the high voltage battery for driving
to operate several electronical products.
OJKEVQ012018LOJKEVQ012018L
Select ‘EV → EV charge transfer’ on the
screen.
You can set the battery discharging limit
for high voltage battery for driving.
OJKEVQ012019LOJKEVQ012019L
If the vehicle reaches to the limit, it
automatically cut supply of electricity.
Energy information
Select ‘EV → Energy information’ on the
screen.
You can check battery discharging level.
How to connect
Outdoor
OJKEVQ011020OJKEVQ011020
1. Open the cover of the V2L connector.
2. Close the cover after connecting
home appliances and electronical
products to the power outlet.
3. Connect the V2L connector to the
charging inlet on the vehicle.
4. Press the switch (1) of the V2L
connector and check whether the
light (2) is on or off. The light (2) may
not turn on normally when:
- See the battery discharging limit
for high voltage battery for driving
in ‘Electricity Use’ menu on the
screen. If it is higher than the
current amounts of high voltage
battery, the light (2) does not turn
on.
- Check whether the light of V2L
connector turns on or not.

1-14
Foreword/Starting your electric vehicle
- If the warning message for V2L
appears on the cluster, refer to the
message entirely.
- If V2L does not operate previously
when you connects another home
appliances, we recommend that
you have your vehicle inspected by
an authorized retailer of Genesis
Branded products.
5. Press the switch (1) to turn off the light
(2) the the V2L will be off. You can
disconnect the V2L connector when
the light (2) turns off or the charging
connecter lock is deactivated pressing
the door unlock button on the smart
key.
Information
• Please connect the V2Lconnector to the
charging inlet within 60 seconds after
the charging cover opens. To prevent
theft after connecting, it is changed
to auto lock automatically so that it is
impossible to disconnect.
• When using V2L, cancel the scheduled
air conditioning setting. V2L operation
may be blocked by scheduled air
conditioning operation conditions.
Indoor (if equipped)
OJKEVQ011039OJKEVQ011039
1. Connect to the power outlet located
on the lower right side of the tailgate
with the Vehicle Stop/Start button in
the ON position.
OJKEVQ011021OJKEVQ011021
2. Use the smart key to unlock the power
outlet cover.

1-15
01
OJKEVQ011022OJKEVQ011022
3. Check the operation status through
the front indicator of the power outlet.
• Blue: Standby
• Red: No power supply even the
power outlet is connected
• Green: Normal power supply
through the normal connection of
the power outlet.
Information
• V2L discharging mode will shut off if
the vehicle is off using indoor V2L on
the vehicle state of ON.
• Opening the charging door or
connecting the V2Lconnector to the
charging inlet, the V2Ldischarging
mode will shut off. If you want to
use the indoor and outdoor V2L
simultaneously, firstly connect the V2L
connector to the charging inlet and use
the indoor V2L.
CAUTION
• Be well-informed of the manual to
prevent accidents.
• The V2L discharging mode is
blocked automatically in case of
overheating. (When the discharging
mode is blocked, check whether
the V2L connector or power plug
is contaminated, worn, corroded
or broken or the home appliance
capacity is over 16 A. If the
temperature falls to proper level
after it is left unattended, you can
use it again. Use proper home
appliances.)
• Do not remodel or disassemble
the provided V2L connector. The
failure caused by remodeling or
disassembling is not covered by the
warranty.
• Do not drop the V2L connector or
give a strong impact to it.
• Do not place objects on the V2L
connector.
• Be sure to disconnect the V2L
connector from the vehicle when you
are finished using V2L.
• When the high voltage battery
charge reaches the set discharging
limit (%), the operation stops, and a
warning message is displayed on the
instrument panel. If you want V2L
operation, set the discharging limit
(%) lower than the current battery
charge.
• When using various electric
products, use them below the
maximum power capacity that can
be supplied by the vehicle.
