Geniatech ATV130 User manual

1
Android Box
MHL Dual Core HDMI Stick
ATV130
User’s Guide
Thank you for purchasing this Geniatech product.
.Before using it, be sure to read the precautions contained in this User’s Guide.
.Keep the User’s Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.geniatech.com

2
Contents
1. Safety Information, P3-4
1.1 Warning, P3
1.2 Precautions, P3
1.3 Handling Cautions, P4
2. Introduction, P5-7
2.1 Package Contents, P5
2.2 Product Features, P5
2.3 Panel Introduction, P6
2.4 Remote Controller, P6
2.5 Setup Connection, P7
2.6 Display when Power Up, P7
3. Settings,P8-16
3.1 WiFi, P8
3.2 Ethernet, P8
3.3 Date Usage, P9
3.4 More..., P9
3.5 Sound, P10
3.6 Display, P10
3.7 Storage, P11
3.8 Apps, P11
3.9 Accounts & sync, P12
3.10 Security, P13
3.11 Language & input, P13
3.12 Backup & reset, P14
3.13 Add account, P14
3.14 Date & time, P15
3.15 Accessibility, P15
3.16 Developer options, P16
3.17 About device, P16
4. Apps Install & Uninstall,P17
5. Firmware Update,P18
6. Trouble Shooting/FAQ,P19
7. Repairs,P20
8. Specification,P21
9. Trademark Notice,P22

3
1. Safety Information
Read and understand all instructions before using this product. If damage is caused
by failure to follow the instructions, the warranty does not apply.
1.1 Warning
To reduce the risk of electric shock, DO NOT remove the cover (or back).
DO NOT attempt to repair the product, this could lead to the risk of injury, damage
to the product .
To reduce the risk of fire or electric shock, keep this product away from exposed
direct sunlight, naked flames or heat, large amounts of moisture, dust, and sand.
FCC Note (for U.S.A)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of the
following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
- This class B digital product meets all requirements of the Canadian Interference -
Causing Equipment Regulations.
1.2 Precautions
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the
safety instructions listed below.
Keep these operating instructions handy for future reference.
1.2.1 Read these instructions.
1.2.2 Keep these instructions.
1.2.3 Heed all warnings.
1.2.4 Follow all instructions.
1.2.5 DO NOT use this apparatus near water.
1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth.
1.2.7 DO NOT block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves,
or other apparatus that produce heat.
1.2.9 Protect the power cord from being walked on or pinched particularly at plugs,

4
convenience receptacles, and the point where it exits the apparatus.
1.2.10 Only use attachments/accessories specified by the manufacturer.
1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used , use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
1.2.12 Unplug this apparatus during lightning storms or when unused for long
period of time.
1.2.13 Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as when the power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
1.3 Handling Cautions
1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects
filled with liquids, such as vases on the apparatus.
1.3.2 To turn this apparatus off completely, you must pull the power plug out of the
wall socket. Consequently, the power plug must be easily and readily accessible at
all times.
1.3.3 DO NOT plug multiple electric devices into the same wall socket.
Overloading a socket can cause it to overheat, resulting in a fire.
1.3.4 Before connecting other components to this player, be sure to turn them off.
1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke,
turn off the power switch immediately and disconnect the power plug from the wall
outlet. Then, contact the nearest customer service center for technical assistance. Do
not use the product. Using the product as it is may cause a fire or an electric shock.

5
2. Introduction
2.1 Package Contents
MHL Dual Core HDMI Stick - ATV130
User’s Guide
IR Remote Controller (IR RC)
Optional Remote Controller
2.4G wireless Remote Controller
USB wire/wireless Mouse & Keyboard
2.2 Product Features
HDMI video output ,connect HDTV with Dual Core Stick ATV130 for HD
1080P video playback
Dual Core ARM CORTEX A9*2, frequency is 1.5GHz,RAM 1G, built in 4G
flash memory. Powered by Android 4.1 OS
Connect to the internet with Google Chrome browser to access any website for
entertainment, information or education
Support flash player11, watch online video from YouTube, Netflix, Hulu,
Amazon, or any local video sites and even video-on-demand services
Chat with Facebook or Twitter, Skype and Yahoo message etc
Access to Android app-store to download, install and run the huge number of
Android applications that are available
Built in 802.11b/g/n WIFI module, 2G-32G flash memory(optional) and
supports 3D Graphics
Direct power supply via Mini USB port, no need of a power adaptor
Unique mini PC design, the size of the product is similar with USB flash disk
The TV stick Dual Core is being operated by an infrared remote control, you
can use the receiver everywhere within the operating range
Support weather, calendar, and desktop clock gadgets
App Installer for application installation from USB/Micro SD

6

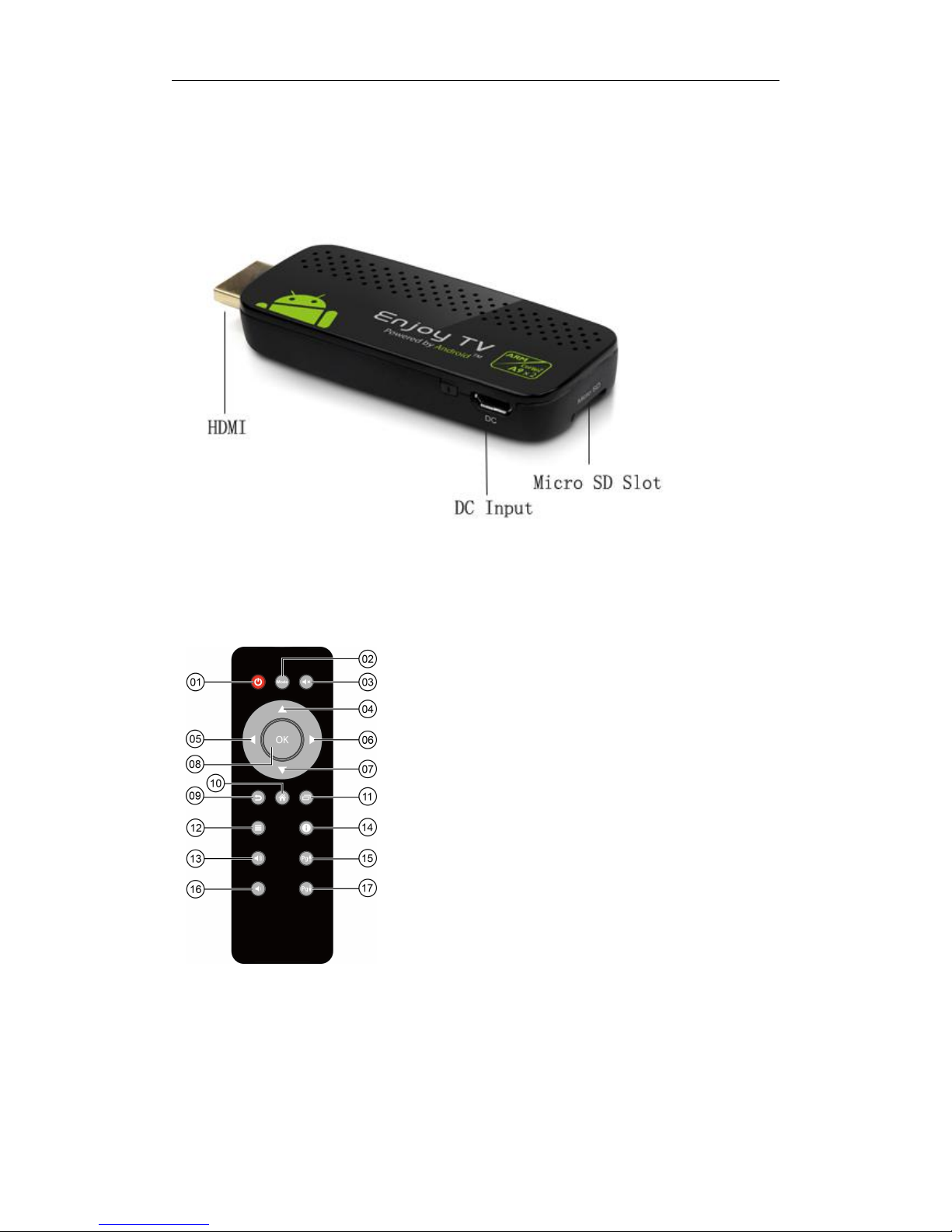

2.3 Panel Introduction
2.4 Remote Controller
Note: Button Battery 2025 3V insert with correct polarity (+/-).
①Power
②Mode
③Mute
④Upwards
⑤Towards the left
⑥Towards the right
⑦Downwards
⑧OK
⑨Return
⑩Home
⑪Background App
⑫Menu
⑬Vol+
⑭Notification
⑮Page Up
⑯Vol-
⑰Page Down

7
2.5 Setup Connection
Place ATV130 on a flat platform near the TV, and make sure nothing block the
remote control signal.
2.6 Display when Power Up
2.6.1 After power up, the TV will first show a green robot then change to “android”
logo during loading. When loading is finished, it will go to Home screen.
2.6.2 Home Screen display.

8
3. Settings
Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller
to select the options, the option selected will be highlighted and confirmed by
pressing OK key. Same operation for text input if needed.
Select icon then press OK key.

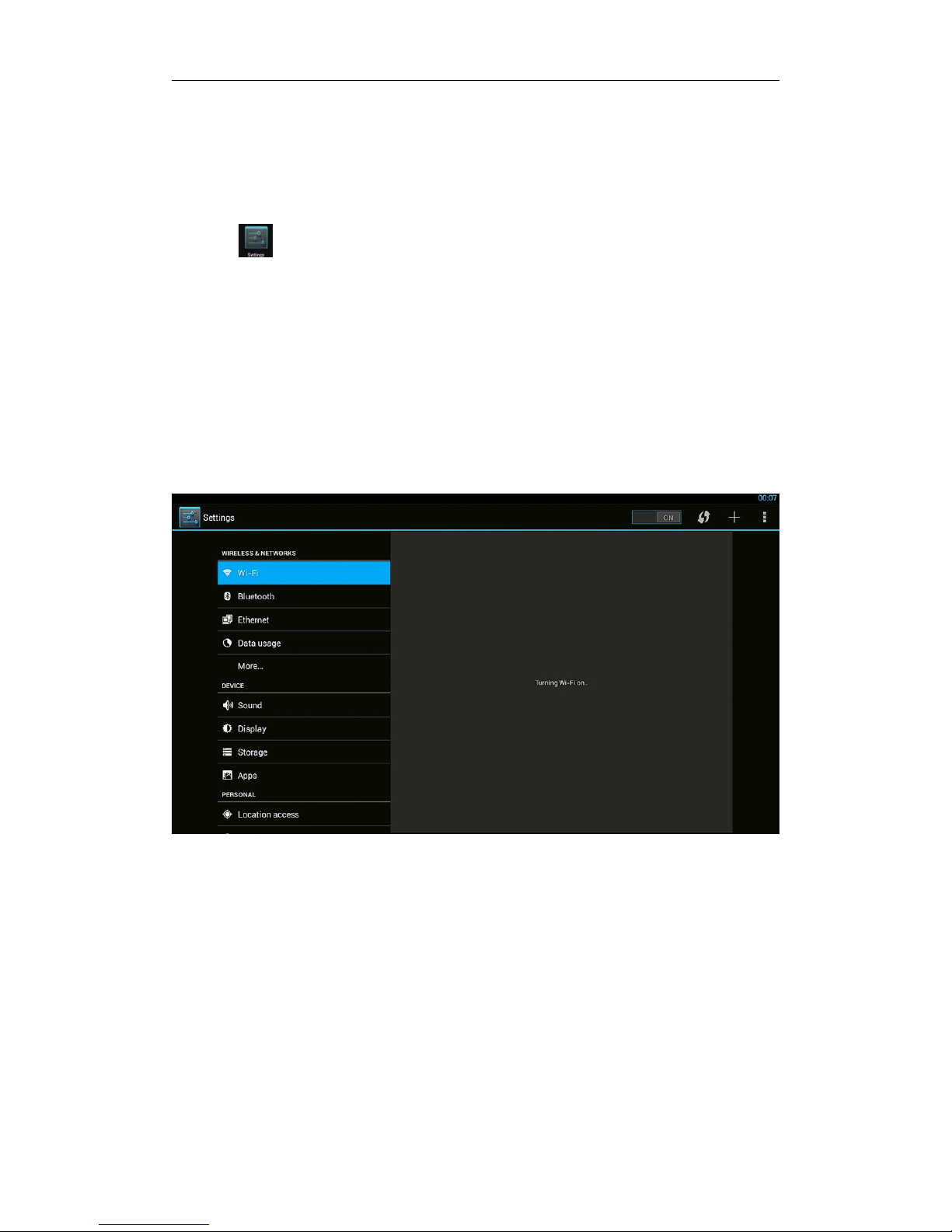

3.1 WiFi
3.1.1 It will automatically scan ambient WiFi networks when select “ON”.
3.1.2 Connect an available WiFi network. If connect a secured WiFi network,
corresponding password will be input firstly. Or fail to connect and need reset
password.
3.1.3 Once build up the connection with a certain WiFi network successfully,
ATV1220M will connect this WiFi network automatically when restart.
Note: If factory reset, the password of WiFi network have to be reset.
3.2 Ethernet
Connect Box and Router by RJ45 network cable.
Press “ ON” in Ethernet setting, it will connect to network automatically.

9

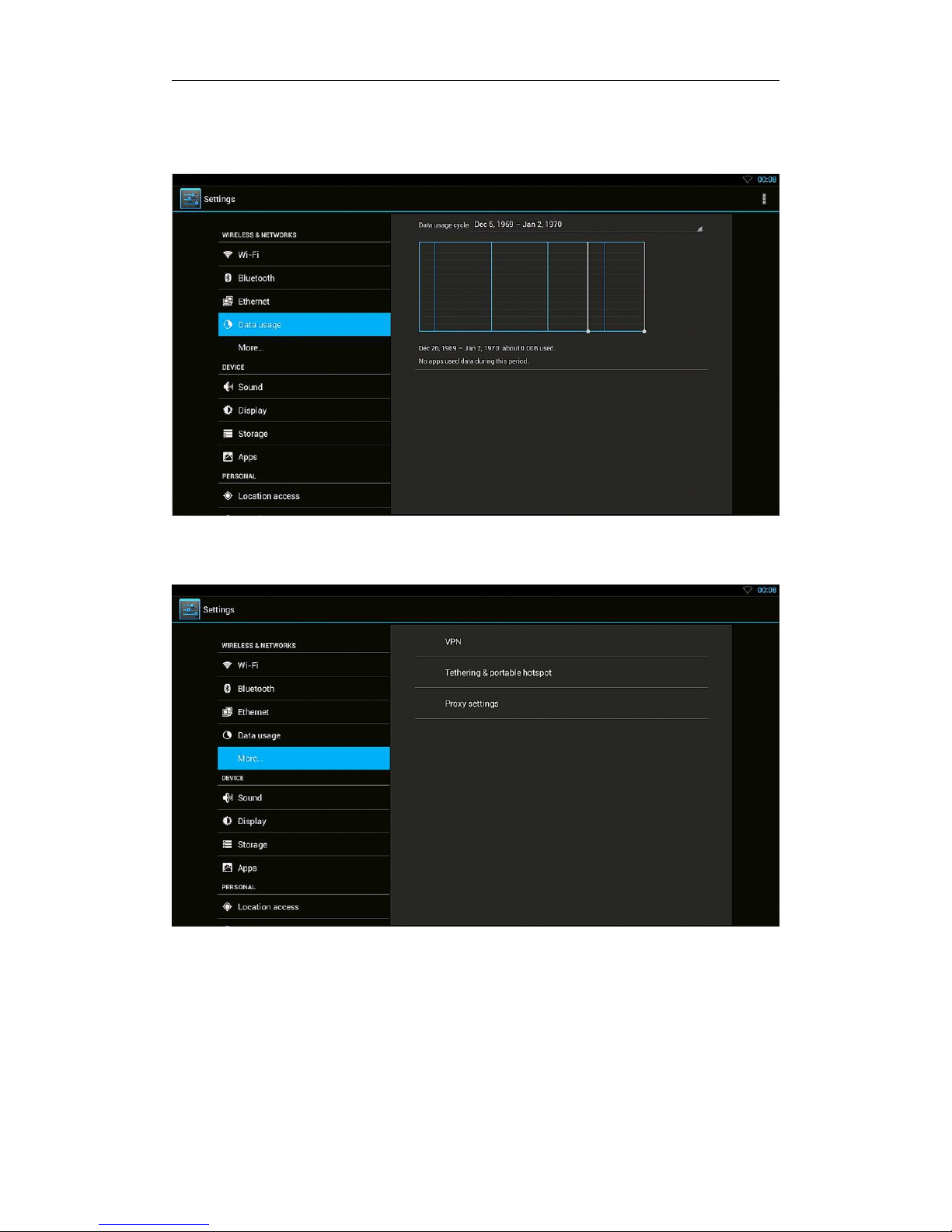

3.3 Date usage
Show data usage information.
3.4 More...
3.4.1 VPN
Build and set VPN

10
3.4.2 Tethering & Portable hotspot
3.4.3 Proxy settings
Setup proxy server

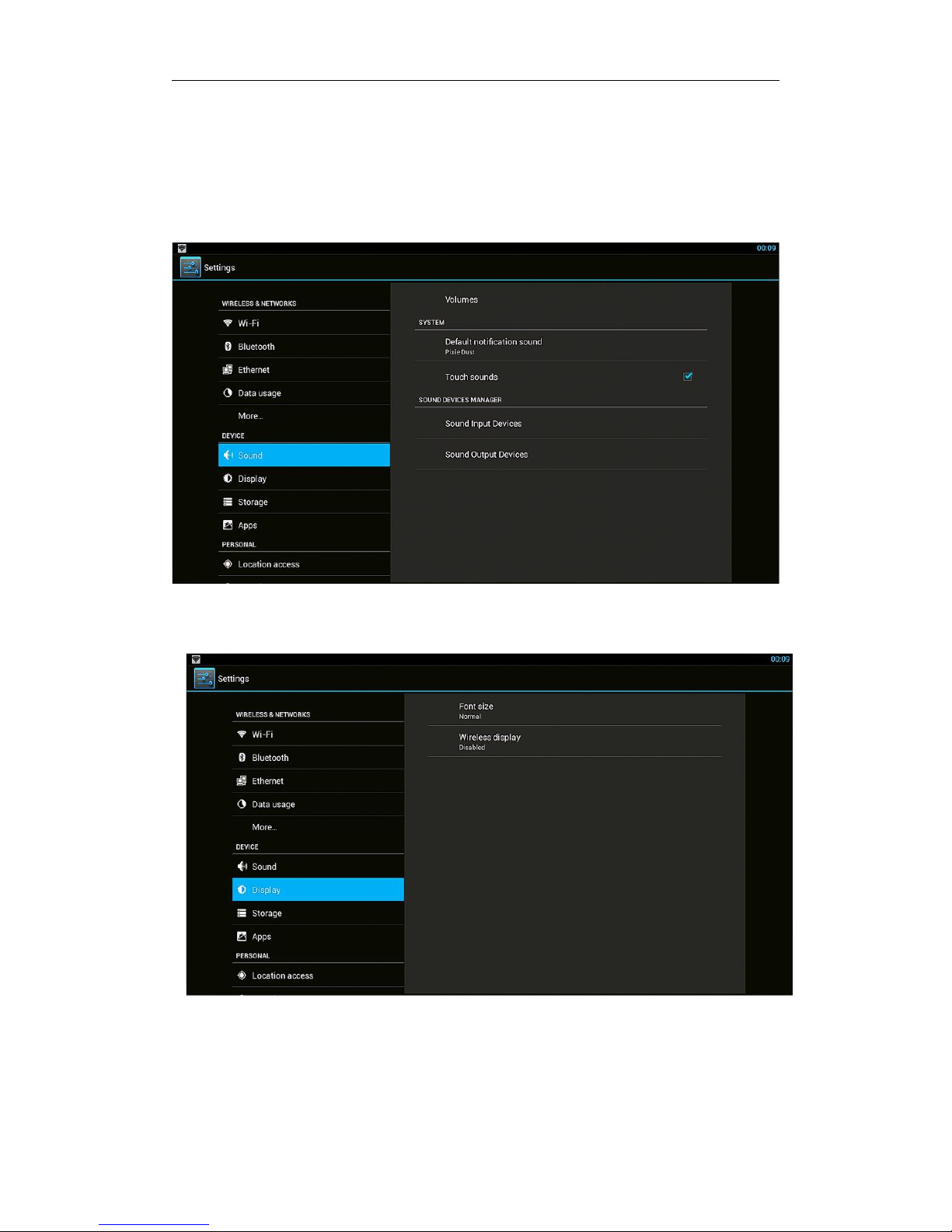

3.5 Sound
3.6 Display
3.6.1 Font size
Change the font size of OSD

11
3.6.2 Wireless display
3.7 Storage
Shows the storage used of the OS and SD card.

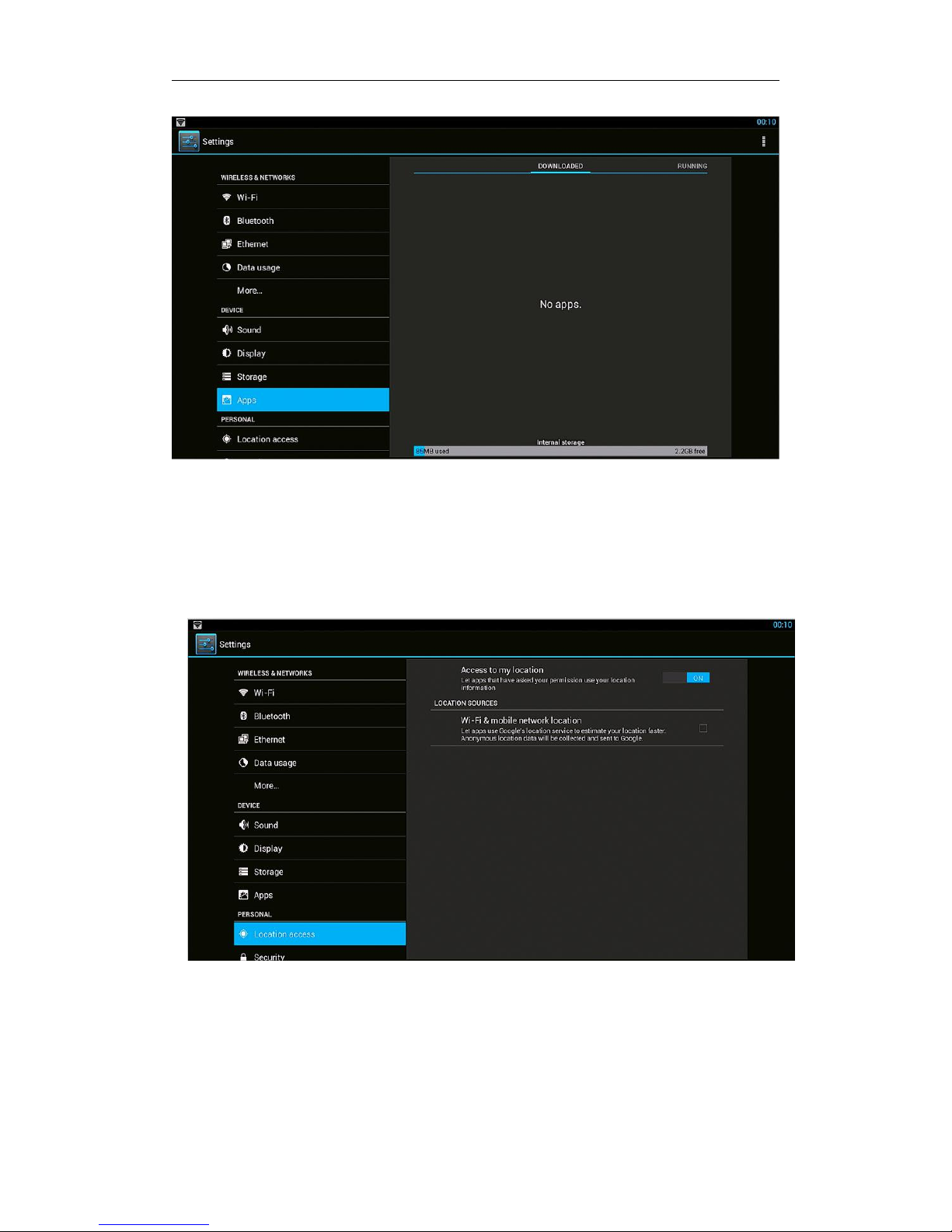

3.8 Apps
List all apps installed.

12
You can choose an application and force to shut down the app, uninstall the app,
clear user data, move to SD card and clear cache data.
3.9 Location access

13

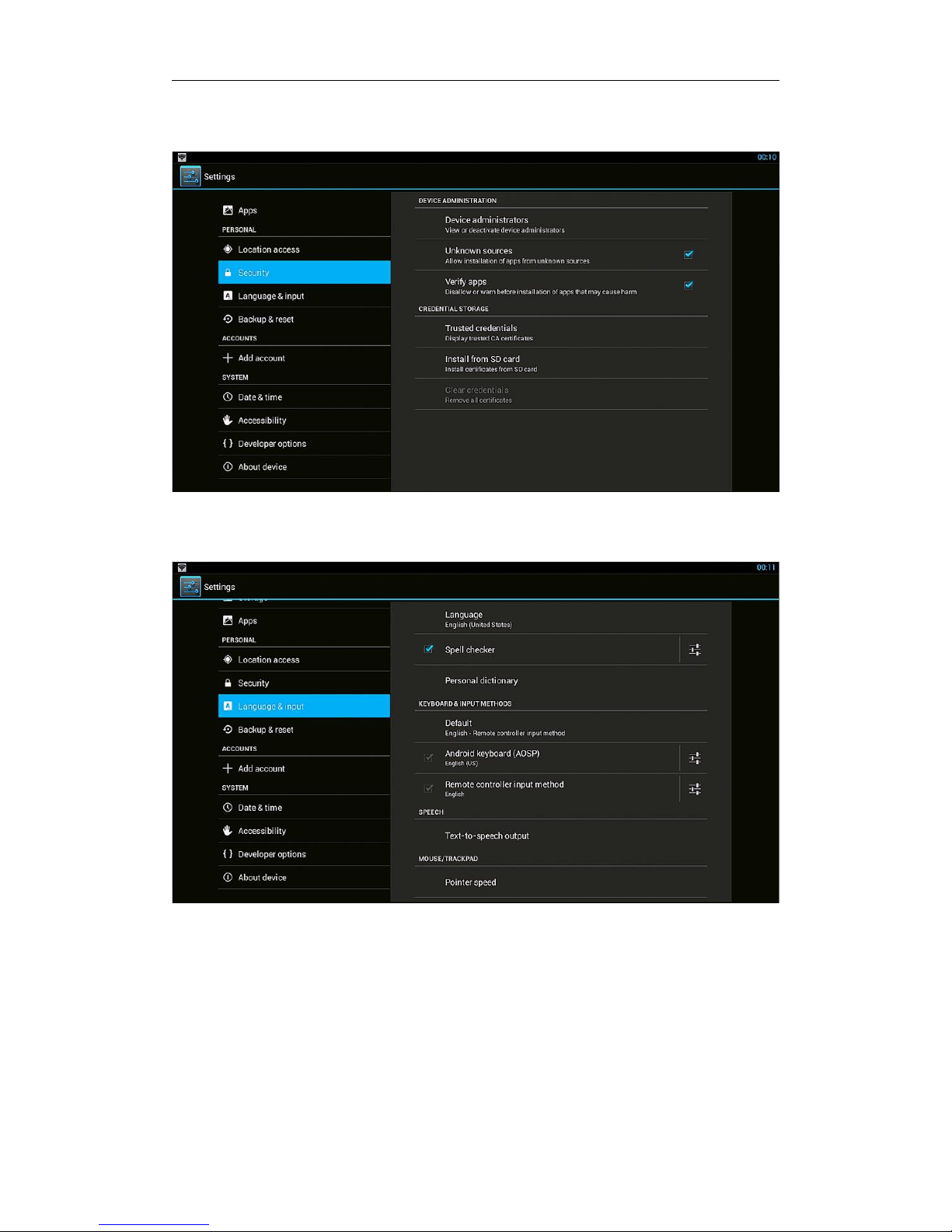

3.10 Security
3.11 Language & input
Change OSD language and input method.
The default input method is android standard keyboard.
If you are using our IR remote control, enter into “Default” option and switch to
remote controller input method.

14
3.12 Backup & reset
Back up my data:
You can backup your application data, WiFi password and other settings.
Factory data rest:
You can reset all the settings and apps to factory default.
Note: You might want to backup important data before resetting the box. Once you
choose to rest to factory default, all data/apps will be deleted.
3.13 Add account

15

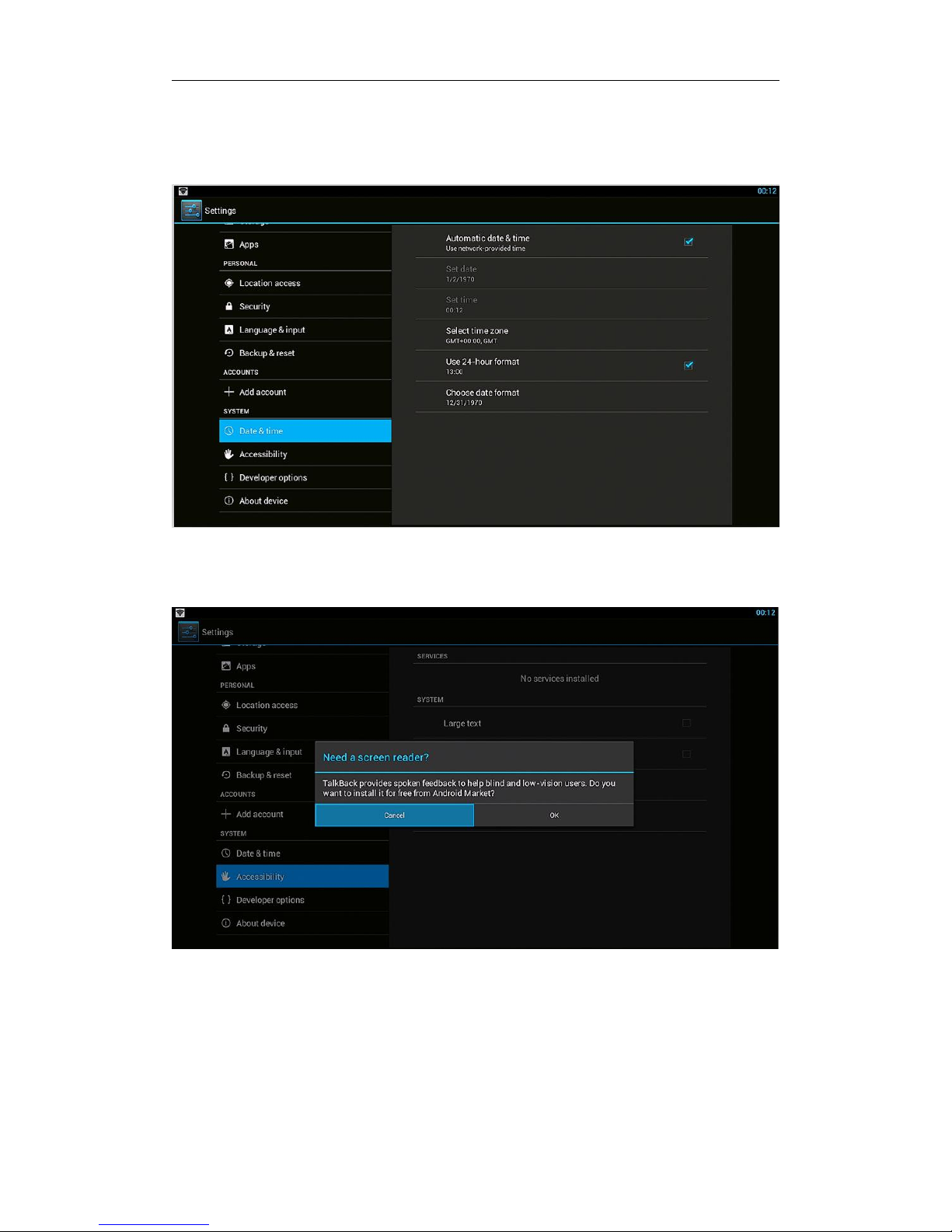

3.14 Date & Time
Set date, time, time zone and time format
3.15 Accessibility

16
3.16 Developer options
If user want to do some debugging on box by ADB, enable USB debugging, you
will get ADB function by Ethernet or WiFi network.
3.17 About device.
Firmware version under build number.

17
4. Apps Install & Uninstall
On ATV130, you can install apps from Android Market over the Internet or other
sources, such as other online sources, the internal storage and the USB storage
device and SD card that you have mounted onto ATV130.
You also can manage apps on ATV130 and SD card, install/uninstall apps, stop
running apps, or select other options.

18
5. Firmware Update
You can download newest firmware from Geniatech Official website:
www.geniatech.com

19
6. Trouble Shooting/FAQ
6.1 No Picture
Refer to the TV user manual for how to select the correct video input channel.
6.2 USB Content cannot be read
. The format of USB storage device is not supported
. The supported memory size is 32G maximum.
. Make sure that this player supports these files.
6.3 Remote Controller cannot respond quickly to the pressing of keys
Make sure that batteries have enough power.
6.4 The firmware updating is not complete after a long time
If you update the firmware over the online service, it may take a long time to
download the firmware update files from the server. To save your time, update the
firmware through the SD card.

20
7. Repairs
If you contact us to repair your player, an administration fee may be charged if
either:
An engineer is called out to your home at your request and there is no defect in the
product.
You bring the unit to a repair center and there is no defect in the product.
We will provide you with the amount of the administration fee before we make a
home visit or begin any work on your player.
We recommend you read this manual throughly, search for a solution on line at
www.geniatech.com, or contact Geniatech Customer Care before seeking to repair
your player.
