Geniatech Dragon Board3 User manual

1
Android Board
ENJOY TV QUAD CORE BOARD
Dragon Board3
User’s Guide
Thank you for purchasing this Geniatech product.
.Before using it, be sure to read the precautions contained in this User’s Guide.
.Keep the User’s Guide in a safe place for future reference.
.For the most up-to-date information about this product, visit official website at
http://www.geniatech.com

2
Contents
1. Safety Information, P3-4
1.1 Warning, P3
1.2 Precautions, P3
1.3 Handling Cautions, P4
2. Introduction, P5-9
2.1 Package Contents, P5
2.2 Product Features, P5
2.3 Board Placement, P6-8
2.4 Remote Controller, P8
2.5 Setup Connection, P9
2.6 Display when Power Up, P9
3. Settings,P10-20
3.1 WiFi, P10
3.2 Bluetooth, P11
3.3 Ethernet, P12
3.3 Date Usage, P12
3.5 More..., P13
3.6 Sound, P14
3.7 Display, P14
3.8 Storage, P15
3.9 Apps, P15
3.10 Permissions, P16
3.11 Location, P16
3.12 Security, P17
3.13 Language & input, P17
3.14 Backup & reset, P18
3.15 Add an account, P18
3.16 Accessibility, P19
3.17 Developer options, P19
3.18 About device, P20
4. Apps Install & Uninstall,P21
5. Firmware Update,P22
6. Trouble Shooting/FAQ,P23
7. Repairs,P24
8. Specification,P25
9. Trademark Notice,P26

3
1. Safety Information
Read and understand all instructions before using this product. If damage is caused
by failure to follow the instructions, the warranty does not apply.
1.1 Warning
To reduce the risk of electric shock, DO NOT remove the cover (or back).
DO NOT attempt to repair the product, this could lead to the risk of injury, damage
to the product .
To reduce the risk of fire or electric shock, keep this product away from exposed
direct sunlight, naked flames or heat, large amounts of moisture, dust, and sand.
FCC Note (for U.S.A)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of the
following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.
- This class B digital product meets all requirements of the Canadian Interference -
Causing Equipment Regulations.
1.2 Precautions
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the
safety instructions listed below.
Keep these operating instructions handy for future reference.
1.2.1 Read these instructions.
1.2.2 Keep these instructions.
1.2.3 Heed all warnings.
1.2.4 Follow all instructions.
1.2.5 DO NOT use this apparatus near water.
1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth.
1.2.7 DO NOT block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves,
or other apparatus that produce heat.
1.2.9 Protect the power cord from being walked on or pinched particularly at plugs,

4
convenience receptacles, and the point where it exits the apparatus.
1.2.10 Only use attachments/accessories specified by the manufacturer.
1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used , use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
1.2.12 Unplug this apparatus during lightning storms or when unused for long
period of time.
1.2.13 Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as when the power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
1.3 Handling Cautions
1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects
filled with liquids, such as vases on the apparatus.
1.3.2 To turn this apparatus off completely, you must pull the power plug out of the
wall socket. Consequently, the power plug must be easily and readily accessible at
all times.
1.3.3 DO NOT plug multiple electric devices into the same wall socket.
Overloading a socket can cause it to overheat, resulting in a fire.
1.3.4 Before connecting other components to this player, be sure to turn them off.
1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke,
turn off the power switch immediately and disconnect the power plug from the wall
outlet. Then, contact the nearest customer service center for technical assistance. Do
not use the product. Using the product as it is may cause a fire or an electric shock.

5
2. Introduction
2.1 Package Contents
Enjoy TV Quad Core Board - Dragon Board3
User’s Guide
HDMI Cable
IR Remote Controller (IR RC)
Optional Remote Controller
2.4G wireless Remote Controller
USB wire/wireless Mouse & Keyboard
Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 12V, 2A
2.2 Product Features
Quad Core CPU, Octa GPU, frequency is 1.6-2.0GHz, RAM is 2G, built in 8G
emmc flash memory. Powered by Android 4.4.2 OS
Built in browser and support virtual private network access
RJ45 10/100M Ethernet interface
Support 4k2k video local media playback from SD card or USB HDD
Built in 802.11b/g/n WIFI module with antenna inside, WiFi frequency range
is 2400-2497GHz
Rj45:Wired internet connection
HDMI and CVBS video output,HDMI video input
connect to HDTV for HD video playback
2 external USB interface , support mobile HDD, support mouse and keyboard
operating
Support weather, calendar, and desktop clock gadgets
Support USB mouse and keyboard operation
Support simple IR remote control with mouse function
Support music player, picture player and more family entertainment
Support Micro SD card
Support Google Chrome Browser
App Installer for application installation from USB/SD card
And More

6
2.3 Board Placement
Front side

7
Back side
Item
PART NUMBER
DESCRIPTION
1
CAMERA INTERNAL
CAMERA CONNECTOR
2
POWER JACK
POWER JACK
3
POWER SWITCH
POWER SWITCH
4
LED
POWER LED
5
SPDIF
DIGITAL AUDIO
6
MICRO SD
MICRO SD CARD CARRIER
7
HDMI
HDMI INPUT
8
USB OTG
MICRO USB OTG
9
UART
RS232
10
USB
DUAL USB HEADER
11
HDMI
HDMI OUTPUT
12
RJ45
ETHERNET
13
AUDIO
AUDIO EXTERNAL
14
SMA
TV TUNER COAXIAL CONNECTOR
15
MICROPHONE
INTERNAL MICROPHONE HEADER
16
SPEAKERS
INTERNAL SPEAKER OUTPUT
17
LVDS
SCREEN CONNECTOR
18
LVDS CONTROL
LVDS CONTROL CONNECTOR
19
EDP
EMBEDDEN DISPLAY PORT
20
RESET
RESET SWITCH

8
21
DEBUG SERIAL PORT
DEBUG SERIAL PORT
22
IR
IR
23
I2C
I2C CONNECTOR
24
SATA
SATA INTERFACE
25
USB
USB 4 PINS
26
MINI PCI-E
MINI PCI-E 3G MODULE SLOT
27
SATA POWER
SATA POWER
28
SERIAL PORT
SERIAL PORT
29
BACK LIGHT
BACK LIGHT DRIVER CONNECTOR
30

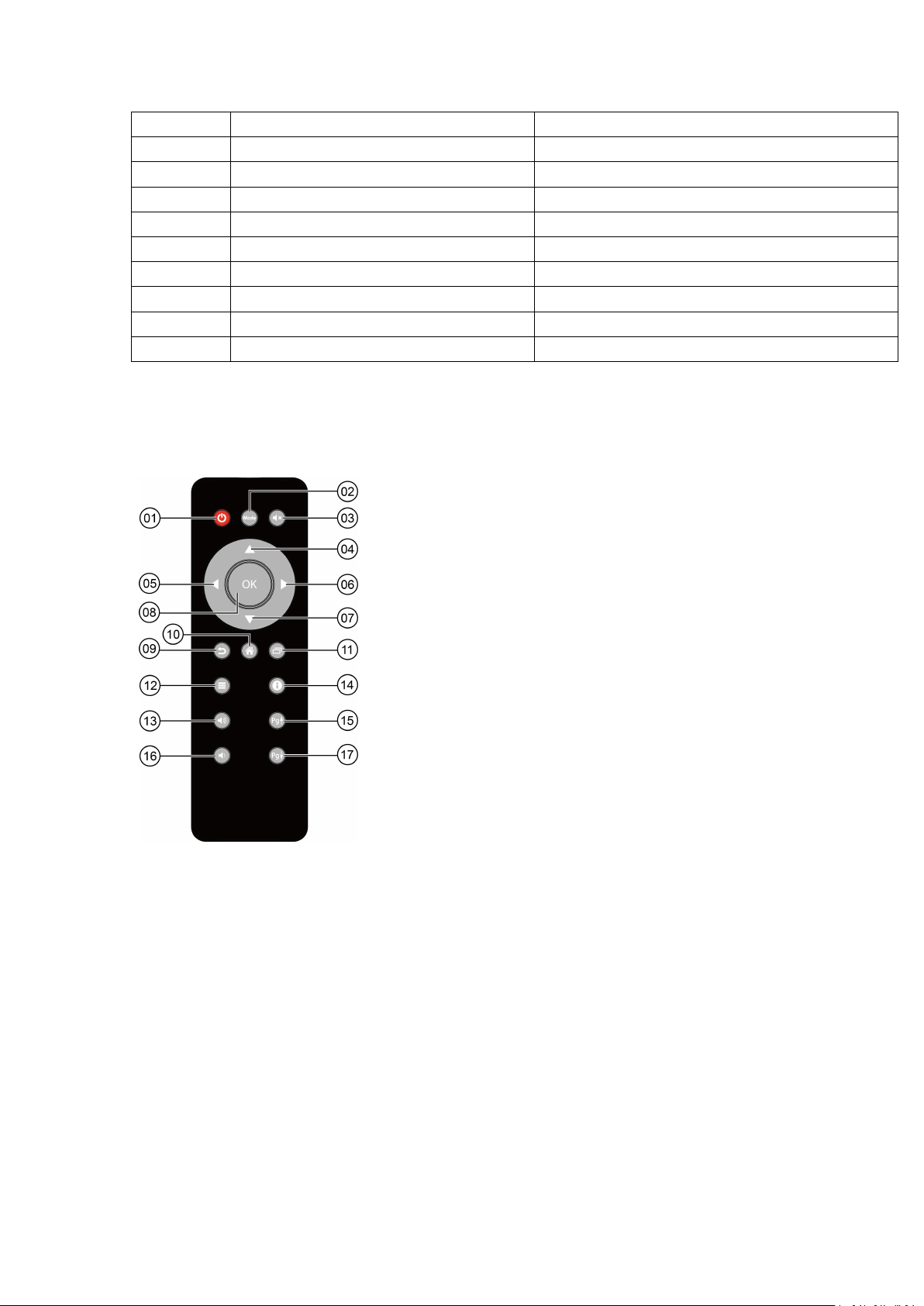

2.4 Remote Controller
①Power ⑩Home
②Mode ⑪Background App
③Mute ⑫Menu
④Upwards ⑬Vol+
⑤Towards the left ⑭Notification
⑥Towards the right ⑮Page Up
⑦Downwards ⑯Vol-
⑧OK ⑰Page Down
⑨Return
Note: Button Battery 2025 3V insert with correct polarity (+/-).

9
2.5 Setup Connection
Place Dragon Board3 on a flat platform near the TV, and make sure nothing block
the remote control signal.
2.6 Display when Power Up
2.6.1 After power up, the TV will first show a Enjoy TV screen during loading.
When loading is finished, it will go to Home screen.
2.6.2 Home Screen display.

10
3. Settings
Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller
to select the options, the option selected will be highlighted and confirmed by
pressing OK key. Same operation for text input if needed.
Select icon then press OK key. Select icon and select icon
to settings interface.
3.1 WiFi
3.1.1 It will automatically scan ambient WiFi networks when select “ON”.
3.1.2 Connect an available WiFi network. If connect a secured WiFi network,
corresponding password will be input firstly. Or fail to connect and need reset
password.
3.1.3 Once build up the connection with a certain WiFi network successfully,
Dragon Board3 will connect this WiFi network automatically when restart.
Note: If factory reset, the password of WiFi network have to be reset.

11
3.2 Bluetooth

12

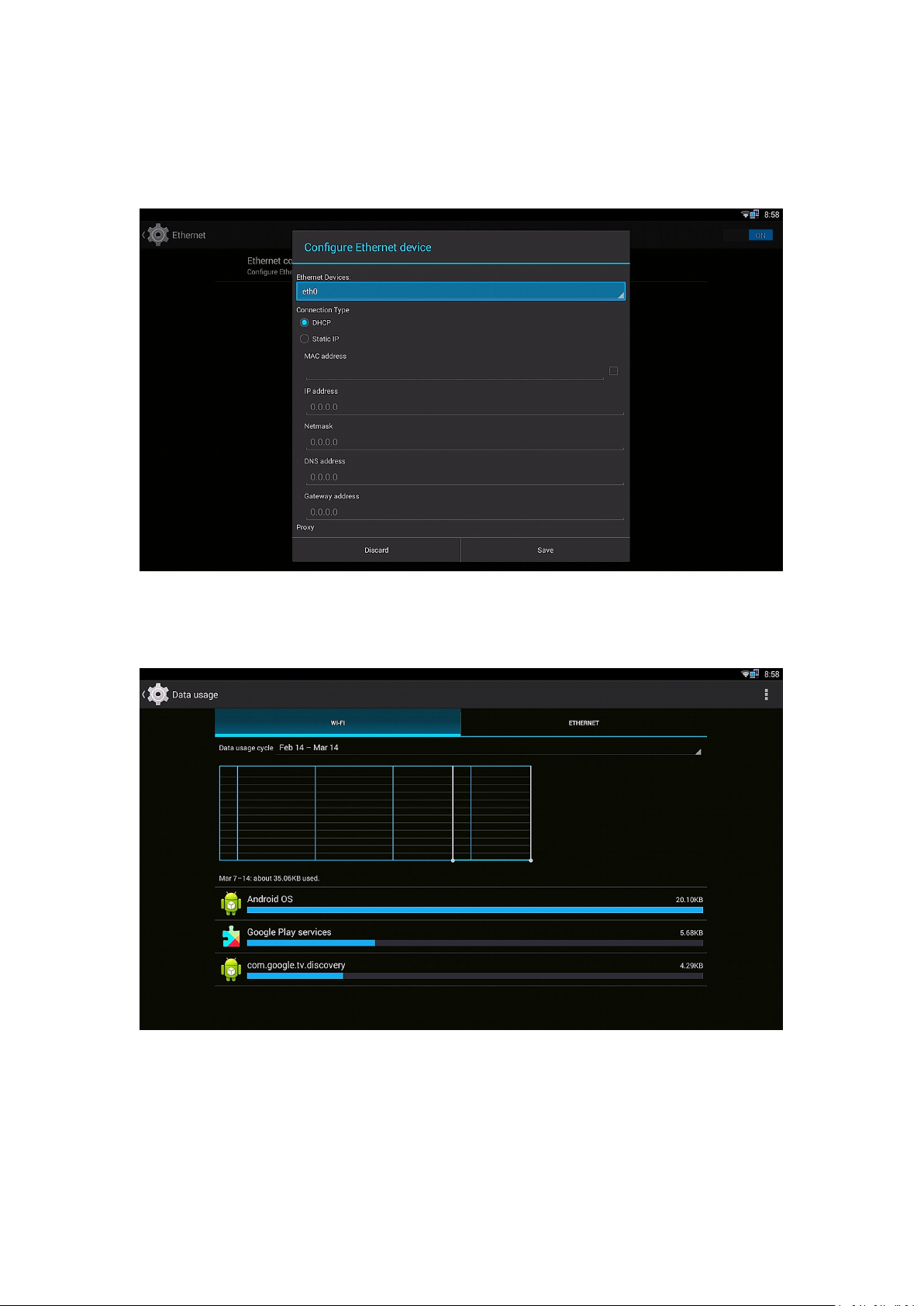

3.3 Ethernet
Connect board and Router by RJ45 network cable.
Press “ ON” in Ethernet setting, it will connect to network automatically.
3.4 Date usage
Show data usage information.

13
3.5 More...
3.5.1 VPN
Build and set VPN
3.5.2 Portable hotspot
3.5.2.1 Enable Portable hotspot
3.5.2.2 Set up WiFi hotspot
Note: WiFi and hotspot connection can not be applied at same time. Disconnect
WiFi and connect Ethernet while using hotspot function.

14
3.6 Sound
3.6.1 Volumes
Increase or decrease sound volumes
3.6.2 Touch Sounds
If enable Touch sound, sound will be heard while move remote controller.
3.7 Display
3.7.1 Auto Brightness
Auto set brightness to save power
3.7.2 Font size
Change the font size of OSD

15

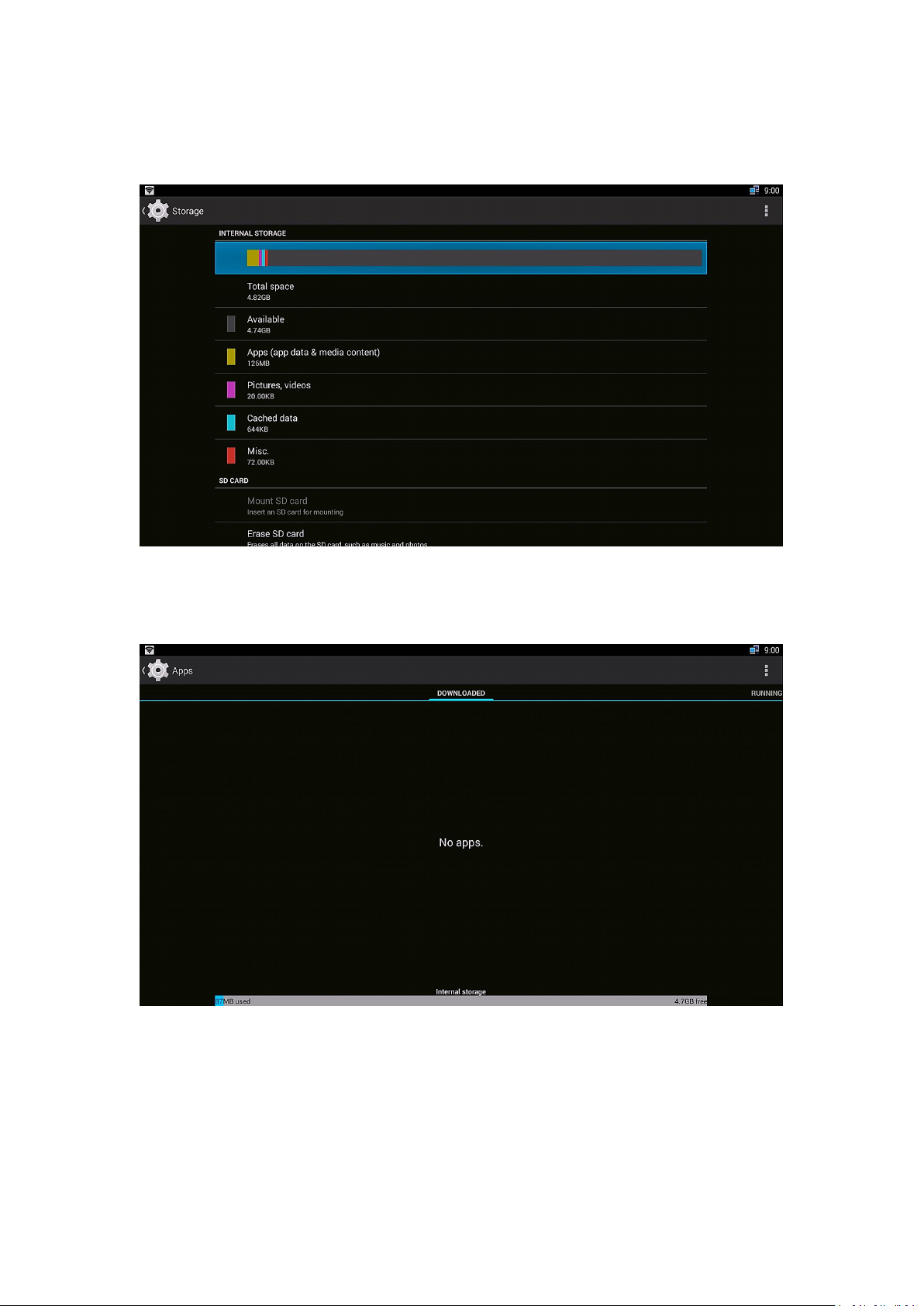

3.8 Storage
Shows the storage used of the OS and SD card.
3.9 Apps
List all apps installed.
You can choose an application and force to shut down the app, uninstall the app,
clear user data, move to SD card and clear cache data.

16
3.10 Permissions
3.11 Location

17
3.12 Security
3.13 Language & input
Change OSD language and input method.
The default input method is android standard keyboard.
If you are using our IR remote control, enter into “Default” option and switch to
remote controller input method.

18

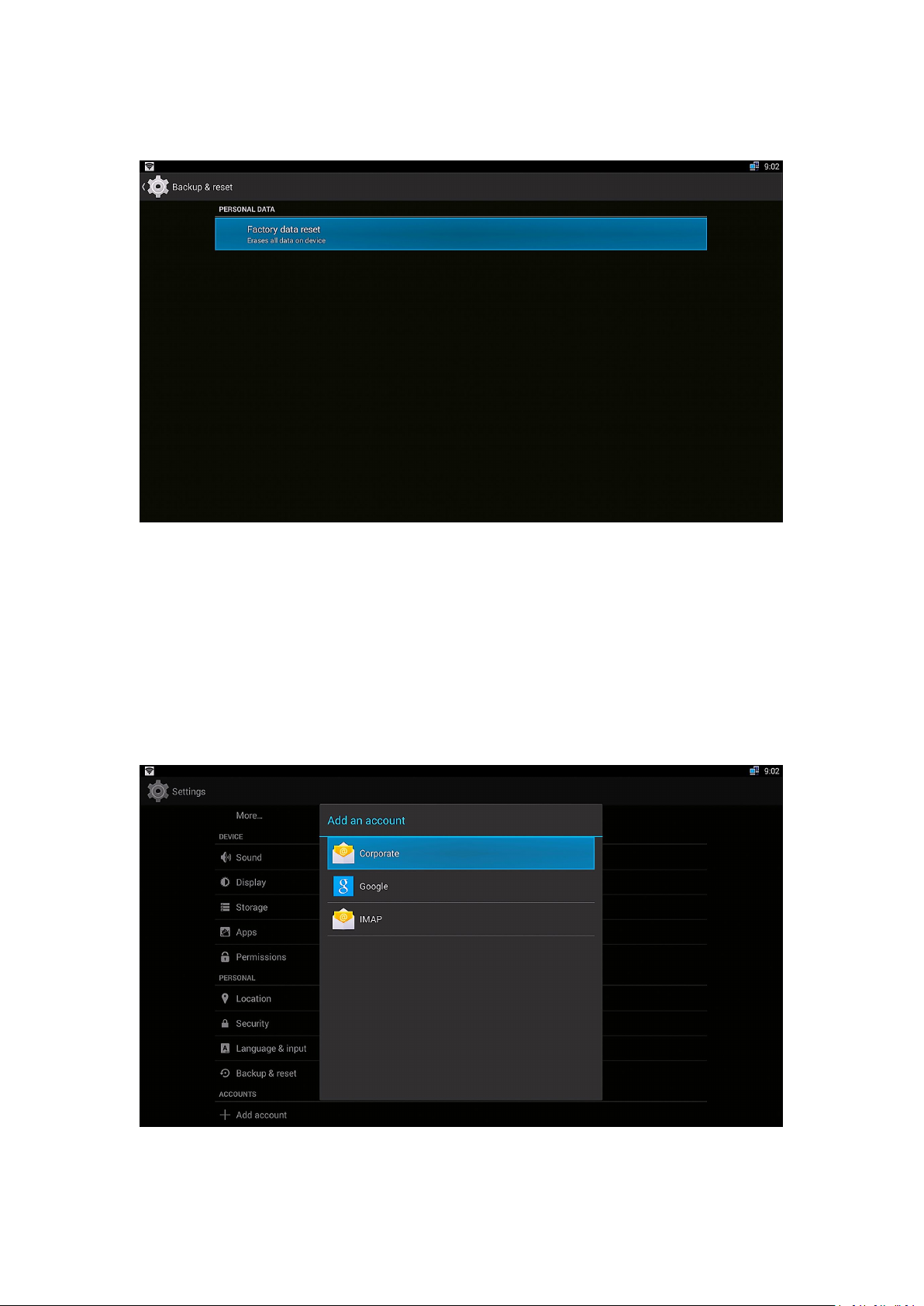

3.14 Reset
Back up my data:
You can backup your application data, WiFi password and other settings.
Factory data rest:
You can reset all the settings and apps to factory default.
Note: You might want to backup important data before resetting the board. Once
you choose to rest to factory default, all data/apps will be deleted.
3.15 Add an account

19
3.16
Date&Time
3.17 Developer options.

20

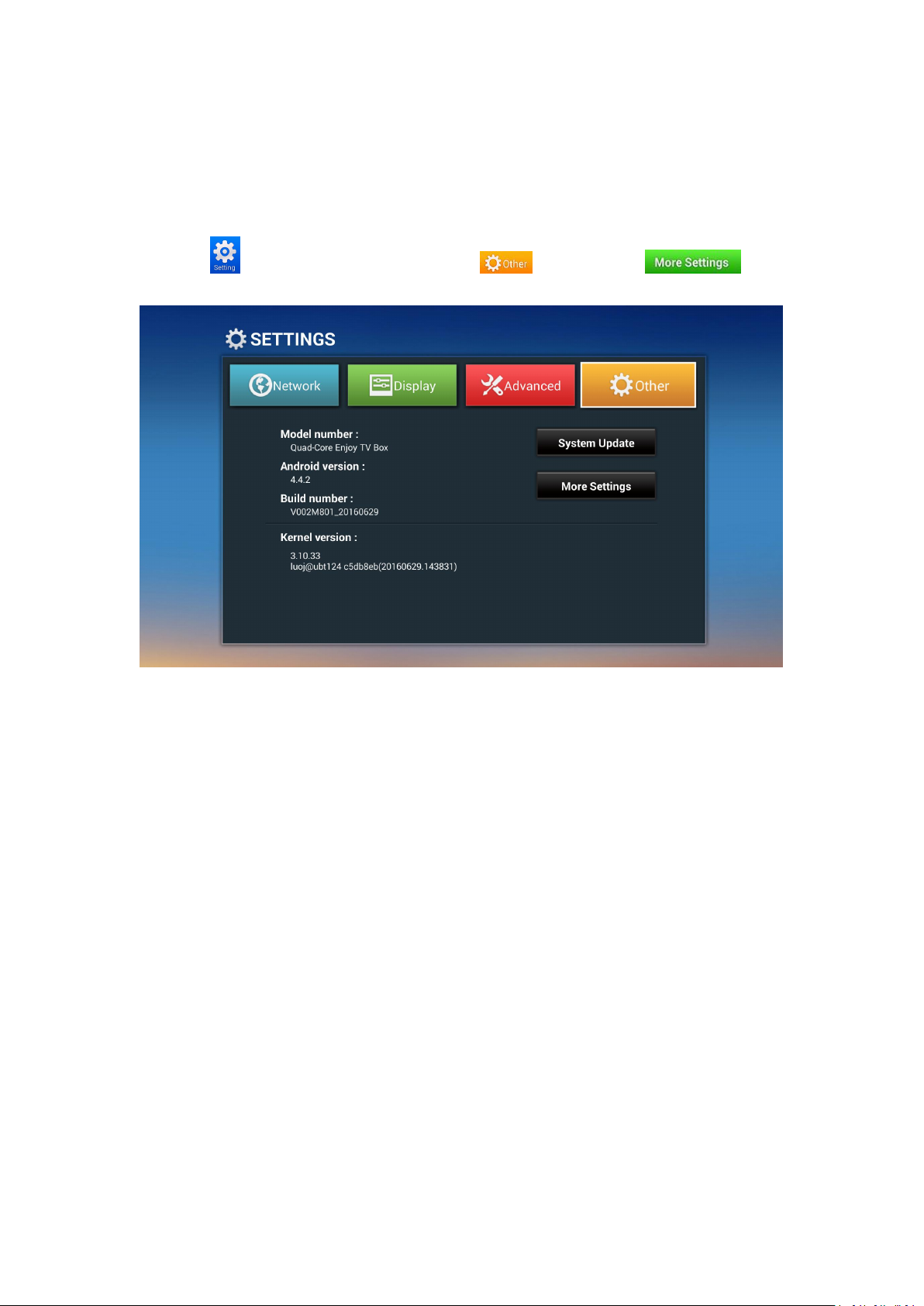

3.18 About device.
