Genie IP8GESP/E User manual

Please follow installation steps as below:
Please check the following items before installation, if it is missing, please contact the dealer.
Ethernet Switch 1pc
Power Adapter 1pc
AC Power Cable 1pc
Accessory 1pc
User Manual 1pc
1) Turn off the power of all the related devices before the installation; otherwise the device would be
damaged;
)
)
4)
5)
6)
2 Connect PoE cameras with 1~8 downlink ports of product by Ethernet cable;
3 Connect UPLINK port of product with NVR or PC by Ethernet cable;
Connect power adapter;
Check if the installation is correct, equipment is in good condition, the connection is stable,then
power on for system;
Ensure the Ethernet equipment with power on can work properly.
Installaiton Steps
Feature
12
Board Diagram
Main Function:
Ethernet ports and 1*gigabit SFP ports;
Compliance with standards: IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、
IEEE802.3X、 IEEE802.3af/at;
PoE Power Supply: With 8x gigabit PoE RJ45 ports, each port supports max. 30W PoE output,
whole machine reaches 120W PoE power output;
One-key CCTV: Quickly achieve isolation among downlink ports vis dial switch, effectively
restrain network storm, improve network feature;
Protection: Support 6KV surge immunity, EFT testing standard;
Operation Environment: Support -10℃~45℃ wide-temperature;
Operation: Plug&play, convenient to use, support desktop, wall-mounted installations.
Provide 8*10/100/1000Base-T Ethernet ports(PoE) , 1* 10/100/1000BASE-T
Application
The transmission distance depends on the signal source and cable quality; standard Cat5e/6
Ethernet cable is strongly suggested for reaching the maximum transmission distance!
Notice
1) Device must be connected with lightning protection grounding; otherwise protection level will be
greatly reduced; please use above No.20 wire to connect the grounding terminal;
2) The device requires rebooting after the dial switch has been utilized.
Side Board
Kensington Security Slot
Cat5e/6
PoE PTZ Camera
PoE Camera
PoE Dome Camera
PoE Camera
LCD
NVR
Power
Router
8 Ports Full Gigabit PoE
Ethernet Switch
Back Board
Front Board
4口百兆以太网交换机
8 Ports Full Gigabit PoE Ethernet Switch
ing and other
occasions.
8 Ports Full Gigabit PoE Ethernet Switch
Ethernet access and PoE applications. It provides eight Gigabit downlink ports, one Gigabit uplink
Ethernet port, and one Gigabit optical SFP module slot. The eight downlink ports support 802.3af/at
standard and feature Max. 30W PoE power output of single port, Max. 120W of whole machine. The
device supports one-key VLAN which isolates the communication between downlink and uplink
ports. It can be widely used in security surveillance, hotels, schools, SMB engineer
is an unmanaged Ethernet switch designed for Gigabit
V1.0
CCTV-mode Toggle Switch Power LED
Power Port
PoE Downlink Ethernet Ports
Uplink Ethernet Port
Uplink Optical Port
Grounding
8 Ports Full Gigabit PoE Ethernet Switch
User Manual
Notice

连接接口 连接接口
34
Product parameters are project to change without prior notice.
连接接口
Trouble Shooting
If any trouble with operation, please follow these steps to do troubleshooting:
Please make sure you have followed the instruction to install the device;
Please confirm if the RJ45 cable order is in accordance with the EIA/TIA568A or 568B industry
standards;
The power supply of each PoE port is no more than 30W; please do not connect the PoE device
whichexceeds the maximum PoE power supply;
Please replace a failure device with a proper one to check if the device is broken;
Please contact your vendor if trouble still exists.

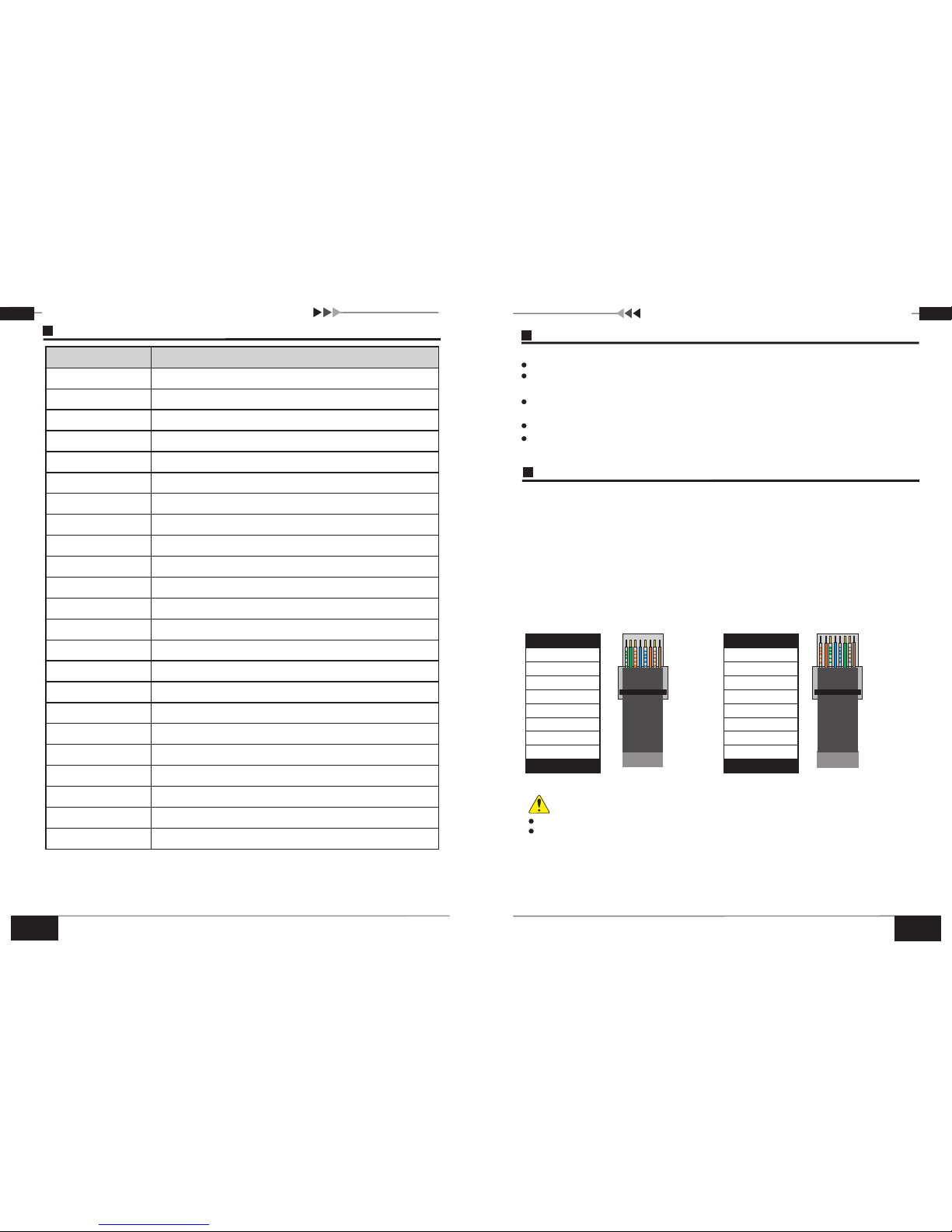

Item
Description
Downlink Ports
8x10/100/1000Base-T Ethernet Ports(PoE)
Uplink Ports
1x 10/100/1000Base-TEthernet Ports & 1x 1000Base-X SFP Port
Network Standard
Support IEEE 802.3/802.3u/IEEE802.3ab/IEEE802.3z/IEEE802.3x
Switch Capacity
20Gbps
Packet Forwarding Rate
14Mpps
Exchange Type
Storage&Fowarding
Buffer
1M
MAC Address List
4K
PoE Standard
802.3af/at(PSE)
PoE Mode
End-span
PoE Power Supply
1/2(+)，3/6(-)
PoE Output
Single PoE Output≤30W(54V DC), Whole machine PoE output≤120W
Surge Immunity
6KV
ESD Protection
Contact discharge 6K, Air discharge 8KV, Per: IEC61000-4-2
Voltage Input
DC 48V~57V
Power Consumption
5W
Operation Temperature
-10℃~+45℃
Storage Temperature
-40℃~+85℃
Operation Humidity
5%-95%(Non-condensing)
Dimensions(LxWxH)
200mm×101.8mm×27mm
Material
Metal
Color
Black
Weight
500g
Specification
4口百兆以太网交换机
8 Ports Full Gigabit PoE Ethernet Switch
8 Ports Full Gigabit PoE Ethernet Switch
Pin color
white/green
green
blue
white/orange
white/blue
white/brown
orange
brown
1
2
3
4
5
6
7
8
Pin color
1
2
3
4
5
6
7
8
white/green
green
blue
white/orange
white/blue
white/brown
orange
brown
EIA/TIA 568A EIA/TIA 568B
RJ 45 Making Method
Tools to make RJ45: wire crimper, network tester.
Wire sequence of RJ45 plug should conform with EIA/TIA568A or EIA/TIA568B standard.
1) Strip off the 2cm insulating layer to expose the 4 pairs UTP cable;
2) Seperate the 4 pairs of UTP cable and straighten them;
3) Line up the 8 separated pieces of cables per EIA/TIA 568A or 568B;
4) Cut the cables to leave 1.5cm bare wire and make sure 8 thread ends are flat and neat ;
5) Insert 8 cables into RJ45 plugs, make sure each cable is inserted in each pin;
6)Then use wire crimper to crimp the RJ45;
7) Do the above 5 steps again to make the another end of the twisted pair and make sure
consistent cable order between two ends ;
8) Using network tester to test the cable.
Notice
When choose RJ-45 make sure if one end is EIA/TIA568B,the other end should also be EIA/TIA568B.
When choose RJ-45 make sure if one end is EIA/TIA568A,the other end should also be EIA/TIA568A.
