User Manual
Please read these instructions carefully before operating the unit
and keep for further reference. All the examples and pictures used
here are for reference only. The contents of this manual are subject
to change without notice.
Please read these instructions carefully before operating the unit
and keep for further reference.
24 Port Gigabit Layer 2
Managed PoE Switch
IP24GESP2

Contents
ii
1.0 Product Introduction............................................................................................3
Main Features.....................................................................................................3
Packing List........................................................................................................3
Front Panel Switch Appearance........................................................................4
Back Panel Switch Appearance.........................................................................5
2.0 Product Installation .............................................................................................6
Installation Safety Precautions..........................................................................6
Product Installation ...........................................................................................8
3.0 Hardware Connection .........................................................................................9
SFP Port Connection .........................................................................................10
Before Powering On ..........................................................................................10
Device Initialisation ...........................................................................................10

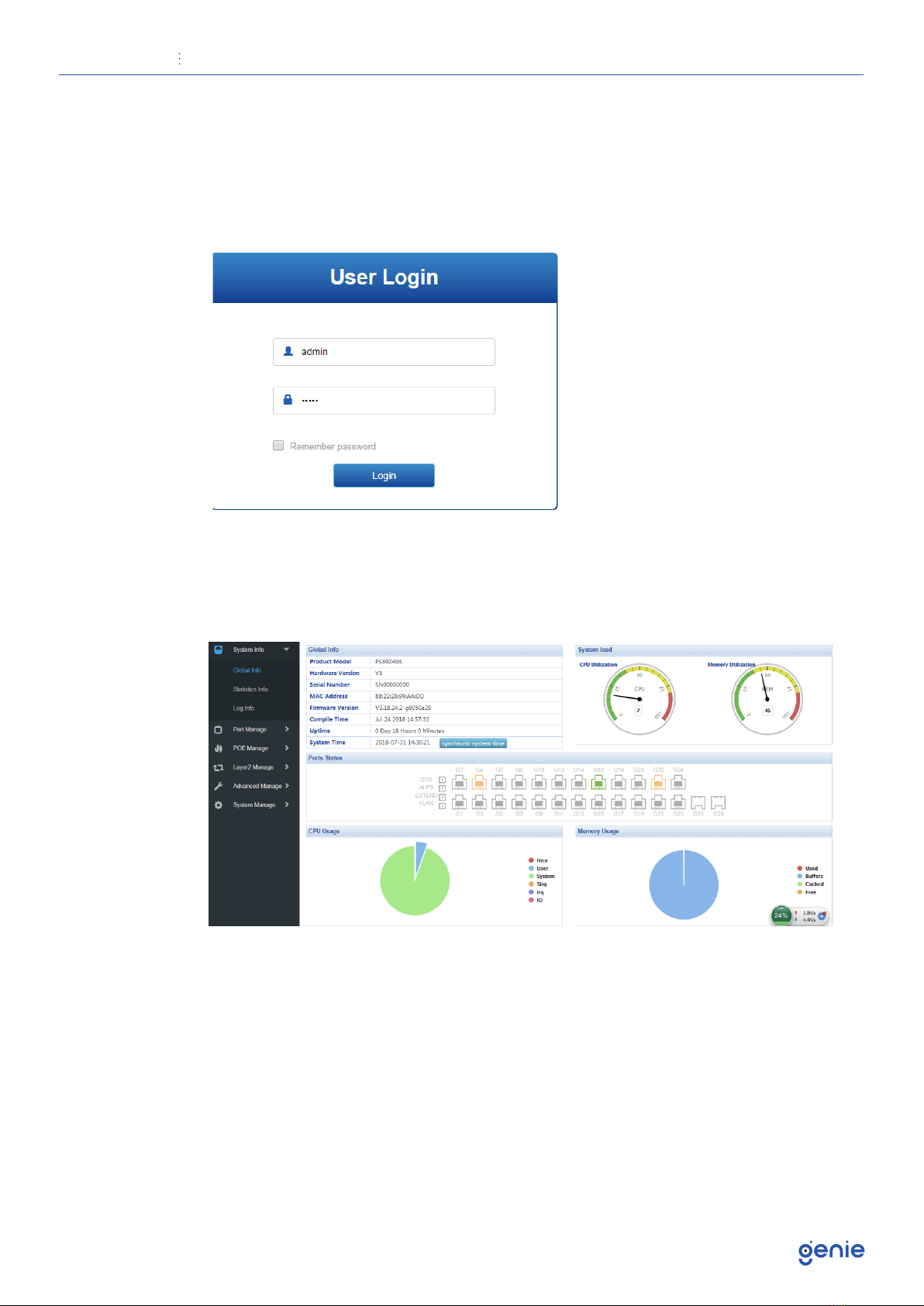

Web Login .........................................................................................................11
4.0 Hardware Specifications .....................................................................................13
5.0 Software Specifications.......................................................................................14

3
IP24GESP2 is a managed PoE switch designed for security transmission and Wi-Fi
coverage. It can meet the PoE power supply requirements of Wi-Fi AP, IP camera,
Wi-Fi bridge, IP phone and other types of equipment. The product adopts a new
generation of high-performance hardware and software platforms to provide
flexible, cost-effective access and Gigabit uplink ports for complete security
protection. It’s easy to manage and maintain, and meet user requirements
for network equipment for high security but at a low-cost. The IP24GESP2 is
applicable to network access, aggregation, and core application scenarios of many
applications.
Main Features
• 6KV lightning protection
• Short cut functions: AI VLAN, AI Extend 1~8 port 250m PoE distance, AI PoE, AI
Q0S (video priority)
• Support based on the port number, IP address, MAC address and user access
restrictions
• Supports PoE and settings for PoE port priority
• Supports L2 (Layer 2) ~ L4 (Layer 4) packet filtering
• Supports multi-cast suppression
• Supports loop protection, root bridge protection, TC protection, BPDU
protection and BPDU filtering
• Supports broadcast suppression
• Supports unknown unicast suppression
• Supports static aggregation
• Supports dynamic aggregation
• Supports IP, MAC and hybrid load balancing modes
• Supports up to 32 aggregation groups
• Supports Web network management (HTTP, HTTPS, SSL, V3)
• Supports SNMP V1/V2/V3
• Supports LLDP, RMON
• Supports ARP protection, IP source protection, DoS protection
• Supports Ping, Tracert detection and cable detection
Packing List
• PoE Switch
• Power Cord
• Bracket
• User Manual
1.0 Product Introduction

User Manual 24 Port Gigabit Layer 2 Managed PoE Switch
4
Front Panel Switch Appearance
Including indicators, RJ45 port, shortcut buttons, RST button, SFP
port, CONSOLE port, as shown below.
Indicator Table
DIP Switch Function
AI QoS:
Improve video data processing capabilities and improve the monitoring of Caton
and Mosaic phenomena in the network.
AI Extend:
1–8 port rate down to 10Mbps, but the transmission distance up to
250m.
AI VLAN:
Isolating ports 1–24 from each other, suppress network storms
effectively and improve network performance.
AI Power Supply:
Detect PD, power failure and restart dead equipment.
Indicator Title Colour Work
State
Description
PWR Power
indicator
Red Solid Power is normal
Off No power, the power switch is not turned on, power supply
is abnormal.
PoE PoE power
indicator
Yellow Solid The corresponding RJ45 port is connected to the powered
device and the power supply is normal.
Off The corresponding RJ45 port is not connected to the
powered device or the power supply is abnormal.
LINK / ACT Connection
indicator
Green Blinking A valid link is established.
Off An invalid link is established.
SYS System Green Blinking System is functioning properly.
Off System is functioning improperly, Software is damaged.

User Manual 24 Port Gigabit Layer 2 Managed PoE Switch
5
RJ45 Port
Supports 24 10/100/1000 Mbps ports, both supporting IEEE802.3af and
IEEE802.3at standard PoE power supply.
SFP Port
Provides 2 Gigabit SFP optical module expansion slots (17, 18) for plugging Gigabit
SFP modules
RST Button
When the switch is powered on, press the button with needle and release the
device to enter the restart state. When the SYS light is turned on again, the device
restarts. When the switch is powered on, press the button for 5 seconds or more
to release the button device to enter the reset status, when SYS lights up again,
the device resets successfully.
Console Port
The Console port is used for connecting to the serial port of a computer or other
terminal to manage or configure the switch.
Back Panel Switch Appearance
Includes power socket and ground terminal as shown below.
Power Socket
The power supply to the switch should be 100–240V~50/60Hz AC power.
Ground Terminal
Please use a wire to ground so that preventing lightning strikes. To avoid product
lightning strikes and extend the life of the product

6
2.0 Product Installation
Installation Safety Precautions
To avoid damage to the equipment or personal injury caused by improper use,
please observe the following precautions:
• The power is kept off during the installation process. Wear an ESD-preventive
wrist strap and ensure that the wrist strap is in close contact with the skin.
• The switch can work normally under the correct power supply. Please confirm
that the power supply voltage matches the voltage indicated by the switch.
• Before powering on the switch, please make sure that the power circuit is not
overloaded as this can affect the normal operation of the switch and can cause
unnecessary damage.
• To avoid the risk of electric shock, do not open the case while the switch is
working and on, even if it is not charged, do not open it.
• Before cleaning the switch, pull out the power plug of the switch. Do not wipe
with a moist fabric and do not use liquid to clean.
Temperature and Humidity
In order to ensure long-term stable operation of the switch and prolong its working
life, please maintain a certain temperature and humidity in the environment it’s
placed in. Excessively high or too low ambient humidity may cause leakage,
deformation or even corrosion of metal parts. If the temperature is too high,
the aging process of the insulation material will be accelerated, which will
seriously affect the working life of the equipment. Normal operation and storage
temperature / humidity of this series of switches are shown below:
Altitude
Products with this mark are only suitable for safe use in areas below 2000m.
Environment Temperature Relative Humidity
Working
Environment
0°C~40°C 10%~90%
RH Non-condensing
Storage
environment
-40°C~70°C 5%~90%
RH Non-condensing

User Manual 24 Port Gigabit Layer 2 Managed PoE Switch
7
Dust Proof
Dust falling on the surface of the switch can cause electrostatic adsorption and
poor contact of the metal contacts. Although the device itself has made certain
measures in anti-static, when the static electricity exceeds a certain strength, it
will still cause fatal damage to the electronic components on the internal circuit
board. To avoid the static electricity affecting the normal operation of the device,
please pay attention to the following:
• Regular dust removal to keep indoor air clean.
• Confirm that the equipment is well grounded to ensure the smooth transfer of
static electricity.
Electromagnetic Interference
• Electromagnetic interference will affect the internal components such as
capacitance, inductance and other electronic components by capacitive
coupling, inductive coupling, impedance coupling, etc. To reduce the adverse
effects caused by electromagnetic interference, please pay attention to the
following:
• The power supply system takes necessary measures against grid interference.
• The switch should be away from high-frequency, high-power, high-current
equipment, such as wireless transmitters.
• Take electromagnetic shielding measures when necessary.
Lightning Protection
• When a lightning strike occurs, a strong current is generated in an instant,
and the air in the discharge path is instantaneously heated to 20,000 degrees
Celsius, which can instantaneous cause a large current that is enough to cause
fatal damage to the electronic device. For better lightning protection, please
note the following:
• Confirm that the rack is in good contact with the ground.
• Make sure the power outlet is in good contact with the ground.
• Reasonable wiring to avoid internal induction lightning.
• Signal lightning protector is recommended for outdoor wiring.
Installation Station Requirements
Regardless of whether the switch is installed in a rack or on another horizontal
workbench, be aware of the following:
• Make sure the rack or workbench is stable, strong, and can withstand at least
5.5 Kg weight.
• Make sure the rack has a good cooling system, or maintain good indoor
ventilation.
• Make sure the rack is well grounded, the power outlet and switch are within 1.5
meters.
Prepare Tools for Installation
You may need to use a screwdriver during installation, electrostatic wrist strap,
fiber optic cable and other tools to prepare yourself.

User Manual 24 Port Gigabit Layer 2 Managed PoE Switch
8
Product Installation
IP24GESP2 is designed according to the standard 19-inch rack size. The specific
installation steps are as follows:
1. Check rack grounding and stability
2. Install the two L-brackets in the accessory on each side of the switch panel and
secure with the screws provided in the accessory.
3. Place the switch in an appropriate place in the rack and be supported by the
bracket. Screw the L-shaped bracket to the guide groove fixed on both ends
of the rack to ensure that the switch is stable and horizontally installed on the
rack.
Note:
• A good grounding rack is a piece of anti-static, anti-leakage, anti-jamming
and lightning protection equipment that is an important guarantee to ensure
that the rack ground wire is properly installed.
• Make sure equipment is installed within the rack from the bottom up, to avoid
overload.
• Avoid placing other heavy objects on top of the switch to avoid accidents and
ensure that there is heat dissipation and air circulation.

9
3.0 Hardware Connection
RJ45 Port Connection
Connect the RJ45 port of the switch and the corresponding network device via
cables, the PoE power supply function of the switch is default enabled on the
downlink port of the switch, which can be used for IEEE802.3af or IEEE802.3at
standards powered devices such as APs, bridges, and network cameras.
Note:
• When the switch is connected to workstations, servers, routers or other
Ethernet devices, the cable length should be within 100 meters.
• The Auto-MDI / MDIX Ethernet interface is enabled by default. Category
5,the standard network cable or crossover cable can be used for Ethernet
connection.
• Do not connect the RJ45 port to the phone line.

User Manual 24 Port Gigabit Layer 2 Managed PoE Switch
10
SFP Port Connection
The IP16GESP2 only supports Gigabit fiber module. The process of installing a fiber
module on a switch is as follows:
• Firstly, grasp the optic fiber module from the side, insert it smoothly along the
SFP port slot until the optic fiber module and switch are in close contact.
• Secondly, confirm the Rx and Tx ports of the fiber module when connecting.
Insert one end of the fiber into the Rx and Tx ports, ensuring that the Tx and Rx
ends of the interface are connected correctly and the other end of the fiber is
connected to another device.
• Thirdly, please check the corresponding indicator light status after power on.
If the light is blinking that means the link is properly connected, if the light is
off , the link has failed to connect. Please check the line to confirm that the
corresponding equipment is enabled.
Note:
• Do not allow excessive bending of the fiber, the radius of curvature should not
be less than 10cm.
• Ensure the cleanliness of the fiber surface.
• Please do not look directly into the optical fiber connector with your eyes as
this may cause eye injury.
Before Powering On
• Check whether the outlet power supply meets the switch specifications.
• Check the power, switches, racks and other equipment have been properly
grounded.
• Check whether the switch and other network devices are connected properly.
Device Initialisation
The switch automatically initialises when the power switch is turned on. Indicator
will appear the following situation:
• After the power is turned on, the power indicator remains on, the other
indicator is off at this time.
• After about 1 second, all lights except for the power light turn on for about 35
seconds and then turn off.
• When the SYS light flashes, the system runs normally.
• Port LED’s indicates the connection status of each port, indicating that the
switch has started to work normally

User Manual 24 Port Gigabit Layer 2 Managed PoE Switch
11
Web Login
Step 1:
In the normal operation of the device, connect the computer to the switch’s RJ45
port by network cables.
Step 2:
Manually changed the computer IP address to 192.168.254.X (X is 2 ~ 254), subnet
mask is 255.255.255.0.

User Manual 24 Port Gigabit Layer 2 Managed PoE Switch
12
Step 3:
Open computer’s browser, type 192.168.254.1 in the address box, hit the Enter key.
Step 4:
Enter the default username and password “admin” and then click Login.
Step 5:
Entered the switch web management interface successfully when you see picture
as below, you can begin to configure the switch

13
4.0 Hardware Specifications
Network Standard IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Port 24 10/100/1000Mbps RJ45 port
2 gigabit SFP
1 Console
PoE 24 10/100/1000Mbps RJ45 port support PoE+
Max 150W
Single port max 46W
LED’s 26 Link/Act LED’s
24 PoE LED’s
1 SYS LED
1 Power LED
Performance Forwarding mode: Store and forward
Bandwidth: 52Gbps
Packet forwarding rate: 38.688Mpps
8K MAC address table
Lightning Protection 6KV
Input 100–240V/50–60Hz
Dimensions 440 × 180 × 44 mm

14
5.0 Software Specifications
Protocol
Standard
IEEE 802.3: Ethernet Media Access
Control (MAC) Protocol
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit
Ethernet
IEEE 802.3z: 1000BASE-X Gigabit
Ethernet (fiber)
IEEE 802.3ad: Standard method for
performing link aggregation
IEEE 802.3x: Flow control
IEEE 802.1p: LAN Layer 2 QoS/Cos
protocol for traffic priority
(multi-cast filtering)
IEEE 802.1q: VLAN
IEEE 802.1d: STP Spanning tree
IEEE 802.1s: MSTP Spanning tree
IEEE 802.1w: RSTP Spanning tree
IEEE 802.3af
IEEE 802.3at
Shortcut Function One key AI VLAN
One key AI Extend
(1–8 Port 250m PoE distance)
One key AI PoE
One key Q0S (Video priority)
DHCP Supports DHCP Snooping
VLAN Supports 4K VLAN
Supports 802.1Q VLAN, MAC VLAN ,IP
VLAN
Voice VLAN
MAC Address
Table
Comply the IEEE 802.1d standard,
Supports MAC address learning and
aging automatically. Supports static,
dynamic, filter address table
Safety Password protection
Supports based on the port number,
IP address, MAC address
restrictions on user access
Supports HTTPS, SSL V3, TLS V1, SSH
V1/V2
Supports IP-MAC-PORT ternary
binding
Supports ARP protection, IP source
protection, DoS protection
Supports DHCP Snooping, DHCP
attack protection
Supports 802.1X certificated, AAA
Supports port security, port isolation
Supports CPU protection
PoE Management Supports PoE power limit
Supports PoE chip status view
Supports setting PoE port priority
Supports setting PoE power supply
time period
Access Control
(ACL)
Supports L2 (Layer 2) ~ L4 (Layer 4)
packet filtering
Supports port mirroring, port
redirection, flow rate limiting, QoS
re-marking
Quality of Service
(QoS)
Supports 8 port queue
Supports port priority, 802.1p priority,
DSCP priority
Spanning Tree Supports STP (IEEE 802.1d), RSTP
(IEEE 802.1w) and MSTP (IEEE 802.1s)
protocol
Supports loop protection, root bridge
protection, TC protection, BPDU
protection, BPDU filtering
Multicast Supports IGMP v1/v2 Snooping
Supports fast leave mechanism
Supports multicast VLAN
Supports multicast filtering, packet
statistics, and unknown
multicast discards.
Storm Suppression Supports multi-cast suppression
Supports broadcast suppression
Supports unknown unicast
suppression
Supports static aggregation
Supports dynamic aggregation
Supports IP, MAC, and hybrid load
balancing modes
Supports up to 32 aggregation groups
IPv6 Supports IPv6 Ping, IPv6 Tracert, IPv6
Telnet
Supports IPv6 SSH, IPv6 SSL
Management
and Maintenance
Supports Web network management
(HTTP, HTTPS, SSL V3)
Supports CLI (Telnet, SSH V1/V2, local
serial port)
Support SNMP V1/V2/V3
Supports LLDP, RMON
Supports ARP protection, IP source
protection, DoS protection
Supports CPU monitoring, memory
monitoring
Supports system log, grading warning
Supports Ping, Tracert detection,
cable detection

Sales [phone]
Enquiries [email protected]o.uk
Website www.genieproducts.co.uk
