Geokon 4999 User manual

Instruction Manual
Model 4999
Terminal Box
No part of this instruction manual may be reproduced, by any means, without the written consent of Geokon, Inc.
The information contained herein is believed to be accurate and reliable. However, Geokon, Inc. assumes no responsibility
for errors, omissions or misinterpretation. The information herein is subject to change without notification.
Copyright2012-2016 Geokon Inc. All Rights Reserved.
(Doc Rev E 11/23/2016)

Warranty Statement
Geokon, Inc. warrants its products to be free of defects in materials and workmanship, under normal use
and service for a period of 13 months from date of purchase. If the unit should malfunction, it must be
returned to the factory for evaluation, freight prepaid. Upon examination by Geokon, if the unit is found
to be defective, it will be repaired or replaced at no charge. However, the WARRANTY is VOID if the
unit shows evidence of having been tampered with or shows evidence of being damaged as a result of
excessive corrosion or current, heat, moisture or vibration, improper specification, misapplication, misuse
or other operating conditions outside of Geokon's control. Components which wear or which are damaged
by misuse are not warranted. This includes fuses and batteries.
Geokon manufactures scientific instruments whose misuse is potentially dangerous. The instruments are
intended to be installed and used only by qualified personnel. There are no warranties except as stated
herein. There are no other warranties, expressed or implied, including but not limited to the implied
warranties of merchantability and of fitness for a particular purpose. Geokon, Inc. is not responsible for
any damages or losses caused to other equipment, whether direct, indirect, incidental, special or
consequential which the purchaser may experience as a result of the installation or use of the product. The
buyer's sole remedy for any breach of this agreement by Geokon, Inc. or any breach of any warranty by
Geokon, Inc. shall not exceed the purchase price paid by the purchaser to Geokon, Inc. for the unit or
units, or equipment directly affected by such breach. Under no circumstances will Geokon reimburse the
claimant for loss incurred in removing and/or reinstalling equipment.
Every precaution for accuracy has been taken in the preparation of manuals and/or software, however,
Geokon, Inc. neither assumes responsibility for any omissions or errors that may appear nor assumes
liability for any damages or losses that result from the use of the products in accordance with the
information contained in the manual or software.

Table of Contents
1. INTRODUCTION...................................................................................................................................................1
2. MOUNTING THE TERMINAL BOX ..................................................................................................................2
3. CONNECTING THE SENSORS TO THE TERMINAL BLOCKS...................................................................2
4. WIRING DIAGRAMS............................................................................................................................................3
MODEL 4999-11-4S..................................................................................................................................................4
MODEL 4999-11-8S..................................................................................................................................................5
MODEL 4999-16VTS................................................................................................................................................6
MODEL 4999-32VTS................................................................................................................................................7
MODEL 4999-32VWS ..............................................................................................................................................8
5. SPECIFICATIONS.................................................................................................................................................9
APPENDIX A. MODEL 8032-27 AND LOAD CELL WIRING...........................................................................10

1
1. INTRODUCTION
The Model 4999 Terminal Box is intended for use with Geokon Vibrating Wire Sensors
with or without Thermistors. Various models are available:
Model 4999-11-2S for up to 2 VW Sensors with Thermistors
Model 4999-11-4S for up to 4 VW Sensors with Thermistors
Model 4999-11-8S for up to 8 VW Sensors with Thermistors
Model 4999-16VTS for up to 16 VW Sensors with Thermistors
Model 4999-32VTS for up to 32VW Sensors with Thermistors
Model 4999-32VWS for up to 32 VW Sensors only. (Without Thermistors)
The Terminal Box makes it easy to manually connect a Readout Box (GK-404 or
GK-405), to a variety of vibrating wire sensors by means of color-coded terminal posts,
mounted below the rotary switches on the face panel of the Terminal Box, to which the
flying leads (patch cord) of the readout box can be clipped. The rotary switch is used to
select which “channel” or sensor is being read by the Readout Box.
The cables from the sensors are passed into the Terminal Box interior through weather
tight entries mounted on the bottom or side of the enclosure. It is important that any
unused cable entries be sealed off by tightening the unused nylon cord grips onto the
white plastic plugs provided for that purpose.
The sensors are protected from over-voltages by means of Gas Discharge Tubes
mounted on the terminal boards. An earth ground lug is provided on the outside of the
enclosure for connection to an earth ground rod.
The Terminal Box is a NEMA 4X style enclosure, environmentally protected
(weatherproof) by means of a hinged cover that has a seamless “foamed-in-place”
gasket that is pressed firmly against the enclosure when the two clamps holding the
cover are closed. The Terminal Box itself is made from fiberglass reinforced polyester.
Polyester mounting brackets with bolt-holes, on top and bottom of the Terminal Box,
allow it to be bolted to any vertical surface.

2
2. MOUNTING THE TERMINAL BOX
The Terminal Box should be mounted to a flat vertical surface using the holes in the
mounting brackets, or “feet”, at the top and bottom of the enclosure. For the over-
voltage surge protection to be effective the earth ground lug on the outside of the
Terminal Box needs to be connected by a thick copper wire to an earth ground. This
can be a copper rod driven into the ground or, metal objects, such as plumbing pipes, or
electrical conduits, etc, which are themselves well grounded. Copper earth grounding
rods and ground wire straps are available as accessories.
3. CONNECTING THE SENSORS TO THE TERMINAL BLOCKS
The Terminal Box uses spring-loaded type terminal blocks.
Pass the sensor cable through the water tight entry into the inside of the Terminal Box
and connect to the appropriate 5-position, spring-loaded terminal block, following the
instructions of the appropriate wiring diagram. Refer to the wiring diagram fixed to the
inside of the cover, or to the wiring diagram in Section 4 of this manual. When using the
spring type terminals to make the connection, depress the spring lever, poke the bare
wire into the adjacent hole and then release the spring. Check that a good connection
has been made by tugging on the lead wire. After the connections have been made,
tighten the nut on the waterproof connector. This must be done to ensure that
water does not enter the enclosure.

3
4. WIRING DIAGRAMS
Model 4999-11-2S
2 Vibrating Wire Gages with 2 Thermistors
FRONT PANEL
Connect the patch cord (flying leads) for a GK-403 or GK-404 as follows:
Boot Color Switch Plate Post Label
Red Gage +
Black Gage -
White Thermistor
Green Thermistor
Blue Cable Shield
TERMINAL BOARD WIRING
Attach the various gage cable wires to the terminal blocks in the order below.
Label Gage
Number Gage Wire Color
1H Red
1L Black
2H 1 White
2L Green
S Shield
3H Red
3L Black
4H 2 White
4L Green
S Shield

4
Model 4999-11-4S
4 Vibrating Wire Gages with 4 Thermistors
FRONT PANEL
Connect the patch cord (flying leads) for a GK-403 or GK-404 as follows:
Boot Color Switch Plate Post Label
Red Gage +
Black Gage -
White Thermistor
Green Thermistor
Blue Cable Shield
TERMINAL BOARD WIRING
Attach the various gage cable wires to the terminal blocks in the order below.
Label Gage
Number Gage Wire Color Label Gage Number Gage Wire Color
1H Red 5H Red
1L Black 5L Black
2H 1 White 6H 3 White
2L Green 6L Green
S Shield S Shield
3H Red 7H Red
3L Black 7L Black
4H 2 White 8H 4 White
4L Green 8L Green
S Shield S Shield

5
Model 4999-11-8S
8 Vibrating Wire Gages with 8 Thermistors
FRONT PANEL
Connect the patch cord (flying leads) for a GK-403 or GK-404 as follows:
Boot Color Switch Plate Post Label
Red Gage +
Black Gage -
White Thermistor
Green Thermistor
Blue Cable Shield
TERMINAL BOARD WIRING
Attach the various gage cable wires to the terminal strips in the order below.
Label Gage
Number Gage Wire Color Label Gage Number Gage Wire Color
1H Red 9H Red
1L Black 9L Black
2H 1 White 10H 5 White
2L Green 10L Green
S Shield S Shield
3H Red 11H Red
3L Black 11L Black
4H 2 White 12H 6 White
4L Green 12L Green
S Shield S Shield
5H Red 13H Red
5L Black 13L Black
6H 3 White 14H 7 White
6L Green 14L Green
S Shield S Shield
7H Red 15H Red
7L Black 15L Black
8H 4 White 16H 8 White
8L Green 16L Green
S Shield S Shield

6

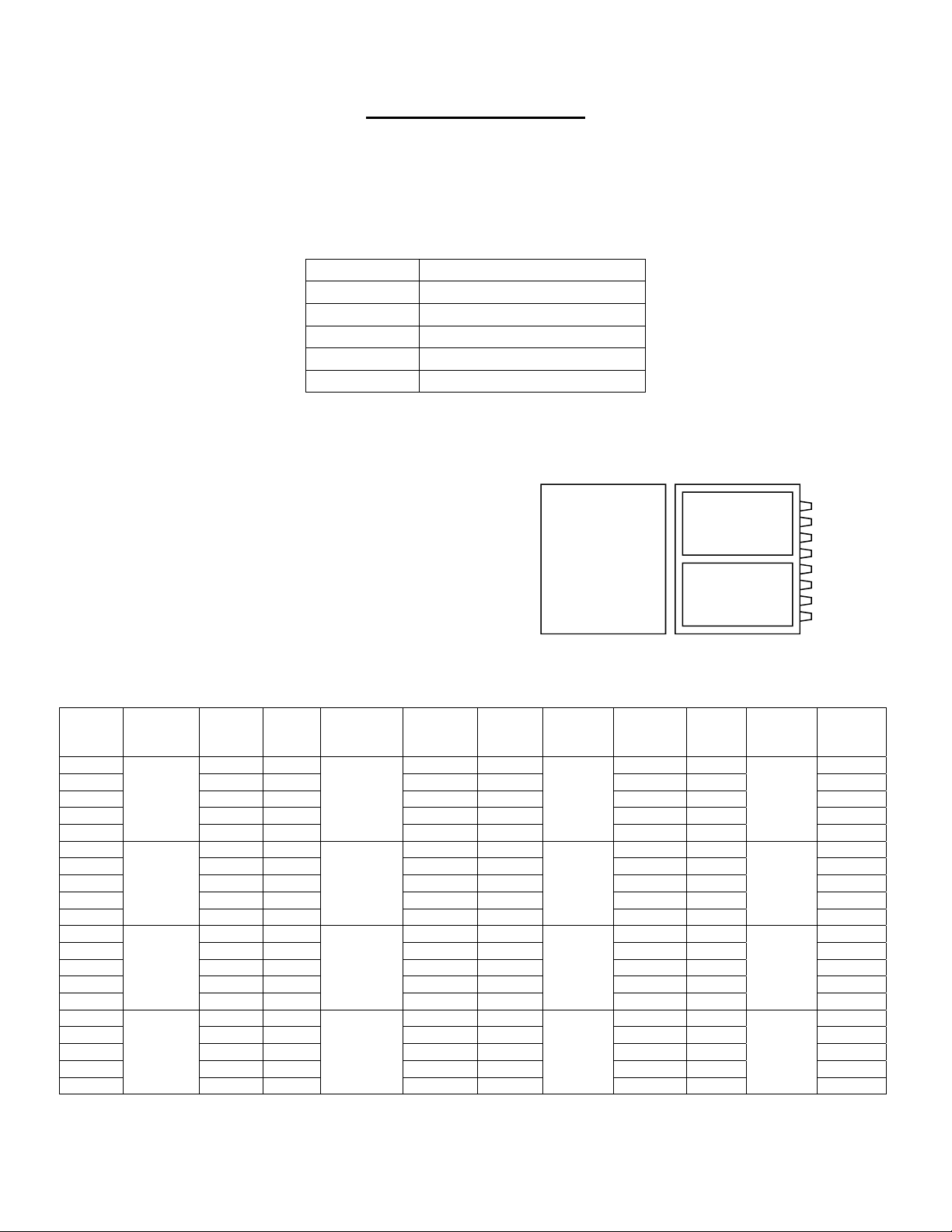

Model 4999-16VTS
16 Vibrating Wire Gages with 16 Thermistors
FRONT PANEL
Connect the patch cord (flying leads) for a GK-403 or GK-404 as follows:
Boot Color Switch Plate Post Label
Red Gage +
Black Gage -
White Thermistor
Green Thermistor
Blue Cable Shield
Note: To read positions 9 through 16 the first switch on the face panel (1-8) must
be set to “9-16.”
TERMINAL BOARD WIRING
Attach the various gage cable wires to the terminal strips in the order below.
Label Gage
Number
Gage
Wire
Color Label Gage
Number
Gage
Wire
Color Label Gage
Number
Gage
Wire
Color Label Gage
Number
Gage
Wire
Color
1H
1
Red 9H
5
Red 17H
9
Red 25H
13
Red
1L Black 9L Black 17L Black 25L Black
2H White 10H White 18H White 26H White
2L Green 10L Green 18L Green 26L Green
S Shield S Shield S Shield S Shield
3H
2
Red 11H
6
Red 19H
10
Red 27H
14
Red
3L Black 11L Black 19L Black 27L Black
4H White 12H White 20H White 28H White
4L Green 12L Green 20L Green 28L Green
S Shield S Shield S Shield S Shield
5H
3
Red 13H
7
Red 21H
11
Red 29H
15
Red
5L Black 13L Black 21L Black 29L Black
6H White 14H White 22H White 30H White
6L Green 14L Green 22L Green 30L Green
S Shield S Shield S Shield S Shield
7H
4
Red 15H
8
Red 23H
12
Red 31H
16
Red
7L Black 15L Black 23L Black 31L Black
8H White 16H White 24H White 32H White
8L Green 16L Green 24L Green 32L Green
S Shield S Shield S Shield S Shield

7
Model 4999-32VTS
32 Vibrating Wire Gages with 32 Thermistors
Front Panel
Connect the patch cord (flying leads) for a GK-403 or GK-404 as follows:
Boot Color Switch Plate Post Label
Red Gage +
Black Gage -
White Thermistor
Green Thermistor
Blue Cable Shield
Note: To read positions 9 through 16 the first switch (1-8) must be set to "9-16."
To read positions 17 through 24 the first switch must be set to "17-24."
To read positions 25 through 32 the first switch must be set to "25-32."
Attach the gage cable wires to the terminal strips in the order below:
Label Gage
Number
Gage
Wire
Color Label Gage
Number
Gage
Wire
Color Label Gage
Number
Gage
Wire
Color Label Gage
Number
Gage
Wire
Color
1H
1 or 17
Red 9H
5 or 21
Red 17H
9 or 25
Red 25H
13 or 29
Red
1L Black 9L Black 17L Black 25L Black
2H White 10H White 18H White 26H White
2L Green 10L Green 18L Green 26L Green
S Shield S Shield S Shield S Shield
3H
2 or 18
Red 11H
6 or 22
Red 19H
10 or 26
Red 27H
14 or 30
Red
3L Black 11L Black 19L Black 27L Black
4H White 12H White 20H White 28H White
4L Green 12L Green 20L Green 28L Green
S Shield S Shield S Shield S Shield
5H
3 or 19
Red 13H
7 or 23
Red 21H
11 or 27
Red 29H
15 or 31
Red
5L Black 13L Black 21L Black 29L Black
6H White 14H White 22H White 30H White
6L Green 14L Green 22L Green 30L Green
S Shield S Shield S Shield S Shield
7H
4 or 20
Red 15H
8 or 24
Red 23H
12 or 28
Red 31H
16 or 32
Red
7L Black 15L Black 23L Black 31L Black
8H White 16H White 24H White 32H White
8L Green 16L Green 24L Green 32L Green
S Shield S Shield S Shield S Shield
17-32
1-16
Terminal Board Wiring: There are two terminal
boards mounted to the lower plate. Wire the first
16 gages and thermistors to the Board 1 as
indicated in the drawing. Wire gages and
thermistors 17 through 32 to the Board 2. Board 1
Board 2

8
Model 4999-32VWS
32 Vibrating Wire Gages
FRONT PANEL
Connect the patch cord (flying leads) for a GK-403 or GK-404 as follows:
Boot Color Switch Plate Post Color
Red Red (Gage +)
Black Black (Gage -)
Blue Blue (Cable Shield)
NOTE: Gages connected to positions 1 through 16 on the terminal board are selected with the left
hand rotary switch. Gages connected to positions 17 through 32 on the terminal board are
selected with the right hand rotary switch.
To read positions 1 through 8: Connect patch cord clip leads to the posts labeled “1-8.”
To read positions 9 through 16: Connect patch cord clip leads to the posts labeled “9-16.”
To read positions 17 through 24: Connect patch cord clip leads to the posts labeled “17-24.”
To read positions 25 through 32: Connect patch cord clip leads to the posts labeled “25-32.”
TERMINAL BOARD WIRING
Attach the various gage cable wires to the terminal strips in the order below.
Label Gage
Number
Gage
Wire
Color Label Gage
Number
Gage
Wire
Color Label Gage
Number
Gage
Wire
Color Label Gage
Number
Gage
Wire
Color
1H 1 Red 9H 9 Red 17H 17 Red 25H 25 Red
1L Black 9L Black 17L Black 25L Black
2H 2 Red 10H 10 Red 18H 18 Red 26H 26 Red
2L Black 10L Black 18L Black 26L Black
S 1 & 2 Shield S 9 & 10 Shield S 17 & 18 Shield S 25 & 26 Shield
3H 3 Red 11H 11 Red 19H 19 Red 27H 27 Red
3L Black 11L Black 19L Black 27L Black
4H 4 Red 12H 12 Red 20H 20 Red 28H 28 Red
4L Black 12L Black 20L Black 28L Black
S 3 & 4 Shield S 11 & 12 Shield S 19 & 20 Shield S 27 & 28 Shield
5H 5 Red 13H 13 Red 21H 21 Red 29H 29 Red
5L Black 13L Black 21L Black 29L Black
6H 6 Red 14H 14 Red 22H 22 Red 30H 30 Red
6L Black 14L Black 22L Black 30L Black
S 5 & 6 Shield S 13 & 14 Shield S 21 & 22 Shield S 29 & 30 Shield
7H 7 Red 15H 15 Red 23H 23 Red 31H 31 Red
7L Black 15L Black 23L Black 31L Black
8H 8 Red 16H 16 Red 24H 24 Red 32H 32 Red
8L Black 16L Black 24L Black 32L Black
S 7 & 8 Shield S 15 & 16 Shield S 23 & 24 Shield S 31 & 32 Shield

9
5. SPECIFICATIONS
Tripolar Plasma Surge Arrestor
Nominal DC Breakdown Voltage: 230V
Surge Life: 400 (10/1000 ms pulse @ 500 A)
Maximum Surge Current: 10 kA per side (8/20 s pulse)
Insulation Resistance: 10000 M
Operating Temperature: 65 to +125C
Bipolar Plasma Surge Arrestor
Nominal DC Breakdown Voltage: 300V
Surge Life: 1000 (10/1000 s pulse @ 500 A)
Maximum Surge Current: 20 kA (8/20 s pulse)
Insulation Resistance: 10000 M
Operating Temperature: 65 to +125C

10
APPENDIX A. MODEL 8032-27 AND LOAD CELL WIRING
Connect the “common” VW- conductor from the load cell to the 8032-27 by lifting up on
the orange tab located on the opposite side of the six black conductors, inserting the
common conductor fully into the 8032-27 (Figure 1), and then pushing down on the
orange tab until it snaps into place. Refer to Table 1 to identify which conductor carries
the common VW- signal.
Figure 1 - Model 8032-27 Jumper Wire Assembly
10 pin Bendix
PT06A-12-10P
Function 3 Gage VW Load Cell, Purple Cable 4 Gage VW Load Cell, Purple Cable 6 Gage VW Load Cell, Orange Cable
H Common White's Black* Green Blue
* White's black and Green wires are switched on Geokon 3 gage VW load cells prior to serial number 3313.
Table 1 -Common Conductor Chart
The following wiring charts detail the connections between the load cell and 8032-27
with the terminal board: 4999-11-4S
Terminal
Board Vibrating Wire with Thermistor
1H VW Sensor #1
1L 8032-27
2H Thermistor
2L Thermistor
SHIELD Shield Drain Wire
3H VW Sensor #2
3L 8032-27
4H -
4L -
SHIELD -
5H VW Sensor #3
5L 8032-27
6H -
6L -
SHIELD -
7H VW Sensor #4
7L 8032-7
8H -
8L -
SHIELD -

11
4999-11-8S
Terminal
Board Vibrating Wire with Thermistor
1H VW Sensor #1
1L 8032-27
2H Thermistor
2L Thermistor
SHIELD Shield Drain Wire
3H VW Sensor #2
3L 8032-27
4H -
4L -
SHIELD -
5H VW Sensor #3
5L 8032-27
6H -
6L -
SHIELD -



11H VW Sensor #6
11L 8032-7
12H -
12L -
SHIELD -

12
4999-16VTS
Terminal
Board Vibrating Wire with Thermistor
1H VW Sensor #1
1L 8032-27
2H Thermistor
2L Thermistor
S1 Shield Drain Wire
3H VW Sensor #2
3L 8032-27
4H -
4L -
S2 -
5H VW Sensor #3
5L 8032-27
6H -
6L -
S3 -



11H VW Sensor #6
11L 8032-7
12H -
12L -
S6 -
