GeoSlam ZEB Horizon User manual

Quickstart Guide
geoslamacademy.com
Charging the batteries
Plug the charger into the AC mains – the LED light
will glow green.
Plug the charger lead firmly into the battery the LED
light will change to red to indicate charging.
When the LED light changes back to green, the
battery is fully charged.
For more information, troubleshooting and
best pratice guides, visit
geoslamacademy.com
3.3.
To end the scan return
to your start location.
Press and hold the
function button until the
rotation stops.
Once the orange data
LED is o the data is
ready for download.
Datalogger
light sequence
STATUS DATA
4.4.
Once the orange Data
LED is o the data is
ready for download.
Simply insert the USB
stick
Once the green LED is
o the data is on your
USB stick and ready to
be processed. Now you
can turn the system o
(press and hold the po-
wer button) or start up a
new scan.
Datalogger
light sequence
STATUS DATA

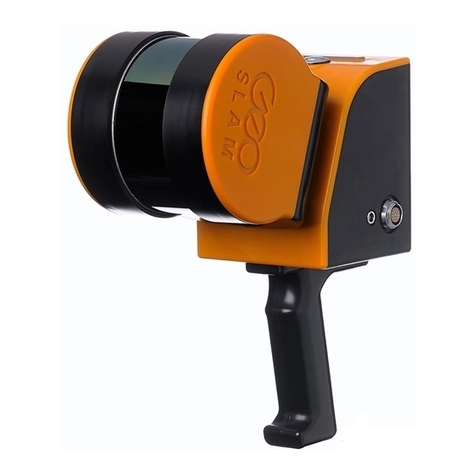

1. ZEB Horizon
2. Datalogger
3. Main cable
4. USB stick
5. Battery charger and power
supply unit
6. Datalogger shoulder strap
7. Backpack
1. Scanner (orange) socket
2. USB port
3. AUX (blue) socket
4. Main cable socket
5. Power button
6. Function 1.1.
Take the ZEB-HORIZON
out of the backpack and
place on a flat surface
Connect battery and
datalogger. Then connect
the datalogger and the
scanner using the main
cable.
Short press the power
button on the datalogger.
This will begin system
start up.
STATUS DATA
Datalogger
light sequence
SCANNER AUX
STATUS DATA
2.2.
To start a new scan press
and hold the function
button on the datalogger
OR the Horizon scanner
head until the lights stop
flashing
Once the LEDs are green,
pick up the scanner and
start scanning!
Datalogger
light sequence
STATUS DATA
