Geovent CERA User manual

CERA EXHAUST ARM
ø160 mm, 360° rotatable
INSTRUCTION MANUAL
www.geovent.com
Version 1.0 19.04.21

2

3
Contents
1.0 Introduction ..............................3
2.0 Safety ..................................3
2.1 General safety .......................... 3
2.2 Danger .................................3
3.0 Machine overview ........................ 4
3.1 Description ............................. 4
3.2 Intended use ............................ 4
3.3 Machine specifications .................... 4
3.3.1 Design ............................... 4
3.3.2 Technical data ......................... 5
4.0 Transport, handling and storage . . . . . . . . . . . . . 5
5.0 Assembly, installation and start of operation ... 5
5.1 Location ............................... 5
5.2 Installation ............................. 5
5.3 Control and test of the security system ........7
6.0 Commissioning .......................... 7
7.0 Control, test and maintenance .............. 8
7.1 Control ................................ 8
7.2 Maintenance .............................8
8.0 Cleaning ................................8
9.0 Troubleshooting ......................... 8
10.0 Dismantling, disabling and scrapping ........ 8
11.0 Dimensions ............................ 8
12.0 Liability ............................... 9
13.0 Declaration of conformity ................ 10
14.0 Spare part list ......................... 10
1.0 Introduction
This manual is made and designed in order to facilitate
the best and most secure interaction with the product.
The manual is relevant for people involved in transpor-
tation, stocking, installation, using, maintaining and all
other thinkable interaction with the product.
The manual must be read in full and understood before
interacting with the product.
When the manual has been read and understood in full,
the table of contents can be used to find the relevant
information in each case.
The product is manufactured by:
Geovent A/S
Hovedgaden 86
DK-8861 Løgstrup
DENMARK
Tel.: [phone]
E-mail: [email protected]
www.geovent.com
This manual is to be used for all interactions with the
product including: Transportation, stocking, installation,
operation and maintenance.
2.0 Safety
2.1 General safety
Carefully read this manual before use and observe the
safety instructions in order to avoid injuries!
Keep this manual in a safe place!
Secure that all users of the product have read this ma-
nual and that they follow the instructions as described.
Observe all instructions marked on the product!
Observe the indications of the manufacturer.
Never use the product if you are in doubt about how it
works or what you should do.
When doing maintenance follow the instructions in chap-
ter 7.0.
Do not modify the product or use spare parts from other
suppliers than Geovent, as this may hamper the product
and the function.
2.2 Danger
You must wear safety gloves when handling or using the
product to protect your hands from scratches etc.
Be aware that the product may tilt when you move it.
You must handle the product with care and tie it safely to
the truck or the fork lift when it is in transport.
Follow the instructions in chapter 7.0 when the product
is maintained.
When handling the product be sure that the there is no
risk for the installer, and secure that there are no people
around the product, secure that the product cannot fall
down risking to injure persons or subjects.
In case of an accident or a fire:
Call for help.
The product is not to be used in areas categorised as
ATEX zones, e.g. with dust from aluminium, flour, wood,
and other mediums that present an explosion hazard.
In case of problems:
If a repair is not possible you should dispose of the pro-
duct. Please follow the instruction for disposal in chapter
8.0.

4
3.0 Machine overview
3.1. Description
Geovent CERA arm provides a non-contact and efficient
exhaust gas extraction.
The arm is mounted in a Channal Duct and can be mo-
ved across or along the workshop.
The arm can be rotated 360 degrees and adjusted in
several joints so that it can be positioned precisely in
relation to the exhaust pipe of the car.
When mounting the channel duct take into consideration
that the arm must be able to reach the exhaust pipe of
small cars.
See also Channal Duct data sheet for more options and
details.
3.2 Intended use
Geovent CERA arm is used to extract exhaust fumes
from cars when they are switched on indoors. It can e.g.
be when the car is in a workshop.
The product is not to be used in areas categorised as
ATEX zones, e.g. with dust from aluminium, flour, wood,
and other mediums that present an explosion hazard.
3.3 Machine specifications
3.3.1 Design
TPE hose with
nylon spiral
Rubber nozzle
Handle
Juster
Trolley made
of steel with
8 adjustable
nylon wheels
Trolley: Powder coated steel, complete with 8 light-
weight nylon wheels.
Hose: TPE exhaust hose with nylon spiral. The hose
may be run over to a certain extent. Temperature-
resistant up to 150°C, briefly 170°C.
Nozzle: The nozzle is an integral part of the arm and is
made of rubber. The nozzle should not touch the vehicle.
Arms and friction joint: The inner carrying arm is
executed in a 30x30 mm aluminium profile, equipped
with an adjustable fitting. The outer arm is a 25x25 mm
aluminium pipe, which is connected via knee joints with
friction discs, bell disc and centre internal part.
Lockable
flange
Turnable pipe
M8 Bolt
Arm
Channel Duct Rubber
Trolley
Support
Flange
Spring
Spring bracket
Arm
M8 Loct nut
M8 bolt
Knee join
ø80 Bell disc
ø114 Friction discs
Arm
Nozzle
Handel
Hose
Rubber
Damper
M8 Lock nut
M8 bolt
ø80 Bell disc

5
3.3.2 Technical data
Temperature - exhaust air Max. 150°C
Temperature - surroundings 0 - 50°C
Recommended flow area
Hose dimension ø160 mm: 800-1000 m³/h
Length: 4 meter
4.0 Transport, handling and storage
During transport in a truck or in another means of trans-
portation the product must be securely packed in a box
or a pallet and covered with a water proff material.
The product must be securely stowed in the truck so that
it will neither tilt nor shift during transport.
During transport over a short distance e.g. in a stock or
a factory, the product can be moved by means of a for-
klift or a stabeler.
When moved it must be secured that the product does
not tilt or shift. And it must be secured that the limitations
of the means of transportation is not exceeded.
Secure that there are no people around the product,
when the product is moved.
The product must be placed in a dry place and covered
securely, in order to secure that moist, metal parts or
other substances do not damage the product.
It is not allowed to place anything on top of the product.
5.0 Assembly, installation and start of
operation
5.1 Location
The product is to be mounted on a Geovent trolley and
afterwards in a Geovent channel duct.
5.2 Installation
The CERA arm is delivered partly assembled, and con-
sists of 1 pc. partially assembled arm, 1 pc. handle, 1
pc. nozzle and 1 set of hose with clamps. Specification
of any adjustments appear from order confirmation / in-
voice.
The following installation should only be carried out by
a skilled fitter.
Before mounting, please consider the following:
• Space requirements for the satisfactory installation and
service of the Channel Duct System.
• Optimum connection possibilities for piping and auto-
matics.

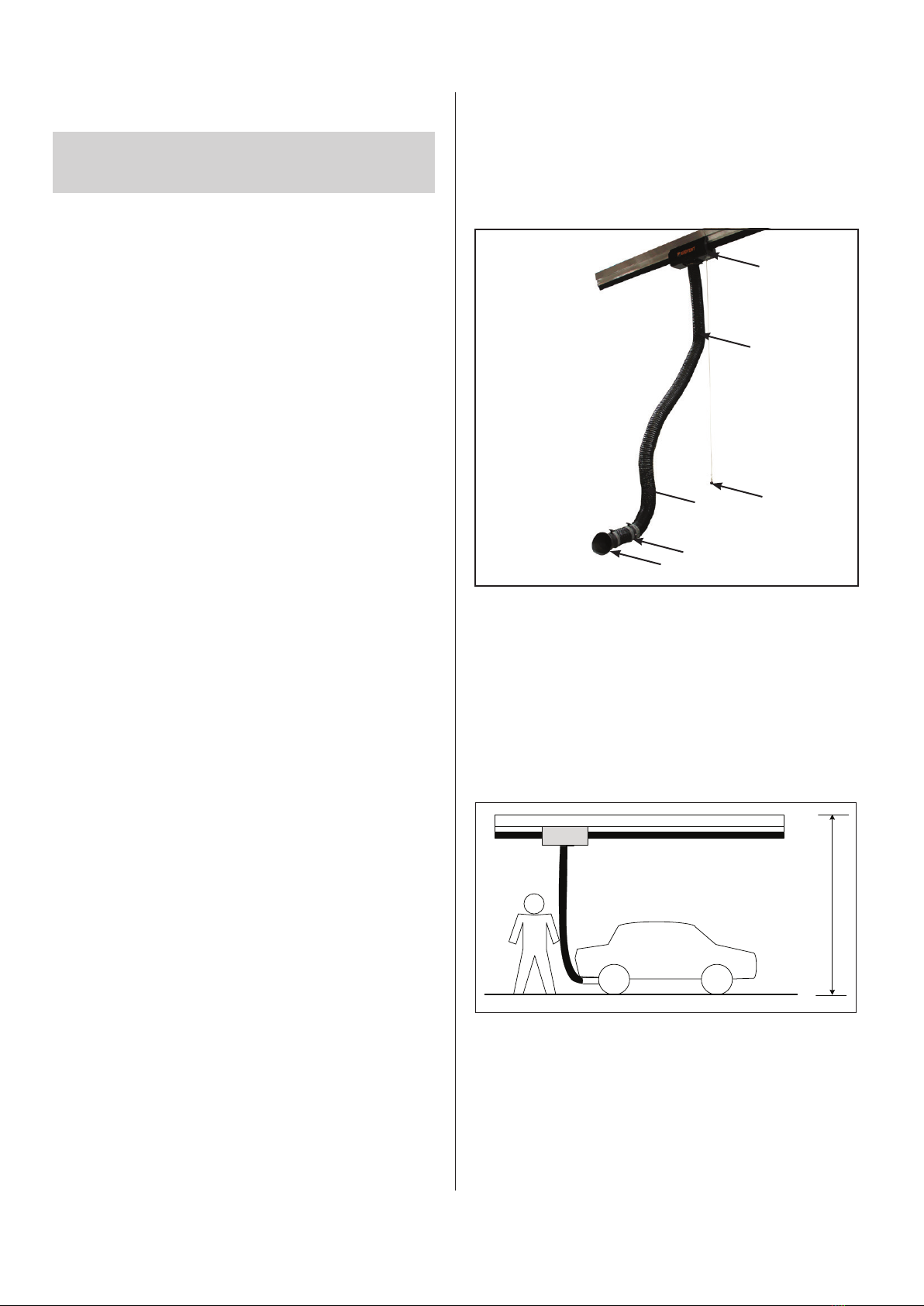

Recommended installation height
(Adjusted to the length of the Cera-arm)
For installation of the channel duct: See the channel
duct manual.
Trolley
Arm
Nozzle
Clamps
Hose Handle
Person 1 Motorpool
Anbefalet Installationshøjde
3.000 mm til 5.000 mm

6
Procedure:
The aluminum profile of the arm must be loosened.
Loosen the M6 bolt with your fingers.
The M6 bolt is removed and the arm is held so that the
the knee joint and arm are is flush. Then mount the bolt.
2 x M10 fork wrench is used to tighten the joint.
On the trolley there are 4 pcs. M8 x 20 bolts and discs
must be removed, so that the flange of the CERA arm
can be mounted.
Place the flange on the trolle.
Fix the flange with the 4 pcs. M8 x 20 bolts and friction
discs. Then mount the trolley on the channel duct (See
manual for channel duct)
Mount the CERA arm on to the support bracket.

7
Receiving
Receiving
Receiving
Receiving
Receiving
Receiving

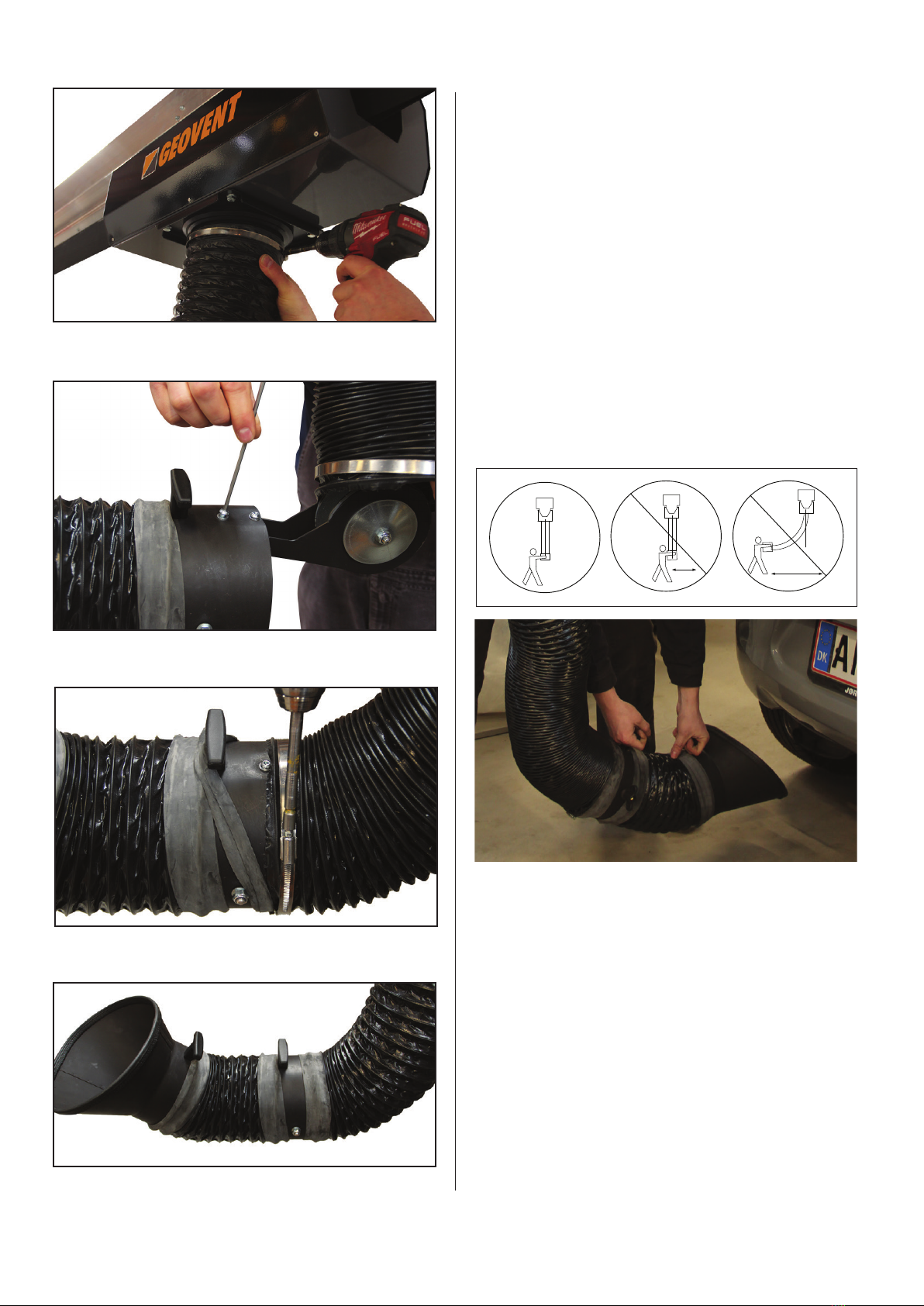

Pull the hose and clamp on to the flange and tighten it.
Mount the nozzle with M6 x 25 insex screws with was-
her. Use a size 5 Allen key.
The hose is mounted on the nozzle and the clamp is put
on and tightened with a 7mm bitz.
The nozzle is now fully assembled.
5.3 Control and test of the security system
Check that the trolley can operated in the channel duct
without any problems. Always pull it with the following
string with handle.
We also recommend checking if the fan is supplying the
volume of air, for which the system has been dimensi-
oned. If the pressure is not sufficient, then the risk of
the hose melting is increased, and if the pressure is too
high, then the trolley will be sluggish to move.
6.0 Commissioning
The trolley with the CERA arm is often moved by the
operator. To ensure the longest possible life time of the
system, the trolley must always be moved / pulled by the
cord with handle, which is mounted on the hose trolley,
as shown on the drawing below. If this is not complied
with, the life of the system will be substantially reduced.
The nozzle is adjusted by using the 2 handles mounted
on it, as shown in the photo below.
The Channel Duct System will not work according to the
intentions if …
• Unauthorised parts are mounted on the rail system, the
Trolley, the hose or on the nozzle.
• The rail system is used for other purposes than for
which it was originally intended.
• The fan is not switched on – the hose will melt!
Under normal conditions the arm is able to carry itself
in the position within the working area. The arm bracket
gives the arm a 360° working area.
The hose can be damaged and made leaky by external
load from e.g. a screwdriver. This should therefore be
avoided to ensure the longest possible life of the hose.

8

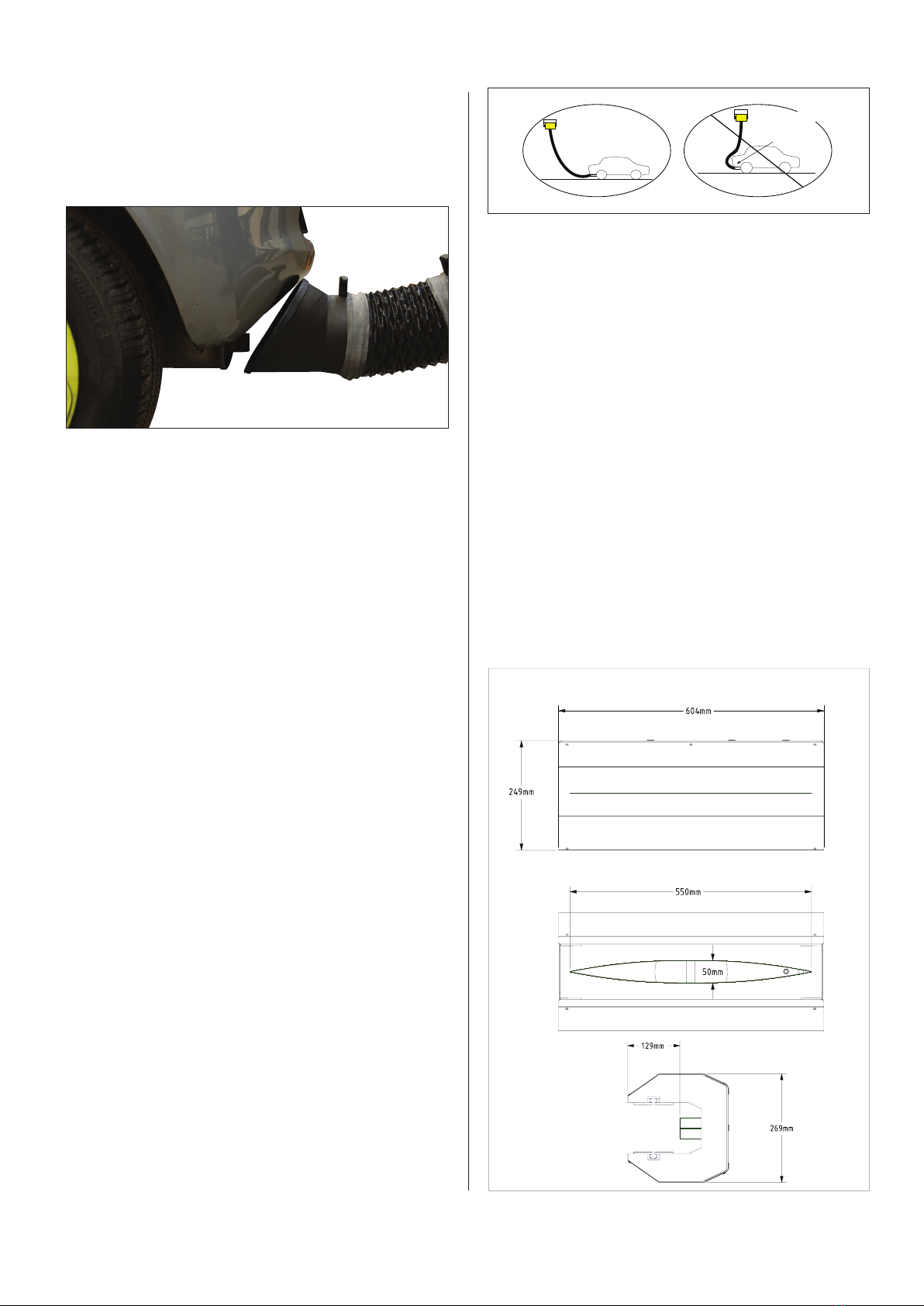

The nozzle should be placed directly in front of or close
to the exhaust pipe. Right over the source of pollution.
This captures up to 99% of the contaminated particles.
Always check that the correct amount of air is extracted
at the nozzle.
7.0 Control, test and maintenance
Check the installation according to chapter 5.3.
7.1 Control
Check the installation according to chapter 5.3.
7.2 Maintenance
Periodic maintenance
• When it becomes difficult to position the arm, e.g. if it
will not remain in the required position, please adjust
the movable joints (please refer to item 2).
• Please check the condition of the hose, the spring as
well as the friction discs, and exchange them if neces-
sary. Please contact your dealer in respect of spare
parts.
At least once annually, the system should be overhauled
by an authorised serviceman.
8.0 Cleaning
The outside of the product is cleaned with a vacuum
cleaner or a cloth.
9.0 Troubleshooting
In case of problems with the CERA arm, the following
points can be reviewed:
Problems with the hose
• The hose melts near the nozzle. This happens if there
is not enough suction on the system, or if the hose
bends near the nozzle. Can be fixed by increasing the
air volume or by replacing the hose near the nozzle
with high temperature hose.
10.0 Dismantling, disabling and scrapping
Deactive the product by disconnection the electrical
mains. Dismantle compressed air pipes and other pipes
or wires etc.
The inside of the product must be cleaned by means of
a vacuum cleaner with a fi lter which suits the purpose.
Dismantle plastic parts and dispose of it according to
local regulations.
Dismantle the metallic parts by unscrewing screws and
bolts. Afterwards cut the larger pieces into smaller pie-
ces and dispose of it according to local regulation.
Dismantle plastic parts and dispose of it according to
local regulations.
The packing material must be sorted according to local
regulation in order to be able to reuse the material.
11.0 Dimensions
Trolley to CERA arm
Motorpool
Motorpool
Free passage of
the air ensures the
hose longer life
Avoid
bending after
the exhaust pipe

9
4 meter
360° drejbar
285 mm
220 mm
Dimensions
CERA arm
12.0 Liability
Warranty
Geovent A/S grants a warranty for products, which are
defective, when it can be proved that the defects are due
to poor manufacture or materials on the part of Geovent.
The warranty comprises remedial action (reparation or
exchange) until one year after the date of shipment.
No claims can be made against Geovent A/S in relation
to loss of earnings or consequential loss as a result of
defects on products from Geovent.
Wear on parts such as filter cartridges and hose is not
included in the warranty.
User liability
In order for Geovent to be capable of granting the decla-
red warranty, the user/fitter must follow this instruction
manual in all respects.
Under no circumstances may the products be changed
in any way, without prior written agreement with Ge-
ovent A/S.
Please refer to the current sales and delivery conditions
at www.geovent.com

10
13.0 Declaration of conformity
The manufacturer: GEOVENT A/S
HOVEDGADEN 86
DK-8831 LØGSTRUP
Hereby declares that:
The product: Chanal Duct
Model: Type 25
Complies with the relevant parts of the following directi-
ves and standards:
Directive 2006/42 / EC of the European Parliament and
of the Council of 17 May 2006 on machines and amen-
ding directives 95/16 / EC
This declaration is no more valid if changes are made to
the product by others than the manufacturer.
Authorized to collect the technical file:
Lise Cramer
Date: 19.04.2021
Position: Director
Name: Thomas Molsen
Signature: ____________________________
14.0 Spare part list
Art. No. Description
95-300 2 x Friction discs ø114 mm
Drejeled
Friktionsklods
09-313-10 GeoFlex Weld ø165 mm, 10 meter
Nozzle/Hood
12-008 Tight damper for hood ø160 mm

11

HOVEDGADEN 86 • DK-8831 LØGSTRUP
([phone] • [email protected]
