V-ZUG DW-SM9 User manual

Range hood
DW-SM9
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲Indicates a list.
Validity
The model number corresponds to the first three digits on the identification
plate. These operating instructions apply to the model:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2009
Denotes important safety precautions. Failure to observe said pre-
cautions can result in injury or damage to the appliance or fittings!
Denotes useful tips for the user.
Type Model no.
DW-SM9 330

3
Contents
Safety precautions 5
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . 5
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Appliance description 9
Extraction mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Recirculation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Fitted with . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operating and display elements . . . . . . . . . . . . . . . . . . . . . 12
Use 13
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Intensive level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Saturation indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Care and maintenance 16
Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning the grease filters . . . . . . . . . . . . . . . . . . . . . . . . . 17
Changing the standard activated charcoal filter . . . . . . . . 19
Cleaning and changing the long-life activated
charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Changing the halogen light . . . . . . . . . . . . . . . . . . . . . . . . . 22
Trouble-shooting 23
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

… Contents
4
Accessories and spare parts 24
Technical data 25
Disposal 26
Notes 27
Index 29
Repair service 31
Quick instructions 32

5
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
Before using for the first time
䡲The appliance must be installed and connected up to the electricity supply
according to the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
䡲Dispose of the packaging material in accordance with local regulations.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please there-
fore follow the precautions given in these operating instructions.

… Safety precautions
6
Correct use
䡲The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
䡲Any repairs, modifications or manipulations to the appliance, especially
any electrically live parts, should only be carried out by the manufacturer,
its Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the 'Repair service' section. Please contact our Customer Services if
necessary.
䡲Use original spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instruc-
tions, together with the installation instructions, accompany the appliance.
In this way, the new owner can inform themselves about how to use the
appliance correctly and read the pertinent safety precautions.
Children in the home
䡲Packaging material e.g. plastic and polystyrene can be dangerous for chil-
dren. Danger of suffocation! Please keep packaging material away from
children.
䡲The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognise the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children can hurt
themselves.

… Safety precautions
7
Note on use
䡲If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
䡲If the appliance is not operating properly, disconnect it from the electricity
supply immediately.
䡲Caution: Accessible parts may become hot when used with cooking
appliances.
䡲Do not flambé food underneath the hood as the grease filters if laden with
grease could catch fire.
䡲If frying on the cooking surface, do not leave the frying appliance unattend-
ed. The cooking oil in the frying appliance could overheat and catch fire.
Constantly monitor the temperature of the cooking oil, keeping it below the
temperature at which it can catch fire. Change the cooking oil regularly –
dirty oil catches fire more easily than clean oil.
䡲Clean the filters regularly. Failure to do so can increase the fire hazard due
to the build-up of grease in the grease filter.
䡲Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build-up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
䡲Ensure there is adequate ventilation when the extraction fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve op-
timal air extraction.
䡲Avoid a cross-current of air, which could blow the cooking vapours over
the cooking area.

… Safety precautions
8
䡲If another appliance – fuelled by gas or other fuels – is being used at the
same time, ensure that there is a sufficient supply of fresh air. This does
not apply to air recirculation units.
䡲With the simultaneous operation of firing (e.g. wood, gas, oil or coal-fired
heating systems), safe operation is only possible providing a room nega-
tive pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the ap-
pliance. Risk of toxic fumes! An adequate flow of fresh air must be
guaranteed, e.g. via non-closable openings in doors and windows and
combined with ventilation wall bricks for incoming and exhaust air or by
other technical means.
䡲When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance (remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply).
䡲When cleaning the appliance make sure no water gets inside the appli-
ance. Use a moderately damp cloth. Do not spray the inside or outside of
the appliance with water. Do not use a steam cleaner. If water gets inside
the appliance, it can cause damage.

9
Appliance description
The appliance is designed tor use in the home for extracting cooking fumes
and smells from the cooking area. The appliance is based on a completely
new functional concept whereby more cooking fumes can be removed with
significantly less air being extracted. The grease particles in the extracted air
are trapped very efficiently in the combi filters and metal grease filters.
The appliance can be used in extraction or recirculation mode.
Extraction mode
The cooking fumes and smells above the cooking area are removed by an
extractor fan. The extracted air is filtered through the combi filters and metal
grease filters and passed through a pipe with an integrated non-return valve
and then through an air duct to the outside.
Recirculation mode
The cooking fumes and smells above the cooking area after being filtered
through the combi filters and metal grease filters are passed through an ac-
tivated charcoal filter. The filtered air is then circulated back into the room
through the side openings.
When the appliance is in use, ensure that there is a sufficient supply
of fresh air to replace the air that is being extracted.
If activated charcoal filters are not supplied with the appliance, these
should be ordered and installed before using the appliance. Further-
more, the saturation indicator for the activated charcoal filters must
also be activated.

… Appliance description
10
Fitted with
䡲1extractionfan
䡲Illumination
䡲2 metal grease filters
䡲3combifilters
䡲1 activated charcoal filter
The extraction fan has 4 power levels.
䡲1 = Low, 2 = Medium, 3 = High and Intensive level.
䡲Power levels 1–3 can be used for longer periods of operation.
䡲The intensive level is for shorter bursts of intensive extraction of the cook-
ing fumes and smells, e.g. when searing meat. The intensive level runs for
a maximum of 5 minutes at a time.

… Appliance description
11
Construction
1Operating elements
2Halogen light
3Combi filter
4Metal grease filter
5Activated charcoal filter
6Profile slot
24
3
1
5 6

… Appliance description
12

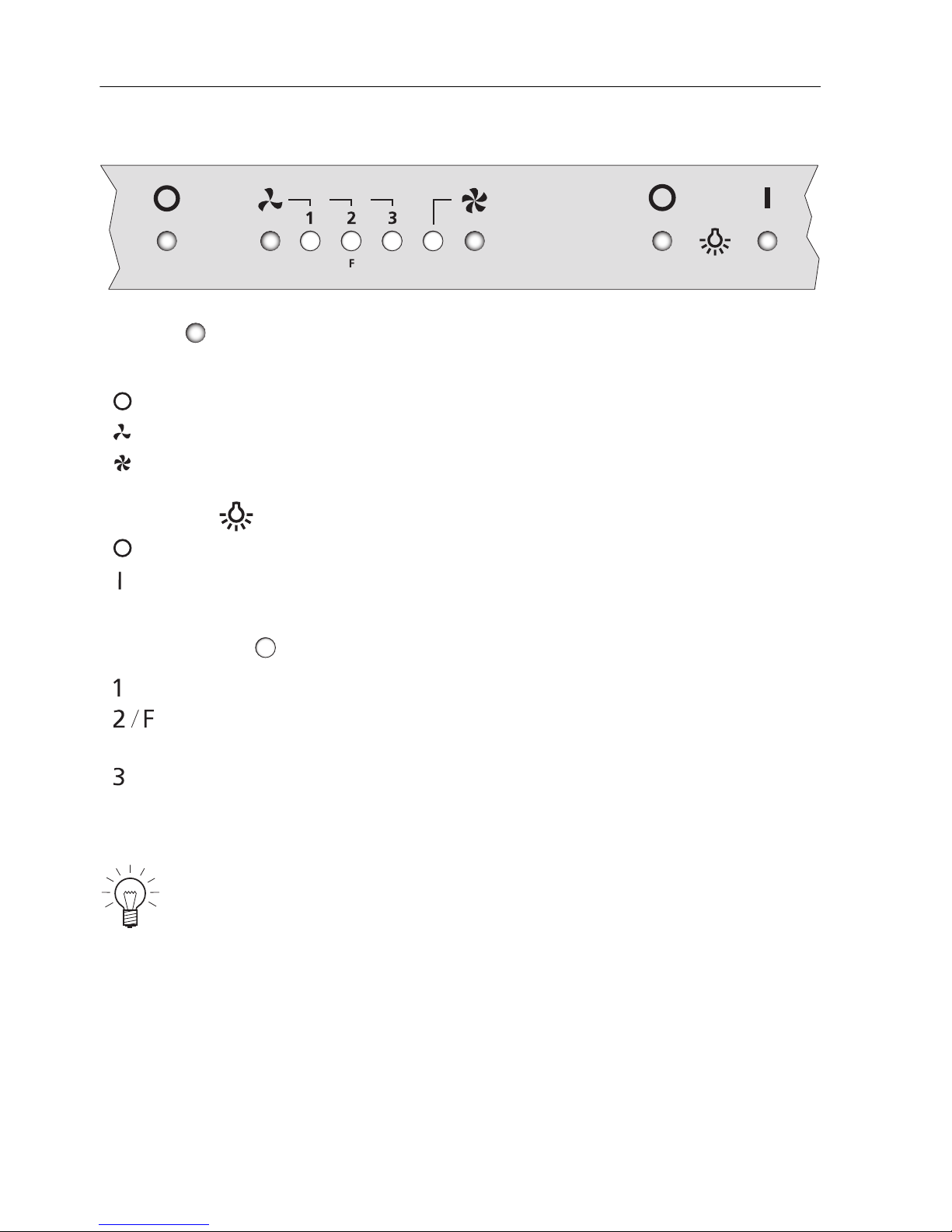

Operating and display elements
Buttons
Indicator lights
Operation
Switch off / Reset saturation indicator
Switch on / Power level
Intensive
Illumination
Off
On
Power level 1
Power level 2 / Saturation indicator for metal grease filters, combi fil-
ters and long-life activated charcoal filter
Power level 3 / Saturation indicator for standard activated charcoal
filter
Intensive level
Depending on the model and features, the specification of the appli-
ance may differ from the standard specification described herein.

13
Use
Operation
Switching the appliance on / Selecting the power level
APressing the button switches the appliance on at power level 1.
– The indicator light comes on.
ATo select power levels 2 or 3, repeatedly press the button.
– The indictor light shows which power level is currently being used.
Switching the appliance off
APress the button to switch the appliance off.
We recommend switching the appliance on at power level 1 some
5 minutes before cooking. Use a low power level for normal cooking
smells and a higher power level for very strong cooking fumes and
smells.
After you have finished cooking, allow the appliance to run for another
15 minutes so that the cooking fumes and smells can be extracted.

… Use
14
Intensive level
The intensive level can be selected irrespective of whether the appliance is
switched on or off.
APress the button to switch the intensive level on for 5 minutes.
– The indicator light lights up.
APress the or button to stop the intensive level before the 5 minutes
is up.
Illumination
APress the button to switch the illumination on.
APress the button to switch the illumination off.
䡲If a different power level had been running beforehand, then the ap-
pliance will automatically revert to this after the 5 minutes has
elapsed.
䡲If the appliance had been switched on beforehand, then the appli-
ance will automatically switch off after the 5 minutes has elapsed.
The illumination can be used on its own.

… Use
15
Saturation indicator
Saturation indicator for metal grease filters, combi filters and the long-life
activated charcoal filter
The indicator light flashes after 40 operating hours. The saturation level
is reached, the grease filters have to be cleaned.
Saturation indicator for the standard-activated charcoal filter
The indicator light flashes after 160 operating hours. The saturation level
is reached, the standard-activated charcoal filter needs to be replaced.
To activate the saturation indicator
ADepress the and buttons at the same time for 3 seconds.
– The indicator light flashes.
– After 3 seconds the indicator light flashes. The saturation indicator is
activated.
To deactivate the saturation indicator
ADepress the and buttons at the same time again.
– After 3 seconds the indicator light goes out. The saturation indicator is
deactivated.
The saturation indicator is deactivated at the factory. If the appliance
is being used as a recirculation model, the saturation indicator must

16
Care and maintenance
Cleaning the housing
Cleaning the outside / inside
AClean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up around the combi filters on the
inside.
AClean using a slightly damp cloth – and detergent if necessary – and wipe
dry.
Take care that no water gets into the housing of the appliance! If
water gets into the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool etc. to clean
the appliance as they can damage the surface.

… Care and maintenance
17
Cleaning the grease filters
The grease filters should be cleaned at least once a month with normal use
or whenever the indicator light flashes. If properly cared for, the grease
filters should provide unlimited years of service.
AThe grease filters can be cleaned in a dishwasher.
ASelect an «intensive» – or «heavy soil» – wash programme with a warm
pre-wash.
If you do not have a dishwasher:
AClean the grease filters in the sink with hot water and detergent.
AThen soak the filters in hot water in the sink for about 2 hours and finally
clean with a washing-up brush.
Cleaning may cause the grease filters to become discoloured. How-
ever, this will not affect the functioning of the filter in any way.

… Care and maintenance
18
Removing the metal grease filters and the combi filters
ALoosen the fastening screw 1in the
combi filter in the middle.
AWith the other hand, fold the combi
filter downwards.
ARemove the combi filter from out of
the profile slot.
ARemove the left and right combi fil-
ters in the same way.
AOn the metal grease filter push the
grip 2back.
ACarefully pull the metal grease filter
down and out of the holder.
Replacing the metal grease filters and the combi filters
AReplace the metal grease filters.
APut the right combi filter in the profitle slot at the back and fold upwards.
Tighten the fastening screw 1slightly.
AInstall the left and the middle combi filters in the same way.
ADepress the button for at least 3 seconds.
– An acoustic signal is given off.
– The indicator light goes out.
Take care not to damage the grease filters.
21

… Care and maintenance
19
Changing the standard activated charcoal filter
Standard activated charcoal filters are only used in the recirculation mode.
Standard activated charcoal filters become less effective with use. With nor-
mal use, they have to be replaced at least every 4 months or whenever the
indicator light flashes. They cannot be washed or regenerated.
ARemove and clean the grease filters.
ATurn both knobs A90 ° and remove
the standard activated charcoal filter
from the bottom.
AInsert the new standard activated char-
coal filter and secure at the front with
both knobs A.
AReplace the grease filters.
AReplace the fuse, switch the circuit
breaker back on again and plug the
appliance back into the mains supply.
ADepress the button for at least
3seconds.
– An acoustic signal is given off.
– The indicator light goes out.
Remove screw fuse or switch off circuit breaker.
The standard activated charcoal filter can be disposed of in the
household waste.
90˚
A
A

… Care and maintenance
20
Cleaning and changing the long-life activated charcoal filter
Long-life activated charcoal filters are only used in the recirculation mode.
Unlike the standard activated charcoal filter, the long-life activated charcoal
filter can be cleaned and reactivated. The long-life activated charcoal filter
should be changed ever month with normal use or whenever the indicator
light flashes. The filter can be cleaned in a dishwasher at 65 °C (select
an «intensive» or «heavy soil» wash programme). Wash the filter separately
so that it does not become clogged with food particles. If it is not possible to
wash the filter in a dishwasher, soak the filter in 60 °C water and detergent
for one hour. Then rinse well. To reactivate the activated charcoal, dry the filter
without the frame in the oven.
ASelect top and bottom heat or hot air and set the temperature to 100 °C.
Place the filter on a wire shelf and allow to dry for 60 minutes.
Remove screw fuse or switch off circuit breaker.
The long-life activated charcoal filter needs to be replaced after about
3 years as its ability to absorb odours declines. The spent long-life
activated charcoal filter can be disposed of in the household waste.
