V-ZUG DWVHR9 User manual

Operating instructions
DWVHR9
Range hood

Thank you for choosing to buy one of our products. Your appliance is made to high
standards and is easy to use. Nevertheless, please take the time to read these operating
instructions in order to familiarize yourself with the appliance and get the best use out of
it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifications
for the purpose of the further development of the appliances is reserved.
Validity
The model number corresponds to the first alphanumerics on the identification plate.
These operating instructions apply to:
Type Product family Size system
DWVHR9 62010 90
DWVHR9 62030 90
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6302 Zug, 2019
2

3
Contents
1 Safety precautions 4
1.1 Symbols used......................................................... 4
1.2 General safety precautions.................................. 4
1.3 Appliance-specific safety precautions ............... 4
1.4 Instructions for use................................................ 5
2 Appliance description 7
2.1 Appliance description ........................................... 7
2.2 Extraction model .................................................... 7
2.3 Recirculation model .............................................. 7
2.4 Equipment ............................................................... 7
2.5 Construction ........................................................... 8
2.6 Operating and display elements......................... 8
2.7 Remote control....................................................... 9
3 Operating the appliance 9
3.1 Operation using the operating and display ele-
ments ....................................................................... 9
3.2 Illumination.............................................................. 9
3.3 Intensive level .......................................................10
3.4 After-running time ................................................10
3.5 Wipe protection....................................................10
3.6 CleanAir function .................................................10
3.7 Saturation indicators ...........................................11

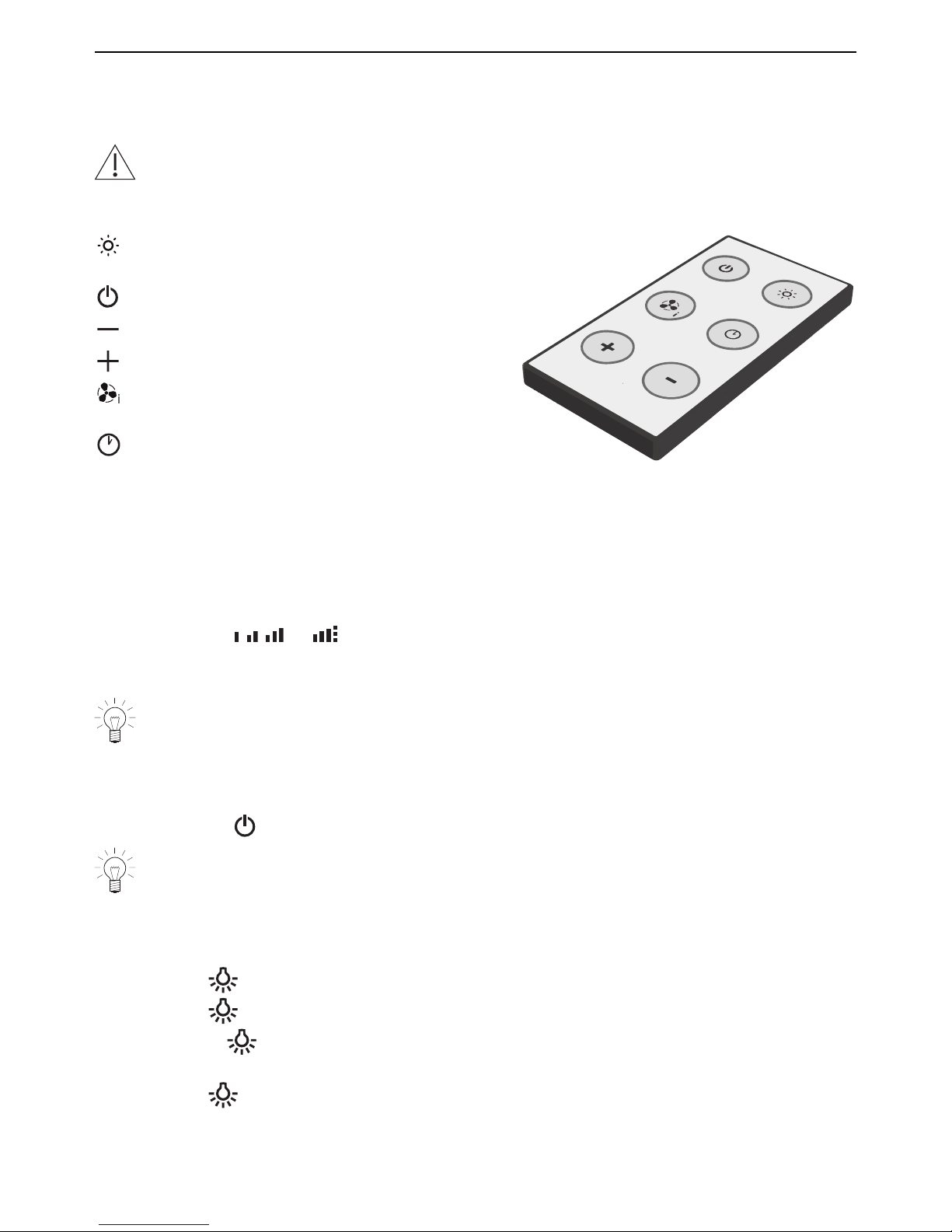

3.8 Operation with remote control...........................11
4 Care and maintenance 13
4.1 Cleaning the housing..........................................13
4.2 Metal grease filters..............................................13
4.3 Activated charcoal filter display ........................15
4.4 Cleaning the long-life activated charcoal filter .....
15
5 Trouble-shooting 17
5.1 What to do if ….....................................................17
6 Accessories and spare parts 18
7 Technical data 18
8 Disposal 19
9 Index 20
10 Notes 22
11 Service & Support 23

4
1 Safety precautions
1.1 Symbols used
Denotes important safety precau-
tions.
Failure to observe said precautions
can result in injury or in damage to
the appliance or fittings!
Information and precautions that
should be observed.
Information on disposal
Information about the Operating In-
structions
▸ Indicates step-by-step instructions.
–Describes how the appliance reacts
to the steps taken.
▪Indicates a list.
1.2 General safety precautions
▪Read the operating instruc-
tions before using the appli-
ance for the first time!
▪This appliance can be used
by children aged 8 and above
and by persons with reduced
physical, sensory or mental
capabilities, or lack of experi-
ence and/or knowledge,
provided they are supervised
or have been instructed on
the safe use of the appliance
and have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be undertaken
by children without supervi-
sion.
▪If an appliance is not
equipped with a mains cable
and a plug or other means for
disconnecting from the mains
with a contact opening on
each pole complying with the
conditions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical install-
ation in accordance with the
installation regulations.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manufac-
turer or its Customer Services
or a similarly qualified person
in order to avoid hazard.
1.3 Appliance-specific safety
precautions
▪The room must be adequately
ventilated when operating the
range hood at the same time
as other appliances that burn
gas or other fuels.
▪Observe the official regula-
tions for the exhaust-air lay-
out.

1 Safety precautions
5
▪The extracted air must not be
fed into a chimney which is
used for exhausting fumes
from appliances burning gas
or other fuels.
▪The minimum distance
between the supporting sur-
face for the cooking equip-
ment on the hob and the low-
est part of the range hood
must be observed. If the
range hood is installed above
a gas appliance, this distance
must not be less than 65 cm.
If the installation instructions
for the gas hob stipulate a lar-
ger distance, this must be ob-
served.
▪WARNING: Before replacing
the light bulb, ensure the ap-
pliance is switched off and
disconnected from the mains
power supply to avoid pos-
sible electric shock.
▪When replacing a light bulb,
the maximum wattage rating
of replaceable light bulbs
must be visible.
▪This appliance is intended for
use in the home and similar
settings such as: in staff kit-
chens in shops, offices and
other commercial establish-
ments; in agricultural estab-
lishments; by guests in hotels,
motels and other accommod-
ation establishments; in bed
and breakfast establishments.
▪Do not operate the appliance
using an external time switch
or a separate remote control
system.
▪Failure to follow the cleaning
instructions may cause a fire
hazard.
▪Do not flambé food under-
neath the range hood.
1.4 Instructions for use
Before using for the first time
▪The appliance must be installed and
connected to the electricity supply in
accordance with the separate installa-
tion instructions. Have a qualified fitter/
electrician carry out the necessary
work.
▪Observe the official regulations for the
exhaust-air layout.
▪Dispose of the packaging material in
accordance with local regulations.
Correct use
▪The appliance is designed for use in
the home for extracting cooking fumes
and smells from above the cooking sur-
face.
▪Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its cus-
tomer service department or similarly
qualified persons. Repairs if carried out
incorrectly may cause serious injury,
damage to the appliance and fittings,
as well as affect the functioning of the
appliance. If the appliance is not work-
ing properly or in case a repair is
needed, follow the instructions given in
the 'Service & Support' section. Contact
our Customer Services if necessary.

1 Safety precautions
6
▪Use original spare parts only.
▪Retain these operating instructions for
future reference.
Note on use
▪If the appliance is visibly damaged, do
not use it. Contact our Customer Ser-
vices.
▪If the appliance is not functioning prop-
erly, disconnect it from the power sup-
ply immediately.
▪Ensure there is adequate ventilation
when the extractor fan is on so as to
avoid creating underpressure in the kit-
chen and to achieve optimal air extrac-
tion.
▪Avoid a cross-current of air, which
could blow the cooking vapours over
the cooking area.
▪If other appliances – fired by gas or
other fuels – are being used at the
same time, ensure that there is a suffi-
cient supply of fresh air. This does not
apply to air recirculation appliances.
▪If other firing systems are being used at
the same time (e.g. wood, gas, oil or
coal fired heating appliances), safe op-
eration is only possible providing a
room negative pressure of 4Pa
(0.04mbar) is not exceeded at the loc-
ation of the appliance. Risk of toxic
fumes! An adequate flow of fresh air
must be guaranteed e.g. via non-clos-
able openings in doors or windows and
in combination with an air-intake/ex-
haust-air wall box or by other technical
means.
▪When cleaning the appliance make
sure no water gets inside it. Use a mod-
erately damp cloth only. Do not spray
the inside or outside of the appliance
with water. Do not use a steam cleaner.
If water gets inside the appliance, it can
cause damage.
▪Accessible parts may become hot when
used with cooking appliances.
Caution: Burns hazard!
▪Do not leave the appliance unattended
when deep-frying on the cooking sur-
face. The cooking oil in the deep-frying
appliance could overheat and catch
fire. Constantly monitor the temperature
of the cooking oil, keeping it below the
temperature at which it can catch fire.
Change the cooking oil regularly – dirty
oil catches fire more easily than clean
oil.
Caution: Risk to life!
▪Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren and animals. Danger of suffoca-
tion! Keep packaging material away
from children and animals.
▪When carrying out maintenance work
on the appliance, including replacing
light bulbs, cut off the electricity supply
to the appliance: remove the screw fuse
from the holder or switch the circuit
breaker off, or disconnect from the
mains supply.
How to avoid damaging the appliance
▪Observe the cleaning intervals. Failure
to do so can increase the fire hazard
due to the build-up of grease in the
metal grease filters.

2 Appliance description
2.1 Appliance description
The appliance is designed for use in the home for extracting cooking fumes and smells
from above the cooking surface.
The model can be used to extract or recirculate air.
2.2 Extraction model
A fan draws cooking fumes and smells from above the cooking area. The metal grease
filters clean the extracted air, which is passed through a connecting pipe fitted with an in-
tegrated non-return valve and through the air duct to the outside.
When in use, ensure there is a sufficient supply of fresh air to replace the air that is
being extracted.
2.3 Recirculation model
After being filtered through the metal grease filters, the cooking fumes and smells above
the cooking area are passed through an activated charcoal filter. The filtered air is then
circulated back into the room through the opening in the top of the hood.
If activated charcoal filters are not supplied with the appliance, these should be
ordered and installed before using the appliance for the first time. Moisture is not
filtered out of the air.
2.4 Equipment
▪1 extraction fan
▪Illumination
▪2 metal grease filters
▪2 long-life activated charcoal filters (not included in scope of delivery)
▪Remote control (not included in scope of delivery)
The extraction fan has 4 power levels.
▪1 = low, 2 = medium, 3 = high, and intensive level.
▪Power levels 1–3 are suitable for continuous operation.
▪The intensive level is used for shorter bursts of intensive extraction of cooking fumes
and smells, e.g. when searing meat. The intensive level runs for a maximum of six
minutes at a time.
7

2 Appliance description
2.5 Construction
1Operating elements
5
1
3
2
4
6
7
2Metal grease filter (large)
3Glass panel, hinged
4Illumination
5Return air in recirculation model
6Long-life activated charcoal filter
7Metal grease filter (small)
2.6 Operating and display elements
Switch off / activate or deactivate button lock
Power level 1 / activate or deactivate remote control
Power level 2
Power level 3
Intensive level
CleanAir function (air extraction every hour for 10 minutes)
After-running time, delays the switching-off of the appliance by 15
minutes
Illumination ON/OFF / dimmer function (hold depressed for two
seconds)
Infrared port for the remote control
Flashing: Clean grease filters
Flashing: Clean long-life activated charcoal filters (recirculation model)
Depending on the model and features, the specification of the appliance may differ
from the standard specification described herein.
8

3 Operating the appliance
2.7 Remote control
This appliance can be operated remotely. The remote control is powered by a 3V battery
type CR2032 (not included in scope of delivery).
Do not place the remote control near any heat sources. The batteries must be dis-
posed of properly in accordance with the regulatory requirements.
Operating and display elements
Switch illumination on/off, change light
intensity
Switch appliance on/off
Stepwise decrease power level
Stepwise increase power level
Switch intensive level on / off before
time
Switch after-running time on / off before
time
3 Operating the appliance
3.1 Operation using the operating and display elements
Switching the appliance on
▸ Touching the / / or button switches the appliance on at power level 1, 2, 3 or
intensive.
–The corresponding button illuminates to indicate which power level is being used.
We recommend switching the appliance on at power level 1 some five minutes be-
fore starting to cook. Use a low power level for normal cooking smells and a
higher power level for very strong cooking fumes and smells.
Switching the appliance off
▸ Touching the button switches the appliance off.
After you have finished cooking, allow the appliance to run for another 15
minutes[after-running time] so that the cooking fumes and smells can be extrac-
ted.
3.2 Illumination
▸ Touch the button to switch the illumination on.
▸ Touch the button again to switch the illumination off.
▸ Depress the button for two seconds.
–The light is dimmed.
▸ Touch the button again.
–The light intensity is increased.
9

3 Operating the appliance
3.3 Intensive level
▸ Touch the button.
–The button illuminates.
–The intensive level switches on.
▪If another power level had been running beforehand, then the appliance will automat-
ically revert to this power level after six minutes has elapsed.
▪If the appliance had not been switched on beforehand, then the appliance will auto-
matically switch off after the six minutes has elapsed.
▸ Touch the or button.
–The button illuminates.
–The intensive level switches off before time.
3.4 After-running time
With the after-running time function, the appliance runs for another 15 minutes and then
switches off.
▸ Touch the / or button and select the desired power level.
▸ Touch the button.
–The after-running time switches on.
–The button illuminates for 15 minutes.
▸ Touch the / or button again.
–The LED for the corresponding power level no longer flashes.
–The after-running time function switches off before time.
3.5 Wipe protection
Activating wipe protection
▸ Hold the button depressed for five seconds.
–Wipe protection is activated, all the buttons flash on once and then flash from left to
right.
Wipe protection is useful when cleaning the hood.
Deactivating wipe protection
▸ Hold the button depressed for five seconds.
–Wipe protection is deactivated.
3.6 CleanAir function
Switching on/off
▸ Touch the button.
–The LED flashes.
–The range hood switches on every hour for ten minutes at level .
▸ Touch the or button.
–The LED no longer flashes.
–The CleanAir function switches off.
10

3 Operating the appliance
3.7 Saturation indicators
Saturation indicator for the metal grease filter
The button flashes after 100 operating hours. The saturation level has been reached
and the grease filters must be cleaned.
Saturation indicator for the long-life activated charcoal filter
The activated charcoal filters must be cleaned as soon as the button flashes or at the
latest after one month when the saturation level has been reached.
Resetting the filter saturation indicator
üThe grease filter has been cleaned.
▸ With the range hood switched off, hold the button depressed until all the LEDs
flash three times.
–The flashing LEDs (grease filters) or (activated charcoal filters) no longer
flash.
3.8 Operation with remote control
Activating/deactivating the remote control
▸ With the appliance switched off, hold the button depressed for five seconds.
–All LEDs flash twice.
–The range hood can now be operated using the remote control.
▸ With the appliance switched off, hold the button depressed for five seconds.
–All LEDs flash once.
–The range hood can only be operated using the operating and display elements.
Switching the appliance on/off
▸ Touch the button.
–The appliance switches on at power level1.
▸ Touch the button again.
–The appliance switches off.
Switching the illumination on/off
▸ Touch the button.
–The illumination switches on at maximum intensity.
▸ Touch the button again.
–The illumination switches off.
Changing the light intensity
▸ When the illumination is switched on, hold the button depressed for two seconds.
–The light intensity is lowered.
▸ When the light intensity is low, touch the button.
–The light intensity is increased.
▪The illumination switches off if the button has been held depressed for two seconds
when the light intensity is low or if it is touched when the light intensity is high.
The illumination can be used independently of the extractor fan.
11

3 Operating the appliance
Changing the power level
▸ Press the button.
–The next lower power level is activated.
▸ Press the button.
–The next higher power level is activated.
Switching the intensive level on / off before time
▸ Touch the button.
–The button illuminates.
–The intensive level switches on.
▪If another power level had been running beforehand, then the appliance will automat-
ically revert to this power level after six minutes has elapsed.
▪If the appliance had not been switched on beforehand, then the appliance will auto-
matically switch off after the six minutes has elapsed.
▸ Press the or button.
–The button light goes out.
–The intensive level switches off before time.
Switching after-running time on/off
In the after-running time, the motor, fan blades and illumination run for another 15
minutes and then switch off.
▸ Touch the button.
▸ Touch the or button repeatedly until the desired power level is reached.
▸ Touch the button.
–The after-running time switches on.
–The LED for the corresponding power level illuminates and the LED for the but-
ton flashes for 15minutes.
▸ Touch the button again.
–The LED for the corresponding power level no longer illuminates.
–The after-running time function switches off before time.
12

4 Care and maintenance
4 Care and maintenance
4.1 Cleaning the housing
Take care that no water gets into the housing of the appliance! If water gets into
the housing, it can cause damage. Do not use abrasive cleaners, scouring pads,
steel wool, etc. for cleaning, as they can damage the surface. Remove the screw
fuse or switch off the circuit breaker.
Cleaning the outside/inside
▸ Depress the button for five seconds.
–Wipe protection is activated, all the buttons flash on once and then flash from left to
right.
▸ Clean the outside using a slightly damp cloth – and detergent if necessary – and wipe
dry.
Grease and condensate water can build up on the inside next to the grease filters.
▸ Clean using a slightly damp cloth – and detergent if necessary – and wipe dry.
▸ After cleaning, depress the button for five seconds.
–Wipe protection is deactivated.
4.2 Metal grease filters
The filter can be cleaned.
Removing the upper grease filter
▸ Swing the glass panel 1 up.
▸ Press the grip 2 upwards, swing the
grease filter 3 forwards and remove from
the bracket 4.
1
3
2
4
5
Removing the lower grease filter
Push the grip 6 towards the middle and re-
move the filter 5.
65
Be careful not to damage the filter.
13

4 Care and maintenance
Cleaning
The grease filters must be cleaned at least once a month with normal use or whenever
the indicator light flashes. If properly cared for, the service life of the grease filters
should be as long as the service life of the range hood.
▸ Clean the large metal grease filter (with the grip facing upwards so that the grease
can drain away) and the small grease filter in the dishwasher.
▸ Select an «intensive» – or «heavy soiling» – wash programme with a warm pre-wash.
Cleaning may cause the grease filters to become discoloured. This will not affect
the functioning of the filters in any way.
If no dishwasher is available:
▸ Clean the grease filters in hot water and detergent.
▸ Soak the grease filters in hot water and detergent for about two hours, then clean with
a washing-up brush and rinse well with clean water.
Installing the upper grease filter
▸ Insert the grease filter 3 into the bracket
4 at the top.
▸ Press the grip 2 upwards and engage
the grease filter 3 in the bracket at the
bottom.
▸ Swing the glass panel 1 down.
1
3
2
4
5
Installing the lower grease filter
▸ Push the grip 6 on the lower grease filter
towards the middle. Engage the grease
filter 5 in the bracket at the right and
press the grease filter 5 upwards.
6 5
▸ With the range hood switched off, hold
the button depressed until all the
LEDs flash three times.
–The flashing button goes out.
14

4 Care and maintenance
4.3 Activated charcoal filter display
Activating the activated charcoal filter display
This function must only be activated with the recirculation model.
▸ With the appliance switched off, hold the button depressed for five seconds.
–All LEDs flash twice.
–The activated charcoal filter display is activated.
Deactivating the activated charcoal filter display
▸ With the appliance switched off, hold the button depressed for five seconds.
–All LEDs flash once.
–The activated charcoal filter display is deactivated.
4.4 Cleaning the long-life activated charcoal filter
Long-life activated charcoal filters are only used in the recirculation model.
The long-life activated charcoal filter can be cleaned and reactivated. With normal use
the long-life activated charcoal filter should be cleaned every other month or whenever
the indicator light flashes. It can be cleaned in a dishwasher at 65°C (select an «in-
tensive» or «heavy soiling» wash programme). Wash the filter separately so that it does
not become clogged with food particles. If it is not possible to wash the filter in a dish-
washer, soak it in 60°C water with a little washing-up liquid for one hour. Then rinse well.
To reactivate the activated charcoal, dry the filter without the frame in the oven.
▸ Select top/bottom heat or hot air and set the temperature to 100 °C. Place the filter
on a wire shelf and allow to dry for 60 minutes.
After about three years the long-life activated charcoal filter must be replaced be-
cause its ability to absorb odours will be reduced. The spent long-life activated
charcoal filter can be disposed of in the household waste.
Removing the long-life activated charcoal filter
▸ Swing the glass panel 1 up.
▸ Press the grip 2 upwards, swing the
grease filter 3 forwards and remove from
the bracket 4.
1
3
2
4
5
15

4 Care and maintenance
▸ Remove the activated charcoal filter 7.
7
Cleaning
▸ Clean and reactivate the long-life activated charcoal filter 7. Take care not to damage
the filter. If necessary, replace the used long-life activated charcoal filter with a new
one.
Installing
▸ Install the cleaned long-life activated
charcoal filter 7.
7
▸ Insert the grease filter 3 into the bracket
4 at the top.
▸ Press the grip 2 upwards and engage
the grease filter 3 in the bracket at the
bottom.
▸ Swing the glass panel 1 down.
▸ With the range hood switched off, hold
the button depressed until all the
LEDs flash three times.
–The indicator light goes out.
1
3
2
4
5
16

5 Trouble-shooting
5 Trouble-shooting
5.1 What to do if …
… the illumination is not working
Possible cause Solution
▪Fuse or automatic circuit breaker
for electrical installations in the
home is defective.
▸ Replace the fuse.
▸ Reset the automatic circuit breaker.
▪An interruption in the power supply. ▸ Check the power supply.
▪LED is defective. ▸ Inform Customer Services.
… the appliance is not extracting enough air
Possible cause Solution
▪Grease filters are dirty. ▸ Clean the grease filters.
▪Only for recirculation model: The
long-life activated charcoal filters
are saturated.
▸ Replace the long-life activated charcoal
filters.
▪Only for extraction model: The fresh
air intake is insufficient.
▸ Ensure the fresh air intake is sufficient.
… Saturation indicator illuminates
Possible cause Solution
▪The metal grease filters are dirty. ▸ Clean the metal grease filters.
▪The long-life activated charcoal fil-
ters are dirty.
▸ Reactivate the long-life activated charcoal
filters.
▪The activated charcoal filters are
dirty.
▸ Replace the activated charcoal filters.
Valid for all three filter models.
▸ After cleaning, hold the button de-
pressed for at least five seconds.
▸ The display goes out.
... the range hood or the operating element is not working
Possible cause Solution
▪The range hood or the operating
element is not working.
▸ Disconnect the power supply for at least
five seconds.
▸ Switch the range hood back on again.
The fault cannot be remedied.
▪Contact Customer Services.
17

6 Accessories and spare parts
6 Accessories and spare parts
Please give model number and exact designation when ordering parts.
Metal grease filter for extraction and recirculation
model (large)
Metal grease filter for extraction and recirculation
model (small)
Long-life activated charcoal filter for recirculation
model
7 Technical data
Electrical connection
▸ See identification plate.
▸ Remove the metal grease filters.
–The identification plate is located on the inside of the appliance.
18

8 Disposal
8 Disposal
8.1 Packaging
Never allow children to play with packaging material due to the danger of injury or
suffocation. Store the packaging material in a safe location or dispose of it in an
environmentally-friendly way.
8.2 Safety
Render the appliance unusable to prevent accidents caused by improper use (e.g.
through children playing):
▸ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried
out by a qualified electrician. Then cut the mains cable off flush with the appliance.
8.3 Disposal
▪ The «crossed‐out wheeled bin» symbol requires the separate collection of waste
electrical and electronic equipment (WEEE). Such equipment can contain hazardous,
environmentally harmful materials.
▪These appliances are to be handed over to a designated collection point for the recyc-
ling of electrical and electronic equipment and must not be disposed of with unsorted
household waste. And in this way, you will be helping to protect resources and the en-
vironment.
▪For more information, please contact the local authorities.
19

9 Index
A
Accessories ...................................................... 18
Activated charcoal filter display
Activating....................................................... 15
Deactivating .................................................. 15
After-running time
On the hood.................................................. 10
Remote control............................................. 12
Appliance
Operating .........................................................9
Appliance description ........................................ 7
Appliance disposal .......................................... 19
C
Changing light intensity
On the hood.....................................................9
Cleaning the housing ...................................... 13
Construction......................................................... 8
D
Display elements
Hood .................................................................8
Remote control................................................9
Disposal............................................................. 19
E
Electrical connection ....................................... 18
Equipment ............................................................ 7
Extraction model ................................................. 7
I
Identification plate............................................ 18
Illumination
On the hood.....................................................9
With remote control..................................... 11
Initial set-up .......................................................... 5
Intensive level
On the hood.................................................. 10
With remote control..................................... 12
L
Long-life activated charcoal filter
Cleaning ........................................................ 15
Replacing ...................................................... 15
M
Malfunction
Illumination not working.............................. 17
Metal grease filter
Cleaning ........................................................ 13
Installing ........................................................ 13
Removing ...................................................... 13
Model designation .............................................. 2
Model number ..................................................... 2
N
Notes.................................................................. 22
O
Operating elements
Hood .................................................................8
Remote control................................................9
P
Power level
Changing....................................................... 12
Q
Queries .............................................................. 23
R
Recirculation model............................................ 7
Remote control.................................................... 9
Activating/deactivating ............................... 11
Resetting the filter saturation indicator
..................................................................... 11
S
Safety precautions
Appliance-specific ..........................................4
Before using for the first time.......................5
Correct use ......................................................5
General .............................................................4
Instructions for use.........................................5
Note on use .....................................................6
Saturation indicator
Grease filter .................................................. 11
Long-life activated charcoal filter
........................................................................ 11
Service & Support............................................ 23
Service agreement........................................... 23
Spare parts ....................................................... 18
Switching appliance on/off
With remote control..................................... 11
Symbols ................................................................ 4
T
Technical data .................................................. 18
Type....................................................................... 2
V
Validity................................................................... 2
20
