V-ZUG DV 5 User manual

Range hood
DV 5 / DV 6
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
➤Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
• Indicates a list.
Validity
The model number corresponds to the 3 three digits on the identification
plate. These operating instructions apply to the following models:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2009
Denotes important safety precautions. Failure to observe said
precautions can result in injury or damage to the appliance or
fittings!
Denotes useful tips for the user.
Type Model no. Size system
DV 5 581 55
DV 6 591 60

3
Contents
1 Safety precautions 4
1.1 Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Appliance description 8
2.1 Extraction model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Recirculation model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4 Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.5 Operating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 Operating the appliance 11
3.1 Switching the extraction fan on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Care and maintenance 12
4.1 Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 Grease filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3 Replacing the activated charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.4 Replacing the halogen light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5 Trouble-shooting 16
5.1 What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 Accessories and spare parts 17
7 Technical data 18
8Disposal 19
9Notes 20
10 Repair service 21
11 Index 22
12 Quick instructions 24

4
1 Safety precautions
In accordance with the requirements of IEC 60335-1:
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
1.1 Before using for the first time
• The appliance must be installed and connected up to the electricity supply
according to the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
• Dispose of the packaging material in accordance with local regulations.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please
therefore follow the precautions given in these operating
instructions.

1 Safety precautions
5
1.2 Correct use
• The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
• Any repairs, modifications or manipulations to the appliance, especially
any electrically live parts, should only be carried out by the manufacturer,
its Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the Repair service section. Please contact our Customer Services if
necessary.
• Use original spare parts only.
• Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instruc-
tions, together with the installation instructions, accompany the appliance.
In this way, the new owner can inform themselves about how to use the
appliance correctly and read the pertinent safety precautions.
1.3 Children in the home
• Packaging material e.g. plastic and polystyrene can be dangerous for
children. Danger of suffocation! Please keep packaging material away from
children.
• The appliance is designed for use by adults who are familiar with these
operating instructions. Children are often unable to recognise the danger
of electrical appliances. Ensure proper supervision and do not allow
children to play with the appliance – there is a danger that children could
hurt themselves.

1 Safety precautions
6
1.4 Note on use
• If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
• If the appliance is not operating property, disconnect it from the power
supply immediately.
• Caution: Accessible parts may become hot when used with cooking appli-
ances.
• Do not flambé food underneath the appliance. Grease filters if laden with
grease could catch fire.
• If frying on the cooking surface, do not leave the frying appliance
unattended. The cooking oil in the frying appliance could overheat and
catch fire. Constantly monitor the temperature of the cooking oil, keeping
it below the temperature at which it can catch fire. Change the cooking oil
regularly – dirty oil catches fire more easily than clean oil.
• Clean the filters regularly. Failure to do so can increase the fire hazard due
to the build-up of grease in the grease filter.
• Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a strong build-up of heat. Avoid
open fires with oil, gas, wood and coal fired cookers.
• Ensure there is adequate ventilation when the extraction fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve
optimal air extraction.
• Avoid a cross-current of air, which could blow the cooking vapours over
the cooking area.

1 Safety precautions
7
• With recirculation models, only operate the illumination with the fan on,
otherwise a build-up of heat could damage the appliance.
• If other appliances – fuelled by gas or other fuels – are being used at the
same time, ensure that there is a sufficient supply of fresh air. This does
not apply to air recirculation appliances.
• If other firing systems are being used at the same time (e.g. wood, gas, oil
or coal fired heating appliances), safe operation is only possible providing
a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the
location of the appliance. Risk of toxic fumes! An adequate flow of fresh air
must be guaranteed e.g. via non-closable openings in doors or windows
and in combination with an air-intake/exhaust-air wall box or by other
technical means.
• When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance (remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply).
• When cleaning the appliance make sure no water gets inside the
appliance. Use a moderately damp cloth. Do not spray the inside or
outside of the appliance with water. Do not use a steam cleaner. If water
gets inside the appliance, it can cause damage.

8
2 Appliance description
The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface. It can be mounted on the wall or
built in a wall unit. The appliance can be used in extraction or recirculation
mode.
2.1 Extraction model
The integrated fan extracts cooking fumes and smells from above the
cooking surface. The air is cleaned through the grease filter and then fed
through the exhaust air conduit to the outside.
2.2 Recirculation model
Using an activated charcoal filter in the appliance
After being filtered through the grease filters, the cooking fumes and smells
above the cooking surface are passed through an activated charcoal filter.
The cleaned air is then circulated through the grille – at the top of the appli-
ance – and back into the room.
Using an air recycling cartridge (LRC1)
The appliance extracts the cooking fumes and smells from above the cooking
surface through the grease filters, which remove the grease particles. The air
is then blown via a duct through the air recycling cassette. An activated
charcoal filter in the air recycling cassette removes the cooking fumes and
smells. The cleaned air is then circulated through the outlet grille back into
the room.
When the appliance is in use, ensure there is a sufficient supply of
fresh air to replace the air that is being extracted.
The activated charcoal filter is more effective at the lower power
levels.

2 Appliance description
9
2.3 Features
• 2 extraction fans
• Illumination
• 1 grease filter (flat fleece)
• 1 activated charcoal filter (not included in scope of delivery)
The extraction fan has 3 power levels.
• 1 = Low, 2 = Medium, 3 = High level.
• Power levels 1 and 2 can be used for longer periods of operation.
• Level 3 (high) is for shorter bursts of intensive extraction of cooking fumes
and smells, e.g. when searing meat. When finished, switch back to level
1 or 2.

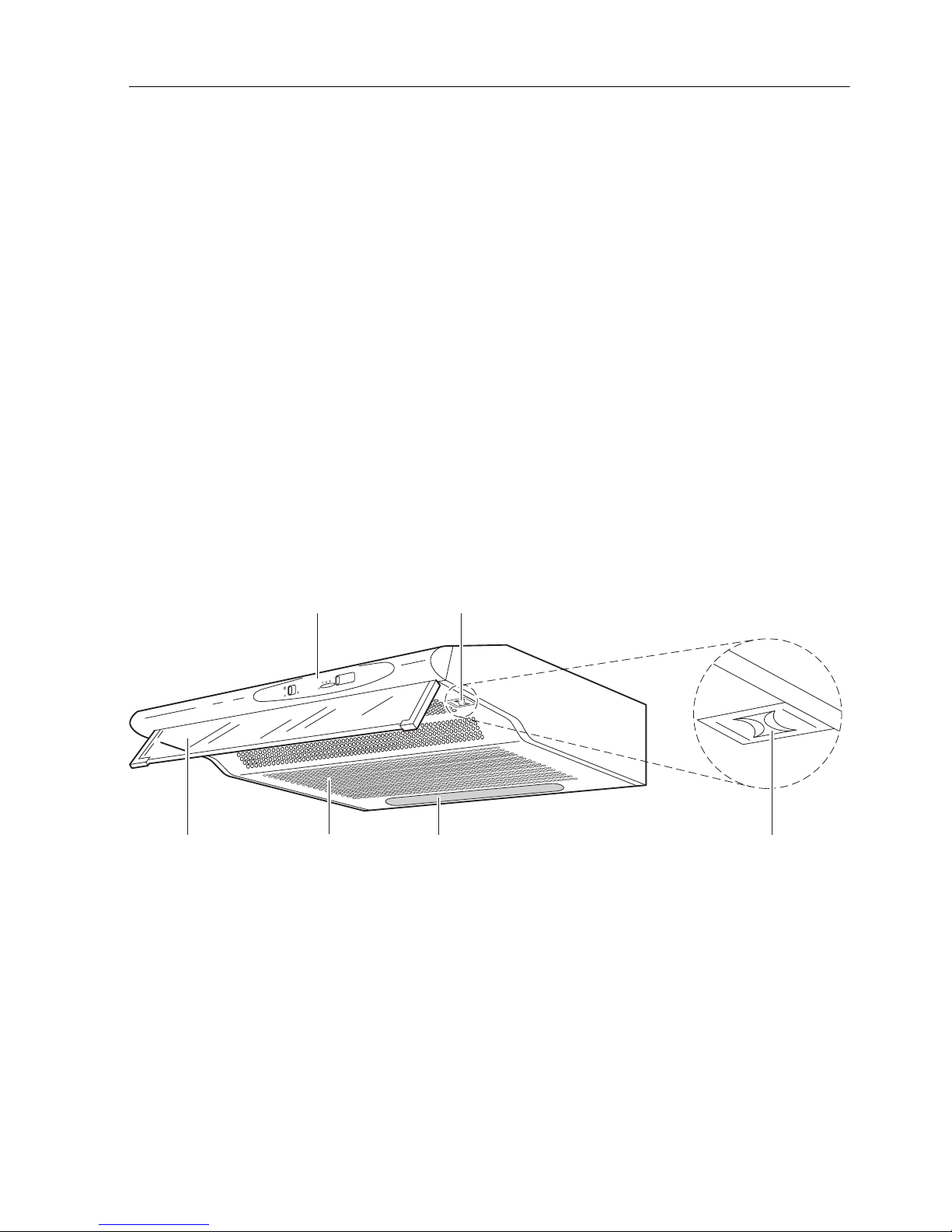

2.4 Construction
1Operating elements
2Grease filter
3Locking slide
4Panel with glass insert
5Illumination
6Illumination cover
1
2
3
4 5/6 3

2 Appliance description
10
2.5 Operating elements
Extraction fan
Operation
Off
1Level 1
2Level 2
3Level 3
Illumination
Off
On
Depending on the model and features, the specification of your
appliance may differ from the standard specification described.

11
3 Operating the appliance
Operation

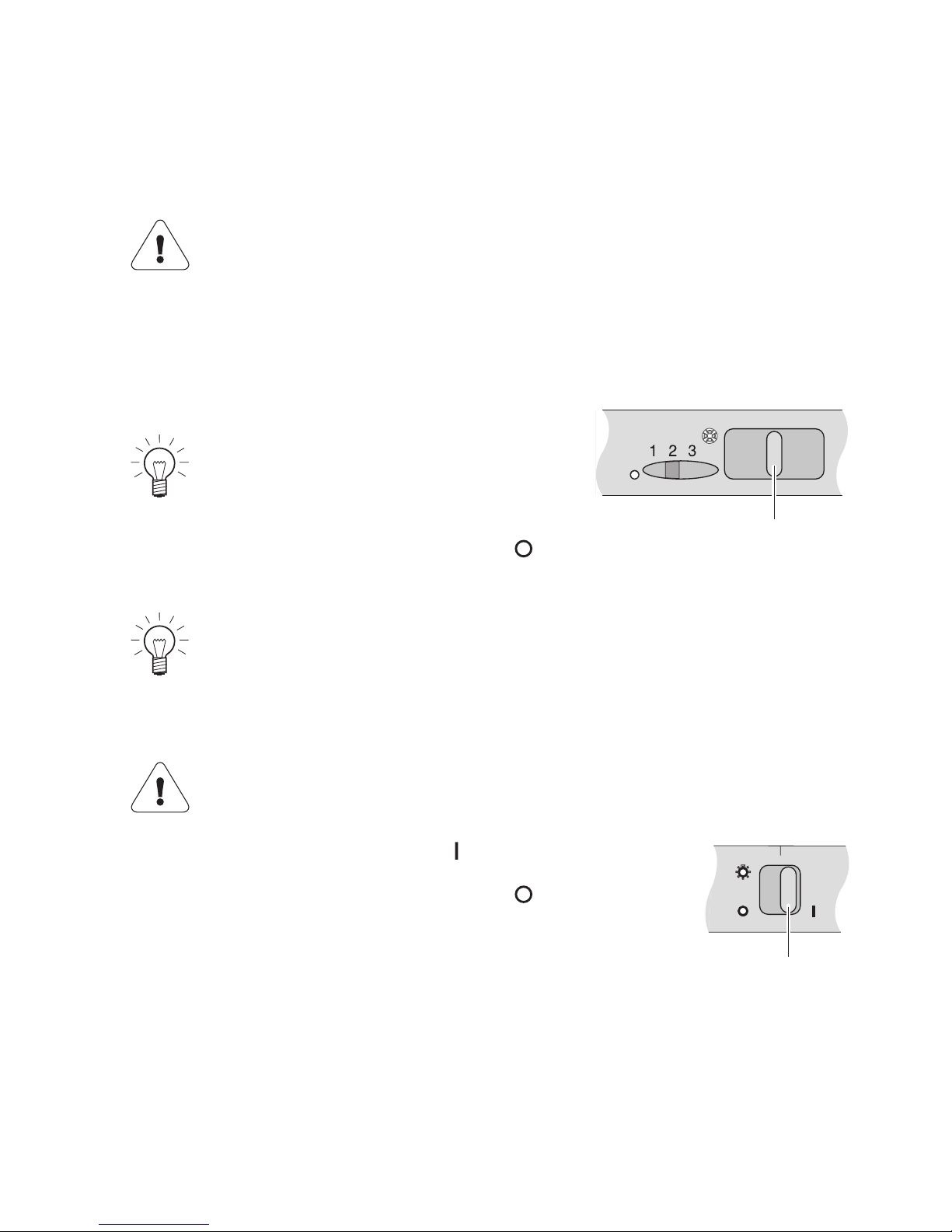

3.1 Switching the extraction fan on/off
➤Push the panel right out.
➤Set the sliding switch 1to power level 1or 2.
➤To switch off, set the sliding switch to .
➤Push the panel right in.
Switching the illumination on/off
➤Slide the sliding switch 2 to the position
➤To switch off, set the sliding switch to .
Risk of injury from hitting head on panel when extended.
Only operate at power level 3for a
short time (a few minutes), then
switch to a lower power level.
We recommend switching the appliance on at level 1some 5 minutes
before starting to cook. Leave the appliance running for about
15 minutes after cooking to extract the cooking smells.
With the recirculation model, only operate the illumination with the
fan on, otherwise a build-up of heat could damage the appliance.
1
2

12
4 Care and maintenance
4.1 Cleaning the housing
Cleaning the outside/inside
➤Clean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up around the grease filter on the
inside.
➤Clean using a slightly damp cloth – and detergent if necessary – and wipe
dry.

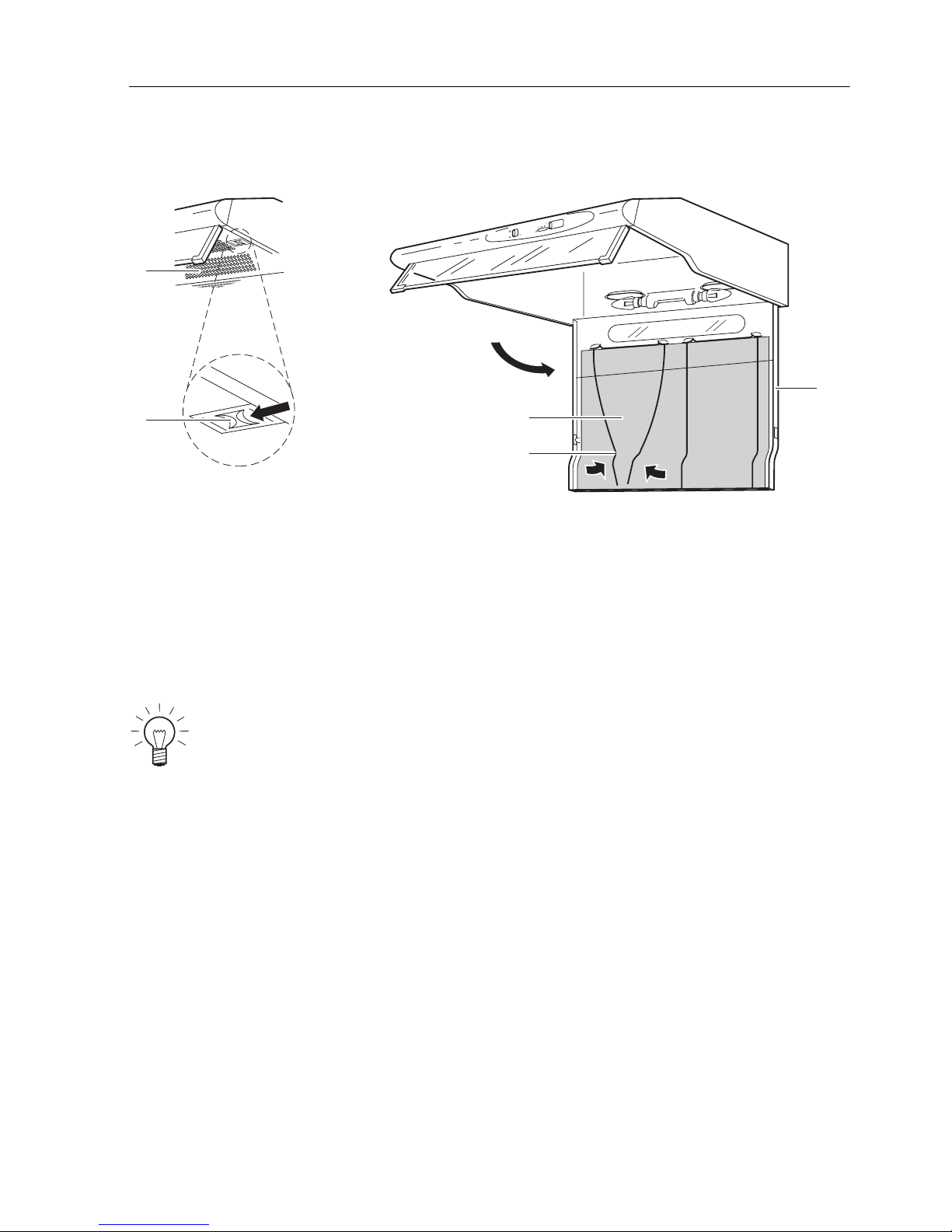

4.2 Grease filter
Replace the grease filter when the dark strips are visible through the filter
grid. This indicates the filter is saturated. Even if the build-up of grease is low,
the filter should be replaced every 3 months.
Take care that no water gets into the housing! If water gets into the
housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool etc. to
clean the appliance as they can damage the surface.
Remove screw fuse for appliance or switch off circuit breaker.

4 Care and maintenance
13

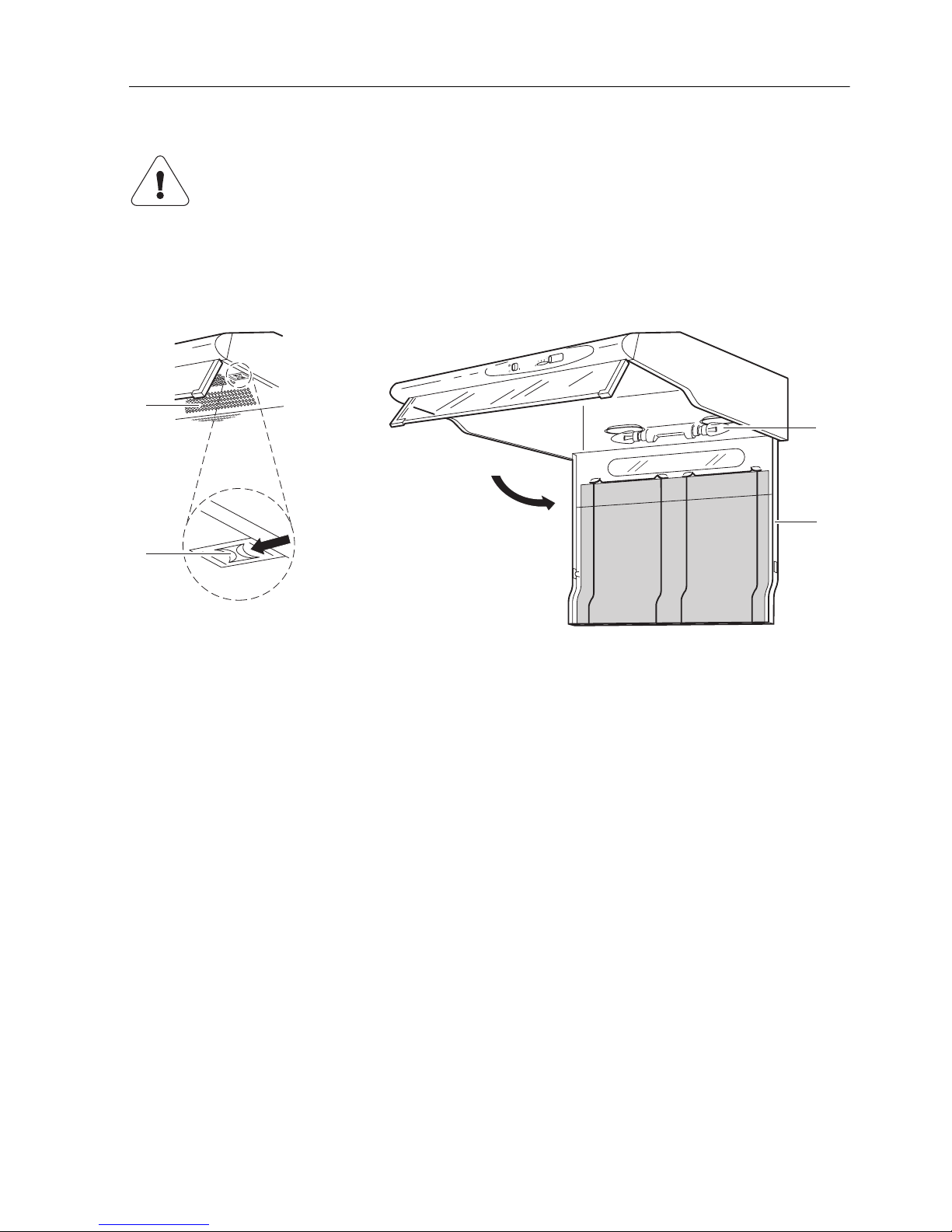

Removing the grease filter
➤Push locking slides 1on left and right inwards.
➤Swing down the filter grid 2and remove from its fitting from the front.
➤Remove the retainer 3for the grease filter 4and then remove the grease
filter.
➤Clean the filter grid thoroughly in water with a little washing-up liquid.
Replacing the grease filter
➤Put the new grease filter in the grid and secure with the retainers.
➤Put the grid in the fitting at the back, lift up and the locking slides snap into
place.
The grease filter can be disposed of in the household waste.
2
4
3
2
1

4 Care and maintenance
14
4.3 Replacing the activated charcoal filter
The activated charcoal filter needs replacing after an operating period of
6 to 8 months. Activated charcoal filters cannot be washed or regenerated.
➤Push locking slides on left and right inwards.
➤Swing down the grid and remove from its fitting from the front.
➤Press the tabs 2 for the activated charcoal filter 1 until the activated
charcoal filter unhooks and can be removed.
➤Put the new activated charcoal filter into the fixture at the back and then
hook the tabs 2in the openings at the front.
➤Put the grid in the fitting at the back of the appliance, lift up and the locking
slides snap into place.
Remove screw fuse for the appliance or switch off the circuit
breaker off.
Activated charcoal filters are only used in the recirculation model.
The grease filter can be disposed of in the household waste.
21

4 Care and maintenance
15
4.4 Replacing the halogen light bulb
➤Push locking slides 1on left and right inwards.
➤Swing down the filter grid 2and remove from its fitting from the front.
➤Unscrew the defective halogen light bulb 3 from its fitting and replace with
the same type of halogen light bulb (see designation on the light bulb
housing or on the identification plate).
➤Put the grid 2 in the fitting at the back of the appliance, lift up and the
locking slides 1snap into place.
➤Put the screw fuse back in or the switch circuit breaker on again.
Remove screw fuse for the appliance or switch off the circuit
breaker off.
Halogen light bulbs get hot during operation! Allow to cool down
first.
2
3
2
1

16
5 Trouble-shooting
5.1 What to do if …
… the illumination is not working
… the appliance is not extracting enough air
Possible cause Solution
• Fuse or automatic circuit
breaker for electrical
installations in the home
is defective.
➤Replace the fuse.
➤Reset the automatic circuit breaker.
• An interruption in the
power supply.
➤Check the power supply.
• Halogen light bulb is
defective.
➤Replace the halogen light bulb.
Possible cause Solution
• Grease filter is dirty. ➤Replace the grease filter.
• The activated charcoal
filter (in recirculaton
models) is spent.
➤Replace the activated charcoal filter.

17
6 Accessories and spare parts
Please give model number of the appliance and exact description of the
accessory or spare part when ordering parts.
Halogen light bulb (230 V / 28 W)
Flat fleece filter set (4×)
Activated charcoal filter
The halogen light bulb is also available from specialist retailers.

18
7 Technical data
Electrical connection
➤See identification plate
➤Open the filter grid.
– The identification plate is located on the inside of the appliance.

19
8 Disposal
Packaging
• All packaging materials (cardboard, plastic film (PE) and polystyrene
(EPS)) are marked and should, if possible, be collected for recycling and
disposed of in an environmentally friendly way.
Disconnection
• Disconnect the appliance from the mains power supply. With a fixed
appliance, this is to be carried out by a qualified electrician!
Safety
• Disable the appliance to prevent accidents caused by improper use,
especially through children playing.
• Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with
the appliance.
Disposal
• The old appliance should not be discarded as worthless rubbish. If
disposed of correctly, the raw materials can be recovered for recycling.
• The symbol on the identification plate warns that the appliance may
not be disposed of in normal household waste.
• The appliance must be disposed of in accordance with local regulations
on waste disposal. For more information on the handling, disposal and
recycling of the product, please contact the local authorities, the local
recycling facilities for household waste or the retailer from whom you
purchased the appliance.

20
9Notes
