GeoVision GV-IP User manual

GV-IP Decoder Box Plus
User’s Manual
DBPV10-UM-A
Before attempting to connect or operate this product, please
read these instructions carefully and save this manual for future use.

© 2015 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
Note: No memory card slot or local storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows XP
are registered trademarks of Microsoft Corporation.
May 2015

i
Contents
Chapter 1 Introduction ..................................................................................................... 1
1.1 Features .................................................................................................................. 2
1.2 Compatible Devices................................................................................................. 3
1.3 Packing List ............................................................................................................. 3
1.4 Optional Accessories ............................................................................................... 4
1.5 Overview ................................................................................................................. 5
1.5.1 Front View ................................................................................................ 5
1.5.2 Rear View................................................................................................. 6
Chapter 2 Getting Started................................................................................................. 7
2.1 Installing the GV-IP Decoder Box Plus..................................................................... 7
2.2 Connecting the GV-IP Decoder Box Plus................................................................. 8
2.3 Setting Up the Network...........................................................................................10
2.4 Adding IP Devices to Live View Grid.......................................................................13
2.4.1 Adding IP Devices through Automatic Search..........................................13
2.4.2 Adding IP Devices Manually ....................................................................14
2.4.3 Assigning IP Devices to Live View Grid....................................................16
2.5 Adding Devices Using GV-IP Device Utility.............................................................18
2.5.1 Adding a GV-IP Device ............................................................................19
2.5.2 Adding a Third-party Device.....................................................................22
Chapter 3 Accessing Live View ......................................................................................24
3.1 Live View ................................................................................................................24
3.2 Capturing Snapshots ..............................................................................................26
3.3 Fisheye Dewarping.................................................................................................27
3.4 Controlling PTZ and Speed Dome Cameras ...........................................................28
Chapter 4 System Settings..............................................................................................29
4.1 System ...................................................................................................................30
4.2 Network ..................................................................................................................31
4.3 Date & Time............................................................................................................31
4.4 Account ..................................................................................................................32
4.5 Display ...................................................................................................................33
Chapter 5 Advanced Applications ..................................................................................34
5.1 Upgrading the Firmware .........................................................................................34

ii
5.1.1Upgrading Firmware through a Storage Device .......................................34
5.1.2 Upgrading Firmware through GV-IP Device Utility....................................35
5.2 Restoring Default Settings ......................................................................................37
Specifications.....................................................................................................................38

1
Chapter 1 Introduction
The GV-IP Decoder Box Plus is designed to decode incoming IP streams from GeoVision and
third-party IP devices, and to serve as a medium for connecting the cameras and the monitor
for video display in Single View, Quad View, and 9-Division View. It supports third-party IP
cameras that adhere to RTSP or ONVIF, and can automatically search for ONVIF supported
third-party IP devices under the same LAN. To be used with only a monitor, the GV-IP
Decoder Box Plus provides a cost-effective solution for video surveillance as opposed to the
traditional DVR and PC setup. The security administrator can monitor channels, take
snapshots of critical moments, and pause at a channel when events occur. GV-Joystick V2
can be installed to control GeoVision and third-party PT / PTZ / Speed Dome cameras.
The IP Devices and GV-Software that Can Connect with GV-IP Decoder Box Plus
GV-IP Decoder Box Plus
GV-IP Camera
3rd party IP cameras
(RTSP / ONVIF)
Analog camera
LAN
PC installed with GV-System
& GV-Mobile Server
GV-Video Gateway /
Recording Server through
GV-Mobile Server
GV-Compact DVR
GV-Video Server
or
Figure1-1

2
1.1 Features
zDecode video streams in H.264 codec at up to 30 fps
zDecode up to 64 IP streams
zDecode up to 4 megapixel IP cameras
zAutomatically search for ONVIF IP devices
zSupport for third-party IP cameras that adhere to RTSP or ONVIF
zSupport for fisheye dewarping in Single View and top-left grid of Quad View
zSingle View, Quad View and 9-Division View in sequential display
zDisplay of Matrix view through GV-Mobile Server
zSupport for 10/100/1000 Ethernet over LAN
zVGA and HDMI Video outputs
zVideo output resolution up to 1080p
zControl PTZ and Speed Dome cameras using GV-Joystick V2
zRemote firmware upgrade, IP address configuration and addition of new channel
zSD card and USB drive for snapshot storage and firmware upgrade

Introduction
3
1
1.2 Compatible Devices
The GV-IP Decoder Box Plus is compatible with:
1. GV-IP Camera, GV-Video Server and GV-Compact DVR using H.264 codec
2. Third-party IP devices that support H.264 and adhere to RTSP or ONVIF
3. GV-Mobile Server
Note:
1. Upgrade your GV-IP Devices to the latest firmware version if you encounter any
connection problems.
2. GV-Mobile Server is an application that encodes up to 64 video channels and
subsequently allows the GV-IP Decoder Box Plus to decode and display:
zanalog cameras and IP cameras connected to GV-System
zIP channels connected to GV-Recording Server / GV-Video Gateway
zthird-party IP cameras through ONVIF
z4 matrix views
For details, see GV-Mobile Server User’s Manual on GV-Mobile Server Software CD.
To decode and display non-H.264 IP channels or analog channels, connect the devices to
GV-System (GV-DVR / NVR) and access them through GV-Mobile Server.
1.3 Packing List
1. GV-IP Decoder Box Plus
2. AC/DC adapter (12 V, 3 A, 36 W)
3. Power cord
4. USB mouse
5. Software DVD
6. Warranty card

4
1.4 Optional Accessories
Optional Accessories Detail
The Wall Mount Kit is used to mount the GV-IP Decoder
Box Plus to the wall.
Wall Mount Kit
zL-type brackets x 2
zSmall screws x 4
The GV-Joystick V2 facilitates focusing, zooming,
panning, tilting of GeoVision and third-party PT, PTZ and
Speed Dome cameras on GV-IP Decoder Box Plus.
GV-Joystick V2
zGV-Joystick V2
zUSB Type A to Type B Cable
zRJ-45 Cable
zSoftware CD

Introduction
5
1
1.5 Overview
1.5.1 Front View
14
235
Figure 1-2
No. Name Function
1 SD Card Slot Connect to an SD card for local storage of snapshot and firmware
upgrade.
2 Default
Reset the GV-IP Decoder Box Plus to the default factory settings.
Use a pin to press the default button for about 10 seconds. The
system will then reset and reboot itself shortly.
3 USB Connect to a GV-Joystick V2, USB mouse, or USB storage device.
4 LED Indicators
The green LED indicates the system is ready for use.
The red LED indicates the power is supplied.
5 Audio In Not functional.

6
1.5.2 Rear View
15 346
2
Figure 1-3
No. Name Function
1 Network Connect to the network.
2 Audio Out Connects to a speaker.
3 VGA Connect to a VGA monitor.
4 HDMI Connect to an HDMI supported display device.
5 USB Connect to a GV-Joystick V2, USB mouse, or USB storage device.
6 DC 12V Connect to power by using the supplied power adapter.

Getting Started
7
2
Chapter 2 Getting Started
2.1 Installing the GV-IP Decoder Box Plus
You can install the GV-IP Decoder Box Plus on wall or simply use it as desk mount device.
Wall Mount Installation
For wall mount installation, you need to purchase the wall mount kit.
1. Unscrew the 4 screws on the back panel of the GV-IP Decoder Box Plus.
Figure 2-1
2. Use the 4 small screws in the package to tighten the L-type brackets on the GV-IP
Decoder Box Plus.
Figure 2-2
3. Secure the GV-IP Decoder Box Plus to the wall with self-prepared screws.

8
2.2 Connecting the GV-IP Decoder Box Plus
Follow the steps below to connect the GV-IP Decoder Box Plus:
4
1 2 5
3
Figure 2-3
1. Connect the device to the LAN port using an RJ-45 cable.
2. Connect a speaker to the audio line out port if needed.
3. Connect a display device to VGA connector or HDMI connector for video output.
4. Connect a mouse and / or GV-Joystick V2 to the USB ports.
5. Connect to power using the supplied power adapter.

Getting Started
9
2
Note:
1. You can only connect the GV-IP Decoder Box Plus to one display device through the
HDMI or VGA connector.
2. The default video output is set to HD 720P resolution. If you use a VGA monitor, be sure
to change the output resolution to VGA 1024 x 768. To change the output resolution, see
4.1 System.
3. Optionally configure the device date and time. For details, see 4.3 Date & Time.

10
2.3 The Main Screen
After you have connected the necessary wires and cables, GV-IP Decoder Box Plus will
power on.
Reboot
System Settings
IPCam Search
Firmware Update Adjust volume
Figure 2-4

Getting Started
11
2
2.4 Setting Up the Network
By default, GV-IP Decoder Box Plus will be automatically assigned an IP address by the
DHCP server without further settings. To change the IP address to a fixed one, follow the
steps below.

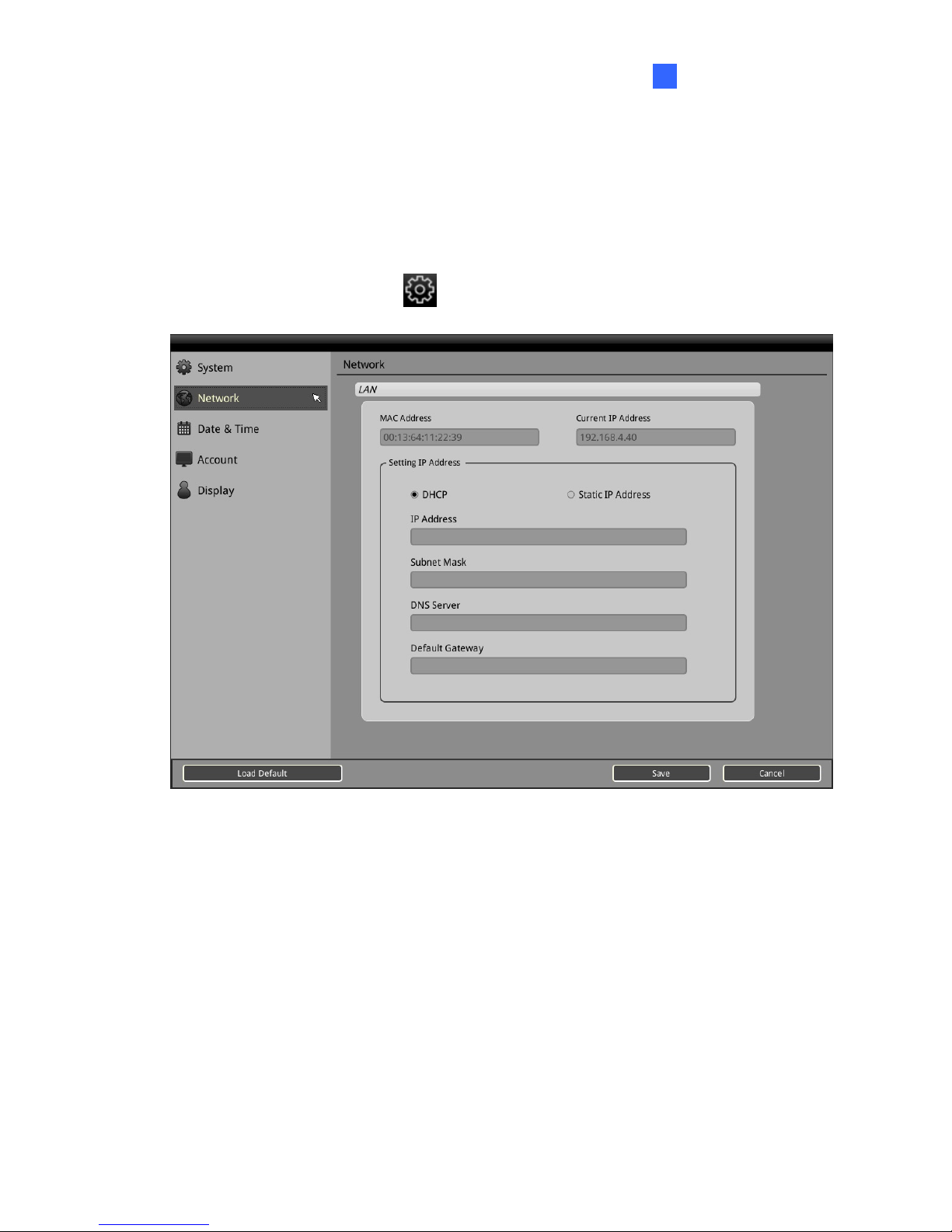

1. Click the System Settings icon , and select Network. This window appears.
Figure 2-5
2. To assign a static IP address, select Static IP Address.
3. Double-click the fields to fill out the IP Address, Subnet Mask,DNS Server, and Default
Gateway.
4. Click Save. When the device is connected to the network, the IP address will be shown in
the Connected IP Address field.

12

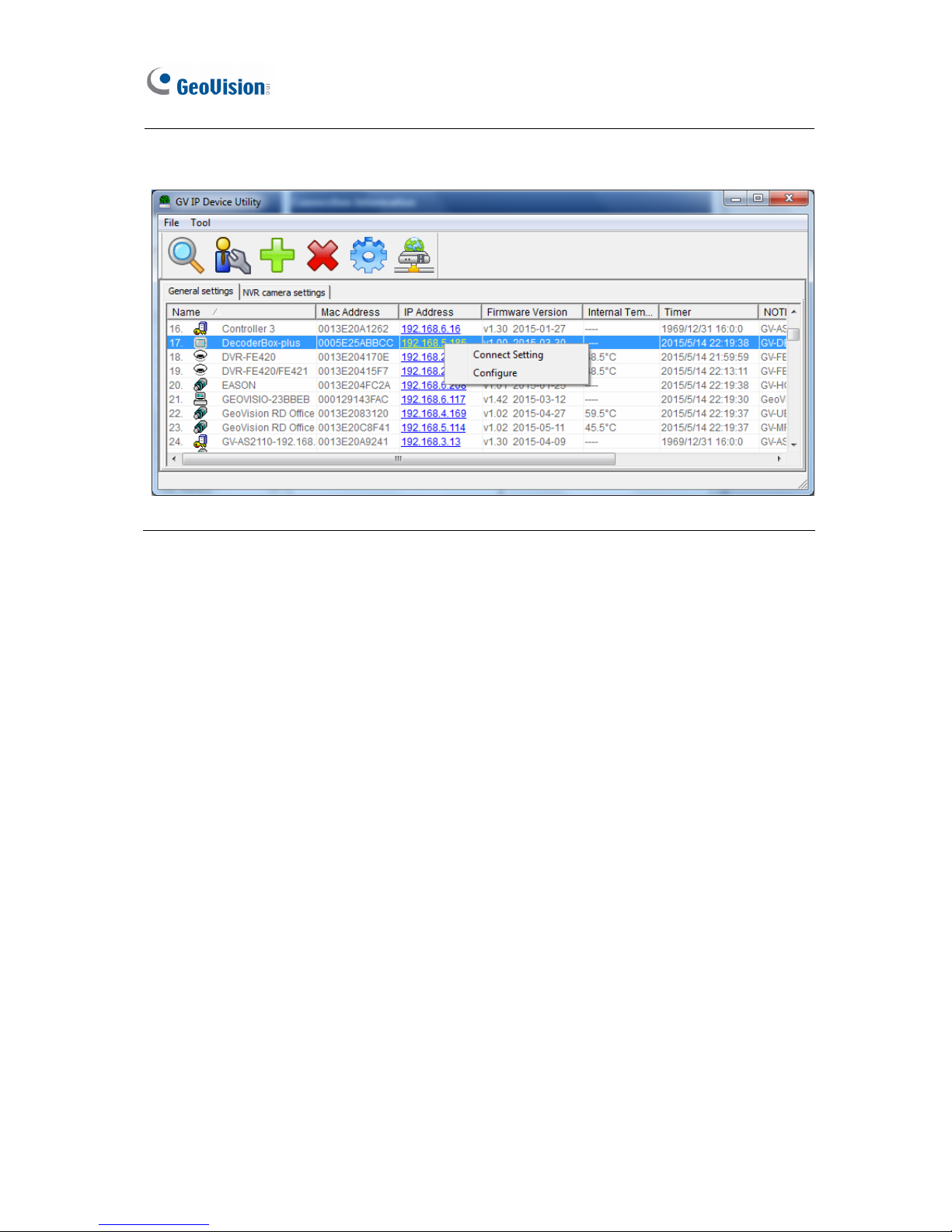

Tip: You can also use GV-IP Device Utility (included in Software DVD) to modify the IP
address by clicking the GV-IP Decoder Box Plus and selecting Configure.
Figure2-6

Getting Started
13
2
2.5 Adding IP Devices to Live View Grid
Before you start, make sure all IP devices and GV-Mobile Server are under the same LAN
with GV-IP Decoder Box Plus.
2.5.1 Adding IP Devices through Automatic Search

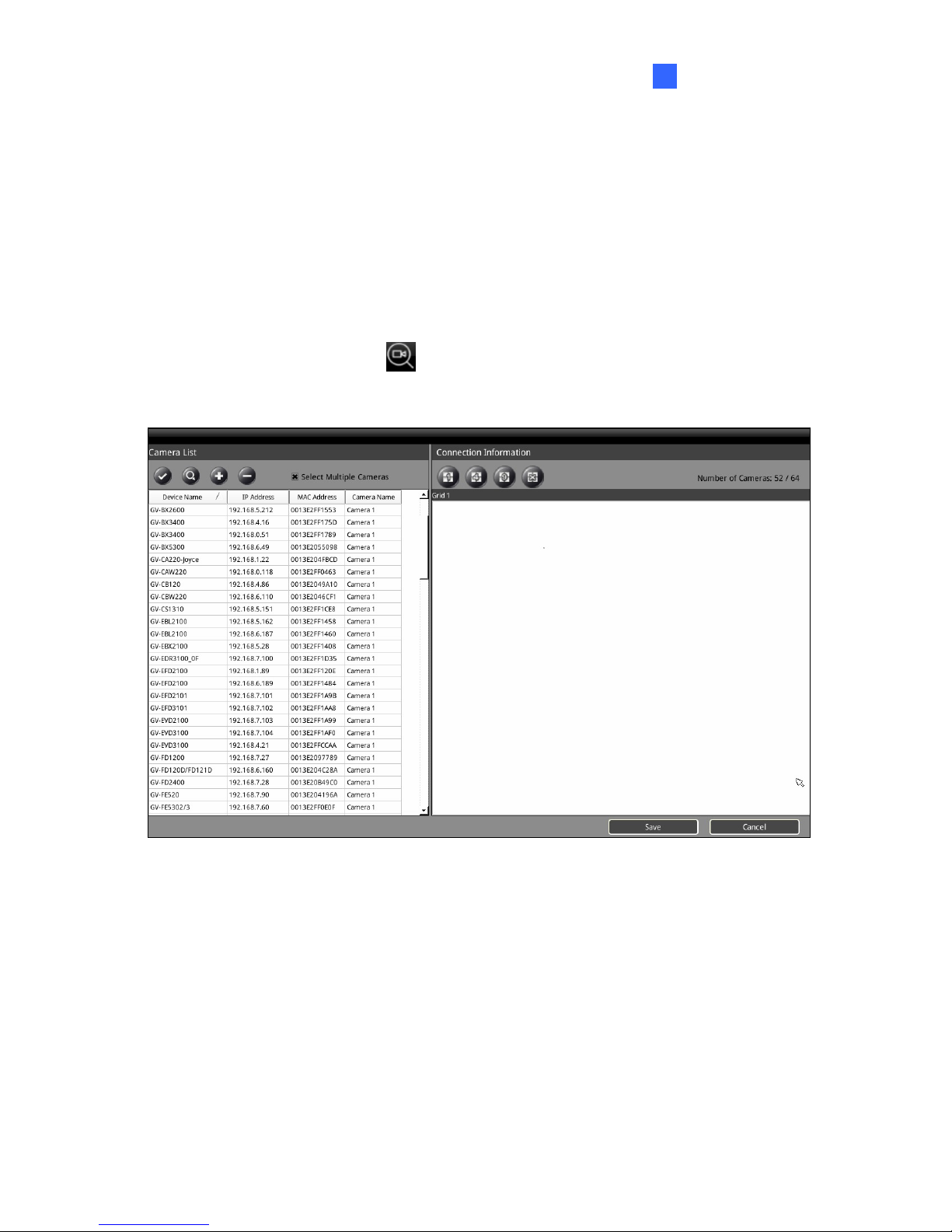

1. Click the IPCam Search icon on the main page to search for GV-IP Devices,
GV-Mobile Server and the third-party devices that adhere to ONVIF under the same LAN.
Figure 2-7
2. To change the device settings, right-click the device in the Camera List and select Edit.
Double-click to modify the following default settings:
Port: The default port is 10000.
Loop Time Interval: By default, the live view of this device will be shown for 30
seconds before switching to the next device.
Login Information: The default user name and password are both admin.
3. Click Save to apply.

14
2.5.2 Adding IP Devices Manually
If you are unable to detect the IP device using the search function, you can add the device
manually.
1. Click the IPCam Search icon on the main page and click the Add IPCam icon .
This dialog box appears.
Figure 2-8
2. Fill out the following camera information. Double-click the fields to type.
IP Address: Type the IP address of the device.
Port: The default port is 10000.
Loop Time Interval: By default, the live view of this device will be shown for 30
seconds before switching to the next device.
Login Information: Type the ID and password of the IP device if needed. The
default ID and Passwords are admin.

Getting Started
15
2
Brand: Select GeoVision for GV-IP Devices. To connect to third-party cameras
through ONVIF or RTSP, select Protocol.
Model / Protocol: For GV-IP Devices, select the model of the GV-IP Devices. For
third-party devices, select ONVIF or one of the RTSP protocols.
Figure 2-9
RTSP Command: Type the RTSP link if you are connecting to the device through
RTSP protocols.
3. Click Save.

16
2.5.3 Assigning IP Devices to Live View Grid
GV-IP Decoder Box Plus can display camera live views in 1-Division, 4-Division, and
9-Division. You can assign a total of 64 streams of IP cameras.
1. Select a live view layout: 1-Division, 4-Division, and 9-Division.
Figure 2-10
2. Drag and drop the camera from the Camera List to the grids under Connection
Information. To select multiple cameras at a time, click Select Multiple Cameras on the
top.
Figure 2-11
3. To adjust the display order of the cameras, right-click the camera and click Move Up or
Move Down.
4. To remove a camera, right-click the camera and click the Delete button.
5. Click Save.
