GeoVision GV-PPTZ7300 User manual

Quick Start Guide
GV-Panoramic PTZ Camera
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use. PPTZV10-QG-A
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

© 2016 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
Note: No memory card slot or local storage function for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows is the registered
trademark of Microsoft Corporation.
February 2016
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

Contents
Note for Connecting to GV-VMS ...........................................................ii
Note for Recording................................................................................iii
Note for Installing Camera....................................................................iv
Optional Accessories.............................................................................v
1. Introduction......................................................................................1
1.1 Packing List..............................................................................................................2
1.2 Overview...................................................................................................................3
2. Installation........................................................................................4
3. Connecting the Camera ................................................................10
4. Accessing the GV-Fisheye Camera .............................................12
4.1 Web Browser..........................................................................................................12
4.2 Looking Up the Dynamic IP Address......................................................................13
4.3 Configuring the IP Address.....................................................................................15
5. The Integrated Web Interface .......................................................17
5.1 Fisheye View..........................................................................................................19
5.1 Speed Dome View..................................................................................................21
6. Upgrading System Firmware........................................................23
7. Restoring to Factory Default ........................................................24
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
i

Note for Connecting to GV-VMS
The GV-Panoramic PTZ IP Camera is designed to work with GV-VMS, a video management
system. Note the following when the camera is connected to GV-VMS:
1. By default, the images are recorded to the memory card inserted in the GV- Panoramic
PTZ IP Camera.
2. Once the camera is connected to the GV-VMS, the resolution set on the GV-VMS will
override the resolution set on the camera’s Web interface. You can only change the
resolution settings through the Web interface when the connection to the GV-VMS is
interrupted.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
ii

Note for Recording
1. By default, the images are recorded to the memory cards inserted in the GV-PPTZ
Camera. Make sure the Write recording data into local storage option (see 4.1.1 Video
Settings, Chapter 4, GV-Panoramic PTZ Camera User’s Manual) is enabled. If this option
is disabled, the camera will stop recording to the memory card while the live view is
accessed through Web browsers or other applications.
2. Mind the following when using a memory card for recording:
Recorded data on the memory card can be damaged or lost if the data are accessed
while the camera is under physical shock, power interruption, memory card
detachment or when the memory card reaches the end of its lifespan. No guarantee is
provided for such causes.
The stored data can be lost if the memory card is not accessed for a long period of
time. Back up your data periodically if you seldom access the memory card.
Memory cards are expendable and their durability varies according to the conditions
of the installed site and how they are used. Back up your data regularly and replace
the memory card annually.
To avoid power outage, it is highly suggested to apply a battery backup (UPS).
For better performance, it is highly suggested to use Micro SD card of MLC NAND
flash, Class 10.
Replace the memory card when its read/write speed is lower than 6 MB/s or when the
memory card is frequently undetected by the camera.
3. It is recommended to use memory cards of the following setting and specifications:
Apply a battery backup (UPS) to avoid power outage.
Use Micro SD card of MLC NAND flash, Class 10 for better performance.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
iii

Note for Installing Camera
When installing GV-Panoramic PTZ IP Camera, be sure that:
1. The camera is set up above the junction box to prevent water from entering the camera
along the cables.
2. Any PoE, power, audio and I/O cables are waterproofed using waterproof silicon rubber
or the like.
3. The screws are tightened and the cover is in place after opening the camera cover.
4. The silica gel bag loses it effectiveness when the dry camera is opened. To prevent the
lens from fogging up, use the supplied adhesive tap and replace the silica gel bag every
time you open the camera, and conceal the gel bag in camera within 2 minutes of
exposing to open air.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
iv

Optional Accessories
Optional devices can expand the capabilities and versatility of your camera. Contact your
dealer for more information.
Name Details
GV-PA901
Power over Ethernet (PoE)
Adapter
The GV-PA901 is a Power over Ethernet (PoE) adapter
designed to provide power to the IP device through a single
Ethernet cable to GV-PPTZ7300.
GV-Mount Accessories The GV-Mount Accessories provides a comprehensive lineup
of accessories for installation on ceiling, wall and pole. For
details, see GV-Mount Accessories Installation Guide on the
software DVD.
GV-POE Switch The GV-POE Switch is designed to provide power along with
network connection for IP devices. The GV-POE Switch is
available in various models with different numbers and types
of ports.
Power Adapter Contact your sales representative for the countries and areas
supported.
v
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

1 Introduction
1. Introduction
Welcome to the GV-Panoramic PTZ Camera Quick Start Guide. In the following sections, you
will learn the basic installations and configurations of GV-Panoramic PTZ Camera. For a
detailed user manual, see the GV-Panoramic PTZ Camera User’s Manual on the Software
DVD.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
1

1.1 Packing List
Panoramic PTZ Camera Data Cable
Mounting Bracket Mounting Cap
Tube 2 mm Hex Key
3 mm Hex Key 5 mm Hex Key
Rubber ring RJ-45 Connector
Desiccant Pack x 2
GV-IPCAM H.264 Software DVD
GV-NVR Software DVD
Warranty Card
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
2

1 Introduction
1.2 Overview

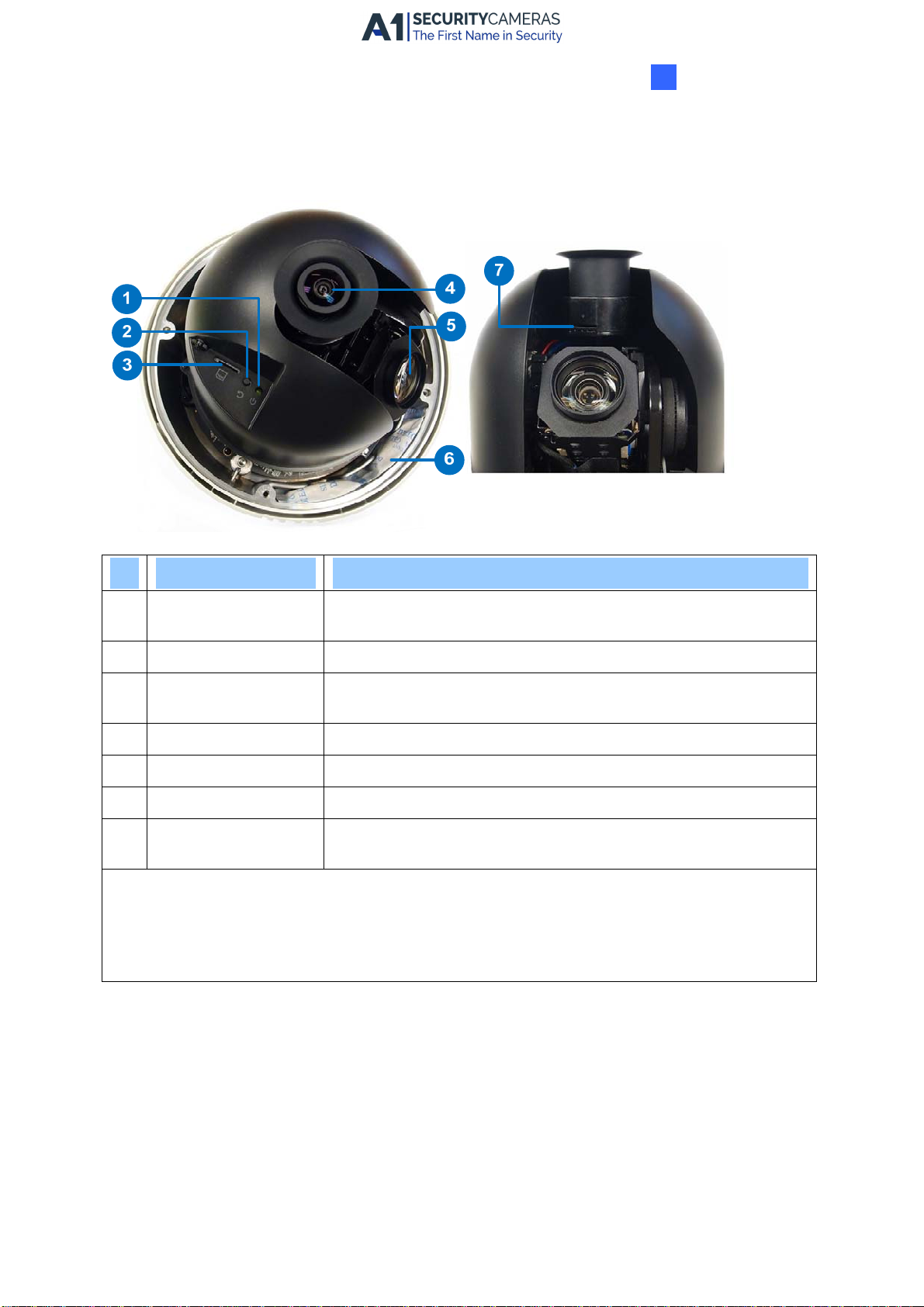

No. Name Function
1 Status LED Flashes when the camera is powering on and loading default
settings.
2 Default Button Resets all configurations to default factory settings.
3 Speed Dome SD
Card Slot Inserts a micro SD card (SD/SDHC, version 2.0, Class 10) to store recording data from the speed dome.
4 Fisheye Lens Receives image inputs.
5 Speed Dome Lens Receives image inputs.
6 Desiccant Pack Keeps the camera housing dry.
7 Fisheye SD Card
Slot Inserts a micro SD card (SD/SDHC, version 2.0, Class 10) to store recording data from the fisheye camera.
Note: The desiccant pack loses effectiveness after you open the camera cover. To prevent
the lens from fogging up, it is highly recommended to replace the desiccant pack every time
you open the camera. Ensure to insert a new desiccant pack and fasten the camera cover
within 2 minutes of opening the desiccant pack.
3
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

2. Installation
GV-Panoramic PTZ Camera can be mounted on the ceiling using the supplied Straight Tube
Mount. Make sure the ceiling has enough strength to support the camera and the mount.
Required items:
•Screws for ceiling x 4 (Self-prepared)
Optionally extend with:
•GV-Mount702
Recommended Installation Height
It is recommended to install the camera at a height of 6.5 m (21 ft), which allows the camera to
monitor a radius of up to 25 m (82 ft).
Installation Height Max. Horizontal Distance (Radius)
6.5 m (21 ft) 25 m (82 ft)
5 m (16 ft) 20 m (66 ft)
4 m (13 ft) 17 m (56 ft)
3 m (10 ft) 13 m (43 ft)
4
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

2 Installation

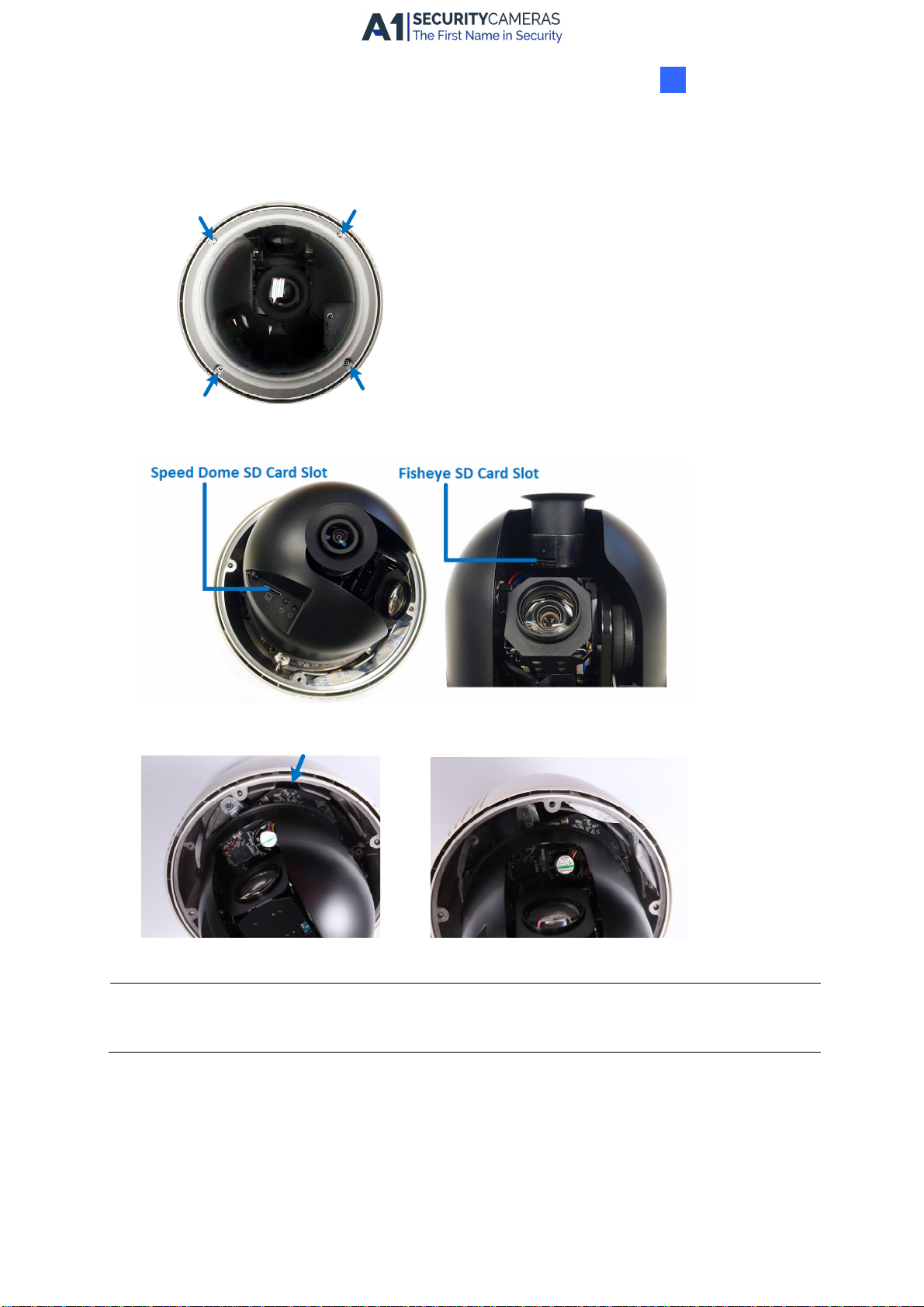

1. Insert the desiccants to the camera.
A. Remove the camera cover using the 3 mm hex key.
B. Insert your SD cards into the SD card slots for the fisheye camera and the speed dome.
C. Insert one desiccant pack to the indicated place.
IMPORTANT: Be sure the desiccant is concealed in the camera within 2 minutes of opening
the desiccant pack.
D. Secure the camera cover with the 3 mm hex key. Make sure the first two screws to be
tightened are diagonal to each other.
5
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

2. Assemble the supplied mounting bracket, tube and mounting cap by rotating the parts
together.
3. Make sure the tubes are properly screwed. Tighten the screws using the 2 mm hex key.
4. Connect the cables to the camera.
A. At the back of the camera, remove the cap and use the 3 mm hex key to remove the
mounting plate.
6
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

2 Installation
B. Slide the cap and components through the Ethernet cable as shown below, and attach the
supplied RJ-45 connector to the cable.
C. Insert the Ethernet cable to the LAN port, move the cap and the components toward the LAN
port, and secure the cap tightly.
D. Slip the rubber ring on the data cable and then pass the pin connectors of the data cable
through the mounting plate.
The rubber ring
The Data Cable
7
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

E. Fasten the data cable with the mounting plate and the rubber ring.
F. Insert the pin connectors of the data cable to the indicated area.
G. Secure the mounting plate with the 3 mm hex key.
5. Thread the cables through the tube.
6. Secure the camera with the mounting cap.
A. Secure the safety lock.
8
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

2 Installation
B. Push the rivets into the holes on the mounting cap and rotate clockwise to lock the position.
C. Rotate the camera onto the mounting cap and secure using the 5 mm hex key.
7. Secure the assembled camera to the ceiling with 4 self-prepared screws.
9
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

3. Connecting the Camera
The GV-PPTZ7300 comes with a data cable that allows you to connect to the power adapter,
microphone, speaker, and any I/O devices. Follow the steps below to connect the camera.
1. Connect Power using one of the following methods:
Connect the Power Adapter to the camera.
Use the Power over Ethernet (PoE) function and the power will be provided over the network
cable. See Connecting the GV-PA901 PoE Adapter section below.
2. Connect a standard network cable to the Ethernet cable of the camera. See the
Installation section for details.
3. Optionally connect I/O devices, speaker and microphone to the camera. You can connect
up to 4 alarm input and 1 output devices. See I/O Wire Definition section below.
I/O Wires
Microphone
Speaker Power Adapter
Note:
1. The Power Adapter is an optional device.
2. Optional GV-PA901 PoE Adapter is required for applying PoE function.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
10

3 Connecting the Camera
I/O Wire Definition
No. Wire Definition
1 Orange Alarm In 1
2 Yellow Alarm In 2
3 Green Alarm In 3
4 Blue Alarm In 4
5 Pink Ground
6 Purple Alarm Out
7 White Alarm Out_Open
8 Gray Alarm Out_Close
Connecting the GV-PA901 PoE Adapter
1. Connect one end of an Ethernet cable to the LAN 10 / 100 Port on the GV-PA901 and
the other end to a Hub / Router.
2. Connect one end of an Ethernet cable to the PoE 10 / 100 port on the GV-PA901, and
the other end to the GV-PPTZ7300.
3. Connect the GV-PA901 Power Adapter to the power outlet.
11
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]

4. Accessing GV-Panoramic PTZ Camera
4.1 Web Browser
Once installed, your camera is accessible over the network. Make sure your PC has good
network connection, and meet the following requirement.
OS 64-bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 R2
GV-VMS V15.10.1.0 with patch files or later versions
Browser Internet Explorer 7.x or later
Firefox
Google Chrome
Safari
Note:
1. If you are using Microsoft Internet Explorer 8.0 or later, additional settings are required.
Refer to Settings for Internet Explorer 8 or later, Appendix A, GV-Panoramic PTZ
Camera User’s Manual.
2. When using non-IE browsers,
a. The following functions are not supported: Motion Detection, Tampering Alarm,
Visual Automation, Text Overlay, and Two-Way Audio. To see the functions available
on live view windows using non-IE browsers, see Figure 3-11, Chapter 3,
GV-Panoramic PTZ Camera User’s Manual.
b. RTSP streaming must be enabled. By default, RTSP streaming is enabled. See 4.3.8
RTSP/ONVIF to see details on RTSP settings, Chapter 4, GV-Panoramic PTZ
Camera User’s Manual.
c. Only MJPEG codec is supported.
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
12

4Accessing GV-Panoramic PTZ Camera
4.2 Looking Up the Dynamic IP Address
By default, when GV-Panoramic PTZ camera is connected to LAN with a DHCP server, it is
automatically assigned with a dynamic IP address. Follow the steps below to look up its IP
address.
Note: The computer you use to configure the IP address must be under the same LAN with
your camera.
1. Install the GV-IP Device Utility program included on the Software DVD.
2. On the GV-IP Utility window, click the button to search for the IP devices connected in
the same LAN. Click the Name or Mac Address column to sort. You will see two devices
listed: GV-PPTZ7300-FE and GV-PPTZ7300-SD.
3. Click on the IP address of GV-PPTZ7300-FE and select Web Page.
13
Available from A1 Security Cameras
www.a1securitycameras.com email: [email protected]
