GEPRC Crocodile5 Baby User manual

Crocodile5 Baby
User Manual & Setup Guide
V1.0

Contents
Overview:................................................................................................................................... 3
Specification:......................................................................................................................3
Features:.............................................................................................................................3
Warranty Policy:.........................................................................................................................4
PS:....................................................................................................................................... 4
DJI Digital FPV System:............................................................................................................. 5
Bind TBS NanoRX:..................................................................................................................... 6
Bind FrSky R-XSR:......................................................................................................................7
Install Betaflight:........................................................................................................................ 8
Install Drivers:.................................................................................................................... 8
ARM(DJI Transmitter):............................................................................................................... 9
OpenTX Transmitter:...............................................................................................................10

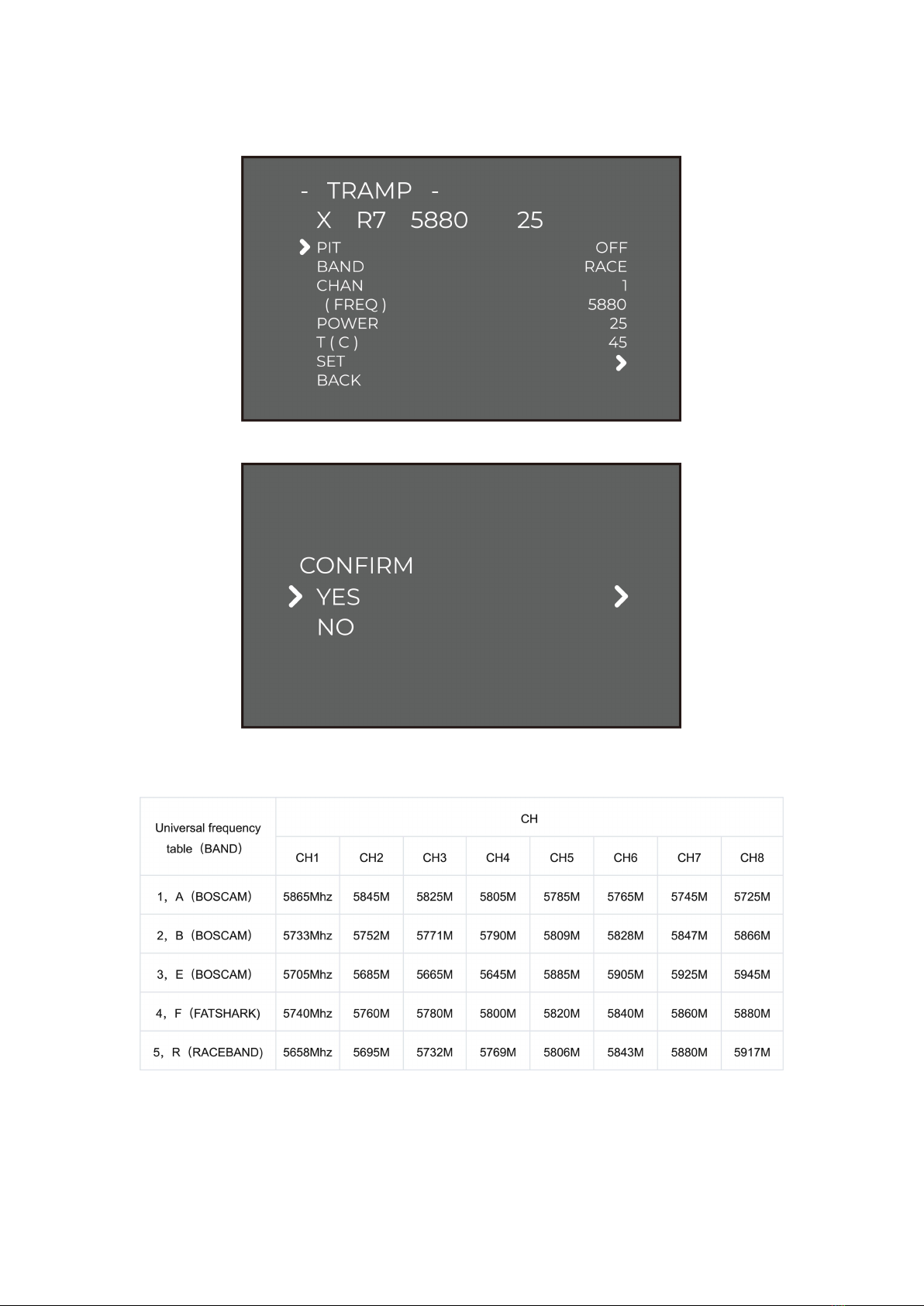

IRC Tramp(Analog):.................................................................................................................12
Install Silicone Pad,Landing pads:..........................................................................................14
Install Propellers, Battery strap:..............................................................................................15
GEPRC Super Buzzer:..............................................................................................................16
Pre-flight Check:..................................................................................................................... 17
Include:.....................................................................................................................................18
Contact:....................................................................................................................................18

3/18
Overview:
GEPRC Crocodile5 Baby is launching right now. It is a brand new Long Range 5inch FPV.
There are three versions: DJI Air Unit,Vista Polar and (Analog)5.8G 600mW.
Crocodile5 Baby LR is a lightweight long range FPV, Which can cruise smoothly for a long
time or Freestyle.It is Light-weight, Long Range and has excellent flight performance.
To summarise, this is a clever choice to purchase it.
Specification:
Model: Crocodile5 Baby LR Quadcopter
FC: GEP-F722-35A AIO
ESC: BLheli_S 35A
VTX: DJI Air Unit Module/VISTA/ GEP-STABLE-VTX58600N
Camera: DJI Camera/ Caddx Polar/Caddx Ratel2
Antenna: DJI Antenna/Momoda UFL LHCP/MMCX RHCP Antenna
Motor: GR2004 2550KV
Propeller: GemFan5130
Frame: GEP-CB5
Motor to Motor: 227mm
Weight: 252.2g（DJI）/232.7g（Polar）/213.8g（Analog）
Receiver: PNP，Frsky RXSR ，TBS Nano RX
Features:
1.Combined with with DJI Air Unit Moudile, It supports recording 1080p 60fps video.
2.Latest GEP 2004 High Efficiency Motor, It has good heat dissipation effect, high efficiency
and more abundant power.
3.The Lightweight design scheme is suitable for Long Range flight and Freestyle flight.
4.The latest GEP F722 AIO FC, which has fast operation speed and higher compatibility
5.Support GPS rescue mode, Long-range more safer
6.Flight Time:25-30min(Li-ion 3000mAh Battery)

4/18
Warranty Policy:
1. If Quadcopter is damaged or unknown issue,please contact GEPRC. We'll do our best to
get this taken care of quickly for you.
2. Any impact damage, product liquid damage, high temperature burn or other artificial
damage is not covered by warranty.
PS:
1. All components has been strictly inspected and tested before shipping.
2. If you have any problems, please cooperate with our engineers to figure out solutions.
(E-mail: [e-mail].)

5/18
DJI Digital FPV System:
1. Turn the power of the FPV Goggles, DJI FPV Transmitter,and Quadcopter. Press the FPV
Goggles bind button twice, and it will beep to indicate the binding state.
2. Press the VISTA bind button,the indicator light turn red ,indicating that it is binding.Then
the indicator light turns yellow, means the binding is successful,and the FPV Goggles will
display the received picture.
3. Press the C1 custom button,record button and right scroll wheel button of the remote
controller,at the same time. The indicator light turns blue, and the remote controller sends a
beep indicating that it is binding.
4. Press the VISTA bind button,the indicator light turn red ,indicating that it is binding.Then
the indicator light turns yellow, means the binding is successful.And the remote controller
inducator light turns Green.
Bind Button
Binding successful
Binding
Bind Button
Record Button
C1 Custom
Right Scroll Wheel Button
Binding Successful
Binding
Bind Button
Binding
Binding Successful

6/18
Bind TBS NanoRX:
1. For Taranis X9D/X9D Plus/X9E and Taranis QX7, turn on the transmitter, go to the TOOLS – CROSSFIRE
SETUP – XF Micro TX ,and select Bind.
2. Turn on the receiver while holding the bind button on the receiver, release the button and the green LED
on flash .and then holding the button for 8 second ,and release. And the green light is off and the red
light is flashing, ‘update micro RX？’ will appear on the transmitter screen, and select ‘ENTER’.
3. Wait for the update to complete, the binding is successful, and the receiver green light is on.
1
2
3
4
5
6
Bind Button
Binding
Binding Successful

7/18
Bind FrSky R-XSR:
1. For Taranis X9D/X9D Plus/X9E and Taranis QX7, turn on the transmitter, go to the MENU –
MODEL SETUP – PAGE 2, choose Internal RF, and select BIND.
2. Turn on the receiver while holding the bind button on the receiver, release the button and
the bule,red,yellow LED on .
3. When the red light flashes, it indicates that the binding is successful.Turn off the
receiver,and then turn on the receiver.The blue light and yellow light of receiver are on,
indicating that the link is normal.
1
2
3
Binding Button
Binding
Binding

8/18
Install Betaflight:
Although your Quadcopter comes from the factory nearly completely ready to fly, you still
need to install betaflight to facilitate your subsequent use of betaflight for debugging.
Installation package download address:
https://github.com/betaflight/betaflight-configurator/releases
Enter the web page, pull to the bottom, and select the appropriate installation package to
download. EXE suffix is Windows system, DMG suffix is MacOS system, RPM / DEB suffix is
Linux system, APK suffix is Android system.
Install Drivers:
If you are on windows, you must install the driver manually. MacOS and Linux do not.
CP210x Drivers:
https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-dri
vers
STM USB VCP Drivers:
http://www.st.com/en/development-tools/stsw-stm32102.html
Zadig:
http://zadig.akeo.ie/

9/18
ARM(DJI Transmitter):
With DJI FPV Transmitter, the toggle switch is set at the factory. The corresponding functions
of each switch are as follows:
SAAUX1（ARM）
SBAUX2（MODES）
SCAUX3（BEEPER）
SDAUX4（Vacancy）
DJI toggle switches are all three sections. If you move the Yellow cursor of the corresponding
aux channel of the switch, the corresponding function will be turned on when you move to
the set range.

10 /18
OpenTX Transmitter:

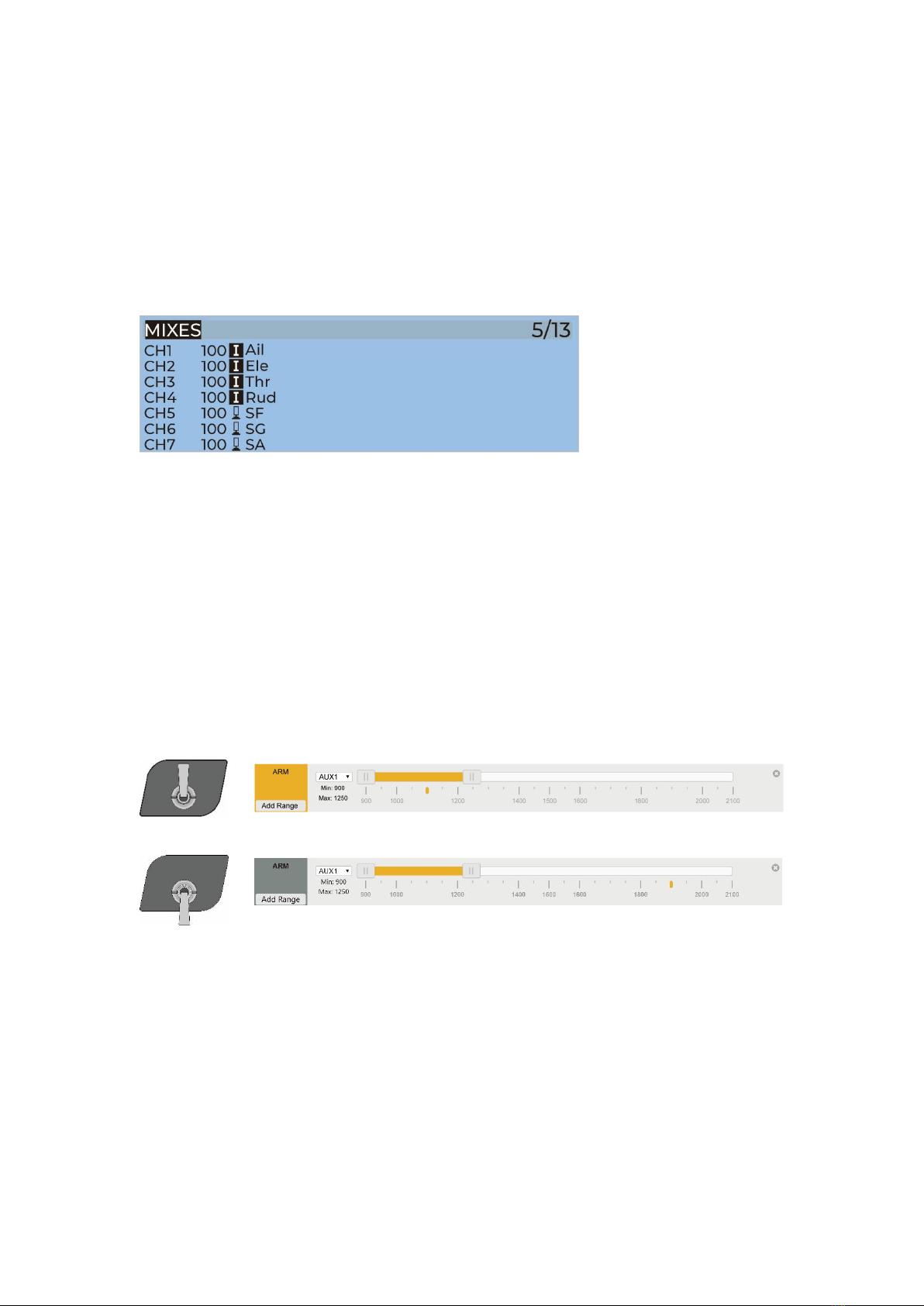

The transmitter of openTX system needs to check the AUX channel. For Taranis X9D/X9D
Plus/X9E and Taranis Q X7, turn on the transmitter, go to the MENU –MIXS and view the
current AUX channel settings.
CH1-CH4 corresponds to four channels of rocker
CH5（SF）AUX1（ARM）
CH6（SG）AUX2（MODES）
CH7（SA）AUX3（BEEPER）
CH8（Vacancy）AUX4（Vacancy）
FrSky X9D transmitter SF toggle switch are two sections. If you move the Yellow cursor of the
corresponding aux channel of the switch, the corresponding function will be turned on when
you move to the set range.
Use the transmitter wheel to move the cursor to select the AUX channel, and then press and
hold the wheel key to edit the channel.
