GEPRC SMART35 User manual

SMART35
User Manual & Setup Guide
V1.0

Contents
Overview:................................................................................................................................... 3
Specification:......................................................................................................................3
Features:.............................................................................................................................3
Warranty Policy:.........................................................................................................................4
PS:....................................................................................................................................... 4
DJI Digital FPV System:............................................................................................................. 5
Bind TBS NanoRX:..................................................................................................................... 6
Bind FrSky R-XSR:......................................................................................................................7
Install Betaflight:........................................................................................................................ 8
Install Drivers:.................................................................................................................... 8
ARM(DJI Transmitter):............................................................................................................... 9
OpenTX Transmitter:...............................................................................................................10
Install Silicone Pad,Landing pad:........................................................................................... 14
Install Propellers, Battery strap:..............................................................................................15
Pre-flight Check:..................................................................................................................... 16
Include:.....................................................................................................................................17
Contact:....................................................................................................................................17

3/17
Overview:
The 3.5-inch quadcopter newly designed by the GEPRC R&D team is now released. There
are currently three versions, namely VISTA Polar/VISTA Nebula Nano/Analog.
SMART35 is a small size, light weight, suitable for freestyle quadcopter. GEPRC 1404-3850KV
motor and EMAX 3.5*2.8*3 propeller form a highly efficient power system. Using the latest
GEP-F411-35A AIO FC system, combined with the VISTA Digiatl FPV system, the flying is
stable and feels great.Flying time is 13 minutes by the 4S1100mAh LIPO battery.
We pursue lighter weight, better flying feel and more extended functions of the Quadcopter.
Specification:
Model: SMART35 Quadcopter
FC: GEP-F411-35A AIO
ESC: BLheli_S 35A
VTX: VISTA/ GEP-STABLE-VTX58600N
Camera: Caddx Polar/Caddx Nebula Nano/Caddx Ratel2
Antenna: Momoda UFL LHCP/MMCX RHCP Antenna
Motor: GR1404 3850KV
Propeller: EMAX3.5x2.8x3
Frame: GEP-ST35
Motor to Motor: 155mm
SMART35 Weight: 142.1g（Polar）/137.6g（Nano）/127.4g（Analog）
Receiver: PNP，Frsky RXSR ，TBS Nano RX
Features:
1.The arm is made of 4mm carbon plate with high frame strength.
2.Equipped with VISTA Digital FPV system.
3.Use 1404-3850kv motor, high efficiency and incredible power.
4.The 3.5-inch lightweight design is suitable for freestyle flight.
5.Independent design of GEP GoPro Lite 8 3D Print Mount, which can carry Naked Gopro6
/ 8 and INSTA GO2.

4/17
Warranty Policy:
1. If Quadcopter is damaged or unknown issue,please contact GEPRC. We'll do our best to
get this taken care of quickly for you.
2. Any impact damage, product liquid damage, high temperature burn or other artificial
damage is not covered by warranty.
PS:
1. All components has been strictly inspected and tested before shipping.
2. If you have any problems, please cooperate with our engineers to figure out solutions.
(E-mail: [e-mail].)

5/17
DJI Digital FPV System:
1. Turn the power of the FPV Goggles, DJI FPV Transmitter,and Quadcopter. Press the FPV
Goggles bind button twice, and it will beep to indicate the binding state.
2. Press the VISTA bind button,the indicator light turn red ,indicating that it is binding.Then
the indicator light turns yellow, means the binding is successful,and the FPV Goggles will
display the received picture.
3. Press the C1 custom button,record button and right scroll wheel button of the remote
controller,at the same time. The indicator light turns blue, and the remote controller sends a
beep indicating that it is binding.
4. Press the VISTA bind button,the indicator light turn red ,indicating that it is binding.Then
the indicator light turns yellow, means the binding is successful.And the remote controller
inducator light turns Green.
Bind Button
Binding successful
Binding
Bind Button
Record Button
C1 Custom
Right Scroll Wheel Button
Binding Successful
Binding
Bind Button
Binding
Binding Successful

6/17

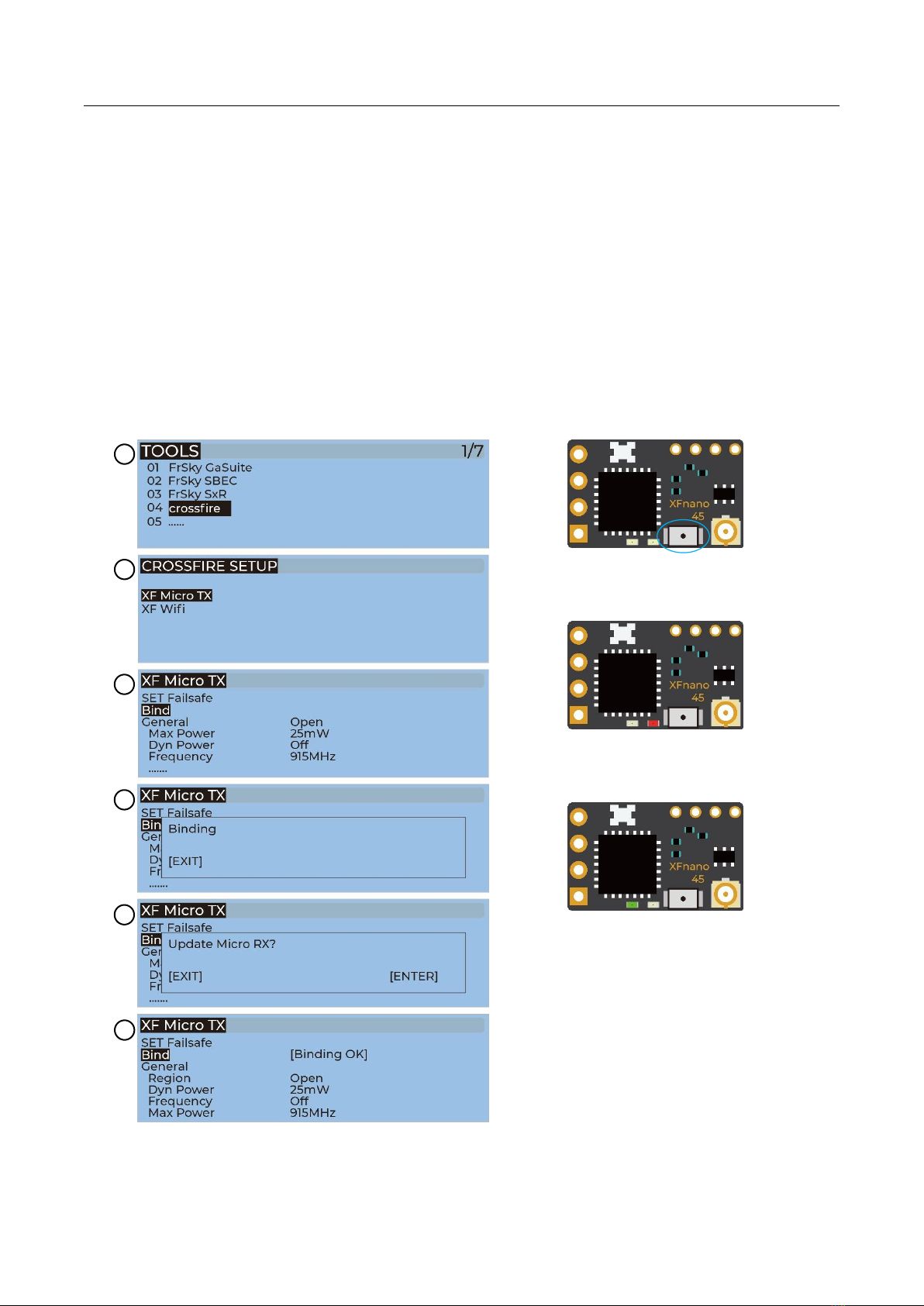

Bind TBS NanoRX:
1. For Taranis X9D/X9D Plus/X9E and Taranis QX7, turn on the transmitter, go to the TOOLS – CROSSFIRE
SETUP – XF Micro TX ,and select Bind.
2. Turn on the receiver while holding the bind button on the receiver, release the button and the green LED
on flash .and then holding the button for 8 second ,and release. And the green light is off and the red
light is flashing, ‘update micro RX？’ will appear on the transmitter screen, and select ‘ENTER’.
3. Wait for the update to complete, the binding is successful, and the receiver green light is on.
1
2
3
4
5
6
Bind Button
Binding
Binding Successful

7/17
Bind FrSky R-XSR:
1. For Taranis X9D/X9D Plus/X9E and Taranis QX7, turn on the transmitter, go to the MENU –
MODEL SETUP – PAGE 2, choose Internal RF, and select BIND.
2. Turn on the receiver while holding the bind button on the receiver, release the button and
the bule,red,yellow LED on .
3. When the red light flashes, it indicates that the binding is successful.Turn off the
receiver,and then turn on the receiver.The blue light and yellow light of receiver are on,
indicating that the link is normal.
1
2
3
Binding Button
Binding
Binding

8/17
Install Betaflight:
Although your Quadcopter comes from the factory nearly completely ready to fly, you still
need to install betaflight to facilitate your subsequent use of betaflight for debugging.
Installation package download address:
https://github.com/betaflight/betaflight-configurator/releases
Enter the web page, pull to the bottom, and select the appropriate installation package to
download. EXE suffix is Windows system, DMG suffix is MacOS system, RPM / DEB suffix is
Linux system, APK suffix is Android system.
Install Drivers:
If you are on windows, you must install the driver manually. MacOS and Linux do not.
CP210x Drivers:
https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-dri
vers
STM USB VCP Drivers:
http://www.st.com/en/development-tools/stsw-stm32102.html
Zadig:
http://zadig.akeo.ie/

9/17
ARM(DJI Transmitter):
With DJI FPV Transmitter, the toggle switch is set at the factory. The corresponding functions
of each switch are as follows:
SAAUX1（ARM）
SBAUX2（MODES）
SCAUX3（BEEPER）
SDAUX4（Vacancy）
DJI toggle switches are all three sections. If you move the Yellow cursor of the corresponding
aux channel of the switch, the corresponding function will be turned on when you move to
the set range.

10 /17
OpenTX Transmitter:
The transmitter of openTX system needs to check the AUX channel. For Taranis X9D/X9D
Plus/X9E and Taranis Q X7, turn on the transmitter, go to the MENU –MIXS and view the
current AUX channel settings.
CH1-CH4 corresponds to four channels of rocker
CH5（SF）AUX1（ARM）
CH6（SG）AUX2（MODES）
CH7（SA）AUX3（BEEPER）
CH8（Vacancy）AUX4（Vacancy）
FrSky X9D transmitter SF toggle switch are two sections. If you move the Yellow cursor of the
corresponding aux channel of the switch, the corresponding function will be turned on when
you move to the set range.
Use the transmitter wheel to move the cursor to select the AUX channel, and then press and
hold the wheel key to edit the channel.

11 /17
You can name the aux channel, or set the toggle switches you want, and exit and save it.

12 /17
IRC Tramp(Analog):
Turn on the transmitter,THR middle,YAW left,PITCH up,enter the OSD menu. The PITCH
moves the cursor up and down, and the ELE right to enter the next item. Finally,save and
exit.

13 /17

14 /17
Install Silicone Pad,Landing pad:

15 /17

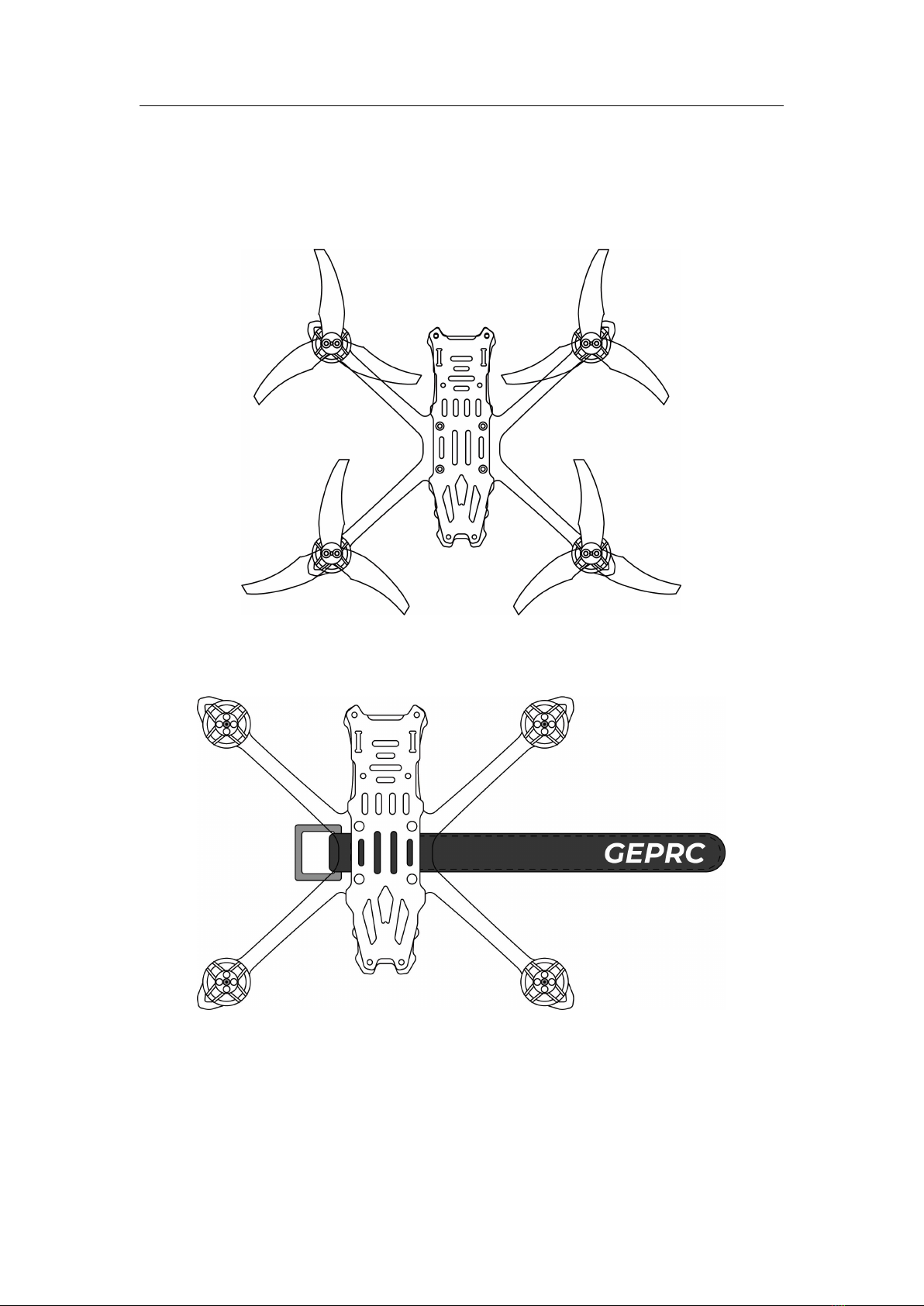

Install Propellers, Battery strap:

16 /17
Pre-flight Check:
In many cases, the cause of a Quadcopter crash is not checked before takeoff. For the sake
of safety, we suggest that you check before every flight.The steps are as follows：
1. Turn on the transmitter and select the correct mode. Please confirm that the arming
switch on the transmitter is in the “disarmed”position and throttle is all the way down;
2. Please perform a physical inspection of the Quadcopter for damage. If there is damage,
please repair first;
3. Please comfirm the propeller is in the right direction and the propeller nut is locked,
otherwise there is a risk of crash;
4. Check LiPo battery voltage. A fully-charged LiPo should be about 4.2 volts per cell, or
about 12.6 volts for a 3S, or 16.8 volts for a 4S;
5. Please comfirm the battery is securely attached to the aircraft by the strap. And secure
the balance lead so that it can’t be struck by the props;
6. Please Scan the flight area for any safety issues that might be present, such as people or
animals;
7. Verify that you have clean, strong video in your FPV goggles or screen. If you see
interference or you see another pilot’s feed, resolve this issue before flying;
8. Arm the quadcopter. Listen for the props hitting anything like an antenna or the battery
wire;
9. At this stage, take off and enjoy flying.
Note: if you choose to fly close to water, please pay attention to the flight safety. It is difficult
to salvage the Quadcopter when it falls into the water, and the water in the Quadcopter is
not covered by the warranty.

17 /17
Include:
1 x SMART 35 Quads
2 x EMAX3.5*2.8*3 Props(pairs)
8 x Foot pad
1 x The silicone pad
1 x L-shaped screwdriver
2 x Antenna protection tube
1 x 15*200mm Battery strap
Contact:
Website: https://geprc.com/
