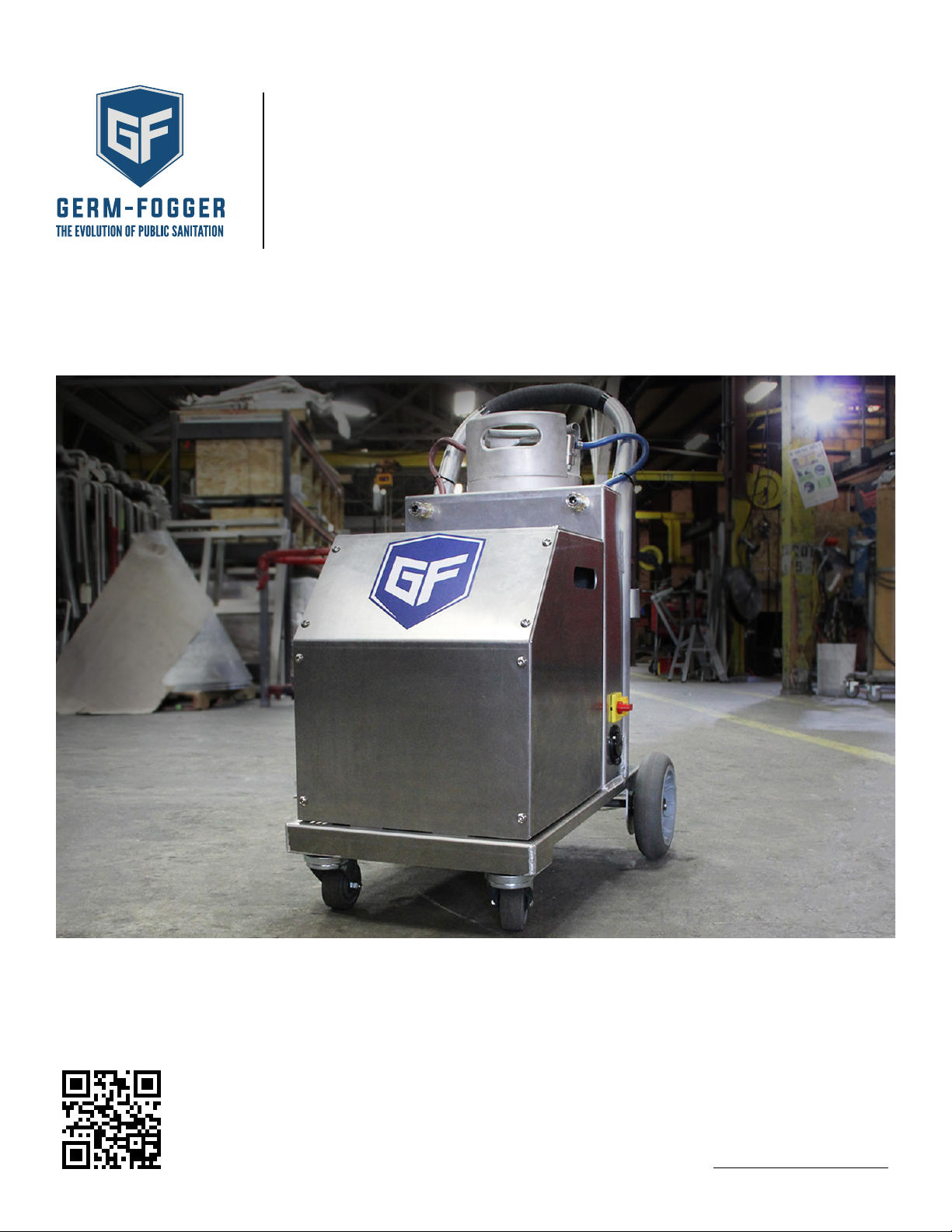

Germ-Fogger GF-005 User manual

OPERATIONS MANUAL
GF-005
Germ Fogger, LLC. © 2020
2401 NW 22nd Ave.
Portland, OR. 97210
Phone: [phone]
www.germ-fogger.com

TABLE OF CONTENTS
SAFETY PRECAUTIONS 3
HAZARD WARNINGS 1
SYSTEM COMPONENTS 4
HOW TO OPERATE 5
6
7
MAINTENANCE
WARRANTY

Please read the manual carefully and pay special attention to the symbols and warning labels.
No chemicals are ever supplied by Germ-Fogger™LLC. All liquids used are solely responsible
of the operator for this equipment. Warning labels indicate a potentially hazardous situation
which, if not avoided, could result in death or serious injury. It is the owner’s responsibility to
ensure that all who operate this equipment read this manual.
HAZARD WARNINGS
• Read and fully understand the Germ-Fogger™ Operators Manual prior to using the equipment.
• Read and fully understand CDC approved product labels prior to using any liquid product with the
Germ-Fogger™ equipment.
• Germ-Fogger™ equipment should never be used in an area containing volatile chemicals. Nor
should it be used in any area containing volatile or explosive levels of gas, vapor or particles.
• Germ-Fogger™ should never be used by untrained personnel.
HAZARD WARNINGS
PRESSURIZED EQUIPMENT HAZARD
Fluid from equipment that leaks or ruptures from a component can splash in the eyes or on skin,
causing serious injury.
• Check hoses, tubes and couplings daily. Replace worn or damaged parts immediately.
CLEANING SOLVENT HAZARD
Fluid from equipment that leaks or ruptures from a component can splash in the eyes or on skin,
causing serious injury.
• Check hoses, tubes and couplings daily. Replace worn or damaged parts immediately.
1

FIRE, EXPLOSION AND ELECTRIC SHOCK HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To
help prevent re, explosion and electric shock:
• Germ-Fogger™ equipment must be used only by trained, qualied personnel who
understand the requirements of this manual.
• Stop operation immediately if static sparking occurs or you feel shock. Do not use
equipment until you identify and correct the problem.
• Never spray a ammable chemical.
• Do not plug or unplug power cords or turn lights on or off when ammable fumes are
present.
• Keep spray area free of debris, including solvents, rags, gasoline or any ammable
chemicals.
• Keep a working re extinguisher in the work area.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury
• Do not operate the unit when fatigued or
under the inuence of drugs or alcohol.
• Do not leave the work area while unit is on.
• Turn off all equipment when not in use.
• Check equipment daily. Contact Germ-
Fogger™ immediately to repair or replace
worn/damaged parts.
• Route hoses and power cords away from
trafc areas, sharp edges, moving parts,
and hot surfaces
• Equipment warranty shall not apply to
defects or malfunctions resulting from:
improper use by owner, unauthorized
modication, unapproved disinfecting
agents, misuse, improper installation, or
improper maintenance.
CHEMICAL MISUSE HAZARD
Each chemical, such as a disinfectant, has
a unique set of hazards and needs to be
handled properly to ensure worker safety.
• Never spray any liquid product that is
not CDC approved. Be aware that many
chemical liquid scan be harmful if they are
not used properly.
• Read and understand the approved CDC
chemical and label prior to use.
• Be aware of rst aid procedures related to
the product in use.
• Never spray a ammable chemical (ash
point less than 60˚C) .
• Insure the area being sprayed has proper
ventilation.
• Store chemicals in original containers in a
cool, dry place, away from heat.
2

Basic safety precautions should always be followed to reduce the risk of burns, re, electrical
shock, injury and/or death.
PROTECTIVE GEAR
• Personal Protective Equipment (PPE) must comply with the most updated American National
Standards Institute.
• Eye and face PPE shall be distinctly marked to facilitate identication of the manufacturer.
• The following minimum requirements must be met by all protective devices:
• Provide adequate protection against the particular hazards for which they are designed.
• Be of safe design and construction for the work to be performed.
• Be reasonably comfortable when worn under the designated conditions.
• Fit snugly and not unduly interfere with the movements of the wearer.
• Be durable.
• Be capable of being disinfected.
• Be easily cleanable or disposable.
SAFETY PRECAUTIONS
RECOMMEND USE OF FULLY ENCLOSED EYE-WEAR PROTECTIONS, SUCH AS GOGGLES,
WHEN USING THIS DEVICE. ALWAYS USE APPROPRIATE PPE.
3

19 15
16
"
13"
18 1
2
"
16 5
16
"
35 3
8
"
30 1
2
"
ALUMINUM
COWLING
TOP
5 GALLON
MIXING
POT
HANDLE
CASTER
WHEELS
W/LOCK
8"
WHEEL
5 GALLLON
MIXING POT
CASTER
WHEELS
W/LOCK
COVER
HANDLES
1.5"
PUSH
HANDLE
ALUMINUM
COWLING
HOSE
& STRAP
HOLDER
ON SIDES
1/4" QUICK
CONNECT
HOSE FITTINGS
SPRAY GUN
BRASS
TIP
8"
EXTENSION
FOUR FINGER TRIGGER
FOR EASE OF OPERATION
QUICK
DISCONNECT
FRONT
RIGHT
BACK
GERM-FOGGER
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
PORTLAND KETTLE WORKS. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
PORTLAND KETTLE WORKS IS
PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL 1/8
ANGULAR: 1
TWO PLACE DECIMAL: 0.01
THREE PLACE DECIMAL: 0.005
INTERPRET GEOMETRIC
TOLERANCING PER: ASME
MATERIAL
FINISH
ALUMINUM
2B
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
DATE NAME
TITLE:
SIZE
B
PART NUMBER REV
WEIGHT: SCALE: 1:12
UNLESS OTHERWISE SPECIFIED:
D
VH
04/27/20
SHEET 1 OF 1
DO NOT SCALE DRAWING
GERM-FOGGER
GF-005
MODULAR GERM-FOGGER
ASSEMBLY
QUICK START
GF-005
TECHNICAL SPECIFICATIONS
Dimensions L: 30.5 in. (0.77m) x W: 18.5 in. (0.47m) x H: 35.4 in. (0.89m)
Weight 70 lbs (31.75 kg)
Chemical Coverage 1 Gun - 10,500 sq. ft. per gallon.
Hose Length Standard 50 ft. 150ft. Allowed.
Droplet Size Median Diameter - 35-40 microns
Power 120V/60AC 4

1. PREPARING FOR SPRAY
1. Operator must wear approved Personal
Protective Equipment based on chemical
manufacture requirement.
2. Visit cdc.gov for information about proper
chemical usage and their hazards.
3. Clear the area for general public before
sanitizing. Place signs or warning indicators
to ensure no one should enter the area.
4. Ensure caster wheels are locked when not
moving or operating the Germ-Fogger™
unit.
5. Ensure power is switched to “OFF” on the
Germ-Fogger™ unit.
3. OPERATIONAL PROCEDURES
1. Clear the area for general public before
sanitizing. Place signs or warning indicators
to ensure no one should enter the area.
2. Position Germ-Fogger in a clear area away
from other objects.
3. Turn the switch “ON”.
4. Ensure valve(s) are turned counter-clockwise
to allow uid to pass through. Wait about
20 seconds to generate a steady ow of
chemical solution.
5. Direct the spray gun nozzle at the desired
surface. Press the four nger trigger to
initiate spraying.
6. Follow a continuous path around the working
area from high to low areas in a sweeping
motion until all surfaces are covered.
7. After spraying, keep the area closed to the
public based on CDC chemical requirements.
8. Remove all warnings and signs after the
sanitized time requirement is complete.
2. UNIT SETUP
1. Apply desired chemical cleaning agent to the
mixing pot with appropriate water ratio.
2. Connect proper compressor hose to match
the in/out tting on mixing pot. Ensure
mixing pot is properly secure.
3. Unwrap hose and attach to the 1/4” quick
connect hose tting.
4. Disconnect spray guns from Germ-Fogger™
unit and quick connect to proper hose tting.
5. Unwrap electrical cord completely and plug
into safe three-pronged socket.
4. AFTER USE AND STORAGE
1. Stop spraying the Germ-Fogger™ unit and
turn the switch “OFF”.
2. Ensure caster wheels are locked when not
moving or operating the Germ-Fogger™
unit.
3. Unplug electrical cord and store away
properly on the Germ-Fogger™ unit.
4. Ensure valve(s) are turned clockwise to limit
uid to pass through.
5. Quick disconnect the spray gun and properly
place on the Germ-Fogger™ unit.
6. Quick disconnect hose and drain any excess
chemical solution.
7. Wrap hose tightly and properly place on
Germ-Fogger™ unit.
8. Store in a safe, dry place. Do not expose to
or store in freezing temperatures.
For more information about operational procedures please visit our
Youtube Channel or scan code with any smartphone or mobile device.
Note: All information is subject to change. 5

MAINTENANCE
In order for the Germ-Fogger™ system to remain functional, the
equipment should be cleaned and maintained after every use.
The most important thing you can do to ensure trouble-free operation of this component is to
rinse the nozzle out with clean water after every use. By cleaning your nozzle after each usage,
you will avoid the long-term chemical buildup that eventually causes clogs, poor spray patterns,
and shortened life of the nozzle components.
Important: The nozzle should never be hand-tightened. Never use pliers or
other similar tools, as this may cause damage. If any issues continue to persist,
remove/replace immediately. Refer to our Youtube Video on how to safely
clean your nozzle.
CHANGING CHEMICAL CAPACITY
1. Follow “After Use and Storage” section on page 6 before changing chemical solutions.
2. Disconnect both compression hose ttings on the mixing pot by pulling knobs up,
then lifting to unlock and release.
3. Safely lift the mixing pot up and out of the unit.
4. Pull ring on top of mixing pot to release all pressure before removing lid.
5. Pull lever off the mixing pot to open lid.
6. Drain all liquid from mixing pot and thoroughly rinse with clean water.
7. Chose the appropriate CDC approved product for cleaning, sanitizing, or disinfecting.
8. Visit cdc.gov for information about proper chemical usage and their hazards.
9. Follow “Unit Setup” on page 5 to properly insert chemicals before operating the unit.
1. Quick disconnect the nozzle tip from the end of the gun. Remove the tip retention ring
from the nozzle body base using two wrenches.
2. Inspect for any damage to the liquid tip, lter, and spraying capacitor.
3. Check for any debris and/or corrosion. Gently wash down with clean water and remove
excess with a Q- tip or precision needle. If any issues are noted, remove/replace
immediately.
4. Be sure to also thoroughly clean all exterior surfaces of the nozzle. Never use a wire brush,
le, or sandpaper to clean any surface of the nozzle. Never spit or blow inside or around
the nozzle component.
CLEANING THE NOZZLE
6

WARRANTY
Product must be registered here online within 30 days with serial number provided on your unit.
Germ-Fogger™ disinfecting system warranty to the original owner goes as follows:
• For defects in materials and workmanship of the cart chassis, cart, castors, wheels, etc. for a
period of three (3) years from receipt by the original owner.
• For all other components such as pump, compressor, electronic controls, etc. for a period of
one (1) year from receipt by the original owner.
CUSTOMER RESPONSIBILITIES
This warranty shall not apply to defects or malfunctions resulting from: improper use by owner,
unauthorized modication, unapproved disinfecting agents, misuse, improper installation, or
improper maintenance.
OBTAINING WARRANTY SERVICE
To obtain warranty service, products must be returned to the Germ Fogger factory, provided that
prior authorization is obtained. In the event repair is authorized, owner shall prepay all charges
for shipping products to the factory and Germ Fogger shall pay all shipping charges for the
return of the products to the owner.
NON-TRANSFERABLE
This warranty is offered to the original end user owner only and is not assignable or transferable
to any other party without the express written consent of Germ Fogger.
LIMITATIONS OF WARRANTY
GERM-FOGGER MAKES NO OTHER WARRANTY, EITHER EXPRESSED OR IMPLIED, WITH
RESPECT TO THIS PRODUCT. GERM FOGGER SPECIFICALLY DISCLAIMS THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
This warranty gives you specic legal rights, and you may also have other rights which vary from
state to state.
EXCLUSIVE REMEDIES
The remedies provided herein are owner’s sole and exclusive remedies. In no event shall Germ
Fogger be liable for any direct, indirect, special, incidental, or consequential damages, whether
based on contract, tort, or any other legal theory.
7
