German pool RDS Series User manual

P.1
Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
USER MANUAL
Online Warranty Registration
RDS-6356 / RDS-7356 / RDS-8356 / RDS-9356
RDS-6457 / RDS-7457 / RDS-8457 / RDS-9457
Chimney Type Range Hood RDS SERIES

P.2
Content
Warnings & Safety Precautions 03
Product Structure 05
Installation Instructions 06
Operation Instructions 09
Care & Maintenance 11
Troubleshooting 12
Recycling & Disposal 12
Technical Specication 13
Warranty Terms & Conditions 27

P.3
Warnings & Safety Precautions
For safety purpose, you should read the instructions carefully before using the appliance for the rst
time. Save the instructions for future reference. The appliance is designed for domestic use and may
only be installed and operated in accordance with these instructions for use.
WARNING!
• All installation work must be carried out by a competent person or qualied electrician.
• This appliance must be installed correctly by a suitably qualied person, strictly following the User
Manual.
• This appliance complies with all current European safety legislation, however, the Manufacturer
must emphasise that this compliance does not prevent the surfaces of the appliance from
heating up during use and remaining hot during its operation.
• Accessible parts may become hot during use. Young children should be kept away. Care should be
taken to avoid touching the appliance.
• Highly recommends that this appliance be kept out of the reach of babies and young children.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must
be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid
a danger or injury.
• Do not allow the electric cables to touch the hot parts of the appliance.
• Make sure that the power cord is not caught under or in the appliance and avoid damage to the
power cable.
• Do not install the appliance outdoors in a damp place or in an area which may be prone to water
leaks such as under or near a sink unit. In the event of a water leak, allow the machine to dry
naturally.
WARNING!
• Failure to install the screws or x device in accordance with these instructions may result in
electrical hazards.
• When the range hood and appliances supplied with energy other than electricity are
simultaneously in operation, the negative pressure in the room must not exceed 4 Pa.

P.4
Warnings & Safety Precautions
• Please dispose of the packing material carefully.
• Do not use ammable sprays in close vicinity to the appliance.
• We recommend that great care be taken during use and cleaning. Read the cleaning and
maintenance sections for this appliance carefully.
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of external timer or separated remote-
control system.
• The appliance is for domestic use only.
WARNING!
• Consult local regulations regarding fumes outlets. Do not connect the hood to a fume, ventilation
or hot air duct. Conrm that room ventilation is appropriate with the local authorities. Make sure
the maximum air extraction ow rate for the appliances in the room does not exceed 4 Pa. The
room must have adequate ventilation if an extractor hood is used simultaneously with appliances
that run on gas or other fuels. The air must not be discharged into a ue that is used for
exhausting fumes from appliances burning gas or other fuels. Regulations regarding air extraction
must be complied with.
• Before connecting the hood: switch off the electricity supply and check that the supplied voltage
and frequency coincide with that indicated on the appliance nameplate.
• The hood may stop working during an electrostatic discharge (e.g. Lightning). This involves no
risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.
• To avoid the risk of re, clean the metal lter regularly and closely watch and regulate pans
containing hot oil.
• Do not use the hood if it shows signs of damage or imperfection. Contact customer services
centre.
• Flambe cooking must not be carried out underneath this appliance.
• When installing the appliance, make sure that the following distances between the top of cooker
or hob and the lowest part of the hood must be observed: Gas Hobs 750mm; Electric hobs
650mm.
• The Manufacturer declines all liability for personal or material damage as a result of misuse or
incorrect installation of this appliance.
• Regarding the information pertaining to installation, please refer to the “Installation Instruction”of
the Manual.
WARNING!
There is a risk of electric shock and re if cleaning is not carried out in accordance with the instructions.

P.5

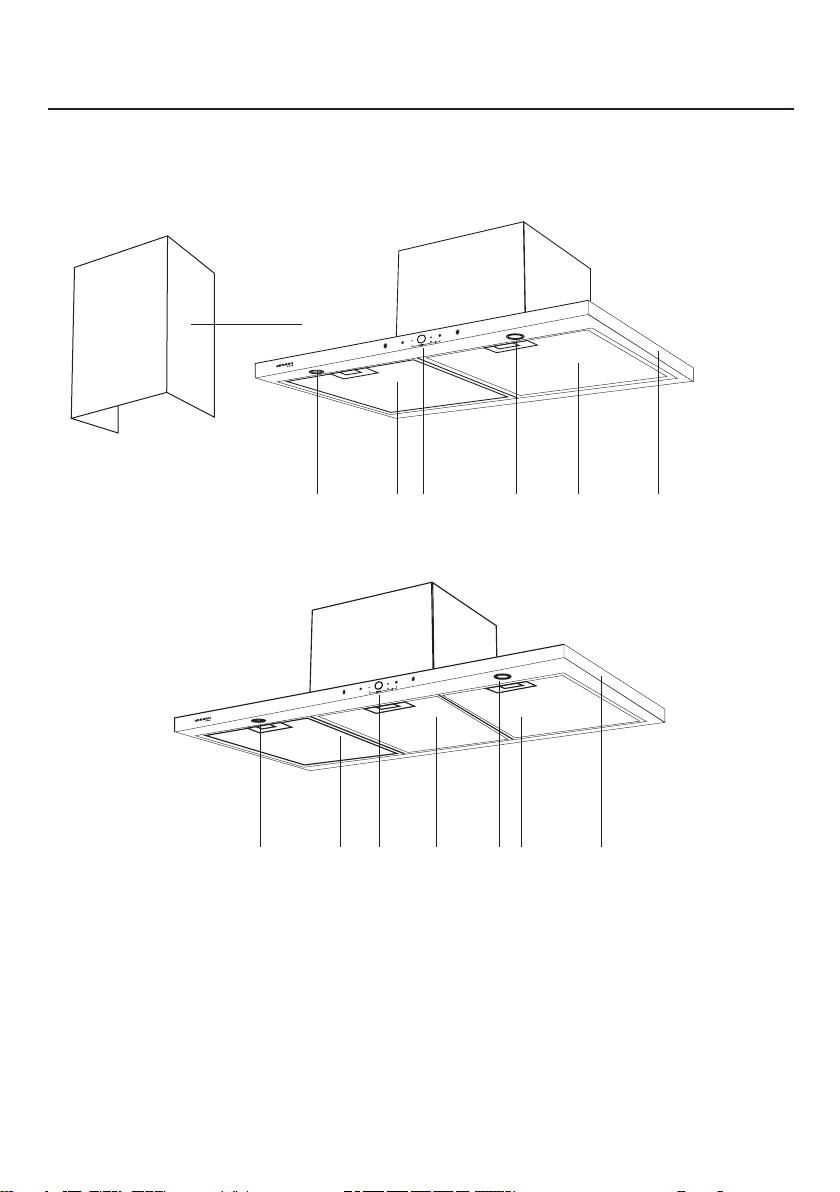

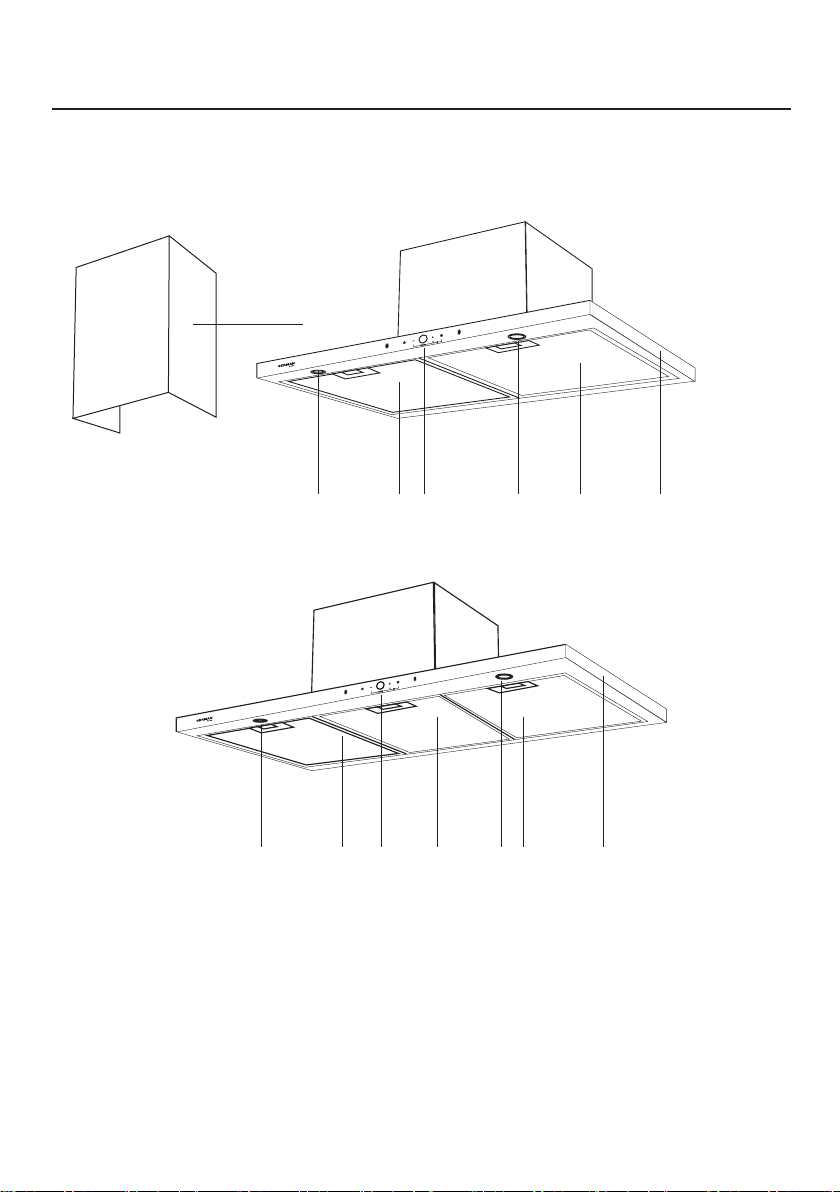

Product Structure
1. Motor cover (optional purchase)
2. LED light
3. Aluminum Filter (oil collector inside)
4. Control panel
5. Body
1.
RDS-6356/RDS-6457
RDS-7356/RDS-7457
RDS-8356/RDS-8457
RDS-9356/RDS-9457
2 23 4 3 5
2 23 4 33 5

P.6
Installation Instructions
Things to check before installation
• To avoid the constant danger when using electrical appliance, it is important to properly install
this range hood and read the safety instructions carefully to avoid misuse and danger. We
recommend that you keep this instruction manual for future reference and pass it to any future
owners. After unpacking the range hood, check that the range hood is intact. When in doubt, do
not use the device.
• Check the package and make sure you have all of the parts listed.
• Decide on the appropriate location for your product.
• If this product contains glass, please take care with tting or handing to prevent personal injury or
damage to the product.
• The specications plate is available on the appliance. This plate displays all the necessary
identication information for ordering replacement parts.
• If you sell the appliance, give it away, or leave it behind when you move house, make sure you
also pass this manual to the new owner, so that the new owner can become familiar with the
appliance and its safety warnings.

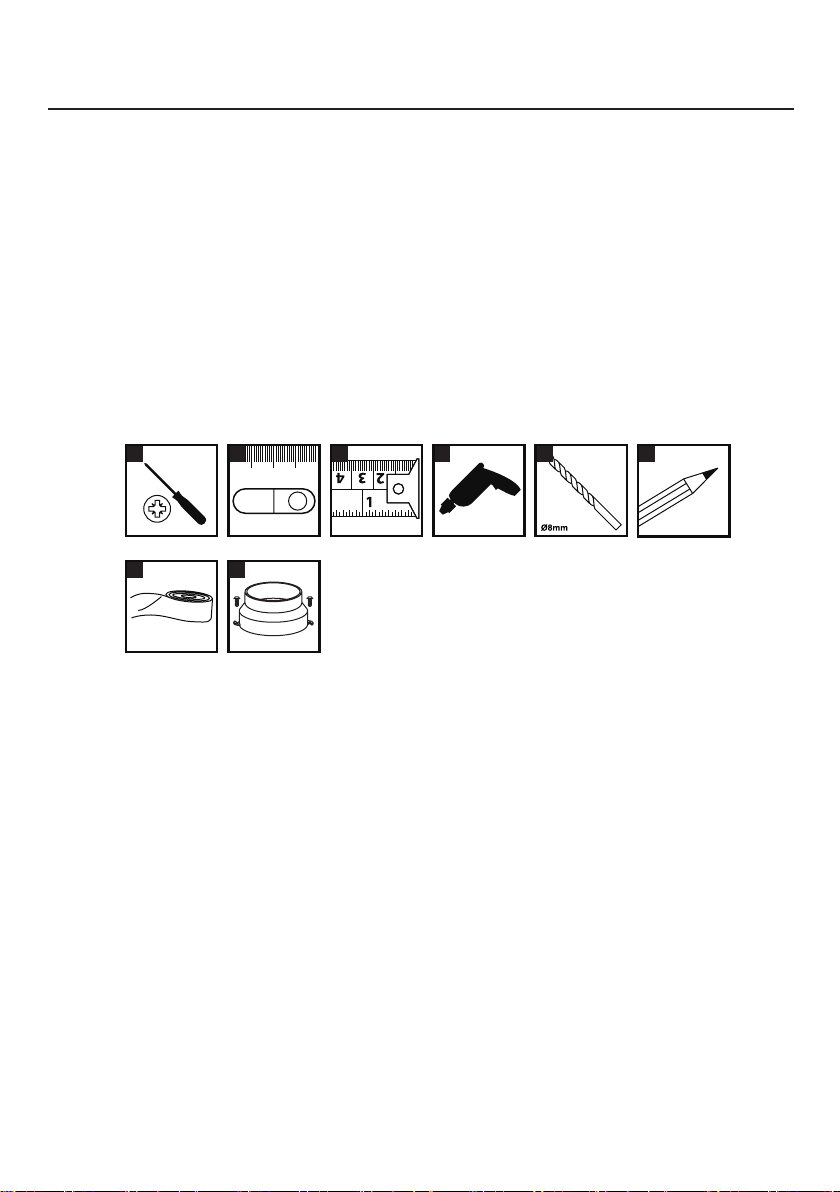

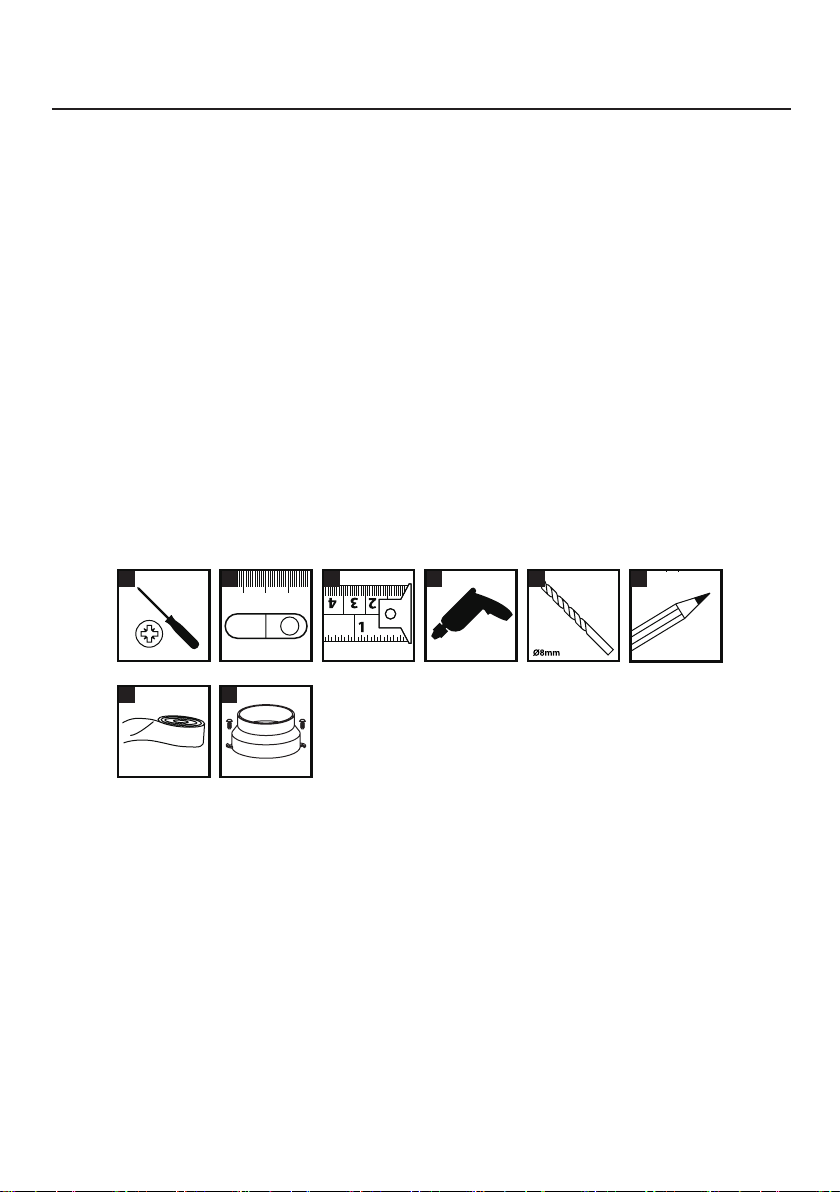

Installation Tools
1
7
2
8
3 4 5 6
1. Phillips Screwdriver
2. Spirit Level
3. Pull Ruler
4. Electric Drill
5. Drill bit (Ø8mm)
6. Pencil
7. Aluminium Tape
8. Adapter (Ø150mm to Ø120mm) & M4*8 screw x 2

P.7
Installation Instructions

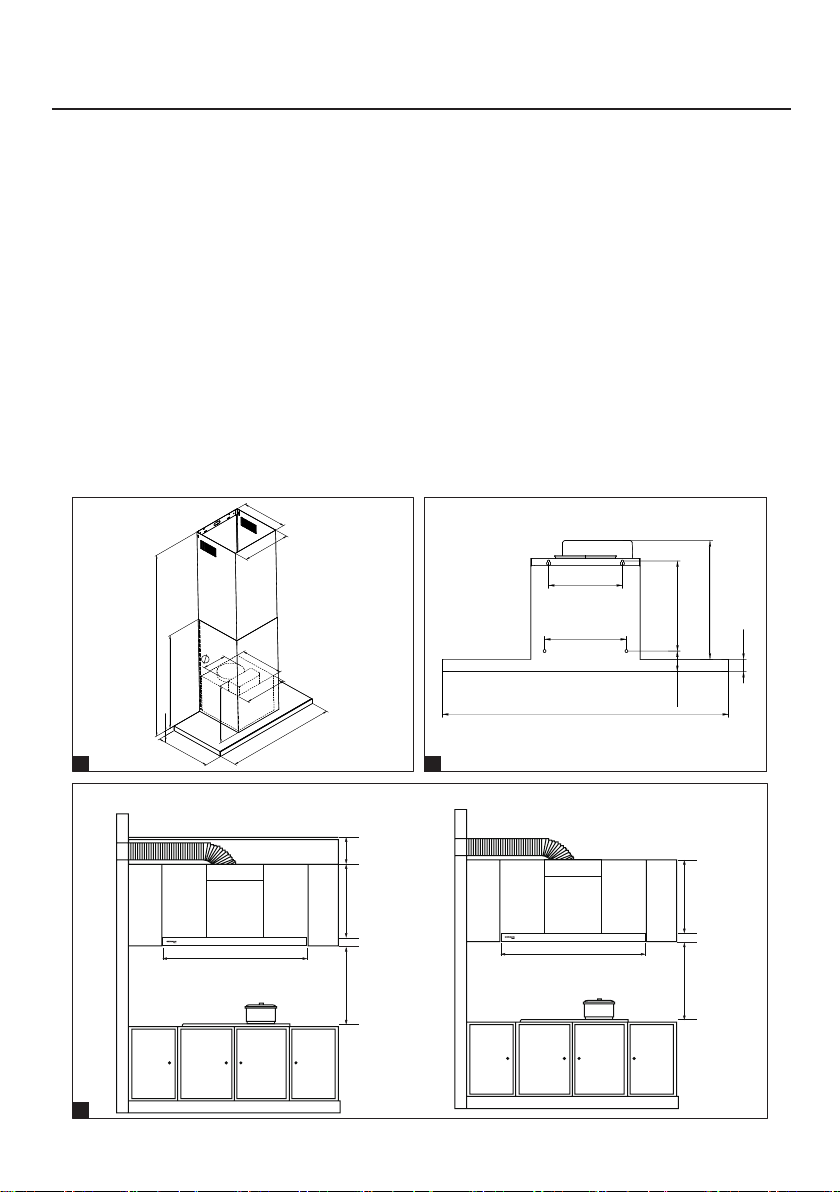

Installation Steps
1. Type of installation: Ducted option; Failure to install the screws or xing device in accordance with
these instructions may result in electrical hazards.
2. Mark on the wall the hole positions as shown in diagram (pic 2); The wall plugs supplied are suitable
for solid walls only. When xing to any other type of wall, please use suitable alternative xings.
3. Distances between the top of cooker or hob and the lowest part of the hood must be observed:
gas hobs 750mm; electric hobs 650mm (pic. 3).
4. Drill 4 holes according to the marked positions, insert the wall plugs, then screw on the upper 2
screws leaving 2 mm space between the wall and the screw head (pic. 4).
5. Hang the range hood on the upper 2 screws, then secure the range hood by tightening the lower
two screws from the inside of the hood (pic. 5).
6. Take off the aluminum lters and install the oil cup (g. 6).Fix the Ducting Tube by using tape or
clamp (make use of the Φ150mm to Φ120mm adapter if needed) (pic. 7)
7. (Optional) Attach the motor cover onto the top of the range hood (pic. 8).
8. Remove all protective lms after installation (pic. 9).
598/698/798/898
2
1
3
>150
600-1170 600-1170
180
200
22050
30
650
(Electric Hob)
750
(Gas Hob)
650
(Electric Hob)
750
(Gas Hob)
598/698/798/898 598/698/798/898
598/698/798/898
The ducting tube is concealed in the cabinet. The ducting tube is not concealed in the cabinet.
Unit: mm Unit: mm
Unit: mm
30 600
277
356/457
295
272
150
309
Max 1170
2900
-5
2900
-5

P.8

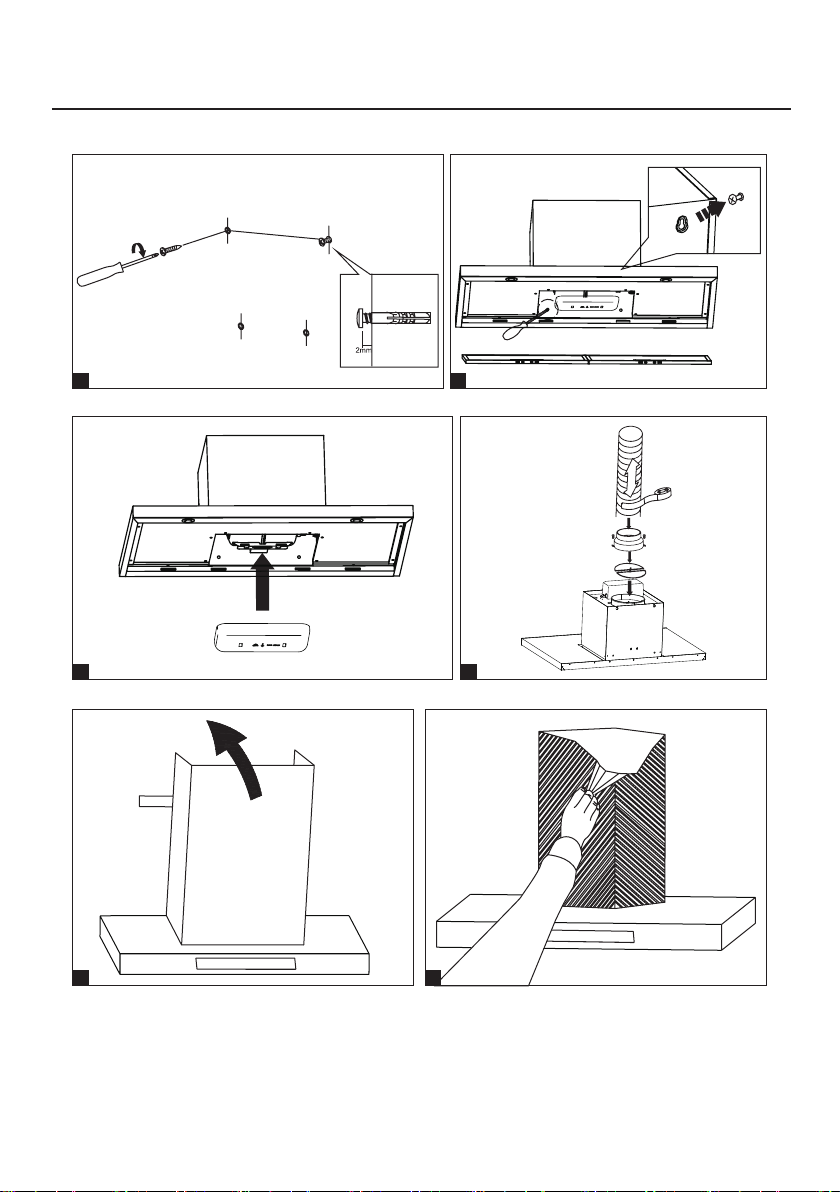

7
7
6
98
Installation Instructions
4 5

P.9
Operation Instructions
Before Use
Switch on the appliance at the switched fused connection unit. The appliance is ready for use.

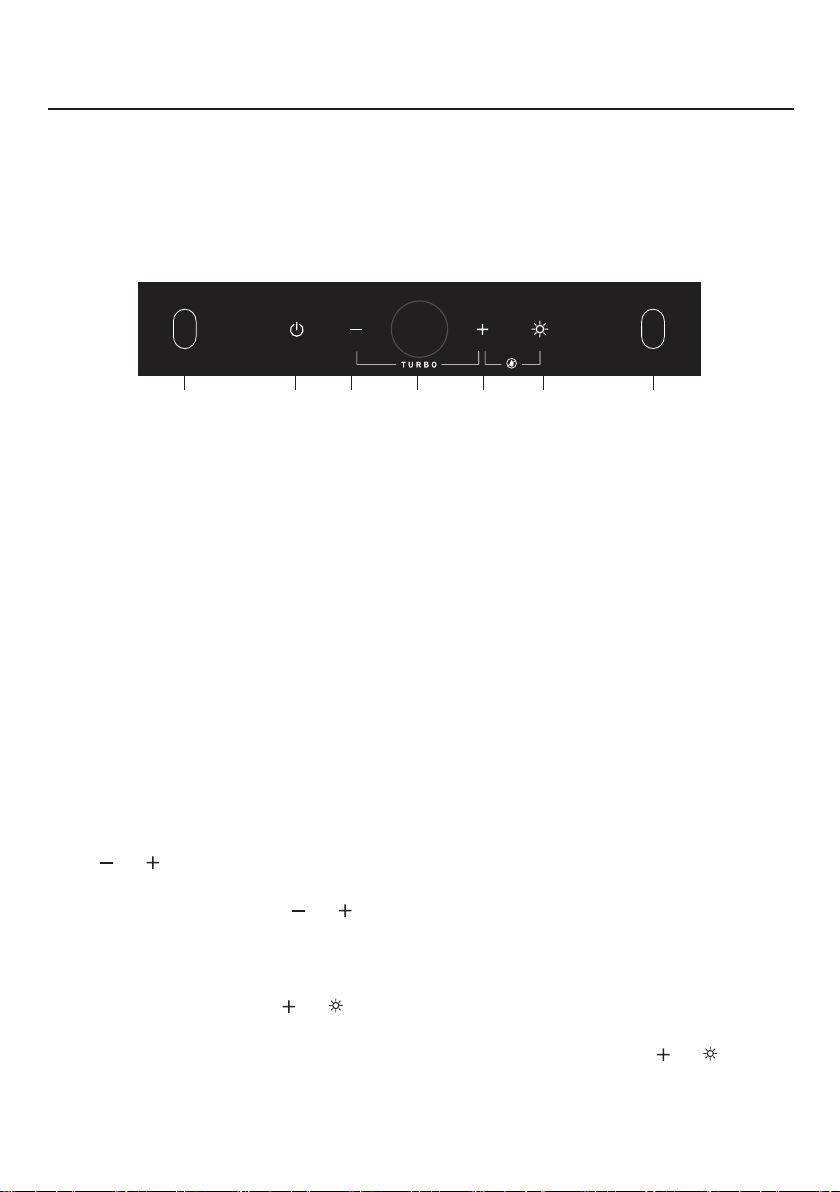

Control Panel
1. Gesture Control Sensor
2. On/ Off Key
• Tap once to turn on the product.
• When the product is operating, tap once to enter 90-second delay shutdown; anytime during the
90-second delay shutdown period, tap one more time and the product will shut down
immediately. During the 90-second delay shutdown period, LED display will blink and show the
current gear level, and the little round dot in the lower right corner will light up constant, signaling
that 90-second delay shutdown is in progress.
3. Gear Down Key
Tap to gear down one level.
4. LED Display
5. Gear Up Key
Tap to move up one level.
6. Lighting Key
Tap to turn on or turn off LED light.
Turbo Boost Function
Tap and simultaneously to activate Turbo Boost Mode, LED display blinks HF; product will run
in turbo for 3 minutes, after which it will automatically return to the previous gear level. To exit Turbo
Boost Function immediately, tap and simultaneously again, product will immediately return to the
previous gear level.
Self-cleaning Function
In Standby Mode, tap and hold and simultaneously for 3 seconds to activate Self-Cleaning
Function, LED display blinks HH; electric heater will heat up for 10 minutes to melt grease, then motor
will run for 1 minute to dissipate the melted grease. During self- cleaning, tap and hold and
simultaneously for 3 seconds again to manually turn off Self-Cleaning Function.
2 11 3 5 64

P.10
Operation Instructions
Gesture Control
Within a distance of 8cm from the front of the control panel, wave to turn on or turn off the hood. When
waving the gesture range needs to cover the entire control panel.
Waving from left to right
Turn on the hood, the motor and the lights turn on, the motor remains in the memory of the last
shutdown gear. When hood is turned on, wave from left to right to move up one level.
Waving from right to left
Turn off the motor and lights.

P.11

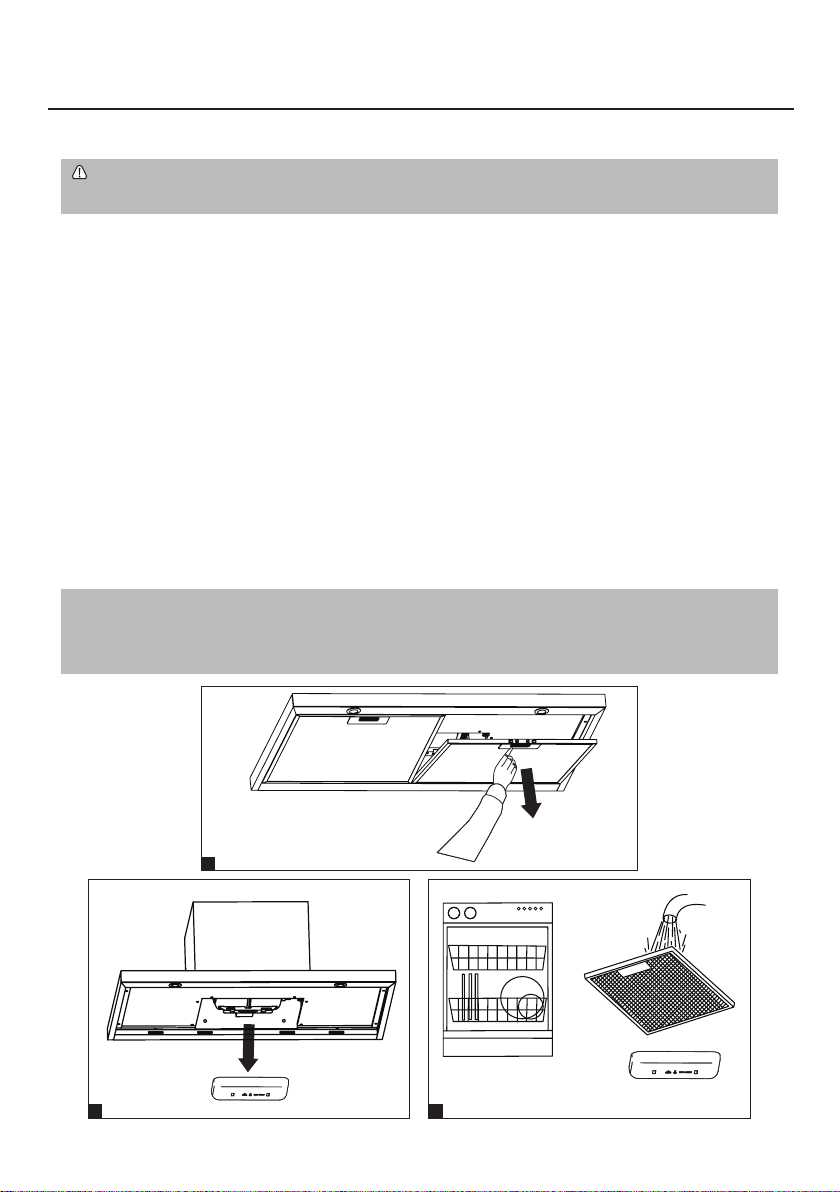

Care & Maintenance
Daily Cleaning
In order to prevent the oil cup from overowing, it is recommended to clean the oil cup at least once a
week; if the product is used frequently, the cleaning frequency of the oil cup should be increased.
Cleaning of Oil Cup and Aluminum Filter
To avoid re, please clean the oil cup thoroughly every month or after using the self-cleaning function
and clean the aluminum lters every week. To do this, remove the oil cup and soak it in hot water and
detergent for an hour. If using a dishwasher, do not exceed 65℃.
1. Press the lock catch in front of the aluminum lter to remove the lter. Make sure to hold onto the
aluminum lters to prevent it from falling (pic. 1).
2. Pull the oil cup slightly outwards and remove the oil cup (pic. 2).
3. Oil cup and aluminum lters can be soaked in hot water with neutral detergent for 1 hour, then
rinse clean and air dry completely before reinstalling. The aluminum lters can also be placed in
the dishwasher. DO NOT use water hotter than 65°C to soak or wash the aluminum lters.
Note:
Increase the oil cup cleaning frequency if the hood is used for more than 2 hours a day. Always use
genuine lters from the manufacturer.
WARNING!
Turn off the product and switch off the switched fuse connection unit before cleaning & maintenance.
2 3
1
MAX.65℃

P.12
Troubleshooting
Recycling & Disposal
Problem
Excessive vibration
Possible Cause Solution
The product is not installed properly
The fan blade is damaged
The fan blade is jammed
Light bulb blown
Speed may be too low
Top vent might be obstructed
The fan motor is not xed tightly
The motor is damaged
Power connection loose
Distance between the product and the hob is
too great
Optional vent kit might be twisted
Light on but motor
does not work
Both light and motor
do not work
Suction performance
reduced
Check to make sure
the product is properly
installed
Switch off the product,
contact Customer
Service & Repair Centre
Check power connection
Ensure that the vent kit is
tted to the manufacturer
instructions
Clear any obstruction
Select a higher speed
Readjust the distance to:
Gas hobs: 750mm
Electric hobs: 650mm
Waste electrical products not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
The symbol on the product or its packaging indicates that this product
should be handed over to an electric and electronic equipment collection
point for recycling.
On ensuring that this product is disposed of correctly, you will help to avoid
possible negative consequences for the environment and public health,
which could occur if this product is not handled correctly. To receive
more detailed information about recycling this product, contact your local
government, domestic waste disposal services or the outlet where the
product was bought.

P.13
Technical Specication
Model
Voltage / Frequency
Power (Max)
Lighting
Motor Speed
Exhaust Flow
Product Dimensions
(With motor, not
including motor cover)
RDS-6356
220 - 240 V ~ 50 / 60 Hz
303 W
1.5W*2
Max. 2,800 RPM
1,000 m3/h
(H) 320 mm
(W) 598 mm
(D) 356 mm
8 kg
RDS-6457
220 - 240 V ~ 50 / 60 Hz
303 W
1.5W*2
Max. 2,800 RPM
1,000 m3/h
(H) 320 mm
(W) 598 mm
(D) 457 mm
9 kg
Model
Voltage / Frequency
Power (Max)
Lighting
Motor Speed
Exhaust Flow
Product Dimensions
(With motor, not
including motor cover)
Net Weight
RDS-7356
220 - 240 V ~ 50 / 60 Hz
303 W
1.5W*2
Max. 2,800 RPM
1,000 m3/h
(H) 320 mm
(W) 698 mm
(D) 356 mm
8.5 kg
RDS-7457
220 - 240 V ~ 50 / 60 Hz
303 W
1.5W*2
Max. 2,800 RPM
1,000 m3/h
(H) 320 mm
(W) 698 mm
(D) 457 mm
9.5 kg
Model
Voltage / Frequency
Power (Max)
Lighting
Motor Speed
Exhaust Flow
Product Dimensions
(With motor, not
including motor cover)
Net Weight
RDS-8356
220 - 240 V ~ 50 / 60 Hz
303 W
1.5W*2
Max. 2,800 RPM
1,000 m3/h
(H) 320 mm
(W) 798 mm
(D) 356 mm
9 kg
RDS-8457
220 - 240 V ~ 50 / 60 Hz
303 W
1.5W*2
Max. 2,800 RPM
1,000 m3/h
(H) 320 mm
(W) 798 mm
(D) 457 mm
10.3 kg
Net Weight

P.14
• The exhaust ow is affected by factors such as environment, temperature, air pressure, usage, etc.
• Specication is subject to change without prior notice.
• If there is any inconsistency or ambiguity between the English version and the Chinese version, the
English version shall prevail.
• Refer to www.germanpool.com for the most update version of the user manual.
Model
Voltage / Frequency
Power (Max)
Lighting
Motor Speed
Exhaust Flow
Product Dimensions
(With motor, not
including motor cover)
Net Weight
RDS-9356
220 - 240 V ~ 50 / 60 Hz
303 W
1.5W*2
Max. 2,800 RPM
1,000 m3/h
(H) 320 mm
(W) 898 mm
(D) 356 mm
9.5 kg
RDS-9457
220 - 240 V ~ 50 / 60 Hz
303 W
1.5W*2
Max. 2,800 RPM
1,000 m3/h
(H) 320 mm
(W) 898 mm
(D) 457 mm
11 kg
Technical Specication

P.15
目錄
警告及注意事項 16
產品結構 18
安裝說明 19
使用說明 22
清潔與維護 23
故障檢修 24
回收和處理 24
技術規格 25
保用條款 27

P.16
警告及注意事項
為安全起見，初次使用產品前請先細說本說明書，並保存說明書，以便作參考之用。本產品
只供家居使用。請必須依照本說明書內的指示安裝及操作。
警告！
• 所有安裝工作必須由合格人員或合格的電工來執行。
• 必須嚴格按照製造商的說明，由具有適當資格的人員正確安裝本設備。 

• 本設備符合所有當前的安全規例，但製造商必須強調，此合規性不能防止設備表面在使用過程
中發熱並在運行過程中保持高溫。
• 在使用過程中，易觸及部件可能會變熱，幼兒應遠離，並應小心避免觸摸設備。
• 製造商強烈建議將本設備放在嬰兒和小孩接觸不到的地方。
• 如果對本產品進行安全監督或指導並瞭解其危害，則可以由8歲以上的兒童以及肢體、感覺或
精神能力較弱或缺乏經驗和知識的人員使用本產品。兒童不得玩耍本產品，除非8歲以上的兒
童並在有成人監督的情況下，否則兒童不得進行清潔和維護。
• 請將本產品及其電源線放在8歲以下兒童觸摸不到的地方。
• 定期檢查電源插頭和電源線是否損壞。如果電源線損壞，則必須由製造商、其服務代理商或具
有類似資格的人員進行更換，以免發生危險或傷害。
• 請勿使電源線接觸設備的高溫部件。
• 確保電源線沒有被夾在設備下面或內部，並避免損壞電源電纜。
• 請勿將本設備安裝在潮濕的地方或容易漏水的地方，例如水槽下方或附近。萬一漏水，請讓機
器自然乾燥。
警告！
• 未按照這些說明安裝螺絲或固定裝置可能會導致電氣危險。
• 同時運行抽油煙機和帶電的設備時，房間內的負壓不得超過4Pa。  

• 請妥善處理包裝材料。
• 請勿在設備附近使用易燃噴霧劑。
• 建議在使用和清潔過程中要格外小心。仔細閱讀本設備的清潔和保養部分。
• 請勿使用蒸氣清潔器。
• 本設備不能通過外部計時器或單獨的遠端控制系統進行操作。
• 本設備僅供家庭使用。

P.17
警告及注意事項
警告！
• 有關煙氣出口的資訊，請參閱當地法例。請勿將通風櫃連接至通風或熱風管道。請與地方當局
確認房間通風是否適當，並確保房間中設備的最大抽氣流量不超過4Pa。如果將抽油煙機與以
天然氣或其他燃料運行的器具同時使用，則房間必須有足夠的通風，不得將空氣排放到用於排
出燃燒氣體或其他燃料的煙道中。必須遵守有關抽氣的規定。
• 連接抽油煙機之前，請關閉電源，並檢查提供的電壓和頻率是否與設備銘牌上指示的電壓和頻
率一致。
• 在靜電釋放（例如閃電）期間，通風櫃可能會停止工作。此安全無損壞風險。請關閉抽油煙機
的電源，一分鐘後重新連接。     

• 為避免火災危險，請定期清潔金屬過濾網，並密切觀察和調節盛有熱油的鍋具。
• 如果抽油煙機有損壞或瑕疵，請不要使用，並聯絡客戶服務中心。
• 禁止在本設備下方進行火焰狀烹飪。
• 安裝設備時，請確保遵守以下規定，爐具頂部與抽油煙機底部之間的距離為：燃氣
爐：750mm；電爐：650mm。
• 對於因誤用或錯誤安裝本設備而造成的人身或財產損失，製造商不承擔任何責任。
• 關於安裝方面的資訊，請參閱本手冊的以下段落。   

警告！
如果不按照指示進行清潔，則有觸電和火災的危險。

P.18
產品結構
1.裝飾煙通（另購）
2.LED照明燈
3.過濾網（內附集油杯）
4.控制面板
5.機身
1.
RDS-6356/RDS-6457
RDS-7356/RDS-7457
RDS-8356/RDS-8457
RDS-9356/RDS-9457
2 23 4 3 5
2 23 4 33 5

P.19
1
7
23456
安裝說明
安裝前注意事項
• 為避免在使用時存在危險，請務必正確安裝此抽油煙機，並仔細閱讀安全說明，以避免誤操作
和危險，請保留此說明書以備將來參考，並將其傳遞給任何使用者。
• 檢查包裝，並確保列出了所有零件。
• 打開抽油煙機包裝後，請檢查抽油煙機是否完好無損。如有疑問，請勿使用該設備。
• 如果本產品包含玻璃，請小心安裝或搬運，以免造成人身傷害或產品損壞。
• 請確定適合安裝產品的位置。
• 在本設備上的規格銘牌顯示所有訂購更換零件所需的識別資訊。
• 如果您出售、送贈或丟棄本設備，請確保將本說明書交到新使用者，以便熟悉本設備及其安全
警告。
安裝工具
1.十字螺絲批
2.水平尺
3.拉尺
4.電鑽
5.電鑽頭(Ø8mm)
6.鉛筆
7.絕緣膠帶
8.轉接器(Ø150mm轉Ø120mm)及M4*8螺絲2顆
8

P.20
安裝說明
安裝步驟
1. 只能選擇外排出風方式；未按照這些說明安裝螺絲或固定裝置可能會導致電氣危險。
2. 在牆上標記孔的位置（如圖2）；隨附的牆壁插頭膠塞僅適用於實心牆壁。當固定在任何其他
類型的牆壁上時，請使用合適的替代固定裝置。
3. 爐具頂部與抽油煙機底部之間的距離為：燃氣爐：750mm；電爐：650mm。（如圖3）
4. 在牆上標記好的位置鑽孔，打入膠塞並固定上端兩顆螺絲，螺絲頭離牆壁的距離保持2mm左
右。（如圖4）
5. 在掛好抽油煙機後，再鎖緊內部2顆安全螺絲。（如圖5）
6. 打開抽油煙機鋁質濾網，安裝油杯（如圖6）。用膠帶或卡箍固定120mm或150mm的排風管，如有
需要可使用Ø150mm轉120mm轉接器。（如圖7）
7. 如果有選配裝飾管，將其放在抽油煙機頂部。（如圖8）
8. 去除機身所有保護膜後，安裝完成。（如圖9）
598/698/798/898
2
1
3
>150
600-1170 600-1170
180
200
22050
30
650
(Electric Hob)
750
(Gas Hob)
650
(Electric Hob)
750
(Gas Hob)
598/698/798/898 598/698/798/898
598/698/798/898
Unit: mm Unit: mm
Unit: mm
30 600
277
356/457
295
272
150
309
Max 1170
2900
-5
2900
-5
抽煙管隱藏在廚櫃內 抽煙管非隱藏在廚櫃內
