GFA KE 9.24-25,00 Ex User manual

f
Installation Instructions
ELEKTROMAT
KE 9.24-25,00 Ex
Model: 10002617 00001
-en-
Status: 26.03.2021

2
GfA ELEKTROMATEN GmbH & Co. KG
Wiesenstraße 81
D-40549 Düsseldorf
www.gfa-elektromaten.de
[email protected]

3
Table of contents
1General safety information .............................................................................................. 4
Safe operation ......................................................................................................................... 4
2Technical data of the drive unit ....................................................................................... 6
3Technical data of the gearbox ......................................................................................... 7
4Technical data of the motor ............................................................................................. 8
5Technical data of the terminal box ................................................................................... 9
6Technical data of limit switch / emergency manual operation switch ............................... 9
7Mechanical installation .................................................................................................. 10
8Electrical installation ..................................................................................................... 15
9Limit switch setting ........................................................................................................ 17
10Motor connection .......................................................................................................... 19
11Limit switch connection ................................................................................................. 19
12Emergency manual operation (emergency hand crank) ................................................ 20
13Completion of initial operation / inspection / operation ................................................... 22
14Declaration of conformity, Motor .................................................................................... 26
15Declaration of conformity, Accessories .......................................................................... 30
16Declaration of incorporation / Declaration of conformity ................................................. 32

Symbols
Warning - Potential injury or danger to life!
Warning - Danger to life from electric current!
Note - Important information!
▶ Requirement - Required action!
Schematic representations are based on product examples. Deviations from delivered
products are possible.

4
1General safety information
Specified use
The drive unit is intended for vertically moving doors. The force is transmitted using a
chain. Doors that must be secured against dropping require a separate safety brake. The
drive unit can be used in hazardous areas thanks to its explosion protection according to
ATEX 2014/34/EU.
The drive unit must be protected against moisture and aggressive environmental
conditions (such as corrosive substances). The drive units are only suitable for indoor use.
Appropriate protective measures must be taken for outdoor installation. The values
specified in the technical data of the drive unit must not be exceeded. The safe operation
can only be ensured if used as specified.
Target audience of these installation instructions
These installation instructions are geared towards qualified persons trained in the handling
of door systems. Expert knowledge, relevant skills and practical experience are what set
apart qualified persons. They are capable of safely carrying out the tasks involving
installation, maintenance and modernisation according to the instructions.
Safe operation
The safe operation of the product can only be ensured if it is used as specified. Follow the
installation instructions. Observe all specifications, especially warnings, when installing the
product in the overall system. GfA is not liable for damage resulting from non-observance
of the installation instructions. The resulting overall system must be reassessed for its
safety in accordance with applicable standards and directives (e.g. CE marking). These
installation instructions refer only to a part of the overall system and are not sufficient as
the sole instructions for the overall system. The installer of the system must prepare the
instructions for the overall system.
We recommend entering the danger area of the system only when the drive unit is at a
standstill.

5
Warning - Failure to follow these installation instructions may result in severe injury or death.
Please read these instructions before using the product.
Keep these instructions handy.
Include these instructions when passing on the product to third parties.
Warning - Danger from improper use of the product!
Do not let children operate the product unsupervised or use as a toy.
Warning - Danger to life from incorrect installation!
Work carried out improperly may result in death or severe injury from electrical
current or falling parts.
Allow only competent people to carry out the work.
Disconnect all cables from the power supply.
Observe valid regulations and standards.
Use suitable tools.

6
2Technical data of the drive unit
Explosion protection II 2G Ex db eb h IIC T3 Gb
II 2D Ex tb h IIIC 190°C Db
Output torque 90 Nm
Output speed 24 rpm
Output / hollow shaft 25,00 mm
Supply voltage 3~ 400 V
Operating current 1,11 A
Operating frequency 50 Hz
Power factor cos φ 0,69
Maximum movements per hour 12 h-1
Manual force, emergency manual operation 62 N
Protection class IP 65
Limit switch range
(maximum revolutions of the output / hollow shaft) 20
Temperature range -10 / +40 °C
Installation height < 1000 m
Components used
Gearbox SG 50 60.T4
Motor U/ENFY 71/4C-11S
Terminal box 8146/1041
Limit switch / emergency manual operation switch 07-2511

7
3Technical data of the gearbox
Series SG 50-60.T4
Manufacturer GfA
Explosion protection II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC 130°C Db
Max. output torque 90 Nm
Max. output speed 30 rpm
Shaft centre distance 50 mm
Transmission ratio 1:60
Temperature range -10 / +40 °C
Protection class IP 65

8
4Technical data of the motor
Type U/ENFY 71/4C-11S
Manufacturer ATB Austria
Explosion protection II 2G Ex e IIC T4 Gb
II 2D Ex tb IIIC T 120°C Db
Certificate of verification PTB 01 ATEX 3221/24
PTB 01 ATEX 3221/25
Supply voltage 230 / 400 +/- 5% V
Operating current 1,92 /1,11 A
Operating frequency 50 Hz
Power 0,37 kW
Power factor cos φ 0,69
Motor speed 1410 rpm
Motor torque 2,5 Nm
Operating mode S1
Protection class IP 65
Temperature class (G)
Temperature class (D) T3 / T4 T 120 °C
Heating time tE (G)
Heating time tE (D) 30 / 16 50 s
IA / IN ratio 4,8
Temperature range -20 / +40 °C

9
5Technical data of the terminal box
Type Ex e 8146/1041
Manufacturer Stahl
Explosion protection II 2G Ex e II T6
II 2D Ex tD A21 IP 66 T80°C
Certificate of verification PTB 01 ATEX 1016
Supply voltage 250 max. 1100 V
Terminal cross-section 2.5 mm2
Temperature range T6: -20 / +40
T5: -20 / +55 °C
Protection class IP 66
6Technical data of limit switch / emergency manual operation switch
Type 07-2511-113061G
Manufacturer Bartec
Explosion protection II 2G Ex d IIC T6
II 2D Ex tD A21 IP 66 T80°C
Certificate of verification EPS 14 ATEX 1766 X
Supply voltage 400 V
Temperature range -20 / +40 °C
Protection class IP 66
Attention – Damage to components!
The maximum allowable current applied to the limit switches is
2A 400V for AC-15 and 0.15 250V for DC-13.

10
7Mechanical installation
Warning – Explosion hazard!
 Check the atmosphere for explosion hazards before commencing installation tasks.
Requirements
The permissible loads on walls, mountings, connection and transmission elements must not
be exceeded even for maximum holding or locking torque (▶ observe technical data).
Connection elements
▶ Use self-locking
connection elements with
a minimum strength of
800 N/mm2 (8.8).
▶ Use a screw that
precisely fits the hole.
▶ Use adequately
dimensioned washers for
elongated holes.
BAGAB00002_Z002 BAGAB00003_Z002
3 : 1

11
Permissible mounting positions
BAGAC01203_Z002
Transmission elements
▶ Correctly fit the sprocket. ▶ Correctly position the
sprockets.
▶ Correctly tension the
chain.
BAGAB00021_Z001
BAGAB00022_Z001

12
Mounting
4 boreholes are provided for mounting.
BAGAD01201_Z003

13
Installation
The following descriptions refer to a door which is not further defined. The door
manufacturer's specifications must also be observed.
Warning – Injury or danger to life possible!
Use a lifting device with sufficient load-carrying capacity for installation tasks.
▶ Completely grease the output shaft.
BAGAE01201_Z001

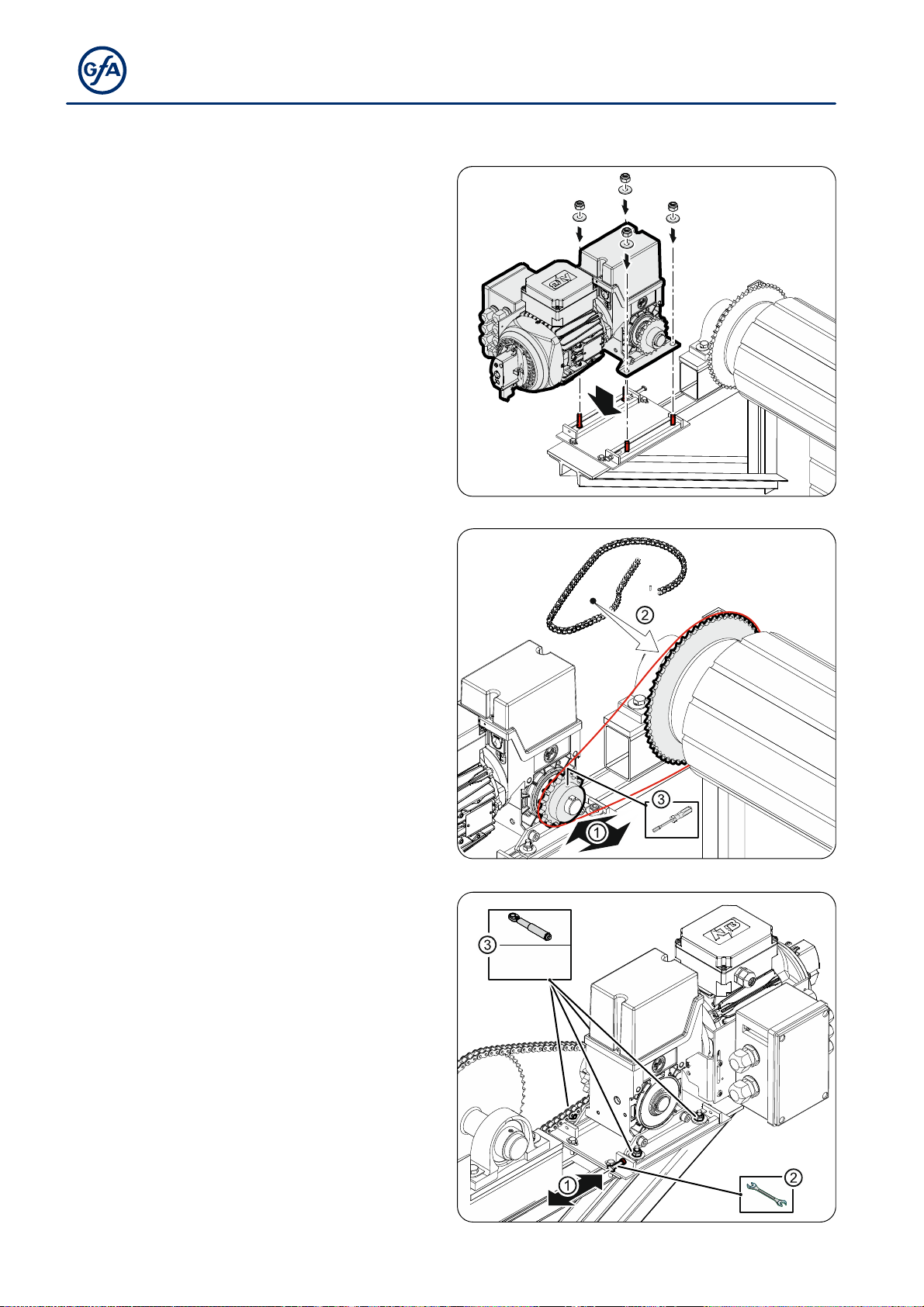

▶ Mount (①) and fixate (②) the sprocket. Do
not yet tighten. Mount the output shaft at
the right- or left-hand side (③) and fixate it
(④).
BAGAE01210_Z001

14
▶ Mount the drive unit. Do not yet tighten.
BAGAE01211_Z001
▶ Correctly position the sprocket (①). Mount
the chain (②). Fixate the sprocket (③).
BAGAE01212_Z001
▶ Correctly tension the chain (①/②).
Tighten all connection elements (M10) with
45 Nm (③). Install all further connection
elements according to the specifications of
the door manufacturer.
BAGAE01213_Z001
45 Nm

15
8Electrical installation
Warning – Danger to life from electrical shock!
Disconnect the cables (mains OFF) and check that the supply is off
Observe the applicable regulations and standards
Ensure proper electrical connection
Use suitable tools

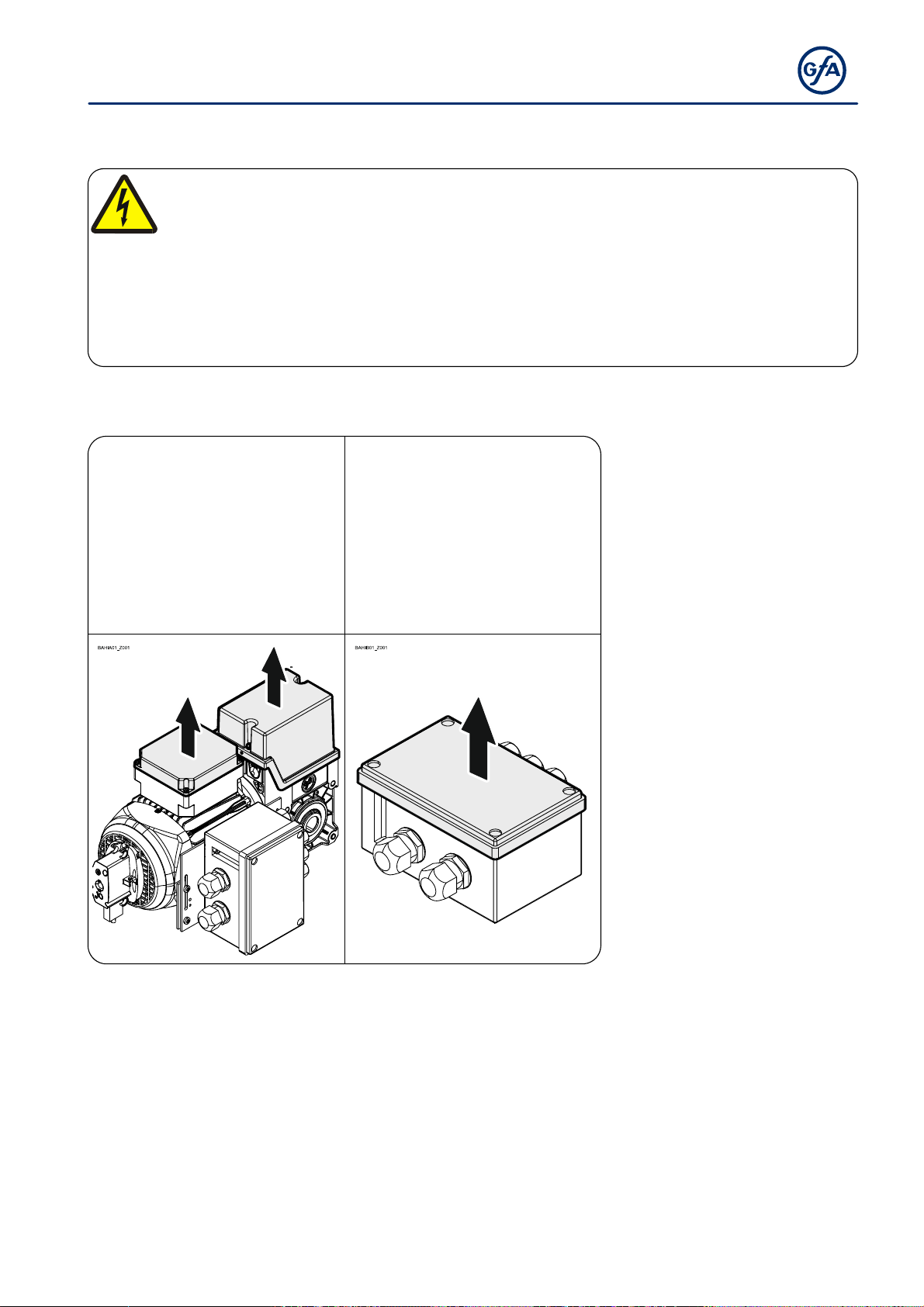

Carrying out the electrical installation
Remove the cover. Remove the cover.
Connect motor/limit switch connection cable

16
Protection against overload
Motor protection switch / motor protection relay mains operation
The "Ex" motor must be protected against overload by means of a motor protection switch or
a motor protection relay. Only use motor protection relays with manual reset. Short-circuit
protection is also required.
The excess current setting must be selected such that the motor is disconnected from the
mains within the heating time tE. The actual tripping time tA at a relative operating current of IA
/ IN must be calculated on the basis of the tripping characteristic of the excess current relay. It
must be ensured that tA < tE is given.
Completing the electrical installation
Install cable entries and/or cable glands.

17
9Limit switch setting

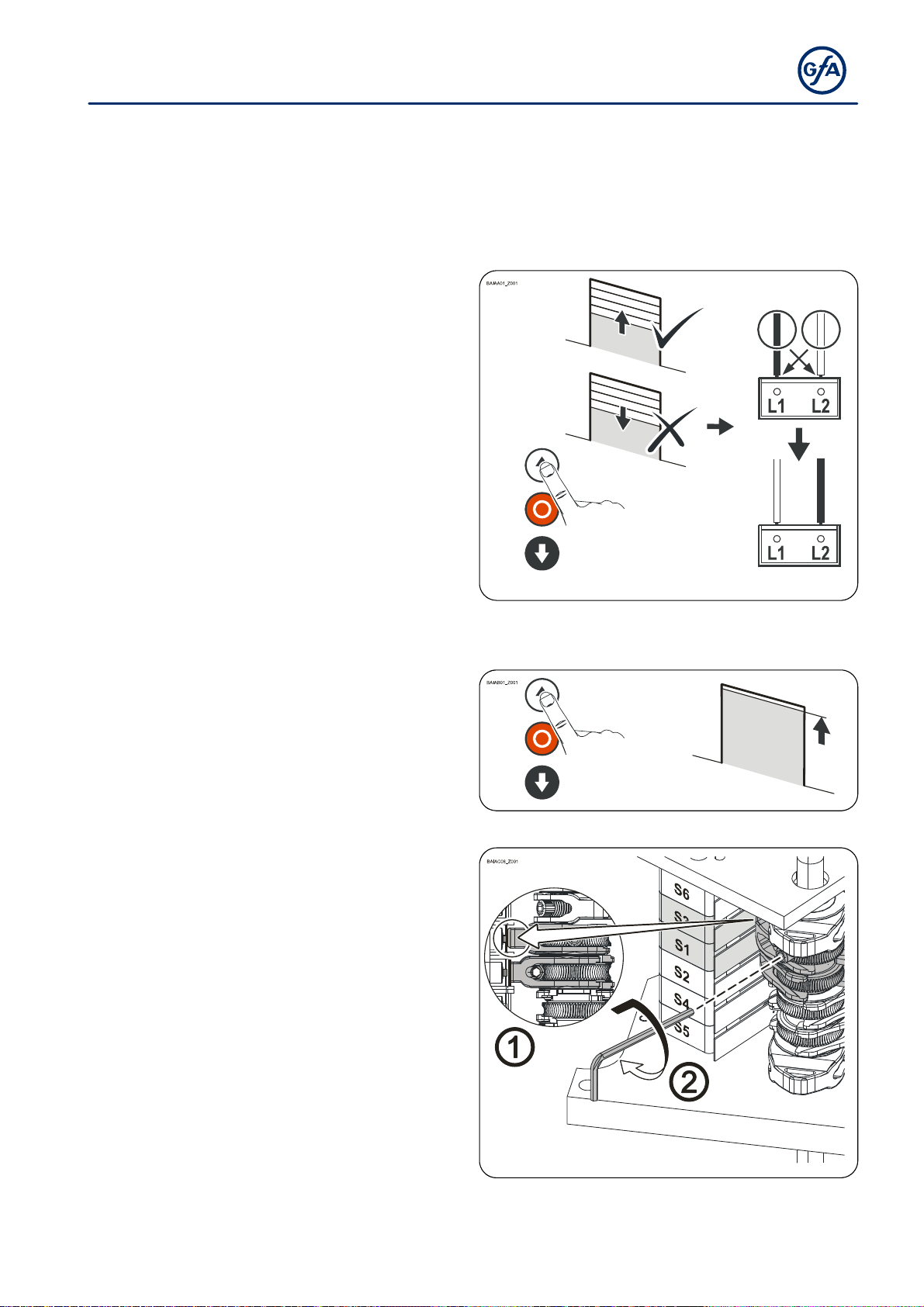

The limit switch setting defines the final limit positions OPEN and CLOSE.
Requirement
The door should open by pressing the OPEN
push-button of the control. If the door closes,
L1 and L2 must be swapped in a de-
energised state.
Setting of OPEN final limit position
Open to the desired OPEN final limit position
using the OPEN push-button.
Turn the cam of the S3 OPEN limit switch to
the centre of the switch plunger ①.
Tighten the screw of the cam ②.

18
Check the door position:
Close the door ① until the cam is released
and open it again ② until the OPEN final limit
position is reached.
The OPEN final limit position can be
corrected by following the fine adjustment
procedure. Check the door position after each
correction.
The S1 EMERGENCY OPEN limit switch is preset by the setting of the OPEN final limit
position. The door must stop without posing any risks should the rotating direction be
incorrect or should there be a fault with the S3 OPEN limit switch. Follow the fine adjustment
procedure to correct the switching point of the limit switch as needed.
Setting of CLOSE final limit position and auxiliary limit switch
The same setting procedure applies as for setting the OPEN final limit position.

19

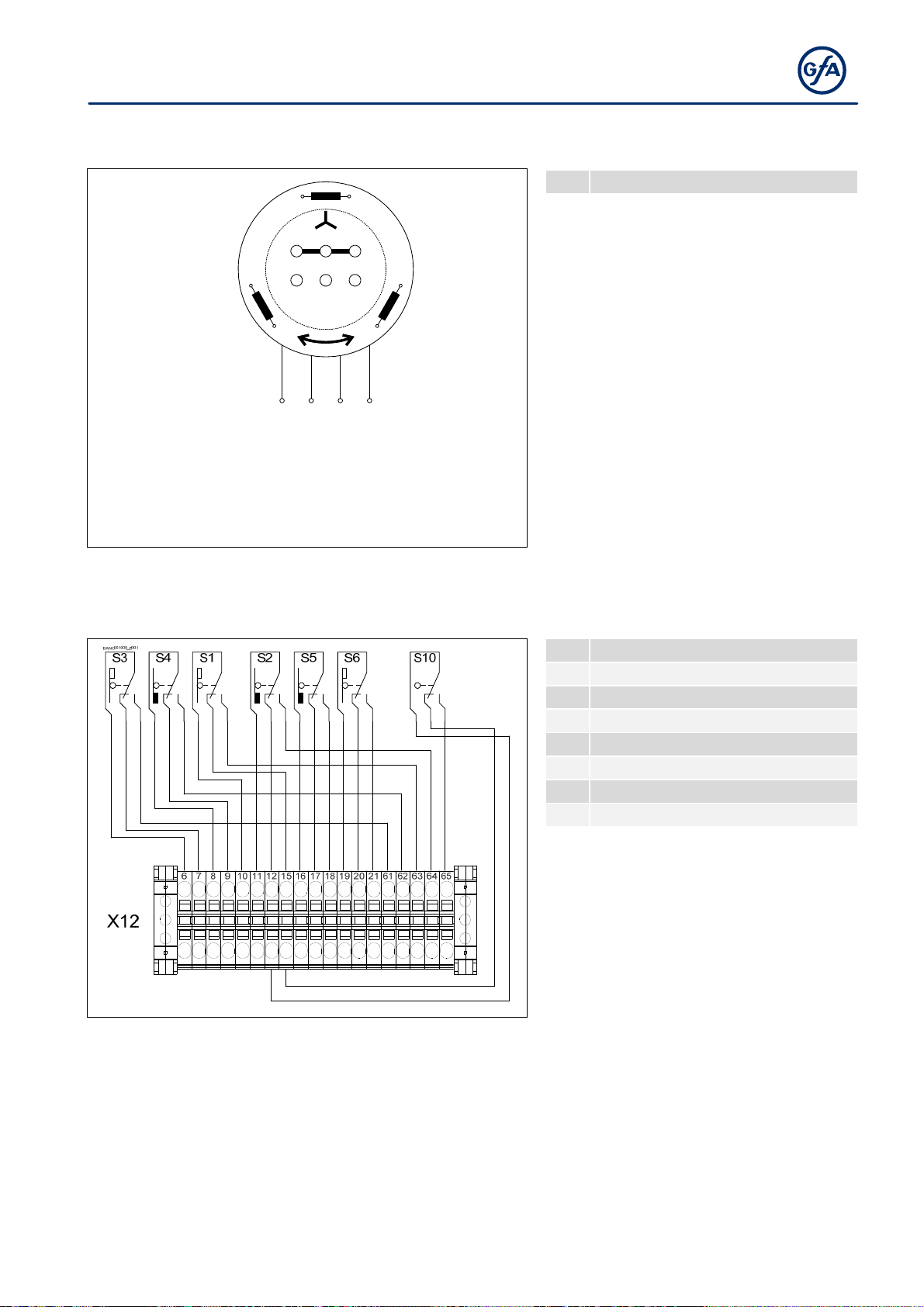

10 Motor connection
BAMG020000_Z001
U1 U2
W1
W2 V1
V2
UV WPE
M1
U2
W2
U1 V1 W1
V2
M1 Motor
11 Limit switch connection
S10 Emergency manual operation
X12 Terminal strip
S1 Emergency OPEN limit switch
S2 Emergency CLOSE limit switch
S3 OPEN limit switch
S4 CLOSE limit switch
S5
A
dditional limit switch
S6
A
dditional limit switch

20
12 Emergency manual operation (emergency hand crank)
The emergency manual operation is designed for opening or closing the door without power
supply. Its activation interrupts the control voltage. Electrical operation is no longer possible.
Warning – Injuries due to incorrect operation or falling objects!
Switch off voltage.
Adopt a secure position.
For drive units with brake, the emergency manual operation must be carried out
against the closed brake.
Warning - Danger of the door dropping!
If you need to apply more than the permissible force of 390N (according to DIN EN
12604/DIN EN 12453) to move the door by emergency manual operation, this
indicates a stalling on the drive unit or door. Releasing the stalling may cause the
door to drop.
Adopt a secure position.
For drive units with brake, the emergency manual operation must be carried out
against the closed brake.
Caution – Damage to components!
Do not move the door beyond the final limit positions.
