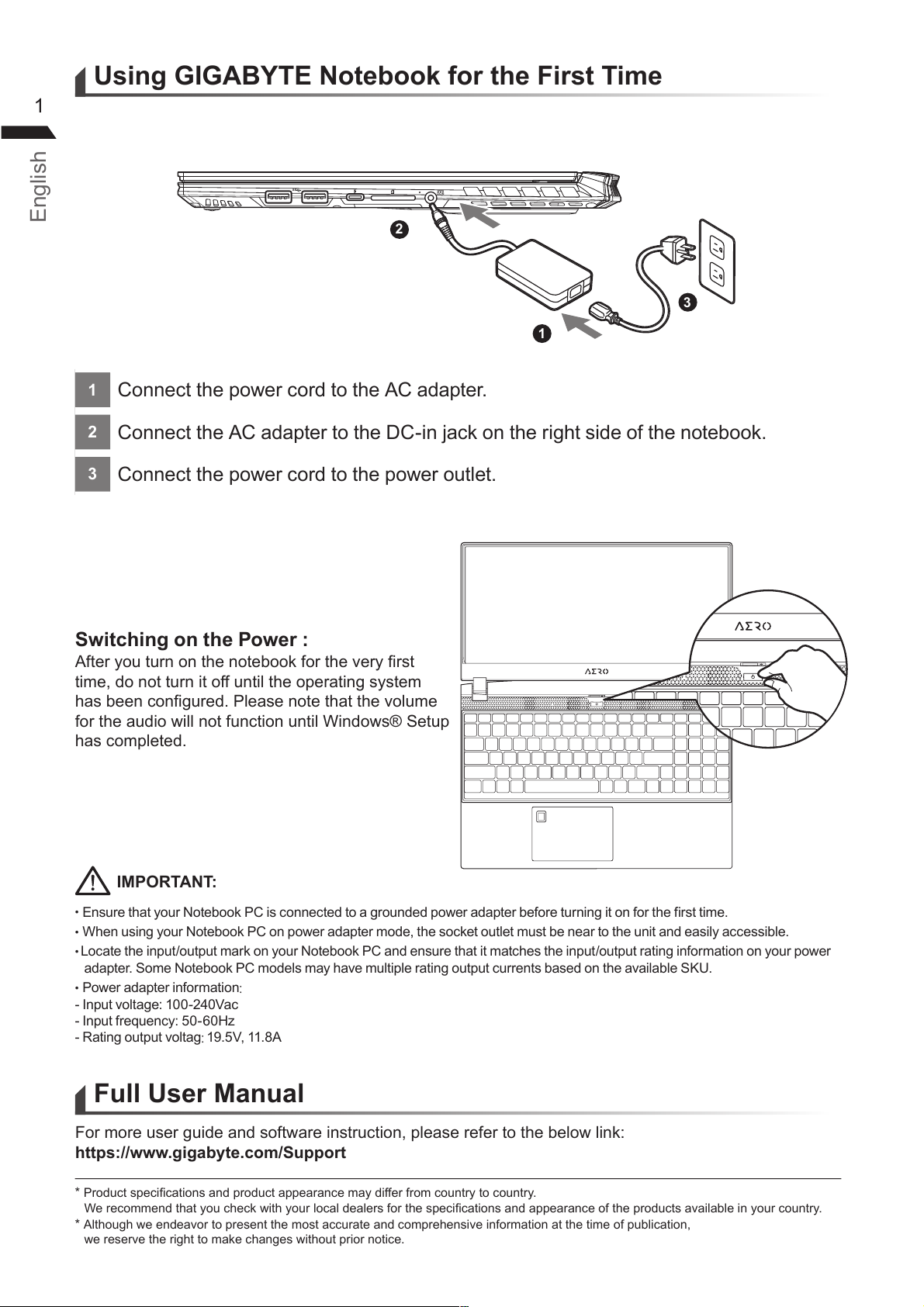

Gigabyte Aero 15 User manual



󶯸󺂴󱙆󳽳
󶘮󱠅󱙆󳽳
󽋋󺫜󼌣




󴀩󴉆󸑤

English
1
1Connect the power cord to the AC adapter.
2Connect the AC adapter to the DC-in jack on the right side of the notebook.
3Connect the power cord to the power outlet.
Switching on the Power :
After you turn on the notebook for the very rst
time, do not turn it off until the operating system
has been congured. Please note that the volume
for the audio will not function until Windows® Setup
has completed.
● Ensure that your Notebook PC is connected to a grounded power adapter before turning it on for the first time.
● When using your Notebook PC on power adapter mode, the socket outlet must be near to the unit and easily accessible.
● Locate the input/output mark on your Notebook PC and ensure that it matches the input/output rating information on your power
adapter. Some Notebook PC models may have multiple rating output currents based on the available SKU.
● Power adapter information
- Input voltage: 100-240Vac
- Input frequency: 50-60Hz
- Rating output voltag19.5V, 11.8A
DCIN
SS
1
2
3
For more user guide and software instruction, please refer to the below link:
https://www.gigabyte.com/Support
Using GIGABYTE Notebook for the First Time
Full User Manual
IMPORTANT:
* Product specications and product appearance may differ from country to country.
We recommend that you check with your local dealers for the specications and appearance of the products available in your country.
* Although we endeavor to present the most accurate and comprehensive information at the time of publication,
we reserve the right to make changes without prior notice.

English
2
● Do not remove the built-in lithium battery.
For any service needs, please contact your local GIGABYTE Authorized Service Center.
● Do not install the Notebook PC on a slant or a place prone to vibrations, or avoid using the Notebook PC in that location for
a long time.This increases the risk that a malfunction or damage to the product will occur.
● Do not store and use Notebook PC in direct sunlight or the location where temperatures exceed 112°F (45°C) such
as inside a vehicle.There is a danger of Lithium-ion battery expansion and aging.
● Do not use the Notebook PC in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not
use it in a location such as room with floor heating as it may cause the computer to overheat.Take care that the Notebook
PC vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, it may be
dangerous and cause the Notebook PC to overheat.

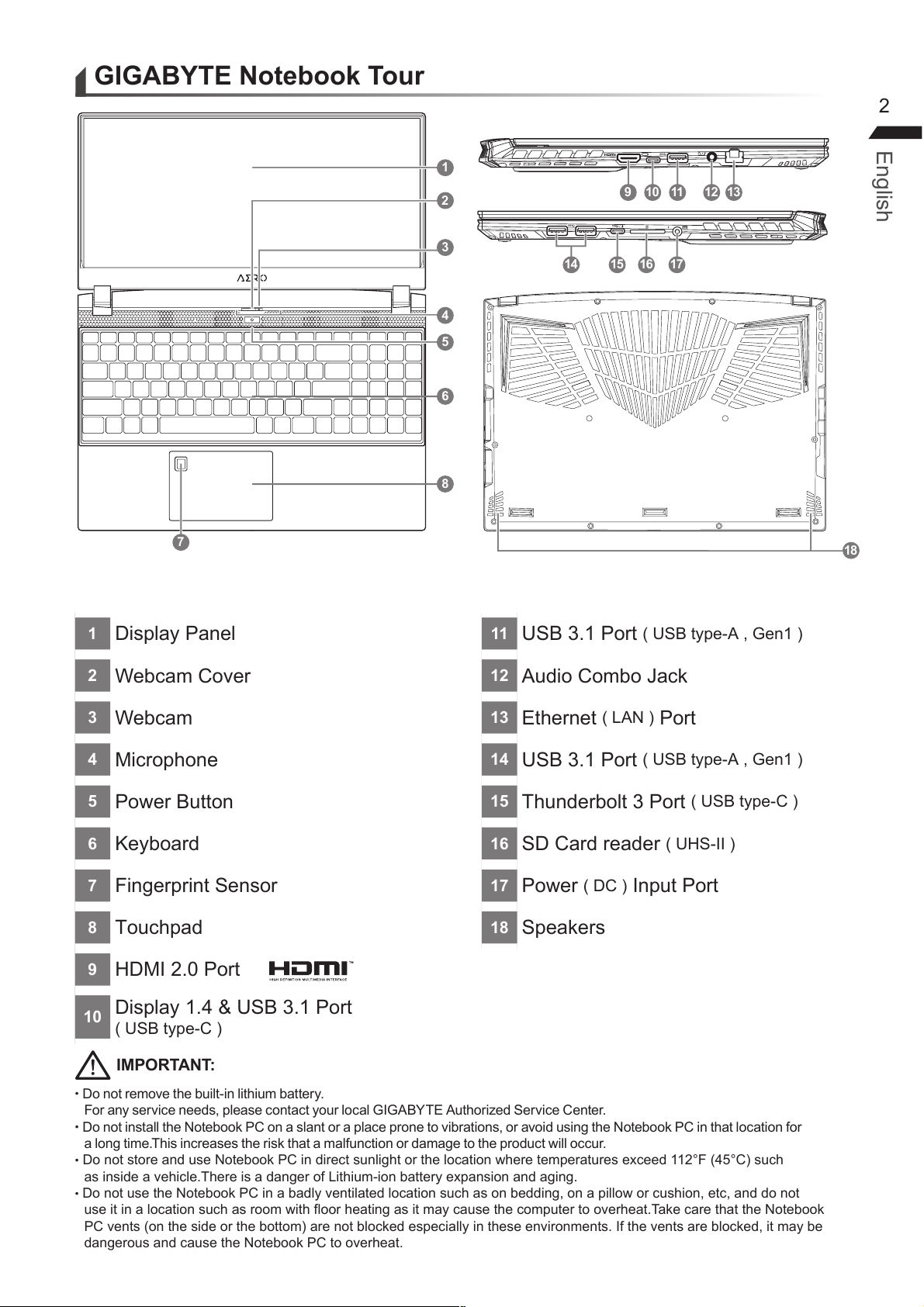

GIGABYTE Notebook Tour
IMPORTANT:
1Display Panel
2Webcam Cover
3Webcam
4Microphone
5Power Button
6Keyboard
7Fingerprint Sensor
8Touchpad
9HDMI 2.0 Port
10 Display 1.4 & USB 3.1 Port
( USB type-C )
11 USB 3.1 Port ( USB type-A , Gen1 )
12 Audio Combo Jack
13 Ethernet ( LAN ) Port
14 USB 3.1 Port ( USB type-A , Gen1 )
15 Thunderbolt 3 Port ( USB type-C )
16 SD Card reader ( UHS-II )
17 Power ( DC ) Input Port
18 Speakers
SS
12 13 11109
18
DCIN
SS
SS
15
14 16 17
8
2
3
4
1
5
6
7

English
3Hotkeys
The computer employs hotkeys or key combinations to access most of the computer’s controls
like screen brightness and volume output. To activate hotkeys, press and hold the <Fn> key
before pressing the other key in the hotkey combination.
Hotkey Function Description
Fn+ESC Maximize Fan Speed To increase the fan speed to 100%
Fn+F1 Sleep Put the computer in Sleep mode.
Fn+F2 Wireless LAN Enables / disable the Wireless LAN
function.
Fn+F3 Brightness Down Decrease the screen brightness.
Fn+F4 Brightness Up Increase the screen brightness.
Fn+F5 Display Toggle
Switche display output between the
display screen, external monitor
(if connected) and both.
Fn+F6
Screen Display Toggle
or Lock ( UHD OLED
Panel Only )
Turn the screen display on and off
or Lock your PC or switch accounts
Fn+F7 Speaker Toggle Turn the speaker on and off.
Fn+F8 Volume Down Decrease the sound volume.
Fn+F9 Volume Up Increase the sound volume.
Fn+F10 Touchpad Toggle Turn the internal touchpad on and off.
Fn+F11 Airplane Mode Enable/disable the Airplane Mode
function.
Fn+Space Keyboard Backlight
Toggle Turn the keyboard backlight on and off.

English
4

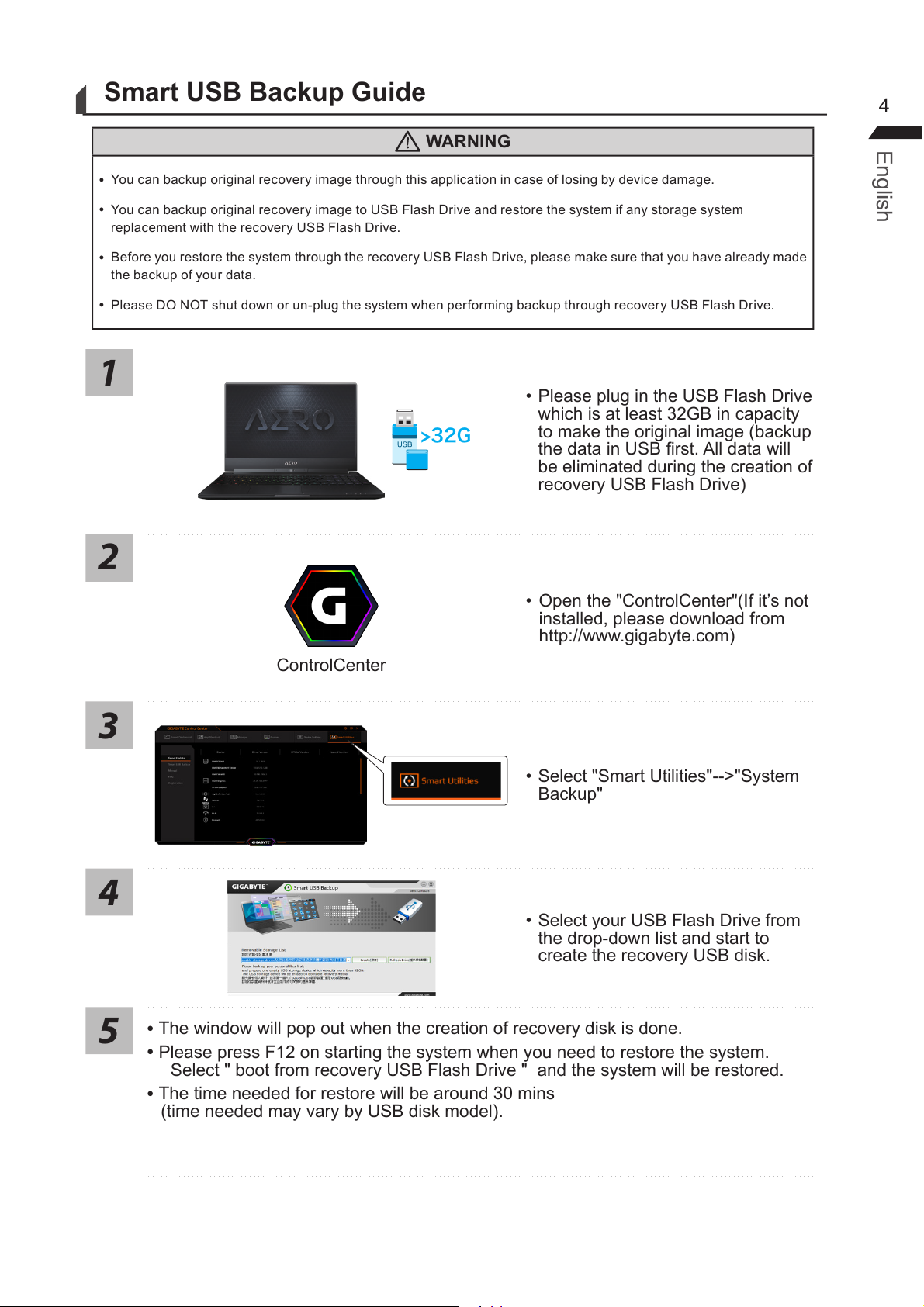

Smart USB Backup Guide
WARNING
yYou can backup original recovery image through this application in case of losing by device damage.
y You can backup original recovery image to USB Flash Drive and restore the system if any storage system
replacement with the recovery USB Flash Drive.
y Before you restore the system through the recovery USB Flash Drive, please make sure that you have already made
the backup of your data.
yPlease DO NOT shut down or un-plug the system when performing backup through recovery USB Flash Drive.
1
>32G
• Please plug in the USB Flash Drive
which is at least 32GB in capacity
to make the original image (backup
the data in USB rst. All data will
be eliminated during the creation of
recovery USB Flash Drive)
2
ControlCenter
• Open the "ControlCenter"(If it’s not
installed, please download from
http://www.gigabyte.com)
3
• Select "Smart Utilities"-->"System
Backup"
4
• Select your USB Flash Drive from
the drop-down list and start to
create the recovery USB disk.
5
yThe window will pop out when the creation of recovery disk is done.
yPlease press F12 on starting the system when you need to restore the system.
Select " boot from recovery USB Flash Drive " and the system will be restored.
yThe time needed for restore will be around 30 mins
(time needed may vary by USB disk model).

English
5Recovery Guide
System Recovery ( Restore your laptop operating system )
When something is going wrong with the laptop operating system, the storage of the laptop
has a hidden partition containing a full back up image of the operating system that can be
used to restore the system to factory default settings.
Note
yIf the storage has been switched or the partition deleted, the recovery option will no
longer be available and a recovery service will be needed.
yThe recovery function is only available on devices with O/S preinstalled. Devices with DOS
do not have the recovery function.
Launch System Recovery
The system recovery feature is preinstalled before the laptop is shipped from the factory. The
option menu allows you to launch the Windows recovery tool to reinstall the operating system
to factory default.
The brief introduction below will show you how to start the recovery tool and restore your system.
All ready to go
Make sure your PC is plugged in. This will take a few minutes.

English
6
Windows 10 Recovery Guide
1Turn off and restart the laptop.
2
During the laptop turn on process,
press and hold F9 key to launch the tool.
3Choose "Troubleshoot" to enter the recovery settings.
( Also you can choose "Continue" to exit recovery system and continue to Windows 10 for les or
data backup. )
There are two options for system recovery
˙ Reset this PC -
You can choose to keep or remove your les and then reinstalls Windows without
losing your les.
˙ GIGABYTE Smart Recovery -
Your PC settings will be restored to factory default settings.
Caution: All personal data and les will be lost.
4GIGABYTE Smart Recovery
The recovery will be activated and you will see the
option buttons on the window.
Click on "Yes" to start it.
Caution
˙ Once the "Recovery" is selected, your personal data and les will be deleted after
the laptop starts restoring, and the operating system will be reset to factory default
settings.
˙A progress indicator bar will show on the window when the recovery process is
running. Please make sure the AC-adapter is plugged in and do not turn off the laptop.
After the system recovery is completed, you will
see the option button on the window, please click
on "Shutdown".

English
75Advanced options
System Restore
Use a restore point recorded on your PC to restore Windows.
System Image Recovery
Recover Windows using a specic system image le.
Startup Repair
Fix problems that keep Windows from loading.
Command Prompt
Use the Command Prompt for advanced trobleshooting.
UEFI Firmware Settings
Change settings in your PC’s UEFI rmware.
Startup Settings
Change Windows Startup behavior.
Appendix
Warranty & Service:
Warranty and service and related information please refer to the warranty card or
GIGABYTE service website as the below link:
https://www.gigabyte.com/Support/Laptop
FAQ:
FAQ (Frequent Asked Questions) please refer to the below link:
https://www.gigabyte.com/Support/Faq

English
8

繁
體
中
文
1
1將電源線接上電源轉換器。
2將變壓器連接到筆記型電腦右側邊的電源插孔。
3將電源轉換器插入電源插座。
首次使用 GIGABYTE 技嘉筆記型電腦
開啟筆記型電腦:
第一次開機時，在還未完全進入作業系統前
請勿強制關機。
開啟電源後，直到該作業系統配置完成前，
音量無法設定。
重要
● 第一次啟動筆記型電腦之前，請先確認已經將電源變壓器連接至電腦。
● 當筆記型電腦在電源變壓器使用模式時，請將電源變壓器靠近插座以便於使用。
● 找出筆記型電腦的輸入/輸出頻率標示，並請確認符合電源變壓器上的輸入 / 輸出頻率資訊。
● 電源變壓器資訊：
輸入電壓：100-240 Vac
輸入頻率：50-60 Hz
額定輸出電壓：19.5V, 11.8A
詳細筆電使用說明與軟體操作說明，請至技嘉 Download-Center 下載電子說明書。
https://www.gigabyte.com/tw/Support
完整使用說明書
警語：使用過度恐傷害視力。
注意事項：
(1)使用30分鐘請休息10分鐘。
(2)未滿2歲幼兒不看螢幕，
2歲以上每天看螢幕不要超過1小時。
* 實際出貨規格及產品外觀依各國家地區可能有所不同，我們誠摯的建議您與當地的經銷商或零售商確認目前販售的產品規格及樣式。
* 我們會盡力提供正確與完整的資料於網頁上，並保留更動、修正頁面資訊的權利，恕不另行通知。
DCIN
SS
1
2
3
