Gigabyte U4 User manual

U4
Quick Start Guide
V1.1

1
English
1-1. Using GIGABYTE Notebook for the First Time
1
3
2

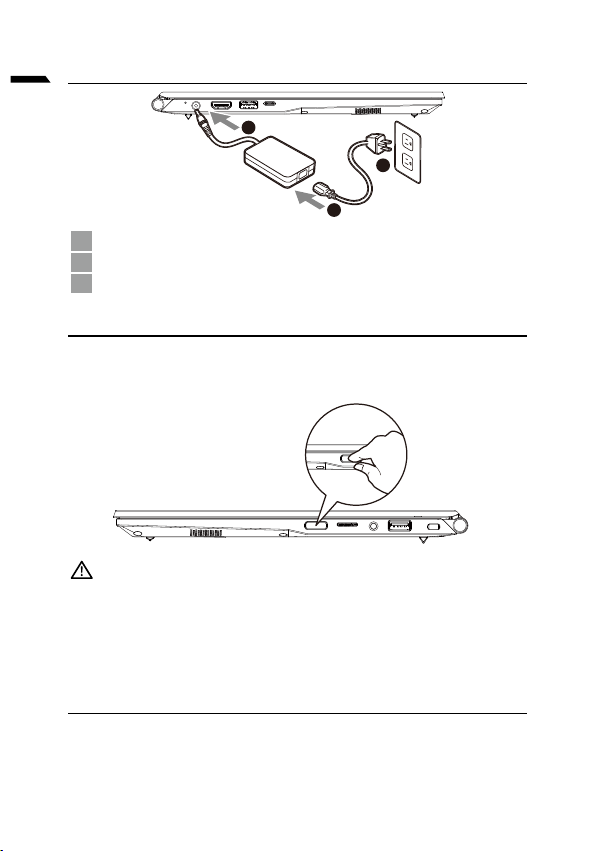

1Connect the power cord to the AC adapter.
2Connect the AC adapter to the DC-in jack on the notebook.
3Connect the power cord to the power outlet.
1-2. Switching on the Power
After you turn on the notebook for the very first time, do not turn it off until the
operating system has been congured. Please note that the volume for the audio
will not function until Windows®Setup has completed.
IMPORTANT:
● Ensure that your Notebook PC is connected to a grounded power adapter before turning it on for the first time.
● When using your Notebook PC on power adapter mode, the socket outlet must be near to the unit and easily
accessible.
● Locate the input/output mark on your Notebook PC and ensure that it matches the input/output rating informa-
tion on your power adapter. Some Notebook PC models may have multiple rating output currents based on the
available SKU.
● Power adapter information:
- Input voltage: 100-240 Vac
- Input frequency: 50-60 Hz
- Rating output voltag:19V,3.42A
1-3. Full User Manual
For more user guide and software instruction, please refer to the below link:
https://www.gigabyte.com/Support
* Product specications and product appearance may differ from country to country.
We recommend that you check with your local dealers for the specications and appearance of the products available in your country.
* Although we endeavor to present the most accurate and comprehensive information at the time of publication,
we reserve the right to make changes without prior notice.

2
English
2. GIGABYTE Notebook Tour
1
4
5
2
3
6
7
8
9
11
12
13
14
10
10

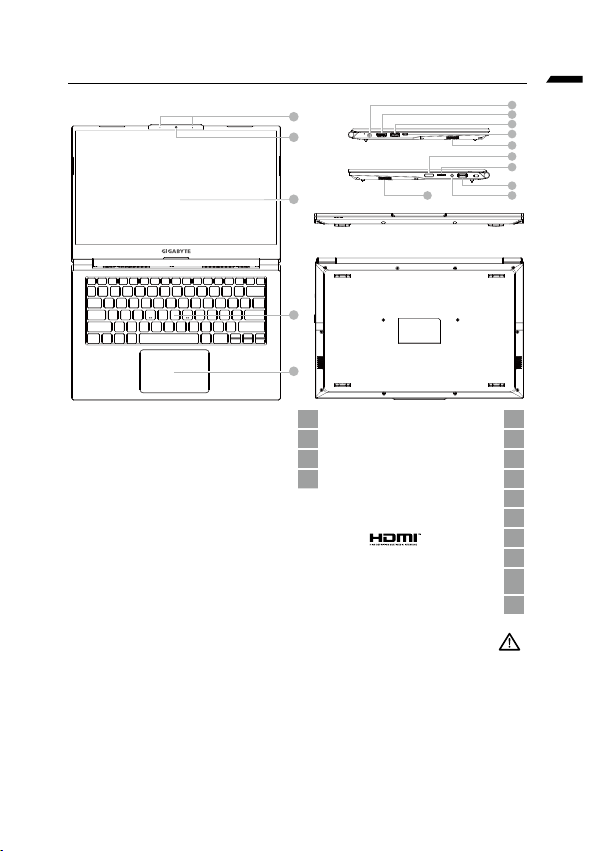

1Display Panel 11 Power Button
2Webcam 12 SD Card reader
3Microphone 13 Audio Combo Jack
4Keyboard 14 USB 3.2 Port (USB type-A)
5Touchpad
6Power Input Port (DC)
7HDMI 2.0b Port
8USB 3.2 Port (USB type-A)
9Thunderbolt 4 Port (USB type-C)
10 Speaker
IMPORTANT :
● Do not remove the built-in lithium battery. For any service needs, please contact your local GIGABYTE
Authorized Service Center.
● Do not install the Notebook PC on a slant or a place prone to vibrations, or avoid using the Notebook PC in
that location for a long time.This increases the risk that a malfunction or damage to the product will occur.
● Do not store and use Notebook PC in direct sunlight or the location where temperatures exceed 112°F
(45°C) such as inside a vehicle.There is a danger of Lithium-ion battery expansion and aging.
● Do not use the Notebook PC in a badly ventilated location such as on bedding, on a pillow or cushion, etc,
and do not use it in a location such as room with floor heating as it may cause the computer to overheat.
Take care that the Notebook PC vents (on the side or the bottom) are not blocked especially in these
environments. If the vents are blocked, it may be dangerous and cause the Notebook PC to overheat.

3
English
Hotkeys
The computer employs hotkeys or key combinations to access most of the computer’s
controls like screen brightness and volume output. To activate hotkeys, press and hold the
<Fn> key before pressing the other key in the hotkey combination.
Hotkey Description
Fn +~ Play / Pause (in Audio/Video Programs)
Fn + ! Fan Automatic Control / Full Power
Fn + F1 Touchpad Toggle
Fn + F2 Turn LCD Backlight OFF
(Press a key to or use Tochpad to turn on)
Fn + F3 Mute Toggle
FN + F4 Toggle Keyboard Illumination /
Adjust Brightness Level
Fn + F5 / F6 Volume Decrease / Increases
Fn + F7 Display Toggle
Fn + F8 / F9 Bright Descreases / Increases
Fn + 10 PC Camera Power on and off
Fn + F11 Airplane Mode Toggle
Fn + F12 Sleep Toggle
FN + Ins Num LK Number Lock Toggle
Fn + Del Scr LK Scroll Lock Toggle
Fn + Esc Control Center Toggle
FN + R Rotate the Screen

4
English
System Backup Guide

• You can backup original recovery image through this application in case of
losing by device damage.
• You can backup original recovery image to USB disk and restore the system if
any storage system replacement with the recovery USB disk.
• Before you restore the system through the recovery USB disk, please make
sure that you have already made the backup of your data.
• Please DO NOT shut down or un-plug the system when performing backup
through recovery USB disk.

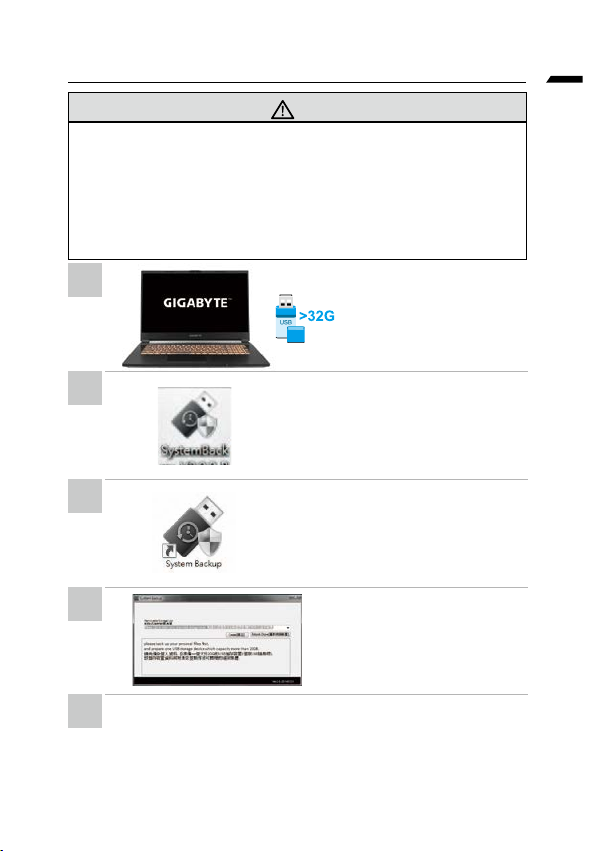

• Please plug in the USB Flash
Drive which is at least 32GB in
capacity to make the original
image ( backup the data in USB
first. All data will be eliminated
during the creation of recovery
USB disk )
• Insert the driver disk to your
optical drive and run the install of
“System Backup” (for none-ODD
model, please use USB ODD
device or download from
http://www.gigabyte.com
• Run the “System Backup” after
nishing the install.
• Select your USB disk from the
drop-down list and start to create
the recovery USB disk.
• The window will pop out when the creation of recovery disk is done.
• Please press F12 on starting the system when you need to restore the system.
Select “boot from recovery USB disk” and the system will be restored.
• The time needed for restore will be around 30 mins(time needed may vary by USB
disk model) .
1
2
3
4
5

5
English
Recovery Guide
System Recovery (Restore your laptop operating system)
When something is going wrong with the laptop operating system, the storage of the laptop
has a hidden partition containing a full back up image of the operating system that can be
used to restore the system to factory default settings.
Note
• If the storage has been switched or the partition deleted, the recovery option will no
longer be available and a recovery service will be needed."
• The recovery function is only available on devices with O/S preinstalled. Devices with
EFI SHELL do not have the recovery function.
Launch System Recovery
The system recovery feature is preinstalled before the laptop is shipped from the factory. The
option menu allows you to launch the Windows recovery tool to reinstall the operating system to
factory default.
The brief introduction below will show you how to start the recovery tool and restore your system.
All ready to go
Make sure your PC is plugged in. This will take a few minutes.

6
English
Windows 10 Recovery Guide
Turn off and restart the laptop.
During the laptop turn on process, press
and hold F9 key to launch the tool.
Choose “Troubleshoot” to enter the recovery settings.
(Also you can choose “Continue” to exit recovery system and continue to
Windows 10 for les or data backup.)
There are two options for system recovery
• Reset this PC
You can choose to keep or remove your files and then
reinstalls Windows without losing your les.
• GIGABYTE Smart Recovery
Your PC settings will be restored to factory default settings.
• Caution: All personal data and les will be lost.

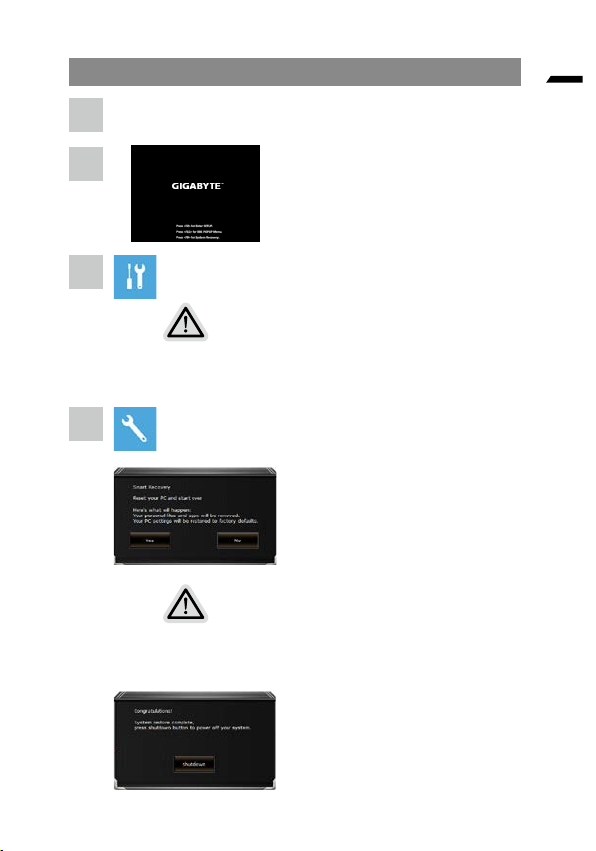

GIGABYTE Smart Recovery
The recovery will be activated and
you will see the option buttons on the
window. Click on “Yes” to start it.
Caution
• Once the “Recovery” is selected, your personal data and
les will be deleted after the laptop starts restoring, and the
operating system will be reset to factory default settings.
• A progress indicator bar will show on the window when the
recovery process is running. Please make sure the AC-
adapter is plugged in and do not turn off the laptop.
After the system recovery is
completed, you will see the option
button on the window, please click on
“Shutdown”.
1
2
3
4

7
English
Advanced options
System Restore
Use a restore point recorded on your PC to restore Windows.
System Image Recovery
Recover Windows using a specic system image le.
Startup Repair
Fix problems that keep Windows from loading.
Command Prompt
Use the Command Prompt for advanced trobleshooting.
UEFI Firmware Settings
Change settings in your PC’s UEFI rmware.
Startup Settings
Change Windows Startup behavior.
Appendix
■Warranty & Service :
Warranty and service and related information please refer to the
warranty card or GIGABYTE service website as the below link:
https://www.gigabyte.com/Support/Laptop
■FAQ :
FAQ(Frequent Asked Questions) please refer to the below link:
https://www.gigabyte.com/Support/Faq
5

8
English
Control Center Application
The Control Center application is a quick computer conguration application, which
allows you to change power mode, set keyboard backlight and assign a single key to
launch multiple key combinations.
Control Center Overview

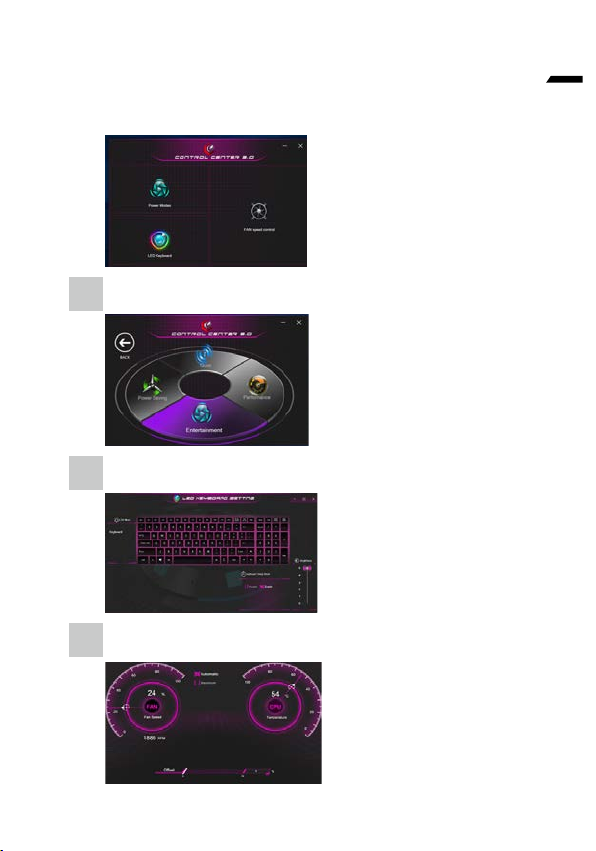

1. Power Modes
2. LED Keyboard
3. FAN speed control
Power Modes
To set different power mode.
1. Quiet
2. Performance
3. Enterainment
4. Power Saving
LED Keyboard
To set keyboard backlight.
1. Keyboard Sleep timer :
enter the value to set backlit
sleep timer.
2. Keyboard Brightness :
to set the brightness of
keyboard backlight.
FAN speed control
You can set the fan speed to Maximum (full power) or Automatic.
1
2
3

1
ةيبرعلا
 GIGABYTE 
1
3
2
.1
.2
.3



: 
. 

 
. 

240100
  6050
3.4219 


https://www.gigabyte.com/Support


•
•
•
•
-
-
-

2
ةيبرعلا

1
4
5
2
3
6
7
8
9
11
12
13
14
10
10
 11  1
  12  2
 13  3
A   14  4
 5
 6
 7
A   8
C   9
 10


.


45
112





3
ةيبرعلا


.
 
Fn +~ 
Fn + ! 
Fn + F1 
Fn + F2 

Fn + F3 
FN + F4 

Fn + F5 / F6 
Fn + F7 
Fn + F8 / F9 
Fn + 10 
Fn + F11 
Fn + F12 
FN + Ins Num LK 
Fn + Del Scr LK 
Fn + Esc 
FN + R 

4
ةيبرعلا








32



















30
1
2
3
4
5

5
ةيبرعلا











Windows


.

6
ةيبرعلا
Windows 10 
.

.
.




Windows















1
2
3
4

7
ةيبرعلا




.

Windows

.




5

8
ةيبرعلا

: 


https://www.gigabyte.com/Support/Laptop
:

gigabyte.com/Support/Faq

1
български
1-1. Използване на GIGABYTE Notebook за пръв път
1
3
2
1Свържете захранващия кабел към адаптер за променлив ток.
2 Свържете променливотоковия адаптер към гнездото за DC вход на лаптопа.
3Свържете захранващия кабел към електрически контакт.
1-2. Включване на захранването
След включване на ноутбука за пръв път, не го изключвайте докато
операционната система не е конфигурирана. Обърнете внимание, че силата на
звука няма да функционира докато Windows® Setup (Настройка на Windows®)
не приключи.
ВАЖНО :
• Уверете се, че Вашият Notebook PC е свързан към заземен адаптер преди да го включите за пръв път.
• Когато използвате своя Notebook PC в режим на захранващ адаптер, контактът трябва да е близо до
оборудването и да е леснодостъпен.
• Открийте маркировката за вход/изход на Вашия Notebook PC и се уверете, че тя отговаря на
номиналните стойности за входа/изхода на Вашия захранващ адаптер. Някои модели Notebook PC
може да имат няколко стойности за номинален ток въз основа на наличния SKU.
• Информация за токовия адаптер:
- Вход напрежение :100-240 Vac
- Входна честота :50-60 Hz
- Номинално изходно напрежение :19V, 3.42A
1-3. Пълно потребителско ръководство
За потребителското ръководство и инструкции за софтуера, вижте връзката по-долу:
https://www.gigabyte.com/Support
* Техническите характеристики на продукта и външният му вид може да се различават за различните държави. Препоръчваме Ви да
проверите при местните търговци какви са техническите характеристики и външният вид на продуктите, налични във Вашата държава.
* Въпреки че се опитваме да представим най-точната и пълна информация към момента на публикуване, си запазваме правото да правим
промени без предизвестие.

2
български
2. Запознаване с ноутбук GIGABYTE
1
4
5
2
3
6
7
8
9
11
12
13
14
10
10
1Панел на дисплея 11 Бутон за включване и изключване
2Уеб камерата 12 Четец за SD карти
3Микрофон 13 Комбиниран аудиопорт
4Клавиатура 14 USB 3.2 порт (USB type-A)
5Тъчпад
6Вход за захранване (DC)
7HDMI 2.0b порт
8USB 3.2 порт (USB type-A)
9Thunderbolt 4 порт (USB type-C)
10 Високоговорител
ВАЖНО :
• Не отстранявайте вградената литиева батерия. При нужда от ремонт се свържете с местен сертифициран сервизен
център на GIGABYTE.
• Не инсталирайте Notebook PC под наклон или на място, изложено на вибрации. Избягвайте да използвате Notebook
PC на такова място продължително време. Това увеличава риска от неизправност или повреда на продукта.
• Не съхранявайте и не използвайте Notebook PC на пряка слънчева светлина при температура над 45°C (112°F), като
например в превозно средство. Има опасност литиево-йонната батерия да се разшири и да остарее.
• Не използвайте Notebook PC на място с лоша вентилация, като например върху чаршафи, възглавници и т.н.
Не използвайте на място като помещение с подово отопление, защото това може да доведе до прегряване на
компютъра. Погрижете се вентилационните отвори на Notebook PC (отстрани и отдолу) да не са блокирани особено
в такава среда. Ако вентилационните отвори са блокирани, това може да е опасно и да доведе до прегряване на
Notebook PC.

3
български
Бързи клавиши
Компютърът използва бързи клавиши или клавишни комбинации за достъп до
повечето от контролите на компютъра, като яркост на екрана или сила на изходния
звук. За активиране на бързите клавиши, натиснете и задръжте клавиша <Fn> преди
другите клавиши в клавишната комбинацията на бързия клавиш.
Бърз клавиш Описание
Fn +~ Възпроизвеждане / пауза
(в аудио/видеопрограми)
Fn + ! Автоматично управление на вентилатора /
Пълна мощност
Fn + F1 Превключвател на тъчпада
Fn + F2
ИЗКЛЮЧВАНЕ на LCD подсветка
(Натиснете клавиш или използвайте тъчпада
за включване)
Fn + F3 Превключвател Без звук
FN + F4
Превключване на осветлението на
клавиатурата / Регулирайте нивото на яркост
Fn + F5 / F6 Намаляване/увеличаване на силата на звука
Fn + F7 Превключвател Дисплей
Fn + F8 / F9 Увеличава/намалява яркостта
Fn + 10 Включване и изключване на захранването на
камерата на компютъра
Fn + F11 Превключвател на самолетен режим
Fn + F12 Превключвател на режим Заспиване
FN + Ins Num LK Превключвател на Number Lock
Fn + Del Scr LK Превключвател на Scroll Lock
Fn + Esc Превключвател на контролния център
FN + R Завъртете екрана
