Gigabyte GM-M8000 User manual

GM-M8000
GHOSTTM Series
Rev.1.01
English
繁體中文
简体中文
日本語 Italino
Magyar
Hebrew
Portugués
User's Manual
e_M8000_1003.indd 1 2008/10/9 下午 03:17:53

ENGLISH
繁體中文
2
简体中文
日本語
1-2 Introduction
Congratulations on purchasing your own powerful weapon- GHOSTTM gaming M8000 mouse. GIGABYTE
GM-M8000 is a super powerful mouse designed specially for gaming users. It is equipped with the highest
performance laser engine in the world : with the most accurate precision, no tracking lag, and highest resolution up
to 4000dpi. Another powerful feature of this weapon is to its extra gaming buttons which give gamers the best
short-cut to upgrade to the highest rank. Having it, you will be much more pleasure and easily to win every game
competition you face.
In addition to hardware design, we also provide the best unique gaming software, GIGABYTE GHOSTTM Engine,
for gamers to record, to read, and to edit the desired scripts which include complicated keyboard and mouse
commands.
With GHOSTTM Engine integrating capability, your GM-M8000 remembers to save up to 15 onboard macro
settings and assigned to any specific gaming buttons of the mouse without the need to reinstall driver software into
other computers. Gamers just simply press the gaming button, to allow the mouse starts the function in according to
recorded macros. GM-M8000 helps gamers get rid of repeated practice, reducing burdens, and having more funs.
Please DO NOT direct the laser beam to the eye.
1-1 Package Contents
◆ GIGABYTETM GM-M8000 Gaming Laser Mouse
◆ Installation Driver CD
◆ User's Manual
◆ Teflon Mouse Feet
◆ Weights and Case
1 Overview
e_M8000_1003.indd 2 2008/10/9 上午 11:42:34

ENGLISH
繁體中文
3
简体中文
日本語
1-3 Features
◆ High-performance AVAGO 6090 Laser sensor

◆ Adjustable sensitivity up to 4000 dpi

◆ Support 15 customizable onboard settings with macro editing

◆ 8KB GHOSTTM Engine onboard memory
 ◆ Scroll wheel with 24 individual click positions
 ◆ 16-bit ultra-wide data path
 ◆ 5 independent programmable gaming buttons

◆ Easy "Up-down" DPI adjustment button
 ◆ Sweat-Proof Ergonomic streamline shape
 ◆ Ultra-DurableTM slick Teflon feet
 ◆ Gaming-grade USB cable with gold-plated USB connector
 ◆ Professional GHOSTTM Engine software package is included
 ◆ 38 grams of metal weights are included
1-4 System Requirements
 ◆ CD-ROM Drive
 ◆ USB Port
 ◆ Windows® 98/ ME/ 2000/ XP/ Vista
e_M8000_1003.indd 3 2008/10/9 上午 11:42:36

ENGLISH
繁體中文
4
简体中文
日本語
2 Mouse Introduction
Default button assignments
A Mouse button1 Left Click
B Mouse button2 Right Click
C Mouse button3 Vertical & Horizontal scrolling
D Mouse button4 Forward
E Mouse button5 Backward
F Mouse button6 "Up & Down" DPI adjustment
G Mouse button7 Profile change
H LED Dpi indicator
I Gaming-grade laser sensor
J Ultra-DurableTM slick Teflon feet
K GHOSTTM Engine onboard memory
L Weight adjustable compartment
Keep the weight units out of reach of children.
Weight-adjusting System
Adjust and balance mouse weight
between 6g and 38g. Find the best
combination of perfect weights to fit
your gaming type.
e_M8000_1003.indd 4 2008/10/9 上午 11:42:37

ENGLISH
繁體中文
5
简体中文
日本語
2-1 Hardware Installation
Step 1 Plug Mouse into the USB port of your computer.
Step 2 Open-->"Control Panel"-->"System"-->"Hardware"-->"Devices Manager"
and confirm the mouse is working properly.
2-2 Using M8000 Gaming mouse
◆ Switch DPI & Obvious DPI LED indicator
You can increase or decrease the sensitivity (dpi) by pushing or pulling the Easy "Up-Down" DPI Adjustment
button on the scroll wheel bar. The 4-degree LED indicator shows the current selected sensitivity.
(Users can customize default dpi degree setting with GHOSTTM Engine Software tool.)
◆ Switch profiles & three profile-setting-color LED Display
M8000 allows gamers to switch between customizable profiles in two ways :
1. By assigning the function to a button via the GHOSTTM Engine Software.
2. By using the Quick-switch Gaming Profile button located on the top of the mouse.
When the active profile is switched, the GIGABYTE LED indicator of the mouse immediately changes the
colors (including Red, Blue, and Green) to indicate the profile you selected.
In the first-person shooter games, programming a smaller dpi tracking sensitivity (e.g., 400 dpi) for
sniping and shooting is recommended. An higher setting (e.g.,2000 dpi) for quicker movements.
e_M8000_1003.indd 5 2008/10/9 上午 11:42:43

ENGLISH
繁體中文
6
简体中文
日本語
3 Software Installation
The CD included in the package contains two kinds of software :
the mouse driver and the gaming GHOSTTM Engine Software tool. By assume your CD-ROM Drive is Drive D.
Before installing the driver of the mouse, we suggest you check weather there are any other mouse drivers installed
in your system. If yes, in order to prevent possible conflict, please un-install or remove those drivers before
installing the mouse.
3-1 GHOSTTM Engine Software Installation
Step1 Please insert the driver CD into CD-ROM, you will see the GIGABYTE CD main menu.
(If it does not show up, run "D:\setup.exe")
Step 2 Click the "GHOSTTM Engine Software" button,
to start installation of GHOSTTM Engine Software.
Step 3 Click the "Next" button.
e_M8000_1003.indd 6 2008/10/9 上午 11:42:45

ENGLISH
繁體中文
7
简体中文
日本語
Step 4 Click the "Install" button to begin to install. Step 5 Click the "Finish" to exit the wizard.
3-2 Tilt Wheel Software Installation
Since the mouse features plug & play, it is not necessary to install the driver to operate the basic function of
mouse. You are required to install the mouse driver to run the tilt scrolling function effectively.
Step1 Click the "Tilt Wheel Driver" button to start installation of Tilt Wheel Driver.
Step2 Follow the instruction on the screen.
Step3 Hold the wheel to left to scroll left, hold the wheel to right to scroll right and confirm the 4-way scrolling
is working appropriately after installing the driver.
e_M8000_1003.indd 7 2008/10/9 上午 11:42:47

ENGLISH
繁體中文
8
简体中文
日本語
4 Software Setting
Using GHOSTTM Engine Mouse software, you can configure and save up to 15 customized gaming settings in our
GM-M8000 in profiles for specific games without the need to reinstall driver software in other computer.
What kind of setting can you configure in GHOSTTM Engine Mouse software?
- Normal function button assignment：Internet, media and some quick keys
- Advanced function button assignment：Macro Editor for both of mouse and keyboard
- Sensitivity setting from 400 to 4000dpi
- USB report rate
- Vertical and horizontal scrolling speed setting
Each setting is saved to the current profile on the current machine only.
4-1 GHOSTTM Engine Introduction
Main Window
e_M8000_1003.indd 8 2008/10/9 上午 11:42:48

ENGLISH
繁體中文
9
简体中文
日本語
Button Configuration
You can assign various functions to buttons from the dropdown menu. For example, media and internet function.
If the button function is not listed or you would like to assign a macro, please select "Macro Edit" from the
dropdown menu.
Profile selection
There are three color LED lights on the panel: red, green, and blue, which indicate three profiles set up by the
users. Remember that each individual profile can be assigned various functions to the five buttons.
Default - When you click "Default" button, the settings will be back to original factory default settings.
Apply - All current settings will be applied to the mouse
Cancel - All settings would not be applied to the mouse, and the window of GHOSTTM software will be closed.
OK - All current settings will be applied to the mouse, and the window of GHOSTTM software will be
closed.
Sensitivity
As default settings, there are four DPI level: 800, 1600, 3200, and 4000dpi. You can assign different dpi
setting on your own demand by moving the knob on the slider. Check "set X and Y axis separately" option to adjust
X-Y sensitivity levels individually.
Report rate
You can set the report rate to 125Hz (8ms), 250Hz (4ms), 500Hz (2ms),
or 1000Hz (1ms) by moving the knob on the slider.
e_M8000_1003.indd 9 2008/10/9 上午 11:42:50

ENGLISH
繁體中文
10
简体中文
日本語
4-2 Macro Editing
The Macro Editor panel helps gamers easily record all keyboard and mouse commands. These steps are as
following :
Step 1 Make sure GM-M8000 is connected to the PC.
Step 2 Execute the GHOSTTM Engine Software.
Step 3 Select "Macro Edit" from the dropdown menu in Button panel.
Step 4 Press "New" to create a macro name automatically.
Scrolling
You can adjust vertical & horizontal scroll wheel speed by moving the
knob on the slider.
Windows
You can click the "Windows" button. That allows you to link to Window® Mouse Control Panel.
e_M8000_1003.indd 10 2008/10/9 上午 11:42:51

ENGLISH
繁體中文
11
简体中文
日本語
Step 5 Press "Rename" in case you would like to revise the original name.
Step 6 Press "Record" button to start recording all keyboard or mouse functions which you are operating into
the Macro Editor.
Step 7 Press "Stop" button to finish recording this macro. If you don't press the "stop" button, the software
will continue recording.
Step 8 Press "Save" button to save your commands you recorded in "Available Macros".
Stop 9 Press "OK" to put the macro on the dropdown menu in Button panel.
Step10 If you would like to apply macros you created into GM-M8000, you must to configure the buttons
from the dropdown menu of "Button" panel. SEE "4-1 GHOSTTM Engine Introduction".
Functions
◆ Action loop type:
a. Re-pressing to stop: If this function is marked, the recorded macro will be executed repeatedly as you
click the assigned button. Re-pressing the assigned button of the mouse to stop.
b. Release to stop: If this function is marked, the recorded macro will be executed repeatedly as you click
the assigned button of the mouse until you release the assigned button.
1. Some special function keys such as multimedia function keys may not be recorded.
2. 509 bytes recording space is provided to Middle/ 4th/ 5th customizable button (about 200 scripts)
and 253bytes for Wheel to left/ right customizable buttons. Any macro command over the limit will
not be saved and assigned to the gaming button.
e_M8000_1003.indd 11 2008/10/9 上午 11:42:52

ENGLISH
繁體中文
12
简体中文
日本語
◆ Time delay: If this function is marked, it allows you to record the intervals between two commands.
Moreover, double-click the time field option in the "Macro Editor" to modify the interval time.
New : Create an new macro name automatically
 Record/Stop: Click "Record" button to start recording; meanwhile, the "Record" button will become the "Stop".
After finishing recording, you need to stop re cording before further actions.
 Clean : Clear the selected command
 Clean all : Clear all commands in Macro Editor
 Rename : Modify the original name
 Copy : Copy the selected macro
 Delete : Delete the selected macro
e_M8000_1003.indd 12 2008/10/9 上午 11:42:53

ENGLISH
ENGLISH
繁體中文
1
简体中文
日本語
1. GM-M8000介紹
預設按鍵分配
A 滑鼠按鍵1 左單擊
B 滑鼠按鍵2 右單擊
C 滑鼠按鍵3 垂直和水平滾輪
D 滑鼠按鍵4 前進
E 滑鼠按鍵5 後退
F 滑鼠按鍵6 "推&拉"調節DPI
G 滑鼠按鍵7 模式選擇
H LED Dpi 指示燈
I 遊戲及雷射感應器
J 超持久光滑的Teflon腳墊
K GHOSTTM 引擎記憶體
L 配重調節系統
tc_M8000_1007_simple version.ind1 1 2008/10/9 上午 11:43:52

ENGLISH
ENGLISH
繁體中文
2
简体中文
日本語
2. 軟體設定
使用 GHOSTTM 引擎的滑鼠軟體，您可以配置和保存15種遊戲設置在GM-M8000的記憶體中，不需要重新設定
就可以在其他的電腦中使用。
GHOSTTM 引擎搜件可以記錄您的什麼設定呢?
- 一般功能：網際網路、多媒體和一些快速鍵
- 進階功能：巨集編輯鍵盤與滑鼠
- 靈敏度調節從 400 到4000dpi
- USB 傳輸頻率
- 垂直和水準的滾輪速度調節
將各自不同的設定保存在機器中。
2-1 GHOSTTM 引擎介紹
首頁
tc_M8000_1007_simple version.ind2 2 2008/10/9 上午 11:43:57

ENGLISH
ENGLISH
繁體中文
3
简体中文
日本語
Button Configuration 按鈕配置
您可以在按鈕的下拉功能表中選擇到不同的功能選項，例如：多媒體和網際網路功能．．等，如果沒
有找到您所需要的功能選項，請在下拉功能表中選擇“Macro Edit”進行編輯。
Profile selection 模式選擇
使用者可以設定三種不同的編輯模式，在面板上有相對應的顏色LED燈顯示：紅、綠、和藍色，請記住
在三種編輯模式下五個不同按鈕的相對應設置。
Default - 當您單擊 “Default” 按鈕, 所有的設置將恢復到出廠時的預設值。
Apply - 全部的設定燒錄到滑鼠的記憶體中。
Cancel - 滑鼠裡全部的設定將不會被應用在滑鼠中，並且關閉GHOSTTM 軟體視窗。
OK - 全部的設定將應用在滑鼠中，並且關閉GHOSTTM 軟體視窗。
Sensitivity 靈敏度
預設值中有四種DPI級別：800、1600、3200和4000dpi，您可以滑動橫軸設定出不同的DPI靈敏度，
點選 “set X and Y axis separately(X與Y軸分別設置)” 可以調節X軸和Y軸的靈敏度的不同設置。
Report rate 輸出頻率
只要調節滑動的橫軸就可以設置不同的輸出頻率: 250Hz (4ms), 500Hz (2ms), or 1000Hz (1ms) 。
tc_M8000_1007_simple version.ind3 3 2008/10/9 上午 11:43:58

ENGLISH
ENGLISH
繁體中文
4
简体中文
日本語
2-2 巨集編輯
巨集編輯可以幫助玩家方便的記錄我們設定的鍵盤和滑鼠指令，步驟如下:
步驟1 確定 GM-M8000 以連接到您的電腦上
步驟2 安裝GHOSTTM 引擎軟體
步驟3 在下拉功能表中選擇 “Macro Edit(巨集編輯)”
步驟4 點擊 “New” 自動建立一個巨集編輯檔
Scrolling 滾輪
您可以調節滑動橫軸來控制滾輪X軸與Y軸的滾動速度。
Windows 視窗
您可以點擊 “Windows” 按鈕，這樣就可以跳出Window® 滑鼠控制面板。
tc_M8000_1007_simple version.ind4 4 2008/10/9 上午 11:43:59

ENGLISH
ENGLISH
繁體中文
5
简体中文
日本語

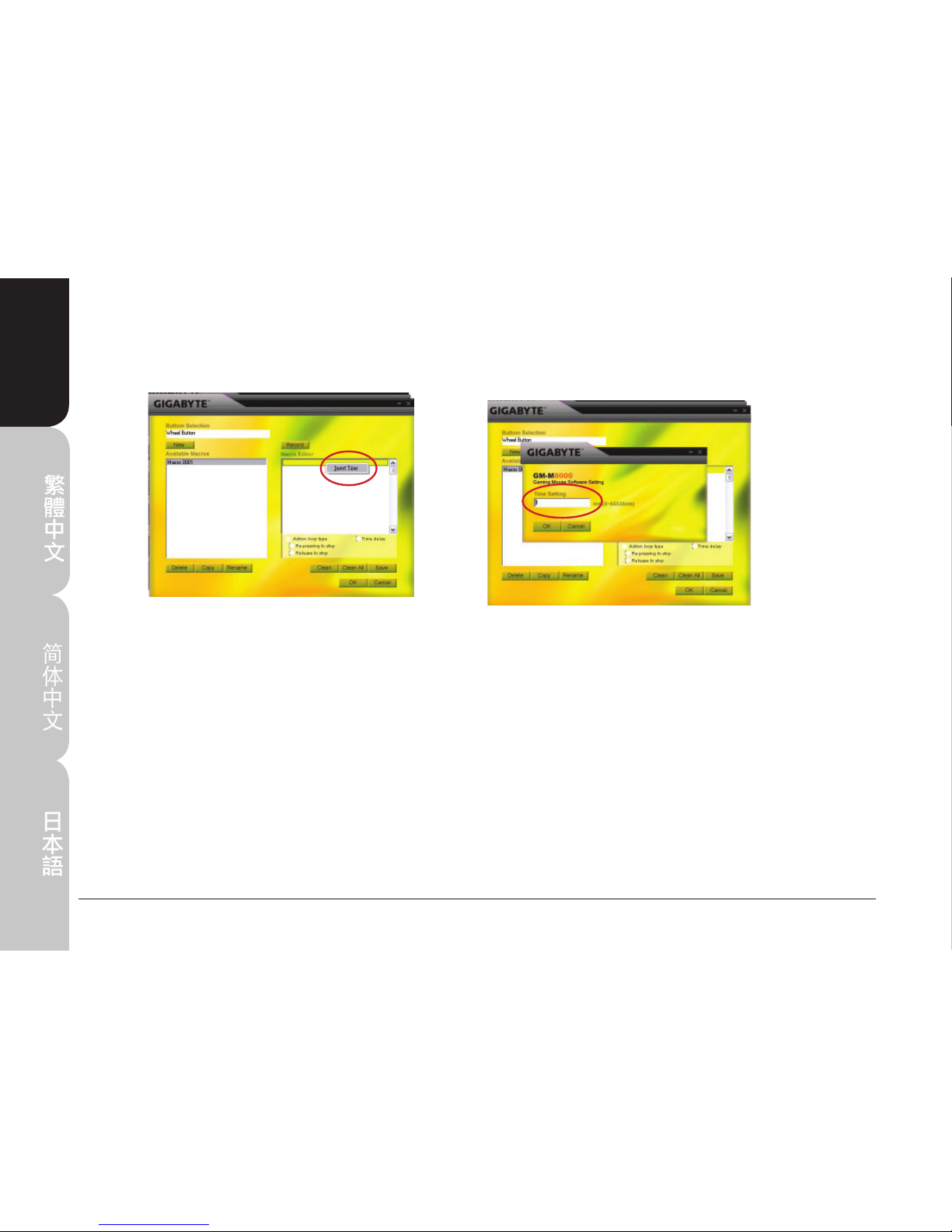

步驟5 點擊“Rename”可以重新命名一個所喜歡的巨集編輯名稱
步驟6 點擊“Record”按鈕開始記錄鍵盤和滑鼠的功能，將其載入巨集編輯檔中
步驟7 點擊“Stop”按鈕將結束巨集編輯設置。如果您沒有點擊 “stop” 按鈕，軟體將繼續的記錄您
的編輯動作
步驟8 點擊“Save”按鈕將儲存您所設定的命令並命名成 “有效的巨集編輯”
步驟9 點擊 “OK”按鈕面板將跳回有下拉功能表的軟體首頁
步驟10 如果您想要將應用的巨集編輯建立到GM-M8000中，您必須要設定好下拉選單 “Button”面板
Functions 功能
◆ 動作工具類型：
a. Re-pressing to stop：如果執行此功能，在應用巨集編輯的命令時，命令將一直的重複的執行，直到
您再一次點擊按鈕，程式才會結束。
b. Release to stop：如果執行此功能，當您按住設定有巨集編輯的按鈕時，命令將的重複執行，直到
您鬆開此按鈕為止。
1. 一些特殊功能的媒體功能快速鍵可能不能記錄。
2. 滾輪/4鍵/5鍵這三個鍵的存儲量最多可達到509 bytes，而滑鼠的左右鍵最大的存儲量達到
253bytes。如果您設置巨集編輯時超過最大的存儲量時，這些遊戲按鈕將無法記錄。
tc_M8000_1007_simple version.ind5 5 2008/10/9 上午 11:44:01

ENGLISH
ENGLISH
繁體中文
6
简体中文
日本語
◆ Time delay 時間延遲：如果執行此功能，它可以使在兩個命令之間的時間間隔變成零，在沒有時間差
的情況下執行您所設置的”巨集編輯”命令。
New：自動建立一個新的巨集編輯名稱
Record/ Stop： 點擊 “Record” 按鈕開始記錄，同時，這個 “Record” 按鈕將變成“Stop”，您需在您設
定好所用的動作之後點擊”停止”按鈕。
Clean： 清除您選擇的命令 。
Clean all： 清除巨集編輯裏所有的命令。
Rename： 更改初始的名稱。
Copy： 複製您選擇的巨集編輯。
Delete： 刪除您選擇的巨集編輯。
tc_M8000_1007_simple version.ind6 6 2008/10/9 上午 11:44:02

ENGLISH
繁體中文
简体
中
文
日
本語
1 GM-M8000 介绍
默认按钮分配
A 鼠标按键 1 左单击
B 鼠标按键 2 右单击
C 鼠标按键 3 垂直 & 水平滚轮
D 鼠标按键 4 前进
E 鼠标按键 5 后退
F 鼠标按键 6 “推& 拉” 调节 DPI
G 鼠标按键 7 模式选择
H LED Dpi 指示灯
I 游戏级激光感应器
J 超持久光滑的 Teflon 脚垫
K GHOST™ 引擎记忆体
L 配重调节系统
1

2 GHOST™ 软件概述
ENGLISH
使用 GHOST™ 引擎的鼠标软件，您可以配置和保存 15 种游戏设置在 GM-M8000 的记忆体中，不需要重新设
置就可以在其他的电脑中使用。
GHOST™ 引擎软件可以记录您的什么设置呢?
- 正常的功能选项：因特网，多媒体和一些的快捷键
- 高级功能选项：宏编辑键盘与鼠标
繁體中文
- 灵敏度调节从 400 到4000dpi
- USB 传输频率
- 垂直和水平的滚轮速度调节
将各自不同的设置保存在机器当中。
2-1 GHOST™引擎介绍
简体中文
日本語
首页
2
