Gigabyte Aivia M8600 User manual

ENGLISH

ENGLISH
1
Aivia, an integrated acronymic word, is derived from its key features – advanced, intuitive, and versatile
interface archetype. The series is to emphasize the combination of subconscious, design and function
as well as the pursuit of archetype. GIGABYTE believes each mouse and keyboard are the scrupulous
work of mankind’s brainpower. Aivia is not only an extension to the human intellect, but also an intuitive
extension to the use of articial intelligence.
The Aivia M8600 Wireless Macro Gaming mouse breaks free from the constraint of tangled wires while
achieving tough mission during game play.
Having ultra-high precision gaming sensor and 2.4GHz gaming-grade wireless technology, Aivia M8600
demonstrates not only excellent performance but also incredible rapid transmission even as a wireless
gaming mouse.
The battery life lasts continuously over 24 hours in the gaming mode and with introduction of the unique
QSBSTM Technology – Quick-swap Battery System, you will enjoy a fast battery reload and lag-free
game.
32KB onboard memory enables 5 prole settings on your M8600, and allows you to bring your personal
settings wherever you go. Combining that with 6600DPI and 1000Hz report rate, the Aivia M8600 now
becomes your ultimate weapon.
Aivia M8600 Wireless Macro Gaming Mouse
Feature
•GamePlayTM Wireless Technology
•Over 24hr battery life in game play
•Dual mode wired/ wireless functionality
•GHOSTTM Macro Engine

ENGLISH
2
Mouse Introduction
Default button assignments
A
B
C
D
E
F
G
H
I
J
Mouse button 1 – Left Click
Mouse button 2 – Right Click
Mouse button 3 – Middle Click and 4 ways Scrolling Wheel
Mouse button 4 – DPI Switching Up
Mouse button 5 – DPI Switching Down
Mouse button 6 – Forward
Mouse button 7 –Back
Mouse button 8 –Prole Change
Mouse button 9 – Back
Cable Lock/ Unlock Switch
K
L
M
N
O
P
Q
R
S
T
Pro-laser Gaming Sensor
Battery Charging Connector
ID Pairing Button
Power on/off Switch
Battery Lock/Unlock Switch
Ultra-DurableTM Teon feet
Pairing Button
Charging Contact Spring Band
Connector Jack for mini USB cable
Battery Slot

ENGLISH
3
Installation
Wireless Mode
Wired Mode
1. Remove the sticker between battery and mouse before using.
2. Switch on M8600.
3. Connect the Charging Dock to your computer with the mini-USB cable.
4. Press the connecting buttons on M8600 and Charging Dock at the same time. When
the pairing process is completed, your M8600 is then ready for use in wireless mode.
5. To charge M8600 in wireless mode, just place it on the Charging Dock. There is also
a spare charging battery to replace.(For the rst time use, please recharge the battery
at least 8 hours.)
6. To replace the battery with the spare battery, push the battery switch to the left as
shown. The battery will pop out instantly.
1. Connect the mini-USB end of the cable to M8600.
2. Plug mouse into the USB port of your computer. M8600 is then ready for use as a
wired mouse. Besides, its battery will start charging automatically in this wired mode.
3. To remove the cable, push the cable switch to the right as shown before pulling out
the mini-USB connector.

ENGLISH
4
Charging Methods
• There are three different charging methods below.
Place M8600 on the charging dock connected to your PC.
There will be running green light on the front side of mouse to
indicate charging process.
Insert your battery to battery slot of the charging dock.
Connect the charging dock to your PC. The red light on
charging dock will turn into green to indicate charging
process. When the battery is fully charged, the LED on
charging dock will come back to red light.
Connect M8600 to your PC with the mini USB. The mouse
will start charging automatically in wired mode

ENGLISH
5
LED Light System
Prole Indicator
M8600 has a prole/Battery/Sensitivity LED indicator on its front side, which displays the status of
prole/ battery life/sensitivity/ stage.
The color of the mode indicator LEDs changes along with prole switch. There are 5 different LED
colors corresponding to the 5 available proles on the mouse.
The LED color can be selected from the GHOST Engine software based on your preference.

ENGLISH
6
Battery Indicator
Sensitivity Stage Indicator
The GREEN LEDs shows the remaining battery life:
• 61 - 100% Battery: 3 green LED arrows
• 31 - 60% Battery: 2 green LED arrows
• 11 - 30% Battery: 1 green LED arrow
• Less than 10% Battery: 3 green blinking LEDs arrows
• Sensitivity Stage 1: 1 red LED
• Sensitivity Stage 2: 2 red LEDs
• Sensitivity Stage 3: 3 red LEDs
• Sensitivity Stage 4: full red LEDs
The LEDs will turn into RED light while adjusting sensitivity.

ENGLISH
7
Left Hand/ Right hand Mode
Gaming Mode/ Power Saving Mode
Color Option
GHOSTTM Macro Engine
GHOSTTM Macro Engine supports Windows 98, Windows 2000, Windows XP, and Windows7. Install the software to assign buttons
and set up your personal prole.
Please make sure to connect your M8600 with mini USB cable to PC while editing macro and assigning buttons through GHOSTTM
Engine software. (In wireless mode you are only allowed to adjust sensitivity, left-handed/right-handed mode and gaming/power
saving mode)
Aivia M8600 is designed both for left-handed and right-handed user. You may simply switch the left hand/
right hand mode from the options of GHOSTTM Engine. The description of the buttons then will swap around
symmetrically.
There are ve default color LED lights on the panel which indicate ve different proles
set up by users.
Each individual prole can be assigned various settings to 10 programmable buttons.
Moreover, you can also change the color of LED light for each prole(There are 26
colors and a light-off selection to choose from).
• Gaming mode:
In gaming mode, the mouse will stay longer in a standby status before going into sleeping status when mouse
is not active. Therefore, it would consume more energy as gaming mode.
• Power Saving mode:
In power saving mode, the mouse will go into sleeping mode sooner when it is not active. The mouse
consumes less energy while in power saving mode.

ENGLISH
8

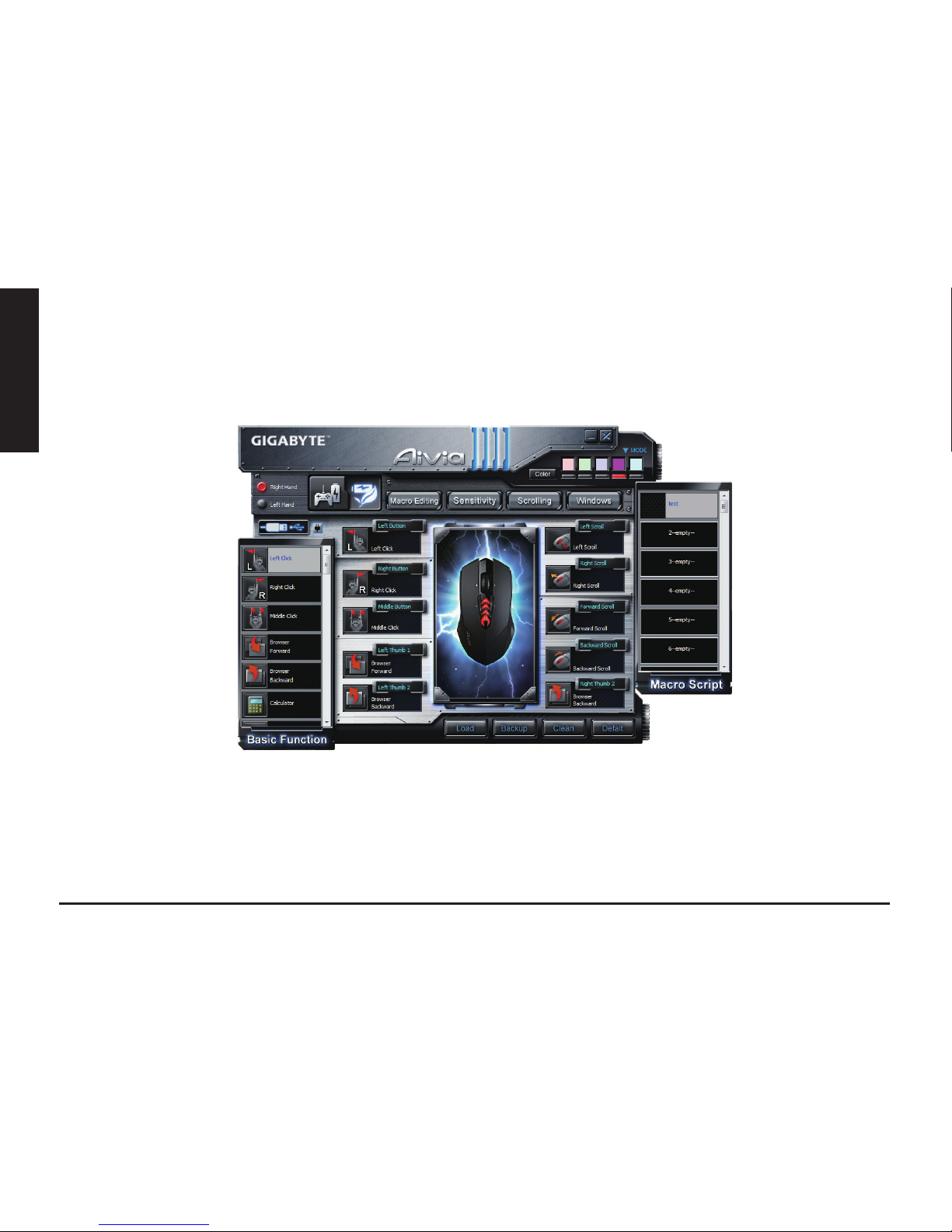

Button Assignment
User can assign various functions to buttons from both “BASIC FUNCTION” and “MACRO SCRIPTS”. All you have to do is drag the
function icon and simply drop to the button you would like to assign. Remember that you may edit each macro script in the “MACRO
EDITING” tab.
More Tips:
• You can swap around two button assignments by dragging one to the other.
• You may delete a button assignment by dragging the function icon out of that button assignment.
The button then becomes no functional.
• Dragging a set function icon to the empty button, you would copy that function to the empty button.
• Load and Backup:
In case you require more pro les (button assignments) and macros and do not wish to delete the existing pro les, simply “backup” the
existing pro les to your hard disk and load them back when needed.

ENGLISH
9
Macro Editing
The macro editing tab allows you easily to record all the commands, including key bindings and the press
of mouse button.
Each single macro also can be imported and exported onto your hard disk for further usage.
Start with:
Step1 Click "Record the duration or intervals" if you'd like to record intervals between two commands.
Step2 Double-click “Cycle through selection of action mode” to change the execute mode.
Step3 Click "Record" to start creating a macro and recording all the keystrokes or mouse commands.
Step4 Click "Stop" to nish recording this macro when a macro is done.
Step5 You can also insert additional commands on the “Quick-insert bar” left.
Step6 After recording a macro, you may drag commands of the macro and drop into "On-board script" to
store this macro on the mouse.
Step7 Double-click on the macro scrip to rename this macro. Moreover, you may also change icon of your
personal macro through clicking “change icon”.
Step8 Come back to “Button Assign” tab, the macro you had built would become one application of “Macro
scrip” in this tab.

ENGLISH
10
Learn more:
Record the duration or intervals (Time lag)
If this function is marked, it allows you to record the intervals between two commands.
Cycle through selection of action mode
• Execute once:
To execute a macro once.
• Loop mode:
Re-pressing to stop: Executing a macro continuously, and re-pressing
the assigned button to stop the running macro.
• Fire-button mode:
Executing a macro continuously until you release the assigned button.
Delete
You can delete a command or a whole macro script by dragging the command or the macro script to “Delete”
can.
Record Keyboard only
Clicking this option would ignore the press of mouse and just record keystrokes when recording a macro.
Press Pause Key to Stop Recording
Clicking this option would enable you to stop recording by pressing “Pause” key when recording a macro.
Change Icon
Here you can select your preferred icon for the macro. Furthermore, you can make your personal icon with
any pictures in jpg or bmp format. What you need to do is click an empty icon of the icon base and press
“Replace” to browse your les. Press “Remove” if you would like to remove the icon.

ENGLISH
11
Export
To export your a macro to the PC.
Import
To import a macro to the macro editing in GHOST engine application program.
Re-edit the macro
Dragging the macro script back to macro editing allows you to re-edit this macro.
Sensitivity
Sensitivity:
As default setting, there are four sensitivity stages: 800, 1600, 3200 and 5600DPI (dots per inch). You can
set up preferred sensitivity value of four sensitivity stages via GHOST Engine, you can then simply adjust
DPI through on-the-y switch. Check “set X and Y axis separately” option to adjust X-Y sensitivity levels.
Report rate:
The report rate determines the time intervals that your PC retrieves data from your mouse. You can set the
report rate to 125Hz (8ms), 250Hz (4ms), 500Hz (2ms), or 1000Hz (1ms) by moving the knob on the slider.
Scrolling
You can adjust vertical & horizontal scroll wheel speed by moving the knob on the slider.

ENGLISH
12
Product Specication
Mouse and Receiver:
Antenna Gain=0dBm
Operating Frequency: 2402/ 2439/ 2450/ 2411/ 2468/ 2425/ 2447/ 2479MHz
Channel Number: 8 channels
Transmitter Output Power: 0 dBm
Modulation:2.4G GFSK modulator
Operating Temperature Range: 0°C(32°F) ~ 40°C(104°F)
Power Type of wireless module:
Mouse : Battery supply voltage
Receiver : NB or PC USB Port Supply Voltage
Battery:
Battery Pack: BURNABY INTERNATIONAL TECHNOLOGY
Model: SANYO NP 80/ 3.7Vdc 1500mAh
Note: Please recharge the battery at least 8 hours for the rst use.
Caution:
• Please DO NOT directly look into the laser beam.
• Risk of explosion if battery is replaced by an incorrect type
• Dispose of used batteries according to the instruction
Important information:
Long period of repetitive motion using an improperly set-up workplace, or incorrect body posture may be
associated with physical discomfort and injury to nerves, tendons, and muscles.

ENGLISH
13
Safety
FCC Declaration:
• This device has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution:
• Changes or modications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
• The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.

1
繁體中文
滑鼠功能說明
滑鼠預設功能
A
B
C
D
E
F
G
H
I
J
Mouse button 1 – 左鍵
Mouse button 2 – 右鍵
Mouse button 3 – 中鍵以及四向滾輪
Mouse button 4 – 增加DPI 切換
Mouse button 5 – 減少DPI 切換
Mouse button 6 – 下一頁
Mouse button 7 – 上一頁
Mouse button 8 – 模式切換
Mouse button 9 – 上一頁
USB接線 開/關切換
K
L
M
N
O
P
Q
R
S
T
超精準雷射追蹤器
電池充電接觸彈片
連接對碼鈕
電源 開/關切換
電池退出開/關切換
超耐磨鐵氟龍滑鼠腳墊
連接對碼鈕
電池接觸彈片
mini USB 接頭插座
電池充電插座

繁體中文
2
繁體中文
安裝說明
無線模式
有線模式
1. 使用前先撕除電池上的貼紙
2. 打開M8600開關
3. 將充電座(同時也是接收器)的USB轉
mini-USB線連接到電腦
4. 同時按下充電座的連接對碼鈕以及M8600的對碼鈕，當對碼完成，M8600 就可以以無線
的狀態操作使用
5. 無線使用狀態下，只要把M8600放在充電座上就可以直接充電；另外也附有一顆備用充
電電池可以隨時替換。Alternatively, M8600 can be charged through the mini USB cable
as a wired mode.
6. 更換充電電池時，先把滑鼠下方的電池開關往左推(如圖所示)，此時電池座會自動彈出
1. 將線材的 mini-USB接頭連接到M8600
2. 把滑鼠接入電腦上的USB埠，您的M8600便可以有線狀態使用。
同時，滑鼠會開始自動充電
3. 拔除滑鼠上的線材時，請先將滑鼠下方的線材開關往右推(如圖所示)，您就可以把
mini-USB接頭拔出

3
繁體中文
LED燈光系統
模式指示燈
M8600上方的LED燈同時是模式/電量/靈敏度的指示燈號，燈號可以顯示目前所選取的模式、剩餘電
量和目前的DPI段數
滑鼠上的燈光顏色會隨著模式切換鍵改變，5種預設的燈光顏色會對應5個您預先設定好的模式，而
LED燈光顏色也可以根據您的喜好在GHOSTTM引擎軟體自由選擇置換。

繁體中文
4
繁體中文
電量指示燈
靈敏度指示燈
綠色燈號顯示目前剩餘的電量:
- 靈敏度一段: 1 顆紅色 LED燈
- 靈敏度二段: 2 顆紅色 LED燈
- 靈敏度三段: 3 顆紅色 LED燈
- 靈敏度四段: 紅色LED燈全滿
調整靈敏度時，LED燈會轉變成紅色燈號以指示DPI段數：
61 - 100%
31 - 60%
11 - 30%
低於10%
電量: 3 顆綠色LED箭號燈
電量: 2 顆綠色LED箭號燈
電量: 1 顆綠色LED箭號燈
電量: 3 顆綠色閃爍LED箭號燈

5
繁體中文
左手/右手模式
遊戲/省電模式
選擇燈光顏色
GHOSTTM巨集編輯引擎
GHOSTTM巨集編輯引擎可支援 Windows 98、Windows 2000、Windows XP和Windows7等作業系統。安
裝此軟體便可以錄製各種按鍵功能以及設定您個人專屬的模式。當您使用GHOSTTM 軟體平台設定按鍵功
能或編輯巨集時，請確認滑鼠為有線狀態(在無線狀態時，您只能調整靈敏度、切換左右手模式以及遊戲/
省電模式)。
Aivia M8600 為左右手通用的滑鼠，您可以透過GHOSTTM軟體上的左右手選項輕鬆地切換，此時您
所設定的按鍵功能會自動左右對調。
右上方控制列顯示五個預設LED燈光，分別代表五個不同的模式設定，而每
一種模式又有十個按鍵鈕可供設定。在此，您也可以自由選擇您喜好的燈光
顏色(共有26種燈光顏色以及關閉燈光效果可供選擇)。
• 遊戲模式:
在此模式下，當滑鼠沒有運作時，滑鼠進入休眠前的待機狀態較長，因此在遊戲模式下耗費的電
源較多。
• 省電模式:
在此模式下，當滑鼠不運作時會較快地進入休眠狀態。因此在省電模式下電源耗損較小。

繁體中文
6
繁體中文

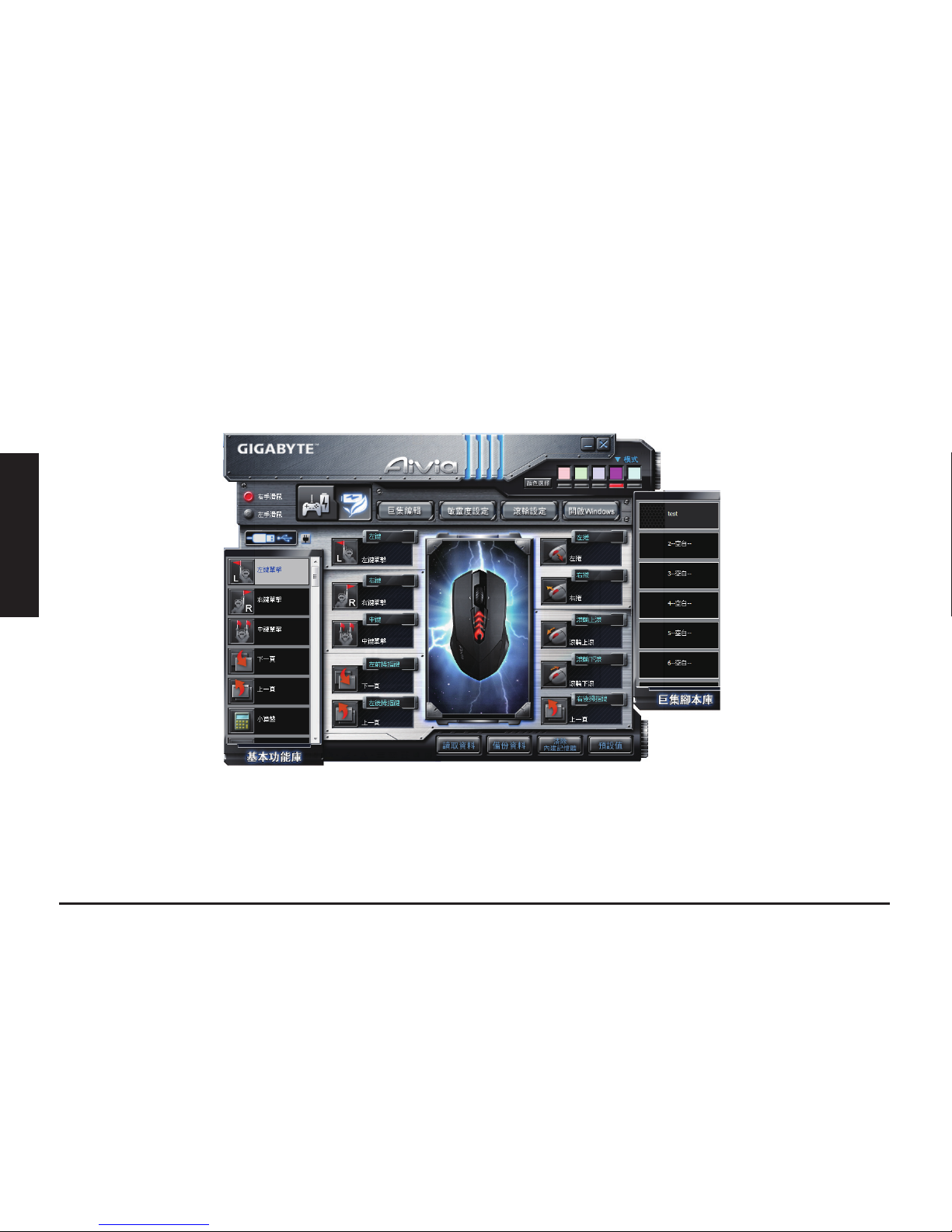

按鍵配置
使用者可以同時從GHOSTTM軟體內建的「基本功能庫」和自行編集的「巨集腳本庫」裡的挑選功能選項來設定滑鼠按
鍵，操作上只要將功能方塊拖曳到欲設定的按鍵鈕上，即可輕鬆完成設定。請記得，你可以到「巨集編集器」分頁裡編
集你專屬的巨集設定。
更多小技巧:
• 當您把其中一個按鍵上的功能拖拉到另一個按鍵時，這兩個按鍵的功能會互相對調。
• 當您把按鍵上的功能設定拖拉到按鍵以外的範圍，便可以刪除這個按鍵的設定。此時，這個按鍵變為無功能(空白)。
• 把任何的按鍵功能圖像拖拉到空白的按鍵，可以複製此功能至空白鍵。
讀取與備份資料:
如果您需要更多組的模式(按鍵功能)和巨集設定卻不希望刪除現存的模式，您可以將現存的模式(pro le) 「備份」到硬碟，當需要使用時然後再
重新「讀取」回GHOSTTM軟體平台。
