Gigabyte GV-R567HM-1GI User manual

GV-R567D5-512I/
GV-R567HM-1GI/
GV-R567ZL-1GI/
GV-R567OC-1GIrev1.0/1.1/
GV-R567OC-1GIrev2.0
ATI RadeonTM HD 5670 GraphicsAccelerator
User's Manual
Rev. 201
12MM-R567OGI-201R
Copyright
©2010GIGABYTETECHNOLOGYCO.,LTD
CopyrightbyGIGA-BYTETECHNOLOGYCO.,LTD.("GBT").Nopartofthismanualmaybereproducedortransmitted
in anyform withoutthe expressed,written permissionof GBT.
Trademarks
Third-partybrandsandnamesarethepropertiesoftheirrespectiveowners.
Notice
Pleasedo notremove any labels on thisgraphics card.Doing somay voidthe warrantyof thiscard.
Duetorapidchangeintechnology,someofthespecificationsmightbeoutofdatebeforepublicationofthisthismanual.
Theauthorassumesnoresponsibilityforanyerrorsoromissionsthatmayappearinthisdocumentnordoestheauthor
makeacommitmenttoupdatetheinformationcontainedherein.
Rovi Product Notice:
ThisproductincorporatescopyrightprotectiontechnologythatisprotectedbyU.S.patentsandotherintellectualpropertyrights.
UseofthiscopyrightprotectiontechnologymustbeauthorizedbyRoviCorporation,andisintendedforhomeandotherlimited
viewingusesonlyunlessotherwiseauthorizedbyRoviCorporation.Reverseengineeringordisassemblyisprohibited.

Apr. 16, 2010
VGA Card
GV-R567D5-512I
VGA Card
GV-R567D5-512I
Apr. 16, 2010

July. 09, 2010
VGA Card
GV-R567ZL-1GI / GV-R567HM-1GI
VGA Card
GV-R567ZL-1GI GV-R567HM-1GI
July. 09, 2010

Jan. 11, 2010
VGA Card
GV-R567OC-1GI
VGA Card
GV-R567OC-1GI
Jan. 11, 2010

June. 28, 2010
VGA Card
GV-R567OC-1GI rev2.0
VGA Card
GV-R567OC-1GI rev2.0
June. 28, 2010

- 6 -
Table of Contents
1.Introduction ................................................................................................................ 7
1.1.Features ......................................................................................................................... 7
1.2.MinimumSystemRequirements .................................................................................... 7
2.HardwareInstallation.................................................................................................. 9
2.1.BoardLayout ................................................................................................................. 9
2.2.HardwareInstallation.................................................................................................... 15
3.SoftwareInstallation.................................................................................................. 17
3.1.DriverandUtilityInstallation......................................................................................... 17
3.1.1. Driver Installation ......................................................................................................... 17
3.2. TaskbarIcon............................................................................................................. 19
3.3. DisplayPropertiesPages ........................................................................................ 21
4.TroubleshootingTips................................................................................................ 34
5.Appendix ................................................................................................................. 35
5.1.ResolutionsandColorDepthTables ............................................................................. 35
5.2.RegulatoryStatements ................................................................................................. 36

- 7 - Introduction
1. Introduction
1.1. Features
•Powered by ATI RadeonTM HD 5670 Graphics Processing Unit (GPU)
•Supports PCI Express 2.1
•GV-R567HM-1GI supportsATI HyperMemoryTM technologywhich enablesgraphics card
performancebyallowingthegraphicsprocessingunit(GPU)todynamicallysharethe
availablesystemmemory.ThetotaleffectiveVGAmemorydiffersdependingonsystem
memory. (Note1)
•Integratedwith 1 GB/512MBGDDR5 memory
•SupportsDirectX11
•SupportsCrossFireXTM
• Supports1Dual-LinkDVI-Iconnector
• Supports1D-Subconnector
• Supports1HDMIconnector
1.2. Minimum System Requirements
•Hardware
- Intel®Pentium®4/CoreTM 2 or AMD AthlonTM /PhenomTM
- 1 GB or more of system memory for best performance
- Optical drive for software installation (CD-ROM or DVD-ROM drive)
- A power supply that provides at least 400-watt is required. The power supply should be
with a known brand and certified to conform to safety regulations. (For the list of certified
power supplies, go to http://ati.amd.com/certifiedpsu.)
•OperatingSystem
- Windows®7
- Windows®Vista
- Windows®XP with Service Pack 2 (SP2)
- Windows®XP Professional x64 Edition
•CrossFireXTM Configuration
If you are planning on using this graphics card as part of a CrossFireX system, the following
is required:
- A CrossFireX certified motherboard with two PCI Express x16 slots and correct chipset driver
- Two GV-R567D5-512I/GV-R567HM-1GI/GV-R567ZL-1GI/GV-R567OC-1GI rev1.0/1.1/
GV-R567OC-1GI rev2.0
- A power supply that provides at least 450-watt is required. The power supply should be
with a known brand and certified to conform to safety regulations. (For the list of certified
power supplies, go to http://ati.amd.com/certifiedpsu.)
- Two CrossFire bridge interconnect cables

- 8 -GV-R567 Series Graphics Accelerator
(Note 1) The amount of HyperMemoryTM will only be shown in the Information Tab found in the CatalystTM
ControlCenter. Microsoft System Information program in Windows 7 and Windows Vista lists only
amount of videomemory on Display Adapter under Adapter RAM item.
The amount of HyperMemory available under Windows 7 and Windows Vista is calculated using the
followingformula:
Total HyperMemory = (System Memory- 512) / 2 + Discrete graphics amount.
1GBsystem memory 2GBsystem memory 3GBsystem memory 4GB* system memory
64MB graphics memory HyperMemory=320MB HyperMemory=832MB HyperMemory=1280MB HyperMemory=1792MB
128MB graphics memory HyperMemory=384MB HyperMemory=896MB HyperMemory=1344MB HyperMemory=1856MB
256MB graphics memory HyperMemory=512MB HyperMemory=1024MB HyperMemory=1536MB HyperMemory=2048MB
512MB graphics memory HyperMemory=768MB HyperMemory=1280MB HyperMemory=1792MB HyperMemory=2304MB
1024MB graphics memory HyperMemory=1280MB HyperMemory=1792MB HyperMemory=2304MB HyperMemory=2816MB
2048MB graphics memory HyperMemory=2304MB HyperMemory=2816MB HyperMemory=3328MB HyperMemory=3840MB

- 9 - Hardware Installation
2. Hardware Installation

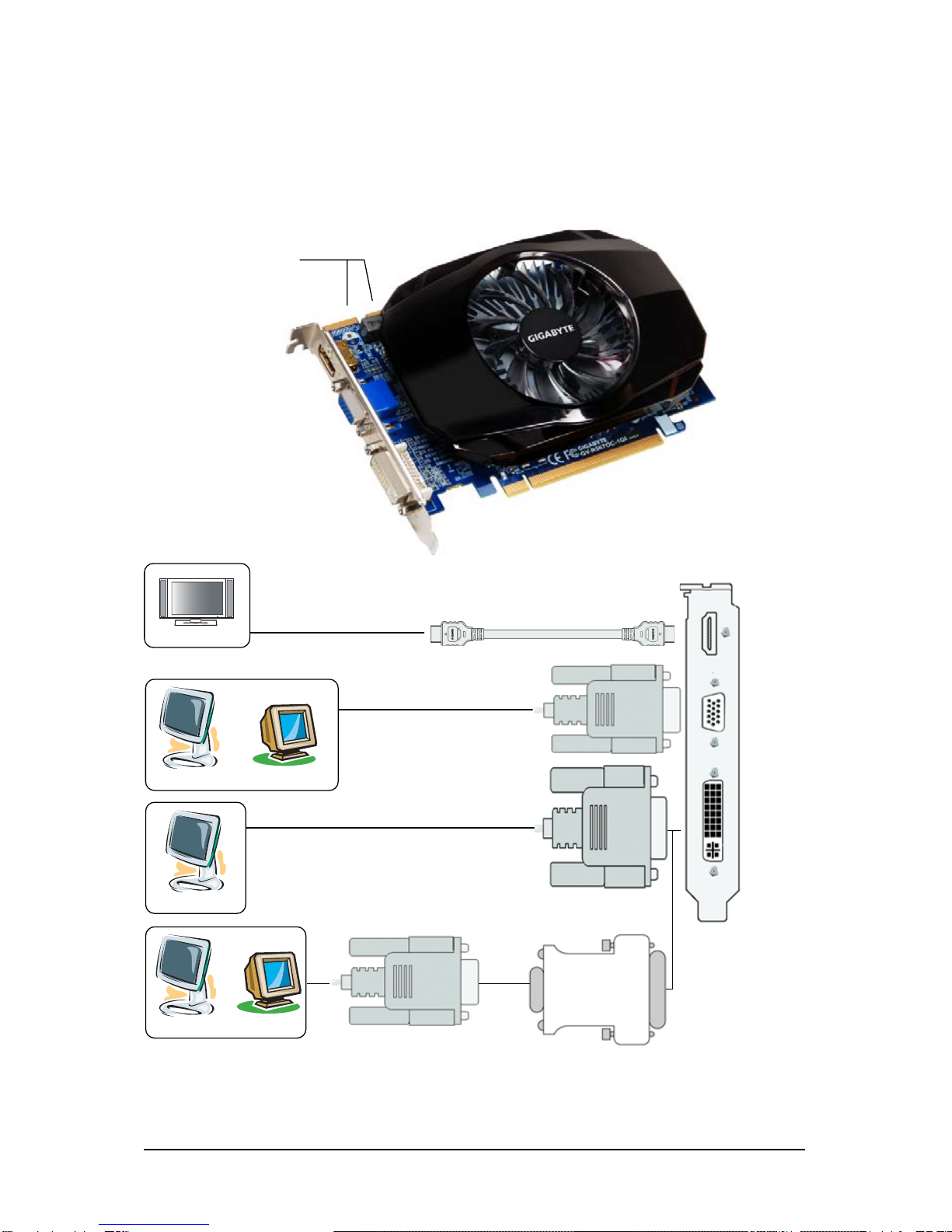

2.1. Board Layout

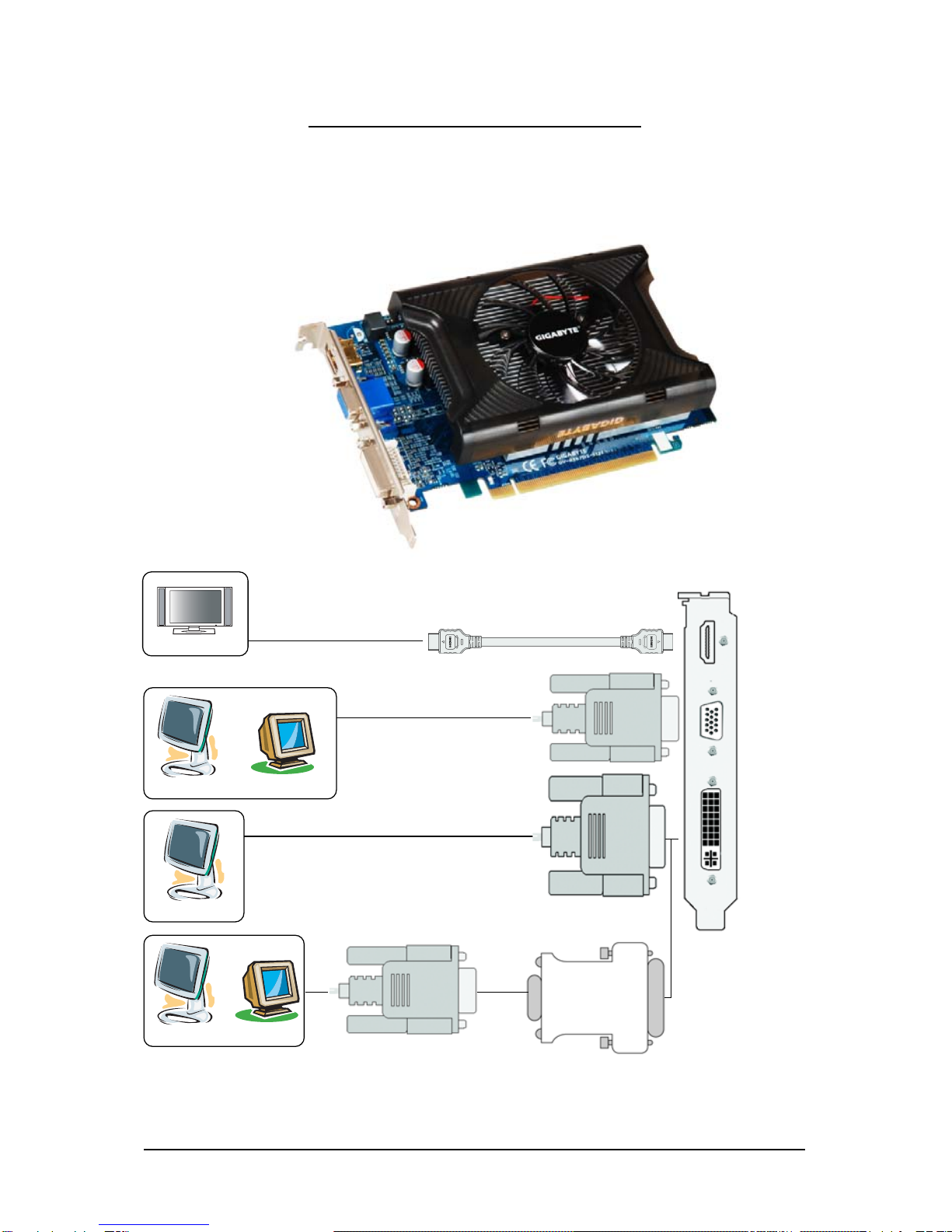

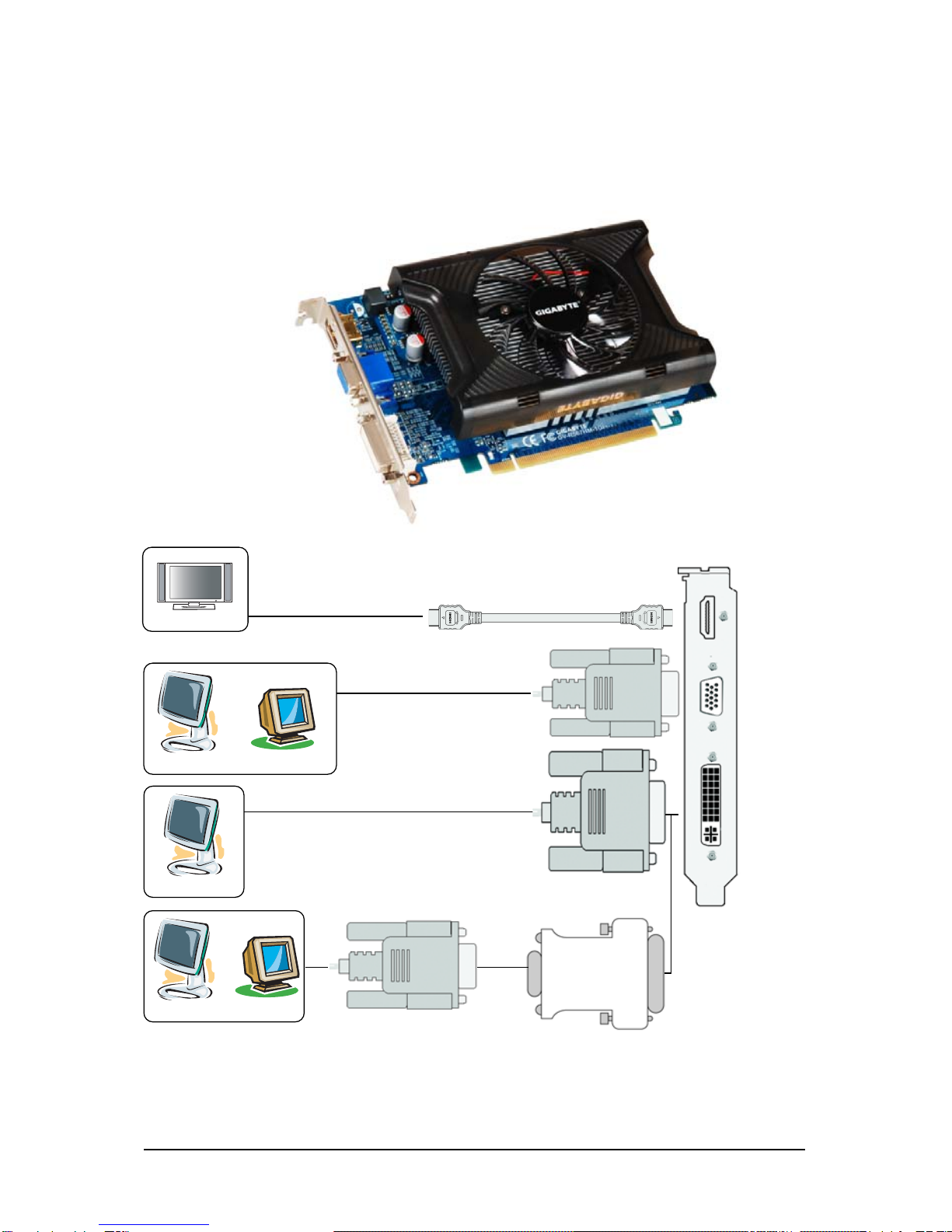

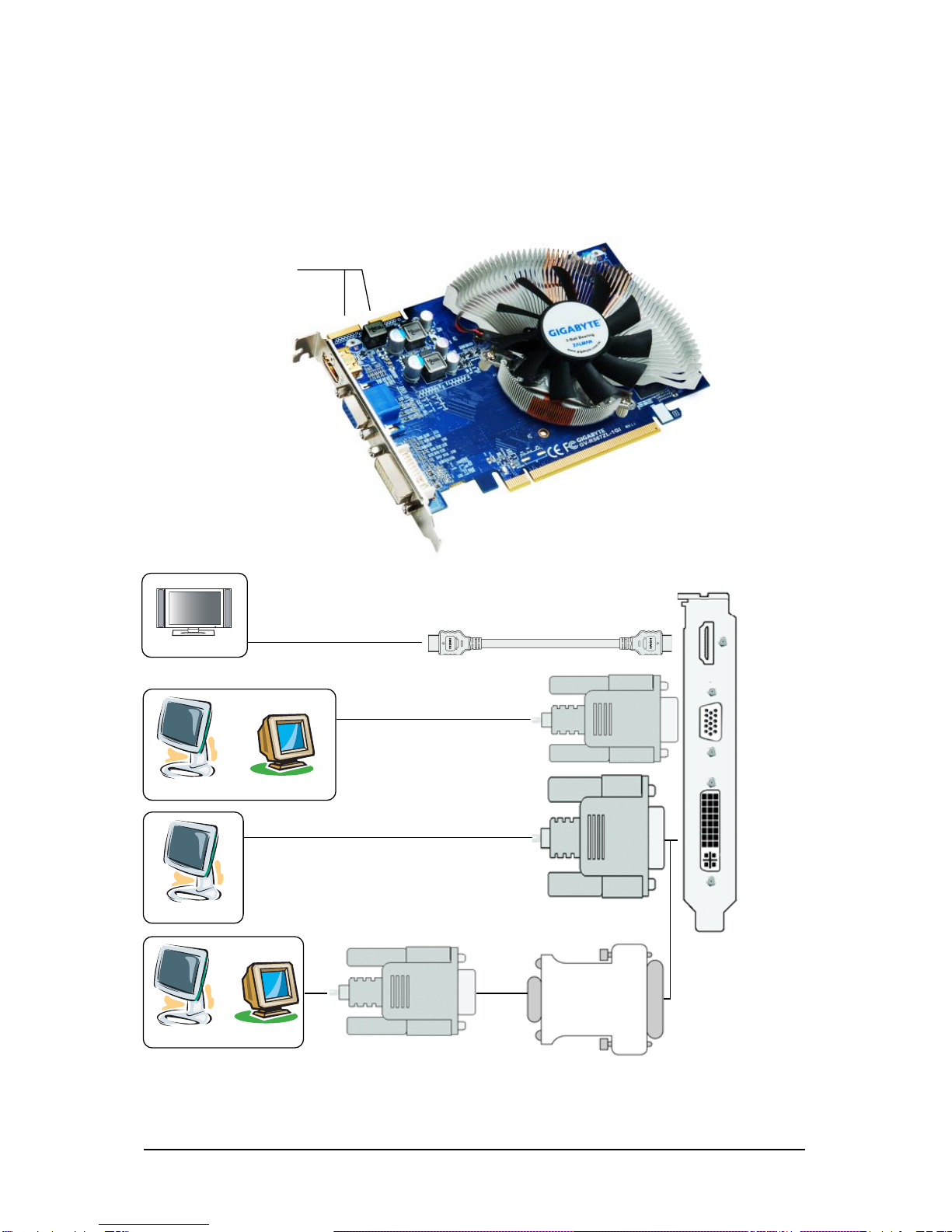

HDMI Connector
DVI-I Connector
DVI-I
Connector
AnalogLCDMonitor AnalogMonitor
or DVI-I to D-Sub
Adapter
Digital LCD Monitor
DVI Output
D-Sub
Output
HDMI TV HDMI
Connector
HDMI TV
D-Sub monitor Connector
(15-pin)
D-Submonitor
Connector
(15-pin)
Analog LCD Monitor Analog CRT Monitor
or
D-Sub Output
1. GV-R567D5-512I

- 10 -GV-R567 Series Graphics Accelerator
HDMI Connector
DVI-I Connector
DVI-I
Connector
AnalogLCDMonitor AnalogMonitor
or DVI-I to D-Sub
Adapter
Digital LCD Monitor
DVI Output
D-Sub
Output
HDMI TV HDMI
Connector
HDMI TV
D-Sub monitor Connector
(15-pin)
D-Submonitor
Connector
(15-pin)
Analog LCD Monitor Analog CRT Monitor
or
D-Sub Output
2. GV-R567HM-1GI

- 11 - Hardware Installation
HDMI Connector
DVI-I Connector
DVI-I
Connector
AnalogLCDMonitor AnalogMonitor
or DVI-I to D-Sub
Adapter
Digital LCD Monitor
DVI Output
D-Sub
Output
HDMI TV HDMI
Connector
HDMI TV
CrossFire Connector
D-Sub monitor Connector
(15-pin)
D-Submonitor
Connector
(15-pin)
Analog LCD Monitor Analog CRT Monitor
or
D-Sub Output
3. GV-R567ZL-1GI

- 12 -GV-R567 Series Graphics Accelerator
HDMI Connector
DVI-I Connector
DVI-I
Connector
AnalogLCDMonitor AnalogMonitor
or DVI-I to D-Sub
Adapter
Digital LCD Monitor
DVI Output
D-Sub
Output
HDMI TV HDMI
Connector
HDMI TV
CrossFire Connector
D-Sub monitor Connector
(15-pin)
D-Submonitor
Connector
(15-pin)
Analog LCD Monitor Analog CRT Monitor
or
D-Sub Output
4. GV-R567OC-1GI (rev1.1/rev1.0)

- 13 - Hardware Installation
HDMI Connector
DVI-I Connector
DVI-I
Connector
AnalogLCDMonitor AnalogMonitor
or DVI-I to D-Sub
Adapter
Digital LCD Monitor
DVI Output
D-Sub
Output
HDMI TV HDMI
Connector
HDMI TV
CrossFire Connector
D-Sub monitor Connector
(15-pin)
D-Submonitor
Connector
(15-pin)
Analog LCD Monitor Analog CRT Monitor
or
D-Sub Output
5. GV-R567OC-1GI rev2.0

- 14 -GV-R567 Series Graphics Accelerator
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protectthemagainstdamagefromstaticelectricity,youshouldfollowsome
precautions whenever you work on your computer.
1. Turnoffyour computer and unplug powersupply.
2. Useagroundedwriststrapbeforehandlingcomputercomponents.Ifyoudonot
haveone,touchbothofyourhandstoasafelygroundedobjectortoametalobject,
suchasthepowersupplycase.
3. Placecomponentsonagroundedantistaticpadoronthebagthatcamewiththe
componentswheneverthecomponentsareseparatedfromthesystem.
Thecardcontainssensitiveelectriccomponents,whichcanbeeasilydamagedbystatic
electricity,sothecardshouldbeleftinitsoriginalpackinguntilitisinstalled.
Unpackingandinstallationshouldbedoneonagroundedanti-staticmat.Theoperator
shouldbewearingananti-staticwristband,groundedatthesamepointastheanti-static
mat.
Inspectthecardcartonforobviousdamage.Shippingandhandlingmaycausedamage
toyour card. Be surethereare no shipping andhandlingdamageson the card before
proceeding.
DO NOTAPPLY POWER TOYOUR SYSTEM IF THE GRAPHICS CARD IS
DAMAGED.
In order to ensure that your graphics card can work correctly, please use
official GIGABYTE BIOS only. Using non-official GIGABYTE BIOS might
cause problem(s) on the graphics card.
The entire Radeon HD 5670 series support HDMI output which can handle both audio and
video signals. However, audio output from the onboard audio controller or the external
sound card will be disabled when HDMI output is activated.
If no need for HDMI output function, set the onboard audio controller or the external sound
card to be the default Sound Playback device to obtain audio output from your system. For
more details, refer to page 20.

- 15 - Hardware Installation
2.2. Hardware Installation
Now that you have prepared your computer, you are ready to install your graphics card.
Step 1.
Locate the PCI Express x16 slot. If necessary, remove the
metal cover from this slot; then align your graphics card with
the PCI Express x16 slot, and press it in firmly until the card is
fully seated.
Step 2.
Replace the screw to fasten the card in place, and replace the
computer cover.
Makesurethatthegoldedgeconnectorofthegraphicscardissecurely
inserted.
Step 3.
Plug the display cable into your card; then turn on the computer
and monitor. To connect a flat panel display to your graphics
card, use the DVI-I connector. To connect an HDMI monitor to
your graphics card, use the HDMI connector. To connect a
DisplayPort monitor to your graphics card, use the DisplayPort
connector.
You are now ready to proceed with the installation of the graphics card driver. Please refer to next
chapter for detailed instructions.
Connecta flat paneldisplay
ConnectanHDMImonitor
To Flat Panel Display
ToHDMIMonitor
ConnectaDisplayPortmonitor
ToD-SubMonitor

- 16 -GV-R567 Series Graphics Accelerator

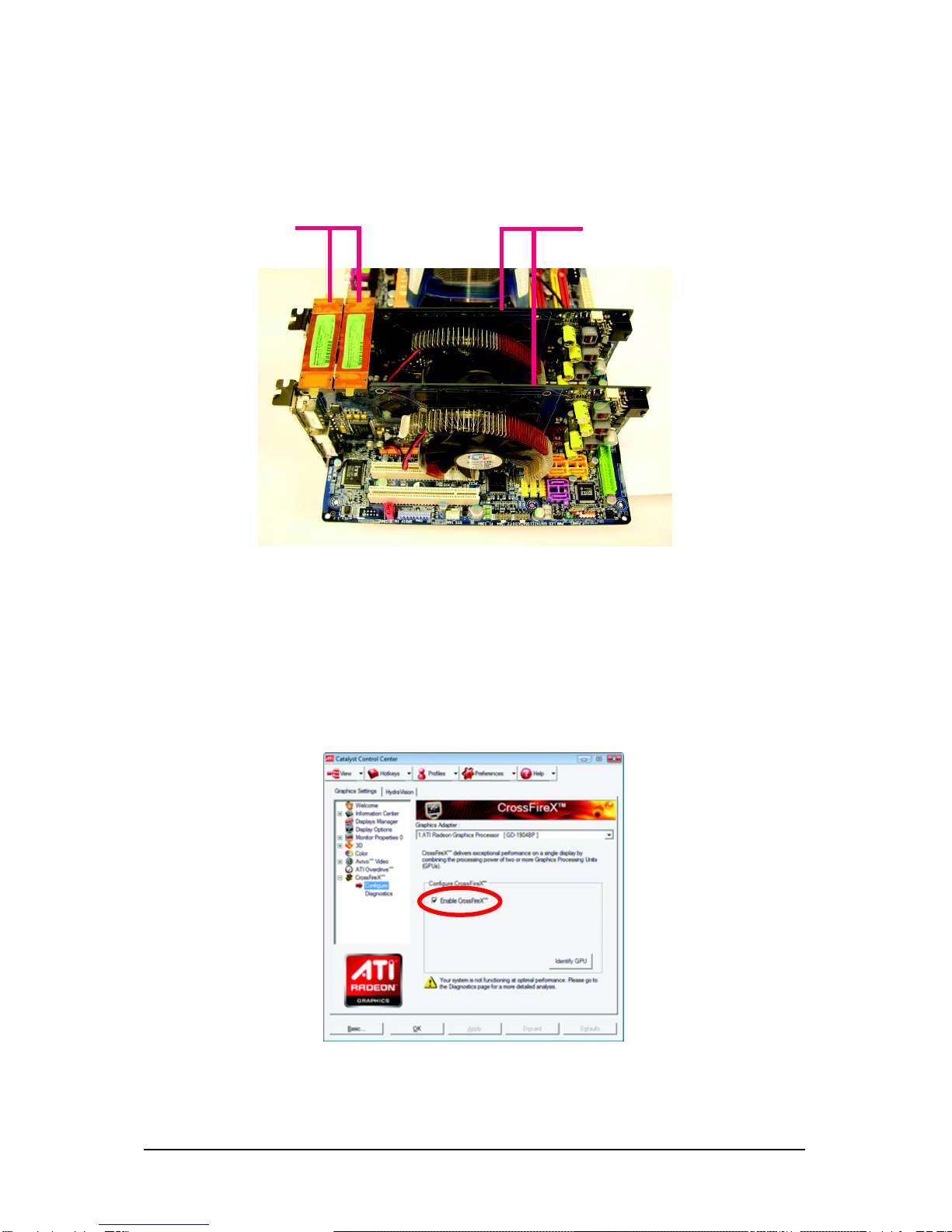

How to enable the ATI CrossFireXTM technology?
Step 1:
Install two CrossFireX graphics cards of the same chipset on a CrossFireX-supported motherboard and
connect the graphics cards via two CrossFire bridge interconnect cables (Figure 1). Then users can
enable the CrossFireX technology through the graphics card driver.
Two CrossFire bridge
interconnect cables. TwoCrossFiregraphics cardsofthe same type.
(Example: GV-RX195P256D-RH)
Figure 1
Step 2:
After installing graphics card driver in operating system, when an ATI CrossFireX configuration is
detected for the first time by the ATI Catalyst display driver, ATI CrossFireX support is automatically
enabled, and the best possible GPU combination is selected based on the hardware configuration.
IfATI CrossFireX is not enabled, access the ATI Catalyst Control Center (please refer to Page 15). From
theATI Catalyst Control Center, enter the CrossFireX menu and assure to select the Enable CrossFireXTM
check box (Figure 2).
Figure 2

- 17 - Software Installation
3. Software Installation
Notice the following guidelines before installing the drivers:
1. First make sure your system has installed DirectX 9 or later version.
2. Make sure your system has installed the appropriate motherboard drivers (for the motherboard
drivers, please contact the motherboard manufacturer.)
3.1. Driver and Utility Installation
3.1.1. Driver Installation
After installing the operating system, insert the driver disk into your optical drive. The driver Autorun
screen is automatically displayed which looks like that shown in the screen shot below. (If the driver
Autorun screen does not appear automatically, go to My Computer, double-click the optical drive and
execute the setup.exe program.)
For software MPEG support in Windows XP, you must install DirectX first. Users who run
Windows XP with Service Pack 2 or above do not need to install DirectX separately.
Step 1:
Click the Install Display Driver item.
Step 2:
Select the displayed language and then click Next.
Step 3:
Click the Install button.

- 18 -GV-R567 Series Graphics Accelerator
Setp 4:
Click the Express or Custom icon and then
click Next.
Step 5:
Click the Accept button.
The system is installing the components. Step 6:
Click the Finish button to restart the computer.
Then the driver installation is completed.

- 19 - Software Installation
3.2. Taskbar Icon
After installation of the display driver, you will find anATI icon in the notification area. Right-click the
icon to enter the ATI Catalyst Control Center. The ATI Catalyst Control Center is used to configure
all your graphics card settings.

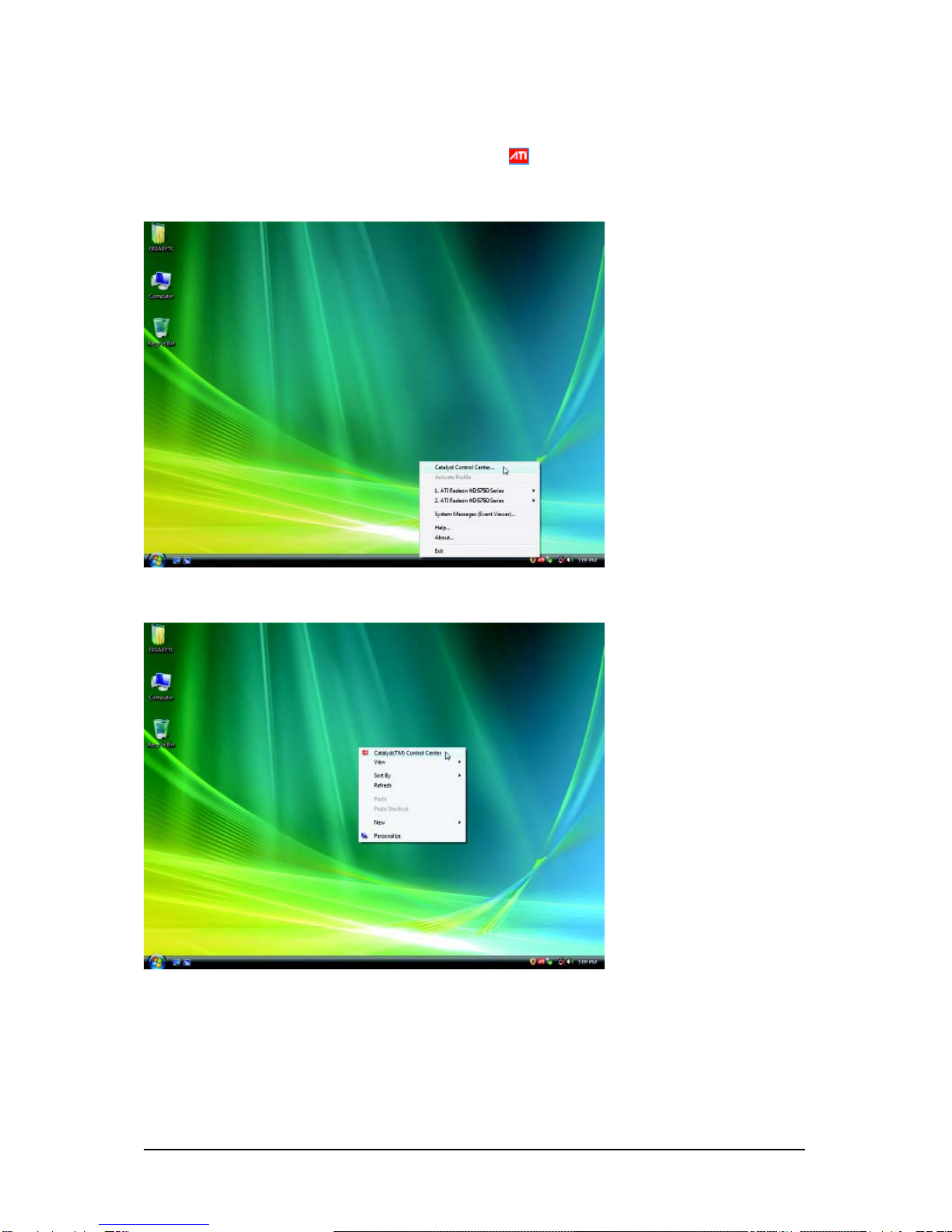

Right-click the ATI icon to enter the ATI Catalyst Control Center.
Or you can right-click on the desktop and select Catalyst(TM) Control Center.

- 20 -GV-R567 Series Graphics Accelerator
Configuring Audio Output
Configure the default audio output device based upon your needs.
Step 1:
Go to Start > Control Panel > Hardware and Sound > Manage audio devices.
Using the picture to the left as the example, to set HDMI audio to be
the default Sound Playback device, select Digital Output Device
(HDMI). Otherwise, select Digital Output Device (SPDIF), which
is the onboard audio controller.
Step 2:
In the Manage audio devices dialog box, click the Playback tab.
Figure 1 Figure 2
Figure 3
