1

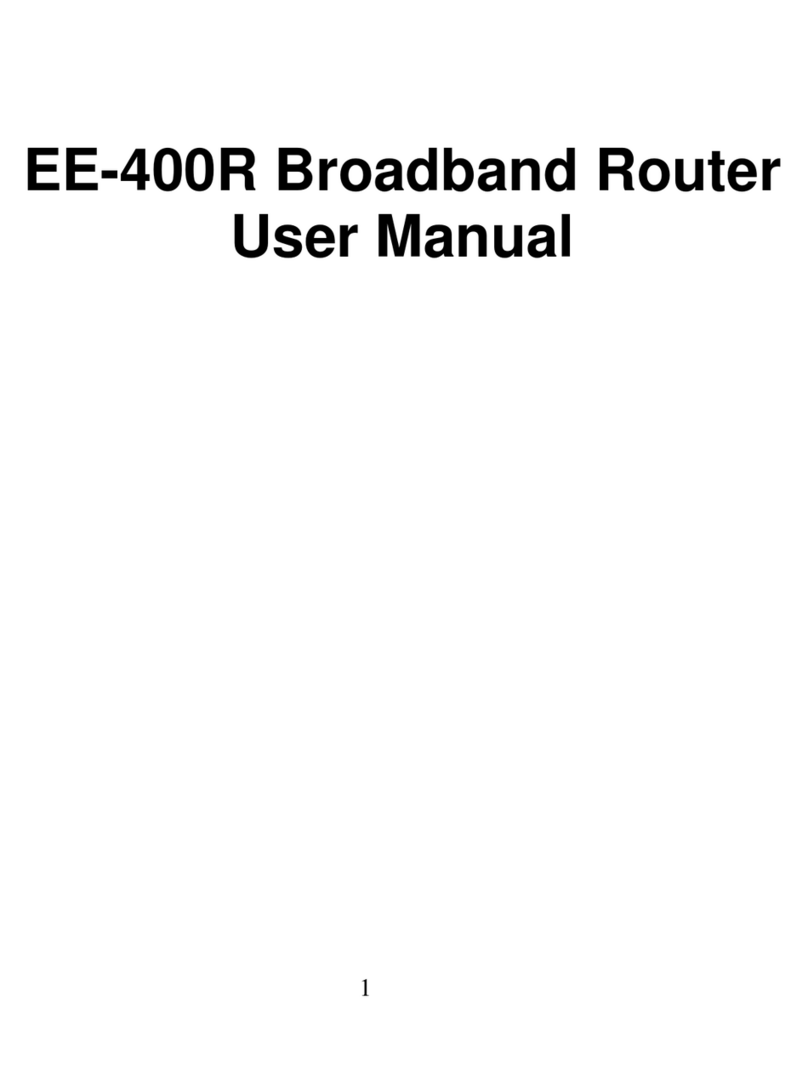

EE400-R Broadband Router
User Manual

2
Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an
information retrieval system, translated into any language, or transmitted in any form or by any means,
mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written
permission.
Trademarks
All product, company, brand names are trademarks or registered trademarks of their respective companies.
They are used for identification purpose only. Specifications are subject to be changed without prior notice.
Copyright© 2002, GigaFast Inc. All Right Reserved.

3
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio
interference in a commercial environment. This equipment can generate, use and radiate radio frequency
energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause
interference, in which case the user, at his own expense, will be required to take whatever measures are
necessary to correct the interference.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B,
and EN 50082-1. This meets the essential protection requirements of the European Council Directive
89/336/EEC on the approximation of the laws of the member states relation to electromagnetic compatibility.

4
Table of Content
Chapter 1
Features
Content
Requirement
Panel
Wire diagram
Chapter 2
Quick install
Chapter 3
Basic configuration
Chapter 4
Advanced configuration
Chapter 5
Troubleshooting/How-to
Appendix A: Cabling and Pin Assignment
Appendix B: Configure IP manually
Appendix C: Technical Information

5
Introduction
Congratulations on your purchase of this outstanding Broadband Router EE400-R. This product is the perfect
option to connect a group of PCs to a high-speed Broadband Internet connection or to an Ethernet based
Backbone (ETTH/ETTB: Ethernet To The Home/Building). Configurable as a DHCP server, this product is the
only externally recognized server device on your local area network (LAN). Thus even a non-technical person
will easily configure it to meet the different application.
This product does not only provide a complete solution to share the Internet bandwidth, it also serves as an
Internet Firewall to protect your LAN data from being accessed by outside intruder/hacker . Since all incoming
data packets have been analyzed/monitored, all unwanted packet may be filtered-out and be recorded as an
intrusion event. EE400-R can also be configured to block some internal LAN user’s access to the Internet for
management purpose.
Secure Internet Access via Cable/DSL Modem.
Features
lConnects to 10/100M Broadband (cable or DSL) modem or Ethernet backbone for Internet
Surfing.
lMultiple WAN connection type:
Static IP : for lease line or router-router interconnect.
DHCP client :for most cable modem service.
PPPoE : for Dial-up ADSL service,
PPTP client : for some European Dial-up ADSL or L2-VPN application
lEquipped with a 4-port 10/100M switched Hub for LAN users.
lDHCP Server/ DNS proxy support (can save an extra PC/Server in LAN).
All the networked computers in LAN can retrieve TCP/IP setting (IP address, subnet mask, gateway,
DNS,IP…) automatically from this device.
lSimultaneously act as both DHCP Server on the LAN and a DHCP Client on the WAN for most
easy application.
lConnects multiple LAN PCs to the Internet with only one dynamic-assigned IP address (NAT
mode) or a range of legal IP address (NAT/Routing mode)
lWeb-based Configuring
Configurable through any networked computer’s web browsers using Internet Explorer or Netscape
browser.
lAllow/Deny remote administration through WAN connection by Web browser.
lFirewall capability to protect LAN PCs from outside intruder access/attack.
Avoid unwanted packet from WAN and provide a system event log to record intrusion information.
(date/time, source IP address & port …)
lLAN user Access privilege
Administrator can arrange interior LAN user’s access privilege to Internet by IP address, TCP/IP port

6
service, URL name keywords and 24-hour time zone.
lVirtual Server (Port forwarding) function
Internet servers (WWW, FTP, E-mail …) in LAN could be virtually exposed to WAN for outside Internet
user access. This is a useful and secure network deployment for Internet servers.
lDMZ (De-Militarized Zone) Host
Administrator can totally expose a host PC in LAN to the Internet without any firewall protection
mechanism. This option allows a full two-way communication between the local host PC and remote
Internet node. (ex. bi-directional games, video/audio conferences …)
Multi DMZ Host support
In static IP configuration with a range of legal IP address, Administrator could totally expose
more host PCs in LAN to the Internet according to LAN/WAN IP address mapping.
Content
lOne broadband router unit
lOne power adapter
lManual
Requirement
lOne Ethernet based broadband Internet connection (like cable/ADSL modem or other router)
lOne PC with a network card and TCP/IP protocol stack Installed.
lMicrosoft Internet Explorer4.75 or later

7
Panel -Wire diagram
•Internet connection should be connected to the WAN port of the router
•Power adapter should be connected to the Power port
•Computers should be connected to port 1-4 on the Router or connected on to
Hubs/Switches that are connected to the router

8
Quick install
CHAPTER 2EZ SETUP (All configuration menu are from firmware 1.6x)
The following steps are setup processes for the most common company of broadband
provider company.
This section will be divided into 3 parts. One which is for cable internet setup, part two is for
DSL internet setup and part three is for Macintosh Users. One thing that users have to
understand is that the Web Console page is located ON THE ROUTER. You do not have to
be connected to the internet to access the Web Console page.
Part 1 -Cable Broadband-
1. SECTION 1
Turn off the Cable modem and the Router
2. Connect a Network cable from Cable modem to the WAN port of the Router
3. Connect your computers to ports 1-4 on the Router
4. Power on the Router
5. Power on your computer
6. SECTION 2
Click on START, then click on RUN, type in COMMAND and press ENTER
7. Type IPCONFIG and check your IP address. (Chapter 1.7 Page 9)
8. SECTION 3
If your Gateway says 192.168.8.1 then Open up your Internet Browser
9. On the Address bar type http://192.168.8.1 then press ENTER
10.The web-console (Chapter 1.8) will come up. Type adminand press LOGIN
11.Click on ADMINISTRATION, click on CLONE MAC, confirm CLONE MAC
12.Click on RESTART
13.Power on your Cable Modem
14.Click on WANunder Ez Setup, click on RENEW if the button appears
15.By this time you should see WAN IP Address with Numbers. If so then you are
connected to the Internet. Congratulations. Other wise please repeat the step one
more time. If problem persists visit http://www.gigafast.com/support/router/index.htm

9
Part 2 -Broadband DSL via PPPoE/Dynamic IP-
1. SECTION 1
Turn off your DSL MODEM, turn off your Router turn off your Computer
2. Make sure that DSL Login ID and Password is in hand (ie:
[email protected])
3. Connect the DSL MODEM to the WAN Port on the Router
4. Connect your computer(s) to port 1-4 on the Router
5. Power on the Router, Power on your Computer, Power on your DSL MODEM
6. SECTION 2
Click on START, then click on RUN, type COMMAND and press ENTER
7. Type IPCONFIG and check your IP address. (Chapter 1.7 Page 9)
8. SECTION 3
If your Gateway says 192.168.8.1 then Open up your Internet BrowserOn
9. the Address bar type http://192.168.8.1 then press ENTER
10.The web-console (Chapter 1.8) will come up. Type adminand press login.
11.Click on ADMINISTRATION,click on CLONE MAC, confirm CLONE MAC
12.Click on WANunder Ez Setup, Select PPPOE
13.Enter your PPPoE Account and Password into the fields. Make sure that you
entered the Full Account name which should look like something like
[e-mail] field might be case sensitive.
14.Press Save&Restart
15.If in the WAN page there is a button that saysCONNECT the click on it. If there is
a button that says DISCONNECTthen check to see if you are connected to the
internet. If you are connected then Congratulations! Other wise please visit
http://www.gigafast.com/support/router/index.htm for more details.

10
Part 3 -MacOS-
There is actually 3 Major sections in each installation. First it is Physical. Turning on devices
turning off devices plugging cables etc. Second there is the Connecting your Computer to
the Router step. Then third it is the connecting your router to the Internet step. The
installation for MacOS is the same to PC section 1 and 3. So in part 3 we will teach users
only Section 2 of the step which is How to connect your Computer to the Router.
OSX
1. Proceed from Section 1
2. Restart
3. Go to System Preference, Go to network
4. Make sure that you have selected Built-in Ethernet
5. Click on TCP/IP, select DHCP
6. Wait 30 Seconds. If IP Address returns with an IP Address of 192.168.8.X then
you are ready for Section 3
7. Jump back to the right Broadband type and continue setup from Section 3

11
Basic configuration
Chapter 3 –Basic Setup (All configuration menu are from firmware 1.6x)
WAN settings explanation
After that you have clicked on WAN under Ez setup, the first section that you see are 4
choices with a circlein front of them. The 4 choices are the following.
Static (Used when all IP are provided by the ISP)
WAN IP Address (Your outside/external/real IP)
WAN Subnet mask (Your subnet IP usually 255.255.255.0)
WAN Gateway (Your Gateway IP)
WAN 1st DNS (Your Primary Domain Name Server IP)
WAN 2nd DNS (Your Secondary Domain Name Server IP)
Save & Restart (Save changes then restarts the router)
DHCP Client (Used when ISP Assigns IP address to users most commonly Cable Modem)
WAN IP Address (Your outside/external/real IP)
WAN Subnet mask (Your subnet IP usually 255.255.255.0)
WAN Gateway (Your Gateway IP)
WAN 1st DNS (Your Primary Domain Name Server IP)
WAN 2nd DNS (Your Secondary Domain Name Server IP)
Lease Time (How long till your next reconnect to the ISP)
DHCP Client Domain Name (Specific info provided by ISP if required)

12
DHCP Client Host Name (Specific info provided by ISP if required)
Save & Restart (Save changes then restarts the router)
PPPoE (Used when dialing into ISP such as DSL Connections)
WAN IP Address (Your outside/external/real IP)
WAN Subnet mask (Your subnet IP usually 255.255.255.0)
WAN Gateway (Your Gateway IP)
WAN 1st DNS (Your Primary Domain Name Server IP)
WAN 2nd DNS (Your Secondary Domain Name Server IP)
Connect/Disconnect (Connect or Disconnect the ISP)
PPPoE Account (Your DSL Account ID. Usually [email protected] full email)
PPPoE Password (Your DSL Account Password)
PPPoE Service Name (If required you can input the service name of your ISP)
Dial on Demand (Automatically connect to the ISP when needed)
Auto-Disconnect (When to disconnect from ISP when there is no usage. Leave
default)
Save & Restart (Save changes then restarts the router)
@ GigaFast Inc. Staff member sometimes will ask for your PPPoE Account ID but
never the password!

13
PPTP (Used to connect to VPN Host or Server)
WAN IP Address (Your outside/external/real IP)
WAN Subnet mask (Your subnet IP usually 255.255.255.0)
WAN Gateway (Your Gateway IP)
WAN 1st DNS (Your Primary Domain Name Server IP)
WAN 2nd DNS (Your Secondary Domain Name Server IP)
My IP Address (Your own External IP Address)
Server IP Address (The server’s IP Address)
My Subnet mask (Your own External Subnet mask)
My Gateway (Your ISP Gateway)
PPTP Account (Your account login)
PPTP Password (Your account password)
PPTP Connection ID (If required. Provided by ISP)
Dial on Demand (Automatically connect to the ISP when needed)
Auto-Disconnect (When to disconnect from ISP when there is no usage. Leave
default)
Save & Restart (Save changes then restarts the router)

14
@ GigaFast Inc. Staff member sometimes will ask for your PPPoE Account ID but
never the password!
LAN settings
LAN IP Address (Internal Router Address. This will be your Internal Gateway and
DHCP)
DHCP Server (Automatically Assign IP address to Computers)
DNS Proxy (Allow Router to Route DNS Signals or have computer directly connect to
DNS)
IP Pool (How many computer can automatically get IP and from what Range)
Lease Time (How long can Each IP Be leased before they have to be renewed)
Assign Fixed IP (You can tell the router to give specific IP to specific Computers)
Offer Cyclical Gateway (You can have more than 1 gateway to disperse Traffic)
Save & Restart (Save changes then restarts the router)

15

16
Advanced Configuration
Chapter 4
Administration
Reset to Default(Reset the Router to original Factory Settings)
Backup Setting (Backup current setting to your computer)
Restore Setting (Restore setting from your computer to the router)
Old Password/New Password/Confirm Password (Do not change your password unless you
have to)
Upgrade Firmware (Upgrade the Routers Firmware to newest and bug free Versions)
View System Log (See what is going on inside the router)
Clone Mac (Cloning the Computers Mac address to the Router)
Restart (Restart the Router)
Access Control(Used to control outside access rights)
Response to Ping from WAN (If enabled outside network computers can PING the router)
Web management (If enabled outside network computers can Connect to the router
console)
Block Client in LAN (To disallow clients in LAN to access the internet)
Filter Packets from LAN (If Enabled you can disable particular Ports to the Internet)
Save & Restart (Save changes then restarts the router)

17
Service Time (Used to activate the router or just simply tell the time)
Normal (Normal Time setting. The router will copy the systems cloak)
By continuous usage (The router will add up the time the router has been on)
By Time Zone (You can chose when do you want to allow users to Access the router)
Save & Restart (Save changes then restarts the router)

18

19
URL Blocking ()
URL Blocking (Able to block specific URLs that you don’t wish anyone inside the network to
access)
Save & Restart (Save changes then restarts the router)

20
Virtual Server (Used to run Servers in LAN)If you are running a WEBserver or FTPserver
then you will have to use Virtual Server to open up the ports and connection to the Router
into LAN.
Service Port (The outside port that the server is scanning on)
Server IP In LAN (The Actual Internal computer’s IP Address)
Port in LAN (What port of internal network do you want to Route to?)
Protocol (Which Protocol TCP or UDP?)
NOTE-Only 1 port can be in use at all time. Example. If computer one is using port 21 then
computer 2 cannot access port 21.
