Gima LW06301 User manual

SOLLEVATORE IN ALLUMINIO
ALUMINUM PATIENT LIFTER
LÈVE-PERSONNE EN ALUMINIUM
ELEVADOR DE ALUMINIO PARA PACIENTES
M43460-M-Rev.0-04.23
PROFESSIONAL MEDICAL PRODUCTS
LW06301 (GIMA 43460)
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
[e-mail] - [e-mail]
www.gimaitaly.com
Mingguang Longway Technology Co., Ltd.
No. 59 Lingji Rd., Industrial Park, Mingguang, Anhui, China
Made in China
Lotus NL B.V. Koningin Julianaplein 10, 1 e Verd, 2595AA,
The Hague, Netherlands
È necessario segnalare qualsiasi incidente grave vericatosi in relazione al dispositivo medi-
co da noi fornito al fabbricante e all’autorità competente dello Stato membro in cui si ha sede.
All serious accidents concerning the medical device supplied by us must be reported to the
manufacturer and competent authority of the member state where your registered office is
located.
Il est nécessaire de signaler tout accident grave survenu et lié au dispositif médical que nous
avons livré au fabricant et à l’autorité compétente de l’état membre où on a le siège social.
Es necesario informar al fabricante y a la autoridad competente del Estado miembro en el que
se encuentra la sede sobre cualquier incidente grave que haya ocurrido en relación con el
producto sanitario que le hemos suministrado

2
ENGLISH
Summary
1 SAFETY WARNINGS.................................................................................................................... 3
1.1 General warnings.................................................................................................................... 3
1.2 Symbols Used ......................................................................................................................... 3
2.
UNPACK.................................................................................................................................... 3
2.1 Advices on environmental protection ..................................................................................... 3
3 DESCRIPTION ............................................................................................................................ 4
3.1 Illustration ......................................................................................................................................4
4.
ASSEMBLY ................................................................................................................................ 5
4.1 Frame Assembly ..................................................................................................................... 5
5 TECHNICAL CHARACTERISTICS.................................................................................................... 5
6 USE INTENDED........................................................................................................................... 5
6.1 Use Expected .......................................................................................................................... 5
6.2 Prohibition of Use................................................................................................................... 5
6.3 Residual Risks ......................................................................................................................... 6
7 USE ........................................................................................................................................... 6
7.1 Battery charge ........................................................................................................................ 6
7.2 Lifting function ....................................................................................................................... 6
7.3 Safety ring functionality.......................................................................................................... 6
7.4 Use of Slings ........................................................................................................................... 7
8 ROUTINE MAINTENANCE ........................................................................................................... 7
8.1 Cleaning metal parts............................................................................................................... 8
8.2 Cleaning plastic parts.............................................................................................................. 8
8.3 Cleaning wheels...................................................................................................................... 8
9 TROUBLE SHOOT........................................................................................................................ 8
10 WARRANTY.............................................................................................................................. 8
11 ACCESSORIES ........................................................................................................................... 9

3ENGLISH
1 SAFETY WARNINGS
1.1 General warnings
The instrucon manual is an integral part of the supply; must
be carefully stored and stored accessible for immediate consul-
taon.
The manual is approached to transfers, the owner, safety manag-
ers, users and maintenance workers.
The manual provides guidance on the correct use of the liers,
on the technical characteriscs and precauons for the security;
this manual, however, can never be appropriate user experience.
If on receipt you noce damage caused by the transport, the de-
vice must not be used; you have to contact technical support for
vericaon and inspecon of the device.
The device must be used by people who are able to physically to
control the mass of the device or person transported.
The device conductor must have become fully aware of the con-
tents of this manual.
Before each use always check the eciency of the parts brakes
and all safety.
The conductor must hold both hands rmly on the Handlebar.
The device should be used by observing the following Require-
ments:
holder over the age of 18.
Do not use the aid as a means of transporng things dierent.
The person transported must not holding other things o extra
weights.
The conductor must never leave the lier while a person is on
board
Do not use the device on uneven surfaces.
The device is not intended for use by people (including children)
whose physical, sensory or mental abilies are reduced, or with
a lack of experience or knowledge, unless they have been able to
benet, through the intermediary of a responsible responsible
for their safety, surveillance or instrucons concerning the use
of the device.
Persons transported and drivers must not smoke to avoid damage
or re of clothes, upholstery or in any case damage to people.
The drivers of the device must hold the handlebars with both
hands to ensure constant control of the lier.
Assembly and adjustments must be carried out exclusively by
authorized personnel.
Never li the device with the passenger on board.
The device cannot be used exposed to water splash or bad
weather condions.
The driver and the paent must pay aenon to do not wear
long scarves or slow dresses; these can become entangled and
be a source of danger.
Before using the aid, make sure that the weight of the person
transported does not exceed the maximum allowed value. This
value is wrien in the liing arm.
The li is intended to li and transfer people disabled people
from bed to wheelchair and vice versa, must not be used to
transport the person from a room to the other.
The li is a gentle aid so it should not be used for uses other than
those for which it was designed.

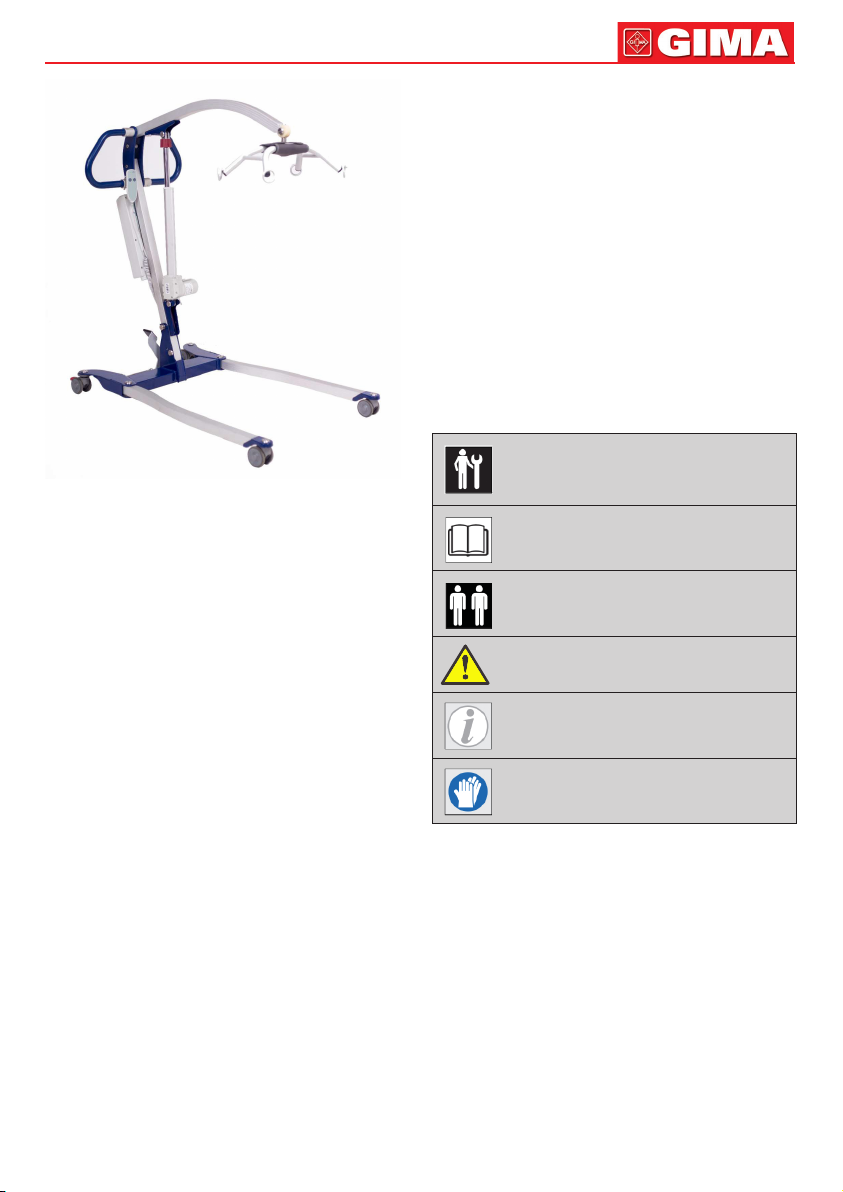

1.2 Symbols Used
The following pictograms can be found in the manual.
Operaon must be carried out
by qualied personnel only
or an assistance centre.
Read the intrucon manual
Operaon that must be done
by two persons
Warning! Danger
Warning! Important informaon
Use protecve gloves
The manufacturer reserves the right to make any changes to the
product and its instrucon manual without the obligaon to no-
ce or updang of previous producons.
The manufacturer is deemed to be relieved of liability for dam-
age resulng from misuse by untrained personnel, unauthorized
modicaons or intervenons, the use of unauthorized spare
parts, exceponal events, total non-compliance or instrucons
in this manual.
2. UNPACK
When using a trolley to move the packaged product, take care to
avoid pping injuries.
Open the packaging and take out its contents with cauon, care-
ful not to damage it.
Aer unpacking the device, make sure it is not damaged.
Any damage must be reported to the carrier within 24 hours.
2.1 Advices on environmental protecon

4
ENGLISH
The packaging material is 100% recyclable. For disposal follow
local regulaons. The packaging material (plasc bags, polysty-
rene parts, etc.) must be kept out of the reach of children as a
potenal source of danger.
In accordance with Art. 13 of Legislave Decree No 151 of 25
July 2005 “implementaon of Direcves 2002/95/EC, 2002/96/
EC and 2003/108/EC on the reducon of the use of hazardous
substances in electrical and electronic equipment, as well as
waste disposal.”
• The crossed-out bin symbol on the equipment or its packaging
indicates that the product will eventually life must be collected
separately from other waste.
• The separate collecon of this end-of-life equipment is organi-
zed and managed by the manufacturer.
• The user who wants to get rid of this equipment must then
contact the manufacturer and follow the system that this has
been adopted to allow the separate collecon of the equip-
ment that has come to an end of life.
• The appropriate separate collecon for the subsequent start-
up of the disused equipment for recycling, treatment and en-
vironmentally friendly disposal helps to avoid possible adverse
eects on the environment and health and promotes reuse
and/or recycling of the materials of which the equipment is
composed.
• The illegal disposal of the product by the holder involves the
applicaon of the administrave penales provided for from
current legislaon.
3 DESCRIPTION
The electric lier allows a disabled person to be lied by linear
actuator acon to transfer it from the bed to a pram and vice ver-
sa. The operaon takes place through a cloth harness equipped
with a hooking belt.
3.1 Illustraon
1. Arm
2. Main frame with handle
3. Base
4. Pedal
5. Hook for sling
6. Front wheel
7. Rear wheel with brake
8. Actuator
9. Control unite with baery and
10. Internal charger
11. Hand controller
And controller
11. Parcular emergency buon
12. Parcular li-up buon
13. Parcular li-down buon
14. Parcular baery charge indicator
12 13 14
11

5ENGLISH
Safety Ring
4. ASSEMBLY
⚠ The device must be ed and tested by qualied personnel
before its use.
⚠ These operaons must be carried out by personnel qualied
4.1 Frame Assembly
1. Take all the parts from the packaging, locate the lier body
on clean at surface.
2. Remove the locking bolt and raise the main frame unl it
reaches the base socket.
3. Fix the locking bolt and rmly locked.
4. Release the transport strap of liing arm,
⚠ These operaons must be carried out by qualied personnel
5 TECHNICAL CHARACTERISTICS
• Overall Length: 1180mm;
• Overall Width: 710mm;
• Foldable size(L*W*H): 1310*710*335mm;
• Base Open Width: 1070mm;
• Boom Height: 0-1610mm;
• Push Handle Height: 1160mm;
• Base Clearance: 100mm;
• Base Length: 1120mm;
• Base inner width: 600-960mm ;
• Input : 220V50HZ;
• Weight Capacity: 150kgs
6 USE INTENDED
6.1 Use Expected
The daily use of the device is authorized only provided that all
security elements and funconal parts are ecient.
• The li is intended to li and transfer disabled people from
the bed to the wheelchair and vice versa; could not be used to
transport the person from room to room.
• The li is a gentle aid so it should not be used for uses other
than those for which it was designed.
The aid can proceed only on at surfaces with a stable boom.
The use is exclusively the one described in this manual; we there-
fore recommend that you carefully read the present instrucons
to become familiar with the funconality of the device.
6.2 Prohibion of Use
• It cannot be used for liing things other than people
• It cannot be used if the person’s weight exceeds the maximum
permissible load (150 kg)
• It cannot be used if the size or pathology of the subject to be
lied is not well secured by the harness supplied. If in doubt
contact the manufacturer or his representave.
• It cannot be used by drivers with a slender physical structure or
otherwise unable to control the mass total.
• It cannot be used in environments subject to splashes of water
or crical or unfavorable weather condions.
• It should also not be used in all cases where the principles de-
scribed in Chapter 2 are not respected.
• It should not be used if defects are noced: these could gene-
rate unpredictable dangerous situaons.

6
ENGLISH
6.3 Residual Risks
• Risk of crushing of the holder’s feet if the requirements laid
down in this manual are not adopted.
• Risk of entangling clothing if it falls and reaches the boom
of the aid.
• Risk of falling of the transporter if all the necessary precauons
are not taken to conduct the vehicle and upright and stable
posture.
7 USE
Before daily use of the device, always check the status and
overall eciency of the aid and baery charge.
7.1 Baery charge
The control unit presents
the “female” socket for the baery
charging on the baery chassis at
the area circled in yellow
Charging indicaons
• The baery must be charged using only the supplied cables.
•The use of extensions, adapters or other devices is to be
avoided.
•The battery’s charging status is directly visible on the con-
trol unit
• Baeries do not require maintenance.
• Connect the connector to the socket on the machine.
• Connect the charger plug to the electrical network
• Charging the baery from the reserve or fully discharged state
takes about 1.5 hours.
If the device is intended to remain unused for a
long-term (over one month) it is necessary to provide
to recharge the baery every month
7.2 Liing funcon
• Make sure the baery is charged.
• Check that the security buon is unlocked
• Press the buon on the remote control to
operate the liing
7.3 Safety ring funconality
In the face of potenal malfuncons of the electrical group of the
machine, or crical situaons, such as unexpected shutdowns due
to a low baery, it is possible to adjust the height of the liing arm
and consequently of its barbell, simply by acng on the appropri-
ate safety ring located at the end of the linear actuator.
OPERATING MODE OF THE RING SYSTEM:
Faced with potenal malfuncons of the electrical group of the
machine, or crical situaons such as unexpected stops due to a
low baery, it is possible to adjust the height of the liing arm
and consequently of its rocker, simply by acng on the appropri-
ate safety ring placed at the end of the linear actuator.

7ENGLISH
The red knob (a) located at the top of the actuator can be manu-
ally moved downwards by passing it from the posion of g. 1 to
that of g. 2, at this point it is possible to rotate it manually thus
acvang the manual ascent or descent of the liing arm, the li
is also equipped with safety against accidental crushing due to
the arm of the device, in pracce, if the liing arm encounters
during its motorized movement downwards an obstacle in order
to avoid causing damage to people or things automacally, it will
move to the posion referred to in gure 2 and will always auto-
macally cease the downward thrust (the actuator motor even
if the control buon was pressed for the downward movement
will work empty)
7.4 Use of Slings
2
3
1
For the use of the harness refer to the following procedure:
• Apply the harness (1) to the paent or disabled person. ( the
drawings below are purely indicave of the applicaon to lying
paent or sing paent )
• Lower the li arm unl it reaches the desired level.
• Aach the harness ( 1) to the harness support barbell hooks (2)
and li the paent.
Before liing, adapt the harness (1) to the needs of the paent,
appropriately choosing the buonholes (3) idened by dier-
ent colors for each of them to be aached to the hooks.
A dierent color scheme of the aachment ring between the
head side and the leg side of the harness will result in a dierent
inclinaon and posion of the paent when lied.
Open the li base
The spread of the base of the li is done by means of a special
pedal system placed in the back, press the pedal (A) to open,
press the pedal (B) to close.
8 ROUTINE MAINTENANCE
The lier needs ordinary maintenance like any other product, in
order to keep it in perfect condion eciency, even aer years
of use.
Daily remove leovers of food, hair and any elements that can ac-
cumulate, such as dust; you can use a domesc vacuum cleaner.
The next table shows how oen maintenance operaons should
be performed. Constant control and aenon should encourage
the user to perform the necessary operaons according to the
real needs
Roune maintenance table
Frequency
6 months
Cleaning metal parts
Proceed with cleaning these parts according
to use and necessity
Cleaning plasc parts
Proceed with cleaning these parts according
to use and necessity
Cleaning wheels
Proceed with cleaning these parts according
to use and necessity
2 months Lubricaon
Depending on the use and need
1 year General Check
Check the wheels and ghten the bolts
Check the braking system
Check paint for rust or chipping
Check plasc parts are intact and the state of
wear, consider replacement if requested
Check if the electric motors are working
properly and lubricate the screws
6 months Baery
Check that the baery charging me is not
too long otherwise contact the authorized
technical support service.
If
transferred
to third
pares or
restored
Disinfecon
Warning! Disinfecon substances must be
used by specically qualied personnel only
The disinfecon of this device must be
carried out by specialized centers according
to the disposions made by the competent
health authority
For more informaon contact the authorized
technical support service

8
ENGLISH
8.1 Cleaning metal parts
Painted metal parts can be cleaned with commercial sprays for
domesc use but be careful that they do not contain alcohol or
solvents, these can discolor or damage the paint itself.
Chrome parts can be cleaned with normal household products
and then dried well.
Do not use jets or splashes of water
8.2 Cleaning plasc parts
For cleaning plasc parts use a common plasc detergent for
commercial use, following the instrucons and contraindicaons
given in the instrucons accompanying the product. Avoid sol-
vent or alcohol products.
Do not use jets or splashes of water
8.3 Cleaning wheels
Periodically clean the wheels, also depending on the type of en-
vironment where the device is used.
Remove from the surfaces any solid parts that may wedge them-
selves in the gum, threads and hair that may be wrapped around
the hub making it dicult to rotate.
Clean the mechanism of the snares using a toothbrush.
9 TROUBLE SHOOT
When operaons are represented by this symbol they must be carried out by qualied
personnel only.
Component Inconvenience Soluon
Wheel Squeaking while moving Cleaning the wheels
Lubricate the wheels
Replace the wheels
the baery is low Check the baery charge, if necessary provide
Charging
The security buon is pressed Unlock the buon
Baery Connecon cables
actuator/remote control/control unit
are not properly connected
Check electrical connecons
Check the funconality of electrical components
The baery is not charged normally, it takes too long
me or does not happen
comprehensively
Verify the electrical integrity of the control unit
Check the integrity and connecon modes of the
connecon between machine and network
The baery has a limited charge
The company responsible for supplying the device and for technical support service is:
Mingguang Longway Technology Co., Ltd.
No. 59 Lingji Rd., Industrial Park,
Mingguang, Anhui, China
Tel:[phone]
Fax.:[phone]
10 WARRANTY
The product is covered under a legal 12-month warranty starng
from the delivery date
(d. legs 24/2002) to the customer of Longway Medical and Dir. CE
1999/4 against any kind
of manufacturing defect.
Throughout the duraon of warranty, the maintenance of the
device is guaranteed enrely at
the expense of the manufacturer when it is established that the
problem is a manufacturing
defect. Warranty will be invalid should roune maintenance be
neglected.
Warranty does not cover parts that tend to get worn during
normal use (wheels, etc.)
Warranty does not cover:
1. Damages from misuse or dierent use than the one specied
in this manual.
2. Damages from incorrect assembly by the customer.
3. Damages from alteraon, repair and mishandling by unautho-
rized personnel.
4. Shipping and packaging of the product under warranty are at
the expense of the dealer
or the manufacturer.
Warranty does not entle the customer to demand compen-
saon in any way.
Spare parts are available for 5 years from the date the product
is disconnued.
If customers detect problems, they must immediately inform the
authorized dealer, providing
informaon on the detected problem using data from the specif-
ic data decal on the device,
lling the given defect and failure reporng form.
The customer, aer making arrangements with the authorized

9ENGLISH

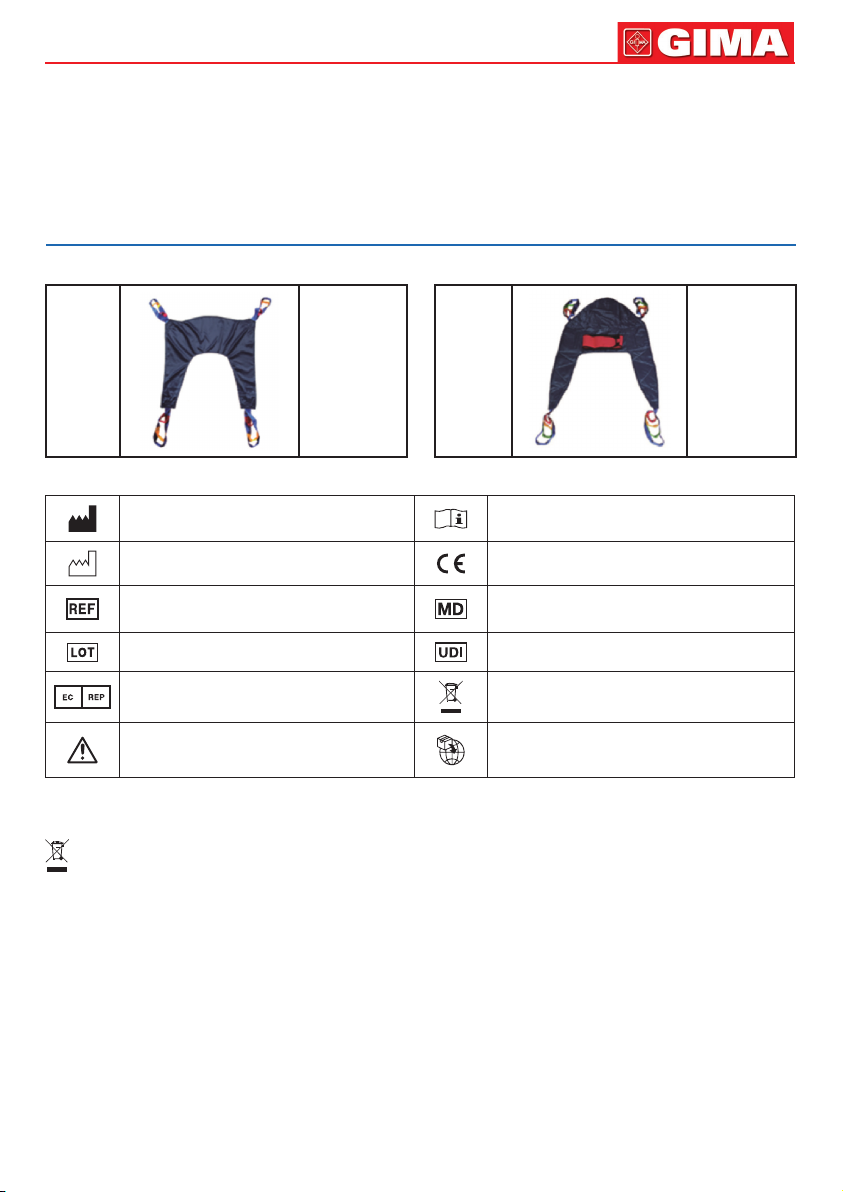

11 ACCESSORIES
LW06401 Economy Sling LW06407 Universal Sling
SYMBOL LEGEND
Manufacturer Leggere le istruzioni per lʼuso
Date of manufacture Medical Device compliant with Regulaon (EU)
2017/745
Product code Medical Device
Lot number Unique device idener
Authorized representave in the European
community WEEE disposal
Cauon: read instrucons (warnings) carefully Imported by
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.
Disposal: The product must not be disposed of along with other domesc waste. The users must dispose of
this equipment by bringing it to a specic recycling point for electric and electronic equipment.
roamare portandole al luogo di raccolta indicato per il riciclaggio delle apparecchiature eleriche ed eleroniche.
dealer, will take care of the
shipment of the product for warranty repair.
Throughout the duraon of warranty, technical intervenon will
be made by the manufacturer
who will make sure that the problem is a manufacturing defect
and not a fault of a dierent
nature.
This manual must be kept by the owner and must stay with the
device for the exercise of
guarantee.
Warranty starts from the delivery date.
Expected lifespan
The average lifespan of your Electric Lier is 5 years. Depending
on the frequency and way of use and maintenance, the lifespan
of your homecare bed will increase of decrease.
