GJD D-TECT GJD370 User manual

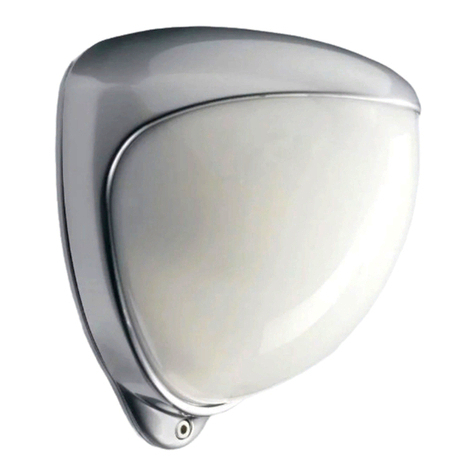

D-TECT Pet Immune
Dual PIR Microwave Detector
GJD370/371/372
Quick Installation Guide
DISPOSAL INFORMATION
Disposal - Your GJD product was developed
and manufactured with high-quality material
and components that can be recycled and
reused. This symbol means that electronic
and electrical appliances, which have reached
the end of their working life, must be collected
and disposed of separately from household
waste material. Separate collecting systems
are usually in place for disused electronic
and electrical products. Please dispose of
these units at an environmentally compatible
recycling, facility, per European Directive
2012/19/EU.
REGULATORY
SPECIFICATIONS
Download our free
Warranty Manager App
GJD
Unit 2, Birch Business Park
Whittle Lane
Heywood
Greater Manchester
OL10 2SX
UK
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Web: gjd.co.uk
DETECTION RANGE Up to 15m selectable
COVERAGE 10º - 70º detection angle,
WALK TEST Output test mode with LED indication
OPERATING TEMPERATURE
-20ºC to +55ºC
Conformally coated electronics for
increased stability
ADJUSTMENT 180º pan, 30º tilt
MOUNTING HEIGHT 1.2m to 1.8m
POWER INPUT 9-15 V DC
INDICATOR LEDs
1 x Red - Top PIR
1 x Green - Bottom PIR
1 x Amber - Anti-Mark
1 x Blue - Alarm
OUTPUTS
3 x volt-free, silent solid state
magnetically immune
common tamper (front and rear
switches)
WEATHER RATING IP65
MICROWAVE FREQUENCY
GJD370 - 10.525GHz
GJD371 - 10.587GHz
GJD372 - 9.9GHz
Scan product QR code to register and
activate product warranty
INSTALLATION MANUAL
Scan the QR code to see our
full installation manual
All manuals and user guides at all-guides.com
all-guides.com

MOUNTING
CONTENTS
ADJUST RANGE
FOV
CLICK CLICK
WALK TEST
Enabled for 5 minutes after power applied
WT = ON
ACTIVE WITH LED FOR 5 MINS
AFTER POWER APPLIED
FIT COVER
CONNECTIONS
CABLE ENTRY
1.8m (optimum)
SEALING
Screw holes and
Cable entry
ONLY USE WATER OR
ACRYLIC BASED SEALANT
D-TECT
ANTI-PET
FIXING
TEMPLATE
SCREWS/
PLUGS
CLIP ON
CURTAINS
TAMPER
FEET
TAMPER FEET
WALL CUP
A M ALARM N/C ALARM N/O 9-15 V DC
+ -
TAMPER
MAX
MIN
SET PULSE COUNT
ON
123
SW1 OFF SW2 OFF = 1
SW1 ON SW2 OFF = 2
SW1 OFF SW2 ON = 3
SW1 ON SW2 ON = 4
D-TECT Pet Immune
Dual PIR Microwave Detector
GJD370/371/372
0 10 15
1.8m
0 deg
70º
12m
15m
12m
0m
KEY
PIR
Microwave
