Glacier bay 67536-0508D2 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
TOUCHLESS LED SINGLE-HANDLE PULL-DOWN
SPRAYER KITCHEN FAUCET
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
3/2020 REV.03THD
Model#
67536-0508D2
HD67536-0501
HD67536-0527H2
SKU#
1001407752
304236320
304236333

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents..................................3
Installation................................................4
Operation ..................................................13
Troubleshooting ......................................15
Care and Cleaning ................................... 14
Service Parts
........................................... 17
Adjustable
wrench
Safety
goggles
Phillips
screwdriver
SILICONE
Silicone
sealant
6mm
diameter
Electric
drill
Tools and Hardware Required ...............2
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Channel
lock pliers
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Sensor mechanism and LED light excluded from Limited Lifetime Warranty and are covered by a 3-year warranty
from date of purchase. Simply, return the product / part to any of The Home Depot retail locations or call
1-855-HD-GLACIER (1-855-434-5224) to receive the replacement item. Proof of purchase (original sales receipt)
from the original consumer purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a five year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)
PACKAGE CONTENTS
Part Description Quantity
A 1Faucet body
B 2Washer
C 1
D Protective cap 1
Nut
GGasket 1
EWrench 1
F Escutcheon 1
IWeight clip 1
H 1Hose
Part Description Quantity
JWeight 1
KQuick connect
assembly 1
L 1
M Battery pack 1
Sensor control box
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
O 1
PSoap assembly 1
Soap pump
Q 1
RSoap bottle 1
Soap dispenser
mounting nut
N"AA" Battery 4
Sensor Control Box
O
P
Q
R
Soap Pump Assembly
A
I
JC
D
E
K
B
H
G
F
L
+
-
-
+
+
-
-
+
M
N

A
1
F
A
1
4
Installation
1
2a 2b
Preparing for installation
2 Installing the faucet assembly
□Install the faucet body (A)-including supply
hoses and sensor cable (1)-through the hole
in the sink.
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
NOTE: This step is for no escutcheon installation (optional).
□Place the escutcheon (F) and gasket (G) on the
holes in the sink.
NOTE: This step is for escutcheon installation (optional).
Silicone sealant is required under the gasket (G).
□Install the faucet body (A)-including supply
hoses and sensor cable (1)-through the hole
in the escutcheon (F).
□Shut off the water supply. Remove the old
faucet. Clean the mounting surface.
□Before installation, remove the quick connector (K)
from the free end of the hose by unscrewing it in
a counterclockwise direction.
F
G
SILICONE
K

5
Installation (continued)
3 Securing the faucet assembly
□Install the washers (B) onto the threaded shank.
□Push the hose (H) up through the faucet body until the end of the hose is flush with the bottom on the
shank (1) so it's out of the way for the next step.
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
□Thread the mounting nut (C) onto the shank using the wrench (E) provided to tighten firmly.
B
B
12
E
C
E
H
1
C
3

6
Installation (continued)
4 Installing the protective cap
□Screw the protective cap (D) onto the threaded
mounting shank (1).
5 Attaching the quick connector
to the hose
□Pull out the hose (H) from the threaded
mounting shank (1).
□Attach the quick connector (K) by screwing it
onto the threaded end of the hose (H) in a
clockwise motion. Hand tighten only.
1
D
1
D
1
2
H
1
K

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
7
Installation (continued)
NOTE: The side of the control box (L) with "in" and "out"
showing must face the front of the cabinet (away from the
back of the cabinet).
6Installing the sensor cable
□Install the sensor cable (1) to the control box connection (2). Ensure the arrows on the sensor cable and
control box connection are aligned to one another to ensure proper installation. Ensure they are tightly
connected by firmly pushing together.
□Secure the connection by hand tightening the nut (3) in a clockwise direction onto the threaded sensor cable.
CAUTION: If the connections are not made properly, the
sensor feature will not work.
3
1
1
2
L
2

8
Installation (continued)
□Connect the hose with the yellow tag to the hose on the control box (L) with a matching yellow tag. Push
firmly together until they snap into place. As shown in the Fig 1.
□Connect the hose with the green tag to the hose on the control box (L) with a matching green tag. Push
firmly together until they snap into place. As shown in the Fig 1.
7Attaching the quick connector
to the receiving block
Fig 1
Fig 2
□OPTIONAL: If you want to use the faucet without the sensor feature or without power, you can attach the
quick connector (1) to the receiving block (2). This bypasses the sensor feature and enables the faucet
to work by operating the handle. As shown in the Fig 2.
Yellow
Yellow
Green
Green
L
2
1
2
1

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
9
Installation (continued)

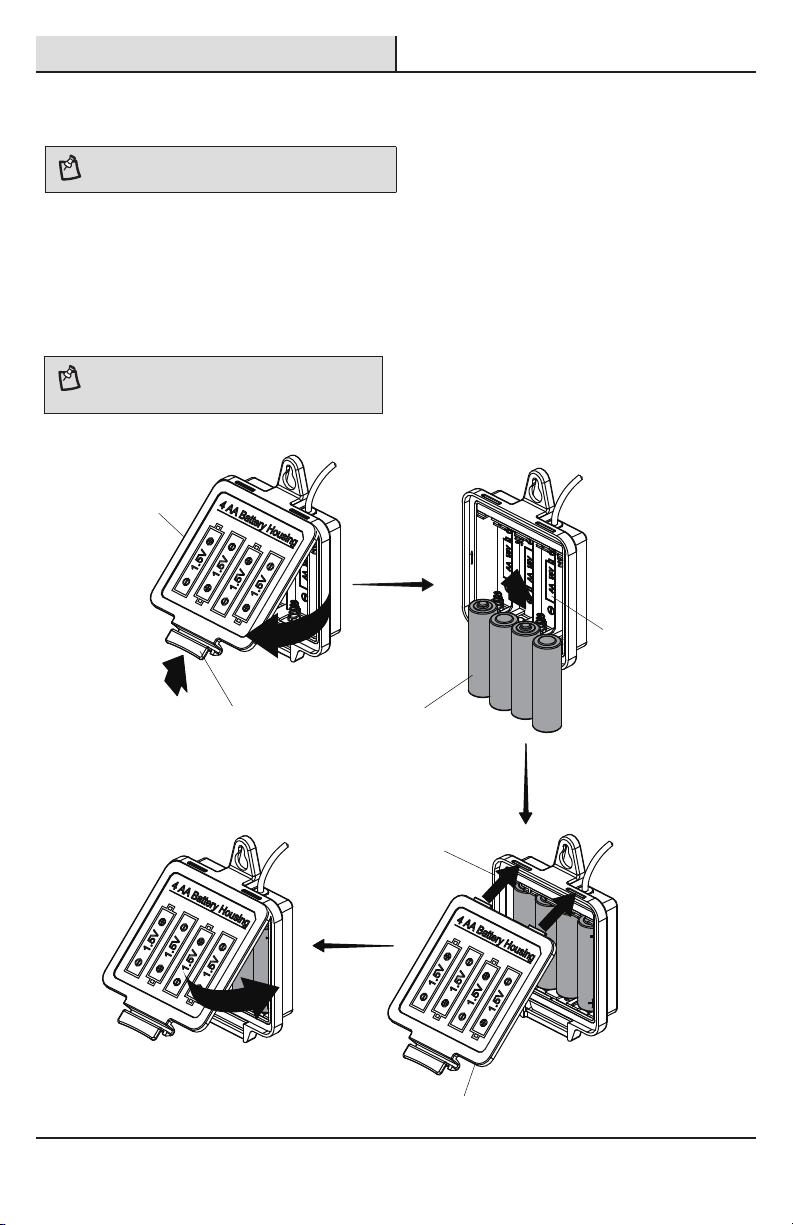

8Installing the batteries
NOTE: This step is for battery installation (optional). If the
battery will not be used, install as described in step 10.
□To open the battery housing, squeeze the tabs (1) on the cover (2), then remove the cover (2).
□Install the four AA batteries (N) included by matching the positive (+) and Negative (-) ends on the battery (N)
to the (+) and (-) markings in the battery pack (M). The negative ends of the battery (N) should always
connect to the spring end of the battery slots in the battery pack (M).
□Reinstall the battery pack cover (2) by pushing up and snapping into place.
NOTE: When the sensor flashes 10 times continuously
and slowly, the batteries have lost their charge. Replace
the batteries (N).
+
-
-
+
+
-
-
+
2
+-
+
+
-
-
3
4
4
N
I
M
1
1
2
5
2

10
Installation (continued)
9Installation using the battery
pack
NOTE: After installing the battery pack, the light on the
sensor will flash and the faucet control box will make a "click"
sound when you move your hand in the sensor area. If not,
check to ensure the batteries are installed correctly.
NOTE: This step is for battery installation (optional). If the
battery will not be used, install as described in step 10.
□Insert the battery pack cable (3) into the control box connection (4).
□Drill a hole in the wall using a 6mm (15/64 in.) diamater drill bit. Install the battery pack (M) using the molly
anchor (1) and screw (2) provided.
(15/64 in.) dia.
6mm
2
M
1
1
3
4
2

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
11
10Installation using the AC
adapter (not included)
NOTE: This step is for installation without batteries using
an AC adapter (not included). If using the batteries, install
as instructed in step 8 and skip to step 11. The AC adapter
is not included with the product, but can be purchased from
Homedepot.com.
□Install the AC adapter (3) into the power outlet.
□Insert the AC adapter cable (1) into the control box port (2).
NOTE: After installing the AC adapter, the light on the
sensor will flash and the faucet control box will make a
"click" sound when you move your hand in the sensor area.
If not, check if the connections are made properly.
3
1
2

12
Installation (continued)
Push
up
Screw
Q
Sink Sink
Fig 1
12 Installing the soap dispenser
□Insert the soap assembly (P) through the
selected hole in the sink. Secure the soap
assembly to the sink with the soap
dispenser mounting nut (Q) provided. Push
up the soap dispenser mounting nut (Q) to
sink and hand-turn to tighten, as shown in
the Fig 1.
□From under the sink, screw the soap bottle (R)
onto the soap assembly (P) shank. Insert the
soap pump (O) down into the soap assembly (P).
11Installing the weight
□Install the weight clip (I) at the point of the hose (H) marking “weight here”.
□Insert the weight (J) onto the clip (I) by sliding it down onto the clip (I).
O
P
Q
R
1
4
2
3
J
I
H
Weight
here
Weight
here

13 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
1Flushing and checking for leaks
□Pull the hose assembly out of the spout and
remove the spray head by unscrewing it from
the hose in a counterclockwise direction. Be
sure to hold the end of the hose down into the
sink and turn the faucet to the warm position
where it mixes hot and cold water.
□Flush the water lines for one minute. This flushes
away any debris that could cause damage to
internal parts. Check for leaks.
□Re-tighten any connections if necessary, but do
not overtighten. Reinstall the spray head by hand
tightening it back onto the spray hose in a
clockwise direction.
Operation
IMPORTANT: After installation is completed, turn on the
hot and cold water supplies. Check for leaks. Do not lose
the gasket (1) in the hose.
13 Making the water supply
connections
□Thread the nut (1) on the supply line onto the
outlet of the water supply valve (2) and tighten
with a wrench. Do not overtighten.
Installation (continued)
NOTE: The hot side inlet tube is indicated by a label. Avoid
twisting wires together or placing the wires close to each
other and damaging.
1
2
1
HC
15
0
30
45
1
min.

14
Operation (continued)
2Operating the sensor
□Turn the handle (1) away from the faucet to the
full on position. Turn the water on by activating
the sensor (2) by waving your hand within
2-3/8 inches of the sensor.
□Pulling the handle towards yourself will turn
the water to cold. Pushing the handle away
from yourself will turn the water to hot.
□If you are having trouble with the sensor,
please refer to the troubleshooting section.
If you want to use the faucet without the
sensor feature, then you can refer to step 6.
Then, turning on the water can be done by
moving the handle away from the faucet
to the full on position.
NOTE: The sensor is active only when the handle is in the
ON position.
NOTE: As a water saving feature, the water will turn off
automatically after 3 minutes of continuous flow.
min.
45
30
0
15
3
2-3/8 in. MAX
2
1
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Cold Hot
3Removing the quick connector
(not required)
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect. Squeeze
Pull
down
2
1
1

15
Troubleshooting
1Water will not shut off when
turning the handle to the OFF
position
□When you turn the handle to the full on position,
the water will turn on.
□But when you turn the handle to the full off
position, the water does not turn off.
□This indicates that the cartridge is damaged.
Turn off the water supply, remove the handle
and replace the cartridge (1).
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
2The light on the sensor is
flashing continuously
□If the handle is closed, turn the handle to the
on position and move your hand in the sensor
area. If the sensor flashes 10 times continuously
and slowly, then replace the 4 "AA" batteries.
Flash 10 times
continuously
and slowly
1
N
Replace the batteries
-
2
1

16
Troubleshooting (continued)
4There is a low flow of water or
LED indicator in the spray head
is not functioning
□This could indicate that the washer in the "in" end of
the control box is dirty or damaged. Remove the
hose and unscrew the connector. Take out the
washer from the control box. Clear the washer
or replace the washer. Reassemble the connector
and hose.
3The sensor is not activating
the water flow
□When you turn the handle to the full on position,
the water will turn on.
□However, when you move your hand in front
of the sensor, the water does not turn off as
it should.
□This indicates the sensor window may need to
be cleaned. If the sensor window is clean, and
still not functioning, this means the control box
will need to be replaced. Call Glacier Bay
customer service to request a replacement
control box. Replace the old control box with the
new control box.
Hose
Connector
Control
box
Washer
L

17
Service Parts
Part Description Part Number
1 RP38441*
2 Wearable ring RP70380
3 O-ring RP60071
5Bonnet nut RP70533
6 Cap RP80028*
7 Handle RP13368*
9 Index & O-ring RP80440*
Spray head and Hose
14 O-ring RP60002
Part Description Part Number
11 Nut RP56098
12 Protective cap RP70448
15 Quick connect
assembly RP70680
16 O-ring RP60089
17 Weight clip RP70609
18 Weight RP70689
19 Escutcheon RP80441*
20 RP80442Gasket
4 Cartridge RP20044
8 Screw RP50015
10 Washer RP64239
13 Block RP70421
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can
be found on the
hot water inlet
21 Sensor control box RP70708
22 Battery pack RP70707
23 Pump kit RP46022
24 Flange kit RP46066*
25 Soap bottle RP46060
26 Soap dispenser kit RP46065*
2
13
4567
89
19
20
10
11
12
13
14
16
17
18
23
24
25
26
15 21 22

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.

GRACIAS
GUÍA DE USO Y MANTENIMIENTO
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de
Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los
sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Agradecemos la con anza que has depositado en Glacier Bay al comprar este grifo para cocina. Nos esforzamos
por crear continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos en Internet para ver
nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar. ¡Gracias por
elegir a Glacier Bay!
Modelo núm.
67536-0508D2
HD67536-0501
HD67536-0527H2
SKU núm.
1001407752
304236320
304236333
MEZCLADORA PARA COCINA, CON ROCIADOR
RETRÁCTIL, UN SOLO MANERAL, LUZ LED
Y ACTIVACIÓN SIN TOCAR.

Llave
ajustable
Gafas de
seguridad
Destornillador
Phillips
SILICONE
Sellador de
silicona
Taladro
eléctrico de
6 mm de
diámetro
Pinzas
ajustables
20
Información importante
□ Cumple con todos los códigos locales de construcción y de plomería.
□ Cubre el drenaje del lavabo para evitar que se pierda alguna pieza.
□ Consulta la sección de mantenimiento y limpieza incluida en esta guía.
HERRAMIENTAS Y HERRAJES NECESARIOS
Tabla de contenido
Información importante .........................20
Garantía...................................................20
Pre-instalación .......................................20
.............20
Herramientas y herrajes necesarios....20
Contenido del paquete.........................21
Instalación ..............................................22
Funcionamiento......................................31
Cuidado y limpieza ................................32
Piezas de repuesto ................................35
Planificación de la instalación Solución de problemas...........................33
Pre-instalación
PLANIFICACIÓN DE LA INSTALACIÓN
Antes de comenzar la instalación de este producto, asegúrate de que no falta ninguna pieza. Compara las piezas
con la lista de Contenido del paquete. Si falta alguna pieza o está dañada, no intentes instalar el producto.
Comunícate con el servicio al cliente para piezas de repuesto.
Garantía
GARANTÍA DE POR VIDA LIMITADA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador consumidor
original de estar libres de defectos en materiales o mano de obra. Reemplazaremos LIBRE DE CARGOS cualquier
producto o pieza que se demuestre está defectuosa. El mecanismo del sensor y las luces LED están excluidos de la
garantía limitada de por vida y están cubiertos por una garantía de 3 años desde el momento de la compra.
Símplemente, devuelva el producto a cualquiera de las ubicaciones de venta al detalle de The Home Depot o llame
al 1-855-HD-GLACIER (1-855-434-5224) para recibir el artículo de reemplazo. La prueba de compra (recibo de venta
original) del comprador consumidor original debe estar disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores por la
presente, se les ha ampliado una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuenciales,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicar a usted. Esta garantía le otorga derechos
legales específicos y también puede tener otros derechos que varían de un estado a otro. Por favor, vaya a una
tienda o llame al 1-855-HD-GLACIER para más detalles.
Póngase en contacto con el Equipo de Servicio al Cliente llamando al 1-855-434-5224 o visite www.HomeDepot.com.
