Glacier bay OSWELL HD873X-1910H Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
OSWELL 1-SPRAY SINGLE-HANDLE TUB AND SHOWER
shower faucet. We strive to continually create quality products designed to enhance your home. Visit us online
to see our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
THD 02/2020 REV.01
Model#
HD873X-1910H
SKU#
1005129783
HD873X-1901
HD873X-1904
HD873X-194405
312673417
312673422
312673413

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................3
Planning Installation ..............................3
Package Contents ..................................6
Installation................................................7
Care and Cleaning ....................................14
Troubleshooting........................................15
Service Parts ........................................... 16
Important Information
□ Do not install this product until you read and understand the instructions in this manual. If you are installing this
product for someone else, leave this manual for the owner’s/ user’s reference.
□ Inlet ports are designed to allow for 1/2 in. COPPER tubing solder connection or 1/2 in. IPS threading coupling
connection. For threaded connections, wrap sealant tape around threaded ends before connecting. If soldering
connections, certain inammable parts should be removed prior to the soldering in order to avoid heat damage.
If you are unsure how to properly remove these parts, please call us at 1-855-HD-Glacier.
□ Protect your eyes with safety glasses when cutting or soldering water supply lines.
□ NOISE AND WATER HAMMER IN PEX SYSTEMS: Due to the inherent exibility of PEX compared with metallic
plumbing materials, water hammer and noise can sometimes occur from the pressure surges. It is important to
ensure the tubing is not in contact with wallboard, forced air ducts or other high-resonance materials. Clamping
or strapping can help prevent these noises. DO NOT USE PEX tubing from the valve to the tub spout.
Tools and Hardware Required ...............3
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape Thermometer
Phillips
screwdriver
Flathead
screwdriver
SILICONE
Silicone
sealant
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.

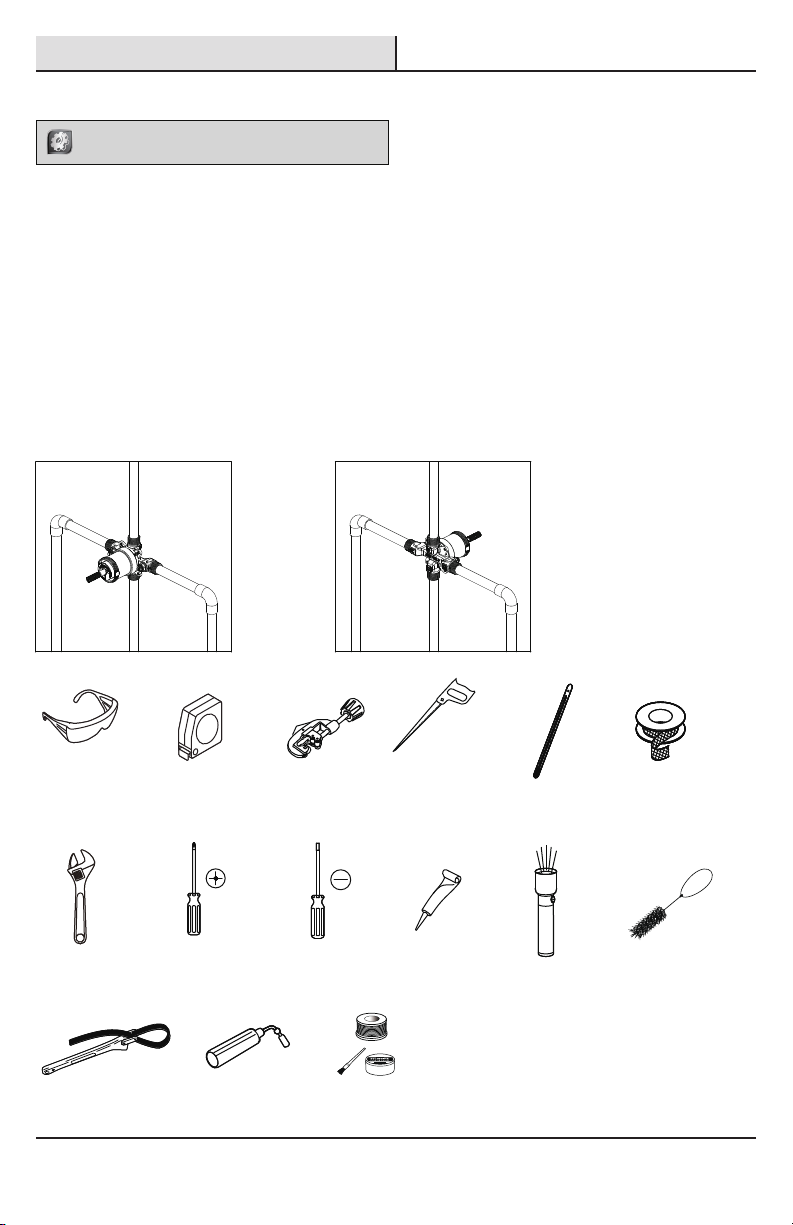

TOOLS AND HARDWARE REQUIRED
ADVANCED INSTALLATION: Consult a plumber or
professional before installing this product.
If you are replacing your plumbing valve, please review the four common plumbing methods illustrated below:
COPPER, IPS, PEX and CPVC. Remove the existing handle and valve trim before replacing your valve. Please follow
all local building and plumbing codes.
A. COPPER (Before soldering, remove the cartridge & stop valves from the valve)
Torch Lead-free solder Kit
Key
hole saw
Wire
brush
All installations can vary depending on how your previous faucet was installed. Not all supplies for faucet
installation are included; however, they are available wherever plumbing supplies are sold. When choosing your
installation supplies, make sure they are UPC and/or CSA approved products.
Flashlight
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

Pre-Installation (continued)
4
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape Thermometer
Phillips
screwdriver
Flathead
screwdriver
SILICONE
Silicone
sealant

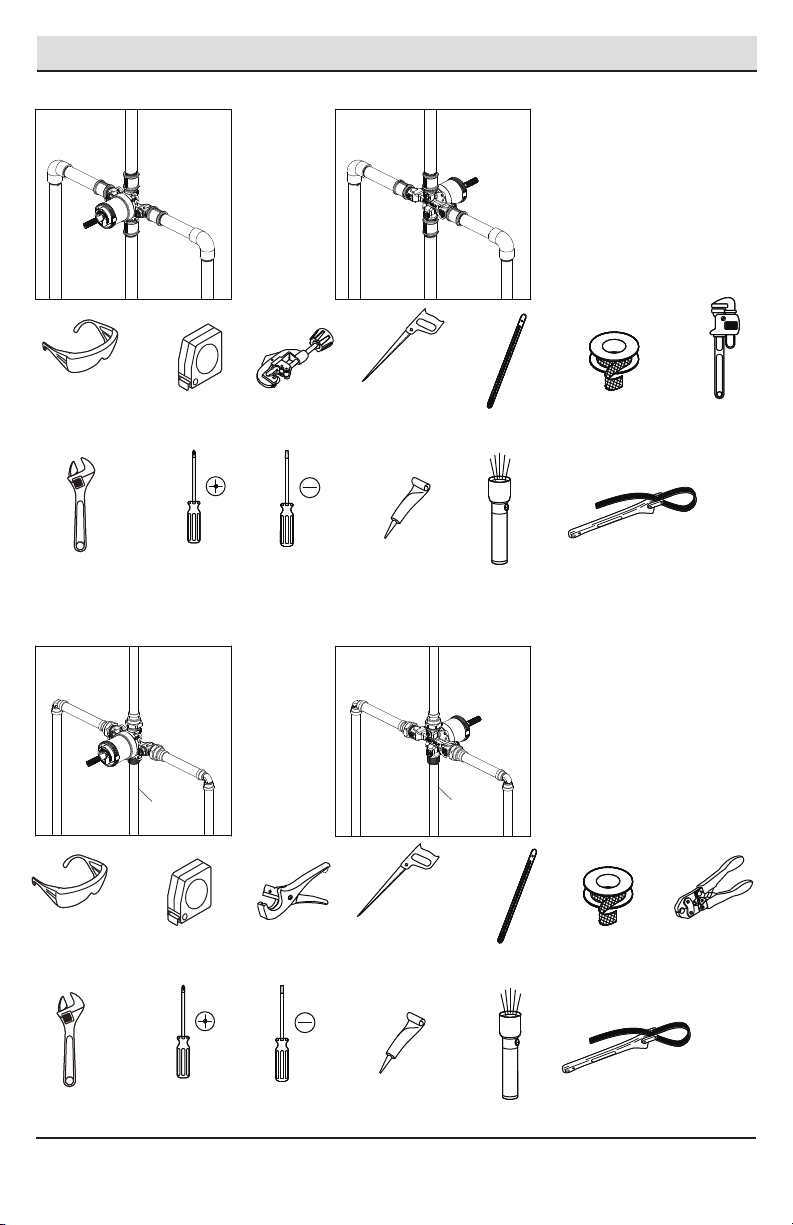

B. IPS
Key
hole saw
Flashlight
C. PEX+COPPER
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape Thermometer
Phillips
screwdriver
Flathead
screwdriver
SILICONE
Silicone
sealant
Key
hole saw
Flashlight
Full circle
crimping tool
Pipe
wrench
COPPER COPPER

Pre-Installation (continued)
5

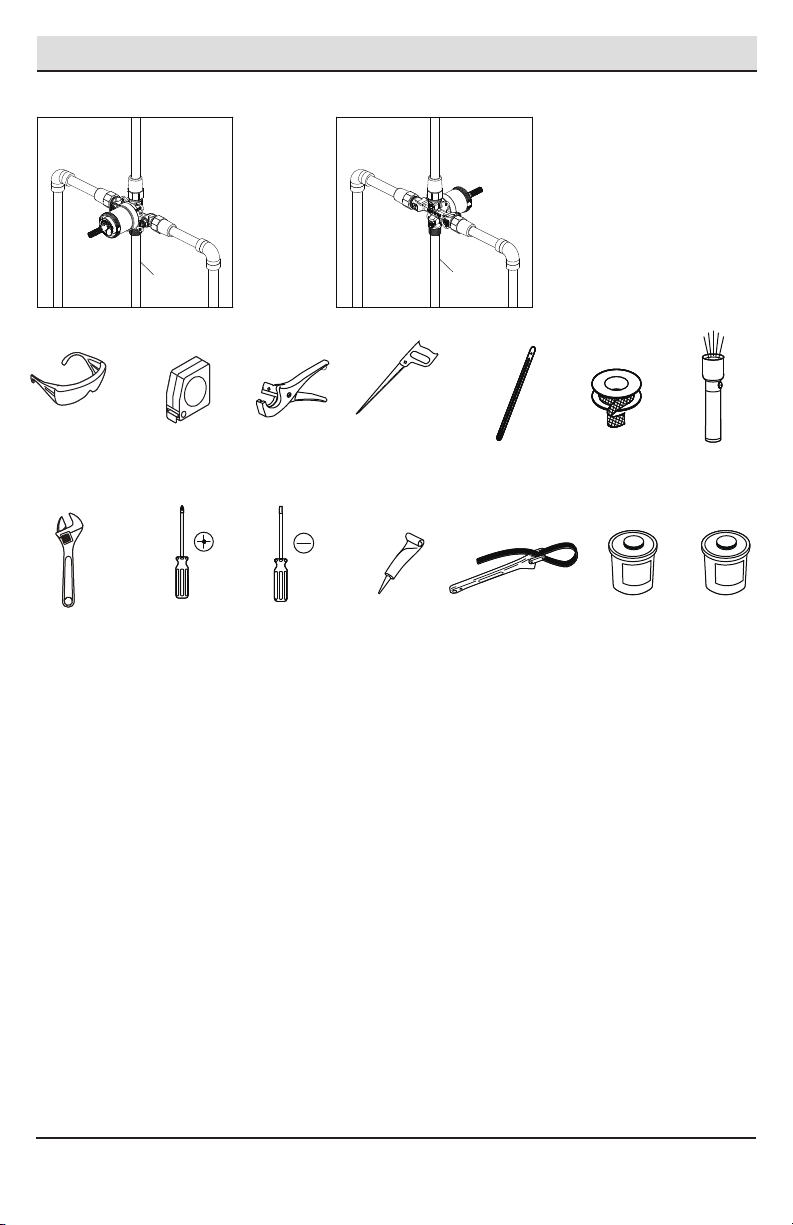

D. CPVC+COPPER
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape Thermometer
Phillips
screwdriver
Flathead
screwdriver
SILICONE
Silicone
sealant
Key
hole saw Flashlight
CPVC
cleaner
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
CPVC
cement
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
COPPER COPPER

6
Pre-Installation (continued)
PACKAGE CONTENTS
Part Description Quantity
A1
B Shower arm 1
C Shower head 1
D Valve body 1
E Installation plate 1
F Escutcheon 1
G Handle assembly 1
Shower ange
L 2.5mm hex wrench 1
J Plug 1
K Tub spout 1
H Screw 2
I Plaster guard 1
A
B
C
D
E
F
G
J
H
I
K
L

7
Installation

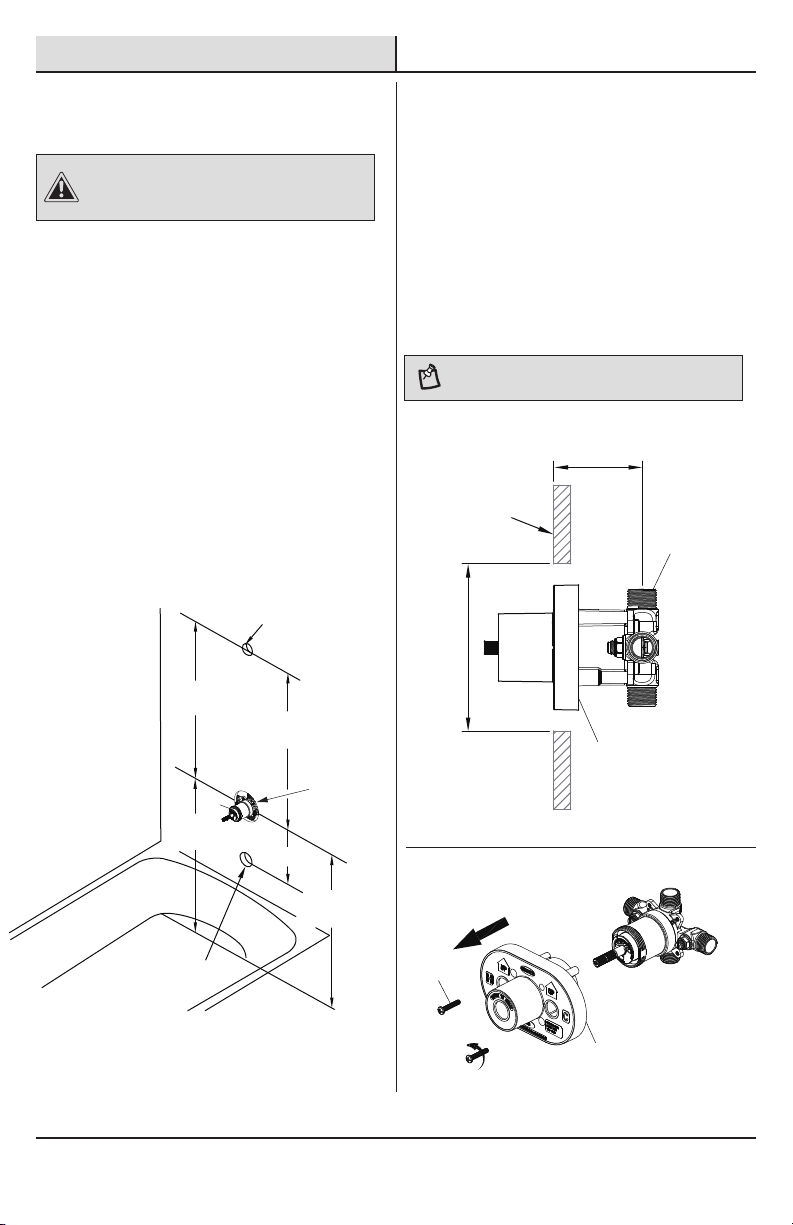

1 Preparing for installation
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
2Installing the valve body and
removing the plaster guard
□Shut off the water supply to the tub and
shower.
□Verify that the hole sizes and positions of the
holes in the wall are correct
□The shower and tub spout outlet holes
should be 1-1/4 in. diameter.
□Refer to Step 2 for valve access hole
dimensions.
□The recommended valve depth to the
nished wall is 2-1/2 in. min. to 3 in. max.
□Ensure that the valve body (D) cover is ush
with the nished exterior surface of the wall.
Position the valve body (D) correctly in the
wall with the side marked "UP" pointing up. The
8 in. minimum from the valve body (D) to the tub
spout (K) is required for proper operation.
The plaster guard (I) is positioned so that it is
ush with the nished wall. This ensures that
the valve will be at the correct position to accept
the trim. The depth for the valve body (D) in wall
is measured from the center of the shower outlet
to the nished wall surface. The accepted depth
distance is 2-1/2 in. to 3 in..
□
Unscrew the screws (H), and remove the plaster
guard (I).
□
NOTE: Be sure to position the valve body (D) correctly in
the wall, with the side marked "UP" facing upward.
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
30 in.
Tub & Shower
8 in. Min.
48 in.
Shower Only
1 1/4 in. Diamter
1 1/4 in. Diameter
48 in.
Tub & Shower
Refer to
the step 2
30 in.
Shower Only
D
I
H
2-1/2 in. to 3 in.
Finished wall
6 in. dia.
D
I

8
Installation (continued)

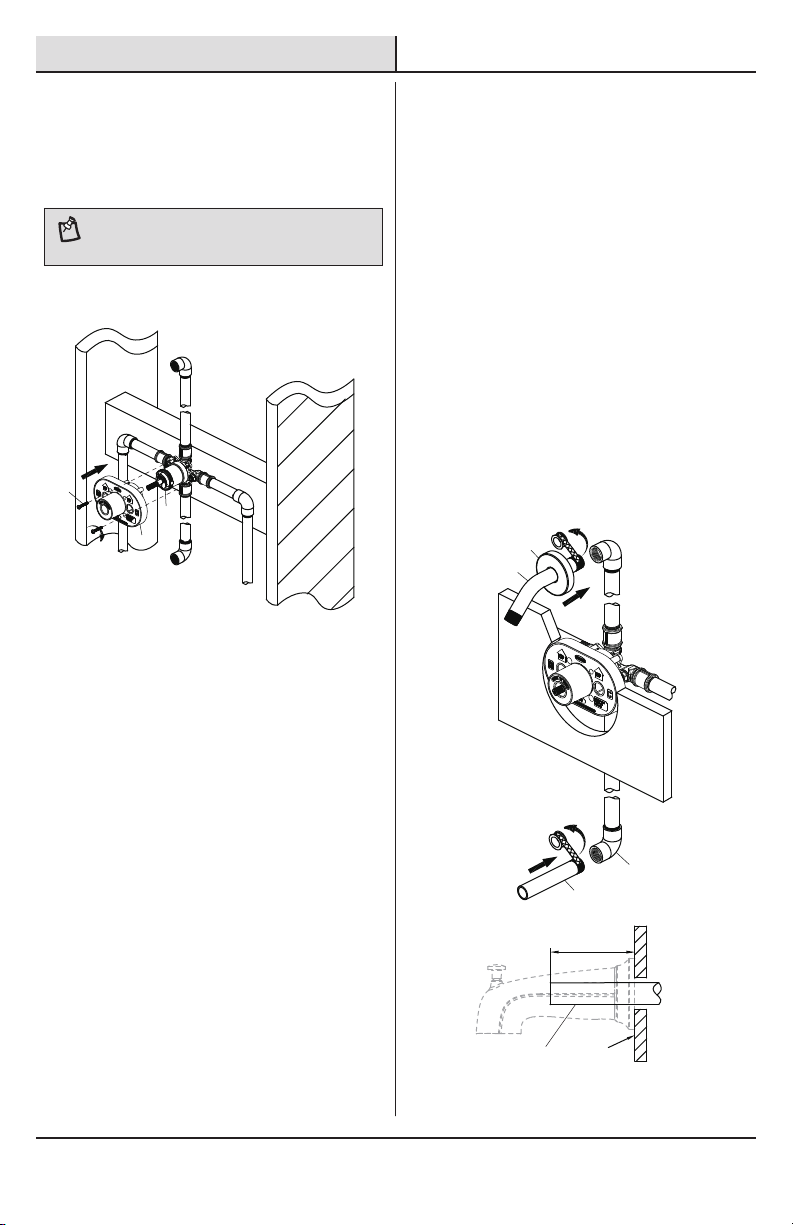

3a Installing the supply
connections
□
□Tighten the pipes to the valve body (D) with a
pipe wrench (not included).
Wrap thread sealant tape (not included) around
the pipe threads in a clockwise direction, as
shown.
□
Connect the hot and cold water supply lines (1,
not included), the shower outlet pipe (2, not
included), and tub outlet pipe (3, not included)
by threading them into the valve body (D) in a
clockwise direction.
Connect the pipe elbows (4, not included) to
the end of the shower outlet and tub outlet
pipes.
□
NOTE: The hot water supply lines go into the "H" inlet, and
the cold water supply lines go into the "C" inlet. Do not use
PEX or CPVC between the valve body (D) and tub spout (K).
NOTE: If you do not wish to install the tub outlet, insert
the plug (J) into the bottom of the valve body (D).
3b Installing the supply
connections (for soldering)
□
Before soldering, remove the bonnet nut (1),
cartridge (2), o-ring (3) and stop valves (4) from
the valve body (D).
□
Solder the hot and cold water supply lines (5,
not included), the shower outlet pipe (6, not
included), and tub outlet pipe (7, not included)
into the valve body (D) with the torch.
Solder the pipe elbows (8, not included) to the
end of the shower outlet and tub outlet pipes
with the torch.
□
Reinstall the bonnet nut, cartridge, o-ring and
stop valves onto the valve body (D). Make sure
the cartridge (2) is installed correctly.
□
NOTE: The hot water supply lines go into the "H" inlet, and
the cold water supply lines go into the "C" inlet. Do not use
PEX or CPVC between the valve body (D) and tub spout (K).
NOTE: If you do not wish to install the tub outlet, insert
the plug (J) into the bottom of the valve body (D).
3
D
1
1
2
4
J
D
1
1
2
4
5
3
1
24
7
D
5
6
8
5
3
1
24
D
5
6
8
J
2

9
Installation (continued)
5Flushing the water outlets
□
and checking for leaks
Attach the handle assembly (G) by threading the
base of the handle assembly (G) onto the valve
body (D) and turn the handle assembly (G) to the
full on mixed position. Turn on the hot and cold
water supply lines and allow the water to ow
from the outlets for one minute, or until all foreign
matter has been ushed out. Check for leaks.
Shut off the water at the faucet and supply lines.
Check for leaks. Remove the handle assembly (G).
□
Make sure the stop valves (1) are fully open.
If the stop valves (1) are closed, you must fully
open the stop valves (1) with the athead
screwdriver.
□
4Back to back installation
NOTE: Never install the valve body (D) upside down!
□If the hot and cold inlets are reversed (hot on
right and cold on left), remove bonnet nut (1)
from the valve body (D) with reversed supply
connections. Rotate the cartridge (2) 180°,
so H appears on the right. Install the cartridge
making sure that the key is fully engaged with
the slot in the valve body (D). Slide the bonnet (1)
over the cartridge (2) and thread them onto the
valve body (D). Hand tighten securely. If you are
not making a reverse or back to back installation,
skip this step and continue with the step 5.
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
NOTE: Check for leaks：
a. Turn off the integral stops, check if there are any leaks
on both of the inlet water supply connections.
b. Fully turn on the integral stops and use plug/cap to
block the outlets of shower head and spout, then turn on
the water and check if there are any leaks on the outlet
pipe/tube connections or elbows.
GD
1
1
1
Normal
installation
(changes
not required)

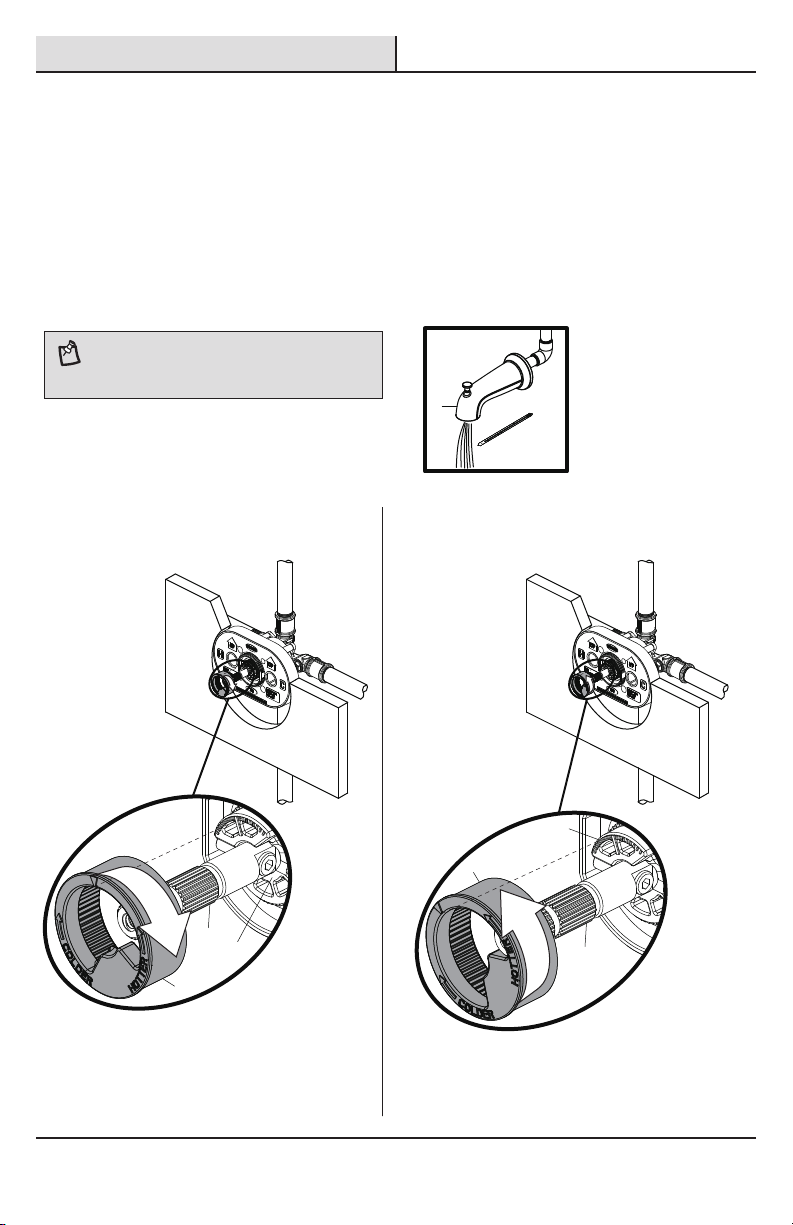

Reverse
installation
Reverse installation
D
Hot
Cold
3
2
1
Cold
Hot
H
Normal installation
Hot Cold
H

10
Installation (continued)

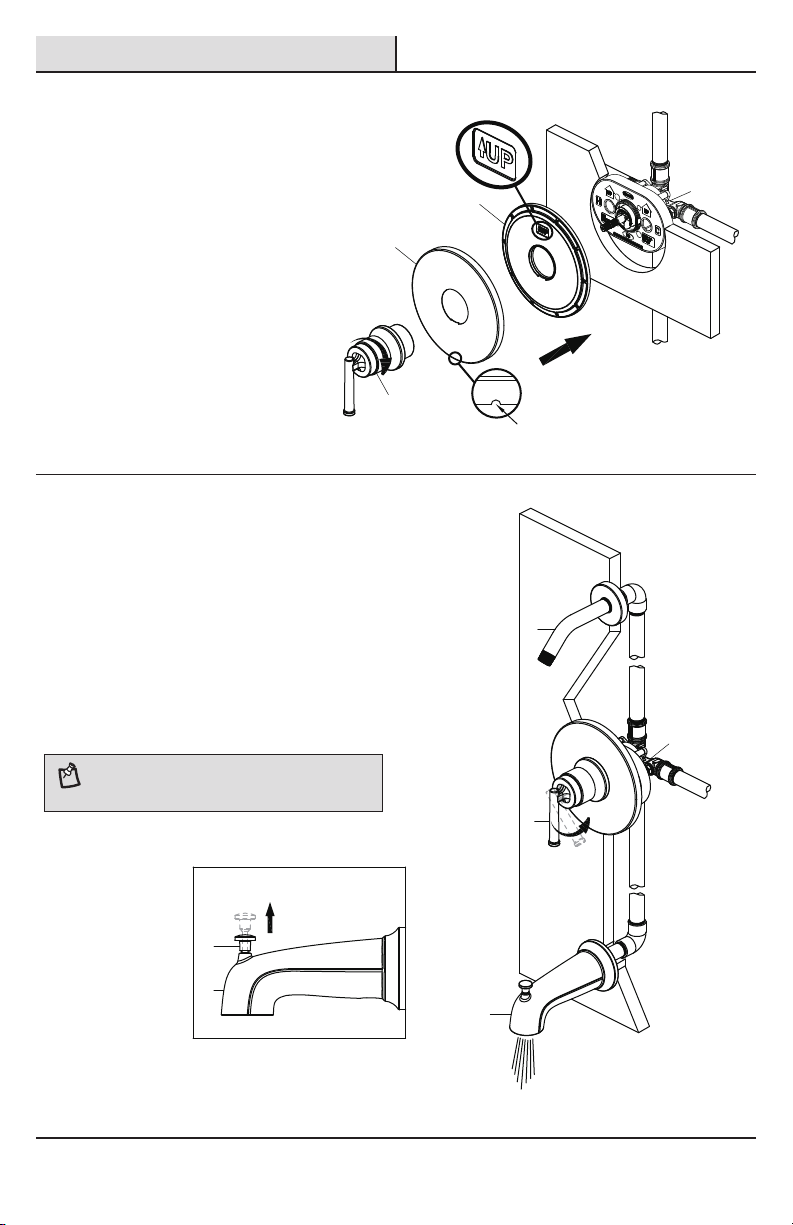

7 Installing the shower arm
□Insert the long end of the shower arm (B) through
the shower ange (A), and wrap thread sealant
tape (not included) around the long end of the
shower arm (B) in a clockwise direction, as
shown.
Install the long end of the shower arm (B)
into the pipe elbow inside the wall. Carefully
tighten the shower arm (B) with a clean strap
wrench. Do not over tighten.
□
Wrap thread sealant tape around the pipe
threads of the tub spout outlet (1, not included)
in a clockwise direction, as shown.
□
Connect the tub spout outlet pipe (the tub
spout outlet pipe should project 2-1/2 in. to 3 in.
from the nished wall) to the lower pipe elbow
(2, not included). Tighten the elbow and tub spout
outlet pipe connections with a strap wrench.
□
1
2-1/2 in. to 3 in.
Wall
6 Installing the plaster guard
Place the plaster guard (I) onto the valve body (D)
and secure with the screws (H).
□
NOTE: Be sure to position the plaster guard (I) correctly
onto the valve body (D), with the side marked "SHOWER"
facing upward.
D
H
I
2
B
A
1
