Glacier bay 67070-0101 User manual

USE AND CARE GUIDE
Model #67070-0101
67070-0108D2
PULL-DOWN KITCHEN FAUCET
REV.01THD
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-855-HD-GLACIER
HOMEDEPOT.COM
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!

2
Table of Contents
Safety Information....................................2
Warranty ...................................................2
Pre-Installation.........................................3
Planning Installation ..............................3
Tools Required .......................................3
Package Contents ..................................4
Installation................................................5
Operation...................................................9
Care and Cleaning ....................................10
Service Parts ........................................... 10
Safety Information
Please read and understand this entire manual before
attempting to assemble, operate, or install the product.
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.

Adjustable
wrench
Safety
goggles
Phillips
screwdriver
SILICONE
Silicone
Flashlight
(2) Supply lines Basin wrench
Hex wrench
(Hex key)
3 HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents section. If any part is missing or damaged, do not attempt to install the product.

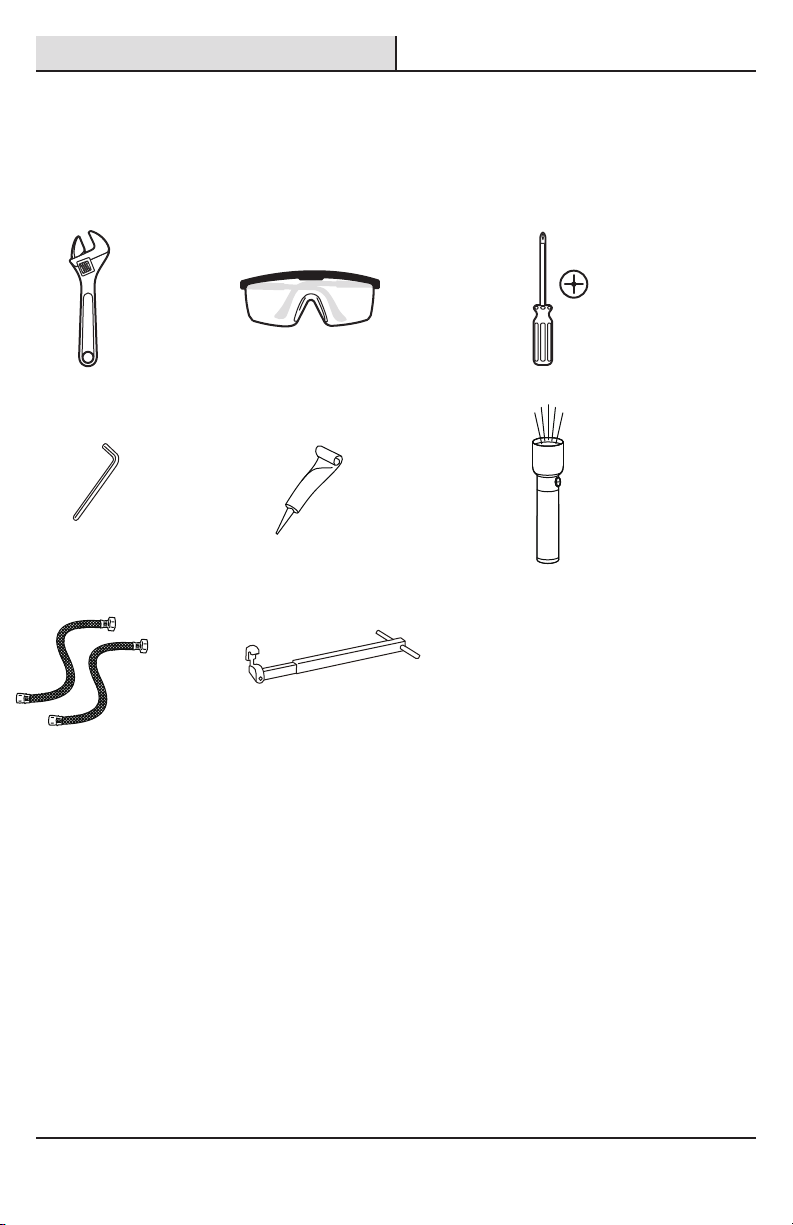

TOOLS REQUIRED

4
Pre-Installation (continued)

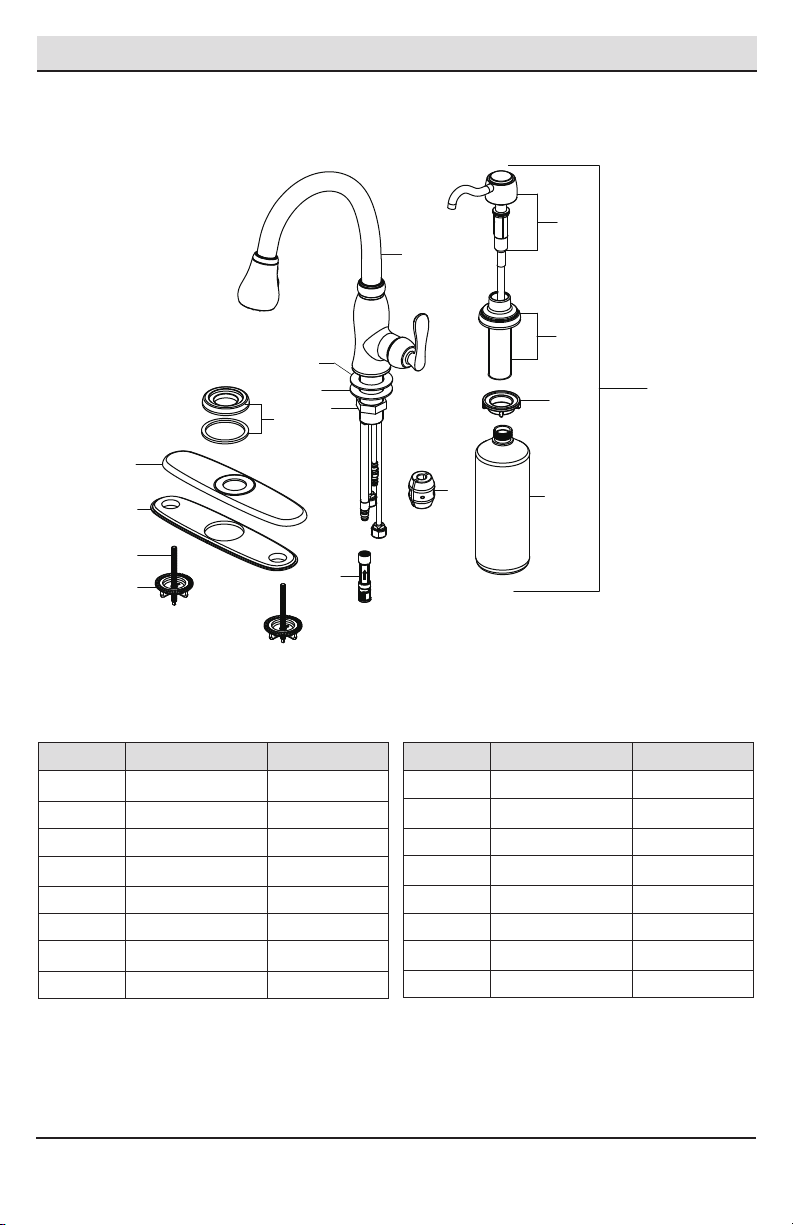

PACKAGE CONTENTS
Part Description Quantity
A 1
B Plastic washer 1
C Metal washer 1
Faucet assembly
D 1
E Flange 1
F Escutcheon 1
Nut
G 1
H Bolt 2
I Mounting nut 2
Base plate
J 1
K Weights 1
Quick connector
L 1
M Body assembly 1
N Nut 1
Pump
O 1
P Soap dispenser 1
Bottle
Part Description Quantity
C
A
D
E
F
B
G
I
H
J
K
L
M
O
NP

5
Installation

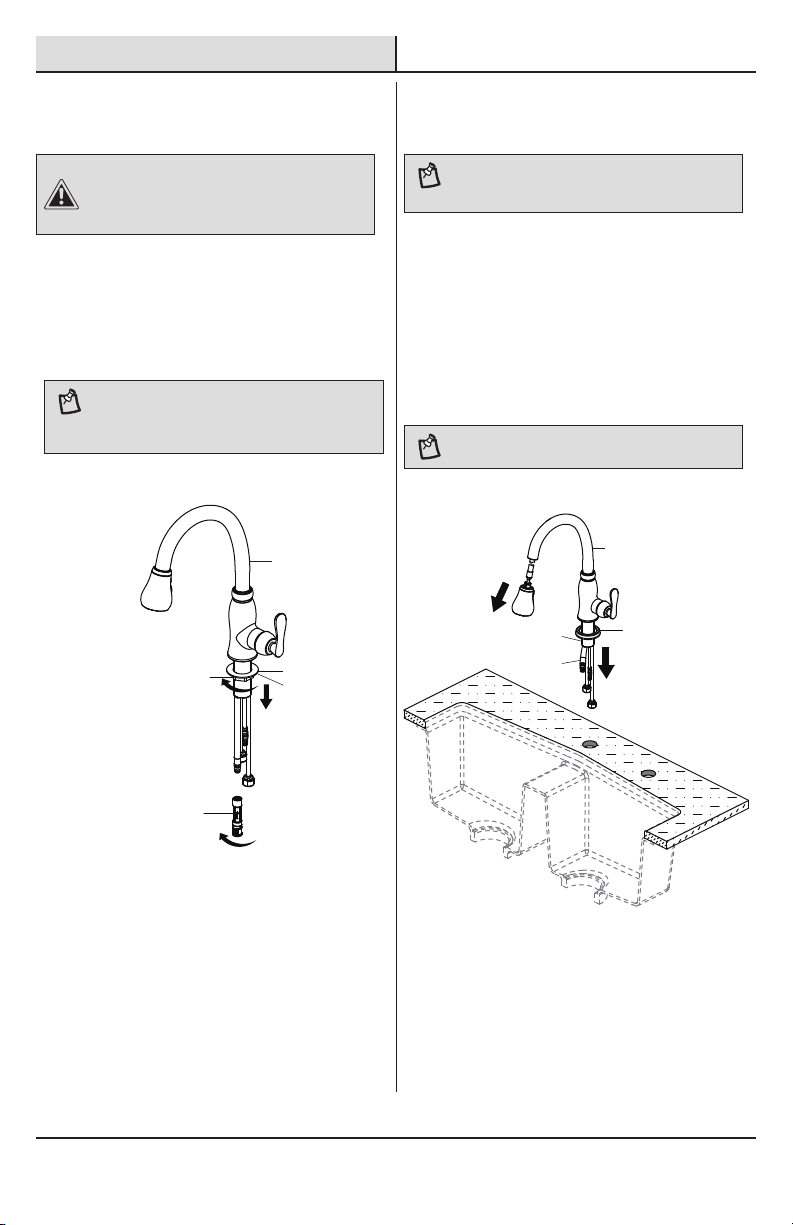

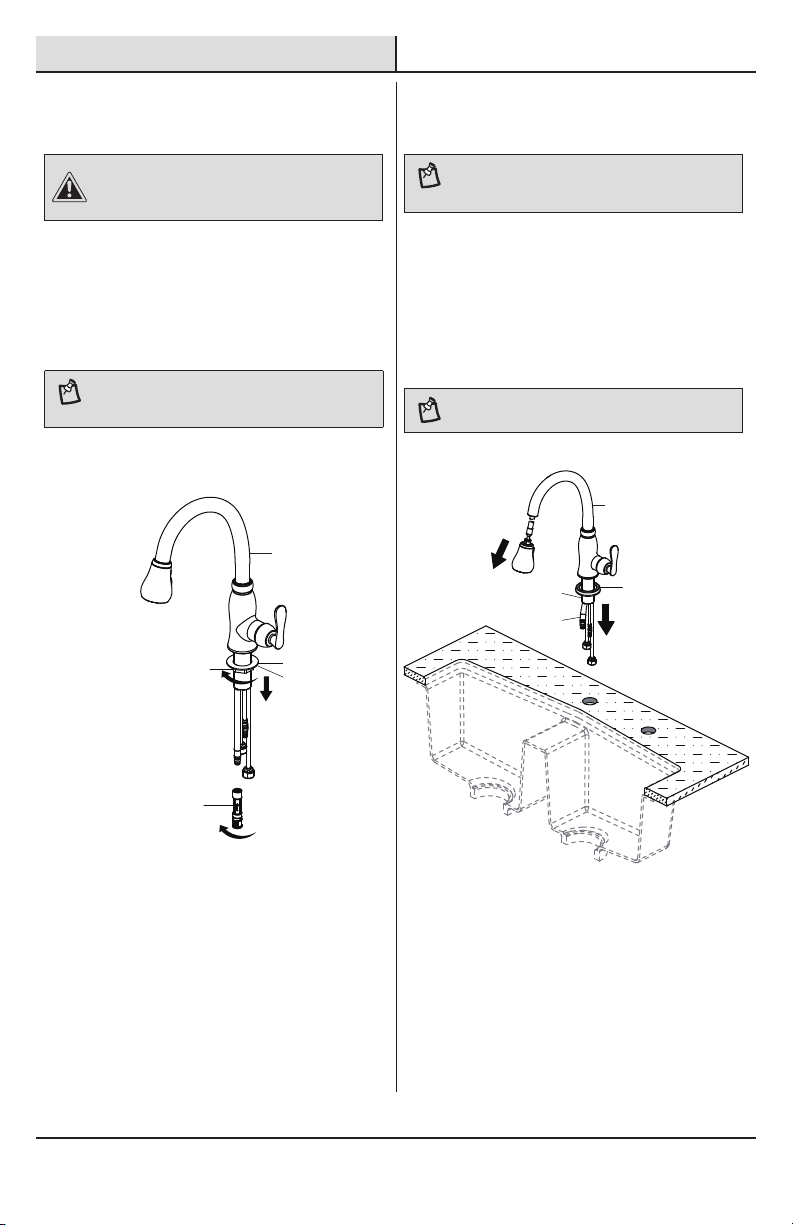

1 Preparing for installation
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply.
□Before installation, remove the quick connector (J)
from the free end of the hose by unscrewing it in a
counterclockwise direction.
□Unscrew the nut (D), and remove the
washers (B & C).
2 Installing the faucet assembly
□Place the ange (E) on the bottom of the new
faucet assembly (A).
□Retract the hose (1) up through the faucet body
until the hose tting is ush with the bottom of
shank (2). Do not pull the hose tting past the
shank. Insert the faucet body through the hole
in the sink.
NOTE: Do not feed the hose (1) back down through the
spout until step 6.
NOTE: If installing the faucet assembly (A) without the
escutcheon, begin with step 2. If installing the faucet
assembly (A) with the escutcheon, begin with step 3.
NOTE: This step is for ange installation (optional). If the
ange will not be used, install the faucet assembly as
described in step 3.
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
B
D
J
C
A
E
1
2
A

6
Installation (continued)

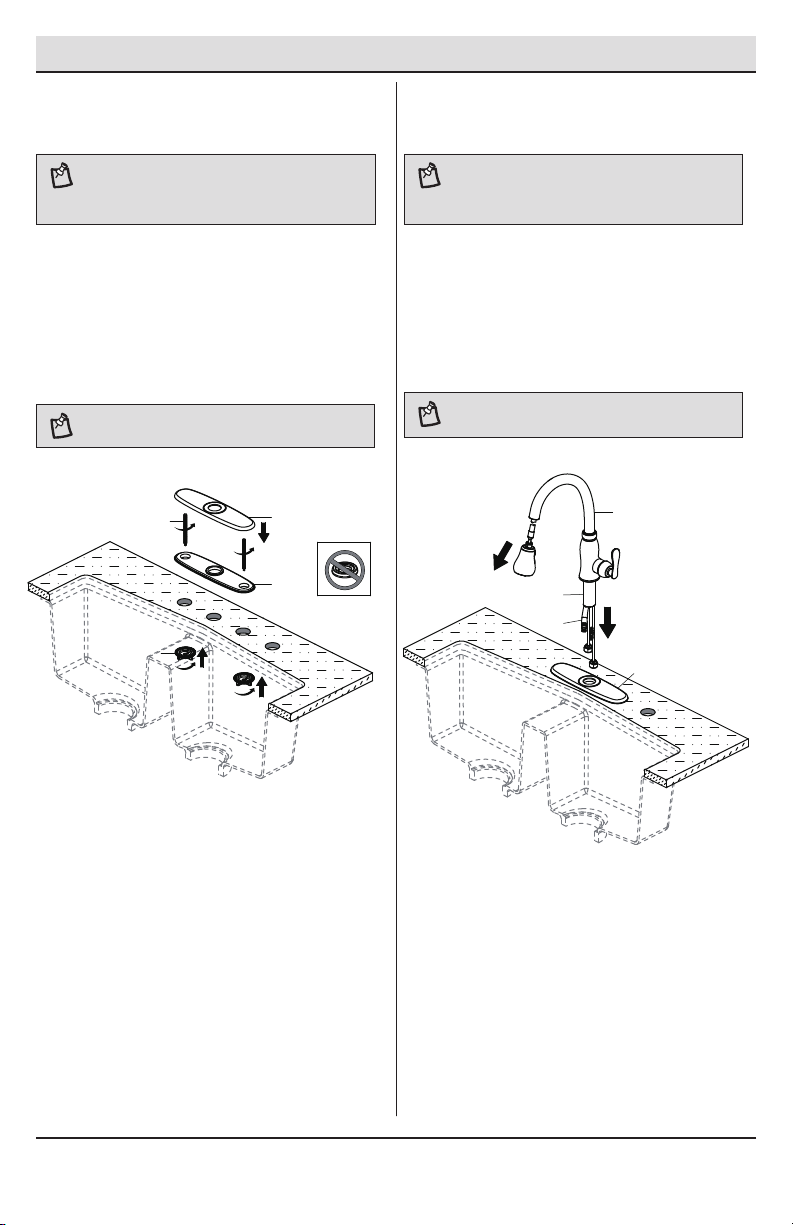

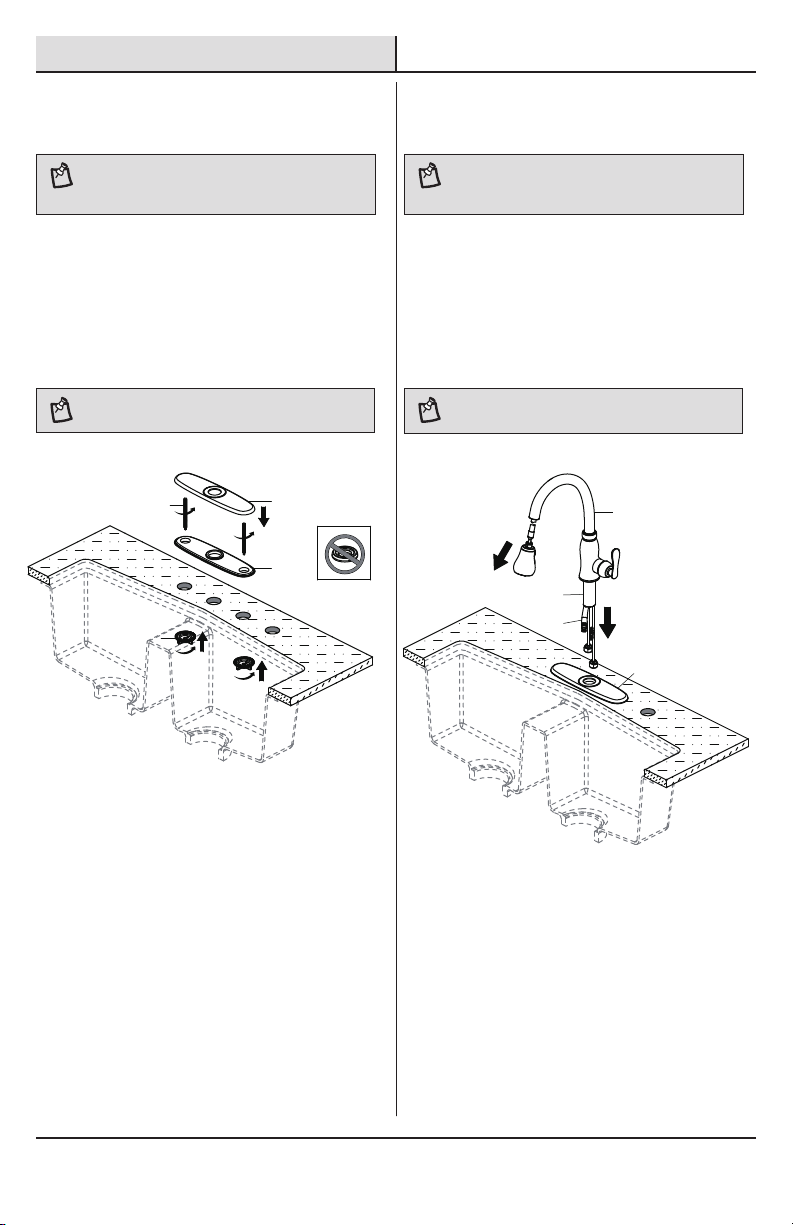

3 Installing the escutcheon
□Screw the bolts (H) into the escutcheon (F) and
ensure that the base plate (G) is pressed onto
the escutcheon (F) before the escutcheon (F)
is installed over the three holes in the sink.
□From underneath sink, hand tighten the
mounting nuts (I). Do not overtighten.
4 Installing the faucet assembly
NOTE: Do not feed the hose (1) back down through the
spout until step 6.
□Retract the hose (1) up through the faucet body,
until the hose tting is ush with the bottom of
the shank (2). Do not pull the hose tting past
the shank.
□Insert the faucet assembly (A) through the hole
in the escutcheon (F).
HF
G
I
NOTE: If the sink is uneven, use silicone under the base
plate (G).
NOTE: This step is for escutcheon installation (optional).
If the escutcheon will not be used, install the faucet
assembly as described in step 2.
NOTE: This step is for escutcheon installation (optional).
If the escutcheon will not be used, install the faucet
assembly as described in step 2.
F
A
1
2

7

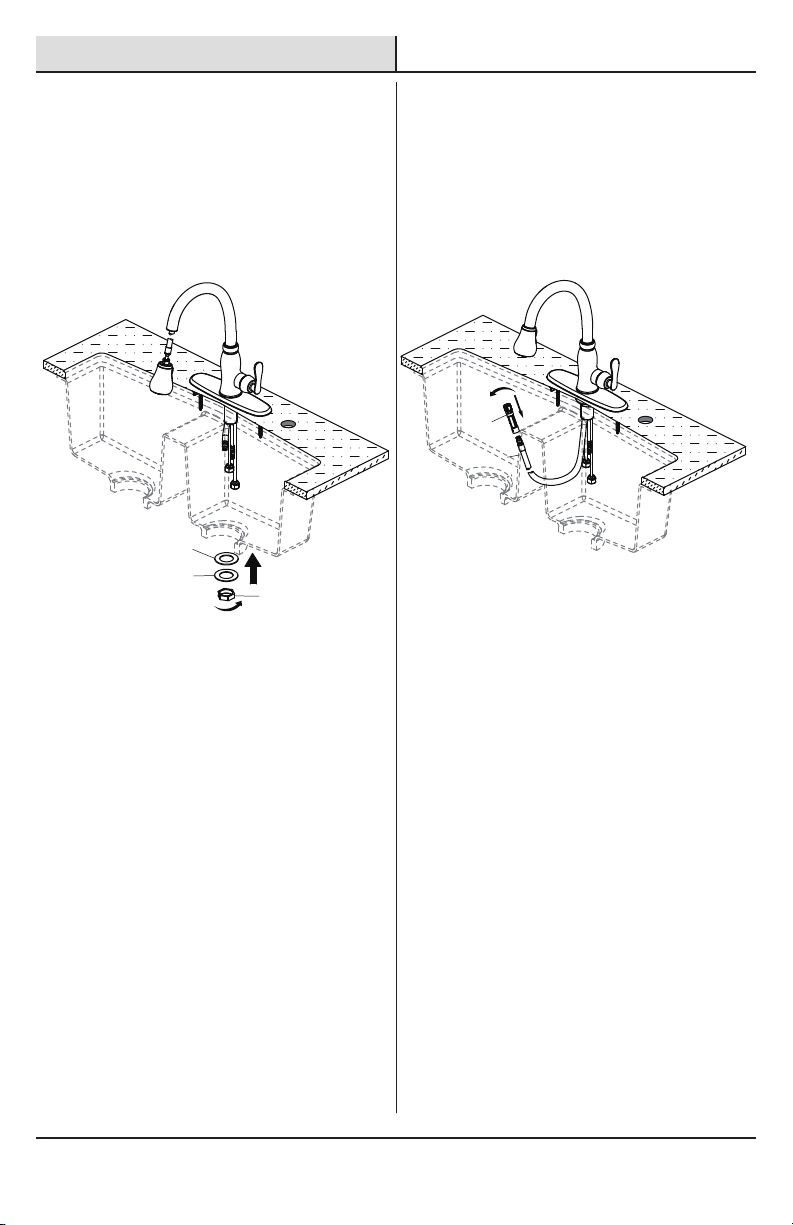

Installation (continued)

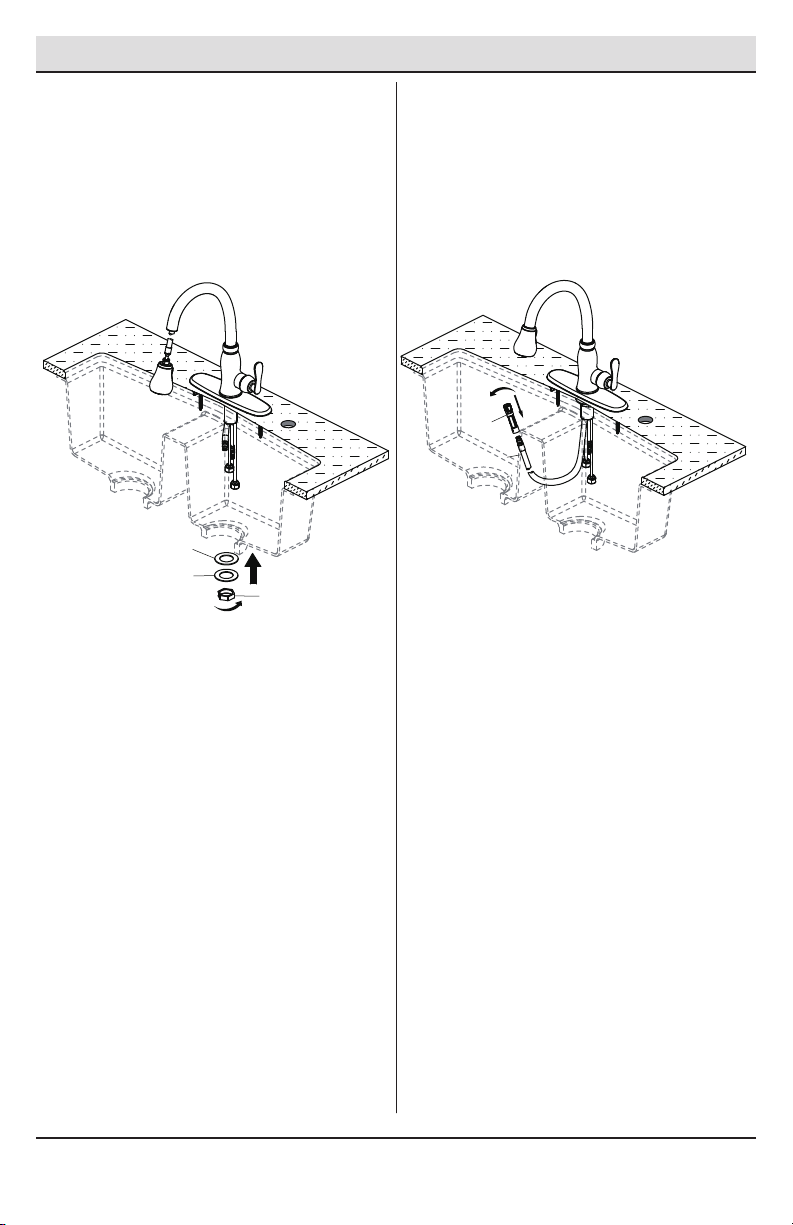

5 Securing the faucet assembly
□Install the plastic washer (B), and metal washer
(C) onto the threaded mounting shank.
□Thread the nut (D) onto the mounting shank
using the basin wrench. Do not overtighten.
6
Attaching the quick connector
to the hose
□After inserting the hose through the hole in the
sink surface, reattach the quick connector (J)
by screwing it onto the threaded end of the
hose (1) in a clockwise motion. Hand tighten
only.
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
1
J
B
C
D

8
Installation (continued)

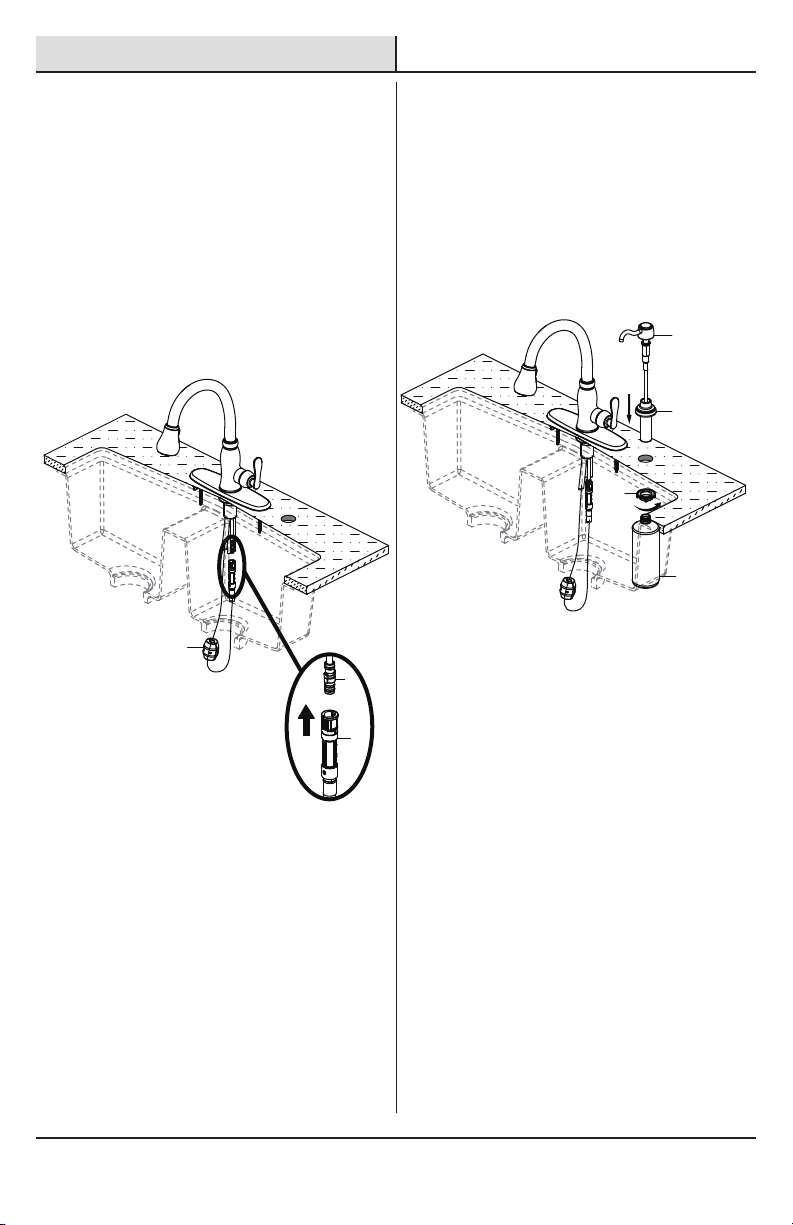

7 Attaching the quick connector
to the receiving block
□Push the quick connector (J) rmly upward and
attach it to the receiving block (1). Pull down
moderately to ensure the connection has been
made.
□If it is necessary to remove the quick connector
(J), squeeze the tabs on the hose and then pull
down to disconnect.
8
Installing the soap dispenser
□Insert the body assembly (M) through the
selected hole in the sink. Secure the body
assembly to the sink with the nut (N).
□After connecting the hose, install the weights (K)
at the lowest point of the hose.
□From under the sink, screw the bottle (O) onto
the body assembly (M) shank. Insert the pump
(L) down into the body assembly (M).
M
N
O
L
1
J
K

9
Installation (continued)

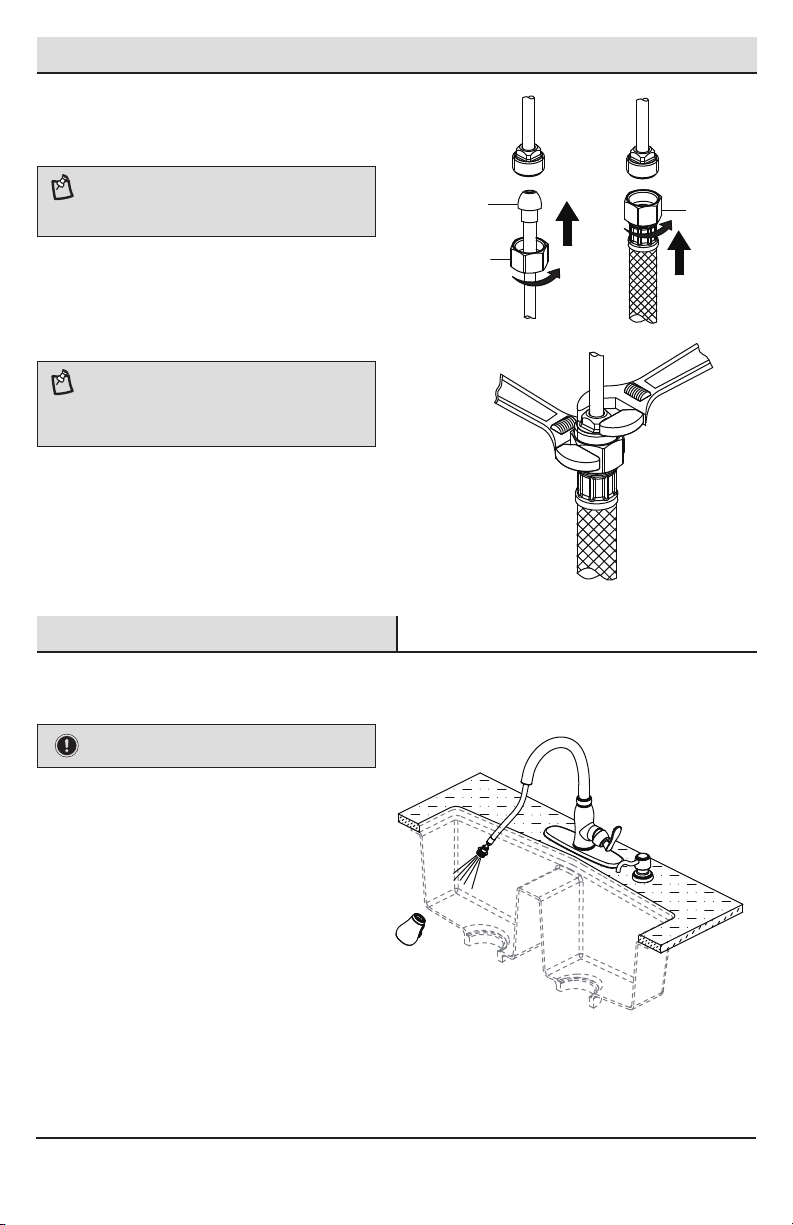

1Flushing and checking for leaks
□Pull the hose assembly out of the spout and
remove the spray head by unscrewing it from
the hose in a counterclockwise direction. Be
sure to hold the end of the hose down into the
sink and turn the faucet on to the warm position
where it mixes hot and cold water.
□Flush the water lines for one minute. This ushes
away any debris that could cause damage to
internal parts. Check for leaks.
□Re-tighten any connections if necessary, but do
not overtighten. Reinstall the spray head by hand
tightening it back onto the spray hose.
Operation
IMPORTANT: After installation is completed, turn on the
hot and cold water supply. Check for leaks.
9 Making the waterline
connections
NOTE: The hot side inlet tube is indicated by a label.
If the label is not present, the hot supply tube is the longer
of the two inlet tubes.
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1). 3
12
NOTE: Before tightening the faucet connector to the water
supply, apply a second wrench to the supply tube tting.
This will prevent the supply tube from moving or twisting
when tightening the faucet connector. Do not overtighten.
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.

10
Care and Cleaning
□
□
□Do not use abrasive cleaners when cleaning this faucet.

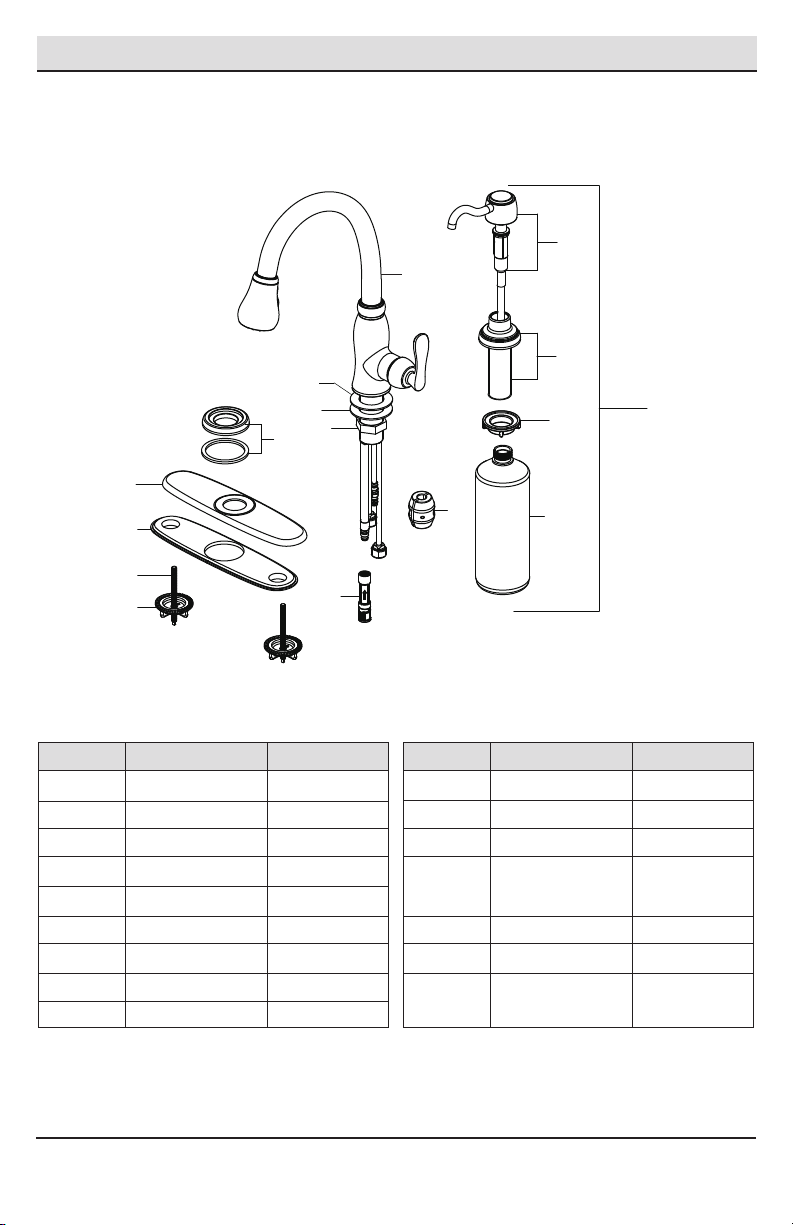

Service Parts
*Specify Finish
Part Description Part Number
1 RP38053*
2 O-ring RP60075
3 Ring RP60076
4 Cartridge & Screw RP20053
5 Bonnet RP70224
6 Cap RP80184*
7 Handle RP13143*
8 Set screw RP50002
9 Plastic washer RP64131
Spray head and Hose
13 O-ring RP60002
21 Mounting nut RP56036
23 Flange kit RP46019*
24 Bottle RP46002
25 Soap dispenser RP46020*
Part Description Part Number
10 Metal Washer RP64146
11 Nut RP56053
12 Block RP70421
14 Quick connect
assembly RP70429
15 O-ring RP60024
16 Weights RP70223
17 Flange & Washer RP80187*
18 Escutcheon RP80276*
19 Base plate RP80356
20 RP50071
Bolt
22 Pump kit RP46018
3
4
6
5
9
7
8
12
11
2
10
15
16
1
13
14
19
20 17
18
23
24
21
22
2
25
