Glacier bay 67734-6001 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
THREE-HANDLE BIDET FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this bidet
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
4/2017 REV.02THD
Model#
67734-6001
67734-6004
SKU#
763551
764540

Phillips
screwdriver Basin
wrench
2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................11
Troubleshooting........................................11

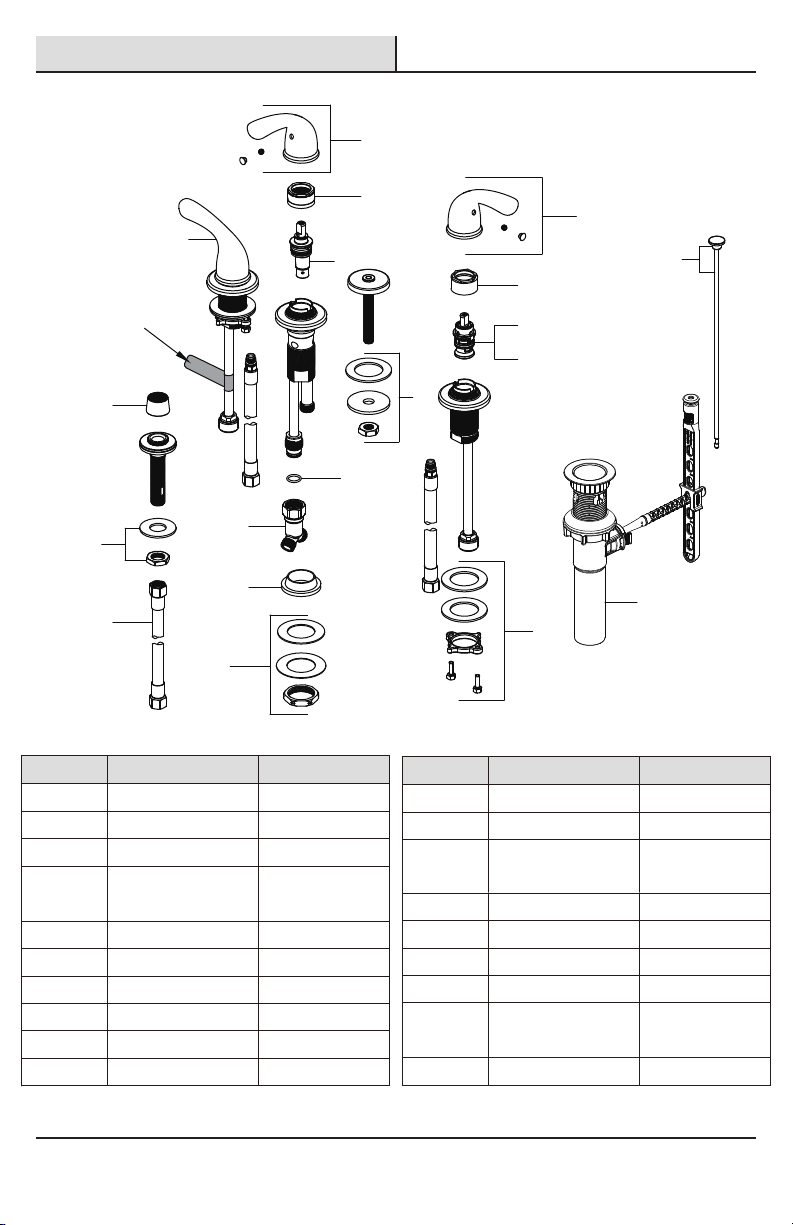

Service Parts ........................................... 12
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
Channel
lock pliers
(2) Supply
lines
SILICONE
Silicone
sealant
Tools and Hardware Required ...............2
Operation...................................................10
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.

3
Pre-Installation (continued)
PACKAGE CONTENTS
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Part Description Quantity
A 1Hot end valve
B 2Rubber washer
Part Description Quantity
Faucet Assembly ClickInstall Drain Assembly
NOTE: *Items AA - EE come pre-assembled.
AA 1Pop up stopper
BB 1Pop-up ange
CC 1Rubber washer
DD 1Lock nut
EE 1Drain body
FF 1Joint
GG 1Horizontal rod
HH 1Lift rod strap
JJ 1Lift rod
KK 1Rubber washer
II 1Clip
C 2Metal washer
D 2Nut
E 4Screw
F 2Hose
G 1Douche spray
H 1Metal washer
I 1Lock nut
J 1Hose
K 1Transfer valve body
L 1Rubber washer
M 1Plastic washer
N 1Metal washer
O 1Lock nut
P 1Y-adapter
Q 1Lift rod sleeve
R 1Base
S 1Base washer
T 1Rubber washer
U 1Metal washer
V 1Lock nut
W 1Cold end valve
K
L
P
J
S
T
Q
R
M
W
A
B
C
DE
F
N
O
U
V
G
H
I
KK
JJ
AA*
BB*
CC*
DD*
HH
II
EE*
FF
GG

4
Installation

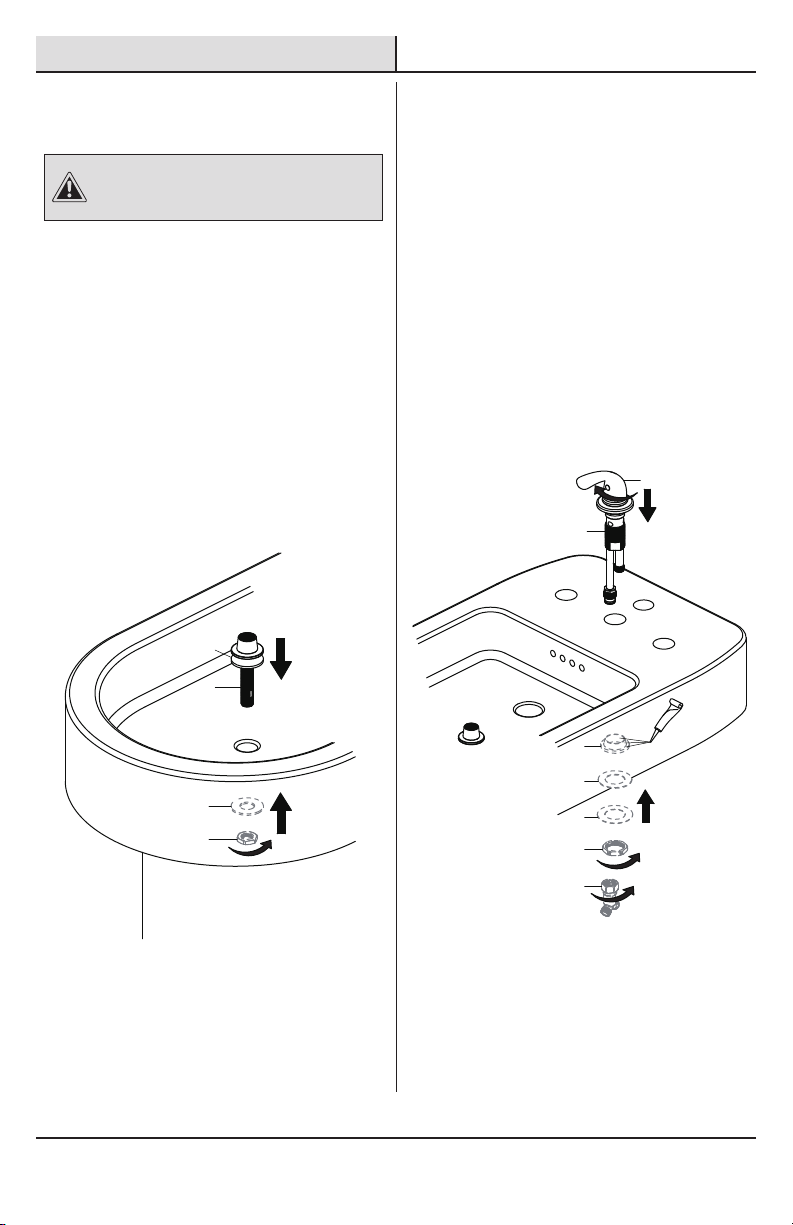

1 Installing the douche spray
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Place the douche spray (G) through the mounting
hole in the bidet.
□Secure the douche spray (G) to the bidet using
the metal washer (H) and lock nut (I).
2Installing the transfer valve
□Shut off the water supply. Remove the old
faucet.
□Clean the mounting surface.
□Remove the preassembled Y-adapter (P), lock
nut (O) and washer (L, M & N) from the transfer
valve body (K).
□Place the transfer valve body (K) up through the
bidet hole.
□Before installation, open the handle clockwise
until it stops so that the handle is facing forward.
□Apply silicone sealant (not included) in and
outside of the rubber washer (L).
□Secure the transfer valve body (K) to deck using
the washer (L, M & N) and lock nut (O). Install the
Y-adapter (P) onto the transfer valve body (K).
□Remove the preassembled lock nut (I) and
metal washer (H) from the douche spray (G).
□Before installation, ensure that the rubber
washer (KK) is placed on the bottom of the
douche spray (G). It prevent the hole from
leaking.
O
K
L
P
M
N
1
SILICONE
I
H
G
KK

□Attach the spray hose (J) to the douche spray (G)
and transfer valve body (K).
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
5

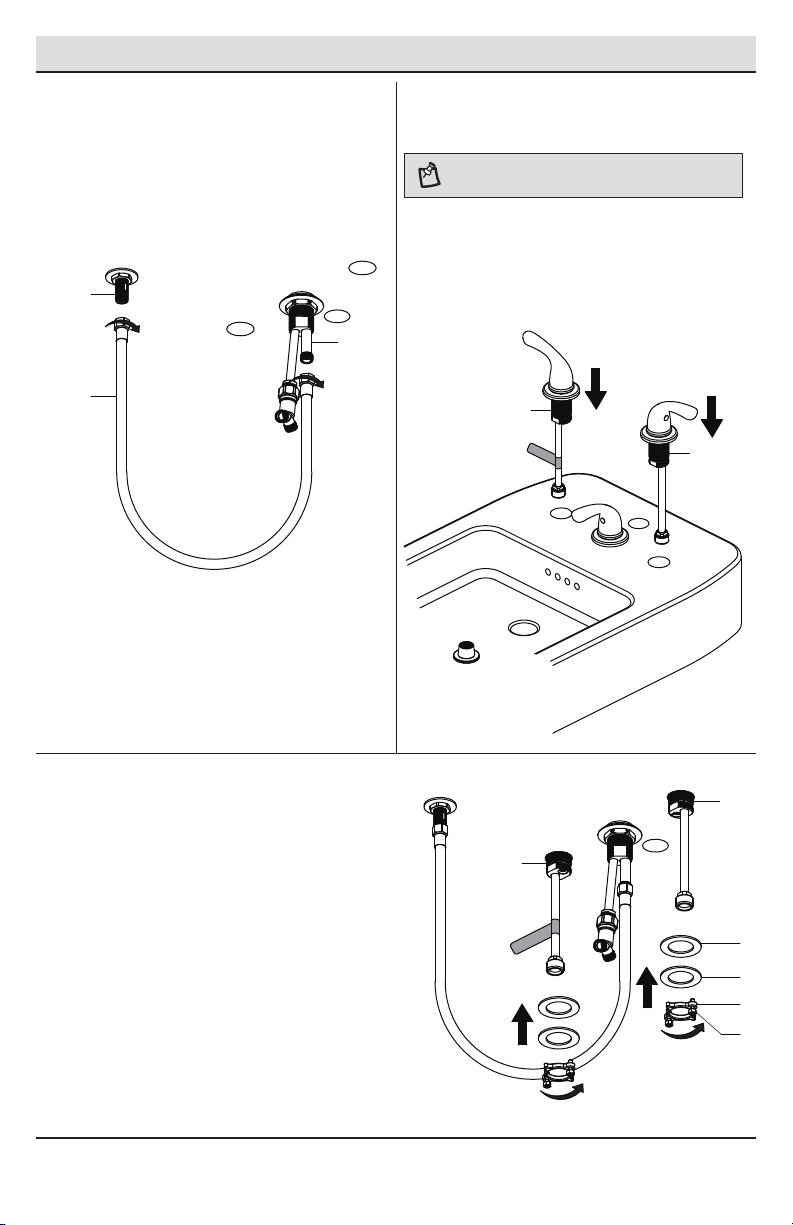

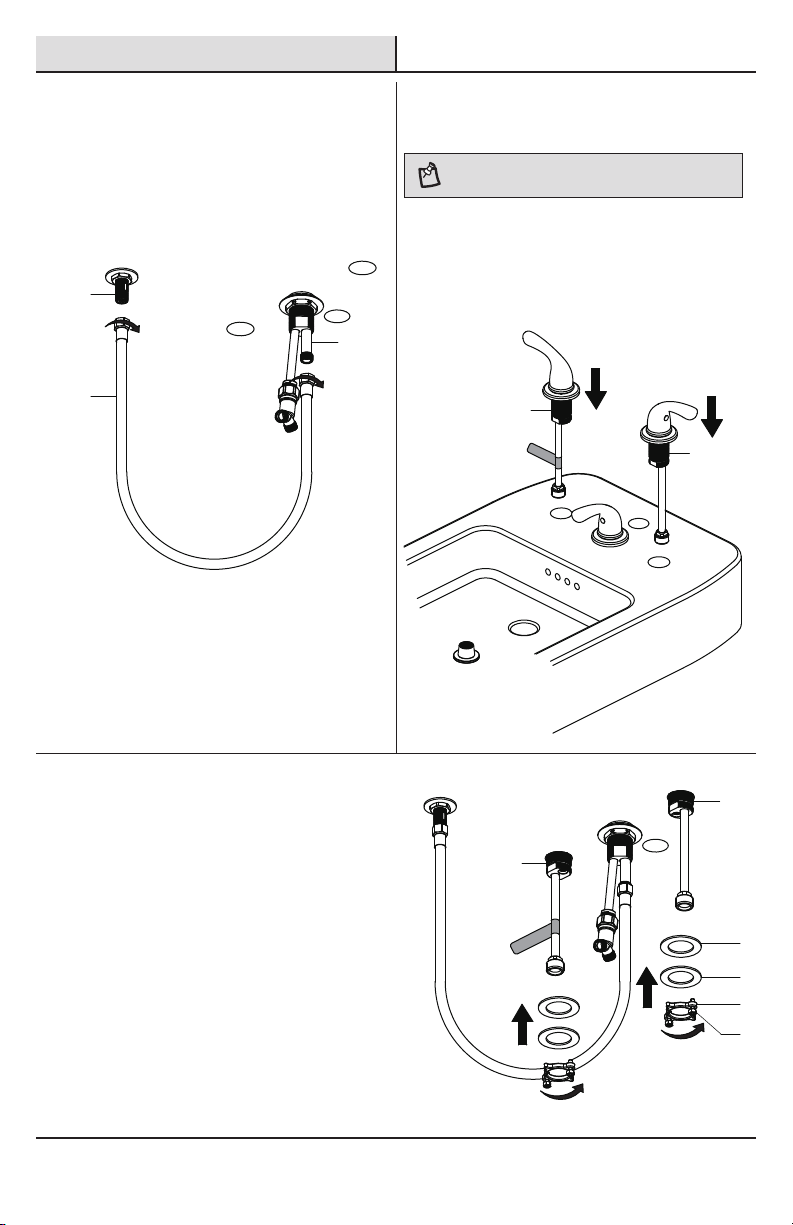

3 Attaching the spray hose 4Installing the hot and cold
valves
□Remove the preassembled nuts (D), metal
washers (C) and rubber washers (B) from the
hot and cold valves (A & W).
□Install the hot and cold valves (A & W) into the
bidet.
A
W
NOTE: The hot water valve is identied with a label.
□Secure the hot and cold valves (A & W) the bidet
using the rubber washers (B), metal washers (C)
and nuts (D). Thread the nut (D) onto the
mounting shank. Lock the nut (D) into position
by tightening the screws (E).
5 Securing the hot and cold
valves
K
J
G
A
W
B
D
E
C

Installation (continued)
6
7Connecting the hoses
□Attach the hoses (F) to the Y-adapter (P).
6Attaching the hoses
□Attaching the hoses (F) onto the hot and cold
valves (A & W).
8 Preparing the pop-up assembly
□Remove the pop-up stopper (AA) and drain
ange (BB) from the drain body (EE).
A
W
F
F
F
P
F
AA
BB
EE

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
7
Installation (continued)

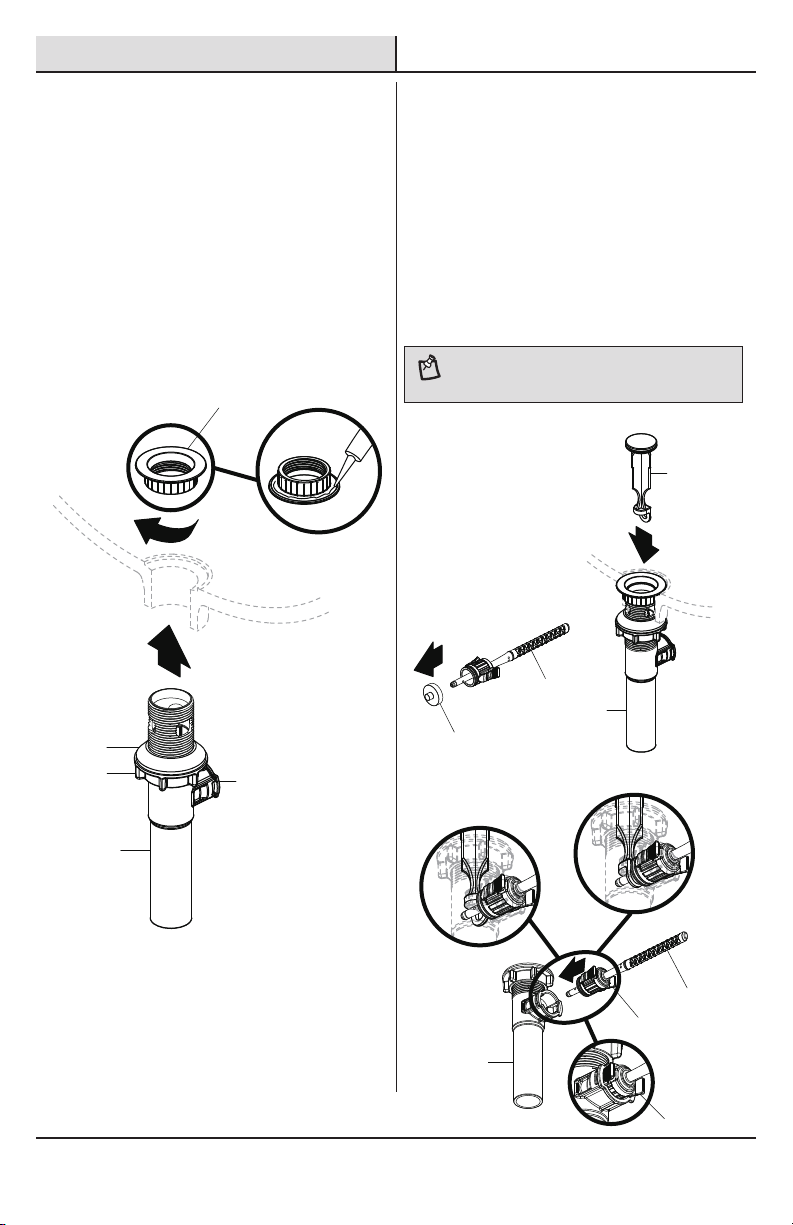

9 Installing the drain body
□Apply silicone sealant (not included) under the
drain ange (BB) and place the drain ange (BB)
into the drain hole of the sink.
□From underneath the sink, screw the drain
body (EE) onto the drain ange (BB). Ensure that
the opening (1) for the ball rod on the drain
body (EE) faces towards the rear of the sink.
10 Installing the stopper and
horizontal rod
□ Tighten the rubber washer (CC) and lock nut (DD)
on the drain body (EE). Hand-tighten only.
□Insert the stopper (AA) into the drain hole in the
sink.
□Before installation, unscrew the protective cap
(1) from the horizontal rod (GG).
□Insert the horizontal rod (GG) into the drain body
(EE) and through the hole of the stopper (AA)
until you hear a click. See insert 2. You can press
the two sides of the joint (FF) to remove the
horizontal rod (GG).
BB
CC
DD
EE
1
2
SILI
1
EE
AA
FF
GG
EE
FF
GG
Insert 3
Insert 2
1
1
2
3
NOTE: For easier removal and cleaning, rotate the stopper
(AA) 90 degrees so that the horizontal rod (GG) does not go
through the hole in the stopper (AA). See insert 3.

8
Installation (continued)
11 Installing the lift rod sleeve
□Insert the threaded lift rod sleeve (Q), the base
(R), and the base washer (S) through the hole.
Install the rubber washer (T), the metal washer
(U) and lock nut (V).
□Remove the preassembled lock nut (V), metal
washer (U), rubber washer (T) from the threaded
lift rod sleeve (Q).
12
□Slide the lift rod (JJ) down into the lift rod strap (HH) through the lift rod sleeve (Q) until it clicks into the
lift rod strap (HH).
Installing the lift rod
T
U
V
Q
R
S
JJ
Q
1
2
JJ
HH
JJ
HH
NOTE: If a shorter lift rod (JJ) is required for your
installation, you may call Glacier Bay Customer Service
for assistance.

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
9
Installation (continued)
14 Checking the operation of the
pop-up
□Operate the lift rod (JJ) up and down to verify
that the stopper (AA) opens and closes correctly.
13 Attaching the horizontal rod and strap
□Slide the clip (II) upward, adjust the location of the lift rod strap (HH) to the appropriate height and insert
the horizontal rod (GG) with the correct hole of the lift rod strap (HH).
□Press the horizontal rod (GG) down to ensure the stopper (AA) is in the maximum open position.
□Slide the clip (II) downward until it secures with the horizontal rod (GG).
□Move the lift rod strap (HH) in or out to choose an appropriate location.
JJ
AA
Hole
GG
AA
II
II
HH
GG
AA
II
HH
GG
AA
II
HH
5
12
3
3
4
4

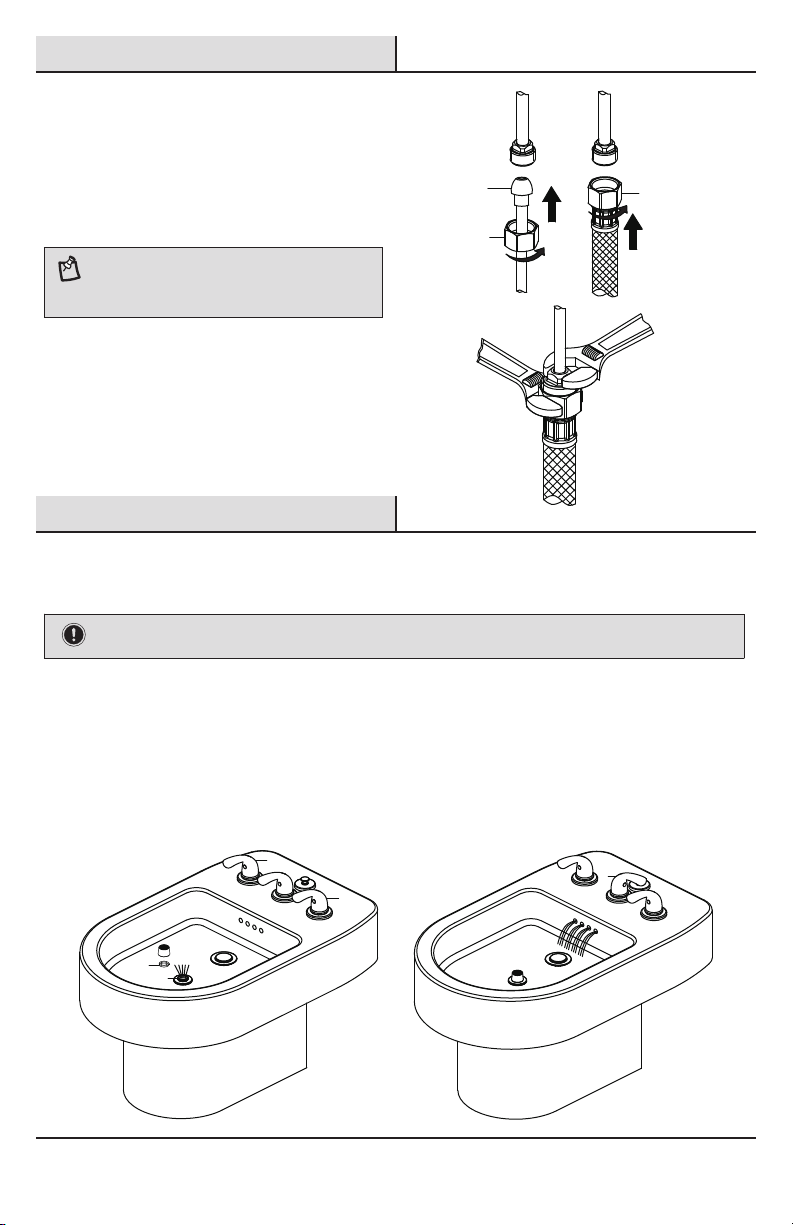

15 Making the water supply
connections
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
NOTE: Before tightening the faucet connector to the water
supply, apply a second wrench to the supply tube tting.
This will prevent the supply tube from moving or twisting
when tightening the faucet connector. Do not overtighten.
10
Installation (continued)
1 Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the aerator from the douche spray (G) to ush the water lines. Do not lose the
gasket (1) in the aerator.
□Ensure the hot and cold valves (A & W) handles are in the off position, and turn on the water supply to
check for leaks. If you discover any leaks, check your connections to ensure they are installed properly.
□Remove the aerator and housing (if applicable). Turn on the hot and cold handles to allow the water to run
for at least one minute. This ushes away any debris that could cause damage to internal parts.
□Turn off the water and reinstall the aerator and housing (if applicable).
□Turn the transfer valve body (K) handle to the right on the positions and ushes away any debris that could
cause damage to internal parts.
Operation
3
12
A
W
1G
K
