Glacier bay HDQE1210001SP Assembly instructions

INSTALLATION AND CARE GUIDE
THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
02/2023 REV.01THD
1-HANDLE TOUCHLESS PULL-DOWN
KITCHEN FAUCET
SKU#
1009093892
OMSID#
323987240
Model#
HDQE1210001SP

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation...........................2
Tools and Hardware Required.............2
Package Contents...............................3
Installation................................................4
Operation...................................................9
Care and Cleaning ..................................14
Troubleshooting......................................15

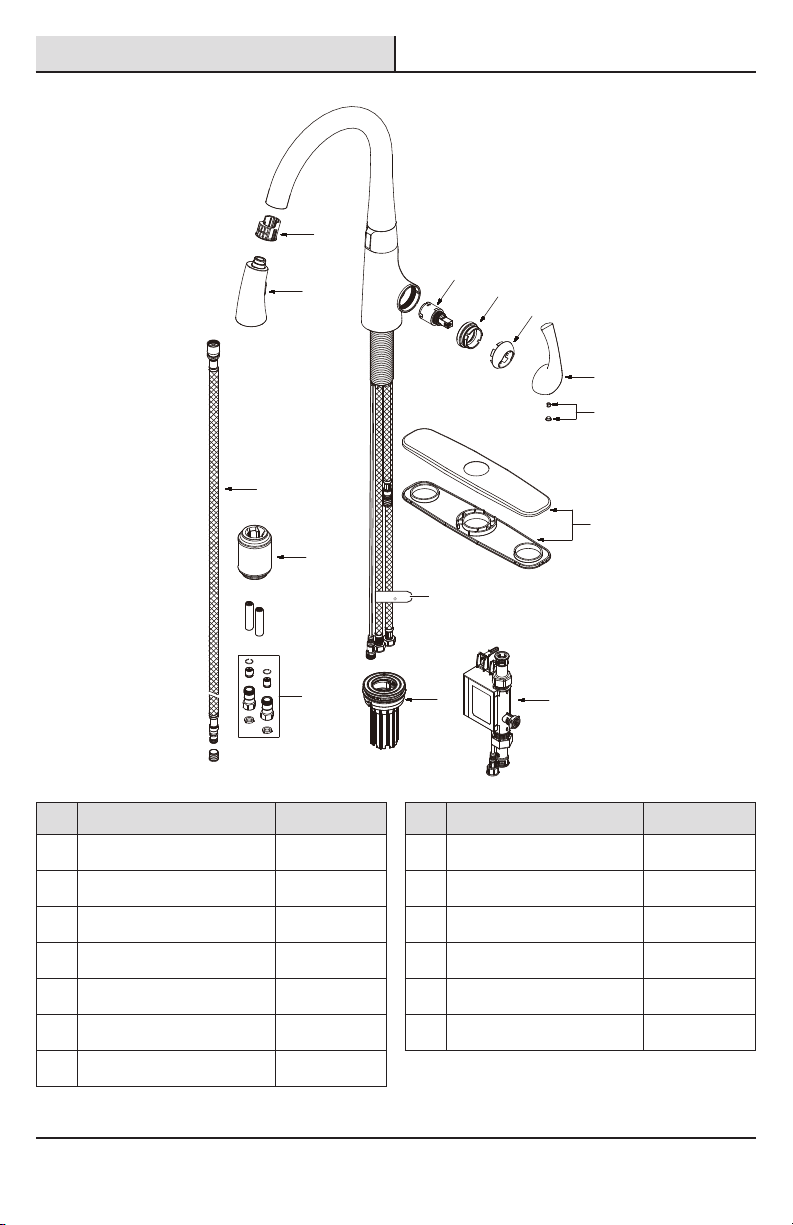

Service Parts...........................................17
Important Information
□Observe all local plumbing and building codes.
□Cover the drain in your sink to avoid losing parts.
□Review the care and cleaning section included in this guide.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
Simply return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-
434-5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental / inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
a five year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of the warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.
Pre-Installation
PLANNING INSTALLATION
Before you begin to install this product, ensure that all parts are present. Compare parts with the package
contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service for
replacement parts.

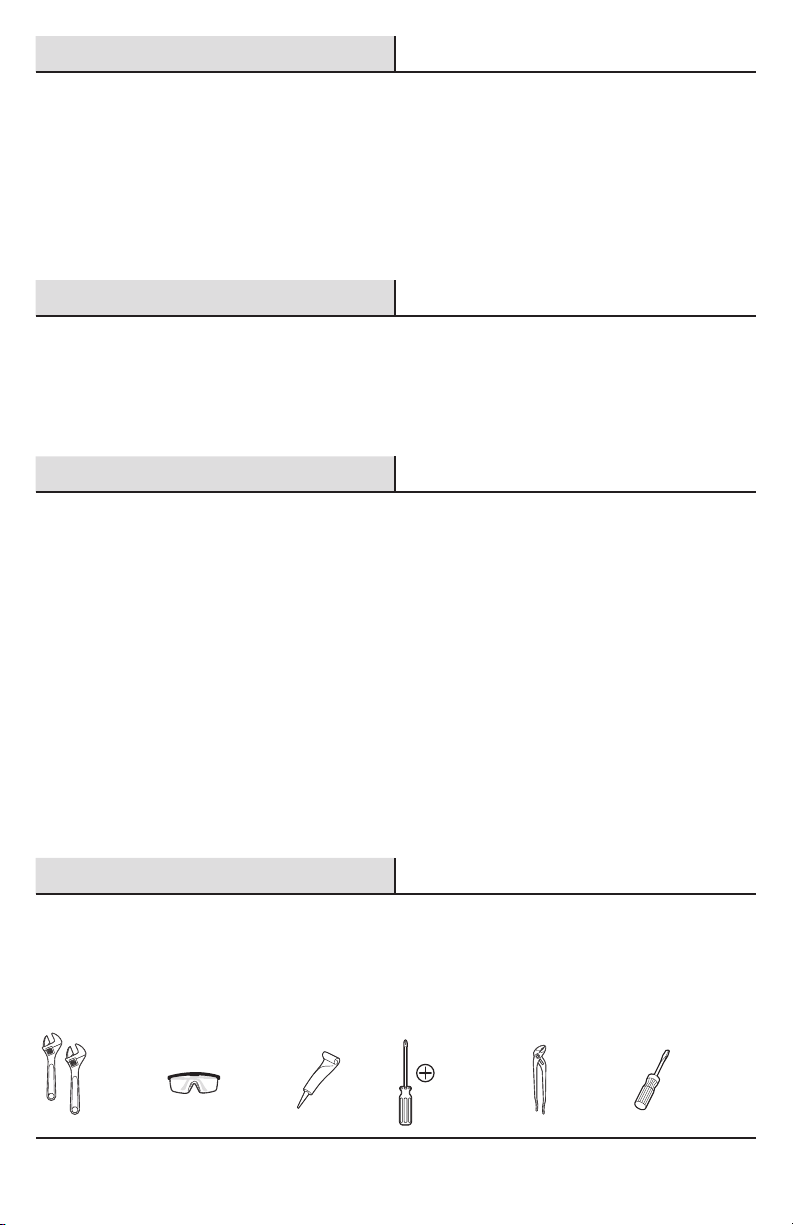

TOOLS AND HARDWARE REQUIRED
SILICONE
Phillips
screwdriver
Channel-lock
pliers
Flat
screwdriver
(2)
Adjustable
wrench
Safety
goggles Sealant

3 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation (continued)

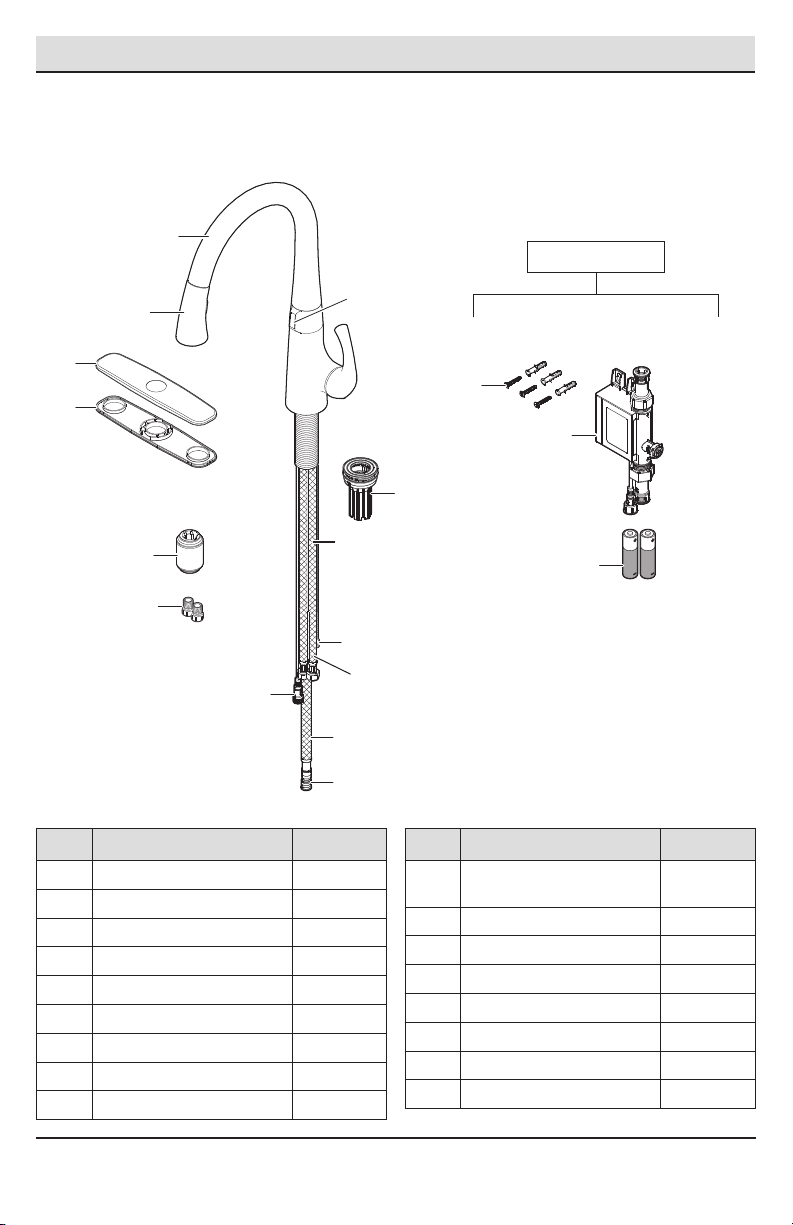

PACKAGE CONTENTS
J
L
K
M
O
P
N
C
D
E
F
G
Q
H
I
A
B
Sensor Control Box
Part Description Quantity
A Faucet assembly 1
B Pull-down spray 1
C Deck plate 1
D Putty plate 1
E Screws 3
F Control box 1
G AAA Batteries 2
H Weight 1
I Filter adapters 1
Part Description Quantity
JConvenience sensor with RED
indicator light 1
K FastMount™ 1
L Mixing tube 1
M Quick connector 1
N Water supply line 2
O Spray Hose 1
P Quick connector 1
Q Power cable 1

4
Installation
A
L
N
O
Ø 1 1/4”~ Ø 1 1/2”
(Ø 32mm~ Ø 38mm)
2 15/16"Max
(74mm)Max
1
A
C
D
L
N
O
2
Ø 1 1/4”~ Ø 1 1/2”
(Ø 32mm~ Ø 38mm) 2 1/2"Max
(64mm)Max
□Shut off the water supply. Remove the old faucet.
□Clean off the mounting surface.
□WITHOUT DECK PLATE: Install faucet body (A)
through top of sink (not included).
□WITH DECK PLATE: Place a bead of clear silicone
sealant (not included) around the base of the
putty plate (D). Place putty plate (D) and deck
plate (C) on sink (not included). Insert faucet body
(A) through deck plate (C).
1 Installing the faucet assembly
NOTE: If the sink is uneven, use silicone under the
gasket (D).
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.

5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
A
K
K
1
2
11
11
2
I
N
N
I
RED LINE
BLUE LINE
HOT
COLD
2

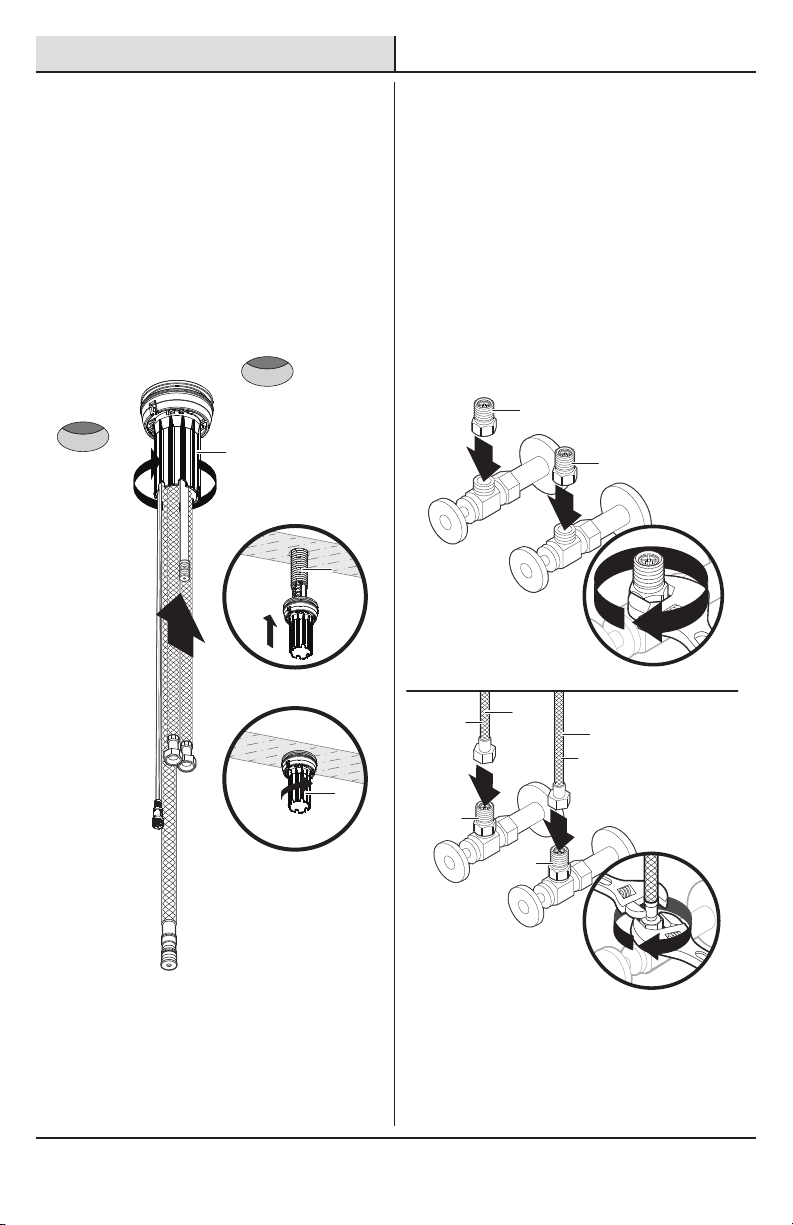

□From underneath the sink, secure the faucet
assembly (A) to the sink with the FastMount™
system (K).
□Push the FastMount™ system (K) up over the
threads until it stops against the bottom of the
sink, then turn to tighten.
□Attach filter adapters (I) to water supply valves.
□Identify hot and cold water supply valves below
sink. Connect and tighten the water supply line
nuts by using two adjustable wrenches (avoid
twisting or kinking).
2 Securing the faucet assembly 3 Connecting supply lines
Push up
Sink
Sink
Screw

6
Installation (continued)
L
F
M
IN
□Remove the cap from the quick connector.
□Attach quick connector (M) to top of control box
(F). Pull up on quick connector (M) to ensure it
is secure.
CAUTION: For removal, see “Quick Connector Removal.”
(320mm~370mm)
12 5/8”~14 9/16”
(100mm~150mm)
3 15/16”~5 7/8”
F
E

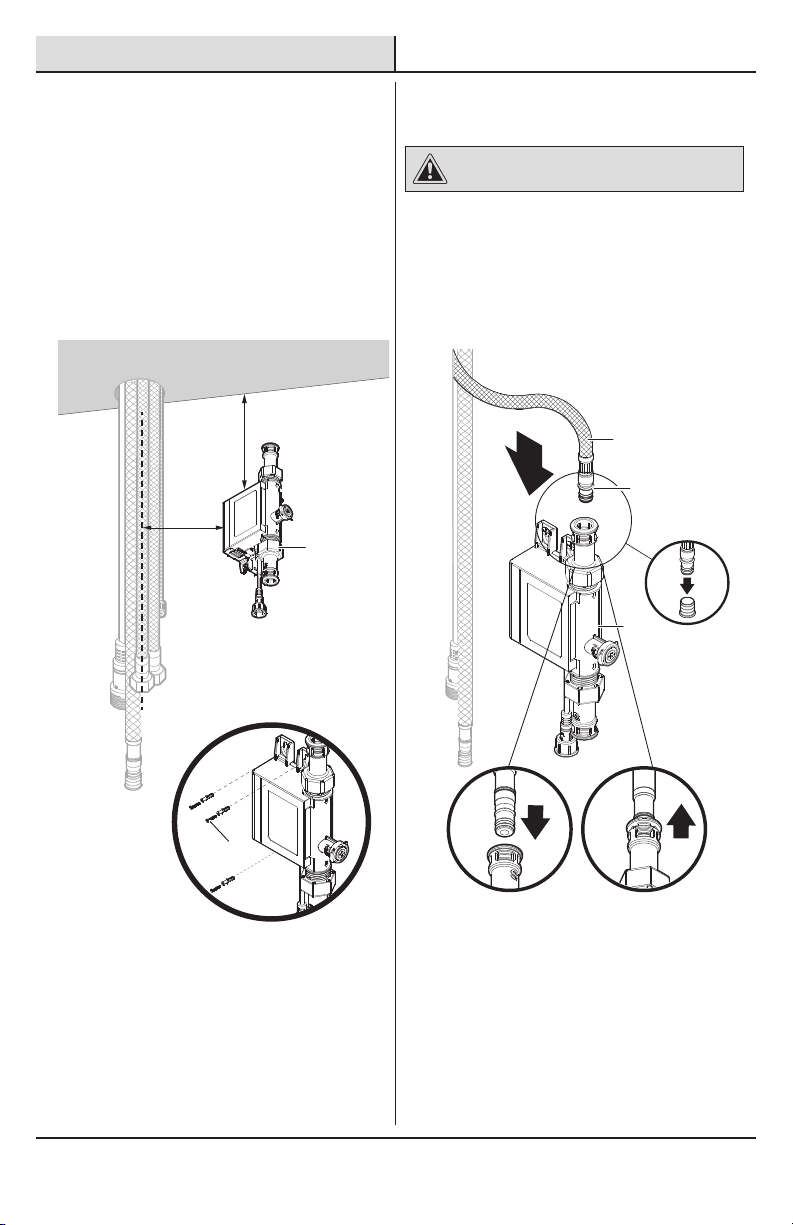

4 Locating the control box 5 Attaching the quick connector
□Select desired location for control box (F).
□Secure control box (F) to cabinet wall with three
screws (E) provided.

7 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
3
4
1
2
O
H
□Remove the weight sleeve from the weight (H).
Slide the weight (H) onto the spray hose (O).
Attach the weight sleeve onto the spray hose
(O), at the weight sticker, with £pointing
upward. Slide the quick weight (H) down to
sleeve to secure the weight (H).
F
Q

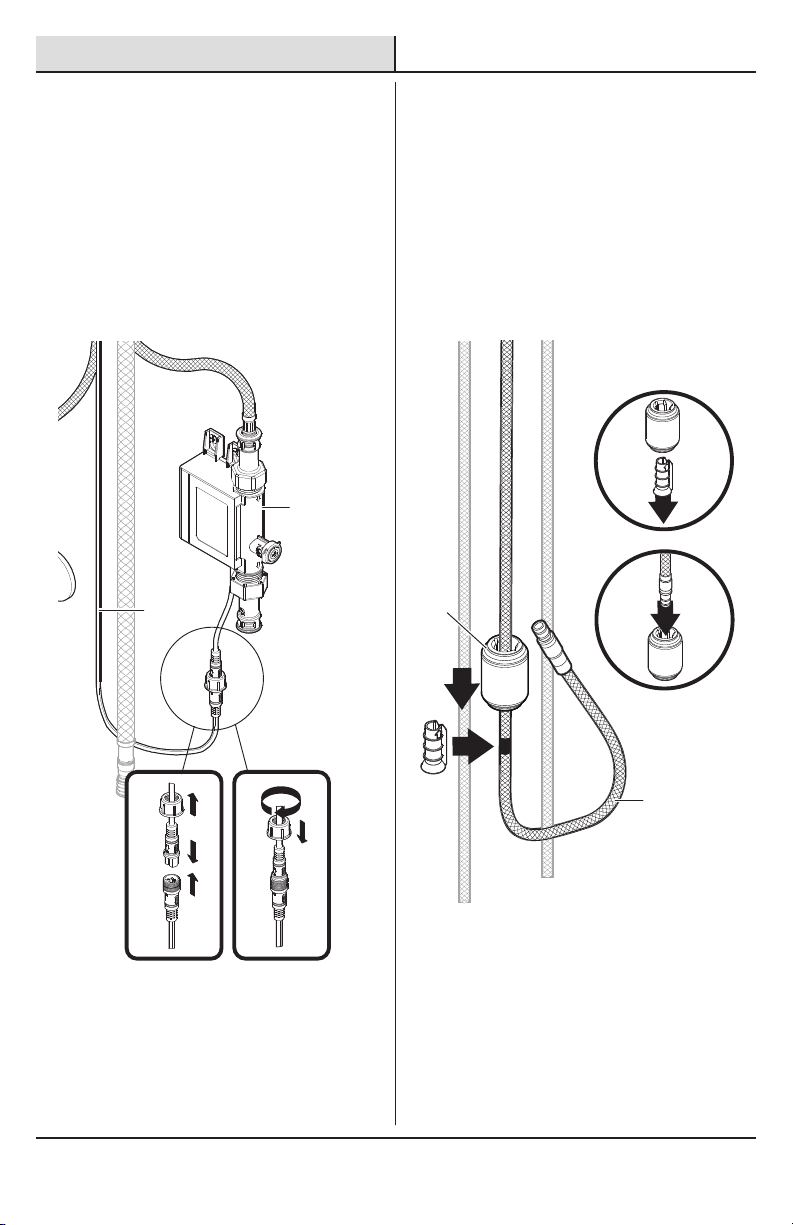

6 Installing the power cable 7 Installing the weight
□Secure power cable (Q).

8
Installation (continued)
2
4
1
3
3
□Install two AAA batteries (G) into battery box.
Place on floor of cabinet as shown.
CAUTION: For removal, see “Quick Connector Removal.”
O
F
P

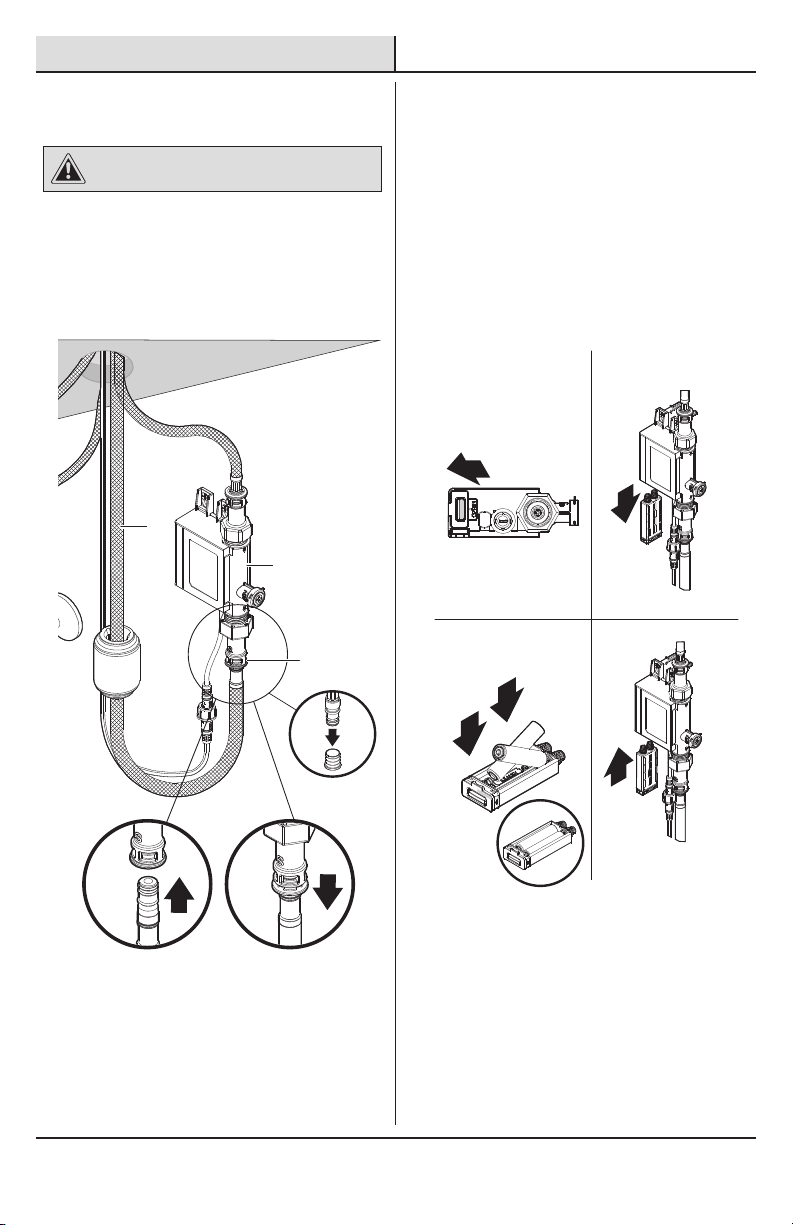

8 Attaching the quick connector 9 Installing the battery pack
□Remove the cap from the quick connector.
□Attach quick connector (P) to bottom of control
box (F). Pull down on quick connector (P) to
ensure it is secure.

9 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

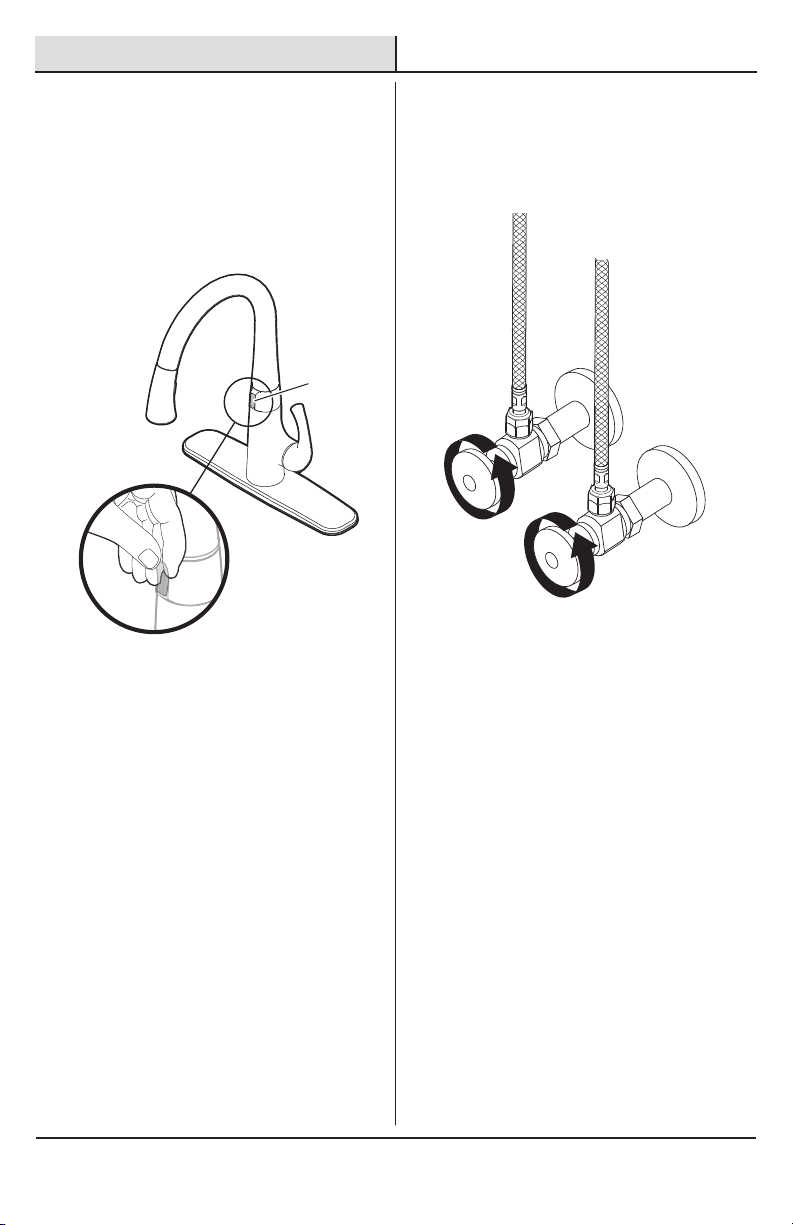

Operation
J
J
1 Operating the sensor 2 Turn on water supply
□Remove protective film covering sensor (J).

10
Operation (continued)
□Turn the handle away from the faucet (A) to the
full ON position. Turn the water on by waving
your hand within 2.36”(6cm) cm of the sensor
to activate the convenience sensor (J). Move
the handle front and back to test for HOT and
COLD water. Once reach the desired water
temperature, wave your hand again within
2.36”(6cm) cm of the sensor to close the water.
1
2
1
1
2
2
B
1
2
1
1
2
2
B
□Turn off faucet. Replace spray head (B).
2
1
B
□Remove spray head (B) from hose.
□Turn on water and allow water to run through
the hose to flush out the faucet. Check for
leaks.
3 Flushing and checking for leaks

11 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Operation (continued)
1
4 To Disable The Sensor
□When low battery, the RED indicator light starts
flashing or constantly on.
1
2
2
□In manual mode, faucet will operate like a
traditional faucet.
F
□The infrared sensor can be easily disabled by
turning the switch on the control box (F) from
knob.

12
Operation
2.36"(6cm)
MAX
2.36"(6cm)
MAX
3’
2
ON
OFF
□The faucet will automatically turn off the water
after 3 minutes of continuous use. Wave your
hand in front of the sensor to turn on the water
again.
2
2.36"(6cm)
MAX
2.36"(6cm)
MAX
ON
OFF
5 Operating the sensor
□Turn the handle away from the faucet (A) to the
full on position. Turn the water on by waving
your hand within 2.36”(6cm) cm of the sensor to
activate the convenience sensor (J).
□Turn off water by waving again your hand within
2.36”(6cm) cm of the ensor.

13 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Operation (continued)
1 Removing the quick connector
ON
1800
ON
1200
2
1
ON
1800
ON
1200
□The sensor can be rotated to the left or right to a suitable angle, up to 120 degrees, to avoid obstruction.
□The spout can be rotated to the left or right to a suitable angle, up to 180 degrees, to avoid obstruction.
□Push the hose toward control box to close the gap of the clip on female connector. While holding the clip
in position, pull the hose away from control box. hose away from control box.

14
1
1
2
Operation (continued)
Care and Cleaning
3-2
3-4
3-3
□To clean, wipe down with a damp cloth and towel dry.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
CAUTION: Ensure the supply lines do not kink, twist or
bend into a “V” or “L” shape during installation. Do not use
if there are visible signs of damage.
BLUE LINE
RED LINE
HOT
COLD
3-1

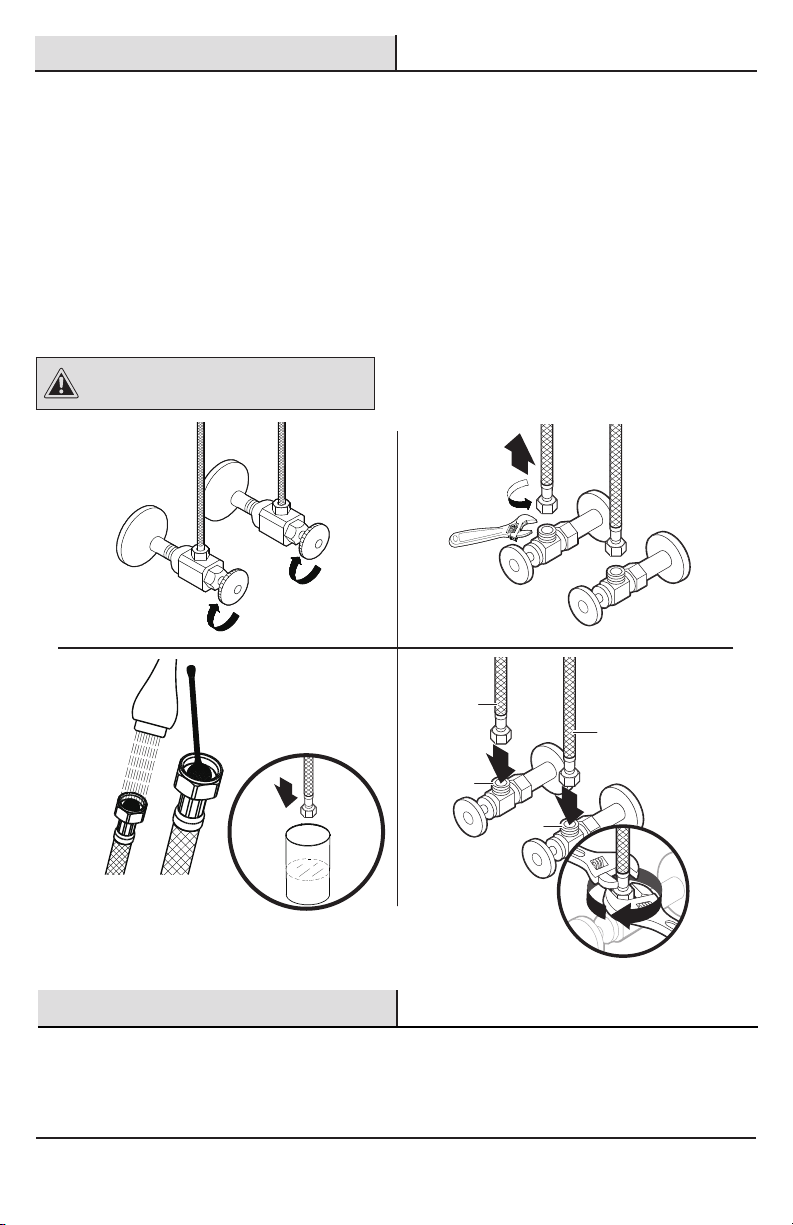

□Close (shut off) the water supply to the faucet.
□Use wrenches to loosen and remove supply hose.
□Rinse the supply hose end with screen filter in a cup of water to flush loose sediment.
□Stubborn sediment can be removed with a small brush.
□Inspect before re-installing onto the shut off valve.
□Use two adjustable wrenches to connect and tighten the supply lines to the supply valves.
□Connect the red supply line to the hot water supply valve.
□Connect the blue supply line to the cold water supply valve.
2 Checking for low or reduced water pressure

15 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Troubleshooting
NOTE: Refer to the service parts section in this manual
for a detailed drawing showing the location of the parts
listed below.
Problem Possible Cause Solution
Leaks underneath handle. □Adjusting Ring has come loose.
O-ring on cartridge is dirty or
damaged.
□Tighten the Adjusting Ring. Clean or
replace o-ring.
There is a low flow of
water.
□The screen filter in the spray
head is dirty.
□Turn off the water supply at angle stop
and unscrew the spray head from spray
hose.
□Clean the screen filter in the spray head
under running water.
Water will not shut off
completely.
□Cartridge is dirty or misfitted. □Adjust or replace cartridge.
The water pressure is
irregular or low.
□The screen filter located at the
end of the supply hose may be
clogged with debris.
□Turn off the water supply valves
□Use wrenches to disconnect the supply
lines from supply valves
□Clean screen filter by placing hose end
in a cup of water for a few seconds to
remove any possible debris. Stubborn
debris can be removed from screen with
a small cleaning or toothbrush
Note: Do not attempt to disassemble
or remove the screen filter from supply
hose
□Connect the red supply line to the hot
water supply valve
□Connect the blue supply line to the cold
water supply valve
□Use wrenches to reconnect and tighten
the supply lines to the supply valves
□Turn on the water supply valves
□Turn on the faucet to verify if water flow
has improved. Repeat steps above if
necessary.

16
Troubleshooting
Problem Possible Cause Solution
Sensor does not detect or
respond.
□Solenoid connector has failed or
solenoid has malfunctioned.
□Turn off the faucet.
□Unplug the battery box.
□Check the power cable ensure it is
connected properly.
□Reconnect the battery box, making sure
it is pushed all the way into the control
box. The RED indicator light should be
on, to indicate the faucet is in the start-
up mode. If the light doesn’t turn on, call
customer service (1-855-HD-GLACIER).
□Turn on the faucet and wave hand in
front of the sensor to test if it is working
properly.
The RED indicator light
starts flashing or is
constantly on.
□Low battery □Turn off the faucet.
□Unplug the battery box.
□Ensure all the batteries are installed in
the correct orientation or replace them.
(If new batteries are not available, the
infrared sensor can be easily disabled by
turning the switch on the control box (
from knob.)
□Reconnect the battery box, making sure
it is pushed all the way into the control
box. The RED indicator light should be
on, to indicate the faucet is in the start-
up mode. If the light doesn’t turn on, call
customer service (1-855-HD-GLACIER).
□Turn on the faucet and wave hand in
front of the sensor to test if it is working
properly.

17
Service Parts
* Specify finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM.
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12. 13.
DATECODE:
DONOT REMOVE
1-888-328-2383
HOT
Part Description Part No.
1 Index Button A66D558
2* Metal Handle A079249
3* Trim Ring A508019
4 Adjusting Ring A104363
5 Ceramic Disc Cartridge A507906N
6 Hose Guide A032184GR
7* Spray Head 1.75gpm A528031N-54
Part Description Part No.
8* Deck Plate Assembly A667003
9 Control Box A663C11N
10 Spray Hose A515220WGR
11 Weight A527114
12 Filter Check Valve A603A61WCP
13 FastMountTM A527128
Product ID tag can
be found on the hot
supply line.

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.

GUÍA DE INSTALACIÓN Y CUIDADO
¿Tiene preguntas, problemas, o faltan piezas?
Antes de regresar a la tienda, llame a Servicio al Cliente de Glacier Bay
de lunes a viernes de 8 a.m. a 7 p.m., hora local del Este
de lunes a viernes de 9 a.m. a 6 p.m., sábado
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
GRACIAS
Apreciamos la confianza que ha depositado en Glacier Bay por la compra de este grifo para cocina. Nos esforzamos por
crear continuamente productos de calidad diseñados para mejorar su hogar. Visítenos en internet para ver nuestra ínea
completa de productos disponibles para sus necesidades de mejorar su hogar. ¡Gracias por elegir a Glacier Bay!
GRIFO EXTRAÍBLE DE UNA MANIJA SIN
CONTACTO PARA COCINA
Núm. de sku
1009093892
Núm. de omsid
323987240
Núm. de modelo
HDQE1210001SP

2
Tabla de Contenido
Información Importante ...........................2
Garantía.....................................................2
Pre-instalación .........................................2
Planificación de la Instalación............2
Herramientas y Piezas Necesaria.......2
Contenido del Paquete........................3
Instalación ................................................4
Operación..................................................9
Cuidado y Limpieza ................................14
Solución de Problemas...........................15
Piezas de Repuesto ................................17
Información Importante
□Cumpla con todos los códigos locales de plomería y de construcción.
□Tape el desagüe del lavabo para evitar que se pierdan piezas.
□Lea el apartado cuidado y limpieza de esta guía.
Garantía
GARANTÍA DE POR VIDA LIMITADA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador
consumidor original de estar libres de defectos en materiales o mano de obra. Reemplazaremos LIBRE DE CARGOS
cualquier producto o pieza que se demuestre está defectuosa. Símplemente, devuelva el producto a cualquiera de
las ubicaciones de venta al detalle de The Home Depot o llame al 1-855-HD Glacier (1-855-434-5224) para recibir
el artículo de reemplazo. La prueba de compra (recibo de venta original) del comprador consumidor original debe
estar disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales / consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores por la
presente, se les ha ampliado una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuenciales,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicar a usted. Esta garantía le otorga derechos
legales específicos y también puede tener otros derechos que varían de un estado a otro. Por favor, vaya a una
tienda o llame al 1-855-HD Glacier para más detalles.
Póngase en contacto con el Equipo de Servicio al Cliente llamando al 1-855-434-5224 o visite www.HomeDepot.com
Pre-instalación
PLANIFICACIÓN DE LA INSTALACIÓN
Antes de comenzar a instalar este producto, asegúrese de que todas las partes estén presentes. Compare las
partes con la lista de contenido del paquete. Si hace falta alguna parte o se encuentra dañada, no intente instalar el
producto. Póngase en contacto con servicio al cliente para las partes de reemplazo.
HERRAMIENTAS Y PIEZAS NECESARIAS
SILICONE
Destornillador
Phillips
Pinzas
ajustables
Destornillador
chato
(2)Llave
ajustable Gafas de
seguridad Sellador
