Glacier bay 65710N-B8408D2 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
PULL-DOWN KITCHEN FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
11/2017 REV.01HOMEDEPOT.COM
Model#
65710N-B8401
65710N-B8408D2
65710N-B8427H2
Internet#
205505644
205505632
203588754
SKU#
1000898044
1000898715
1000709628

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents..................................3
Installation................................................4
Care and Cleaning ....................................9
Troubleshooting........................................9
Service Parts ........................................... 10
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Tools and Hardware Required ...............2
Operation...................................................8
Phillips
screwdriver
Adjustable
wrench
Safety
goggles
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.
SILICONE
Silicone
sealant

3
Pre-Installation (continued)

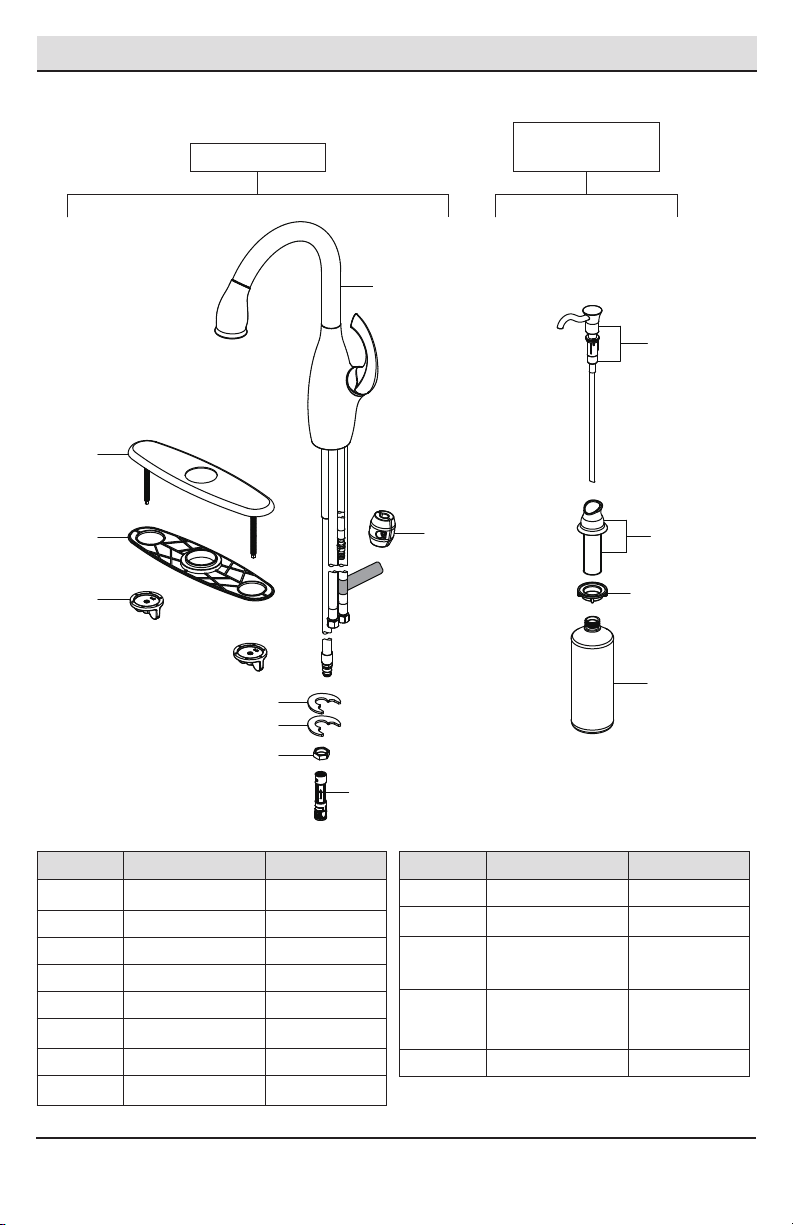

PACKAGE CONTENTS
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Part Description Quantity
A 1
B Rubber washer 1
C Metal washer 1
D Nut 1
Faucet assembly
E Escutcheon 1
F 1Gasket
H 1Quick connector
Part Description Quantity
G Mounting nut 2
I Weight 1
K Soap assembly 1
L 1
Soap dispenser
mounting nut
J 1
M Soap bottle 1
Soap pump
Faucet Assembly Soap Pump Assembly
J
K
L
M
A
B
C
D
H
E
F
G
I

4

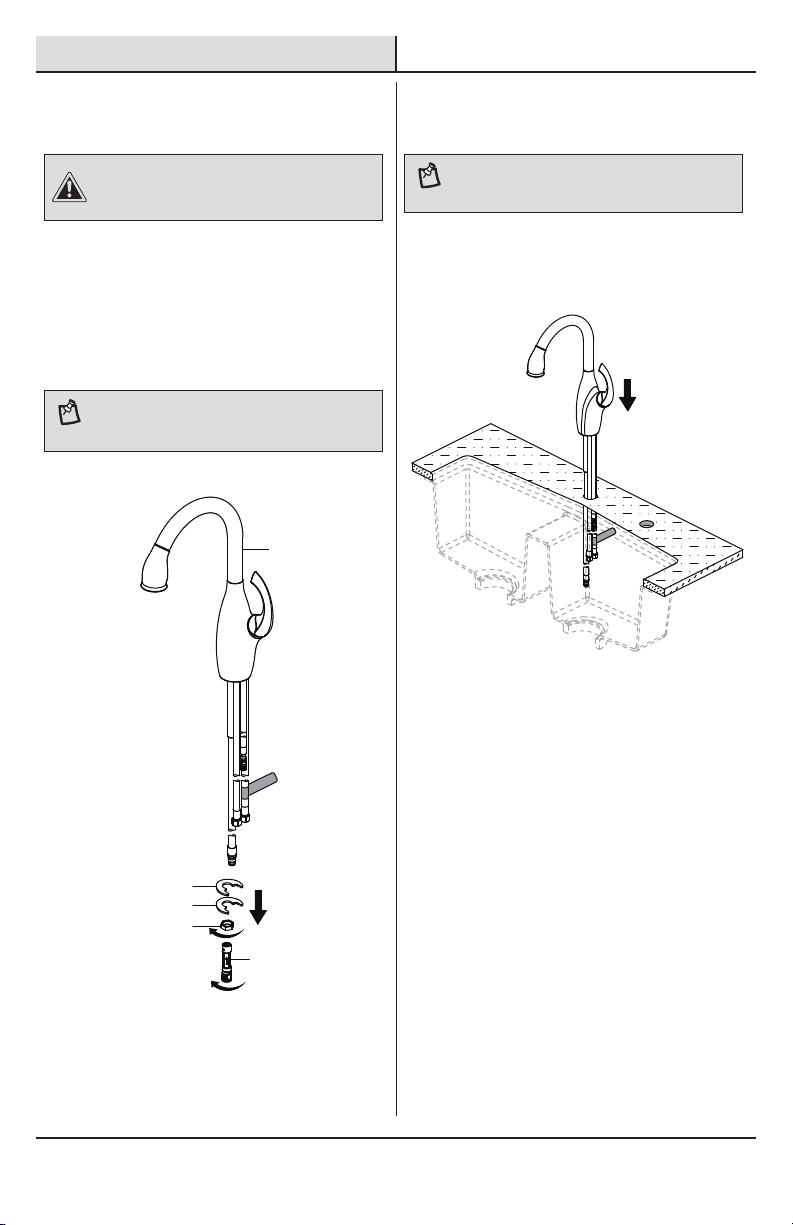

Installation
1
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply.
□Before installation, remove the quick connector
(I) from the free end of the hose by unscrewing
it in a counterclockwise direction.
Preparing for installation 2
NOTE: This step is for no escutcheon installation (optional).
If the escutcheon will be used, install the faucet assembly
as described in step 3.
Installing the faucet assembly
□Unscrew the nut (D), and remove the
washers (B & C).
NOTE: If installing the faucet assembly (A) without the
escutcheon, begin with step 2. If installing the faucet
assembly (A) with the escutcheon, begin with step 3.
□Insert the faucet body through the hole in the
sink.
A
B
C
D
H

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
5
Installation
3
NOTE: This step is for escutcheon installation (optional).
If the escutcheon will not be used, install the faucet
assembly as described in step 2.
Installing the escutcheon
□Ensure that the gasket (F) is pressed onto the
escutcheon (E) before the escutcheon (E) is
installed over the three holes in the sink.
NOTE: If the sink is uneven, use silicone under the
gasket (F).
□Secure the escutcheon (E) to the sink using the
mounting nuts (G) provided. Hand tighten only.
4
NOTE: This step is for escutcheon installation (optional).
If the escutcheon will not be used, install the faucet
assembly as described in step 2.
Installing the faucet assembly
□Insert the faucet assembly (A) through the hole
in the escutcheon (E).
E
A
E
F
G

6

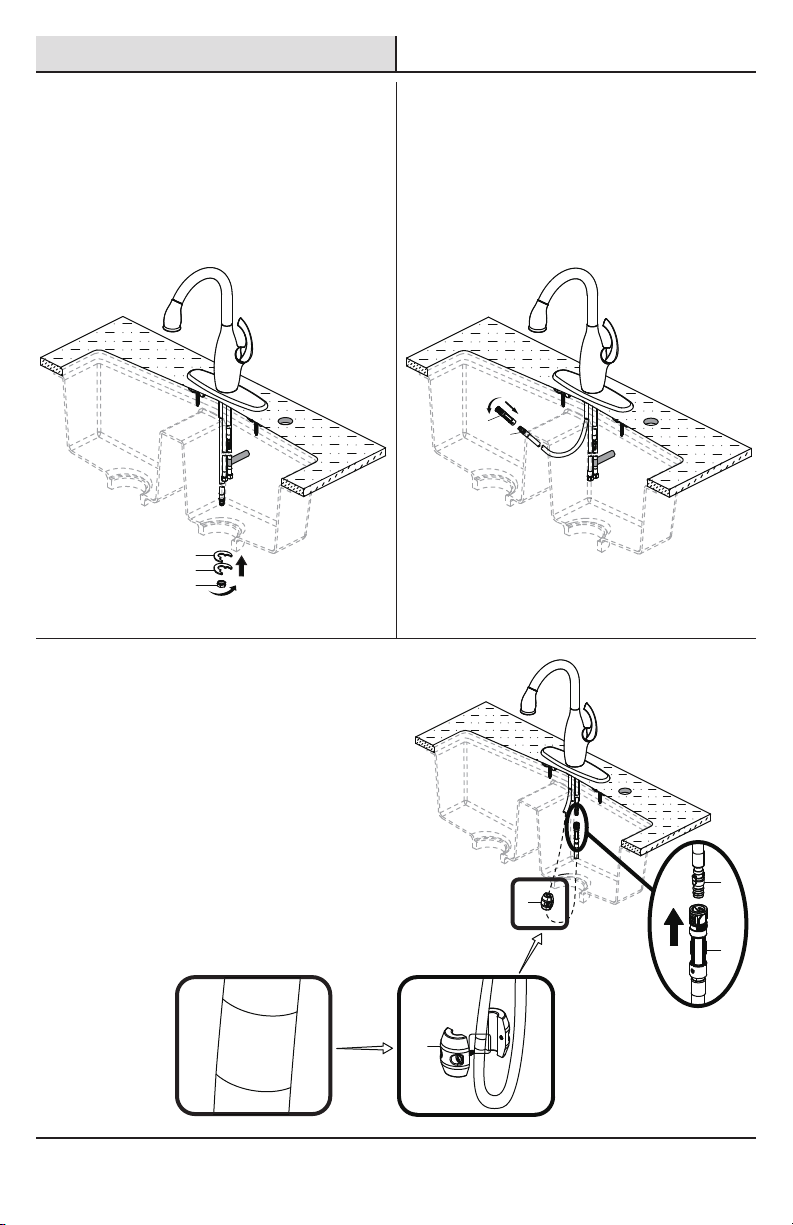

Installation (continued)
6 Attaching the quick connector
to the hose
□After inserting the hose through the hole in the
sink surface, reattach the quick connector (H)
by screwing it onto the threaded end of the
hose (1) in a clockwise motion. Hand tighten
only.
7 Attaching the quick connector
to the receiving block
□Push the quick connector (H) rmly upward and
attach it to the receiving block (1). Pull down
moderately to ensure the connection has been
made.
□After connecting the hose, install the weight (I)
at the point of the hose marking “weight here”.
5 Securing the faucet assembly
□Install the rubber washer (B), and metal washer
(C) onto the threaded mounting shank.
□Thread the nut (D) onto the mounting shank
using the wrench. Do not overtighten.
B
C
D
1
H
Weight
here
Weight
here
1
I
I
H

7
Installation (continued)
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.

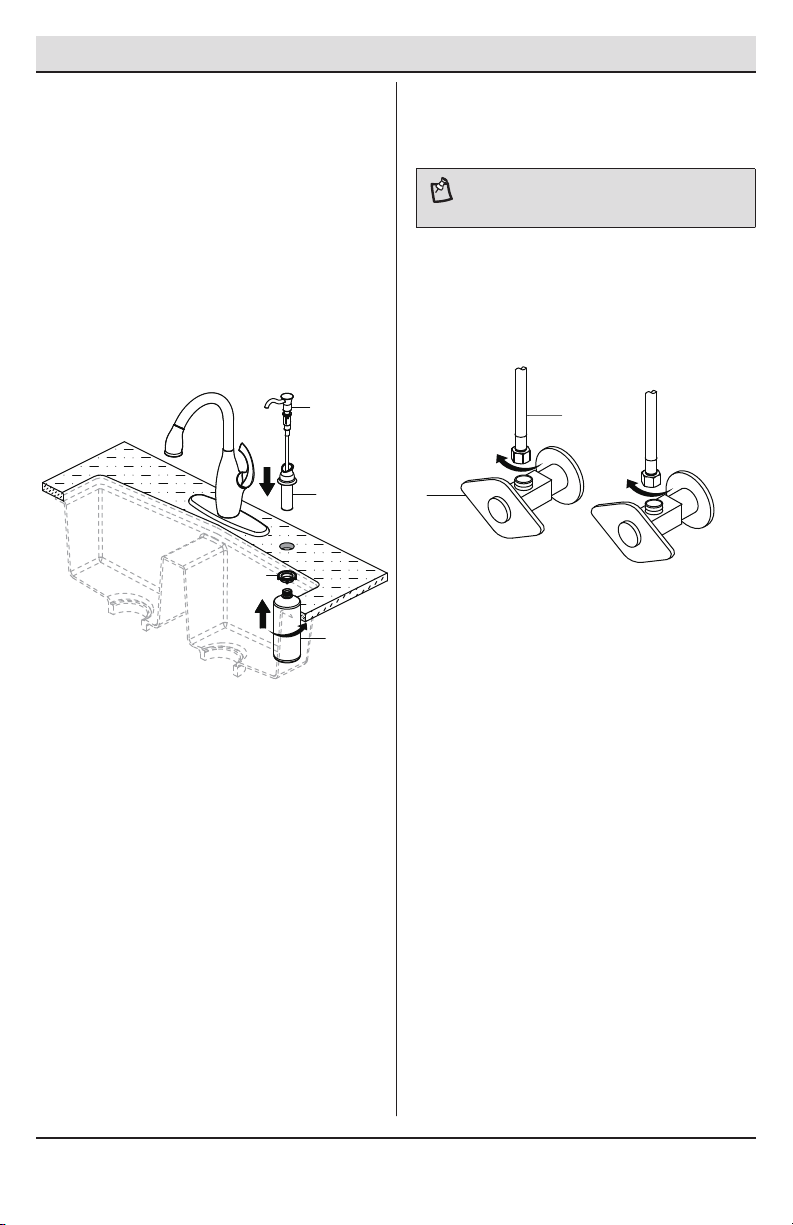

9 Making the water supply
connections
NOTE: The hot side inlet tube is indicated by a label. Avoid
twisting wires together or placing the wires close to each
other and damaging.
□Thread the nut (1) on the supply line onto the
outlet of the water supply valve (2) and tighten
with a wrench. Do not overtighten.
8 Installing the soap dispenser
□From under the sink, screw the soap bottle (M)
onto the soap assembly (K) shank. Insert the
soap pump (J) down into the soap assembly (K).
□Insert the soap assembly (K) through the
selected hole in the sink. Secure the soap
assembly to the sink with the soap dispenser
mounting nut (L) provided.
1
2
J
L
M
K

8
Operation
1Flushing and checking for leaks
□Pull the hose assembly out of the spout and
remove the spray head by unscrewing it from
the hose in a counterclockwise direction. Be
sure to hold the end of the hose down into the
sink and turn the faucet to the warm position
where it mixes hot and cold water.
□Flush the water lines for one minute. This ushes
away any debris that could cause damage to
internal parts. Check for leaks.
□Re-tighten any connections if necessary, but do
not overtighten. Reinstall the spray head by hand
tightening it back onto the spray hose in a
clockwise direction.
IMPORTANT: After installation is completed, turn on the
hot and cold water supplies. Check for leaks. Do not lose
the gasket (1) in the hose.
2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect. Squeeze
Pull
down
1
2
1
1

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
9
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
Troubleshooting
Problem Possible Cause Solution
There are leaks
underneath the handle.
The bonnet nut has come loose and the
o-ring on the cartridge is dirty or damaged.
□Tighten the bonnet nut. Clean
or replace the o-ring.
The aerator leaks or has
an inconsistent water
ow pattern.
The aerator is dirty or mistted.
The cartridge may be clogged.
□Remove the aerator and check
for debris in the aerator screens.
□Remove the cartridge and check
for debris.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
□Ensure the aerator is properly
installed.
There are leaks from the
hose underneath the deck.
The hose and discharge tube connection
may be loose.
□Tighten the connection between
the discharge tube and hose.
The hose does not retract. The weight is not installed in the
appropriate position.
□Reinstall or readjust the weight.
The water pressure is low. The connector underneath the deck is
clogged with debris.
The aerator is clogged.
□Turn off the water supply and
disconnect the connector
/ aerator.
□Unscrew the connector / aerator
and clean under running water.
□Screw the connector / aerator
back.
□Test water ow. If water
pressure is still low then replace
the connnector / aerator.
There is no hot or cold
water.
The water inlet hose was acccidentally
kinked during installation and is limiting
the water ow through.
□Reinstall the water inlet hose.

10
Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can
be found on the
hot water inlet
Part Description Part Number
1 RP38227*
2 O-ring RP60006
3 Wearable ring RP64092
4 Cartridge RP20005
5 Bonnet nut RP70639
6 Cap RP80028*
7 Handle RP13131*
8 Set screw RP50002
9 Rubber washer RP64087
Spray head and Hose
10 Metal washer RP64088
11 Nut RP56045
Part Description Part Number
12 RP70625
13 O-ring RP60089
14 Quick connect
assembly RP70479
15 Escutcheon RP80226*
16 Gasket RP70172
17 Mounting nut RP56109
18 Bolt RP50071
19 Block RP70421
20 O-ring RP60002
Weight
21 Pump kit RP46018
22 Flange kit RP46028*
23 Soap bottle RP46002
24 Soap dispenser kit RP46007*
12
3
456
7
8
15
16
17
9
10
11
12
13
14
19
20
21
22
23
24
18
