Glacier bay 67257W-0001 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Model#
67257W-0001
67257W-0008D2
67257W-0027H2
SINGLE-HANDLE DRINKING WATER FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this drinking
water faucet. We strive to continually create quality products designed to enhance your home. Visit us online
to see our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
12/2016 REV.03YOW
SKU#
715960
703480
715959

2
Table of Contents
Safety Information....................................2
Warranty ...................................................2
Pre-Installation.........................................3
Planning Installation ..............................3
Tools Required .......................................3
Package Contents..................................3
Installation................................................4
Care and Cleaning ....................................6
Service Parts
........................................... 6
Safety Information
Please read and understand this entire manual before
attempting to assemble, operate, or install the product. CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.

3 HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.

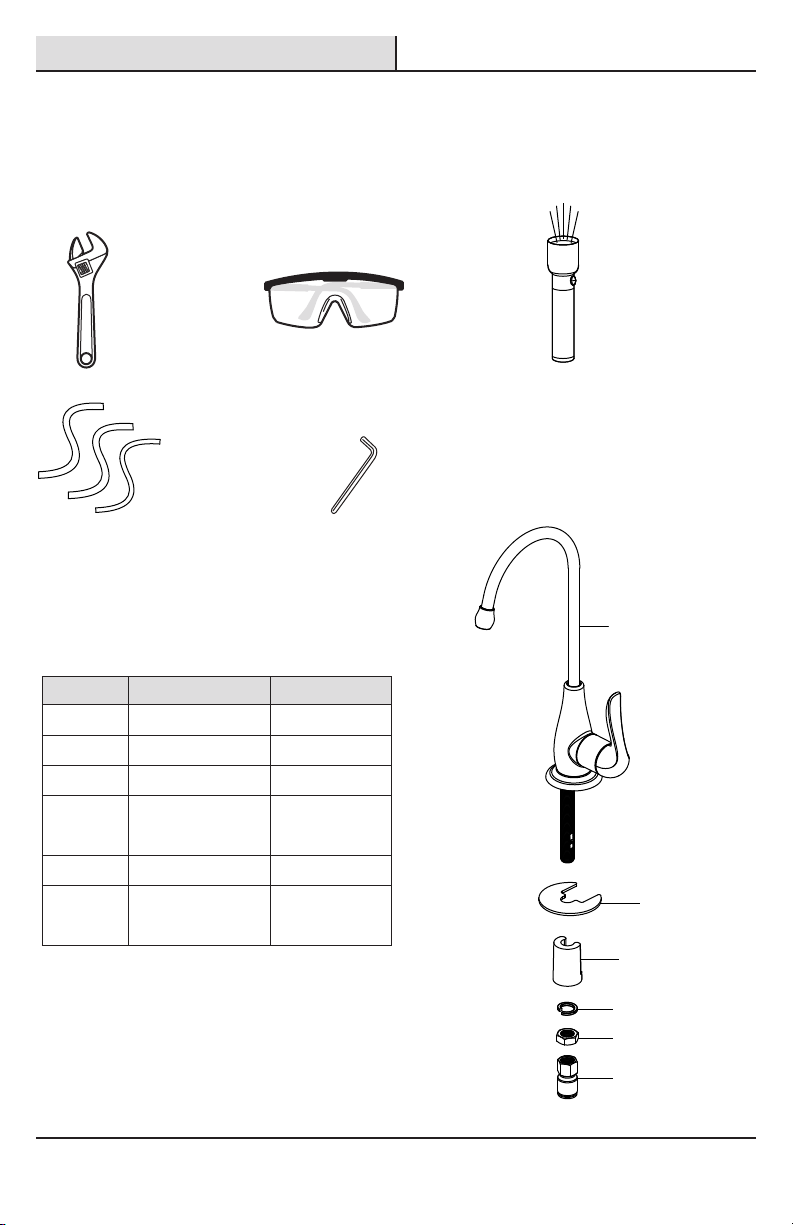

PACKAGE CONTENTS
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents section. If any part is missing or damaged, do not attempt to install the product.
TOOLS REQUIRED
Adjustable
wrench
Safety
goggles
Flashlight
Supply lines
Part Description Quantity
A 1Faucet assembly
B 1Metal washer
D 1Lock washer
E 1Nut
F 1
Quick connect
adaptor
A
B
C
D
E
F
C 1Spacer
Hex wrench
(Hex key)

4
Pre-Installation (continued)

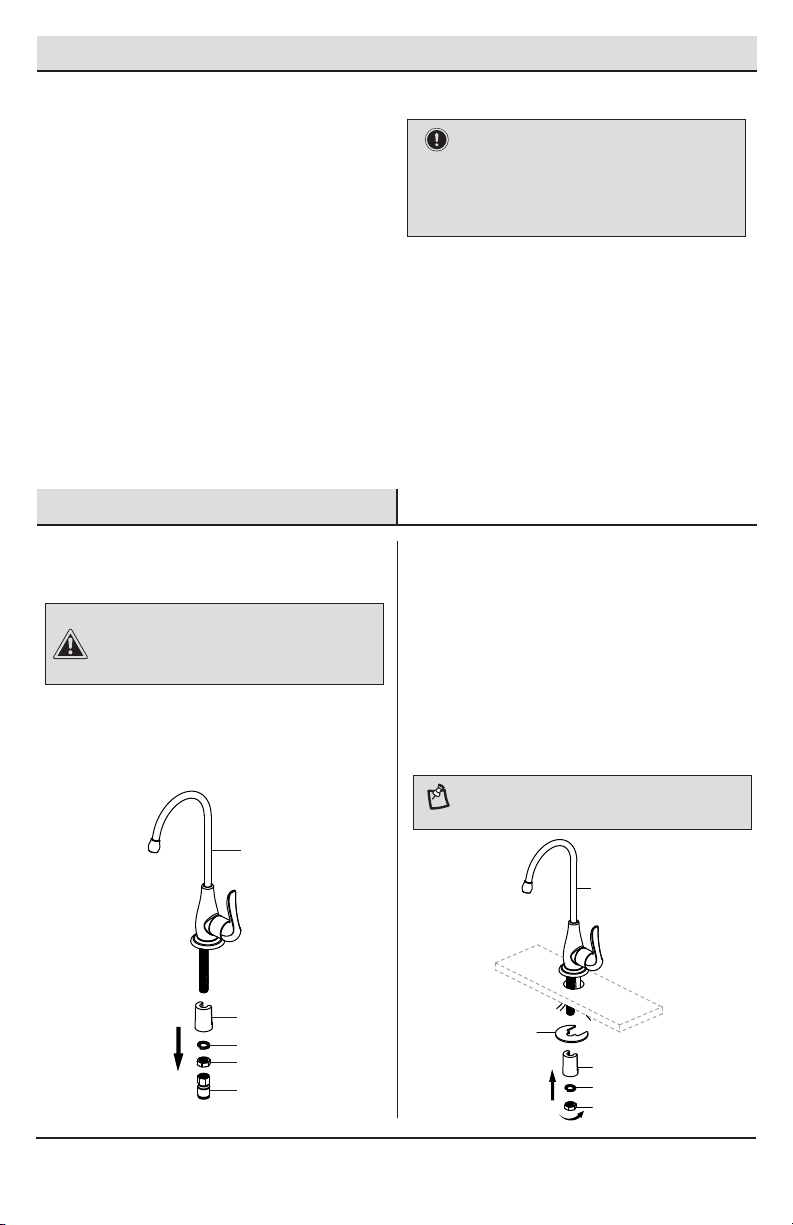

2 Installing the faucet assembly
□Place the faucet assembly (A) through the
selected hole in the sink or countertop.
NOTE: The spacer (C) only needs to be used if installing
onto a sink or countertop less than 1/2 in. thick. Otherwise,
it can be discarded.
□On the underside of the sink or countertop,
slide the metal washer (B) between the
countertop and spacer (C) as shown in the
diagram below. Slide on the lock washer (D),
and tighten the nut (E) securely using a wrench.
C
D
E
B
A
PREPARING THE MOUNTING HOLE
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Select one of the following places for the
faucet. Be sure it will t at against the
surface, and there is space to install the
tubes underneath the counter.
□Install the faucet into an existing
hole in the sink.
□A 1-1/4 in. diameter hole is required for the
faucet.
□Drill a new hole into the counter
top near the sink.
□Drill a new hole in the top of the
sink.
IMPORTANT: Drilling of holes into countertops made of
stone or solid surface materials, such as granite, marble,
corian or other plastic resin products, or sinks made of
porcelain and stainless steel, should only be performed by
a qulied installer who is certied for drilling such
materials. Drilling of these types of surfaces by any other
means may cause permanent, irreparable damage to the
countertop surface.
TM
Installation
1 Preparing for installation
□Remove the quick connect adaptor (F), the nut
(E), the spacer (C), and the lock washer (D)
from the end of the faucet assembly (A) stud.
□If using this faucet with an existing drinking
water system, follow the manufacturer's
installation instructions for attaching the inlet
and outlet tubes.
C
A
D
E
F

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
5

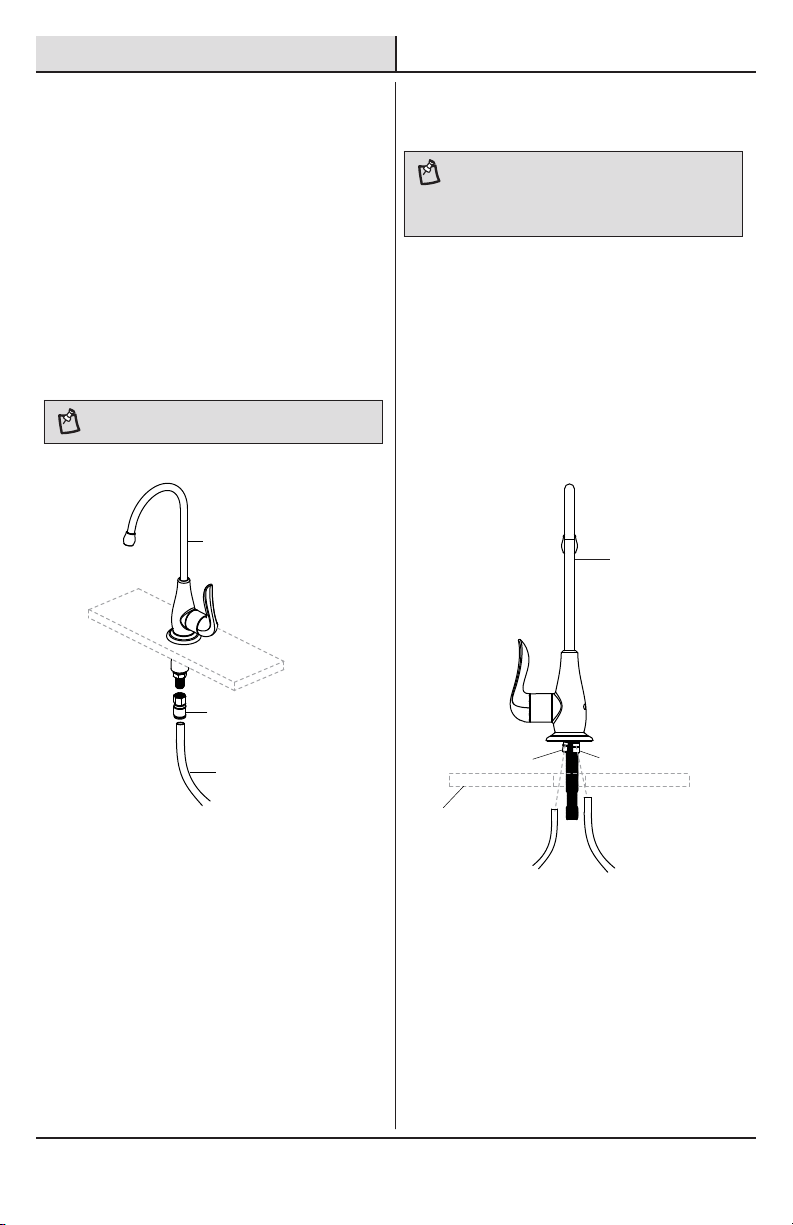

Installation (continued)

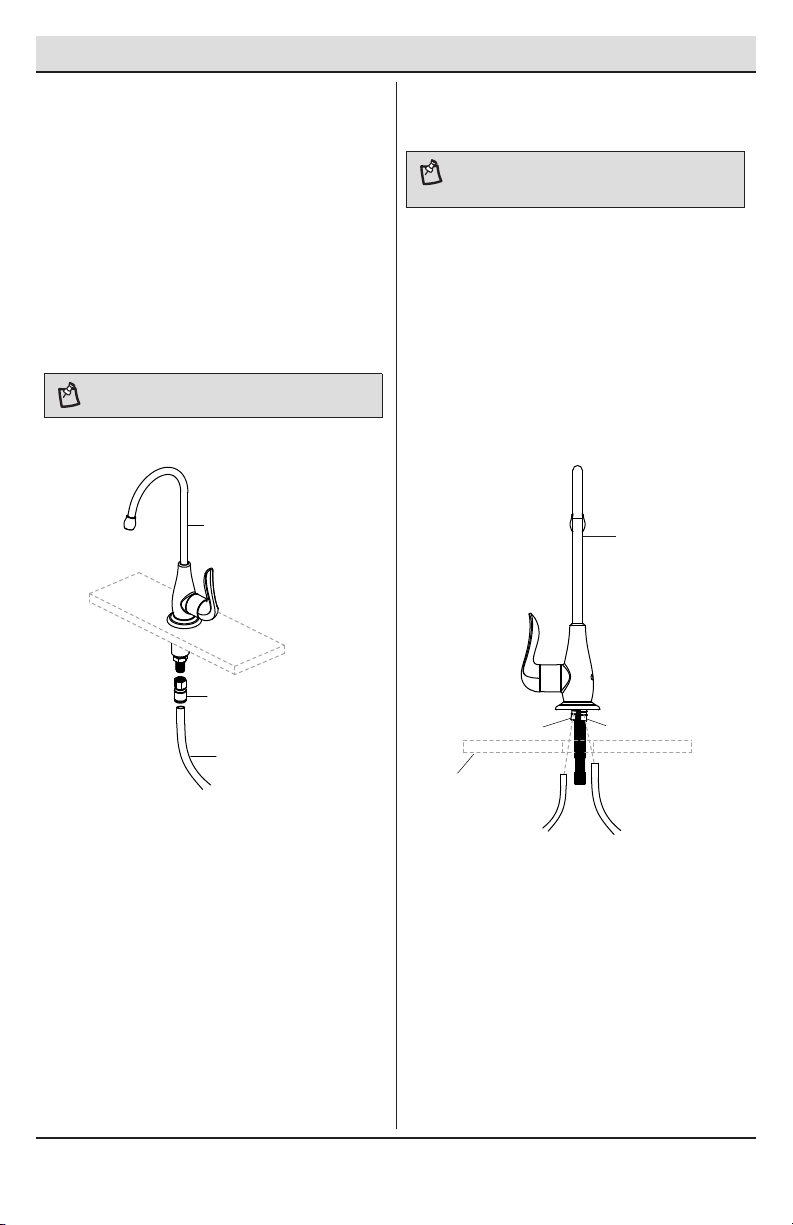

3 Connecting the quick connect
adaptor and water line
□Thread the quick connect adaptor (F) onto the
end of the faucet assembly (A) stud, and tighten
securely using a wrench.
□Connect the 3/8 in. water line from the ltration
system by pushing the line into the quick
connect adaptor (F).
A
□Pull down on the 3/8 in. line slightly to ensure
the quick connect tting has engaged.
3/8 in. Water line from
ltration system
F
4 Connecting the supply lines
A
□If a drain line is required to run through the
faucet's integral air gap for a reverse osmosis
(RO) system, connect the 1/4 in. drain line from
the unit to the smaller barb on the the bottom of
the faucet assembly (A). Connect the 3/8 in. line
from the faucet assembly (A) to the drain. This
drain line works by gravity. Make it as short and
straight as possible, with no dips or loops.
Sink
3/8 in. Outlet Tube
1/4 in. Inlet Tube
NOTE: This option is only used in a Reverse Osmosis
system. Do not use 1/4" and 3/8" barbs in normal
installation. They do not need to be capped or altered.
NOTE: In this installation the angled barbed connectors
are not used.

6
Care and Cleaning
□
□
□Do not use abrasive cleaners when cleaning this faucet.

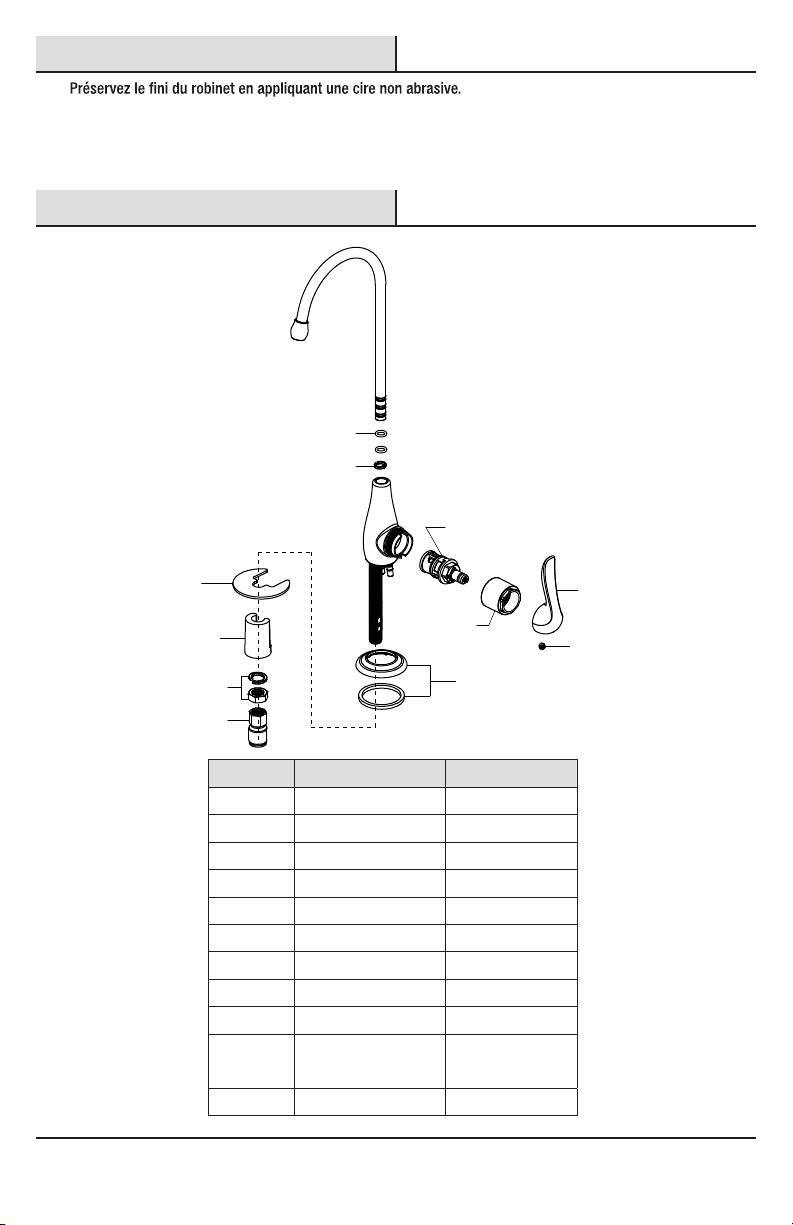

Service Parts
*Specify Finish
3
4
6
5
9
7
8
11
2
10
1
Part Description Part Number
1 RP60083
2 Ring RP70264
3 Cartridge RP20013
4 Bonnet RP70262*
5 Handle RP13182*
6 Set screw RP50002
7 Flange & Washer RP80298*
8 Metal washer RP64153
9 Spacer RP70276
O-ring
10 Lock washer & Nut RP64154
11 Connector RP70263

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Retain this manual for future use.
