Glacier bay DORIND HD67331W-6104 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
DORIND 4 IN. CENTERSET 2-HANDLE
PULL DOWN BATHROOM FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
4/2023 REV.01THD
Model#
HD67331W-6104
HD67331W-6101
HD67331W-6110H
HD67331W-619006
Internet#
325747046
324555875
324555923
324555916
SKU#
1009107791
1009369015
1009369020
1009369060

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................8
Troubleshooting........................................8
Service Parts ........................................... 9
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.

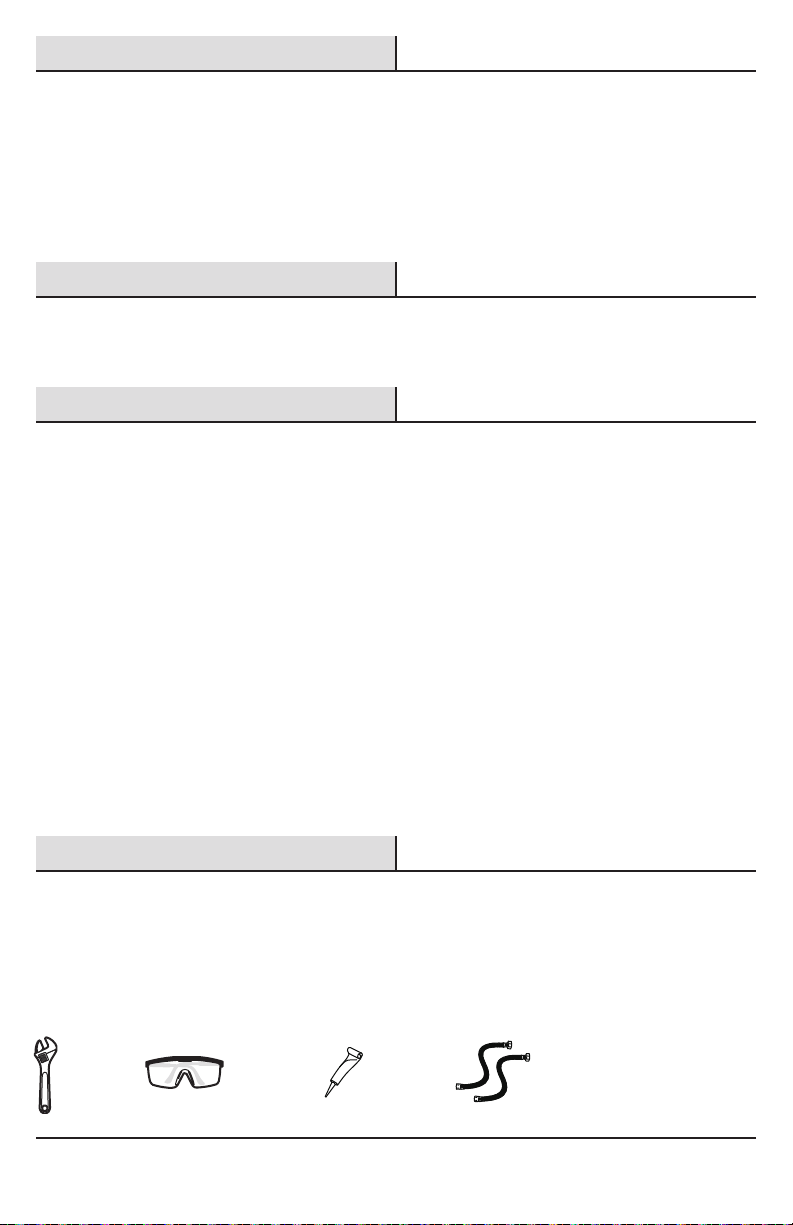

TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
(2) Supply
lines
SILICONE
Silicone
sealant
Tools and Hardware Required ...............2
Operation...................................................7
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)
PACKAGE CONTENTS
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Faucet Assembly Press Pop-Up Assembly
G 1Top gasket
H 1Pop-up body
I 1Bottom gasket
J 1Nut
G
H
I
J
A
B
C
D
F
E
Part Description Quantity
A 1
B 1
Faucet assembly
D 1
E 1
Gasket
C 2
F
Weight
1
Quick connector
Weight clip
Part Description Quantity
Mounting nut

Installation
4

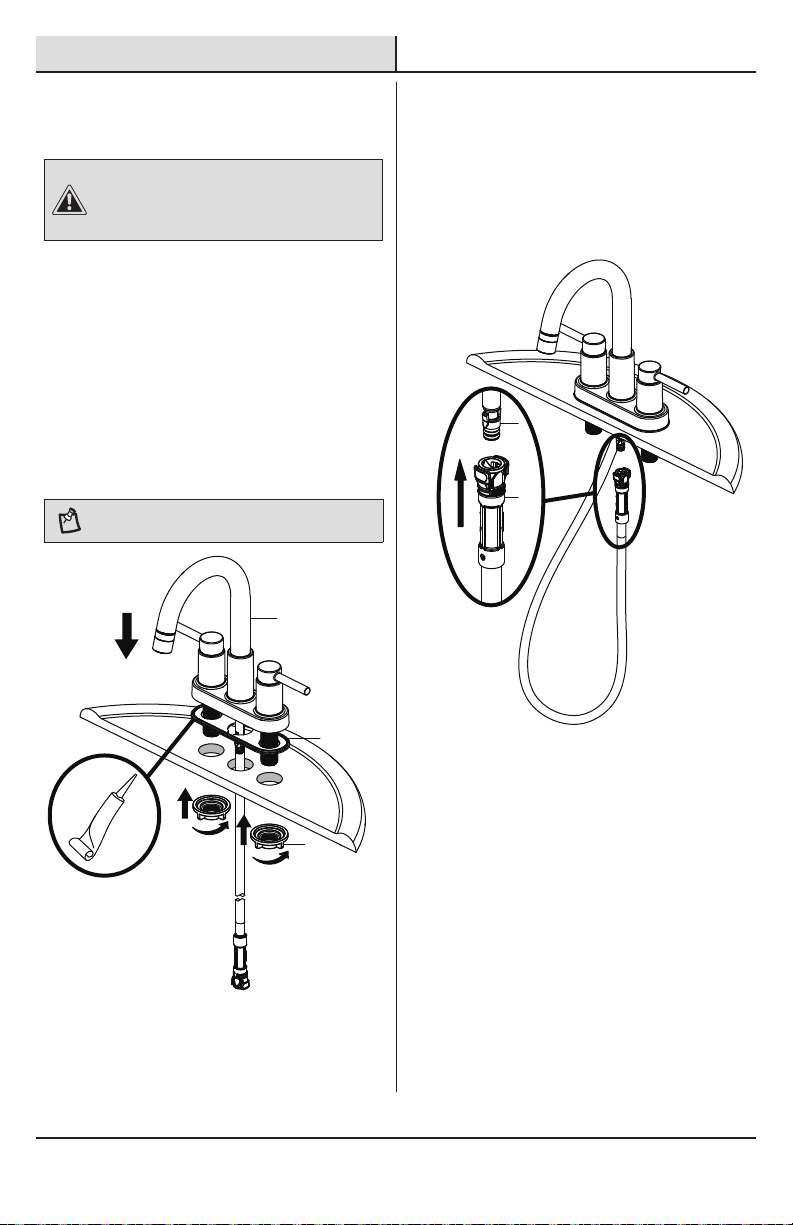

1 Installing the faucet assembly
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
□Ensure the gasket (B) is on the bottom of the
new faucet (A).
□Place the faucet (A) through the mounting
holes in the sink.
□Secure the faucet (A) to the sink using the
mounting nuts (C) provided. Hand-tighten only.
NOTE: Silicone sealant is required under the gasket (B).
□Clean the mounting surface.
A
B
C
SILICONE
2Attaching the quick connector
to the receiving block
□Push the quick connector (D) rmly upward and
attach it to the receiving block (1). Pull down
moderately to ensure the connection has been
made.
1
D

5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
4 Preparing the pop-up assembly
□Remove the bottom gasket (I) and nut (J) from
the top gasket (G) and pop-up body (H).
□Attach these pieces together by pushing the
bottom gasket (I) down into the top of the
nut (J) and twisting together.
G
H
I
J

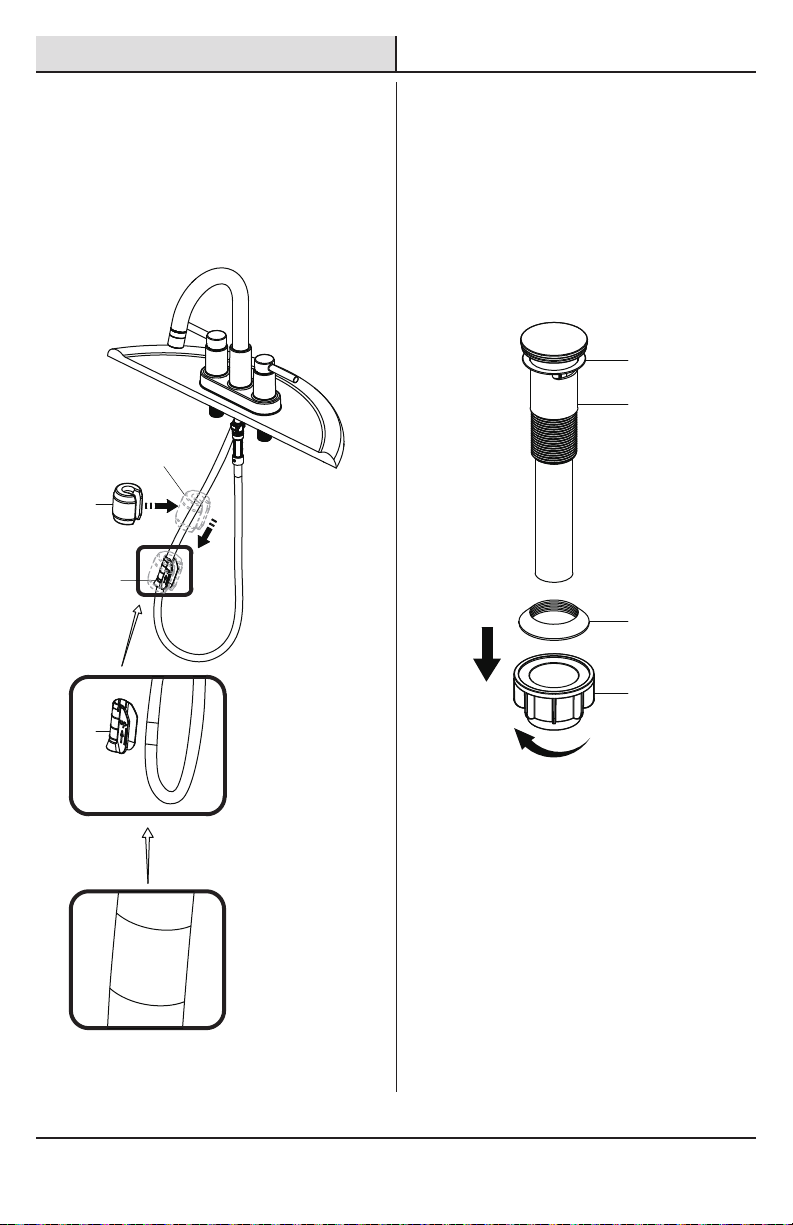

3 Installing the weight
□Insert the weight (E) onto the clip (F) by sliding
it down onto the clip (F).
□Install the weight clip (F) at the point of the
hose marking “weight here”.
Weight
here
Weight
here
F
F
E
E

6
Installation (continued)

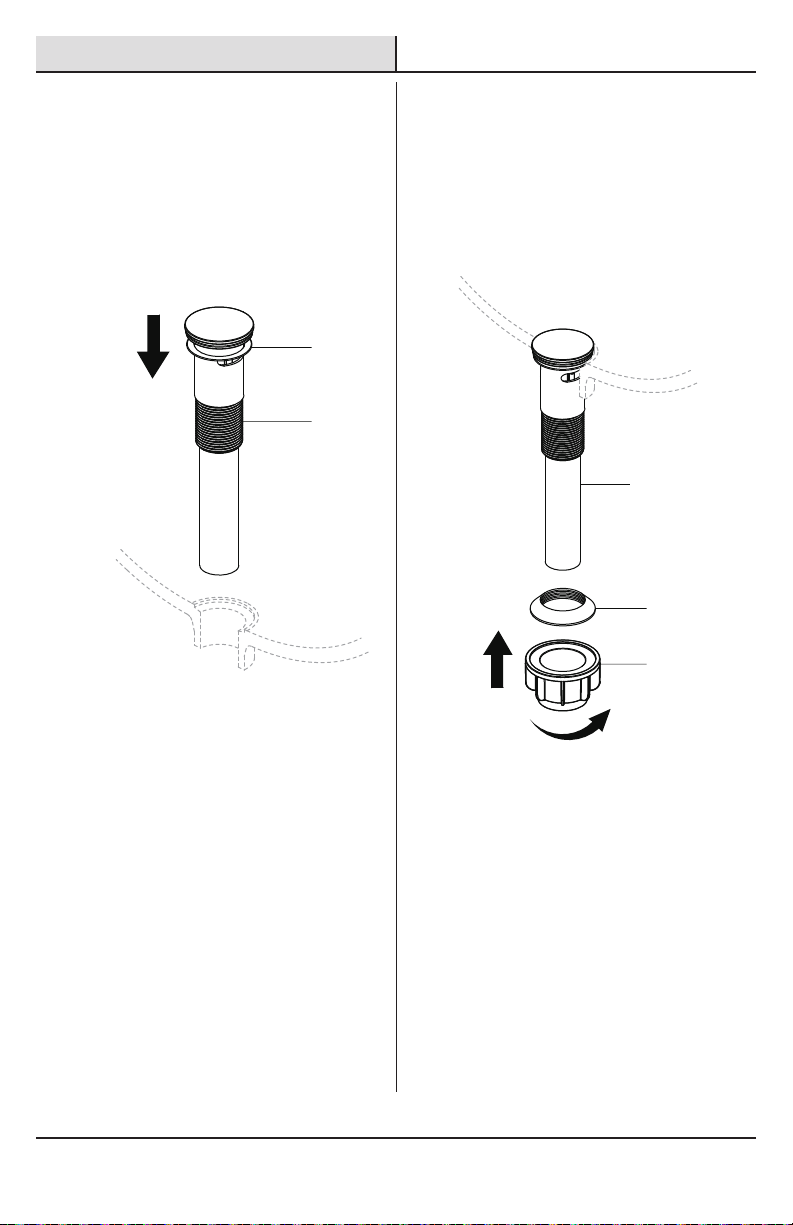

5 Installing the pop-up body
□Insert the pop-up body (H) into the sink. Ensure
that the top gasket (G) rests securely between
the top of the sink and the top of the pop-up
body (H).
6 Securing the pop-up body
□From underneath the sink, screw the bottom
gasket (I) and nut (J) assembly onto the pop-up
body (H) by twisting clockwise until secure.
G
H
H
I
J

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

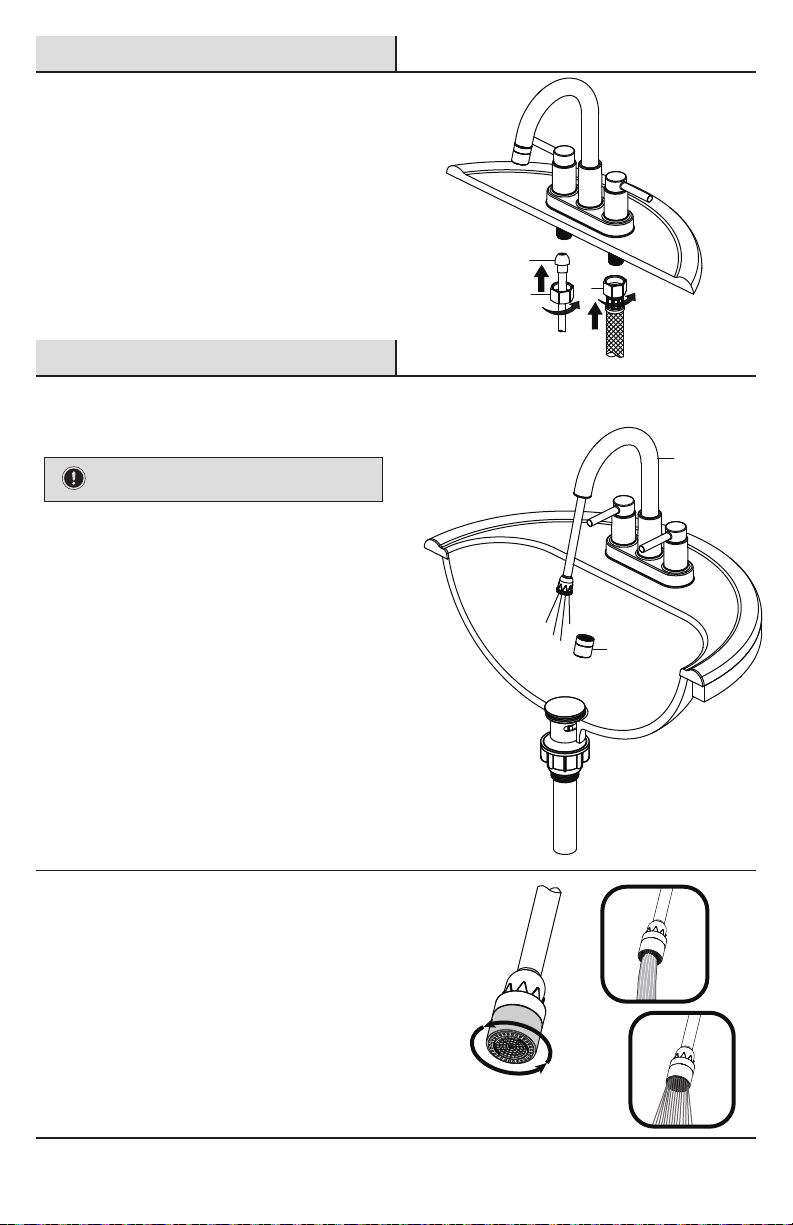

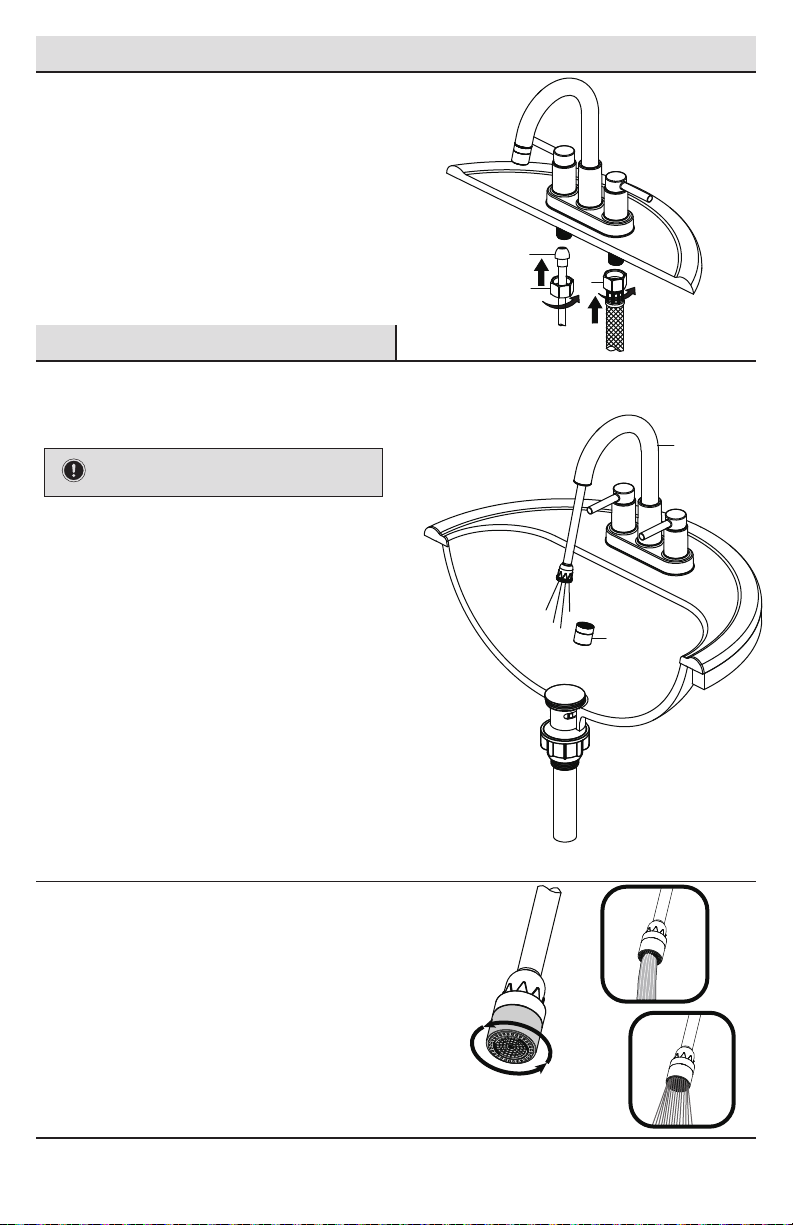

1 Flushing and checking for leaks
IMPORTANT: After installation is completed, turn on the
hot and cold water supplies. Check for leaks.
Operation
□
□
□
7
Installation (continued)
7 Making the water supply
connections
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
□Use wrenches to tighten the connections. Do not
overtighten.
3
1
2
A
1
Pull the hose assembly out of the spout and
remove the aerator (1) by unscrewing it from
the hose in a counterclockwise direction. Be
sure to hold the end of the hose down into the
sink and turn on the hot and cold handles to
allow the water to run for at least one minute.
This ushes away any debris that could cause
damage to internal parts. Check for leaks.
Re-tighten any connections if necessary, but do
not overtighten. Reinstall the aerator by hand
tightening it back onto the hose in a clockwise
direction.
Ensure the faucet (A) handles are in the off
position, and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
2 Switching the spray pattern
Rotate the aerator to switch the faucet spray
pattern.
□
The rotation angles of the aerator range from
0 to 360 degrees.
□
360°

8
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water ow.
□Remove the aerator and
check for debris.
□Ensure that the rubber washer
is properly installed.
The water will not shut off
completely.
The rubber seat and spring is dirty or
broken.
□Remove the cartridge to check
the rubber seat and spring.
□Clean or replace.
The aerator is dirty or mis-tted.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
There is leaking from the
sink drain at the base of
the sink.
The sink has a rough or irregular surface. □Apply additional silicone sealant
to the beveled side of the drain
ange.
□Retighten and test for leaks.

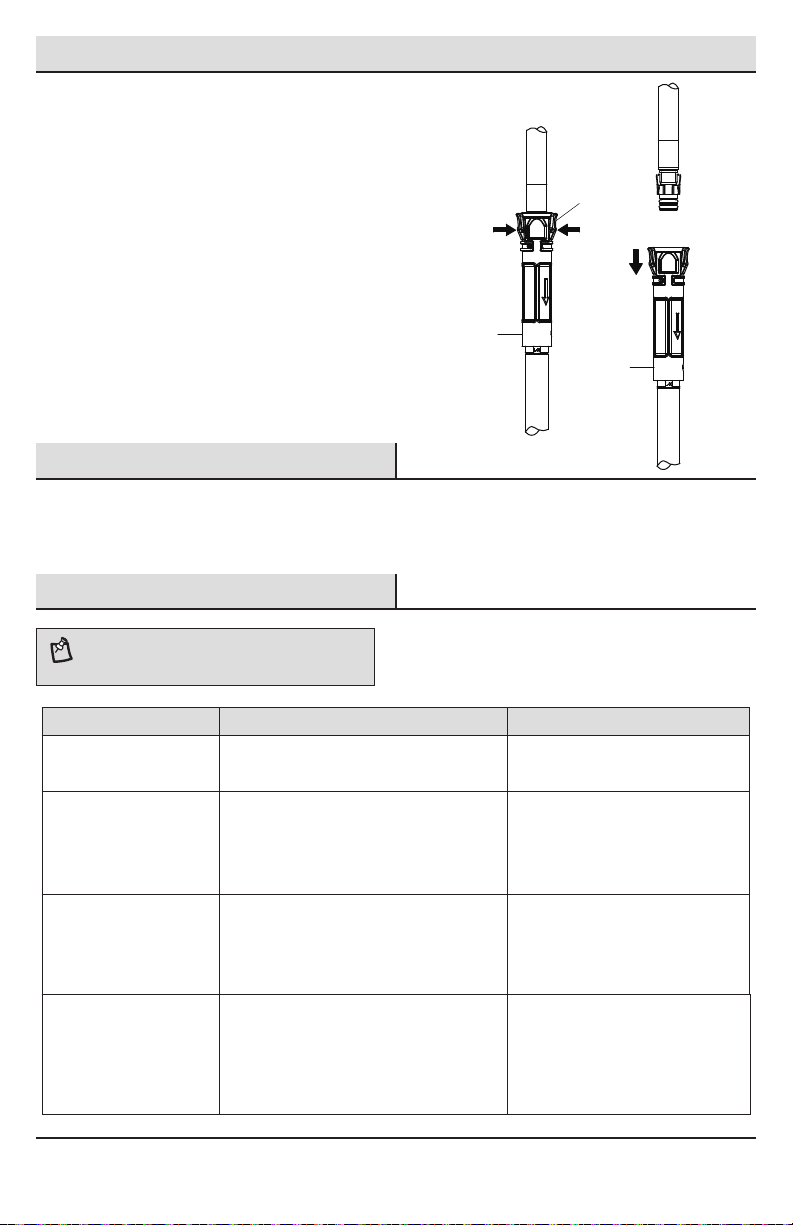

3Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.
Operation (continued)
Squeeze
Pull
down
1
1
2

9
Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Part Description Part Number
1 RP30316*
2 RP60011
O-ring
3 Handle assembly RP13724*
4 Bonnet nut RP70860
Aerator
5 Cartridge H RP20079
6 Cartridge C RP20080
Part Description Part Number
7 Washer RP64123
8 Gasket RP80808
9 Mounting nut RP56001 17 Press pop-up
assembly RP40269*
12 Quick connect
assembly RP70697
Faucet ID tags can be
found by removing
the hot water handle
16 Block RP70421
15 RP60002
O-ring
RP70590
14 RP70689Weight
13 Clip
11 RP60089
O-ring
10 Hose RP70861
3
4
5
7
6
8
9
12
11
12
16
15
14
13
17
10
