GLD Products Tucson 7' Billiard Table
Item 64-0140
Staple your receipt here.
Important: A copy of your receipt will be needed to activate your warranty (see page
page 13)

GLD Products Tucson 7' Billiard Table
Item 64-0140
3 1-800-225-7593
www.gldproducts.com
Congratulations and THANK YOU for purchasing the
Tucson 7 Foot Billiard Table. You have chosen a
product that should provide years of entertainment.
To assist you with customer service and warranty
claims, staple your receipt to the inside cover, then
keep this manual in a safe place for future reference.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593 ext. 113
Fax: [phone]
Email: [e-mail]
Web: www.gldproducts. com
This manual may have been updated. For the latest manual visit the GLD products website.
Place your package near the location where it will be used. Carefully unpack
all components and verify you have all the correct pieces.
If you notice missing or defective parts, please call us at:
1-800-225-7593 ext. 113
Please read and understand all instructions before beginning assembly.
This assembly will require 2 adults.
This product is not for use by children without adult supervision.

GLD Products Tucson 7' Billiard Table
Item 64-0140
1-800-225-7593 4
www.gldproducts.com
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
1
Qty.
1Table Assembly
Order No. 64-0140-01
2
Qty.
257" Billiard Cue
Order No. 2-23
3
Qty.
2Chalk
Order No. 2-24
4
Qty.
1Triangle
Order No. 2-27
5
Qty.
1Billiard Balls
Order No. 2-21
6
Qty.
2Leg End Panel
Order No. 64-0140-06
7
Qty.
4Leg Leveler
Order No. 1-148
8
Qty.
1Allen Wrench
Order No. 3-31
9
Qty.
2
Leg
Order No. 64-0140-09
10
Qty.
2
Leg
Order No. 64-0140-10
11
Qty.
822 mm Washer
Order No. 3-27
12
Qty.
8
8 x 35 mm Leg Bolt
Order No. 1-156
13
Qty.
2
Leg Cross Support
Order No. 64-0140-13
14
Qty.
4Leg Base
Order No. 64-0140-15
15
Qty.
8
3.5 x 28 mm
Order No. 64-0140-15
16
Qty.
16
3.5 x 25 mm
Order No. 3-57
17
Qty.
4Leg Leveler Bracket
Order No. 1-145

GLD Products Tucson 7' Billiard Table
Item 64-0140
5 1-800-225-7593
www.gldproducts.com
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST
Please see page 13.
GLD Products
Available 8 am to 4 pm Central Standard Time
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593 ext. 113
Fax: [phone]
Email: [e-mail]
Web: www.gldproducts.com
For all claims, please have your receipt and item number when you call. The
product item number can be found on the front cover.
If you are instructed to return the product for service, you are
responsible for shipping the unit at your expense.
PRODUCT REGISTRATION
Important: The product registration form on page 15 and a copy of your
receipt must be completed and returned within 10 days of purchase to
validate your warranty.
Preparing for Assembly
• Be sure to unpack all of the parts included in this package. Some
parts may be in obscure locations of the packaging. Check inside
any tubes or sleeves. Save all packing material until the product is
fully assembled and functional.
• Compare the parts in your package with the Parts Identifier
description on page 4.
Tools Required
• Allen Wrench (#8) - included with table
• Level (not included)
• Electric screwdriver may be helpful. CAUTION: You must set at
LOW TORQUE and use extreme caution because you could
overtighten the hardware, strip the screws, or damage the table.

GLD Products Tucson 7' Billiard Table
Item 64-0140
1-800-225-7593 6
www.gldproducts.com
Assembly Tips
Make sure you understand the following before you begin to assemble your pool table.
1. READ THIS MANUAL all the way through before beginning assembly.
2. When installing parts that have more than one bolt, start ALL bolts in that part by hand
before tightening anything.
3. Some drawings or images in this manual may not look exactly like your product.
4. You will need a second adult to assist with this assembly.
Note: Save all packing materials until the parts have been inspected and the table is
assembled.
Unpack the Pieces
• Lay the box top side down on a flat surface (floor). You may want
this near your area of assembly.
• Unpack the boxes and part bags. Inspect and count the parts. The
Parts Identifier page can be used to record your results.
• If any parts are damaged or missing contact GLD customer service.
• Missing fasteners may be purchased at a hardware store using the
descriptions on the Parts Identifier page(s).

GLD Products Tucson 7' Billiard Table
Item 64-0140
7 1-800-225-7593
www.gldproducts.com
STEP 1 - ASSEMBLE THE LEGS
1. Install a leg (#10) in the corner as shown. Use two bolts (#12) with washers (#11). Finger
start all the bolts. Repeat for other leg.
2. Install a leg (#9) in the corner as shown. Use two bolts (#12) with washers (#11). Finger
start all the bolts. Repeat for other leg.
3. Tighten all the bolts (allen wrench #8). When tightening the bolts be certain the two
pieces are properly lined up.
NOTE: If ordering a new leg for repair be certain you order the correct part. Items #9 and
#10 are not the same.
1
10
99
10
12
11

GLD Products Tucson 7' Billiard Table
Item 64-0140
1-800-225-7593 8
www.gldproducts.com
STEP 2 - ATTACH LEG BRACKETS
1. Position a leg cross support (#13) between two legs. The painted support should be posi-
tioned toward the center of the table.
2. Insert screws (#15) into both holes of one end and finger start. Finger start the two
screws at the other end.
3. Tighten screws.
4. Install leg cross support (#13) on the other end of the table.
13
15
15 13

GLD Products Tucson 7' Billiard Table
Item 64-0140
9 1-800-225-7593
www.gldproducts.com

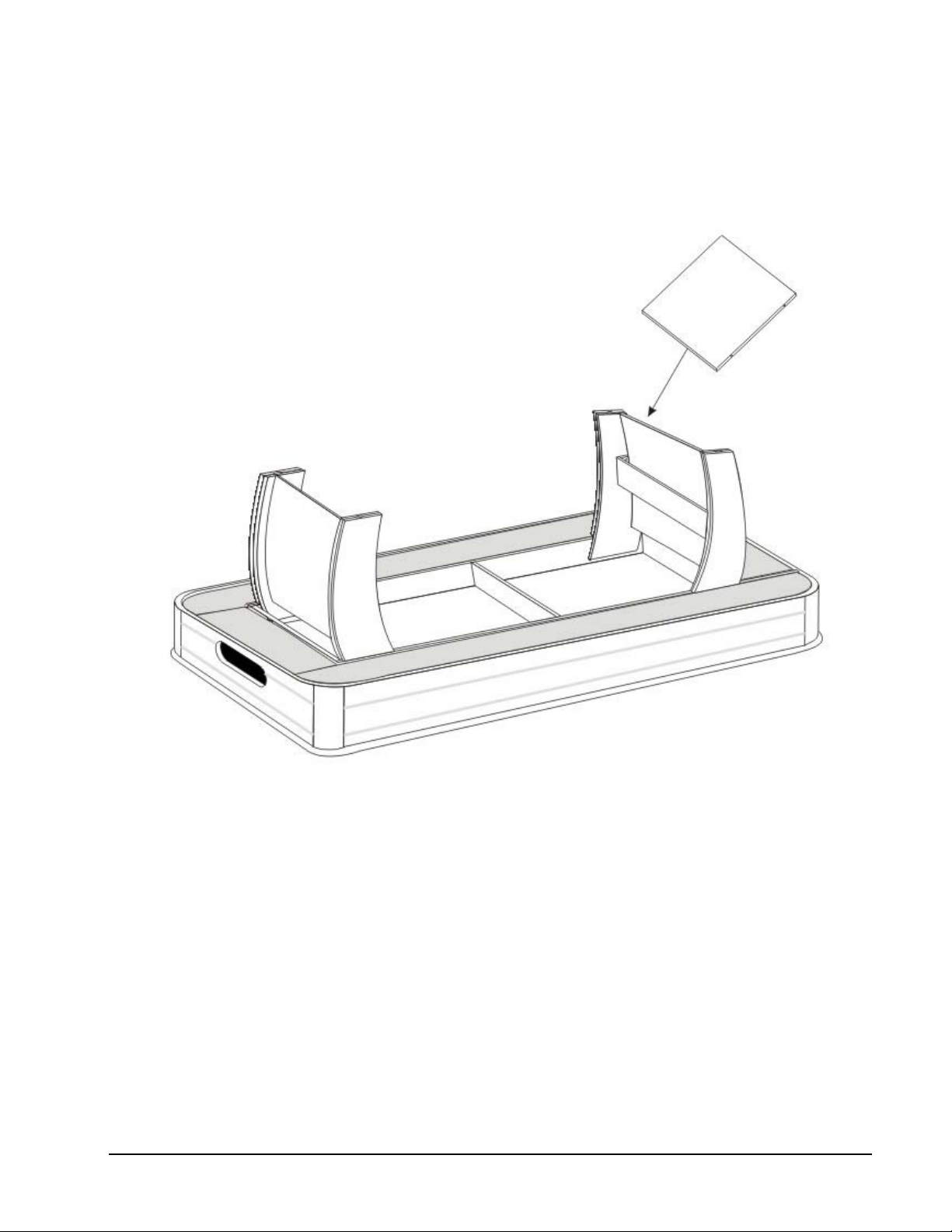

STEP 3 - INSERT END PANELS
1. Slide leg end panels (#6) into the slots on the legs.
6

GLD Products Tucson 7' Billiard Table
Item 64-0140
1-800-225-7593 10
www.gldproducts.com
STEP 4 - ASSEMBLE LEG BASE
1. Place leg base (#14) on top of leg bottom.
2. Use two screws (#16) in the outer holes to secure the leg base.
3. Place leveler bracket (#17) on top of the leg base. Secure with two screws (#16).
4. Insert leg leveler (#7) and screw in half-way.
5. Repeat for remaining three legs.
14
16
17
7
16

GLD Products Tucson 7' Billiard Table
Item 64-0140
11 1-800-225-7593
www.gldproducts.com
STEP 5 - TURN BASE OVER
The base assembly is ready to be turned over.

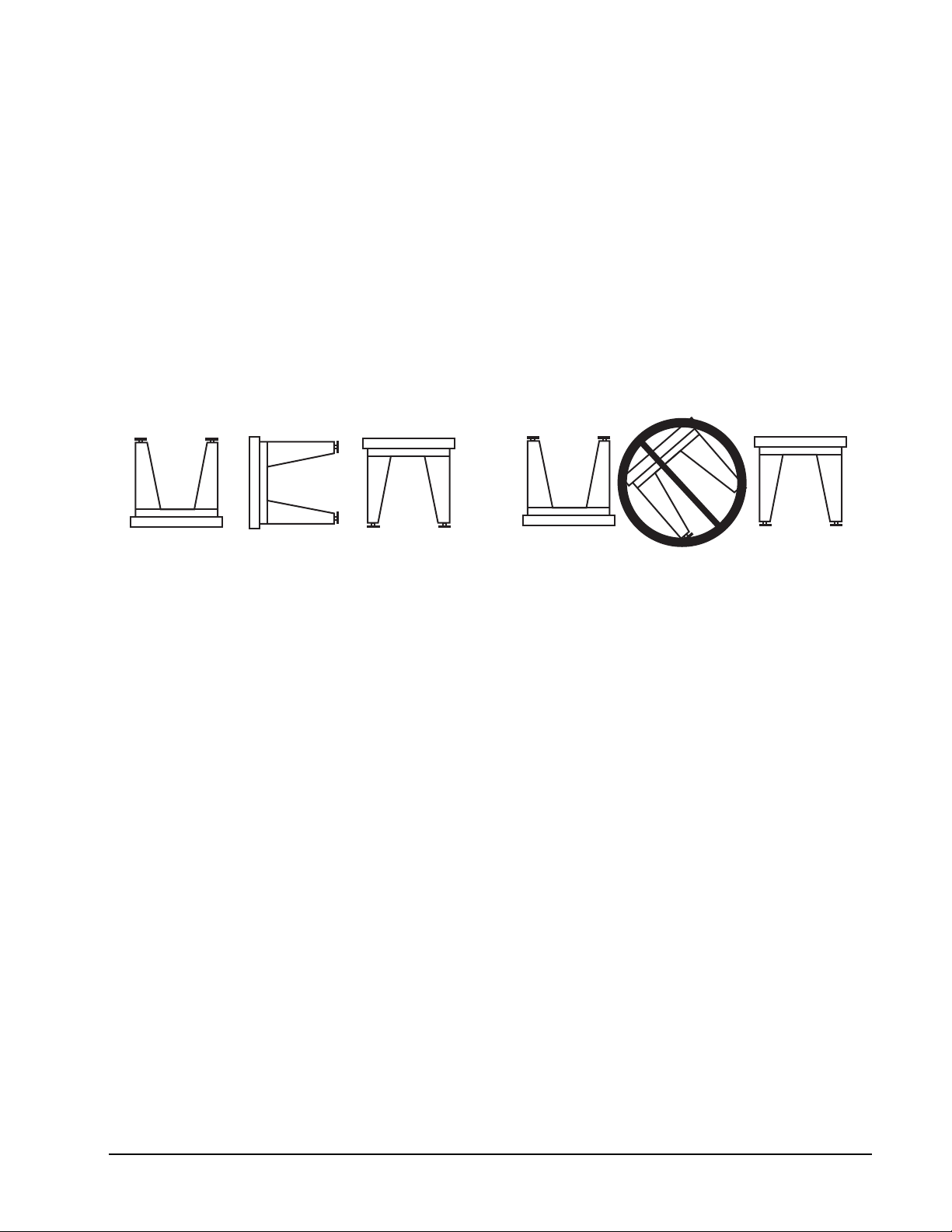

USE AT LEAST TWO PEOPLE TO LIFT THE BASE ASSEMBLY AND TURN IT OVER TO
REST ON THE LEGS.
DO NOT ROLL THE TABLE OVER. This will place a sideways force on the legs. The legs
should be off the floor until the base assembly is rotated completely. Set the base assembly
down.
If visually the leg positions need adjusting, loosen the bolts, adjust, and retighten.
DO THIS NOT THIS

GLD Products Tucson 7' Billiard Table
Item 64-0140
1-800-225-7593 12
www.gldproducts.com
STEP 6 - LEVEL THE TABLE BASE
1. Place table into position in your room (13' 4" x 17' 0" minimum). Measure ends at base
frame to walls, making sure there is at least 60" between the table and the wall. You do
not want to move the table after this step.
2. Use a carpenters level to find the low side.
3. Lift the table leg off the floor and unscrew the leveler out of the base a small amount.
4. Repeat until the base is level. Be sure to check level at both ends side to side as well as
the longer length.
5. Your table is ready for use.
Care and Use of your Table
• This product is intended for INDOOR use only.
• DO NOT sit, climb, or lean on the table.
• DO NOT drag the table when moving it. This will damage the legs.
• Keep your table covered. The playing surface can be brushed to
keep clean.
• DO NOT lift the table by placing your hands under the pockets, and
do not sit, lean or put pressure on the pockets.
• The cloth playing surface can rip or tear. Keep sharp objects off the
playing surface.
• Some “trick shots” may tear or dimple the cloth surface.
• To clean the hard surfaces spray a cloth with a mild cleaner and
wipe.

GLD Products Tucson 7' Billiard Table
Item 64-0140
13 1-800-225-7593
www.gldproducts.com
90-DAY LIMITED WARRANTY
The Manufacturer warrants to the original retail purchaser that this product is free from
defects in material and workmanship under normal use and conditions for a period of ninety
(90) days from the date of original purchase. The Manufacturer’s liability is limited to the
repair or replacement, at its option, of any defective product and shall not include any liability
for indirect, incidental or consequential damages of any kind.
Should this product become defective due to material or workmanship within the warranty
period, contact our Customer Service Department. This warranty is not transferable and
does not cover normal wear and tear or damage caused by improper usage, negligence,
misuse, abuse, transportation damage, acts of nature, or accident (including failure to follow
the instructions in this manual). It does not cover expendable items such as batteries, light
bulbs, fuses, accessories, cosmetic parts and other items that wear out due to normal
usage, including felt covered areas of the playing surface. This warranty is also void if the
product is disassembled and reassembled, damaged, modified from its original state, or
used for other than indoor personal residential use (no commercial or rental applications).
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST (8 - 4 CST)
Please have your receipt and item number (found on the front cover) when you call.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593 ext. 113
Fax: [phone]
Email: [e-mail]
Web: www.gldproducts.com
If you are instructed to return the product for service, you are responsible for ship-
ping the unit at your expense to the above address in packaging that will protect
against further damage. All warranty or repair requests require a Return Authoriza-
tion Number prior to returning the item.
PRODUCT REGISTRATION
Important: The product registration form on page 15 must be completed and returned
along with a copy of your receipt within 10 days of purchase to validate your warranty.

1-800-225-7593 14
www.gldproducts.com
GLD Products Tucson 7' Billiard Table
Item 64-0140

REGISTER YOUR PRODUCT Place postage here
Complete this form, include a copy of your receipt, fold, tape (do
not staple) and return within 10 days of purchase. This protects
your warranty and will help us develop new products!
GLD Products
Warranty Department
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1. What are the top two reasons that influenced the purchase of this product? Select two.
Name Date of Purchase
Address Phone-Day
City Phone-Evening
State Zip Email
Purchase Price: Item: Tucson 7' Billiard Table 64-0140
Store Name:
Brand reputation Prior experience with another GLD product
Saw in an advertisement Color/appearance
Quality/durability Other
Value for price
www.gldproducts.com
GAME TABLES HOME CASINO
GAMES AND ACCESSORIES BILLIARD CUES
BILLIARD ACCESSORIES DARTBOARDS
SOFT-TIP DARTS STEEL-TIP DARTS
FLIGHTS AND SHAFTS DART CASES AND ACCESSORIES
Fold here second.
Fold here first.
Cut here.

2. How did you become aware of this product? Select two.
3. Rate your satisfaction with each of the following?
4. Were there any parts missing?
5. Based on your experience, would you buy another GLD product?
6. Is this the first GLD product that you’ve owned? If No, what other product have you owned?:
7. Have you owned products from:
8. When did you decide to purchase this product?
9. How many times per month will you use it?
10. Are you the intended user of this product?
11. Where will you use this product?
12. Please tell us your gender? 13. And your marital status?
14. Age?
15. Which best describes your family income?
16. Education:
Remember to attach a copy of your receipt.
Saw in an advertisement Saw it in the store
Saw or used a friend’s or relative’s Recommended by another person
Received as a gift Other
Excellent Good Fair Poor
Assembly instructions
Ease of assembly
Packaging
Overall product satisfaction
Yes No If so, which ones? Order No.
Yes No
Yes No
Sportcraft Harvard Classic Sport Other
Before entering the store. While in the store/impulse purchase
1 to 3 4 to 8 9 to 15 16 +
Yes No, indicate who:
Home Other:
Male Female Married Single
Under 25 25 - 40 40 - 60 Over 60
Under $25,000 $25,000 - $49,999 $50,000 - $99,999
$100,000 - 149,999 $150,000 - $199,999 Over $200,000
Some high school College degree
Completed high school Graduate degree

Tucson 7' Billiard Table
Item 64-0140
17 1-800-225-7593
www.gldproducts.com
Parts Re-Order Form
Method of Payment
_________Check or Money Order
_________ Credit Card
_____ Visa _____ MasterCard _____ Discover _____ American Express
Card #________________________________________________________
Security Code #__________________Billing Address Zipcode____________
Signature______________________________________Exp. Date________
Shipping Address
Name___________________________________________________________________________________
Address___________________________________________Phone_________________________________
City______________________________________________State________________Zip________________
Name Date
Address Phone-Day
City Phone-Evening
State Zip Email
Order No. Description Unit
Price Qty. Total Amount
64-0140-01 Table Assembly 250.00
2-23 Billiard Cue 12.00
2-24 Chalk 2.00
2-27 Triangle 6.00
2-21 Billiard Ball Set 30.00
64-0140-06 Leg End Panel 15.00
1-148 Leg Leveler 10.00
3-31 Allen Wrench 1.00
64-0140-09 Leg 20.00
64-0140-10 Leg 20.00
3-27 22 mm Washer 0.50
1-156 8 x 35 mm Leg Bolt 0.50
64-0140-13 Leg Cross Support 20.00
64-0140-14 Leg Base 5.00
64-0140-15 3.5 x 28 mm RWA 0.50
3-57 3.5 x 25 mm FA 0.50
1-145 Leg Leveler Bracket 1.00
Subtotal
Shipping will be added. If paid by Check or Money Order, call for quote. S/H
5.1% Waukesha Wisconsin tax will apply (subject to change). Tax
Total
Mail To: GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593 · FAX [phone]
Email: [e-mail]
Web Site: www.gldproducts.com

1-800-225-7593 18
www.gldproducts.com
GLD Products Tucson 7' Billiard Table
Item 64-0140

GAME TABLES
HOME CASINO
GAMES AND ACCESSORIES
BILLIARD CUES
BILLIARD ACCESSORIES
DARTBOARDS
SOFT-TIP DARTS
STEEL-TIP DARTS
FLIGHTS AND SHAFTS
DART CASES AND ACCESSORIES
www.gldproducts.com

PROUD MANUFACTURER OF
S84 W19093 Enterprise Drive Muskego, WI 53150 USA
262.679.8730 or 1.800.225.7593 tele
262.679.8738 or 1.800.841.6944 fax
262.679.8739 international fax
Email: [e-mail]
www.gldproducts.com
