GLD Products Super Shot 7' Hockey Table
Item 64-3012
Staple your receipt here.
Important: A copy of your receipt will be needed to activate your warranty (see page 16).

GLD Products Super Shot 7'Hockey Table
Item 64-3012
3 1-800-225-7593
www.gldproducts.com
Congratulations and THANK YOU for purchasing the
Super Shot 7'Hockey Table. You have chosen a
product that should provide years of entertainment.
To assist you with customer service and warranty
claims, staple your receipt to the inside cover, then
keep this manual in a safe place for future reference.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
This manual may have been updated. For the latest manual visit the GLD Products website.
Place your package near the location where it will be used. Carefully unpack
all components and verify you have all the correct pieces.
If you notice missing or defective parts, please call us at:
1-800-225-7593.
Please read and understand all instructions before beginning assembly.
This assembly will require 2 adults.
This product is not for use by children without adult supervision.

GLD Products Super Shot 7'Hockey Table
Parts Identifier Item 64-3012
4 1-800-225-7593
www.gldproducts.com

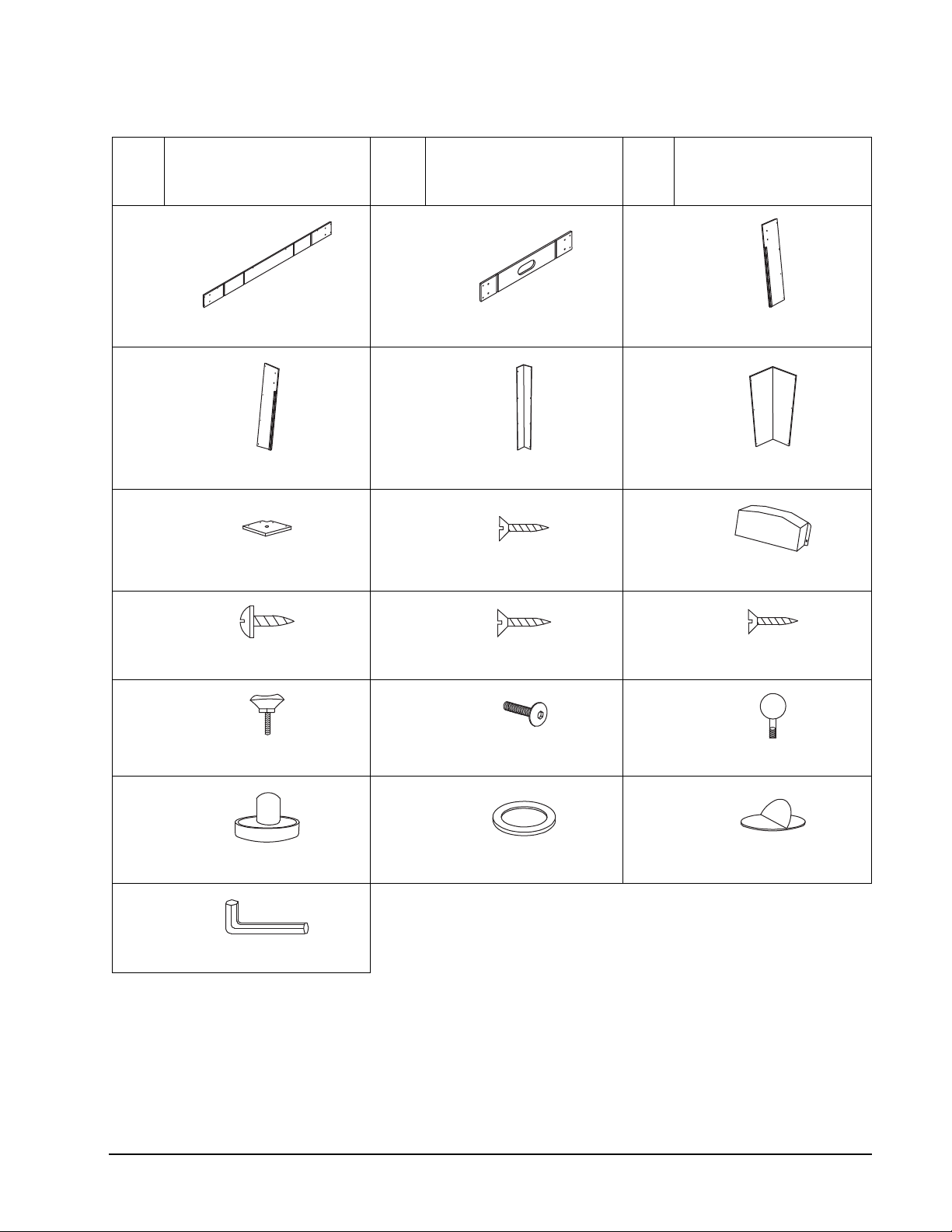

Parts Identifier
Parts Identif
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
1
Qty.
2
Side Panel
Order No. 4-144
2
Qty.
2
End Panel
Order No. 4-145
3
Qty.
4
Leg A
Order No. 4-146
4
Qty.
4
Leg B
Order No. 4-147
5
Qty.
4
Leg C
Order No.4-148
6
Qty.
4
Leg D
Order No. 4-149
7
Qty.
4Leg Base
Order No. 4-150
8
Qty.
16 F4 x 1" Screw
Order No. 4-151
9
Qty.
2Puck Catcher
Order No. 4-152
10
Qty.
4
T4 x 1/2" Screw
Order No. 1-97
11
Qty.
56
F4 x 3/4" Screw
Order No. 4-116
12
Qty.
16
F4 x 1-3/4" Screw
Order No. 4-153
13
Qty.
4Leg Leveler
Order No. 4-154
14
Qty.
16 5/16" x 1-1/4" Allen Key Bolt
Order No. 4-155
15
Qty.
2Hand Grip (Puck Ejector)
Order No. 4-156
16
Qty.
4Hockey Goalie
Order No. 2-18
17
Qty.
4Hockey Puck
Order No. 2-20
18
Qty.
4Hockey Felt
Order No. 2-19
19
Qty.
1
Allen Wrench
Order No. 2-116

GLD Products Super Shot 7'Hockey Table
Item 64-3012
5 1-800-225-7593
www.gldproducts.com
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST
Please see page 16.
GLD Products
Available 8 am to 4:30 pm Central Standard Time
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
For all claims, please have your receipt and item number when you call. The
product item number can be found on the front cover.
If you are instructed to return the product for service, you are
responsible for shipping the unit at your expense.
PRODUCT REGISTRATION
Important: The product registration form on page 17 and a copy of your
receipt must be completed and returned within 10 days of purchase to
validate your warranty.
Preparing for Assembly
• Be sure to unpack all of the parts included in this package. Check
inside any tubes or sleeves. Save all packing material until the
product is fully assembled and functional.
• Compare the parts in your package with the Parts Identifier
description on page 4.
• After unpacking large products, some disassembly may be required
prior to beginning the assembly.
Tools Required
• Allen Wrench (#19)
• Phillips Screwdriver (not included)
• Flat Blade Screwdriver (not included)
• Level (not included)
• Electric screwdriver may be helpful. CAUTION: You must set at
LOW TORQUE and use extreme caution because you could
overtighten the hardware, strip the screws, or damage the table.

GLD Products Super Shot 7'Hockey Table
Item 64-3012
6 1-800-225-7593
www.gldproducts.com
Assembly Tips
Make sure you understand the following before you begin to assemble your game table.
1. READ THIS MANUAL all the way through before beginning assembly.
2. When installing parts that have more than one bolt, start ALL bolts in that part by hand
before tightening anything.
3. Some drawings or images in this manual may not look exactly like your product.
4. You may need a second adult to assist with this assembly.
Note: Save all packing materials until the parts have been inspected and the table is
assembled.
Unpack the Pieces
• Lay the box on a flat surface (floor). You may want this near your
area of assembly.
• Unpack the boxes and part bags. Inspect and count the parts. The
Parts Identifier page can be used to record your results.
• If any parts are damaged or missing, contact GLD Customer
Service.
• Missing fasteners may be purchased at a hardware store using the
descriptions on the Parts Identifier page.
Games
This game table includes the equipment and game pieces for Air Hockey. The rules for this
game are not discussed in this manual.

GLD Products Super Shot 7'Hockey Table
Item 64-3012
7 1-800-225-7593
www.gldproducts.com
STEP 1 - ASSEMBLE THE TABLE
1. Lay the table top bottom side up on a flat surface. The fan should already be installed.
2. Position the side panel (#1) so the grooves on the inside surface line up with the braces.
3. Use six screws (#8) to secure the side panel.
4. Repeat steps 2 and 3 for the second side panel.
5. Position an end panel (#2) at one end of the table top. The grooves on the inside will line
up with the braces.
6. Use two screws (#8) to secure the panel.
7. Repeat steps 5 and 6 for the second end panel.
NOTE: The side panels are not yet fully supported. Do not lean or pull on the side panels.
8. Position one of the catchers (#9) at one end of the table.
9. Use two screws (#10) to secure it to the end panel.
10.Repeat steps 8 and 9 for the second catcher.

GLD Products Super Shot 7'Hockey Table
Item 64-3012
8 1-800-225-7593
www.gldproducts.com

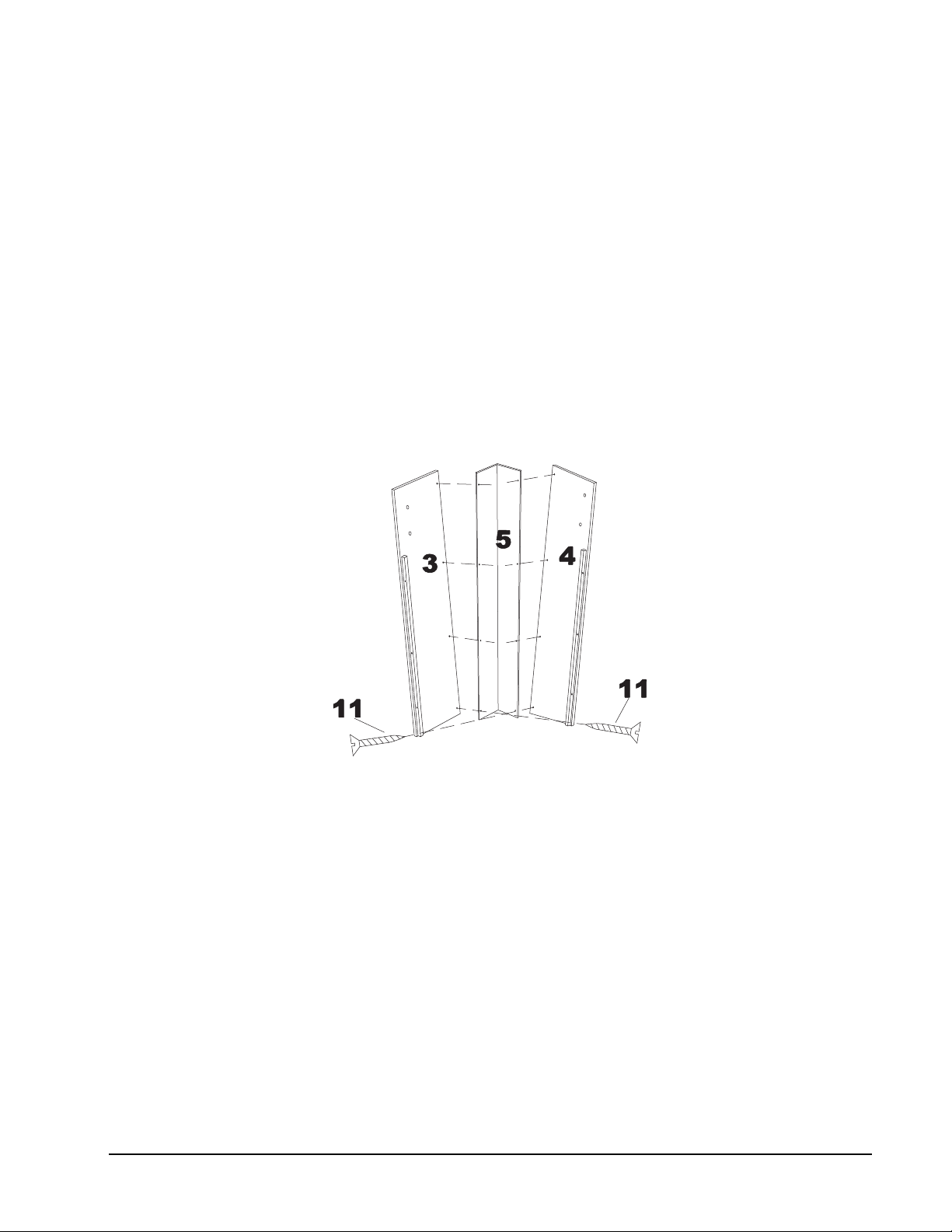

STEP 2 - ASSEMBLE THE OUTER LEG
1. Select one of the leg pieces (#3 or #4) and lay it flat on the floor.
2. Position the leg center piece (#5) to line up the four screw holes with the pre-drilled holes
in the leg piece.
3. Use four screws (#11) and secure the leg center piece (#5) to the first leg piece (#3 or
#4).
4. Lay the second leg piece on the floor. Position the assembly to line up the four remaining
screw holes with the pre-drilled holes in that leg piece.
5. Use four screws (#11) and secure the leg piece to the assembly.
6. Repeat for the remaining three legs.

GLD Products Super Shot 7'Hockey Table
Item 64-3012
9 1-800-225-7593
www.gldproducts.com

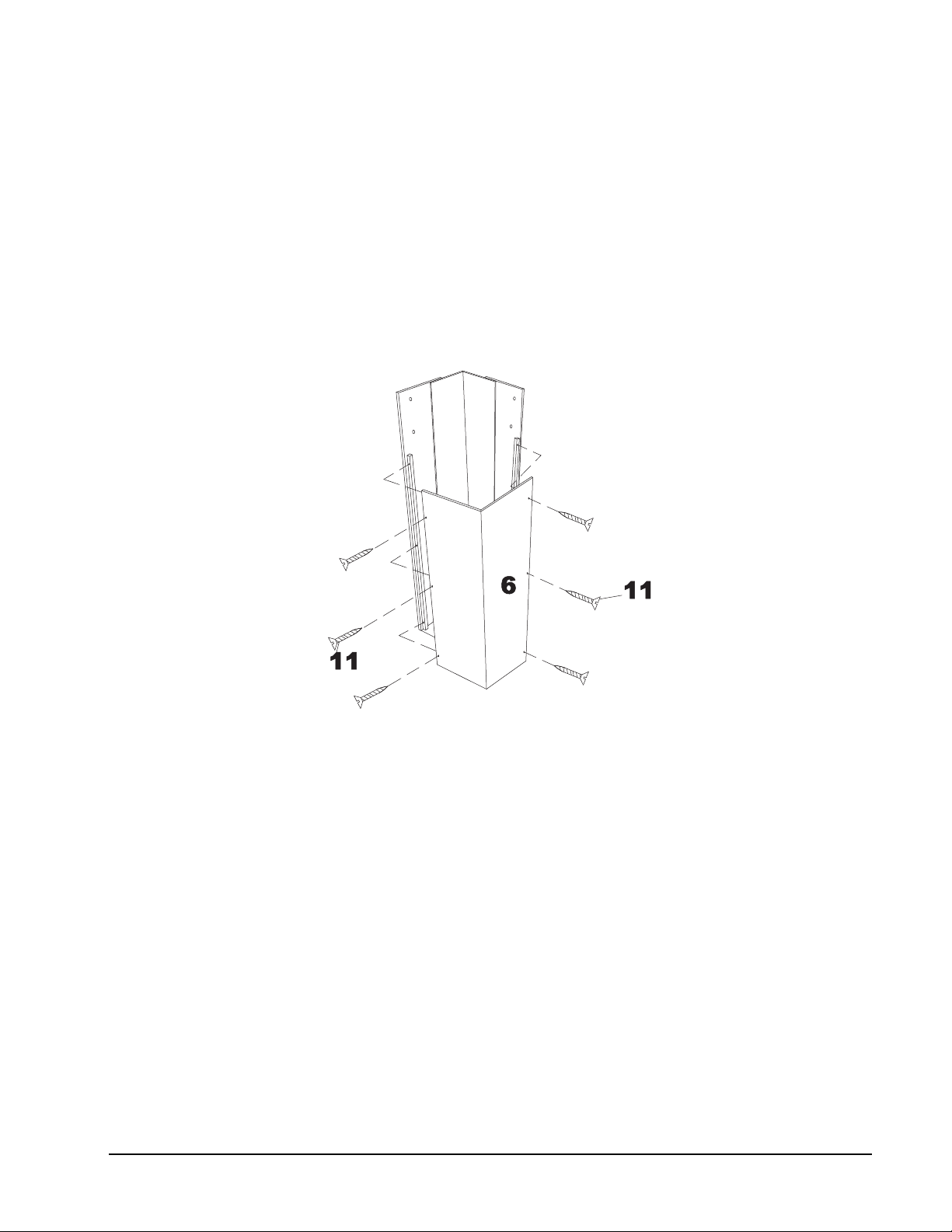

STEP 3 - ASSEMBLE THE INNER LEG
1. Select one of the inner leg (#6) pieces. Do not bend the hinge of the leg backwards.
Damage will occur.
2. Position the leg piece with the assembly from Step 2. Notice that the leg gets wider at
one end.
3. Insert six screws (#11) and tighten.
4. Repeat for the remaining three legs.

GLD Products Super Shot 7'Hockey Table
Item 64-3012
10 1-800-225-7593
www.gldproducts.com

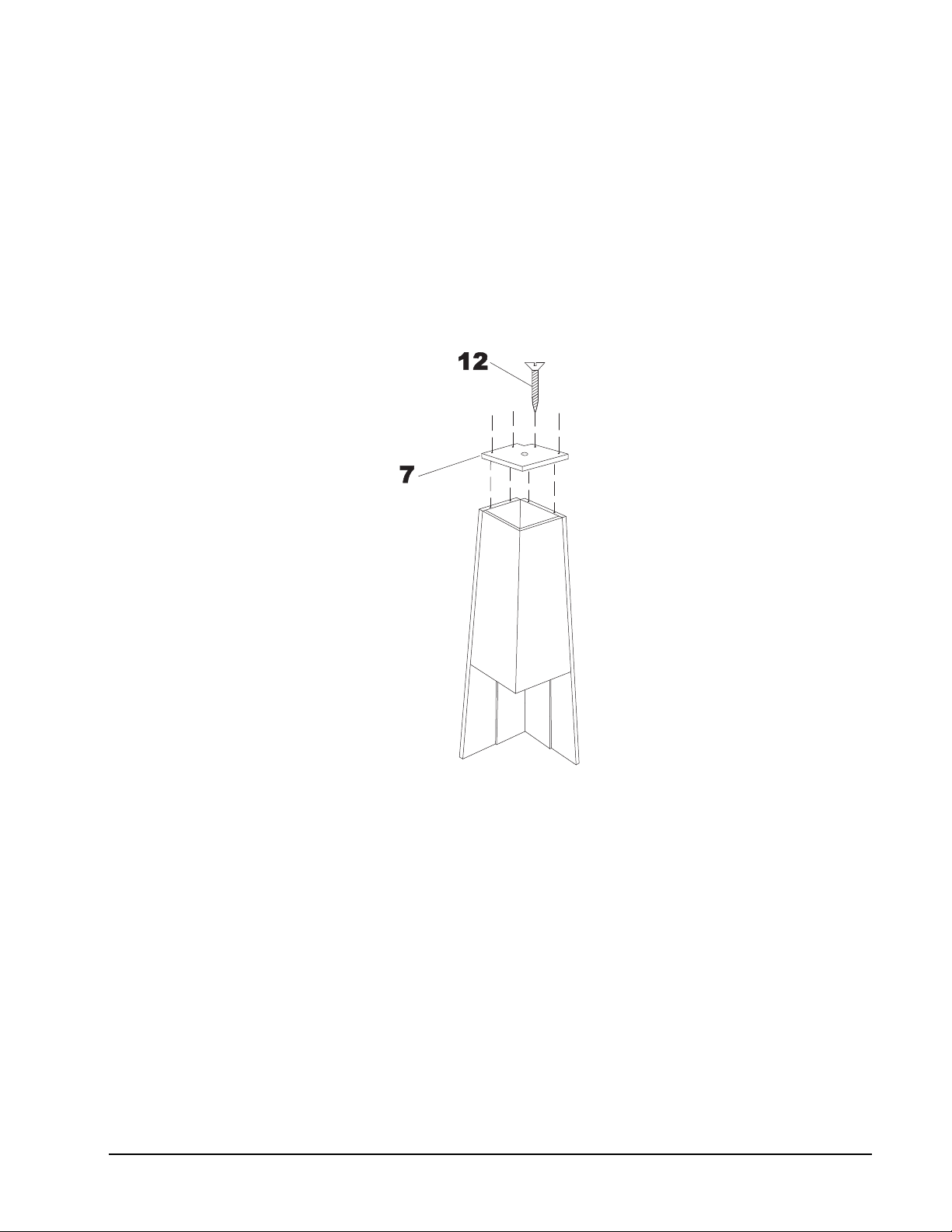

STEP 4 - ASSEMBLE THE LEG BASE
1. Position a leg assembly with the small end up.
2. Place a leg base (#7) on top. The four screw holes will be over the pre-drilled holes in the
outer pieces.
3. Use four screws (#12) to secure the base to the leg assembly.
4. Repeat for the other three legs.

GLD Products Super Shot 7'Hockey Table
Item 64-3012
11 1-800-225-7593
www.gldproducts.com

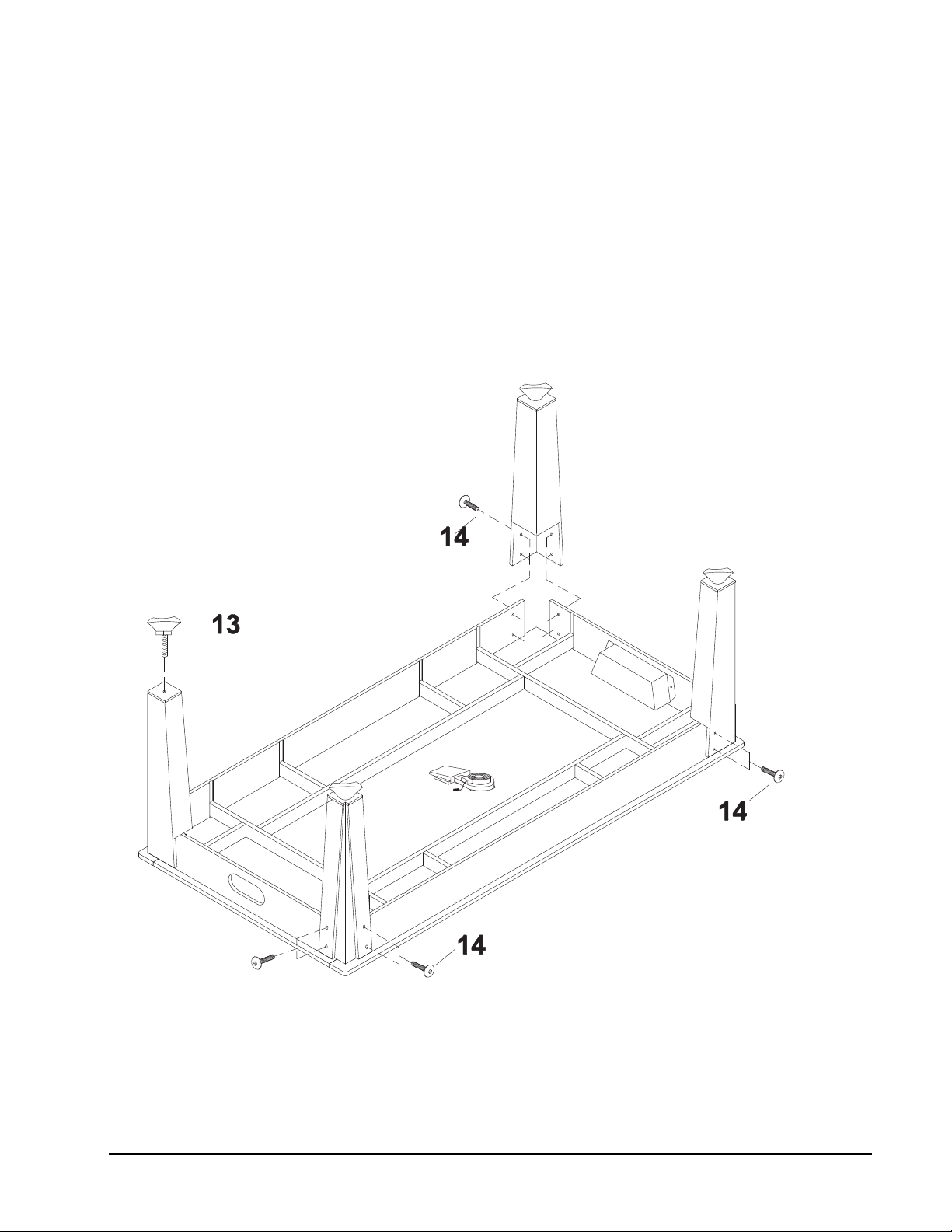

STEP 5 - ASSEMBLE LEGS TO TABLE TOP
1. Position a leg assembly onto one of the table top corners.
2. Finger start four bolts (#14) through the leg into the holes in the panels. These holes
have a threaded nut in place.
3. Tighten the bolts with the allen wrench (#19).
4. Screw a leg leveler (#13) halfway into the hole in the bottom of the leg.
5. Repeat for the remaining three legs.

GLD Products Super Shot 7'Hockey Table
Item 64-3012
12 1-800-225-7593
www.gldproducts.com

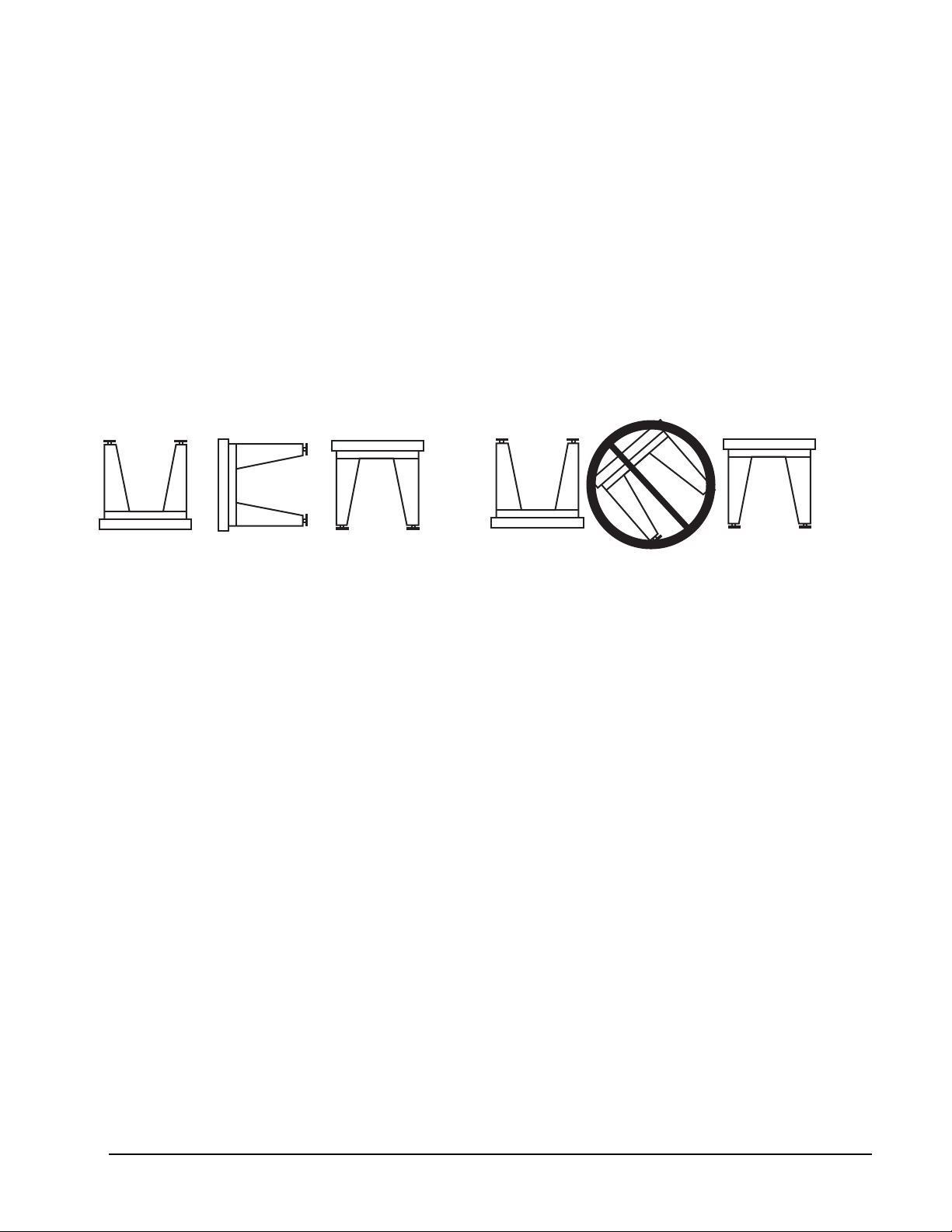

STEP 6 - TURN THE TABLE OVER
The table is ready to be turned over.
USE AT LEAST TWO PEOPLE TO LIFT THE TABLE ASSEMBLY AND TURN IT OVER TO
REST ON THE LEGS.
DO NOT ROLL THE TABLE OVER. This will place a sideways force on the legs. The legs
should be off the floor until the table assembly is rotated completely. Set the table down.
DO THIS NOT THIS

GLD Products Super Shot 7'Hockey Table
Item 64-3012
13 1-800-225-7593
www.gldproducts.com

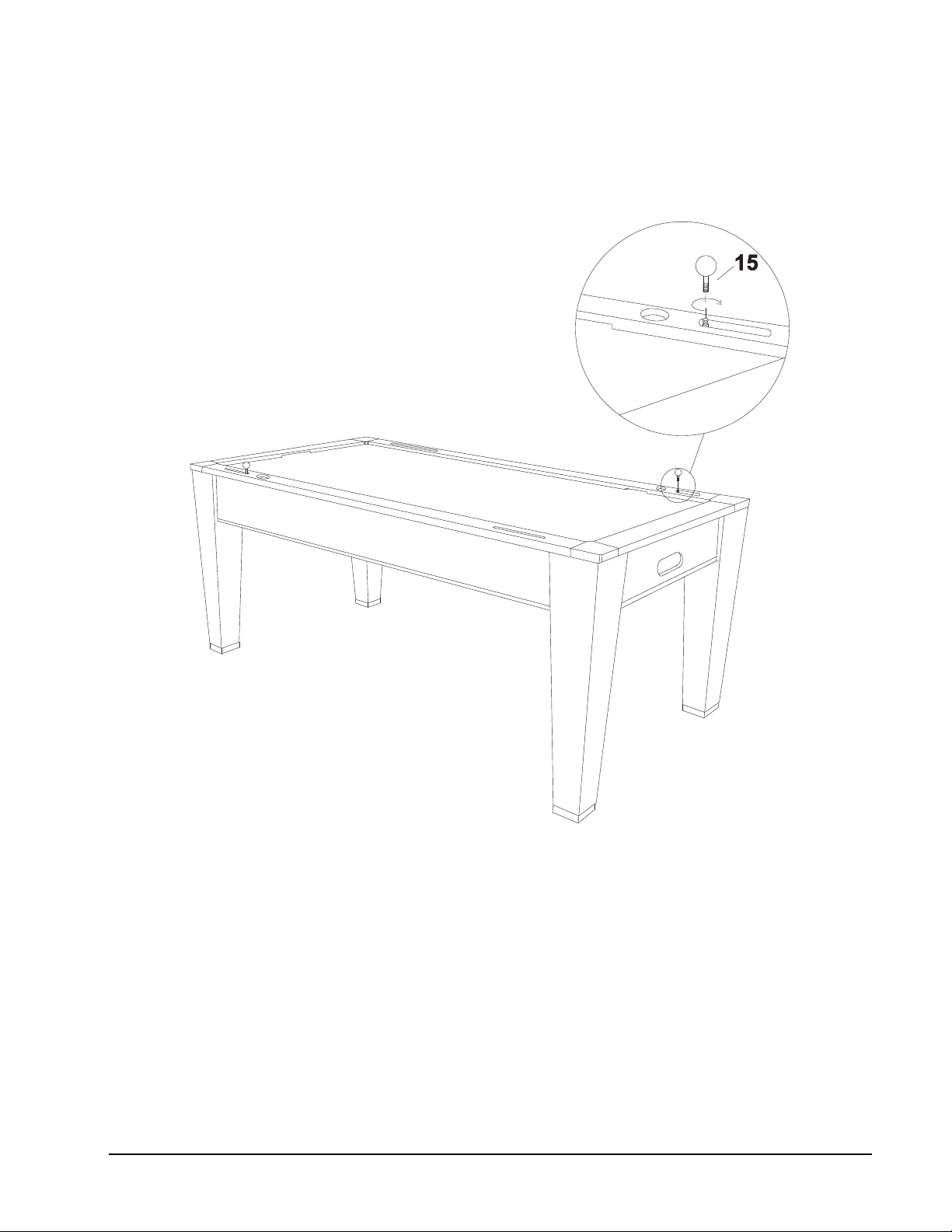

STEP 7 - ASSEMBLE HAND GRIP
1. Screw a hand grip (#15) into the flipper at each end of the table.

GLD Products Super Shot 7'Hockey Table
Item 64-3012
14 1-800-225-7593
www.gldproducts.com
STEP 8 - ADJUST THE LEVELERS
1. Turn each leg leveler until the table rests level.
2. Check with a carpenters level placed cross-wise and length wise on the table top.
3. Re-adjust leg levelers as necessary.

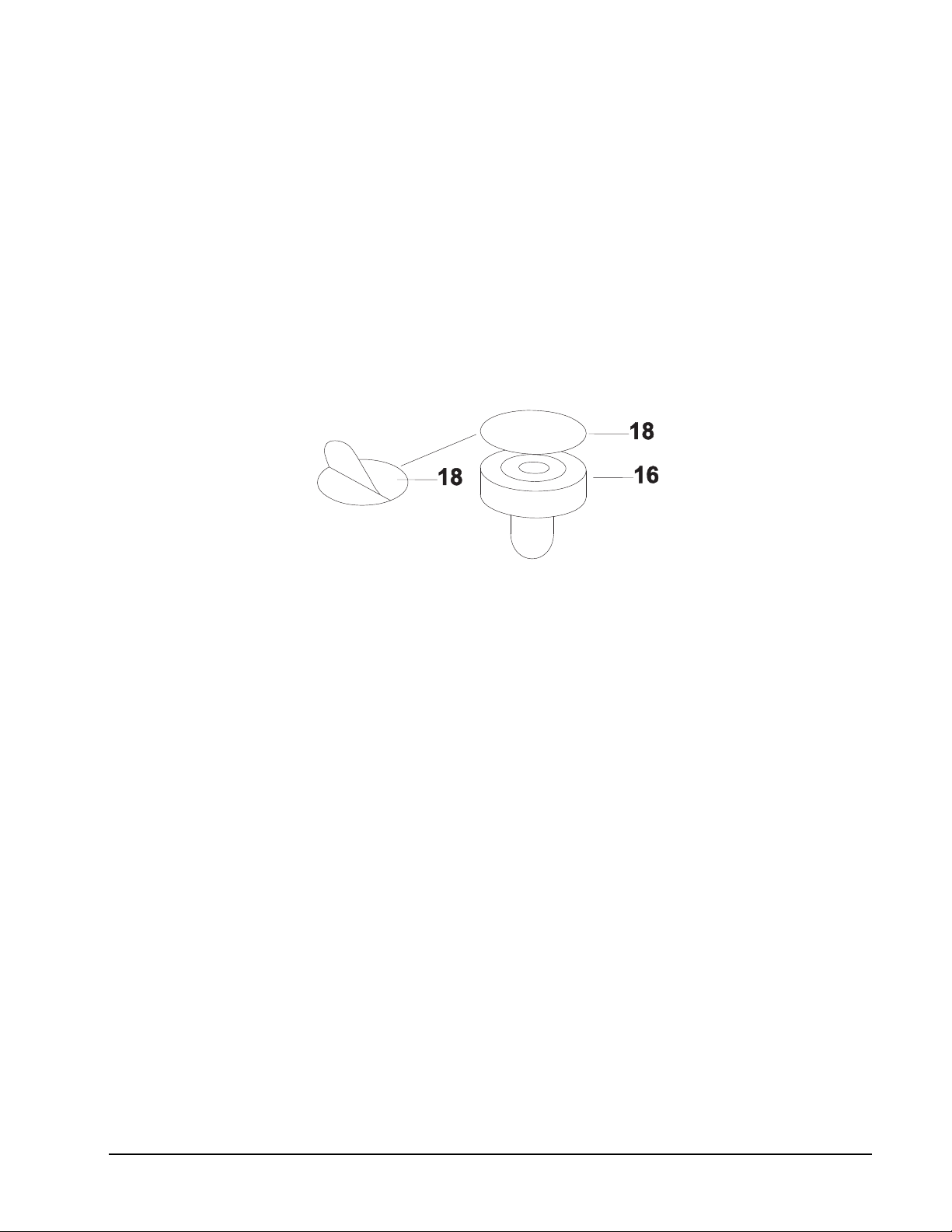

STEP 9 - ASSEMBLE HOCKEY GOALIE
1. Peel paper from one of the hockey felt pieces (#18).
2. Attach the felt to the bottom of the pusher (#16).
If the fan does not go on:
• Unplug from electrical outlet.
• The fan is located BELOW the table top.
• Inspect wiring for proper connection.
If the fan works but the table has dead spots:
• Use a small drill bit and clear the holes by hand. DO NOT use
electric drill. Manually push the drill bit into the holes to clear.
• Polish the air hockey table by spraying a furniture polish onto a rag
and wipe onto the table. Do not spray directly onto the table top.

GLD Products Super Shot 7'Hockey Table
Item 64-3012
15 1-800-225-7593
www.gldproducts.com
Care and Use of your Table
• This product is intended for INDOOR use only.
• DO NOT sit, climb, or lean on the table.
• DO NOT drag the table when moving it. This will damage the legs.
• Keep your table covered.
• To clean the hard surfaces spray a cloth with a mild cleaner and
wipe.
• Pucks that fly off the table may have chipped edges. Inspect the
puck and replace if needed.

GLD Products Super Shot 7'Hockey Table
Item 64-3012
16 1-800-225-7593
www.gldproducts.com
90-DAY LIMITED WARRANTY
The Manufacturer warrants to the original retail purchaser that this product is free from
defects in material and workmanship under normal use and conditions for a period of ninety
(90) days from the date of original purchase. The Manufacturer’s liability is limited to the
repair or replacement, at its option, of any defective product and shall not include any liability
for indirect, incidental or consequential damages of any kind. Should this product become
defective due to material or workmanship within the warranty period, contact our Customer
Service Department. This warranty is not transferable and does not cover normal wear and
tear or damage caused by improper usage, negligence, misuse, abuse, transportation
damage, acts of nature, or accident (including failure to follow the instructions in this
manual). It does not cover expendable items such as batteries, light bulbs, fuses,
accessories, cosmetic parts and other items that wear out due to normal usage, including
felt covered areas of the playing surface. This warranty is also void if the product is
disassembled and reassembled, damaged, modified from its original state, or used for other
than indoor personal residential use (no commercial or rental applications).
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST (8 - 4:30 CST)
Please have your receipt and item number (found on the front cover) when you call.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
If you are instructed to return the product for service, you are responsible for
shipping the unit at your expense to the above address in packaging that will protect
against further damage. All warranty or repair requests require a Return
Authorization Number prior to returning the item.
PRODUCT REGISTRATION
Important: The product registration form on page 17 must be completed and returned
along with a copy of your receipt within 10 days of purchase to validate your warranty.

REGISTER YOUR PRODUCT Place postage here
Complete this form, include a copy of your receipt, fold, tape (do
not staple) and return within 10 days of purchase. This protects
your warranty and will help us develop new products!
GLD Products
Warranty Department
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1. What are the top two reasons that influenced the purchase of this product? Select two.
Name Date of Purchase
Address Phone-Day
City Phone-Evening
State Zip Email
Purchase Price:
Item: 64-3012 Super Shot 7 ' Hockey Table
Store Name:
Brand reputation Prior experience with another GLD product
Saw in an advertisement Color/appearance
Quality/durability Other
Value for price
www.gldproducts.com
GAME TABLES HOME CASINO
GAMES AND ACCESSORIES BILLIARD CUES
BILLIARD ACCESSORIES DARTBOARDS
SOFT-TIP DARTS STEEL-TIP DARTS
FLIGHTS AND SHAFTS DART CASES AND ACCESSORIES
Fold here second.
Fold here first.
Cut here.

2. How did you become aware of this product? Select two.
3. Rate your satisfaction with each of the following?
4. Were there any parts missing?
5. Based on your experience, would you buy another GLD product?
6. Is this the first GLD product that you’ve owned? If No, what other product have you owned?:
7. Have you owned products from:
8. When did you decide to purchase this product?
9. How many times per month will you use it?
10. Are you the intended user of this product?
11. Where will you use this product?
12. Please tell us your gender? 13. And your marital status?
14. Age?
15. Which best describes your family income?
16. Education:
Remember to attach a copy of your receipt.
Saw in an advertisement Saw it in the store
Saw or used a friend’s or relative’s Recommended by another person
Received as a gift Other
Excellent Good Fair Poor
Assembly instructions
Ease of assembly
Packaging
Overall product satisfaction
Yes No If so, which ones? Order No.
Yes No
Yes No
Sportcraft Harvard Classic Sport Other
Before entering the store. While in the store/impulse purchase
1 to 3 4 to 8 9 to 15 16 +
Yes No, indicate who:
Home Other:
Male Female Married Single
Under 25 25 - 40 40 - 60 Over 60
Under $25,000 $25,000 - $49,999 $50,000 - $99,999
$100,000 - 149,999 $150,000 - $199,999 Over $200,000
Some high school College degree
Completed high school Graduate degree

Super Shot 7'Hockey Table
Item 64-3012
19 1-800-225-7593
www.gldproducts.com
Parts Re-Order Form
Method of Payment
_________Check or Money Order
_________ Credit Card
_____ Visa _____ MasterCard _____ Discover _____ American Express
Card #________________________________________________________
Security Code #__________________Billing Address Zip code____________
Signature______________________________________Exp. Date________
Shipping Address
Name___________________________________________________________________________________
Address___________________________________________Phone_________________________________
City______________________________________________State________________Zip________________
Name Date
Address Phone-Day
City Phone-Evening
State Zip Email
Order No. Description
Unit
Price
(each)
Qty. Total
Amount
4-144 Side Panel 20.00
4-145 End Panel 20.00
4-146 Leg A 15.00
4-147 Leg B 15.00
4-148 Leg C 5.00
4-149 Leg D 10.00
4-150 Leg Base 5.00
4-151 F4 x 1" Screw 0.20
4-152 Puck Catcher 10.00
1-97 T4 x 1/2" Screw 0.20
4-116 F4 x 3/4" Screw 0.20
4-153 F4 x 1-34" Screw 0.20
4-154 Leg Leveler 10.00
4-155 5/16 x 1-1/4" Allen Key Bolt 2.00
4-156 Hand Grip (Puck Ejector) 5.00
2-18 Hockey Goalie 6.00
2-20 Hockey Puck 1.50
2-19 Hockey Felt 1.00
2-116 Allen Wrench 1.00
Subtotal
Shipping will be added. If paid by Check or Money Order, call for quote. S/H
5.1% Waukesha Wisconsin tax will apply (subject to change). Tax
Total
Mail To: GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593 · FAX [phone]
Email: [email protected]
Web Site: www.gldproducts.com

GLD Products Super Shot 7'Hockey Table
Item 64-3012
1-800-225-7593 20
www.gldproducts.com
