GLD Products Sheffield User manual

GLD Products Sheffield Foosball Table
Item 64-0930
Item 64-0930
May 2012 UPC Code 7-19265-53479-2
SHEFFIELD FOOSBALL
TABLE
Replacement Parts
Order direct at www.gldproducts.com
or call our Customer Service department at
[phone]
8 am to 4:30 pm Central Standard Time

GLD Products Sheffield Foosball Table
Item 64-0930
Staple your receipt here.
Important: A copy of your receipt will be needed to activate your warranty (see page 22).

GLD Products Sheffield Foosball Table
Item 64-0930
3 1-800-225-7593
www.gldproducts.com
Congratulations and THANK YOU for purchasing the
Sheffield Foosball Table. You have chosen a product
that should provide years of entertainment. To assist
you with customer service and warranty claims,
staple your receipt to the inside cover, then keep this
manual in a safe place for future reference.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [e-mail]
Web: www.gldproducts.com
This manual may have been updated. For the latest manual visit the GLD Products website.
Place your package near the location where it will be used. Carefully unpack
all components and verify you have all the correct pieces.
If you notice missing or defective parts, please call us at:
1-800-225-7593.
Please read and understand all instructions before beginning assembly.
This assembly will require 2 adults.
This product is not for use by children without adult supervision.

GLD Products Sheffield Foosball Table
Parts Identifier Item 64-0930
4 1-800-225-7593
www.gldproducts.com

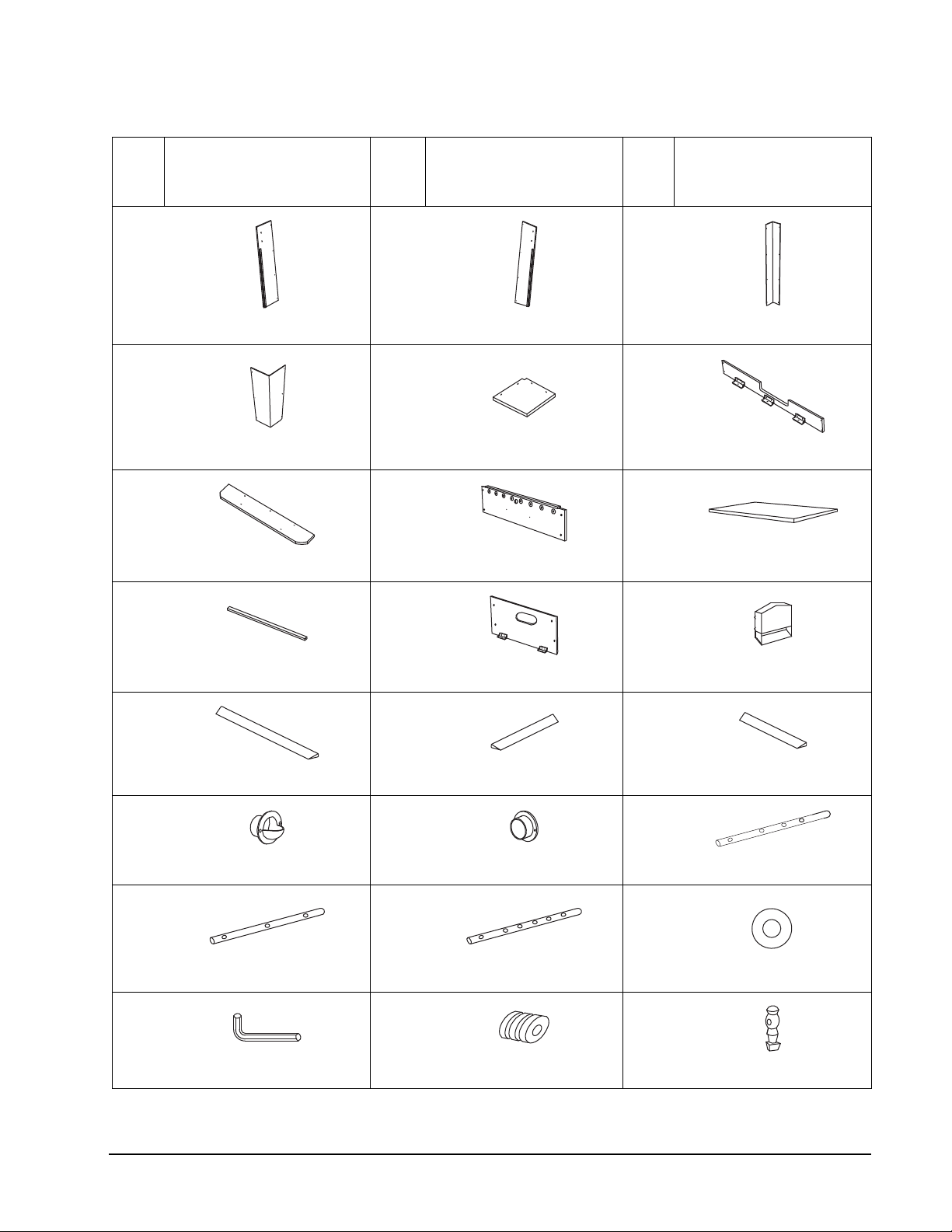

Parts Identifier
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
1
Qty.
4
Leg A
Order No. 3-203
2
Qty.
4
Leg B
Order No. 3-204
3
Qty.
4
Leg Panel - Outside
Order No. 3-205
4
Qty.
4
Leg Panel - Inside
Order No. 3-206
5
Qty.
4
Leg Cap
Order No. 3-207
6
Qty.
2
Goal Panel
Order No. 3-208
7
Qty.
2End Top Rail
Order No. 3-209
8
Qty.
2Side Panel
Order No. 3-210
9
Qty.
1Playing Surface
Order No. 3-211
10
Qty.
2Play Field-Support Bar
Order No. 3-212
11
Qty.
2End Panel
Order No. 3-213
12
Qty.
2Plastic Goal
Order No. 3-214
13
Qty.
2Side Ramp
Order No. 3-215
14
Qty.
2End Ramp Right
Order No. 3-216
15
Qty.
2End Ramp Left
Order No. 3-217
16
Qty.
2
Outside Ball Entry Cup
Order No. 3-218
17
Qty.
2
Inside Ball Entry Cup
Order No. 3-219
18
Qty.
4
Three Hole Player Rod
Order No. 3-228
19
Qty.
2Two Hole Player Rod
Order No. 3-229
20
Qty.
2Five Hole Player Rod
Order No. 3-230
21
Qty.
16 5/8" Plastic Washer
Order No. 3-231
22
Qty.
1Allen Wrench
Order No. 2-32
23
Qty.
16 Bumper
Order No. 64-0907-12
24
Qty.
13 Gray Player
Order No. 3-220

GLD Products Sheffield Foosball Table
Parts Identifier Item 64-0930
5 1-800-225-7593
www.gldproducts.com

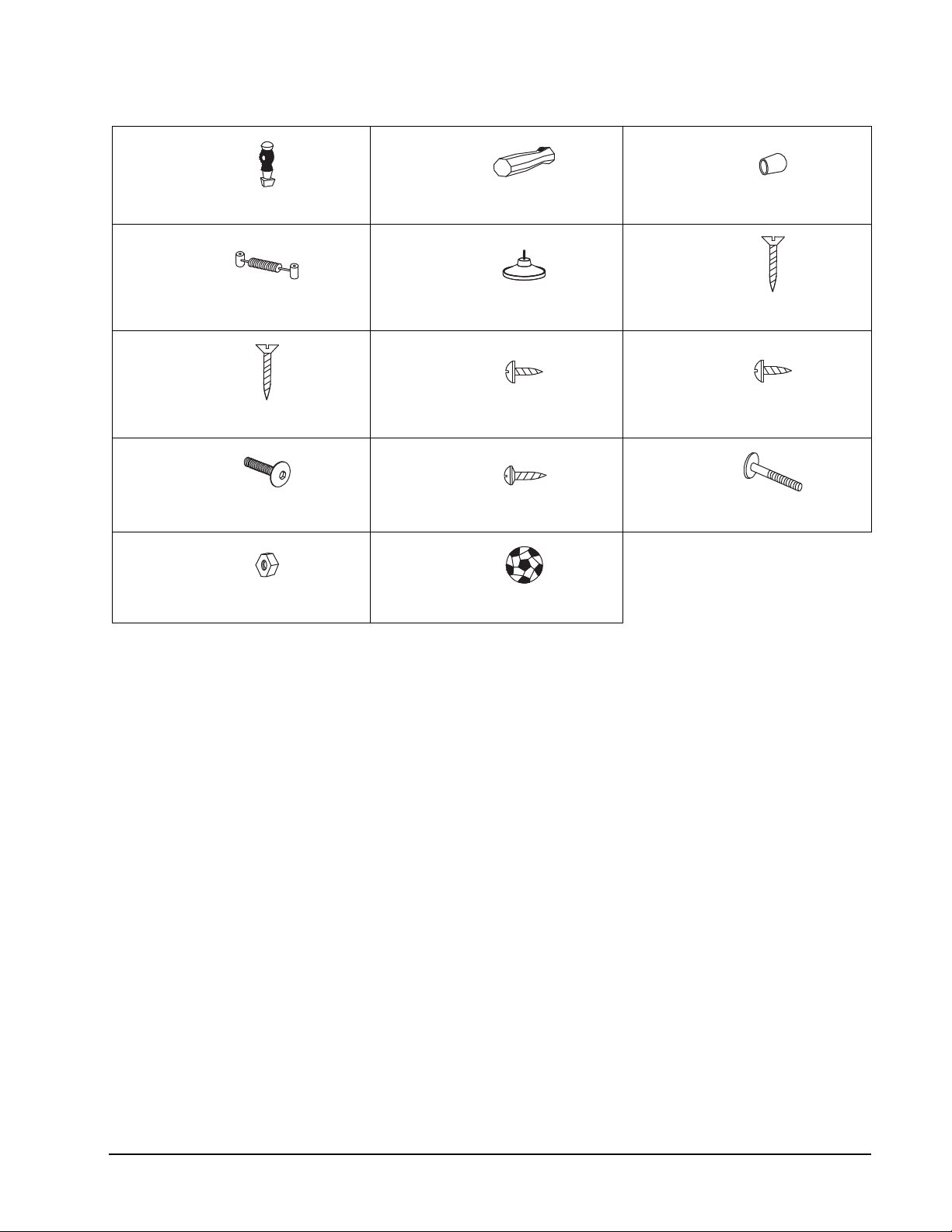

Parts Identif
25
Qty.
13 Black Player
Order No. 3-221
26
Qty.
8Handle Grip
Order No. 64-0907-15
27
Qty.
8Rod End Cap
Order No. 64-0907-14
28
Qty.
2Scorer Assembly
Order No. 3-222
29
Qty.
4Leg Leveler
Order No. 3-223
30
Qty.
80 F4 x 3/4" Flat Head Screw
Order No. 4-116
31
Qty.
28 F4 x 1-3/4" Flat Head Screw
Order No. 4-153
32
Qty.
10 T4 x 5/8" Round Head Screw
Order No. 3-224
33
Qty.
8 T4 x 1/2" Round Head Screw
Order No. 1-97
34
Qty.
16 5/16" x 1" Allen Key Bolt
Order No. 3-225
35
Qty.
81/2" Phillips Head Screw
Order No. 3-226
36
Qty.
26 1-1/8" Bolt
Order No. 3-227
37
Qty.
26
4 mm Lock Nut
Order No. 2-110
38
Qty.
2
Soccer Ball
Order No. 64-0907-18

GLD Products Sheffield Foosball Table
Item 64-0930
6 1-800-225-7593
www.gldproducts.com
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST
Please see page 22.
GLD Products
Available 8 am to 4:30 pm Central Standard Time
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [e-mail]
Web: www.gldproducts.com
For all claims, please have your receipt and item number when you call. The
product item number can be found on the front cover.
If you are instructed to return the product for service, you are
responsible for shipping the unit at your expense.
PRODUCT REGISTRATION
Important: The product registration form on page 23 and a copy of your
receipt must be completed and returned within 10 days of purchase to
validate your warranty.
Preparing for Assembly
• Be sure to unpack all of the parts included in this package. Check
inside any tubes or sleeves. Save all packing material until the
product is fully assembled and functional.
• Compare the parts in your package with the Parts Identifier
description on page 4 and 5.
• After unpacking large products, some disassembly may be required
prior to beginning the assembly.
Tools Required
• Allen Wrench (#22)
• Phillips Screwdriver (not included)
• Flat Blade Screwdriver (not included)
• Level (not included)
• Electric screwdriver may be helpful. CAUTION: You must set at
LOW TORQUE and use extreme caution because you could
overtighten the hardware, strip the screws, or damage the table.

GLD Products Sheffield Foosball Table
Item 64-0930
7 1-800-225-7593
www.gldproducts.com
Assembly Tips
Make sure you understand the following before you begin to assemble your game table.
1. READ THIS MANUAL all the way through before beginning assembly.
2. When installing parts that have more than one bolt, start ALL bolts in that part by hand
before tightening anything.
3. Some drawings or images in this manual may not look exactly like your product.
4. You may need a second adult to assist with this assembly.
Note: Save all packing materials until the parts have been inspected and the table is
assembled.
Unpack the Pieces
• Lay the box on a flat surface (floor). You may want this near your
area of assembly.
• Unpack the boxes and part bags. Inspect and count the parts. The
Parts Identifier page can be used to record your results.
• If any parts are damaged or missing, contact GLD Customer
Service.
• Missing fasteners may be purchased at a hardware store using the
descriptions on the Parts Identifier pages.
Games
This game table includes the equipment and game pieces for Foosball. The rules for this
game are not discussed in this manual.

GLD Products Sheffield Foosball Table
Item 64-0930
3957-522-008-18
www.gldproducts.com

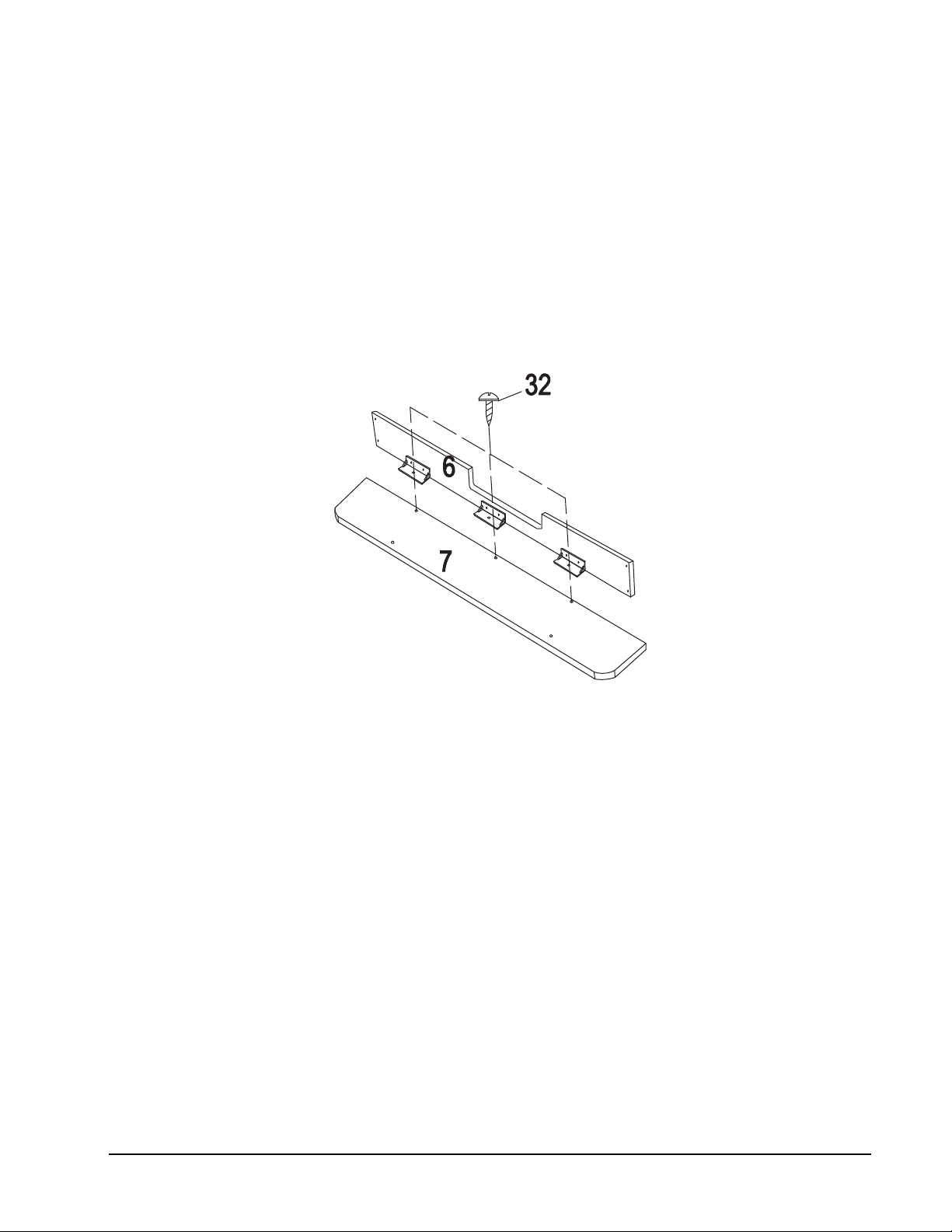

STEP 1 - ASSEMBLE GOAL PANELS
1. Locate one of the top rail end pieces (#7). Lay it down with the predrilled screw holes
facing up.
2. Take one of the goal panels (#6) and position the three brackets over the holes in the top
rail end piece.
3. Use three screws (#32) to secure the two pieces together.
4. Repeat for the second goal panel.

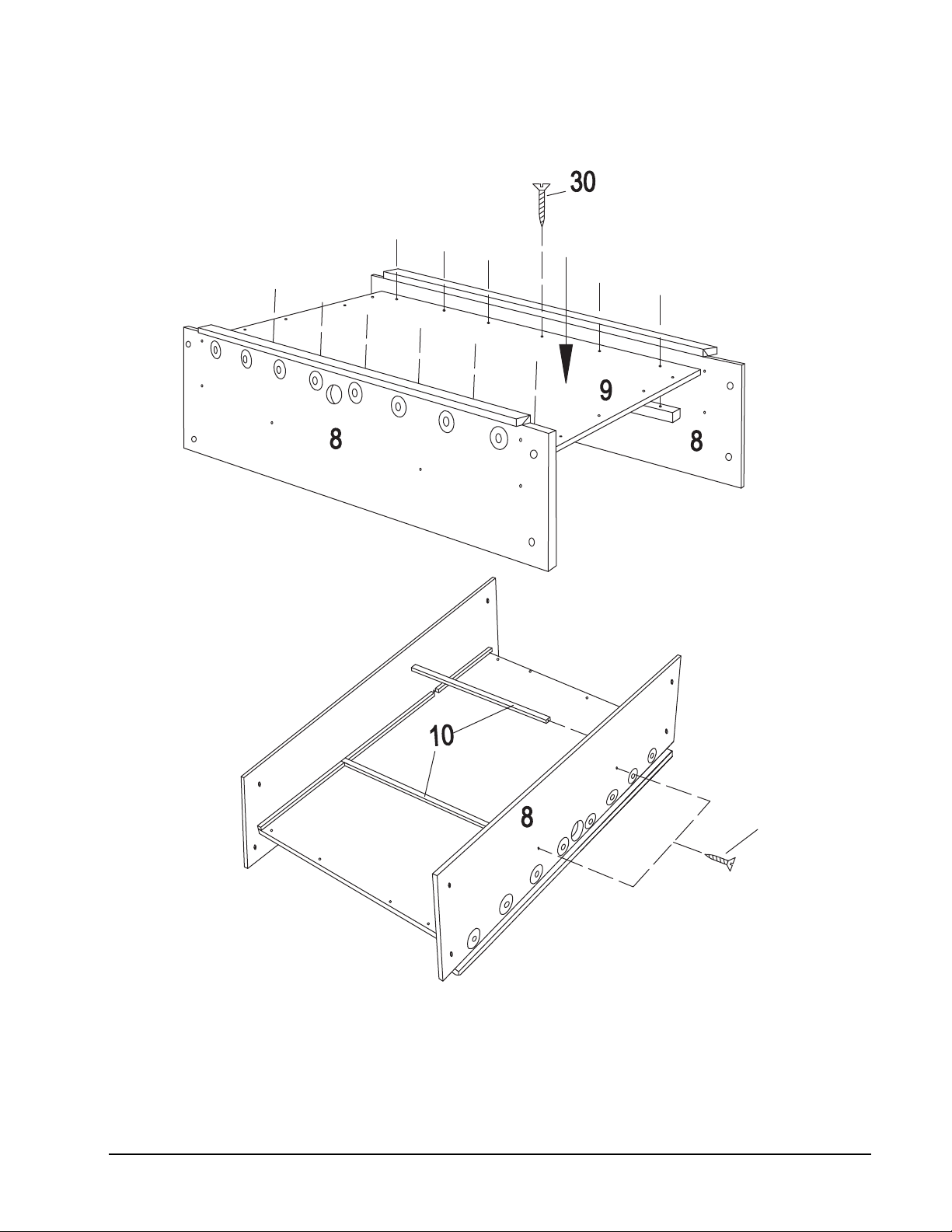

STEP 2 - ASSEMBLE THE PLAYING SURFACE
1. Hold one of the side panels (#8) upright. With the help of a second person, hold the
playing surface (#9) in position on top of the supports, playing side up.
2. Line up the screw holes of the playing surface (#9) with the pre-drilled holes of the
supports.
3. Use six screws (#30) to secure the two pieces together.
4. Position the second side panel (#8) on the opposite side of the playing surface (#9). Line
up the screw holes and use six screws (#30) to secure the two pieces together.
5. Turn the assembly over.
6. Position the two support bars (#10) in the gaps of the side supports.
7. Use four screws (#31) to go through the side panels (#8) and into the ends of the support
bars (#10). Tighten the screws.

GLD Products Sheffield Foosball Table
Item 64-0930
3957-522-008-19
www.gldproducts.com
31

GLD Products Sheffield Foosball Table
Item 64-0930
3957-522-008-110
www.gldproducts.com
STEP 3 - ATTACH THE GOAL PANELS
1. Position one of the assembled goal panels at one end of the table. Line up the screw
holes.
2. Use four screws (#31) through the side panels and into the goal panel to secure the
pieces.
3. Use four screws (#30) to secure the playing field to the goal panel.
4. Tighten all the screws.
5. Repeat for the second goal panel.

GLD Products Sheffield Foosball Table
Item 64-0930
3957-522-008-111 www.gldproducts.com
STEP 4 - ASSEMBLE THE OUTER LEG
1. Select one of the leg pieces (#1 or #2) and lay it flat on the floor.
2. Position the leg center piece (#3) to line up the four screw holes with the pre-drilled holes
in the leg piece.
3. Use four screws (#30) and secure the leg center piece (#3) to the first leg piece (#1 or
#2).
4. Lay the second leg piece on the floor. Position the assembly to line up the four remaining
screw holes with the pre-drilled holes in that leg piece.
5. Use four screws (#30) and secure the leg piece to the assembly.
6. Repeat for the remaining three legs.
2
30
1
3

GLD Products Sheffield Foosball Table
Item 64-0930
3957-522-008-112 www.gldproducts.com

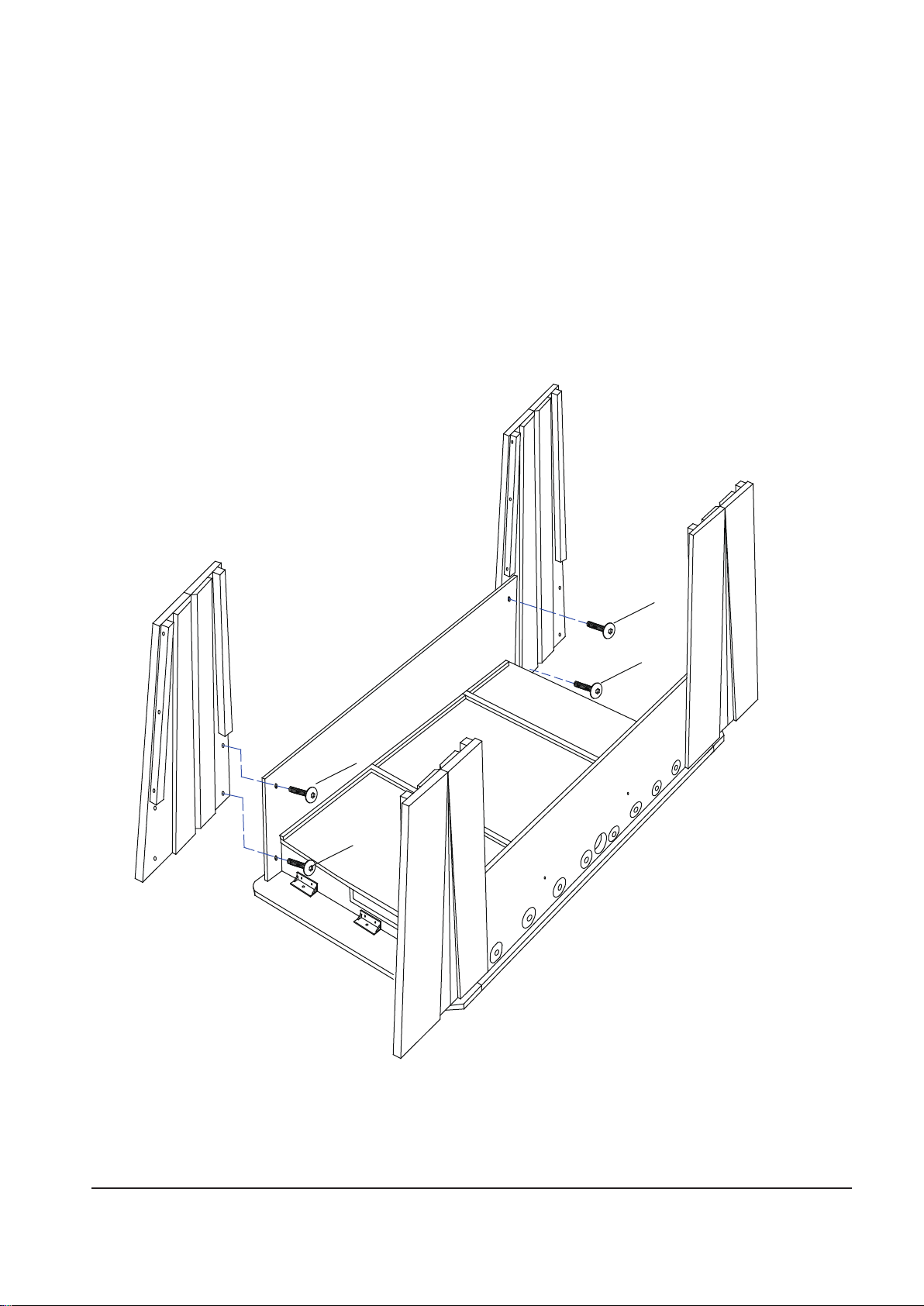

STEP 5 - ATTACH THE LEGS
1. Position one of the assembled legs at one of the table corners. The leg will be to the
outside of the end and side panels.
2. Finger start four bolts (#34) through the panel and into the threaded hole in the leg.
3. Tighten the four bolts using the allen wrench (#22).
4. Repeat for the other four legs.
34
34
34
34

GLD Products Sheffield Foosball Table
Item 64-0930
3957-522-008-113 www.gldproducts.com
STEP 6- ATTACH THE END PANELS
1. Position one of the end panels (#11) so the angle brackets line up with the pre-drilled
holes in the top end rail.
2. Use two screws (#32) to secure the end panel.
3. Repeat for the second end panel.
NOTE: Until the legs are attached the side and end panels are not fully supported. Do not
pull or lean on these panels.
11
32

GLD Products Sheffield Foosball Table
Item 64-0930
3957-522-008-114
www.gldproducts.com
STEP 7 - ASSEMBLE THE INNER LEG
1. Select one of the inner leg (#4) pieces. Do not bend the hinge of the leg backwards.
Damage will occur.
2. Position the leg piece with the assembly from Step 1. Notice that the leg gets wider at
one end.
3. Insert six screws (#30) and tighten.
30
4
34
4. Finger start four bolts (#34) through the panel and into the threaded hole in the leg.
5. Tighten the four bolts using the allen wrench (#22).

GLD Products Sheffield Foosball Table
Item 64-0930
3957-522-008-151
www.gldproducts.com

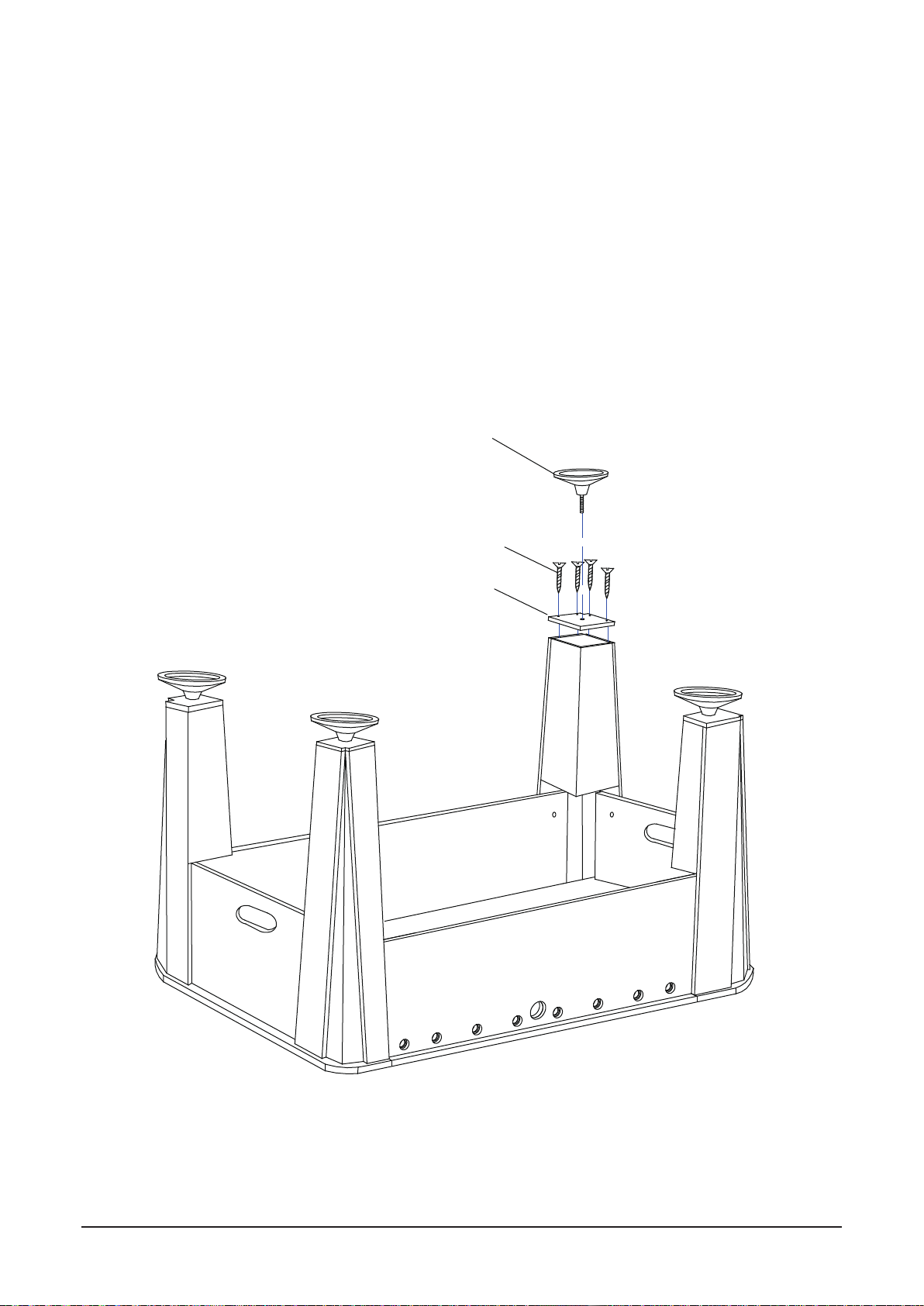

STEP 8 - ASSEMBLE THE LEG BASE
1. Position a leg assembly with the small end up.
2. Place a leg base (#5) on top. The four screw holes will be over the pre-drilled holes in the
outer pieces.
3. Use four screws (#31) to secure the base to the leg assembly.
4. Screw a leg leveler (#29) halfway into the hole in the bottom of the leg.
5. Repeat for the other three legs.
29
31
5

GLD Products Sheffield Foosball Table
Item 64-0930
16 1-800-225-7593
www.gldproducts.com

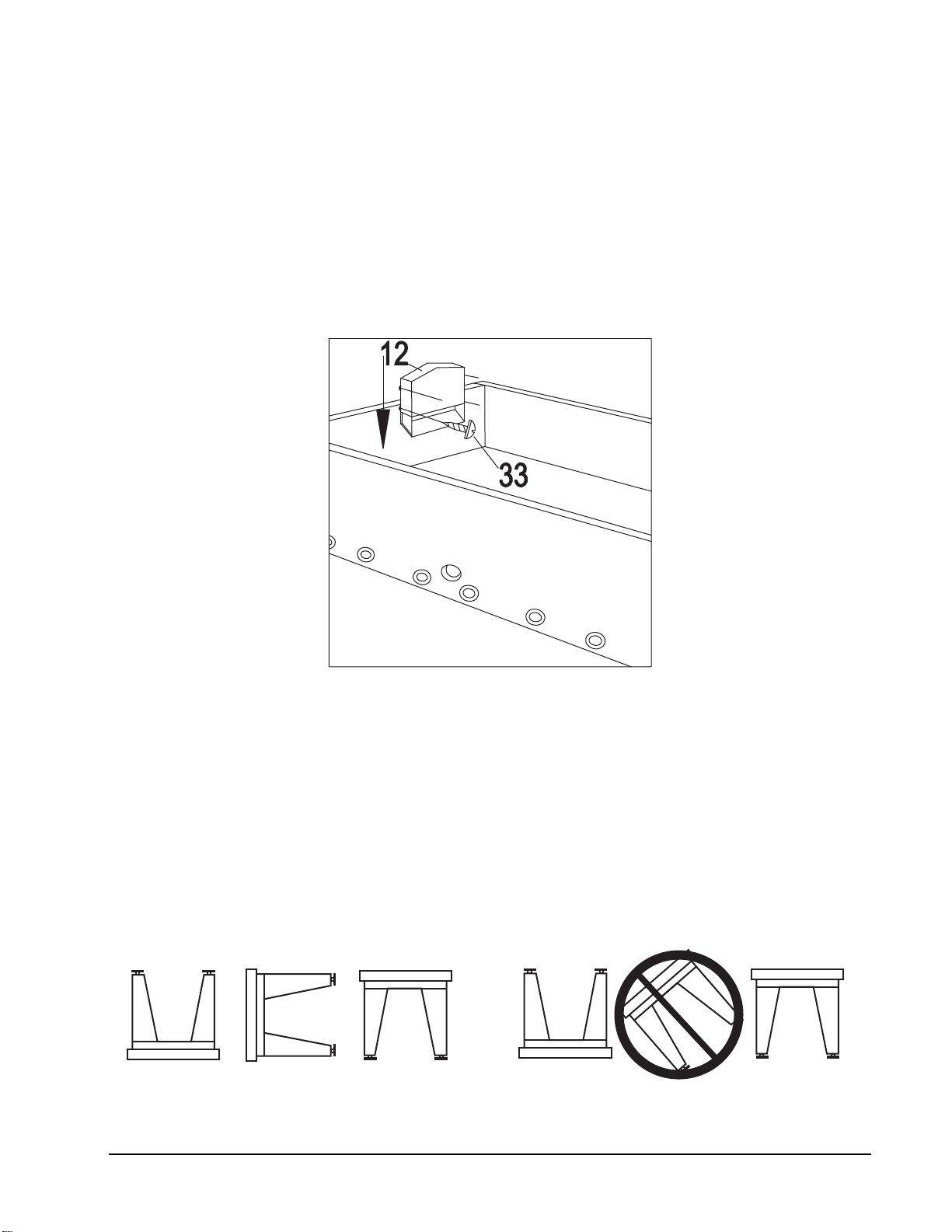

STEP 9 - ATTACH THE GOAL BOX
1. Position one of the goals (#12) at one end of the table. The screw holes should line up
with the pre-drilled holes in the end panel. The goal will allow the soccer ball to enter
from the playing surface and drop down to be retrieved for the next game action.
2. Use four screws (#33) to secure the goal box.
3. Repeat for the second goal box.
STEP 10 - TURN THE TABLE OVER
The table is ready to be turned over.
USE AT LEAST TWO PEOPLE TO LIFT THE TABLE ASSEMBLY AND TURN IT OVER TO
REST ON THE LEGS.
DO NOT ROLL THE TABLE OVER. This will place a sideways force on the legs. The legs
should be off the floor until the table assembly is rotated completely. Set the table down.
DO THIS NOT THIS

GLD Products Sheffield Foosball Table
Item 64-0930
17 1-800-225-7593
www.gldproducts.com
STEP 11 - INSTALL FIELD RAMPS AND ENTRY CUPS
1. Locate all six pieces of the playing field ramps (#13, 14 and 15). Do not remove the
protective paper. The playing surface should be clean and clear from debris.
2. Position the six pieces on the playing field. This will make you familiar with the location
and fit of each piece.
3. Remove one of the pieces and peel off the protective paper. This will reveal a glue
surface.
4. Carefully lower the piece back into position with the edge against the sidewall and the
glue side against the playing surface.
5. When the ramp is flat against the playing surface, it can be pressed down to lock into
position.
6. Repeat for the remaining five ramps until they are all “glued” in place.
7. Locate one inner ball entry cup (#17) and one outside ball entry cup (#16).
8. Place the outside cup (#16) into the large hole on the side of the table. From the inside of
the table, push the inside entry cup (#17) into the same hole.
9. Rotate the outside cup so the opening is level and facing up. A soccer ball dropped into
this cup will fall onto the playing field.
10.Secure the inside and outside cups with two screws (#35) each.
11.Repeat for the second cup.

GLD Products Sheffield Foosball Table
Item 64-0930
18 1-800-225-7593
www.gldproducts.com

GLD Products Sheffield Foosball Table
Item 64-0930
19 1-800-225-7593
www.gldproducts.com
STEP 12 - INSTALL PLAYER RODS
Use the illustration to layout the player rods. There are three types of player rods, two hole
(#19), three hole (#18) and five hole (#20).
1. Assemble the handles (#26) to the player rods. Find the end of the player rod that has a
hole approx. 6 inches from the end. Stand the rod up and place the handle (#15) over the
end. Use a mallet to hammer the handle onto the rod.
1. Select a player rod (#18, 19, or 20) and insert the end into the correct bushing on the
side of the table.
NOTE: The handles for each color team will be on the same side.
2. Slide a bumper (#23) followed by a washer (#21) onto the rod.
3. Slide players (#24 or 11) onto the rod. The “feet” may not have the same shape on both
sides.
4. After the last player is on the rod, place a plastic washer (#21) then a bumper (#23) onto
the rod. Push the end of the rod into the second bushing.
NOTE: The player rod should spin freely even though the players are not secured in place.
5. Secure the players (#24 or 25) to the player rod using a bolt (#36) and lock nut (#37).
Tighten to keep the players from moving.
6. On the end of the player rod away from the handle, push an end cap (#27) over the rod.
7. Repeat for the remaining player rods. Pay attention to team colors and foot direction.

GLD Products Sheffield Foosball Table
Item 64-0930
20 1-800-225-7593
www.gldproducts.com
GrayGray
