GLD Products Manchester Foosball Table User manual

GLD Products Manchester Foosball Table
Item 64-0902
Item 64-0902
July 2012 UPC Code 7-19265-53281-1
MANCHESTER FOOSBALL
TABLE
Replacement Parts
Order direct at www.gldproducts.com
or call our Customer Service department at
[phone]
8 am to 4:30 pm Central Standard Time

GLD Products Manchester Foosball Table
Item 64-0902
Staple your receipt here.
Important: A copy of your receipt will be needed to activate your warranty (see page 14).

GLD Products Manchester Foosball Table
Item 64-0902
3 1-800-225-7593
www.gldproducts.com
Congratulations and THANK YOU for purchasing the
Manchester Foosball Table. You have chosen a
product that should provide years of entertainment.
To assist you with customer service and warranty
claims, staple your receipt to the inside cover, then
keep this manual in a safe place for future reference.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
This manual may have been updated. For the latest manual visit the GLD Products website.
Place your package near the location where it will be used. Carefully unpack
all components and verify you have all the correct pieces.
If you notice missing or defective parts, please call us at:
1-800-225-7593.
Please read and understand all instructions before beginning assembly.
This assembly will require 2 adults.
This product is not for use by children without adult supervision.

GLD Products Manchester Foosball Table
Parts Identifier Item 64-0902
4 1-800-225-7593
www.gldproducts.com
Parts Identifier
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
Part
No./
Qty
Illustration/
Order Number
1
Qty.
2
Side Apron
Order No. 3-232
2
Qty.
2
End Apron
Order No. 3-233
3
Qty.
1
Soccer Playfield
Order No. 3-234
4
Qty.
2
Support Brace
Order No. 3-235
5
Qty.
4
Leg
Order No. 3-236
6
Qty.
2
Goal Box
Order No. 3-237
7
Qty.
2Allen Wrench
Order No. 3-190
8
Qty.
16 8 x 30 mm Leg Bolt
Order No. 3-238
9
Qty.
16 22 x 8.5 mm Washer
Order No. 3-174
10
Qty.
8
3.5 x 10.5 mm Washer Head
Screw
Order No. 3-183
11
Qty.
4
3.5 x 14 mm Flat Head
Screw
Order No. 3-239
12
Qty.
4
3.5 x 35 mm Washer Head
Screw
Order No. 3-240
13
Qty.
23.5 x 12 mm Flat Head Screw
Order No. 3-241
14
Qty.
8
3.5 x 33 mm Flat Head
Screw
Order No. 3-242
15
Qty.
52
3.5 x 7 mm Round Head
Screw
Order No. 3-243
16
Qty.
2Three Player Rod
Order No. 3-244
17
Qty.
2Two Player Rod
Order No. 3-245
18
Qty.
2Three Player Rod
Order No. 3-246
19
Qty.
2Five Player Rod
Order No. 3-247
20
Qty.
13 Player (White)
Order No. 3-248
21
Qty.
13 Player (Blue)
Order No. 3-249
22
Qty.
4Leg Leveler
Order No. 3-250
23
Qty.
2Ball Entry Cup
Order No. 3-251
24
Qty.
8Hand Grip
Order No. 3-252

GLD Products Manchester Foosball Table
Parts Identifier Item 64-0902
5 1-800-225-7593
www.gldproducts.com
Parts Identif
25
Qty.
8End Cap
Order No. 3-253
26
Qty.
2Scorer
Order No. 3-254
27
Qty.
16 Rubber Bumper
Order No. 3-255
28
Qty.
2
Goal Ring (pre-installed)
Order No. 3-256
29
Qty.
16
Two-Piece Player Rod
Bushing (pre-installed)
Order No. 3-257
30
Qty.
2
End Ball Return Ring
(pre-installed)
Order No. 3-258
31
Qty.
2Soccer Ball
Order No. 3-259

GLD Products Manchester Foosball Table
Item 64-0902
6 1-800-225-7593
www.gldproducts.com
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST
Please see page 14.
GLD Products
Available 8 am to 4:30 pm Central Standard Time
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
For all claims, please have your receipt and item number when you call. The
product item number can be found on the front cover.
If you are instructed to return the product for service, you are
responsible for shipping the unit at your expense.
PRODUCT REGISTRATION
Important: The product registration form on page 15 and a copy of your
receipt must be completed and returned within 10 days of purchase to
validate your warranty.
Preparing for Assembly
• Be sure to unpack all of the parts included in this package. Check
inside any tubes or sleeves. Save all packing material until the
product is fully assembled and functional.
• Compare the parts in your package with the Parts Identifier
description on page 4 and page 5.
• After unpacking large products, some disassembly may be required
prior to beginning the assembly.
Tools Required
• Allen Wrench (#7)
• Phillips Screwdriver (not included)
• Flat Blade Screwdriver (not included)
• Level (not included)
• Electric screwdriver may be helpful. CAUTION: You must set at
LOW TORQUE and use extreme caution because you could
overtighten the hardware, strip the screws, or damage the table.

GLD Products Manchester Foosball Table
Item 64-0902
7 1-800-225-7593
www.gldproducts.com
Assembly Tips
Make sure you understand the following before you begin to assemble your game table.
1. READ THIS MANUAL all the way through before beginning assembly.
2. When installing parts that have more than one bolt, start ALL bolts in that part by hand
before tightening anything.
3. Some drawings or images in this manual may not look exactly like your product.
4. We recommend having a second adult to assist with this assembly.
Note: Save all packing materials until the parts have been inspected and the table is
assembled.
Unpack the Pieces
• Lay the box on a flat surface (floor). You may want this near your
area of assembly.
• Unpack the boxes and part bags. Inspect and count the parts. The
Parts Identifier page can be used to record your results.
• If any parts are damaged or missing, contact GLD Customer
Service.
• Missing fasteners may be purchased at a hardware store using the
descriptions on the Parts Identifier pages.
Games
This game table includes the equipment and game pieces for Foosball. The rules for this
game are not discussed in this manual.

GLD Products Manchester Foosball Table
Item 64-0902
8 1-800-225-7593
www.gldproducts.com

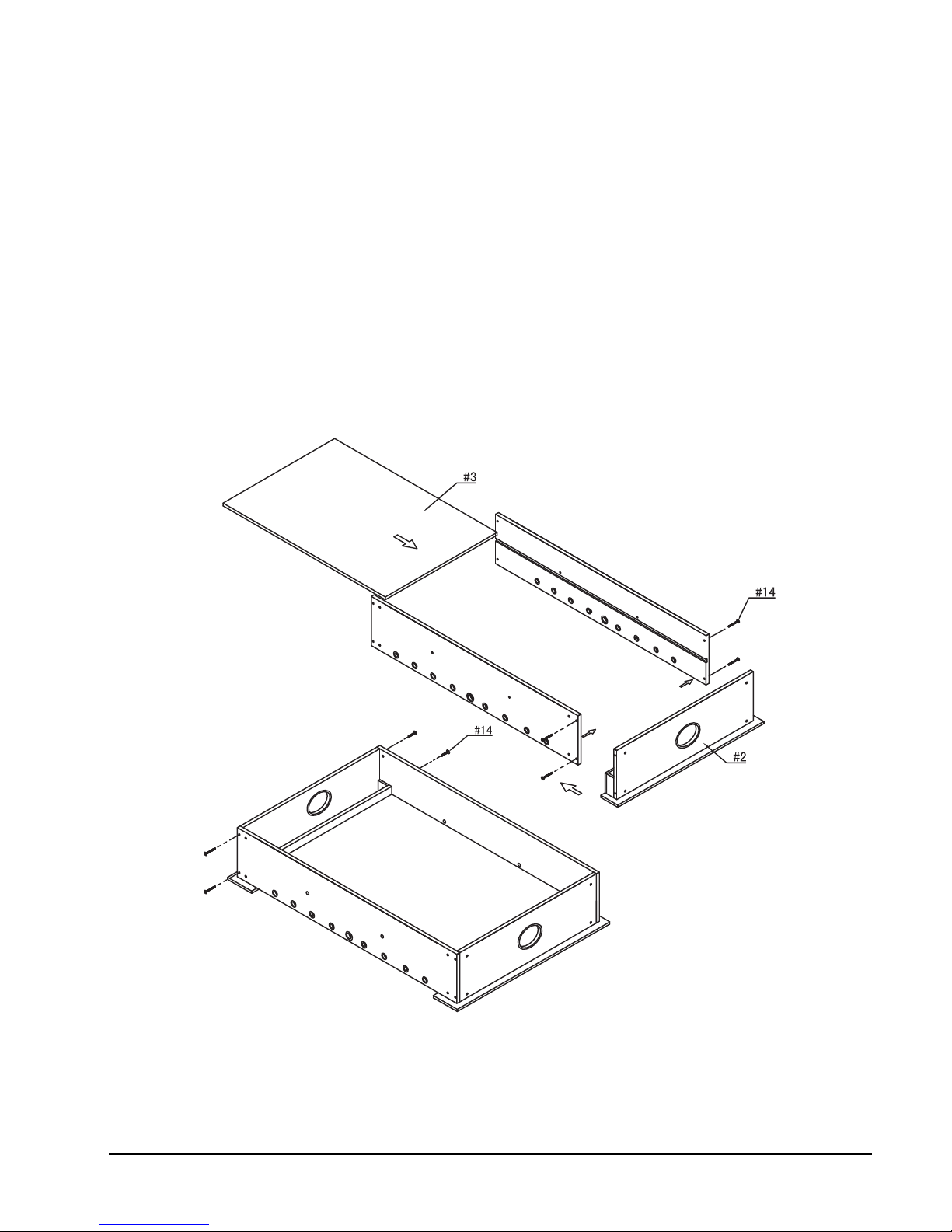

STEP 1 - ASSEMBLE THE TABLE
1. Attach one end apron (#2) between side aprons (#1). Secure with two flat head screws
(#14) for each side apron.
2. Locate playfield (#3) and slide the playfield with graphics facing down as shown. If the
field does not slide smoothly, check to be sure you have not overtightened any screws or
the playfield is not caught in the slot.
3. Repeat step 1 to attach the other end apron (#2) to side aprons (#1). Center the playfield
between the two end aprons, and make sure that the playfield is in the grooves of the
side aprons and end aprons.
4. Tighten all the connections.

GLD Products Manchester Foosball Table
Item 64-0902
9 1-800-225-7593
www.gldproducts.com

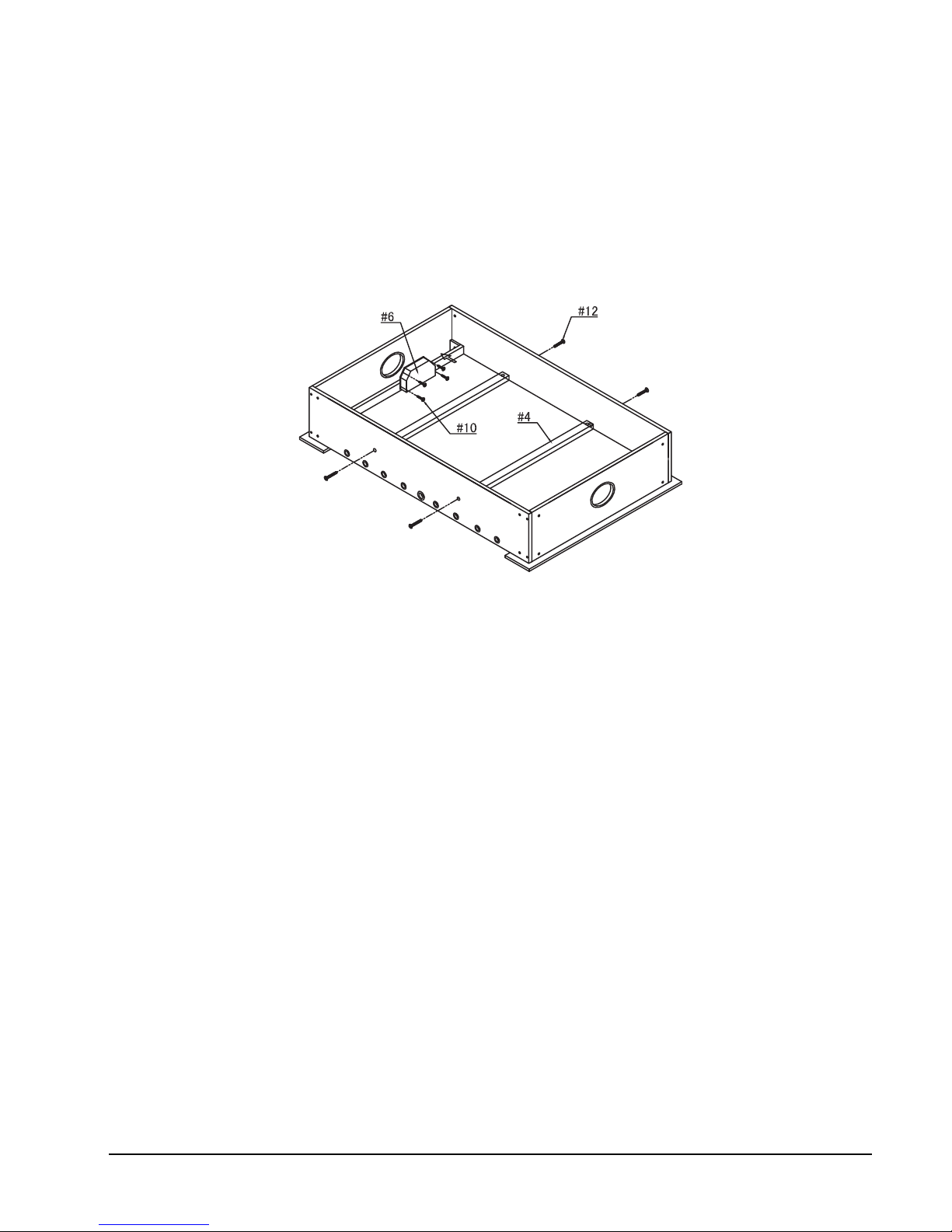

STEP 2 - ASSEMBLE THE SUPPORTS AND GOALS
1. Place two support braces (#4) on playfield (#3) as shown. Attach them using two washer
head screws (#12) on each side.
2. Attach the two goal boxes (#6) to the end aprons using four washer head screws (#10)
on each goal box.

GLD Products Manchester Foosball Table
Item 64-0902
10 1-800-225-7593
www.gldproducts.com

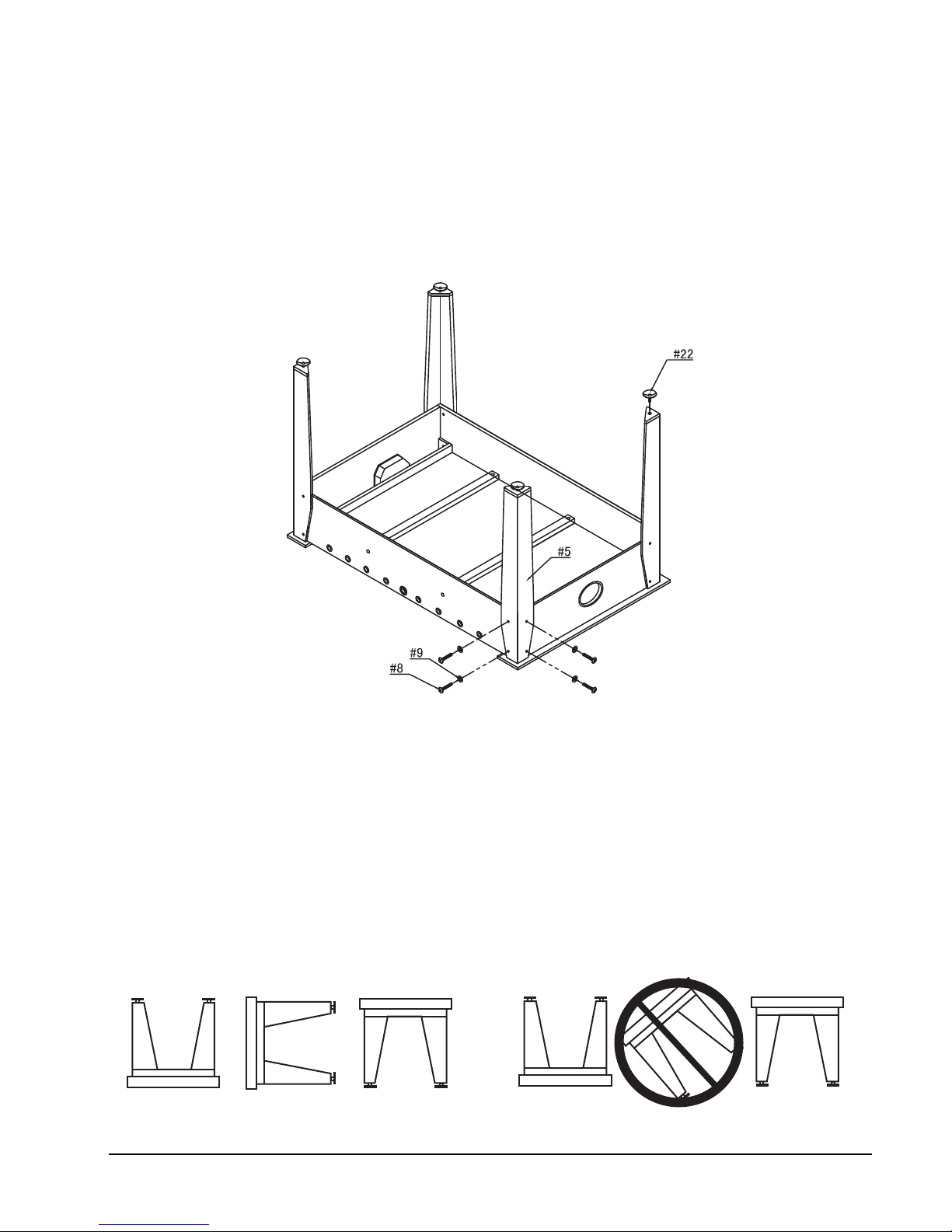

STEP 3 - ATTACH THE LEGS
1. Attach the legs (#5) to the foosball table using four leg bolts (#8) and four washers (#9)
per leg.
2. Locate the leg levelers (#22) and screw one halfway into each leg.
STEP 4 - TURN THE TABLE OVER
The table is ready to be turned over.
USE AT LEAST TWO PEOPLE TO LIFT THE TABLE ASSEMBLY AND TURN IT OVER TO
REST ON THE LEGS.
DO NOT ROLL THE TABLE OVER. This will place a sideways force on the legs. The legs
should be off the floor until the table assembly is rotated completely. Set the table down.
DO THIS NOT THIS

GLD Products Manchester Foosball Table
Item 64-0902
11 1-800-225-7593
www.gldproducts.com
STEP 5 - INSTALL PLAYER RODS
Use the illustration to layout the player rods. There are four types of player rods, two hole
(#17), three hole (#16 and #18) and five hole (#19).
1. Assemble the handles (#24) to the player rods. The handle is installed on the end of the
rod that has the greatest distance from the end to the first player hole. Stand the rod up
and place the handle (#24) over the end. Use a mallet to hammer the handle onto the
rod.
NOTE: To make the handles easier to attach, spray a little window cleaner on the rod ends
prior to installation and tap on gently with a hammer.
2. Select a player rod (#16, 17, 18 or 19) and insert the end into the correct bushing on the
side of the table.
NOTE: The handles for each color team will be on the same side.
Player rods #16 and #18 are both for three players. When assembling these rods
the two #16 rods are for one team and the two #18 rods are for the opposite team.
3. Slide a bumper (#27) onto the rod.
4. Slide players (#20 or 21) onto the rod. The “feet” may not have the same shape on both
sides.
5. After the last player is on the rod, place a bumper (#27) onto the rod. Push the end of the
rod into the second bushing.
NOTE: The player rod should spin freely even though the players are not secured in place.
6. Secure the players (#20 or 21) to the player rod using a round head screw (#15). Tighten
to keep the players from moving.
7. On the end of the player rod away from the handle, push an end cap (#25) over the rod.
8. Repeat for the remaining player rods. Pay attention to team colors and foot direction.

GLD Products Manchester Foosball Table
Item 64-0902
12 1-800-225-7593
www.gldproducts.com
#16
#17
#19
#18
#17
#19
#18
#16

GLD Products Manchester Foosball Table
Item 64-0902
13 1-800-225-7593
www.gldproducts.com

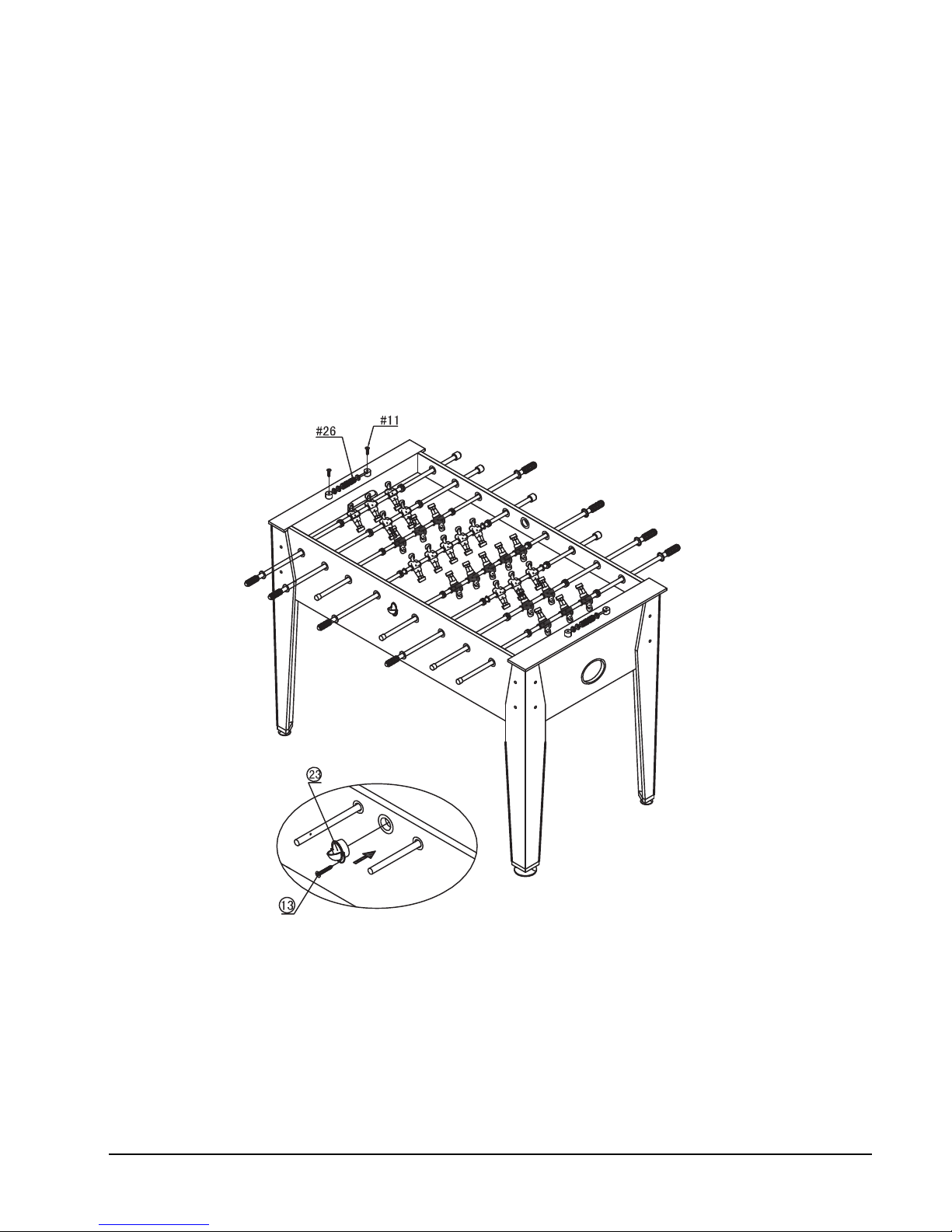

STEP 6- FINAL ADJUSTMENTS
1. Attatch the two scorers (#26) to the side apron using two flat head screws (#11) on each
scorer.
2. Attach the two ball return cups (#23) to the side aprons (#1) using one flat head screw
(#13) per side.
3. Move the table to the place where it will be used. Check the level of the table with a
carpenters level placed cross-wise and length wise on the top of the side and end
panels.
4. Re-adjust leg levelers as necessary.
Care and Use of your Table
• This product is intended for INDOOR use only.
• DO NOT sit, climb, or lean on the table.
• DO NOT drag the table when moving it. This will damage the legs.
• Keep your table covered.
• To clean the hard surfaces spray a cloth with a mild cleaner and
wipe.

GLD Products Manchester Foosball Table
Item 64-0902
14 1-800-225-7593
www.gldproducts.com
90-DAY LIMITED WARRANTY
The Manufacturer warrants to the original retail purchaser that this product is free from
defects in material and workmanship under normal use and conditions for a period of ninety
(90) days from the date of original purchase. The Manufacturer’s liability is limited to the
repair or replacement, at its option, of any defective product and shall not include any liability
for indirect, incidental or consequential damages of any kind. Should this product become
defective due to material or workmanship within the warranty period, contact our Customer
Service Department. This warranty is not transferable and does not cover normal wear and
tear or damage caused by improper usage, negligence, misuse, abuse, transportation
damage, acts of nature, or accident (including failure to follow the instructions in this
manual). It does not cover expendable items such as batteries, light bulbs, fuses,
accessories, cosmetic parts and other items that wear out due to normal usage. This
warranty is also void if the product is disassembled and reassembled, damaged, modified
from its original state, or used for other than indoor personal residential use (no commercial
or rental applications).
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
IF YOU HAVE A WARRANTY CLAIM, CALL US FIRST (8 - 4:30 CST)
Please have your receipt and item number (found on the front cover) when you call.
GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593
Fax: [phone]
Email: [email protected]
Web: www.gldproducts.com
If you are instructed to return the product for service, you are responsible for
shipping the unit at your expense to the above address in packaging that will protect
against further damage. All warranty or repair requests require a Return
Authorization Number prior to returning the item.
PRODUCT REGISTRATION
Important: The product registration form on page 15 must be completed and returned
along with a copy of your receipt within 10 days of purchase to validate your warranty.

REGISTER YOUR PRODUCT Place postage here
Complete this form, include a copy of your receipt, fold, tape (do
not staple) and return within 10 days of purchase. This protects
your warranty and will help us develop new products!
GLD Products
Warranty Department
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1. What are the top two reasons that influenced the purchase of this product? Select two.
Name Date of Purchase
Address Phone-Day
City Phone-Evening
State Zip Email
Purchase Price:
Item: 64-0902 Manchester Foosball Table
Store Name:
Brand reputation Prior experience with another GLD product
Saw in an advertisement Color/appearance
Quality/durability Other
Value for price
www.gldproducts.com
GAME TABLES HOME CASINO
GAMES AND ACCESSORIES BILLIARD CUES
BILLIARD ACCESSORIES DARTBOARDS
SOFT-TIP DARTS STEEL-TIP DARTS
FLIGHTS AND SHAFTS DART CASES AND ACCESSORIES
Fold here second.
Fold here first.
Cut here.

2. How did you become aware of this product? Select two.
3. Rate your satisfaction with each of the following?
4. Were there any parts missing?
5. Based on your experience, would you buy another GLD product?
6. Is this the first GLD product that you’ve owned? If No, what other product have you owned?:
7. Have you owned products from:
8. When did you decide to purchase this product?
9. How many times per month will you use it?
10. Are you the intended user of this product?
11. Where will you use this product?
12. Please tell us your gender? 13. And your marital status?
14. Age?
15. Which best describes your family income?
16. Education:
Remember to attach a copy of your receipt.
Saw in an advertisement Saw it in the store
Saw or used a friend’s or relative’s Recommended by another person
Received as a gift Other
Excellent Good Fair Poor
Assembly instructions
Ease of assembly
Packaging
Overall product satisfaction
Yes No If so, which ones? Order No.
Yes No
Yes No
Sportcraft Harvard Classic Sport Other
Before entering the store. While in the store/impulse purchase
1 to 3 4 to 8 9 to 15 16 +
Yes No, indicate who:
Home Other:
Male Female Married Single
Under 25 25 - 40 40 - 60 Over 60
Under $25,000 $25,000 - $49,999 $50,000 - $99,999
$100,000 - 149,999 $150,000 - $199,999 Over $200,000
Some high school College degree
Completed high school Graduate degree

Manchester Foosball Table
Item 64-0902
17 1-800-225-7593
www.gldproducts.com
Parts Re-Order Form
Name Date
Address Phone-Day
City Phone-Evening
State Zip Email
Order No. Description
Unit
Price
(each)
Qty. Total
Amount
3-232 Side Apron 40.00
3-233 End Apron 30.00
3-234 Soccer Playfield 25.00
3-235 Support Brace 6.00
3-236 Leg 15.00
3-237 Goal Box 10.00
3-190 Allen Wrench 1.00
3-238 8 x 30 mm Leg Bolt 2.00
3-174 22 x 8.5 mm Washer 0.50
3-183 3.5 x 10.5 mm Washer Head Screw 0.25
3-239 3.5 x 14 mm Flat Head Screw 0.20
3-240 3.5 x 35 mm Washer Head Screw 0.20
3-241 3.5 x 12 mm Flat Head Screw 0.20
3-242 3.5 x 33 mm Flat Head Screw 0.20
3-243 3.5 x 7 mm Round Head Screw 0.20
3-244 3 Player Rod 16.00
3-245 2 Player Rod 16.00
3-246 3 Player Rod 16.00
3-247 5 Player Rod 16.00
3-248 Player (White) 2.50
3-249 Player (Blue) 2.50
3-250 Leg Leveler 10.00
3-251 Ball Entry Cup 7.50
3-252 Hand Grip 10.00
3-253 End Cap 1.00
3-254 Scorer 5.00
3-255 Rubber Bumper 1.50
3-256 Goal Ring 7.00
3-257 2 Piece Player Rod Bushing 3.00
3-258 End Ball Return Ring 4.00
3-259 Soccer Ball 1.50
Subtotal
Shipping will be added. If paid by Check or Money Order, call for quote. S/H
5.1% Waukesha Wisconsin tax will apply (subject to change). Tax
Total
Mail To: GLD Products
S84 W19093 Enterprise Drive
Muskego, WI 53150 USA
1-800-225-7593 · FAX [phone]
Email: [email protected]
Web Site: www.gldproducts.com

GLD Products Manchester Foosball Table
Item 64-0902
1-800-225-7593 18
www.gldproducts.com
Method of Payment
_________Check or Money Order
_________ Credit Card
_____ Visa _____ MasterCard _____ Discover _____ American Express
Card #________________________________________________________
Security Code #__________________Billing Address Zip code____________
Signature______________________________________Exp. Date________
Shipping Address
Name___________________________________________________________________________________
Address___________________________________________Phone_________________________________
City______________________________________________State________________Zip________________

GAME TABLES
HOME CASINO
GAMES AND ACCESSORIES
BILLIARD CUES
BILLIARD ACCESSORIES
DARTBOARDS
SOFT-TIP DARTS
STEEL-TIP DARTS
FLIGHTS AND SHAFTS
DART CASES AND ACCESSORIES
www.gldproducts.com

PROUD MANUFACTURER OF
S84 W19093 Enterprise Drive Muskego, WI 53150 USA
262.679.8730 or 1.800.225.7593 tele
262.679.8738 or 1.800.841.6944 fax
262.679.8739 international fax
Email: [email protected]
www.gldproducts.com
