Glensound Dante BELLA 32 Installation guide

BELLA 32
34 AUDIO INPUT NETWORK AUDIO
MONITOR
PRODUCT DETAILS
6 BROOKS PLACE, MAIDSTONE, KENT, ME14 1HE. ENGLAND. TEL: [phone]
Visit our Website at www.glensound.com FAX: [phone]

Page 2of 27
Glensound Electronics Ltd
Thank you for choosing a new Glensound product.
All rights reserved.
Information contained in this manual is subject to change without notice, if
in doubt please contact us for the latest product information.
If you need any help with the product then we can be contacted at:
Glensound Electronics Ltd
1 –6 Brooks Place
Maidstone
Kent
ME14 1HE
United Kingdom
Telephone: [phone]
Fax: [phone]
EMAIL ADDRESSES
General enquires: [e-mail]
Technical enquires: [e-mail]
Sales enquires: [e-mail]

Page 3of 27
PRODUCT WARRANTY:
All equipment is fully tested before dispatch and carefully designed to
provide you with trouble free use for many years.
We have a policy of supporting products for as long as possible and
guarantee to be able to support your product for a minimum of 10 years.
For a period of one year after the goods have been despatched the
Company will guarantee the goods against any defect developing after
proper use providing such defects arise solely from faulty materials or
workmanship and that the Customer shall return the goods to the
Company’s works or their local dealer.
All non-wear parts are guaranteed for 2 years after despatch and any
defect developing after proper use from faulty materials or workmanship
will be repaired under this warranty providing the Customer returns the
goods to the Company's works or their local dealer.

Page 4of 27
EU DECLARATION OF CONFORMITY FOR:
BELLA 32
32 Input Network Audio Monitor
This declaration of conformity is issued under the sole responsibility of
the manufacturer.
This equipment is manufactured by Glensound Electronics Ltd of Brooks
Place Maidstone Kent ME14 1HE is marked and conforms to the
following Union harmonisation legislation:
Low Voltage Directive: EN60065 and EN62368-1:2014
Emissions: BS EN55032:2015
Immunity: BS EN55035:2017
Signed for and on behalf of Glensound Electronics Ltd.
Gavin Davis, Managing Director
Maidstone, Kent, England
Date: 24/01/2020

Page 5of 27
RoHS DIRECTIVE
RoHS 2 Directive 2011/65/EU restricts the use of the hazardous
substances listed below in electrical and electronic equipment.
This product conforms to the above directive and for these purposes, the
maximum concentration values of the restricted substances by weight in
homogenous materials are:
Lead
0.1%
Mercury
0.1%
Hexavalent Chromium
0.1%
Polybrominated Biphenyls
0.1%
Polybrominated Diphenyl
Ethers
0.1%
Cadmium
0.01%

Page 6of 27
WASTE ELECTRICAL AND ELECTRONIC
EQUIPMENT REGULATIONS 2006 (WEEE)
Glensound Electronics Ltd is registered for business to business sales of
WEEE in the UK our registration number is:
WEE/JJ0074UR

Page 7of 27
GLENSOUND BELA 32
Handbook Contents
Issue 1
Description Page No.
Contents
PRODUCT WARRANTY: ....................................................................................................................................3
OVERVIEW...........................................................................................................................................................8
BELLA 32 PANEL LAYOUT...............................................................................................................................9
Front Panel .......................................................................................................................................................9
Front Panel Features.......................................................................................................................................9
Rear Panel......................................................................................................................................................13
Rear Panel Features .....................................................................................................................................13
AUDIO BLOCK DIAGRAM...............................................................................................................................15
Analogue Representation.............................................................................................................................15
NETWORK AUDIO OUTPUTS/ MIX BUSSES................................................................................................16
CONNECTING THE BELLA 32 TO A DANTE® NETWORK ........................................................................18
Getting Dante Controller...............................................................................................................................18
Connecting Bella 32 To The Network.........................................................................................................18
Audio Over IP Network..................................................................................................................................18
Running Dante Controller.............................................................................................................................19
Dante Controller TIP......................................................................................................................................20
Device Not Showing Up In Dante Controller..............................................................................................21
AES67 MODE......................................................................................................................................................22
UPDATING THE BROOKLYN CHIPSET.........................................................................................................24
SPECIFICATIONS ..............................................................................................................................................25
WIRING INFORMATION ..................................................................................................................................26
Standard XLR Pin Outs.................................................................................................................................26
Standard Headphone Wiring........................................................................................................................26
D9 Wiring & Loop Interconnecting To External Equipment.....................................................................27

Page 8of 27
OVERVIEW
Bella 32 is a multi buss summing matrix confidence monitor designed for outside
broadcast trucks, studios, theatre and professional audio applications. It is perfect
for easy and cost effective monitoring of multiple network audio sources, ideal for
busy production environments and perfect for monitoring multiple network intercom &
programme feeds.
The name Bella 32 refers to 32 network audio inputs, however there are also 2 local
analogue audio inputs on the rear so there are actually 34 front panel monitoring
selection switches.
34 front panel monitoring selection switches are provided enabling sources to easily
be turned on/off the loudspeaker monitoring mix, or solo’d to this mix if required.
Alongside a front panel shaft encoder these 34 front panel switches can also be
used to adjust input gain and pan the output of the channel.
In addition to the LS monitoring mix there are a number of fixed ratio mixers
providing simple but functional circuits between the network inputs and outputs.
There are 32 network audio outputs in total. These are pre-configured to provide all
possible scenarios of monitoring mix outputs (pre LS cut, pre LS Dim, Mono, stereo
etc). In addition to the monitoring mix network outputs there are two network outputs
derived from the two local analogue inputs and also 14 outputs from the internal
mixers.
Three internal 1kHz tone generators and three internal white noise generators
provide the final six network audio outputs. Three of each type are provided to
provide the 3 most commonly used line up levels in the World.
As well as the network audio outputs 3 line level analogue outputs are provided and
an AES3 output, these follow the switched/ solo mix buss.
The 2 front panel loudspeakers are driven from a DSP to compensate for their size,
the result is surprisingly good, with clear crisp vocals and highly intelligible
reproduction of wider band audio sources. They are driven from a class D amplifier
and have more than sufficient output level for most environments.

Page 9of 27
BELLA 32 PANEL LAYOUT
Front Panel

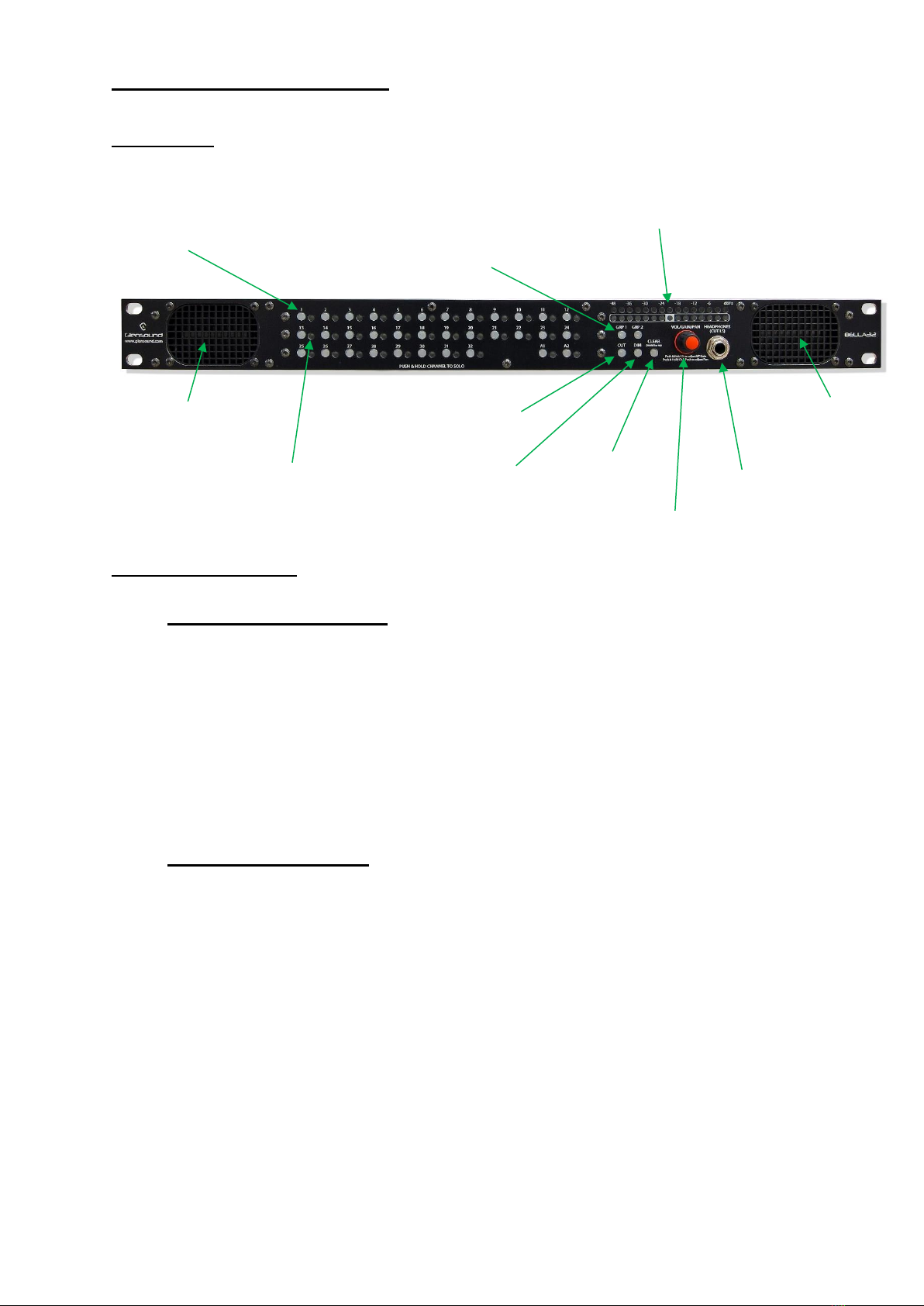

Front Panel Features
1. Channel On/ Solo Switch
These 34 round yellow illuminated switches turn the input of the associated
channel on/ off the loudspeaker mix, analogue, AES3 and mix/ solo network
audio outputs.
Pressing and holding one of these switches will solo its channels output to the
loudspeaker, analogue, AES3 and mix/ solo network audio outputs and will
also allow gain and pan to be added to the channel using the Master Output &
Function Control.
2. Group Select Switches
Two groups are provided for quick access to regularly monitored sets of audio
sources.
To recall a group just press the GRP 1 or GRP 2 switch and the current
selection of monitoring channels will be replaced by the pre-saved group
selection.
Once finished monitoring a group press the GRP 1 or GRP 2 button again and
the monitoring selection will return to its previous settings.
To add or remove channels on a group press and hold the GRP switch and
while holding the switch select the channel(s) to be added or removed.
Channel On/ Solo/
Select to adjust
Switch
Group Select
Switches
Master Output
& Function
Control
Cut Switch/
Indicator
Audio Presence
Indicator
Headphone
Socket
Level Meters/ Control
Position Indicator
Clear Switch
Left Panel
Loudspeaker
Right Panel
Loudspeaker
Dim Switch/
Indicator

Page 10 of 27
3. Level Meters/ Control Position Indicator
In normal use these audio level meters provide a PPM style visual indication
of the left and right audio channels output levels.
If however one of the channel on/ solo switches is pressed and held down,
then the top meter will indicate a mono’d mix of the selected channel’s stereo
output and the bottom meter is used to indicate the pan position of that
channel’s output. With the centre highlighted LED indicating that the channel
is panned centre.
4. Left Panel Loudspeaker
This internal loudspeaker is fed audio from the left output of the mix/ solo mix
buss. The front panel overall level control adjusts its volume and the front
panel Cut & Dim switches also affect it.
There is a rear panel GPI that can turn the internal loudspeakers off.
Inserting a headphone jack in the headphone socket also turns the
loudspeaker off.
5. Audio Presence Indicator
The round green LEDs next to the channel on/ solo switches indicate that
incoming audio has been detected on that channel.
It first illuminates dimly when an incoming audio circuit is detected at -40dBFs
or above. It then increases its brightness when the incoming audio level
reaches -20dBFs.
Once illuminated it will stay illuminated for 3 seconds after it detects the input
level to fall below -40dBFs.
The detection level is prior to the channels gain control.
If the Led Flashes this indicates that the input level is either clipping or within
1dB of clipping.
6. Cut LS Switch/ Indicator
When used this illuminated switch will cut both the front panel loudspeakers
and the analogue and AES3 outputs. It will also cut any of the network output
circuits that are after the cut control.
A rear panel GPI circuit also affects the state of this switch. If the rear GPI
circuit is made (i.e. on) then the switches internal LED will illuminate and
pressing the switch will not turn the cut on or off.
