Global American Inc. 2808000 User manual

2808000 User’s Manual
Version 1.1
Mini-ITX Motherboard with LGA 775 for Intel Pentium 4/Celeron D Processor

Copyrights
This document is copyrighted and all rights are reserved. It does not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental
or consequential damages arising from the use of inability to use the product or
documentation, even if advised of the possibility of such damages. The manufacturer
keeps the rights in the subject to change the contents of this document without prior
notices in order to improve the function design, performance, quality and reliability. The
author assumes no responsibility for any errors or omissions, which may appear in this
document, nor does it make a commitment to update the information contained herein.
Trademarks
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
All other trademarks, products and or product's name mentioned herein are mentioned
for identification purposes only, and may be trademarks and/or registered trademarks of
their respective companies or owners.

2808000User’s Manual
4 / 28
Table of Content
1. Introduction.................................................................................................................8
1.1 Description...........................................................................................................8
1.2 Packing Check List..............................................................................................9
1.3 Specifications....................................................................................................10
1.4 System Architecture..........................................................................................12
1.5 Dimensions........................................................................................................13
2. Hardware Configuration Setting..............................................................................15
2.1 Board Layout .....................................................................................................15
2.2 Jumpers & Connectors.....................................................................................16
2.3 Jumpers/Connectors Setting............................................................................17
2.3.1 RTC CMOS Clear Select (JP1)....................................................................17
2.3.2 Internal Audio for Chassis (AUDIO1)............................................................17
2.3.3 Audio Connector (AUDIO2)..........................................................................17
2.3.4 CD-In from CD-ROM (CD1)..........................................................................17
2.3.5 Chassis/CPU/System Connectors (CHS_FAN1, CPU_FAN1, SYS_FAN1)..17
2.3.6 Serial Port 1/2 Connector (COM1, COM2)...................................................17
2.3.7 DVI Connector (DVI1) ..................................................................................18
2.3.8 GPIO Connector (GPIO1).............................................................................18
2.3.9 IrDA Connector (IR1)....................................................................................18
2.3.10 PS/2 Keyboard & Mouse (KBMS1)...............................................................19
2.3.11 Front Side Indicators (PANEL1) ...................................................................19
2.3.12 24-pin ATX Power Connector (PWR1)..........................................................19
2.3.13 24-pin ATX Power Connector (PWR2)..........................................................19
2.3.14 Serial ATA 1/2/3/4 Connectors (SATA1, SATA2, SATA3, SATA4) .................19
2.3.15 SPDIF I/O Connector (SPDIF-O-1) ..............................................................19
2.3.16 Internal Speaker Connector (SPK1).............................................................19
2.3.17 LAN 1/2 & USB 1/2/3/4 Connectors (USB2LAN1, USB2LAN2)....................20
2.3.18 Internal USB 5/6/7/8 Connectors (USB3, USB4)..........................................20
2.3.19 VGA Connector (VGA1) ...............................................................................20

2808000User’s Manual
5 / 28
3. System Installation...................................................................................................22
3.1 Intel®LGA775 Processor...................................................................................22
3.1.1 Precautions ..................................................................................................22
3.1.2 Installing CPU...............................................................................................23
3.1.3 Installing Cooler Fan.....................................................................................24
3.2 Main Memory......................................................................................................25
3.3 Installing the Mini-ITX........................................................................................26
3.2.1 Intel 915GV Integrated Graphics Controller..................................................26
3.2.2 Dual Marvell Gigabit Ethernet Controllers ....................................................27

2808000User’s Manual
6 / 28
Revision History
Revision Date Comment
Rev.1.0 Dec. 2006 Initial release
Rev.1.1 Feb. 2007 1. GPIO information inserted.
2. PANEL1 signals modified.
3. DVI1 signals modified.

2808000User’s Manual
CHAPTER 1
7 / 28

2808000User’s Manual
8 / 28
1. Introduction
1.1 Description
The 2808000 all-in-one Mini ITX is designed to fit a high performance Pentium 4 LGA 775
based processor and compatible for high-end computer system application with PCI bus
architecture. It is made to meet today’s demanding pace, and keep complete compatibility
with hardware and software designed for the IBM PC/AT. The on-board devices support
one PCI slot and integrated graphics and on-board Dual Marvell Gigabit Ethernet controller.
It’s beneficial to build up a high performance and high data availability system for VARs, or
system integrators.
2808000 SERIES support the following processors:
zIntel ® Pentium®4 processor Socket LGA 775 supporting Hyper-Threading
technology based on 0.90 and 0.65 micron (CPUID = 0xh).(only support 5 series
and 6 series)
zIntel ® Celeron D®processor Socket LGA 775 supporting Hyper-Threading
technology based on 0.90 and 0.65 micron (CPUID = 0xh). (only support 5 series
and 6 series)
This Mini ITX can run with Intel Socket LGA 775 Pentium 4(HT) processors, and support
DIMM up to 2GB dual-channel DDR Memory. The enhanced on-board one PCI-IDE
interface can support 2 drives up to PIO mode 4 timing and Ultra ATA33/66/100
synchronous mode feature, and 4 Serial ATA connectors high-speed data transfers at up to
150 MB/s. The on-board Super I/O chipset support two serial ports, one SIR (Serial Infrared)
port, and one parallel port. Two high performance 16C550-compatible UARTs provide
16-byte send/receive FIFOs and the multi-mode parallel port supports SPP/EPP/ECP
function, two RS-232 serial port interface. Besides, H/W monitor function, and supports 4
Serial ATA interface , Intel High Definition Audio as 5.1 surround sound , Hi-Speed USB 2.0
x 8 ports offer up to 40X greater bandwidth over USB 1.1 Also provide dual display function
by VGA and DVI interface..
The Mini-ITX standard makes the 2808000 SERIES work with the one slot PCI. One 6-pin
Mini-DIN connectors are provided to connect PS/2 mouse and keyboard. The on-board
Flash ROM is used to make the BIOS update easier. The high precision Real Time Clock
/calendar is built to support Y2K for accurate scheduling and storing configuration
information. One 24-pin standard connector is designed to supportATX power function. A
feature of CPU overheat protection will give user more security and stability. All of these
features make 2808000 SERIES excellent in stand-alone applications.
Note :(1) The 2808000 series only support Intel Pentium 4 processor 5 series and 6 series
for 0.90 and 0.65 micron.
(2) The 2808000 series only support DDR 400 memory module.

2808000User’s Manual
9 / 28
1.2 Packing Check List
The 2808000 package includes the following basic items accompany with this manual.
¾One 2808000 Min-ITX
¾One Quick Installation Guide for 2808000
¾One 40-pin IDE cable
¾Two Serial ATA cable
¾One Serial port cable for COM2
¾One USB 2.0 cable
¾One I/O shield
¾One DVI cable (Optional)
¾One Supporting CD-ROM contains User’s Manual and internal VGA display driver
and Marvell Gigabit Ethernet network controller driver and on board devices
drivers
If any of these items is damaged or missed, please contact your vendor and save all
packing materials for future replacement and maintenance.

2808000User’s Manual
10 / 28
1.3 Specifications
System
CPU Intel®LGA775 Pentium®4 / Celeron®D processor in the LGA775 package
(600, 500, 300 sequences)
FSB 800/533 MHz
BIOS Award BIOS with 4 Mb Flash EEPROM
System Chipset Intel®915GV + ICH6
I/O Chip Winbond W83627THG I/O controller
System Memory 2 x 184-pin DIMM sockets support dual-channel DDR 400 SDRAM
Max. up to 2 GB memory
Storage 1 x Parallel ATA IDE port with UDMA 33, ATA-66/100 support
4 x Serial ATA 150 ports
SSD 1 x CompactFlash socket with ejector at I/O side (shared Master IDE)
RAID Optional ICH6R supports RAID 0, 1 and 0+1 function
H/W Status Monitor Monitoring system temperature, voltage, and cooling fan status.
Auto throttling control when CPU overheats.
Expansion 1 x PCI slot
MIO
Internal 1 x RS-232, 4 x USB 2.0
External 1 x VGA, 1 x Audio jack, 2 x RJ-45, 1 x Parallel, 1 x RS-232, 4 x USB 2.0, 1
x KB, 1 x Mouse
Display
Chipset Intel®915GV Integrated GMA 900 graphics
Display Memory Intel®DVMT 3.0 supports up to 128 MB video memory
Resolution Analog display : up to 2048 x 1536 @ 85Hz
Digital display : up to 2048 x 1536 @ 85Hz
VGA/LCD Interface DSUB-15 connector for VGA output
DVI Chrontel CH7307 DVI transmitter
Audio
AC97 Codec Realtek®ALC655 5.1CH audio codec
Audio Interface Mic in, Line in, CD Audio in, Line out, Rear out and Center/Subwoofer out

2808000User’s Manual
11 / 28
Ethernet
Chipset Dual MarvellR 88E8053 PCI ExpressTM Gigabit Ethernet controllers
Ethernet Interface IEEE 802.3 10BASE-T/100BASE-TX/1000BASE-T
Mechanical & Environmental
Power Requirement 76W (Intel 3.2 GHz CPU with 1 GB system memory in DOS V 6.22)
Power Type 24-pin ATX power connector, 1x 4-pin ATX 12V power connector
Operating Temperature 0~60°C (32~140°F)
Operating Humidity 0%~90% relative humidity, non-condensing
Size (L x W) 6.69” x 6.69” (170 mm x 170 mm)
Weight 0.94 lbs (0.43 Kg)

2808000User’s Manual
12 / 28

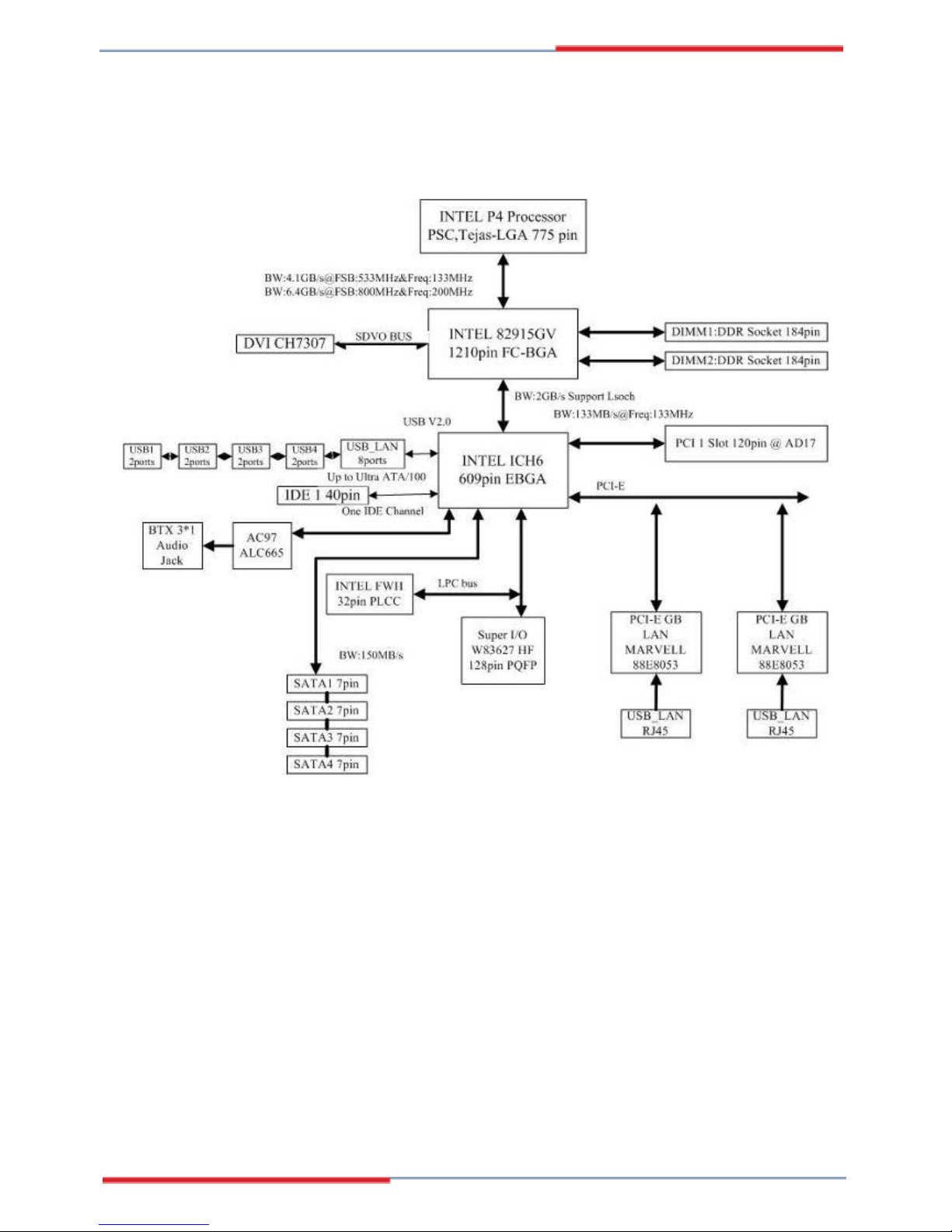

1.4 System Architecture
All of details operating relations are shown in 2808000 system block diagram.

2808000User’s Manual
13 / 28
1.5 Dimensions
Unit: mm

2808000User’s Manual
CHAPTER 2
14 / 28

2808000User’s Manual
15 / 28
2. Hardware Configuration Setting
This chapter gives the definitions and shows the positions of jumpers, headers and
connectors. All of the configuration jumpers on 2808000 are in the proper position. The
default settings shipped from factory are marked with an asterisk ().
In general, jumpers on the Mini-ITX are used to select options for certain features. Some of
the jumpers are designed to be user-configurable, allowing for system enhancement. The
others are for testing purpose only and should not be altered. To select any option, cover
the jumper cap over (SHORT) or remove (NC) it from the jumper pins according to the
following instructions. Here, NC stands for “Not Connect”.
2.1 Board Layout

2808000User’s Manual
16 / 28
2.2 Jumpers & Connectors
JUMPERS FUNCTION REMARK
JP1 RTC CMOS clear select 2 x 1 header
CONNECTORS FUNCTION REMARK
AUDIO1 Audio connector 1 5 x 2 header
AUDIO2 Audio connector 2 Audio jack x 3
CD1 CD-In from CD-ROM 4 x 1 header
CHS_FAN1 Chassis fan connector 3 x 1 wafer
COM1 D-sub 9-pin serial port 1 connector
COM2 Serial port 2 connector 5 x 2 header
CPU_FAN1 CPU fan connector 4 x 1 header
DIMM1, DIMM2 184-pin DDR DIMM socket
DVI1 DVI connector HIROSE
GPIO1 GPIO connector 5 x 2 header
IDE1 Primary IDE connector 20 x 2 box header
IR1 IrDA connector 3 x 2 header
KBMS1 PS/2 keyboard & mouse 2 x 6-pin Mini-DIN
PANEL1 Front side indicators:
IDE1 active LED (1-3)
System power on LED (2-4)
System reset (5-7)
System power on switch (6-8)
2 x 5 header
PCI1 PCI slot
PRT1 D-sub 25-pin Parallel port connector
PWR1 24-pin ATX power connector
PWR2 4-pin ATX power connector For CPU power
SATA1, SATA2,
SATA3, SATA4 Serial ATA connector 1, 2, 3 & 4
SPDIF-O-1 SPDIF I/O connector 4 x 1 header
SPK1 Internal speaker connector 4 x 1 header
SYS_FAN1 System fan connector 3 x 1 wafer
USB2LAN1 USB 1, 2 & RJ-45 LAN 1 connectors
USB2LAN2 USB 3, 4 & RJ-45 LAN 2 connectors
USB3 Internal USB connector 5 & 6
USB4 Internal USB connector 7 & 8
VGA1 D-sub 15-pin VGA conenctor

2808000User’s Manual
17 / 28
2.3 Jumpers/Connectors Setting
2.3.1 RTC CMOS Clear Select (JP1) 2.3.2 Internal Audio for Chassis (AUDIO1)
PIN No. Description
Open Normal operation 
Short Clear CMOS
PIN No. Description
1 F_MIC1
2 Ground
3 F_MIC2
4 +5V
5 LOUTR
6 F_R
7 NC
8 NC
9 LOUTL
10 F_L
2.3.3 Audio Connector (AUDIO2) 2.3.4 CD-In from CD-ROM (CD1)
PIN No. Description
1 (Blue) Line-in
2 (Green) Speaker out
3 (Red) MIC-in
PIN No. Description
1 CD-L
2 CD-Ground
3 CD-Ground
4 CD-R
2.3.5 Chassis/CPU/System Connectors
(CHS_FAN1, CPU_FAN1, SYS_FAN1) 2.3.6 Serial Port 1/2 Connector (COM1, COM2)
PIN No. Description
1 GND
2 +12V
3 SENSE
4 Control (CPU_FAN1 only)
PIN No. Description
1 Data Carrier Detect
2 Received Data
3 Transmit Data
4 Data Terminal Ready
5 Ground
6 Data Set Ready
7 Request To Send
8 Clear To Send
9 Ring Indicator
10 Not used

2808000User’s Manual
18 / 28
2.3.7 DVI Connector (DVI1)
Description PIN No. PIN No. Description
TDC0# 1 2 +5V
TDC0 3 4 GND
NC 5 6 NC
NC 7 8 NC
TDC1# 9 10 HPDET
TDC1 11 12 MDVIDATA
NC 13 14 MDVICLK
NC 15 16 Ground
TDC2# 17 18 TLC#
TDC2 19 20 TLC
Signal Type Description
TDC0,TDC0# O DVI Data Channel 0 Output: These pins provide the DVI differential
output for data channel 0 (Blue).
TDC1,TDC1# O DVI Data Channel 1 Output: These pins provide the DVI differential
output for data channel 1 (Green).
TDC2,TDC2# O DVI Data Channel 2 Output: These pins provide the DVI differential
output for data channel 2 (Red).
HPDET I
Hot Plug Detect (internal pull-down): This input determines whether the
DVI is connected to a DVI monitor. When terminated , the monitor is
required to apply a voltage greater than 2.4 volts. Changes on the status of
this pin will be relayed to the graphics controller via the P-OUT/TLDET* or
GPIO(1)/TLDET* pin pulling low.
TMDSDATA I/O DVI I2C Data: This signal is used as the I2C DOC clock for a digital display
connector (i.e. TV-Out Encoder , TMDS transmitter ). This signal is
tri-stated during a hard reset.
TMDSDCLK I/O DVI DOC Clock: This signal is used as the DOC clock for a digital display
connector (i.e. primary digital monitor). This signal is tri-stated during a
hard reset.
TLC,TLC# O DVI Clock Output: These pins provide the differential clock outputs to the
DVI interface correspondin a data on TDC(0:2) outputs.g
2.3.8 GPIO Connector (GPIO1) 2.3.9 IrDA Connector (IR1)
PIN No. Description
1 +3.3V
2 General Purpose I/O bit 3
3 General Purpose I/O bit 5
4 General Purpose I/O bit 0
5 General Purpose I/O bit 7
6 General Purpose I/O bit 2
7 General Purpose I/O bit 4
8 General Purpose I/O bit 1
9 General Purpose I/O bit 6
10 Ground
PIN No. Description
1 NC
2 NC
3 +5V
4 Infrared transmitter output
5 Ground
6 Infrared receiver input

2808000User’s Manual
19 / 28
2.3.10 PS/2 Keyboard & Mouse (KBMS1) 2.3.11 Front Side Indicators (PANEL1)
PIN No. Description
1 Keyboard Data
2 Mouse Data
3 Ground
4 +5V
5 Keyboard Clock
6 Mouse Clock
IDE1 Active LED
PIN No. Signal Description
1 +5V (Pull-up for HDD LED)
3 HDD active# (LED cathode terminal)
System Reset
PIN No. Signal Description
5 Ground
7 Reset
System Power On Button
PIN No. Signal Description
6 Power button control signal
8 Ground
2.3.12 24-pin ATX Power Connector (PWR1) 2.3.13 24-pin ATX Power Connector (PWR2)
Description PIN No. PIN No. Description
+3.3V 13 1 +3.3V
-12V 14 2 +3.3V
Ground 15 3 Ground
PS_ON 16 4 +5V
Ground 17 5 Ground
Ground 18 6 +5V
Ground 19 7 Ground
-5V 20 8 PW_OK
+5V 21 9 5VSB
+5V 22 10 +12V
+5V 23 11 +12V
Ground 24 12 +3.3V
PIN No. Description
1 +12V
2 Ground
3 +12V
4 Ground
2.3.14 Serial ATA 1/2/3/4 Connectors (SATA1,
SATA2, SATA3, SATA4) 2.3.15 SPDIF I/O Connector (SPDIF-O-1)
These SATA connectors support Serial ATA 150. Each
SATA connector can only support one serial ATA device.
Note: With most storage devices, there is a power cable
that you need attach to a power source (power
supply).
PIN No. Description
1 SPO
2 +5V
3 NC
4 Ground
2.3.16 Internal Speaker Connector (SPK1)
PIN No. Description
1 SPK Active#
2 SPK Active#
3 Key
4 +5V

2808000User’s Manual
20 / 28
2.3.17 LAN 1/2 & USB 1/2/3/4 Connectors (USB2LAN1, USB2LAN2)
LAN 1/2
PIN No. Description PIN No. Description
1 TX+ 5 NC
2 TX- 6 RX-
3 RX+ 7 NC
4 NC 8 NC
USB 1/2/3/4
PIN No. Description PIN No. Description
1 +5 V (fused) 5 +5 V (fused)
2 USBP0-/2- 6 USBP1+/3-
3 USBP0-/2+ 7 USBP1+/3+
4 Ground 8 Ground
2.3.18 Internal USB 5/6/7/8 Connectors (USB3, USB4)
PIN No. Description
1 5VSB
2 5VSB
3 DATA_5- / DATA_7-
4 DATA_4- / DATA_6-
5 DATA_5+ / DATA_7+
6 DATA_4+ / DATA_6+
7 Ground
8 Ground
9 NC
10 NC
Note :
1) This mainboard provides 2 USB headers on the board
allowing for 4 additional USB ports. To make use of
these headers, you must attach a USB bracket/cable
with USB ports (some models will come packaged with
a USB 4-port bracket-cable). The optionally packaged
bracket will have two connectors that you can connect
to the headers (USB3, USB4). The other end (bracket
containing the USB ports) is attached to the computer
casing.
If you are using a USB 2.0 device with Windows 2000/XP,
you will need to install the USB 2.0 driver from the
Microsoft® website. If you are using Service pack 1
(or later) for Windows® XP, and using Service
pack4 (or later) for Windows® 2000, you will not
have to install the driver.
2.3.19 VGA Connector (VGA1)
VGA
Description PIN No. PIN No. Description
Green Signal 2 1 Red Signal
NC 4 3 Blue Signal
Ground 6 5 Ground
Ground 8 7 Ground
Ground 10 9 +5V
DCC_DATA 12 11 NC
VSYNC 14 13 HSYNC
15 DCC_CLK

2808000User’s Manual
CHAPTER 3
21 / 28
