THE 2807616 MINI ITX MOTHERBOARD

INTRODUCTION
2807616 User’s Manual 1
Introduction
Product Description
The 2807616 Mini ITX board incorporates a Socket A processor socket that
supports AMD Geode NX series processors that support processor speed up to
1. GHz. With the SIS 7 1CX chipset, it delivers maximum performance for
demanding thin client or embedded applications that require silent system
operation. With a higher processor speed and active cooling, it is best suited for
demanding applications such as graphics and point of sales systems. The board
comes with integrated chipset VGA and Ethernet controllers. Optionally
provided is a Realtek Gigabit Ethernet and daughter cards for TV out/TMDS/
LVDS/CRT2 interface.
Features
 Socket A for AM Geode NX processor
Up to 1.4GHz speed, 133MHz FSB
 R IMM x 1, max. 1GB, R266/333
 Onboard 10/100 and Optional Realtek 8110S Gigabit LAN
 Integrated SiS 741CX CRT VGA
 Optional CRT2/ VI, optional LV S/TV out
 2 x SATA, 6 x USB 2.0, 2 x COM, watchdog timer
 igital I/O, optional 1394, 1x PCI, 1x Mini PCI

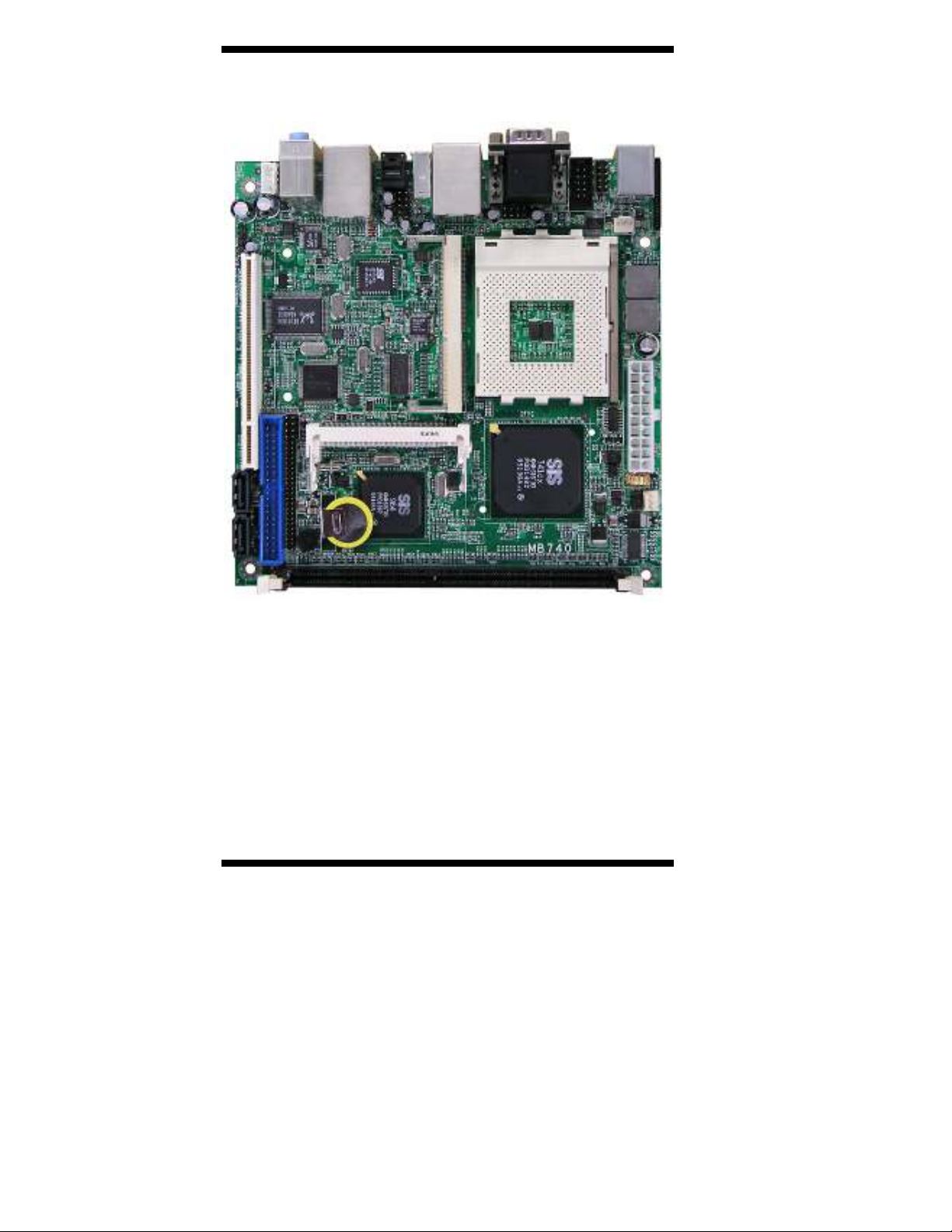

Dimensions of the board are 170mm x 170mm.

INTRODUCTION
2 2807616 User’s Manual
Checklist
Your 2807616 package should include the items listed below.
•
••
• The 2807616 Pentium
®
M Mini-ITX motherboard
•
••
• This User’s Manual
•
••
• 1 CD containing chipset drivers and flash memory utility
•
••
• Cable kit ( 0-pin IDE, -pin IDE, Serial port, Serial ATA)
440

INTRODUCTION
2807616 User’s Manual 3
2807616 Specifications
[
Features
 Socket A for AM Geode NX processor
Up to 1.4GHz speed, 133MHz FSB
 R IMM x 1, max. 1GB, R266/333
 Onboard 10/100 and Optional Realtek 8110S Gigabit LAN
 Integrated SiS 741CX CRT VGA
 Optional CRT2/ VI, optional LV S/TV out
 2 x SATA, 6 x USB 2.0, 2 x COM, watchdog timer
 igital I/O, optional 1394, 1x PCI, 1x Mini PCI
System
CPU
Socket A (462-pin) for AM Geode, up to 1.4GHz
(NX1250 = 667MHz, NX1500 = 1GHz, NX1250 =1.4GHz)
System Memory
R IMM x 1, max. 1GB, R333
System Chipset
SiS 741CX + SiS 964
BIOS
Award 4Mbit
Watchdog Timer
256 levels
SS
Optional CF socket (on solder side via I E2)
H/W Monitor
Yes
Expansion Slot
1 PCI, 1 Mini PCI, 1 MicroAGP
Graphics
VGA Controller
SiS 741CX integrated for CRT
VGA Memory
Shared memory
Max. 64MB
LC / TV-out / VI /
CRT2
Optional SiS 302LV MicroAGP card (IBA140-302)
supports 18/24-bit dual channel LV S and TV out;
Optional SiS 301 MicroAGP card (IBA140-301)
supports VI/CRT2 interface
Ethernet
Controller
SiS 964 built-in 10/100 and Optional Realtek
RTL8110S-32 Gigabit LAN
Connector
Two RJ-45 on board (optional for GB LAN)
Multi I/O
Chipset
SiS 964, ITE 8705
2x I E (U MA33/66/100), 1x F , 1x KB, 1x Mouse; 2x
RS-232, 2x SATA
USB
4 ports on board
Pin header for 2 additional ports (USB 2.0)
Audio
SiS 964 built-in audio + AC97 codec, SP IF support;
2W+2W volume amplifier
Others
1394, ATX power connector
Mechanical and Environmental
imensions
170mm x 170mm

INTRODUCTION
4 2807616 User’s Manual

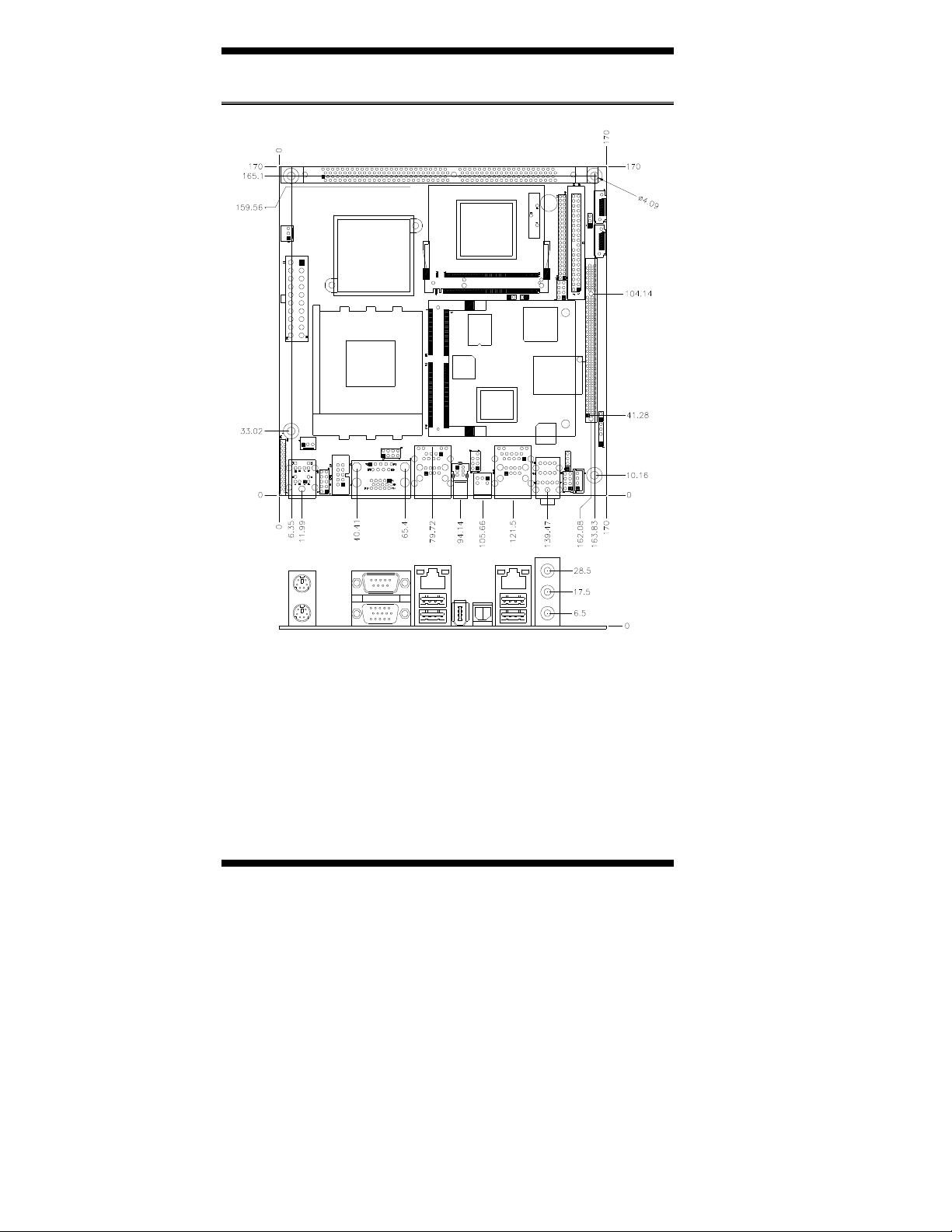

Board Dimensions

INSTA ATIONS
2807616 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the 2807616 in order to set up a workable system. The
topics covered are:
Installing the CPU ........................................................................6
Installing the Memory................................................................... 7
Setting the Jumpers....................................................................... 8
Connectors on 2807616.............................................................. 11

INSTA ATIONS
6 2807616 User’s Manual
Installing the CP
The 2807616 board supports a Socket A processor socket for AMD NX
Series processors.
The Socket A processor socket comes with a lever to secure the
processor. Raise this lever to about a 90° angle to allow the insertion of
the processor. Place the processor into the socket by making sure the
notch on the corner of the CPU corresponds with the notch on the inside
of the socket. Once the processor has slide into the socket, return the
lever to the lock position. Refer to the figures below.
After you have installed the processor into the socket, check if the
jumpers for the CPU type and speed are correct.
NOTE:
Ensure that the CPU heat sink and the CPU top surface are in
total contact to avoid CPU overheating problem that wo
uld
cause your system to hang or be unstable.

INSTA ATIONS
2807616 User’s Manual 7
Installing the Memory
The 2807616 board supports one DDR memory socket for a maximum
total memory of 1GB in DDR memory type.
Installing and Removing Memory Modules
To install the DDR modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR module so that the key of the DDR module align with
those on the memory slot.
2. Gently push the DDR module in an upright position until the clips of
the slot close to hold the DDR module in place when the DDR module
touches the bottom of the slot.
3. To remove the DDR module, press the clips with both hands.

INSTA ATIONS
8 2807616 User’s Manual
Setting the Jumpers
Jumpers are used on 2807616 to select various settings and features
according to your needs and applications. Contact your supplier if you
have doubts about the best configuration for your needs. The following
lists the connectors on 2807616 and their respective functions.
Jumper Locations on 2807616 ........................................................9
JP8: CompactFlash Slave/Master Selection ..................................10
JP9: 139 EPROM Write Selection ..............................................10
JP12: Clear CMOS Setting............................................................10
JP1 : RTL8110S-32 LAN Enable / Disable .................................10

INSTA ATIONS
2807616 User’s Manual 9
Jumper Locations on 28 7616
Jumpers on 2807616 ........................................................................ Page
JP8: CompactFlash Slave/Master Selection ......................................... 10
JP9: 139 EPROM Write Selection ..................................................... 10
JP12: Clear CMOS Setting................................................................... 10
JP1 : RTL8110S-32 LAN Enable / Disable ........................................ 10

INSTA ATIONS
10 2807616 User’s Manual
JP8: CompactFlash Slave/Master Selection (option)
Remarks: The C socket and its corresponding slave/master Selection is
optional.
JP8 CF Setting
Master
Slave
JP9: 1394 EPROM Write Selection
JP9 1394 EPROM
For EPROM Write
Normal
JP12: Clear CMOS Setting
JP12 Setting
Normal
Clear CMOS
JP14: RTL811 S-32 LAN Enable / Disable
JP14 Gigabit LAN
Disable
Enable
[

INSTA ATIONS
2807616 User’s Manual 11
Connectors on 2807616
The connectors on 2807616 allow you to connect external devices such
as keyboard, floppy disk drives, hard disk drives, printers, etc. The
following table lists the connectors on 2807616 and their respective
functions.
Connector Locations on 2807616 ................................................. 12
KBMS1: PS/2 Keyboard and PS/2 Mouse Connectors................. 13
CN3: COM1 and VGA Connector................................................ 13
CN : 10/100 RJ- 5 and USB1/2 Ports ......................................... 1
CN5: 139 Connector ................................................................... 1
J3: SPDIF Out Connector ............................................................. 1
CN6: GbE RJ- 5 and USB3/ Ports ............................................. 1
CN7: Audio Connector .................................................................1
PWR1: ATX Power Supply Connector.........................................1
FAN1: System Fan Power Connector ........................................... 15
FAN2: CPU Fan Power Connector ............................................... 15
IDE1, IDE2: 0-pin and -pin IDE Connectors.......................... 15
FDD1: Floppy Drive Connector....................................................16
CN1: Digital I/O ...........................................................................17
J1: USB5/6 Port Pin Header ......................................................... 17
CN2: COM2 Serial Port................................................................ 17
J2: 139 Pin Header...................................................................... 17
J : Mini PCI Connector ................................................................ 17
J5: System Function Connector.....................................................18
J6: Front Audio Connector............................................................18
J7: CD-In Pin Header.................................................................... 18
CN8: Speaker Connector .............................................................. 18
CN9, CN10: Serial ATA Connectors............................................ 18
CN11: Compact Flash Connector ................................................. 19
J13: IrDA Connector..................................................................... 19
PCI1: PCI Slot (supports 2 Master) ..............................................19
AGP1: MicroAGP Socket............................................................. 19

INSTA ATIONS
12 2807616 User’s Manual

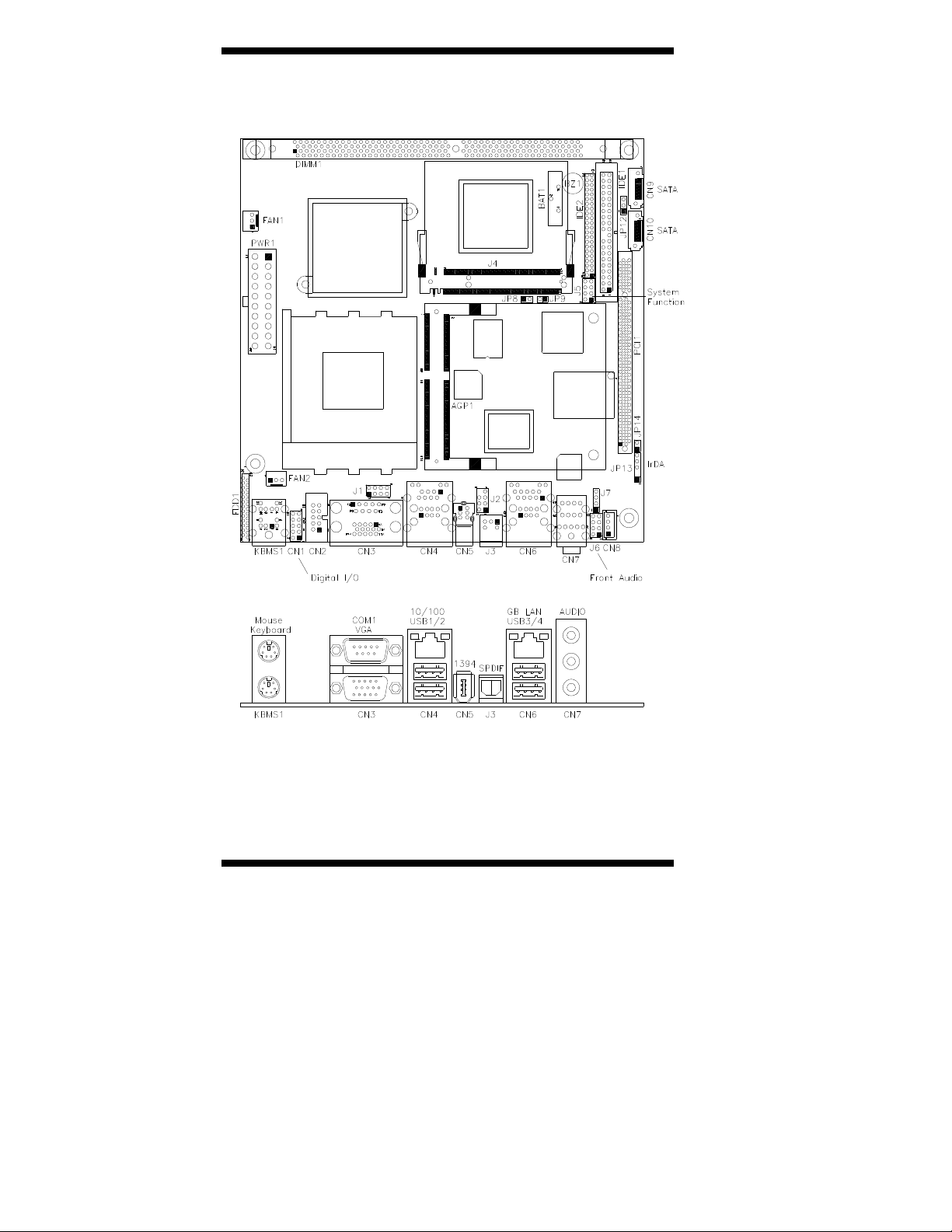

Connector Locations on 28 7616
Remarks: GB LAN and 139 are options found on 2807616 only.

INSTA ATIONS
2807616 User’s Manual 13
KBMS1: PS/2 Keyboard and PS/2 Mouse Connectors
PS/2 Mouse
PS/2 Keyboard
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 GND
5V 5V
Keyboard clock 5 5 Mouse clock
N.C. 6 6 N.C.
CN3: COM1 and VGA Connector
[
Signal Name Pin # Pin # Signal Name
DCD 1 6 DSR
RXD 2 7 RTS
TXD 3 8 CTS
DTR 9 RI
GND 5 10 Not Used
[[[[
Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 N.C.
GND 5 6 GND
GND 7 8 GND
N.C. 9 10 GND
N.C. 11 12 N.C.
HSYNC 13 1 VSYNC
NC 15

INSTA ATIONS
14 2807616 User’s Manual
CN4: 1 /1 RJ-45 and USB1/2 Ports
CN5: 1394 Connector
J3: SPDIF Out Connector
CN6: GbE RJ-45 and USB3/4 Ports
CN7: Audio Connector
The audio connector, from top to bottom, is composed of Line in, Line
out and Microphone jacks.
PWR1: ATX Power Supply Connector
Signal Name Pin # Pin # Signal Name
3.3V 13 1 3.3V
-12V 1 2 3.3V
Ground 15 3 Ground
PS-ON 16 +5V
Ground 17 5 Ground
Ground 18 6 +5V
Ground 19 7 Ground
-5V 20 8 Power good
+5V 21 9 5VSB
+5V 22 10 +12V
+5V 23 11 +12V
Ground 2 12 +3.3V

INSTA ATIONS
2807616 User’s Manual 15
FAN1: System Fan Power Connector
FAN1 is a 3-pin header for system fans. The fan must be a 12V (500mA)
fan.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
FAN2: CPU Fan Power Connector
FAN2 is a 3-pin header for the CPU fan. The fan must be a 12V fan. The
CPU fan has a Smar Fan func ion ha can be enabled wi h he BIOS.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
IDE1, IDE2: 4 -pin and 44-pin IDE Connectors
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 1 Host data 13
Host data 1 15 16 Host data 1
Host data 0 17 18 Host data 15
Ground 19 20 Protect pin
DRQ0 21 22 Ground
Host IOW 23 2 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ1 31 32 No connect
Address 1 33 3 No connect
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
I E1
Activity 39 0 Ground

INSTA ATIONS
16 2807616 User’s Manual
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 Host data 8
Host data 6 5 6 Host data 9
Host data 5 7 8 Host data 10
Host data 9 10 Host data 11
Host data 3 11 12 Host data 12
Host data 2 13 1 Host data 13
Host data 1 15 16 Host data 1
Host data 0 17 18 Host data 15
Ground 19 20 Key
DRQ0 21 22 Ground
Host IOW 23 2 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ1 31 32 No connect
Address 1 33 3 No connect
Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
I E2
Activity 39 0 Ground
Vcc 1 2 Vcc
Ground 3 N.C.
FDD1: Floppy Drive Connector
FDD1is a slim 26-pin connector and will support up to 2.88MB FDD.
Signal Name Pin # Pin # Signal Name
VCC 1 2 INDEX
VCC 3 DRV_SEL
VCC 5 6 DSK_CH
NC 7 8 NC
NC 9 10 MOTOR
DINST 11 12 DIR
NC 13 1 STEP
GND 15 16 WDATA
GND 17 18 WGATE
GND 19 20 TRACK
NC 21 22 WPROT
GND 23 2 RDATA
GND 25 26 SIDE
