Global American Inc. 2807960 User manual

2807960 User’s Manual
Version 1.0
Mini-ITX Motherboard with Socket M

Copyrights
This document is copyrighted and all rights are reserved. It does not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental
or consequential damages arising from the use of inability to use the product or
documentation, even if advised of the possibility of such damages. The manufacturer
keeps the rights in the subject to change the contents of this document without prior
notices in order to improve the function design, performance, quality and reliability. The
author assumes no responsibility for any errors or omissions, which may appear in this
document, nor does it make a commitment to update the information contained herein.
Trademarks
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
All other trademarks, products and or product's name mentioned herein are mentioned
for identification purposes only, and may be trademarks and/or registered trademarks of
their respective companies or owners.

Table of Contents
Chapter 1 General Description ..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 3
1.3 Board Dimensions................................................................. 4
Chapter 2 Inpacking ...................................................5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 Before Installation ................................................................. 7
3.2 Board Layout ......................................................................... 8
3.3 Jumper List ............................................................................ 9
3.4 Connector List ..................................................................... 10
3.5 Configuring the CPU ........................................................... 10
3.6 System Memory ................................................................... 11
3.7 VGA Controller .................................................................... 11
3.8 PCI E-IDE Drive Connector................................................. 13
3.9 Serial ATA Connector ......................................................... 14
3.10 Floppy Disk Drive Connector ............................................. 15
3.11 Parallel Connector............................................................... 16
3.12 Serial Port Connectors ....................................................... 16
3.13 Ethernet Connector............................................................. 18
3.14 USB Connector.................................................................... 18
3.15 CMOS Data Clear................................................................. 19
3.16 Power and Fan Connectors................................................ 19
3.17 Keyboard/Mouse Connectors ............................................ 20
3.18 System Front Panel Control ............................................... 20
3.19 IrDA Function....................................................................... 21
3.20 Watchdog Timer .................................................................. 21
3.21 TV-Out Function .................................................................. 22
3.22 Audio Connectors ............................................................... 23
3.23 CompactFlashConnector................................................ 23
3.24 Expansion Slot..................................................................... 25
3.25 8-bit I/O Function................................................................. 25

Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:
 Do not remove boards or integrated circuits from their anti-static packaging
until you are ready to install them.
 Before handling a board or integrated circuit, touch an unpainted portion of
the system unit chassis for a few seconds. This helps to discharge any static
electricity on your body.
 Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR clip
of the strap to the end of the shielded wire lead from a grounded object.
Please wear and connect the strap before handle the product to ensure
harmlessly discharge any static electricity through the strap.
 Please use an anti-static pad when putting down any components or parts or
tools outside the computer. You may also use an anti-static bag instead of
the pad. Please inquire from your local supplier for additional assistance in
finding the necessary anti-static gadgets.
NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.

1

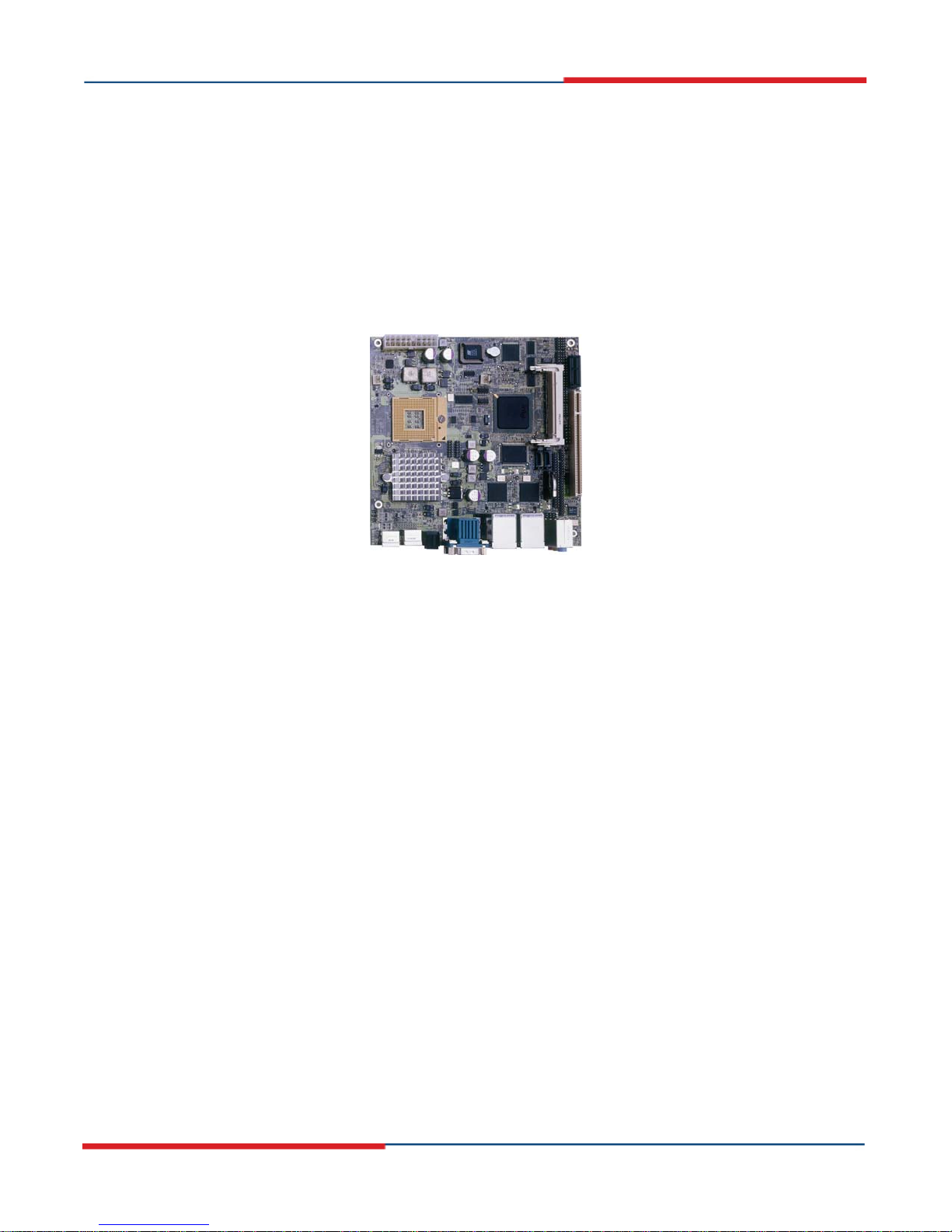

Chapter 1
General Description
The 2807960 is an Intel® 945GM GMCH chipset-based board
designed. The 2807960 is an ideal all-in-one mITX board. Additional
features include an enhanced I/O with CF, DVI/CRT/LVDS, TV-Out,
dual Giga LAN, audio, SPDIF, SATA, 6 COM, IrDA, and USB2.0
interfaces.
Designed with the Intel® 945GM GMCH, the board supports Intel®
Core™ 2 Duo/Core™ Duo/Core™ Solo processor 1.66~2.33GHz.
Its onboard ATA/33/66/100 to IDE drive interface architecture allows
the 2807960 to support data transfers of 33, 66 or 100MB/sec. to one
IDE drive connection. The Intel® ICH7-M serial ATA controller with two
ports supporting transfer rates up to 150MB/sec.
Onboard Intel® 945GM GMCH for CRT display with DVMT or
CHRONTEL 7307 for DVI display supporting up to 2048 x 1536. It also
supports 18-bit single channel/36-bit dual channel LVDS interface.
System memory is also sufficient with the one SO-DDRII socket that
can support up to 1GB.
Additional onboard connectors include an advanced USB2.0 port
providing faster data transmission. And two external RJ-45 connectors
for 10/100 Based Ethernet use.

2
To ensure the reliability in an unmanned or standalone system, the
watchdog timer (WDT) onboard 2807960 is designed with software
that does not need the arithmetical functions of a real-time clock chip. If
any program causes unexpected halts to the system, the onboard WDT
will automatically reset the CPU or generate an interrupt to resolve
such condition.
1.1 Major Features
The 2807960 comes with the following features:
 Intel® Core™ 2 Duo/Core™ Duo/Core™ Solo processor 1.66~2.33GHz
 Supports 667/533MHz FSB
 One SO-DDRII socket with a max. capacity of 1GB
 Intel® 945GM GMCH/ICH7-M chipset
 Winbond W83627EHG super I/O chipset
 Intel® 945GM or CHRONTEL 7307 DVI graphics controller
 18-bit/36-bit LVDS panel display interface
 Dual Intel® 82573L Gigabit Ethernet controller

3
 AC97 3D audio controller
 Intel® ICH7-M Serial ATA controller
 Fast PCI ATA/33/66/100 IDE controller
 CF, x1 PCI-E slot, SPDIF, 6 COM, 8 USB2.0
 TV-Out function
 Hardware Monitor function
1.2 Specifications
 CPU: Intel® Core™ 2 Duo/Core™ Duo/Core™ Solo processor
1.66~2.33GHz
Celeron® M: 410, 420, 430, 440, 450
Core™ Duo: T2300, T2400, T2500, T2600, T2700
Core™ 2 Duo: T5500, T5600, T7200, T7400, T7600
 Front Side Bus: 667/533MHz FSB
 Memory: One SO-DDRII socket supports up to 1GB
 Chipset: Intel® 945GM GMCH/ICH7-M
 I/O Chipset: Winbond W83627EHG
 CompactFlash: One, Type I/II IDE interface adapter
 PCI Slot: One x1 PCI-Express slot, one Type III mini PCI slot, one
standard PCI slot
 8-bit I/O: 8-bit input/output (parallel port)
 VGA: Intel® 945GM for CRT display with DVMT or CHRONTEL 7307 for
DVI display, supporting up to 2048 x 1536 (DVI and CRT connector is
optional)
 LVDS Panel: Supports 18-bit single channel/36-bit dual channel LVDS
interface
 TV-Out: Supports PAL or NTSC TV systems
 Ethernet: Dual Intel® 82573L 10/100/1000 Based LAN
 Audio: AC97 3D audio controller with SPDIF port
 Serial ATA: Intel® ICH7-M controller and with two ports supporting a
transfer rate up to 150MB/sec.
 IDE: One 2.0-pitch 44-pin IDE connector
 FDD: Supports up to two floppy disk drives
 Parallel: One enhanced bi-directional parallel port supporting
SPP/ECP/EPP
 Serial Port: 16C550 UART-compatible RS-232/422/485 x 2 and RS-232
x 4 serial ports with 16-byte FIFO
 IrDA: One IrDA TX/RX header
 USB: 8 USB2.0 ports, internal x 4 and external x 4
 Keyboard/Mouse: PS/2 6-pin Mini DIN or 6-pin header
 BIOS: AMI PnP Flash BIOS

4
 Watchdog Timer: Software programmable time-out intervals from
1~255 sec.
 CMOS: Battery backup
 Hardware Monitor: Winbond W83627EHG
 Board Size: 17.0(L) x 17.0(W) cm

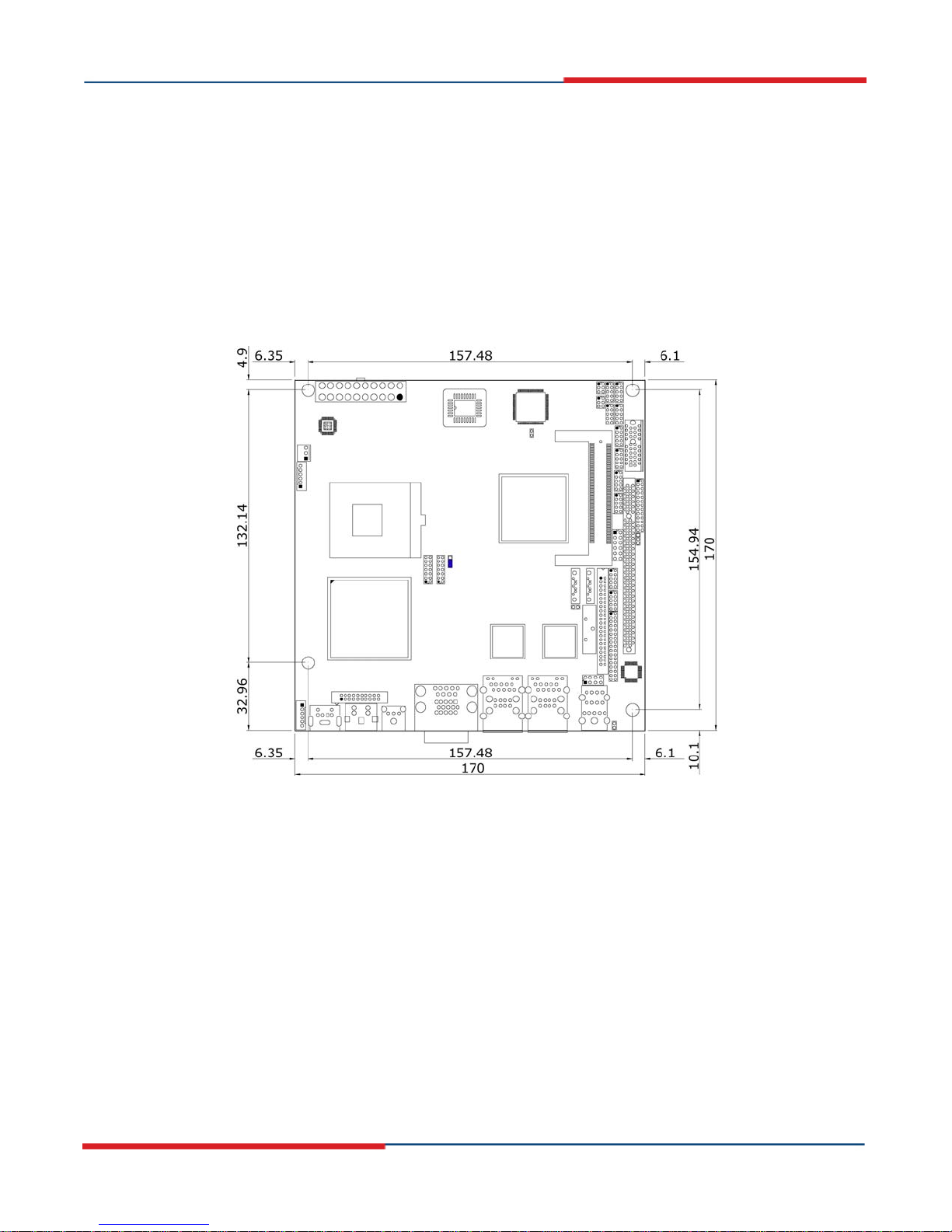

1.3 Board Dimensions

5
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The 2807960 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The 2807960 delivery package
contains the following items:
2807960 Board x 1
Utility CD Disk x 1
Cables Package x 1
Jumper Bag x 1
User’s Manual

6
Cables Package
NO. Description
1 SATA cable x 1
2 SATA power cable x 1
3 Keyboard/Mouse transfer cable x 1
4 COM flat cable x 2
5 Two USB flat cable with bracket x 1
6 IDE flat cable x 1
7 Floppy flat cable x 1
8 Parallel port cable x 1
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.

7
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the 2807960. This chapter also contains information related to
jumper settings of switch, and watchdog timer selection etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper. (Set JP6 open)
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.

8
3.2 Board Layout
Top Side

9
Solder Side
3.3 Jumper List
Jumper Default Setting Setting Page
JP5 CF Use Master/Slave Select: Slave Open 23
JP6 Clear CMOS: Normal Operation Open 19
JP23 Open 16
JP24
COM 3/COM 4 Use RS-232 or
RS-422/485 Select: RS-232 Open 16
JP25 Panel Voltage Select: +3.3V Short 2-3 11
JP26 FSB Frequency Select: 667MHz Open 10

10
3.4 Connector List
Connector Definition Page
ATX1 20-pin ATX Power In Connector 19
CN1 PS/2 6-pin Mini DIN KB/MS Connector 20
CN2 TV-Out Connector 22
CN3 SPDIF Connector 23
CN4 15-pin CRT Connector & COM 1 (DB9) 11/16
CN5/CN6 RJ-45 & Dual USB2.0 Port 18
CN7/CN9 Serial ATA Connector 14
CN8 MIC In/Line Out Connector 23
CN10 External Audio Connector 23
CN11 IDE Connector 13
CN12 Floppy Connector 15
CN13 System Front Panel Control 20
CN14 CompactFlash Connector 23
CN15 SO-DDRII Socket 11
CN16 Mini PCI Slot 25
JP1 Inverter Power In Connector 11
JP2 6-pin KB/MS Connector 20
JP3/JP4 Fan Power In Connector 19
JP9 Wake On LAN Connector 18
JP10/JP11 Internal USB2.0 Port 18
JP12~JP16 COM 2~COM 6 Connector (5x2 header) 16
JP17 8-bit I/O Port 25
JP18/JP19 LVDS Panel Connector 11
JP27 IrDA Connector 21
CON1 x1 PCI-E Slot 25
J1 DVI Connector 11
J2/J3 RS-422/485 Connector 16
LPT1 Parallel Port 16
PCI1 Standard PCI Slot 25
3.5 Configuring the CPU
The 2807960 provides with Intel® Core™ 2 Duo/Core™ Duo/Core™
Solo processor 1.66~2.33GHz. User don’t need to adjust the frequently
and check speed of processor.

11

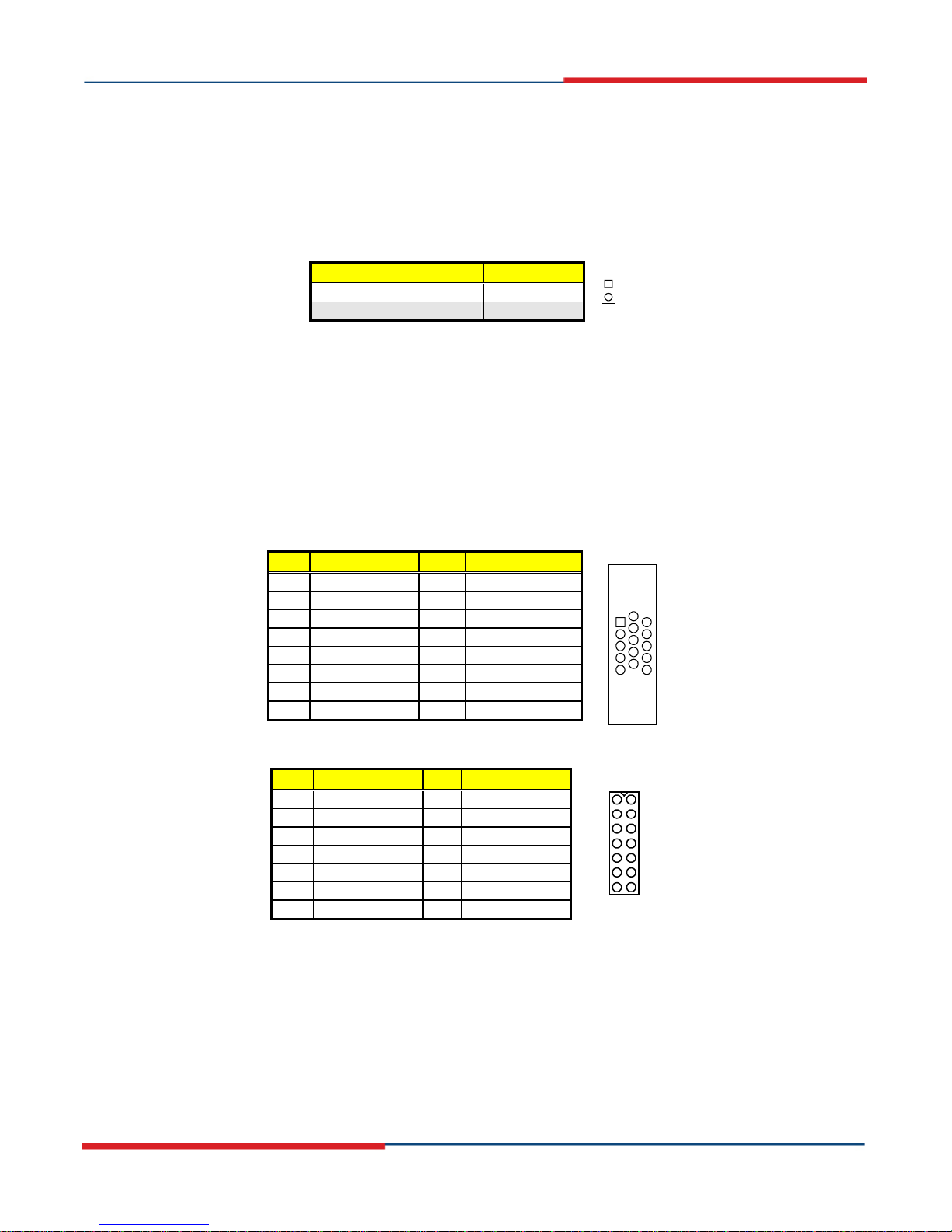

 JP26: FSB Frequency Select
Options Settings
533MHz FSB Short
667MHz FSB (default) Open
2
1
3.6 System Memory

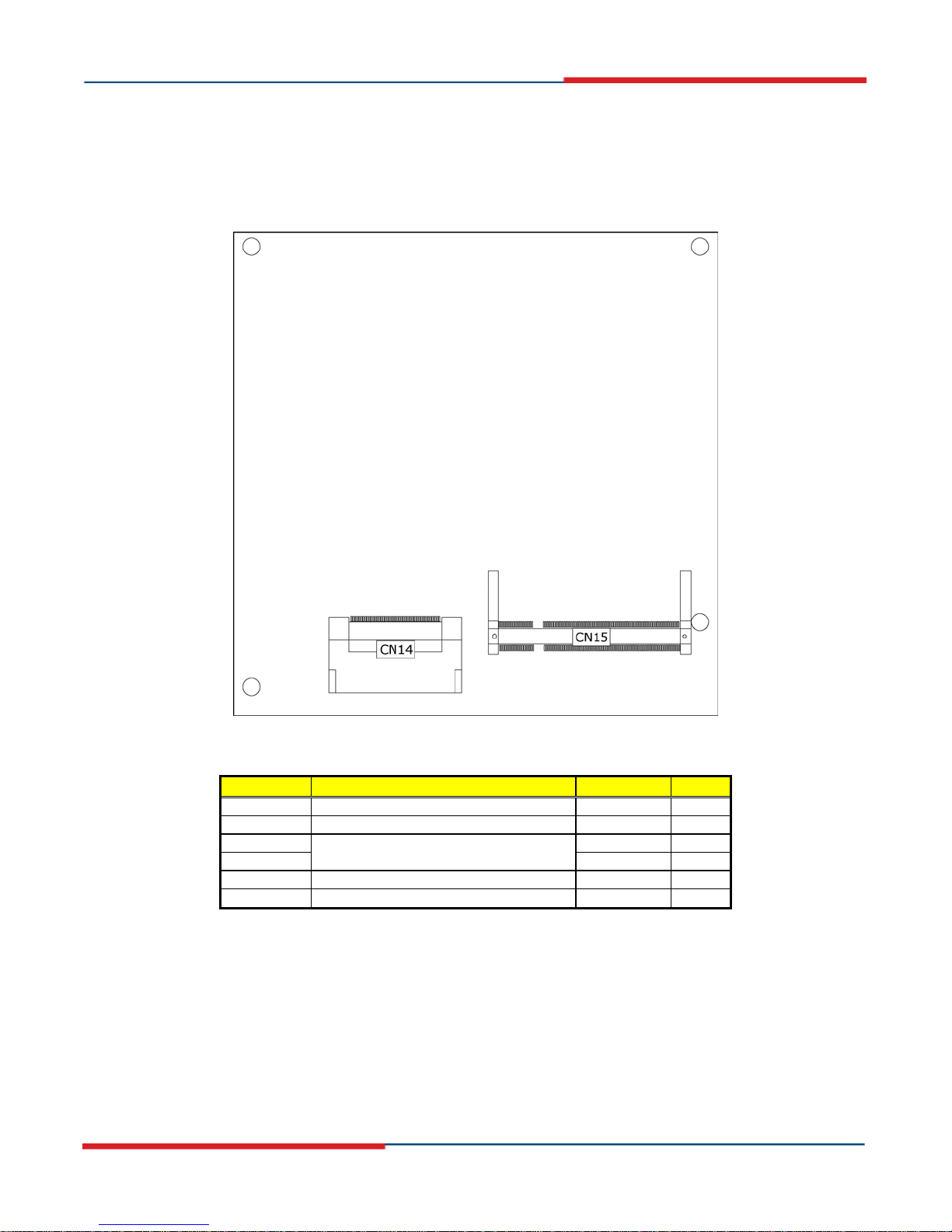

The 2807960 provides one SO-DDRII socket at locations CN15. The
maximum capacity of the onboard memory is 1GB.
3.7 VGA Controller
The 2807960 provides two connection methods of a VGA device.
CN4A offers a single standard CRT connector and JP18/JP19 are the
LVDS interface connectors onboard reserved for flat panel installation.
 CN4A: CRT Connector
PIN Description PIN Description
1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND
9 N/C 10 GND
11 N/C 12 SDA
13 HSYNC 14 VSYNC
15 SCL
1
515
10
611
 JP18/JP19: LVDS Interface Connector
PIN Description PIN Description
1 VLCD 2 VLCD
3 GND 4 GND
5 Y0-/Z0- 6 Y0+/Z0+
7 Y1-/Z1- 8 Y1+/Z1+
9 Y2-/Z2- 10 Y2+/Z2+
11 CLK- 12 CLK+
13 N/C 14 N/C
12
13 14

12
NOTE: LVDS cable should be produced very carefully. Y0- & Y0+ have to
be fabricated in twister pair (Y1- & Y1+, Y2- & Y2+ and so on)
otherwise the signal won’t be stable. Please set the proper voltage
of your panel using JP25 before proceeding on installing it.
NOTE: If use JP18 only, it just supports 16-bit single channel LVDS panel;
If you want to use 36-bit dual channel LVDS panel, please use
JP18 and JP19 combined.

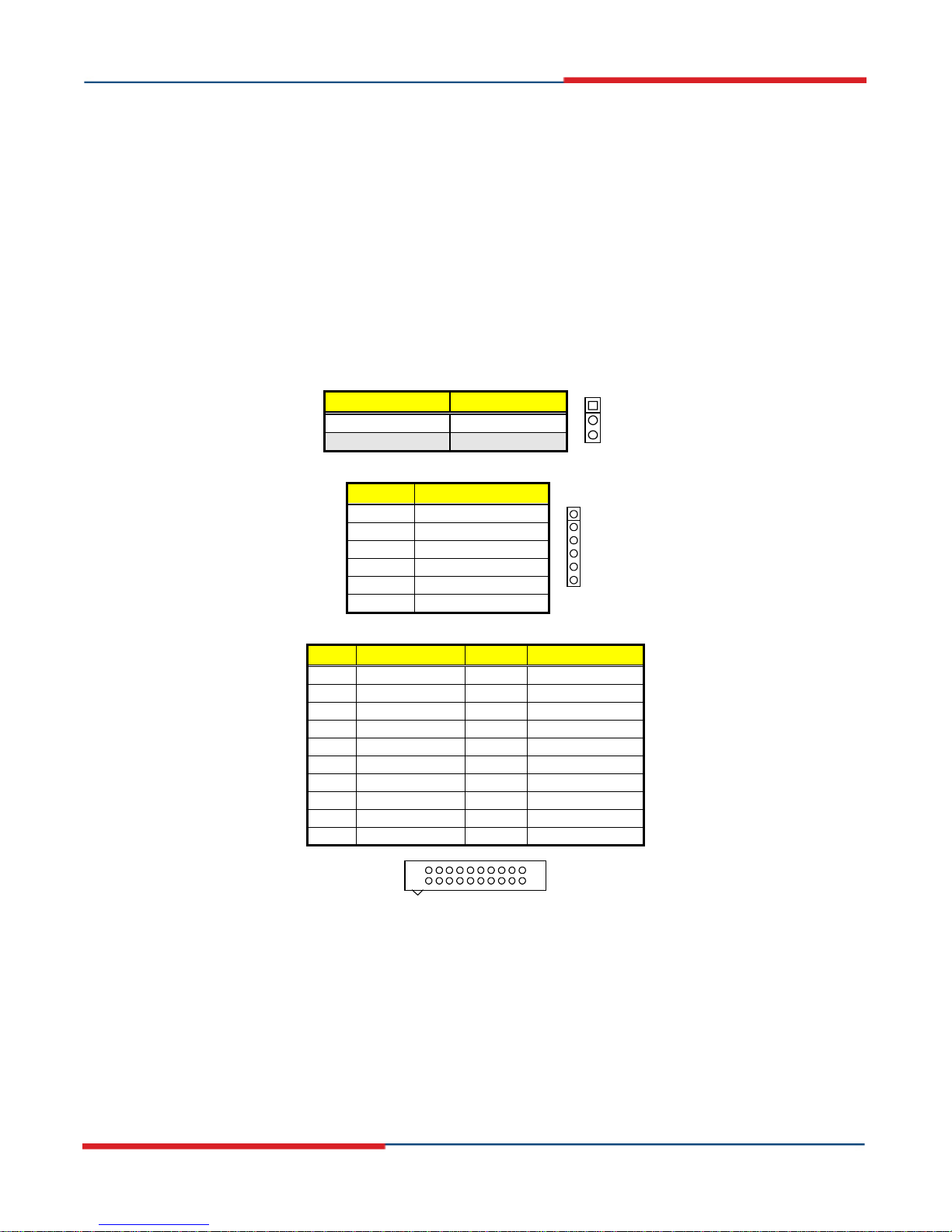

 JP25: Panel Voltage Select
Options Settings
+5V Short 1-2
+3.3V (default) Short 2-3
1
3

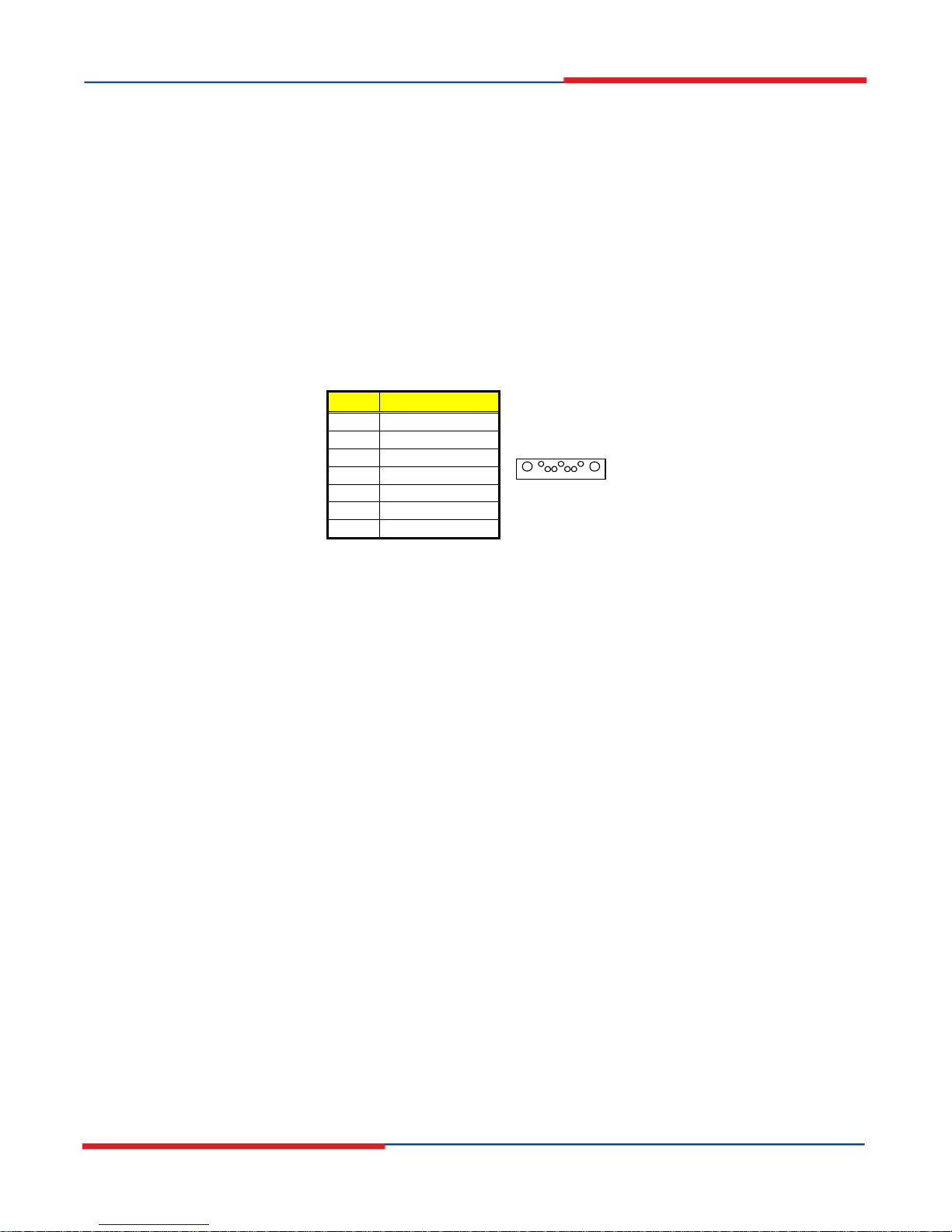

 JP1: Inverter Power In Connector
PIN Description
1 +12V
2 +12V
3 +5V
4 +5V
5 VDDEN
6 GND
1
6
 J1: DVI Connector
PIN Description PIN Description
1 TDC0# 2 +5V
3 TDC0 4 GND
5 GND 6 DETET
7 TDC1# 8 SC_DDC
9 TDC1 10 SD_DDC
11 GND 12 GND
13 TDC2# 14 TLC#
15 TDC2 16 TLC
17 GND 18 GND
19 N/C 20 N/C
1
2
19
20

13
3.8 PCI E-IDE Drive Connector
CN11 is a standard 44-pin 2.0-pitch connector daisy-chain driver
connector serves the PCI E-IDE drive provisions onboard the 2807960.
A maximum of two ATA/33/66/100 IDE drives can be connected to the
2807960 via CN11.

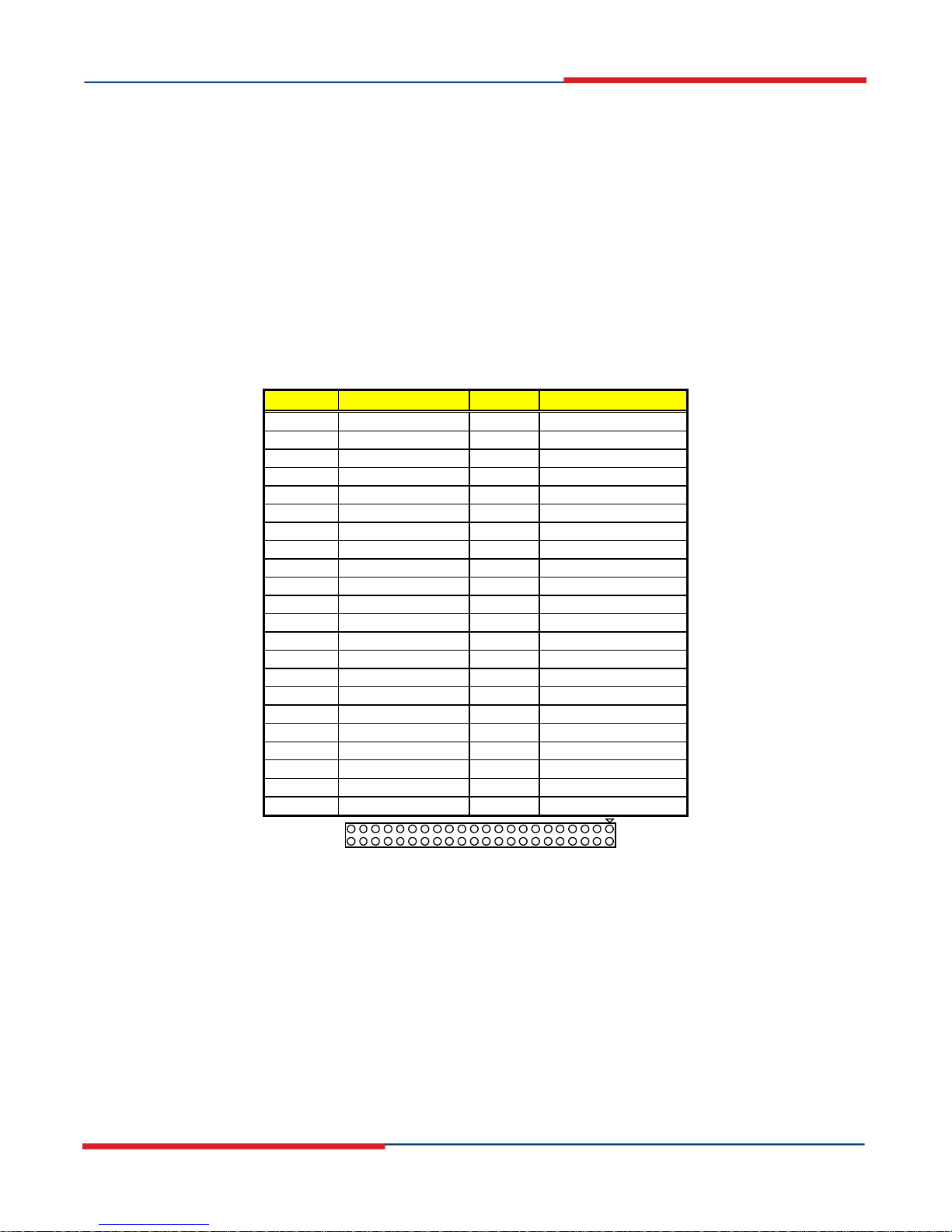

 CN11: IDE Connector
PIN Description PIN Description
1 IDERST 2 GND
3 PDD7 4 PDD8
5 PDD6 6 PDD9
7 PDD5 8 PDD10
9 PDD4 10 PDD11
11 PDD3 12 PDD12
13 PDD2 14 PDD13
15 PDD1 16 PDD14
17 PDD0 18 PDD15
19 GND 20 N/C
21 PDDREQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 PIORDY 28 470Ωwith GND
29 PDDACK# 30 GND
31 IRQ14 32 N/C
33 PDA1 34 PD33/66
35 PDA0 36 PDA2
37 PDCS1# 38 PDCS3#
39 HDD Active 40 GND
41 VCC 42 VCC
43 GND 44 N/C
1
2
43
44

14
3.9 Serial ATA Connector
You can connect the Serial ATA device that provides you high speeds
transfer rates (150MB/sec.). If you wish to use RAID function, please
note that these two serial ATA connectors just support RAID0 and only
compatible with WIN XP.
 CN7/CN9: Serial ATA Connector
PIN Description
1 GND
2 SATATXP
3 SATATXN
4 GND
5 SATARXN
6 SATARXP
7 GND
17

15
3.10 Floppy Disk Drive Connector
The 2807960 uses a standard 34-pin header connector, CN12, for
floppy disk drive connection. A total of two FDD drives may be
connected to CN12 at any given time.
 CN12: Floppy Connector
PIN Description PIN Description
1 GND 2 DRVDEN0
3 GND 4 N/C
5 GND 6 DRVDEN1
7 GND 8 INDEX#
9 GND 10 MTR0#
11 GND 12 DS1#
13 GND 14 DS0#
15 GND 16 MTR1#
17 GND 18 DIR#
19 GND 20 STEP#
21 GND 22 WDATA#
23 GND 24 WGATE#
25 GND 26 TRAK00#
27 GND 28 WRTPRT#
29 GND 30 RDATA#
31 GND 32 HDSEL#
33 GND 34 DSKCHG#
1
2
33
34
